Lionel GG1 User manual

Lionel Pennsylvania GG1
Owner’s Manual
®
featuring and
LIONEL71-8326-250
Rev. 12/00

Congratulations!
2
• Two powerful Lionel Pullmor®
motors
• Lionel Command™reverse unit for
use with the Lionel TrainMaster®
Command™model railroad control
system
•Railsounds™– digital samples from
a real GG1
• Magne-Traction®
• Die-cast ElectroCouplers™
• Directional headlights
• CrewTalk™and 2 Part TowerCom™
(in command mode)
The classic Lionel GG-1 is a model of the engine considered by many railroad
experts to be the best all around engine ever
built.
The GG-1 shape was designed by top
industrial designer Raymond Loewy and first
put into passenger service in 1935. The GG-1
can run at over 100 miles per hour with lit-
tle strain.
Lionel’s first GG-1 was offered in the 1947
catalog. The first model made with Magne-
Traction and twin motors was built in 1950.
The best GG-1 is in your hands. Enjoy!

Table of contents
3
Transformer operations
Running your GG1 with a Lionel transformer 4
Using your GG1’s ElectroCouplers 5
A note on Magne-Traction 6
Your GG1’s RailSounds system—the basics 7
Experiencing the range of your GG1’s RailSounds system 8
Notes on RailSounds 8
Installing the Lionel no. 610-5906-001 sound activation button 9
TrainMaster Command operations
The Command control environment 10
Running your GG1 in the TrainMaster Command environment 11
CAB-1 commands for your GG1 11
CAB-1 numeric keypad commands for your GG1 12
Tuning your GG1’s performance 13
Assigning your GG1 a new ID# 14
Maintaining and servicing your GG1
Replacing your GG1’s lamps 15
Lubricating your GG1’s Pullmor motor armatures 16
Lubricating your GG1 17
Reprograming the R2LC 18
Installing the pantograph on your GG1 19
Wiring for catenary operation 19
Lionel Service 20

4
Transformer operations
Running your Lionel GG1 set with a Lionel transformer
•Note the pull of Magne-Traction between your GG1 and the steel track.
Magnetized wheels and axles increase your pulling power (more than 25 cars on
straight and level track) and keep your GG1 on track while passing swiftly
through curves.
It is very IMPORTANT to determine which end of your GG1 is the front. Since it
is symmetrical it may start off in the opposite direction you are intending to go!
Turn over your GG1 and locate the volume adjustment knob (see page 8) this is
what we consider to be the “front” of your GG1. Please run your GG1 the first time by itself
just to make sure you know where it’s going.
• Your GG1 is designed to operate on 12-18 volts alternating cur-
rent. Virtually all Lionel and Lionel-compatible alternating-current transform-
ers are suitable; we recommend the TrainMaster Command model railroad con-
trol system.
• Do not power your GG1 with direct current (DC). Damage to sensitive
electronic components may occur.
• When you first power up your track, the GG1 will wait between 3
and 8 seconds as it “listens” for digital language from the TrainMaster
Command Base (available separately). When it’s determined that it’s on a con-
ventional (nonCommand) railroad, the GG1’s headlights will illuminate and
RailSounds will fire up. At this point, the GG1 is in neutral. (This occurs when
placing the GG1 on your railroad for the first time. Thereafter, it starts in for-
ward after every three-second power interrupt.)
Note!
NOTE!
• Get your GG1 moving. Press the DIR button on your CAB-1 remote or Lionel
transformer. This sequences the Liontech Command reverse unit (R2LC) to the
next operating state. The R2LC alternates between three states: forward, neutral,
and reverse.
• Adjust track voltage until your GG1 moves at your desired speed. To increase
speed, increase track voltage. To decrease speed, reduce voltage. To stop the loco-
motive, cut track power.
• To select a single operating state (example: forward only), you can deac-
tivate the R2LC’s sequencing function. Get your GG1 moving in the desired
direction, then slide the reverse unit control switch on the GG1’s underside to
PROG/LOCK. See page 14 for the switch location and positioning.
1
1Place your GG1 set on Lionel or Lionel-compatible
O gauge track.
Power up your GG1 set with your transformer.
Move ‘em out!
2
2
3
3

Transformer operations
5
Using your GG1’s ElectroCouplers in the non-Command environment
To use your GG1’s ElectroCouplers in the non-Command environment, you must
first couple a piece of rolling stock equipped
with Lionel magnetic couplers directly to
your GG1. The magnetic coupler on the
rolling stock will then react to the magnetic
field generated by a Lionel remote-control
track section (available separately). Place
your rolling stock’s coupler “trigger disc”
over the central coil of a remote-control
track section and press uncouple on the
controller. The magnetic field pulls the disc
downward, and the coupler opens.
Your GG1 ElectroCouplers will NOT
open manually or by using a
remote-control track section
Magnetic coupler on the rolling
stock coupled to your GG1
Note!
Remote-control track section

Transformer operations
6
A note on Magne-Traction
Your GG1 is equipped with Lionel Magne- Traction, magnetized wheelsets and
axles that help increase tractive effort dur-
ing operation. Because the wheelsets are
magnetized, take care to prevent small
metallic objects from attaching to the wheel
sets and working their way into the GG1’s
motor assembly. They can damage your
locomotive.
Magne-Traction is not effective on
nonferrous track.
Using your GG1’s ElectroCouplers in the TrainMaster
Command environment
Your Lionel GG1 is equipped with ElectroCouplers™ that respond
to either the COUPLER F (front) or
COUPLER R (rear) button on your
CAB-1 remote when operated in the
Trainmaster Command environment.
Simply press either button on your
CAB-1 remote, and that coupler
opens.
Your GG1’s ElectroCouplers
are NOT designed to be
opened manually.
Note!
Note!

Transformer operations
7
Your GG1’s RailSounds system—the basics
Lionel RailSounds is the most realistic model railroad sound system in the
world. Your GG1 features digital samples
from an authentic GG1 for the ultimate in
realism.
Begin by installing a 9-volt alkaline bat-
tery in your GG1. This ensures interuption
free operation of RailSounds. Remove the

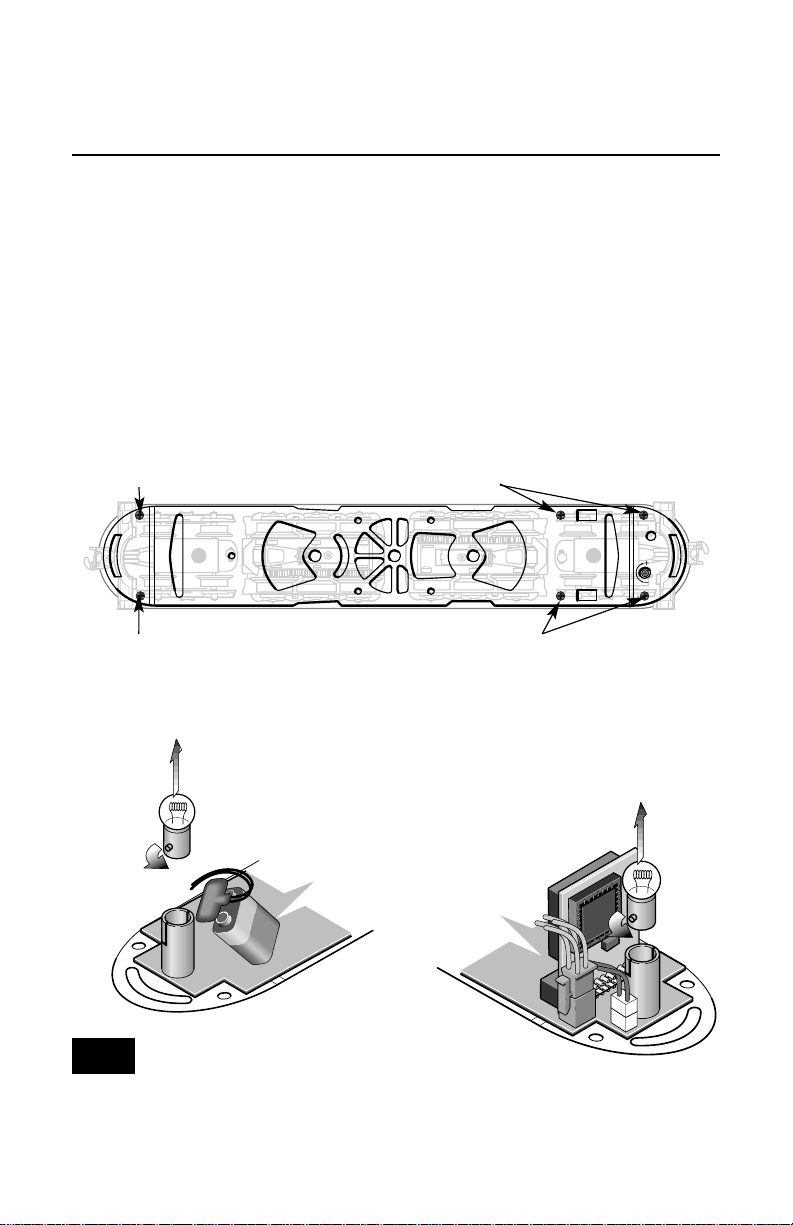

six screws,(see below for location) and lift
off the body. Connect the 9-volt battery to
the battery clip (remove the protective cap),
and place the battery into the open area on
the circuit board. Replace the body and
reinsert the six screws.
Apply track power and the GG1’s
RailSounds system delivers an authentic
start-up sequence. As the GG1’s speed
increases, the RPMs move through six levels
of roar. Sounds return to idle only after the
locomotive has come to a complete stop. To
silence the RPM roar (horn and bell remain
unaffected), slide the RailSounds switch to
its SIG (signal) position before powering

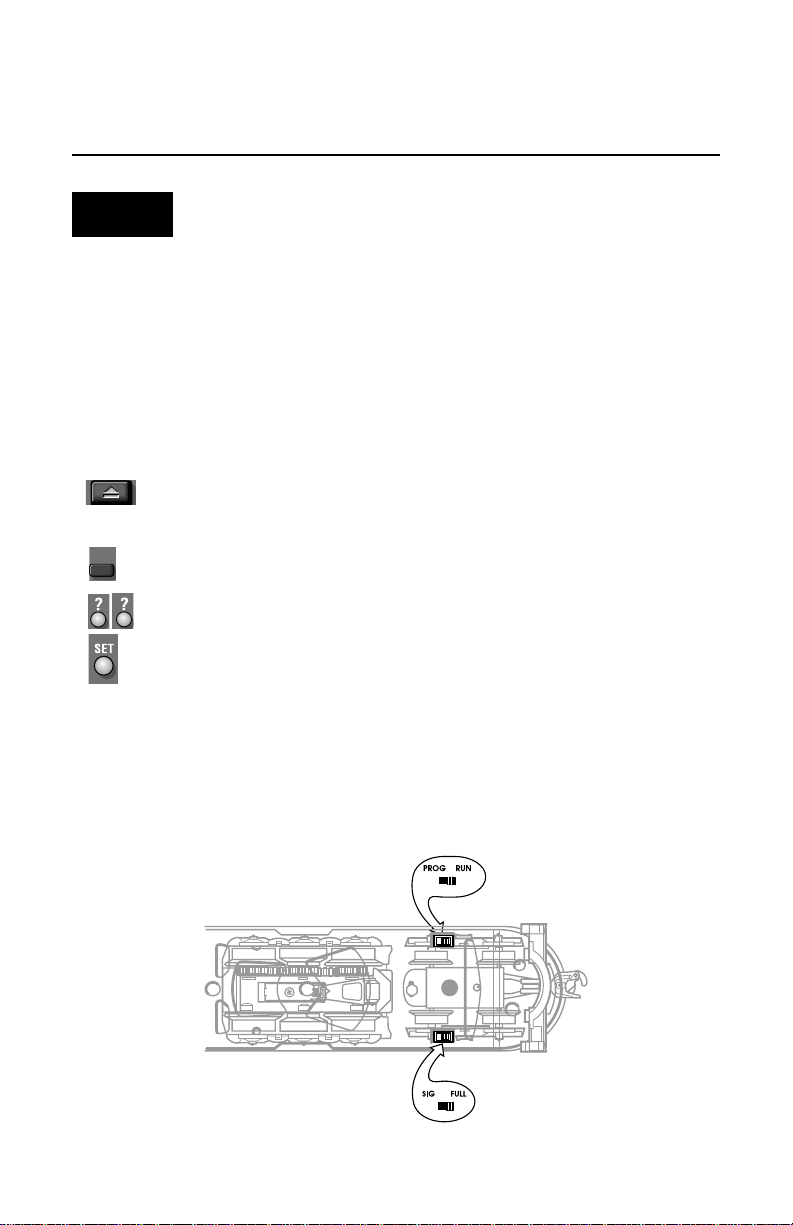

up the locomotive. See page 14 for the
switch location and positioning. To return
to the RPM roar, return the switch to the
FULL position.
FRONT of GG1REAR of GG1
Body attach screws Body attach screws
REAR OF GG1
Body attach screws
Body attach screws
Although track voltage powers
RailSounds, the battery is required for
uninterrupted operation and
shutdown sequences. Use only
alkaline batteries; do not use “heavy
duty” batteries.
Discontinue locomotive power for 10
seconds before changing the
RailSounds switch position.
If RailSounds “drops out” during
track power interrupts, replace the
battery.
Notes!

Transformer operations
8

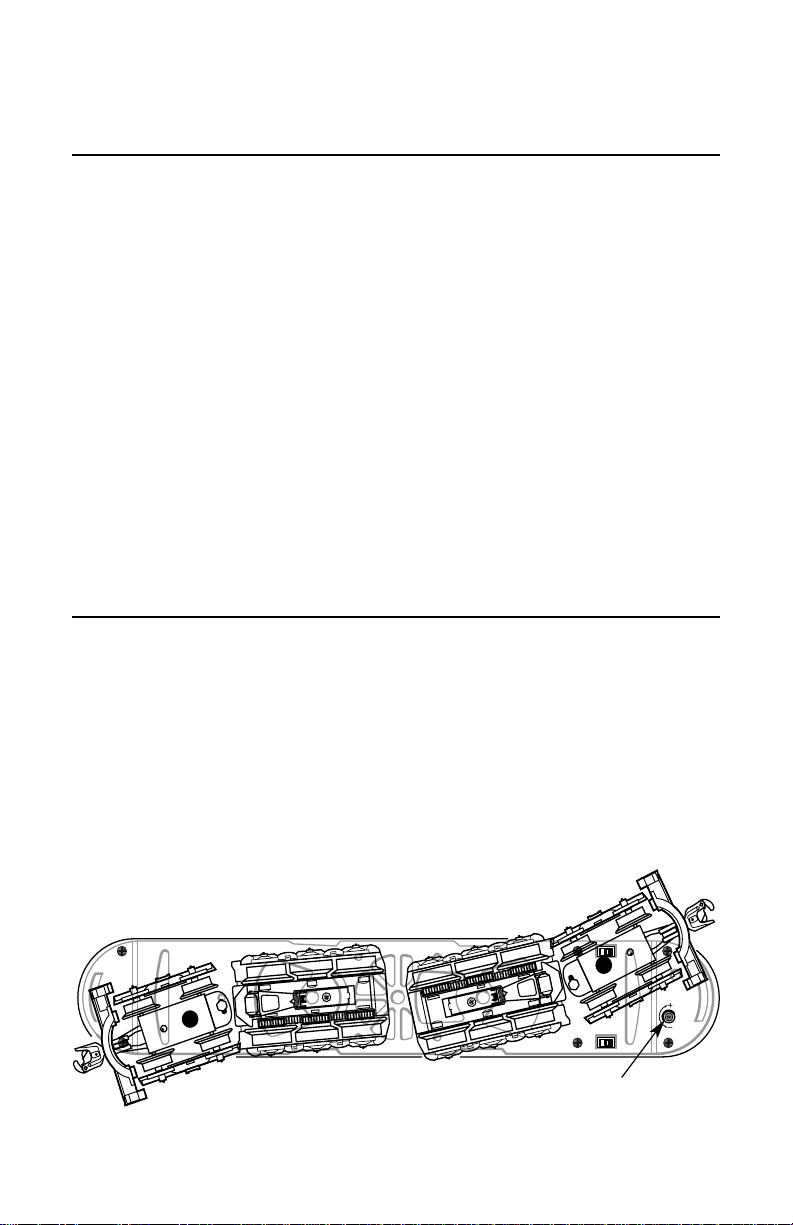

FRONT of GG1
REAR of GG1
Volume adjustment knob
With RailSounds, you experience the sounds of real railroading like never
before. Simply put, it’s the most sophisticat-
ed, authentic model railroad sound system
in the world.
• Six RPM-roar levels. Your GG1’s
speed determines the level of RPM
roar—automatically, if you prefer:
idle, slow, medium, or full-speed output.
• MultiHorn™. A different horn sound
every time—a RailSounds exclusive.
• Mechanical bell. Press BELL on your
CAB-1 or transformer to begin the effect;
again to discontinue.
• Reverse unit reset sound. Power
down your track, wait for 3.5 seconds,
and listen for the air-release sound—
that’s the GG1 telling you its Liontech
Command reverse unit has just reset to
forward operation.
• Shutdown sequence. No other model
railroad sound system shuts down like
RailSounds. Turn off track power, and
after the air-release reset sound, you
have 2 seconds to restart your GG1. If
you’re done with operations, RailSounds
will commence with an authentic GG1
shutdown sequence about 2 seconds
after the air-release reset occurs.
Experiencing the range of your GG1’s RailSounds system
• Use the GG1’s frame mounted volume
control to adjust sound output. (See
below for its location.)
• Listen for incidental locomotive sounds
during RailSounds operation. They’re
automatic and, of course, authentic.
• The 9-volt alkaline battery you installed
ensures continuous GG1 sounds.
• Longer track-power interruptions
(including locomotive derailments)
cause RailSounds to shut down after
about 7 seconds.
• For even more authentic RailSounds
effects, operate in the TrainMaster
Command environment.
Notes on RailSounds

Transformer operations
9
Installing the Lionel no. 610-5906-001 Sound Activation Button
To operate the bell and horn sounds when operating your GG1 with conventional
transformers, you’ll need to install the Lionel
no. 610-5906-001 Sound Activation Button
(available separately). Connect the button(s)
as shown below.
12
12
For AC transformers lacking a horn/whistle button (two no. 5906s required)
Lionel no. 610-5906-001
SoundActivation Button for
activating the bell
Lionel no.
610-5906-001
Sound
Activation
Button
(for horn)
Lionel no.
610-5906-001
Sound
Activation
Button (for bell)
Black wire
Red wire
Red wire attach to ground terminal
attach to power terminal
to your transformer
The no. 610-5906-001 sound activation button (available separately) works with
any Lionel AC transformer except no. 6-4690 Type MW. Transformers made by
other manufacturers may not be compatible with RailSounds.
Note!
attach to ground terminal
attach to power terminal
Red wire
to your transformer
Customer’s wire
Black wire
Note! Alltrackpowermustfeedthrough
“SoundActivationButton”.
Donotbypassbutton.
For AC transformers with a horn/whistle button

TrainMaster Command operations
10
The Command control environment
Place your GG1 on Lionel or Lionel-compatible
O gauge track.
• Make sure track power is OFF before placing it on the track.
• Make sure your Lionel Command Base is ON and its communications
wire is connected to the COMMON post on your Lionel transformer or the U on
any of your installed PowerMasters.
• Once positioned on the track, increase track voltage to FULL (on PowerMaster,
slide the CMD/CONV switch to CMD).
Address your GG1 using CAB-1.
• Press ENG and 1 on the numeric keypad of your CAB-1 remote. This com-
mand is sent by CAB-1 to the Command Base, which then translates your com-
mand into digital code. That code is sent around your railroad’s outside rails in
the form of a digital “halo.” All Command-equipped Lionels listen to this digital
communication, but they do not respond until they hear their individual ID
number—in this case, “1.”
• The digital language of TrainMaster Command—and not track power—con-
trols the actions of Command-equipped Lionels. Track power is simply like gaso-
line in the tank of your car—it gives you the power to go places, but it doesn’t
tell you where to go or how fast to get there.
• All Command-equipped Lionels come factory-programmed with an
ID# of “1.” To change the ID# of your GG1 (equipped with an R2LC) see
page 14.
Move ‘em out!
• Throttle up or press any command button on CAB-1. Your GG1 will respond to
your every command. Read on.
1
1
Lionel TrainMaster Command is the fun and sophisticated model railroad control
system from Lionel. Your GG1 features the
Lionel Command reverse unit, which acts as
both a conventional reverse unit as well as
the key to unlocking many extra features
when you operate in Command mode.
TrainMaster Command gives you the
power to operate multiple Command-
equipped locomotives on the same track, at
the same time. It’s the most fun you can
have with electric trains, and it’s incredibly
easy too! Just follow the directions below
and you’ll be on your way.
To operate in Command, you need
a Command Base and a CAB-1
remote. Find them both at your authorized
Lionel retailer.
2
2
3
3

TrainMaster Command operations
11
Running your GG1 in the TrainMaster Command environment
Press AUX2 to turn
your GG1’s headlight
on and off.
Activates keypad.
Press HALT to shut down
all Power-Master electri-
cal output on your
railroad. Stops all Command-
equipped Lionels in operation.
Turn the THROT-
TLE to the right to
accelerate, left to
decelerate.
address Locomotive #1
PowerMasters set to CMD or traditional
power supplies ON FULL
Press ENG
Press 1 (the ID#)
Throttle up/press any command button
Example

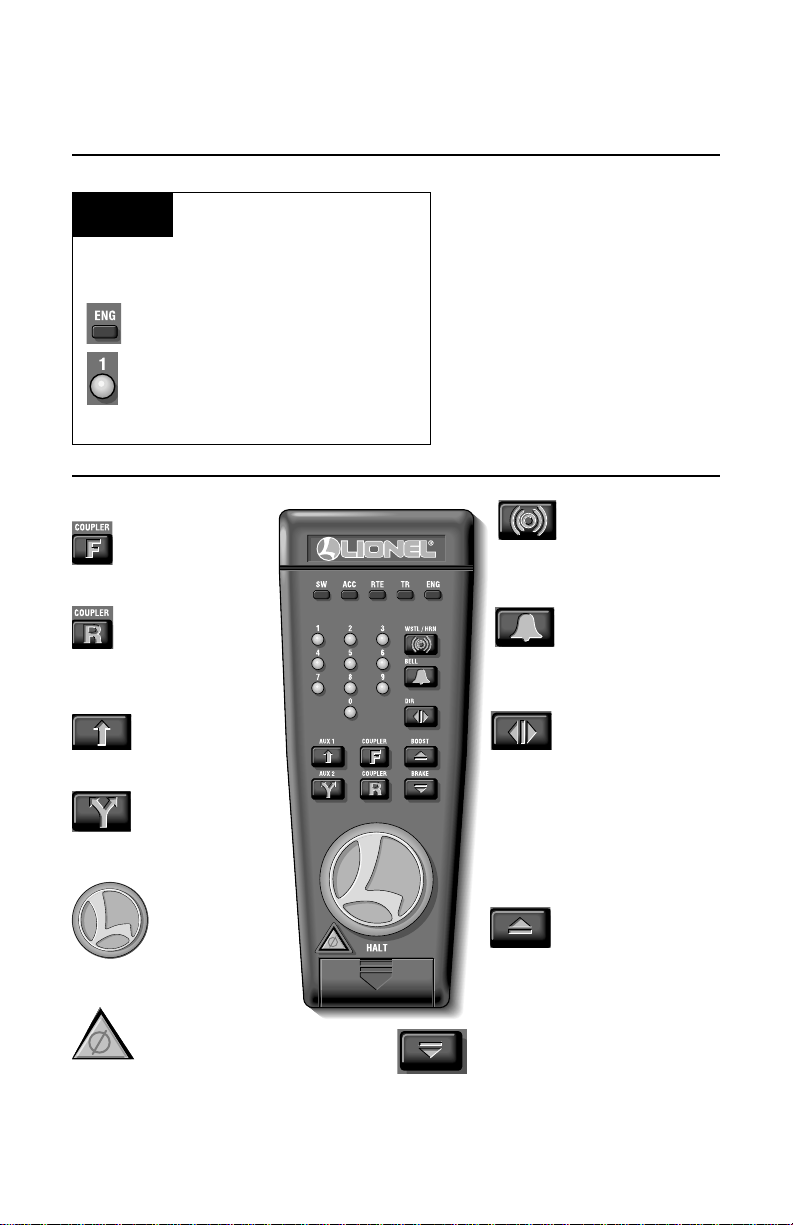

CAB-1 commands for your GG1
Press WSTL/HRN to
activate the GG1 horn,
release it to discontinue.
MultiHorn horn sound.
Press DIR—the loco-
motive decelerates to a
complete stop; turn the throttle
up, and the locomotive will
accelerate in the new, opposite
direction. There is no neutral
state. Air-release sound.
Press BELL once to
activate the bell, again
to discontinue. Mechanical
bell sound.
Press and hold BOOST
for extra power. Release
BOOST and return to the GG1’s
previous speed.
Press and hold BRAKE to slow down
or stop. Release BRAKE and return
to the previous speed. Squealing
brake sounds.
GG1 rear coupler
releases. Coupler
release sounds.
GG1 front coupler
releases. Coupler
release sounds.
Your Command-equipped GG1 comes factory-programmed with
an ID# of “1.” To get your GG1 in
action, set PowerMasters to CMD or set
all power supplies on full. Press ENG
and “1” on CAB-1. Turn the throttle or
press any command button;
RailSounds starts up. Your GG1 is
ready for Command operations.

TrainMaster Command operations
12
0Stops and resets the GG1’s. Resets the GG1’s direction to FORWARD. Resets
RailSounds to automatic RPM operation.
Horn blows. RPMs return to auto-
matic.
1Raises the volume of RailSounds. Sound volume increases.
2CrewTalk™ is the sound of inaudible walkie-talkie
communication.
3Raises RailSounds RPM level. Starts up RailSounds. RPMs increase.
Startup sequence commences.
4Lowers the volume of RailSounds. Sound volume decreases.
5Activates the RailSounds shut down sequence. Just like the real thing, your
GG1’s RPMs must be at idle for shutdown to
occur. Press 6 repeatedly to lower RPMs until
they won’t descend further. Your locomotive
is now at idle. Press 5 to initiate the shut-
down sequence. Shutdown commences.
Remember, the horn, bell, and RPMs will
not sound until you restart RailSounds.
CrewTalk.
6Lowers RailSounds RPM level. RPMs decrease.
7TowerCom™ is an audi- ble announcement that
includes that engine’s road
number and/or name. Your
locomotive features the NEW TWO PART
TowerCom announcement. By following
these simple steps you will trigger a unique
standby or departure message. There will be
a 4 second delay before the message plays.
This allows for interactive audio between
two TowerCom equipped units. After pressing
AUX-1, pressing 7 produces the standby
announcement. If you press 7 a second time,
you will get the departure announcement.
Also, by inserting any command between
AUX-1 and 7, you will get the departure
announcement. We suggest BRAKE, since
while stationary, this has no function.
8Not used on GG1.
9Not used on GG1.
CAB-1 numeric keypad commands for your GG1

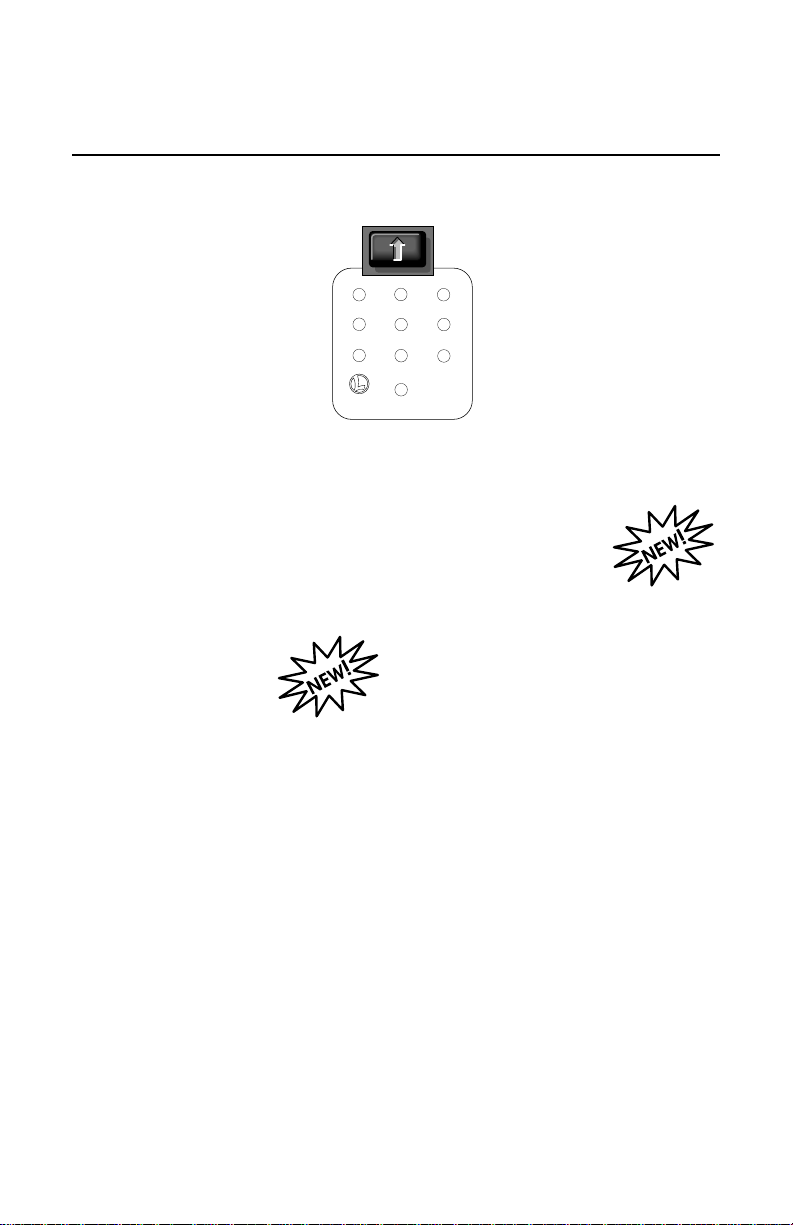

When you press AUX1 on CAB-1, you turn the numeric keypad
into 10 command buttons. The
keypad lets you control extra
command features (until you
press any top-row button like SW,
ACC, RTE, TR, or ENG). The CAB-
1 keypad overlays included with your
GG1 are designed to help you
learn the auxiliary features spe-
cific to this locomotive.
RailSounds sounds in
bold italic.
ENGINE ENGINE
RESET
VOLUME RPM
S
SHUT
CREW
TALK
TOWER
COM
DOWN
➠
➠
➠
➠
START-UP
AUX1

TrainMaster Command operations
13
Tuning your GG1’s performance
Momentum
TrainMaster Command’s momentum fea-
ture simulates the labored performance of a
locomotive pulling a heavy load. Press L, M,
or H (located under CAB-1’s removable
panel) for light, medium, or heavy momen-
tum. The GG1’s R2LC remembers this set-
ting until you change it. For quick locomo-
tive response, choose L.
Braking and Boosting
There’s more to starting and stopping
than just turning the CAB-1 throttle. Use the
BOOST and BRAKE command buttons—
they give you incremental control of speed
and are the superior way to handle grades,
gradual stops-and-starts, and more. Plus,
using BRAKE in the Command environment
gives you a bonus RailSounds effect—the
ultrarealistic sound of squealing brakes.
Sound Quality
To achieve your preferred RailSounds
master volume level, we recommend you
use your GG1 volume control dial (see page
8 for location). Turn the dial left or right to
adjust the volume to your liking.
For quick remote-control of volume below
the master setting—for example, muting—
use the CAB-1 numeric keypad’s volume
control. Press AUX1 and then 4 on the
numeric keypad to lower overall RailSounds
output.
High Voltage Setting
Press SET, headlight will flash. Get your
locomotive moving to the maximum speed
you want it to run, press BOOST. Use this to
keep your locomotive from excess-speed
derailing. Turn off the high voltage setting
by pressing SET, then BOOST, holding each
for one second.
Stall
Make your GG1 feel more responsive by
setting a “stall” voltage. Get your locomo-
tive moving, then press SET; the GG1 will
stop. Turn the throttle clockwise to get the
locomotive moving, then decrease speed
until the locomotive just stops. Then press
SET again; the R2LC remembers the stall
setting until you change it. To clear stall,
press SET twice, holding it for one second
each time.
These settings will be lost when you assign a new engine ID number.
Note!

TrainMaster Command operations
14
Assigning your GG1 a new ID#
As your fleet of Command- equipped Lionels grows, give
your GG1 its own ID#. Choose from
any between 1 and 99. Turn the
Command Base ON and place the
GG1 on track. Power up, then slide
GG1’s reverse unit control switch to
PROGRAM (PROG).
Using CAB-1, press ENG, the loco-
motive ID# (you select), then press
the SET button located under CAB-
1’s removable panel. See the GG1’s
headlight flash and hear the horn
blow; that’s your signal that the
programming has been accepted.
Slide the control switch to RUN.
Your GG1 is now programmed to
respond to the number you entered.
Assign a new I D# to your
Command-equipped GG1
Command Base ON
Place the GG1 on track
PowerMasters set to CMD or traditional
power supplies on full
Set the GG1 reverse unit control switch
to PROGRAM (PROG)
Turn track power on (PowerMasters):
Press BOOST
Program the GG1 with a new ID#:
Press ENG
Press a number you choose
(the ID#)
Press SET
Set reverse unit control switch to
RUN
Your GG1 remembers its ID# forever;
change it any time with these steps
ENG
We recommend that you chose an easy
to remember ID# for your engine.
Some possibilities are part of the engine
road number, your age, any two digit
number that is not used by anoth-
er engine. If you like write the num-
ber on a small piece of tape and put
this on the bottom of the frame to aid
in remembering.
FRONT of GG1
Example
GG1 reverse unit control switch

TrainMaster Command operations
15
Replacing your GG1 lamps
Your GG1 is illuminated by two 14-volt lamps. During the course of normal
operation, they may require replacement.
Start by separating the die-cast body from
the frame; remove the six screws on the
underside of the frame and lift the body up
slightly.
Both lamps are “bayonet” style. To
remove, push down and turn counterclock-
wise to disengage the bulb from the socket.
Replace the expired lamp with Lionel part
no. 00-0363-300, available from your local
Lionel Authorized Service Center or Lionel
Service. (For more information, see Lionel
Service on page 20.)
Insert the replacement lamp’s prongs into
the socket, making sure of a tight connec-
tion. To reinstall the shell, reverse the pro-
cess. Make sure all of the wires are inside
the body before you tighten the screws.

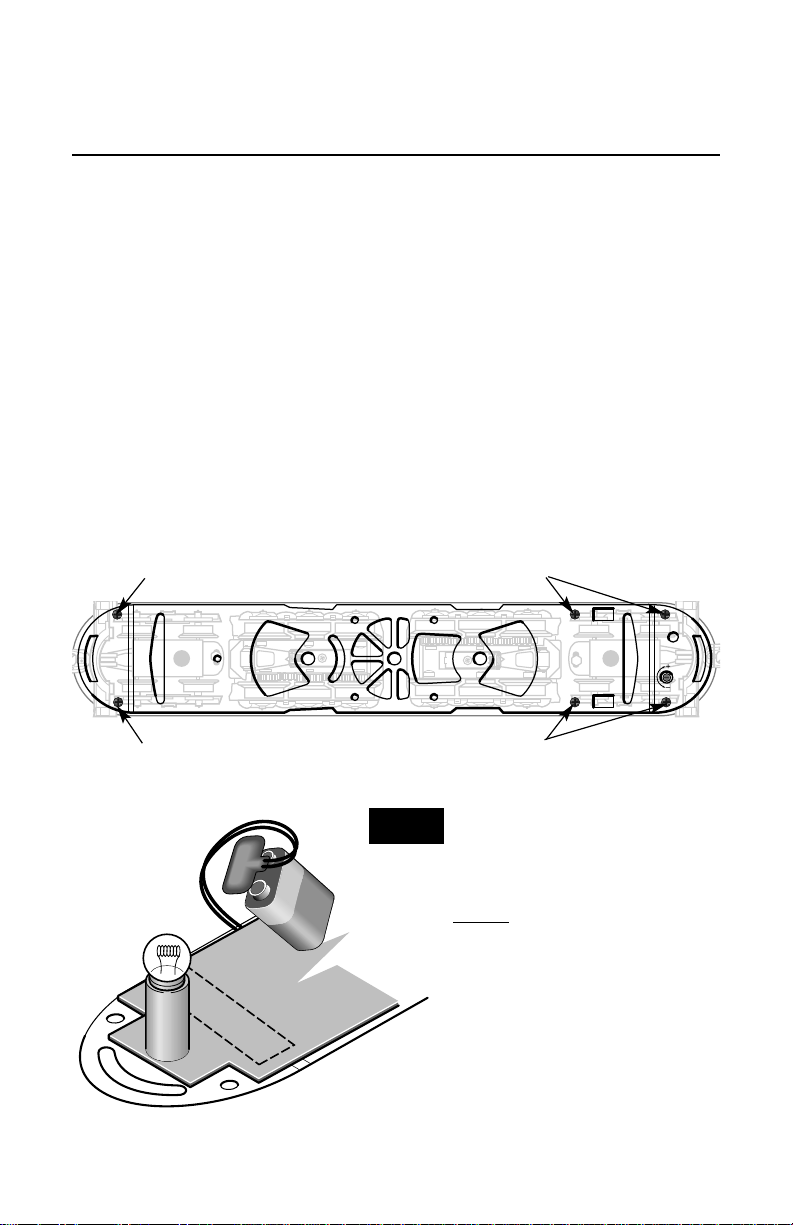

Underside of the GG-1 showing screw locations.
FRONT of GG1REAR of GG1
Body attach screws Body attach screws
FRONT OF GG1
Lionel part No. 00-0363-300 Lionel part No. 00-0363-300
REAR OF GG1
Body attach screws
Body attach screws
Press Aux2 to make sure headlamp was not
accidently turned off, before replacing bulb
Note!

Maintaining and servicing your GG1
16
Lubricating your GG1’s Pullmor motor armatures
Your GG1 will require occasional lubrica- tion of its Pullmor motor armatures. If
you hear excess noise during operation, or if
the locomotive slows down intermittently, you
may need to oil the top armature bearings.
Start by separating the body from the
frame (see page 15 for screw locations).
Apply a small amount of Lionel oil (2-3
drops) into the oil wick hole.
Finish the job by reinstalling the body
shell. Line up the screw holes and reinsert
the screws.
The Liontech Command reverse
unit is a sophisticated electronic
device and is extremely sensitive to
static electricity. Please avoid all
physical contact with the R2LC.
LIONELLIONEL
Place a small amount of oil
(2-3 drops maximum) in the
hole marked OIL.
Note!
OilWick

FRONT of GG1REAR of GG1
Maintaining and servicing your GG1
17
lubricate with Lionel grease sparingly
lubricate with Lionel
grease sparingly
Help your Lionel GG-1 lead a long and productive life on your railroad by
maintaining it properly.
We recommend you purchase a Lionel
Lubrication and Maintenance kit (no. 6-
62927), available from your Lionel dealer.
Two basic rules to keep in mind: never over-
lubricate (a small amount will do), and
avoid getting grease or oil on the GG-1’s
wheels or your track.
You’ll know your GG-1 requires lubrica-
tion when visual inspection reveals dryness
on the parts indicated in the illustration.
Remove accumulated dirt and dust before
lubricating, and always lubricate any loco-
motive emerging from prolonged storage.

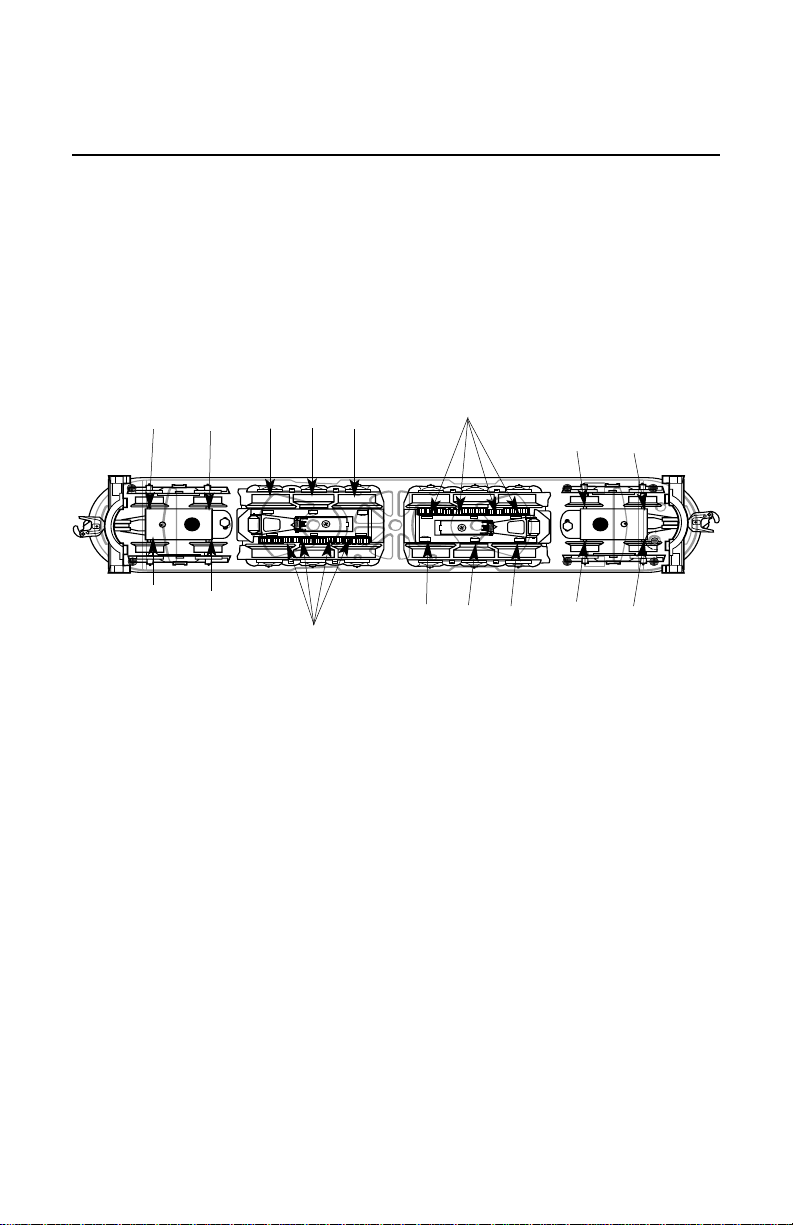

Lubricating your GG-1
lubricate with Lionel oil sparingly
lubricate with Lionel oil sparingly lubricate with Lionel oil sparingly
lubricate with Lionel oil sparingly

Maintaining and servicing your GG1
18
Due to the inevitable derailments, static, and the nature of electricity, it is possi-
ble that your R2LC could someday lose its
setup program.The symptoms of this condi-
tion would be unresponsiveness in com-
mand mode. This can be easily remedied by
“reprogramming” your R2LC using the fol-
lowing steps
Step 1: Move switch on locomotive from
run to program.
Step 2: Turn on Command Base.
Step 3: Place locomotive on track, then
turn on power to track.
Step 4: Pres “ENG” then input locomo-
tive’s ID#. Press “SET”
Step 5: Press “ENG”, then the ID#,
“AUX1”, then press #6 for your GG1.
Step 6: Turn off power to track, wait ten
seconds.
Step 7: Remove locomotive from track,
move switch from program to run.
Step 8: Place locomotive back on track,
turn power on to track.
Step 9: Press “ENG” and ID#, then operate
as normal.
Reprogramming R2LC circuit boards to restore features

Maintaining and servicing your GG1
19
Although your engine is wired to operate on a three-rail track, it is equipped
with operating pantographs which can be
wired into the power circuit by any model
railroader whose layout works with a cate-
nary, or overhead power line.
The pantographs are held in place with a
spring catch and can be removed simply by
pulling the base frame upward. This is a
very important feature as it prevents dam-
age to the pantograph in the event of a
derailment or catching on a catenary. To
replace, open the pantograph and snap into
place by pushing in the center portion.
Catenary Operation
First remove the body from the frame of
your GG1. (see page 7) For prototypical
operation, (raised pantograph in the rear)
it will be necessary to switch the order of
connections to the pantographs. To do this
you will need to unsolder the antenna lead
from the rear pantograph pick-up, splice
about 6” of wire to the antenna lead, and
solder it to the front pantograph pick-up.
Next establish a wire from the rear panto-
graph pick-up to one of the collector leads
(cut and splice).
One of the pantographs acts as the antenna. Your GG1 may not respond to command
control without the pantographs installed
If you do wire power to the pantograph, you absolutely must fold down and secure the
other pantograph so that it does not accidentally pop up and touch the power line.

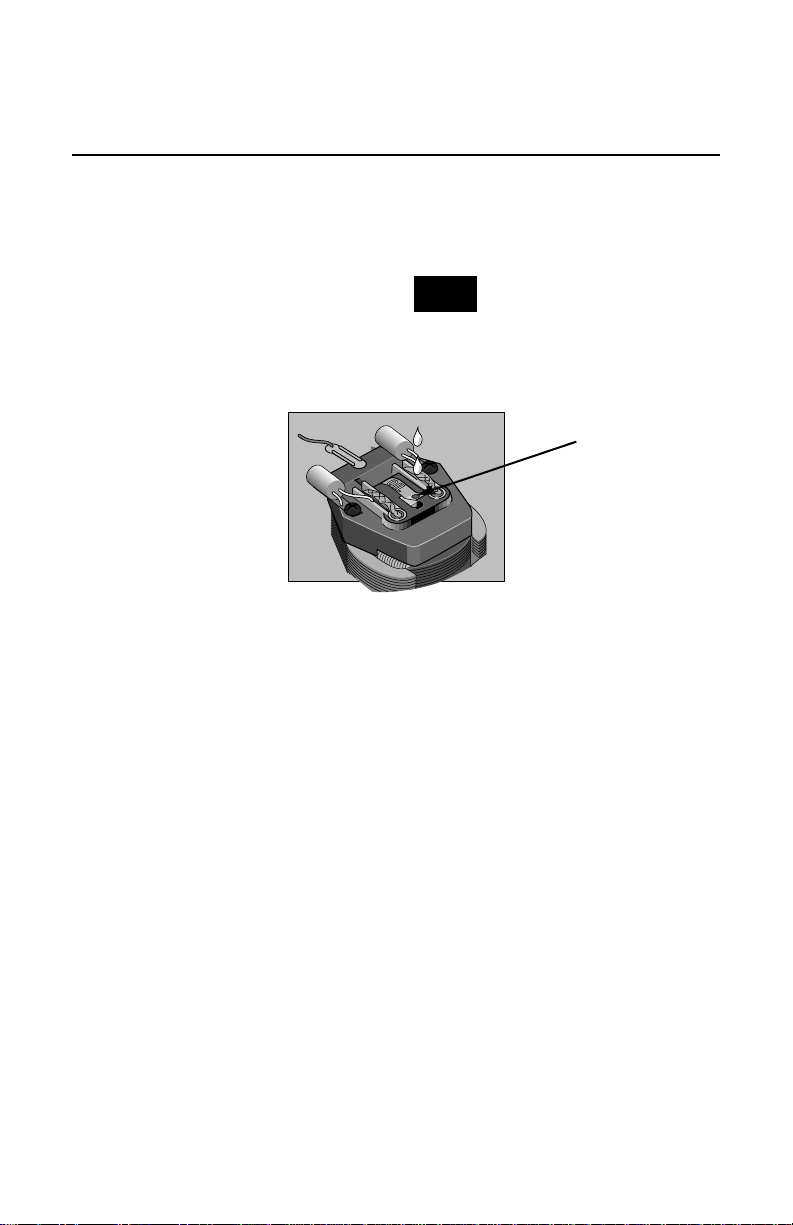

Pantograph pick-ups located here inside body
Installing the pantograph on your GG1

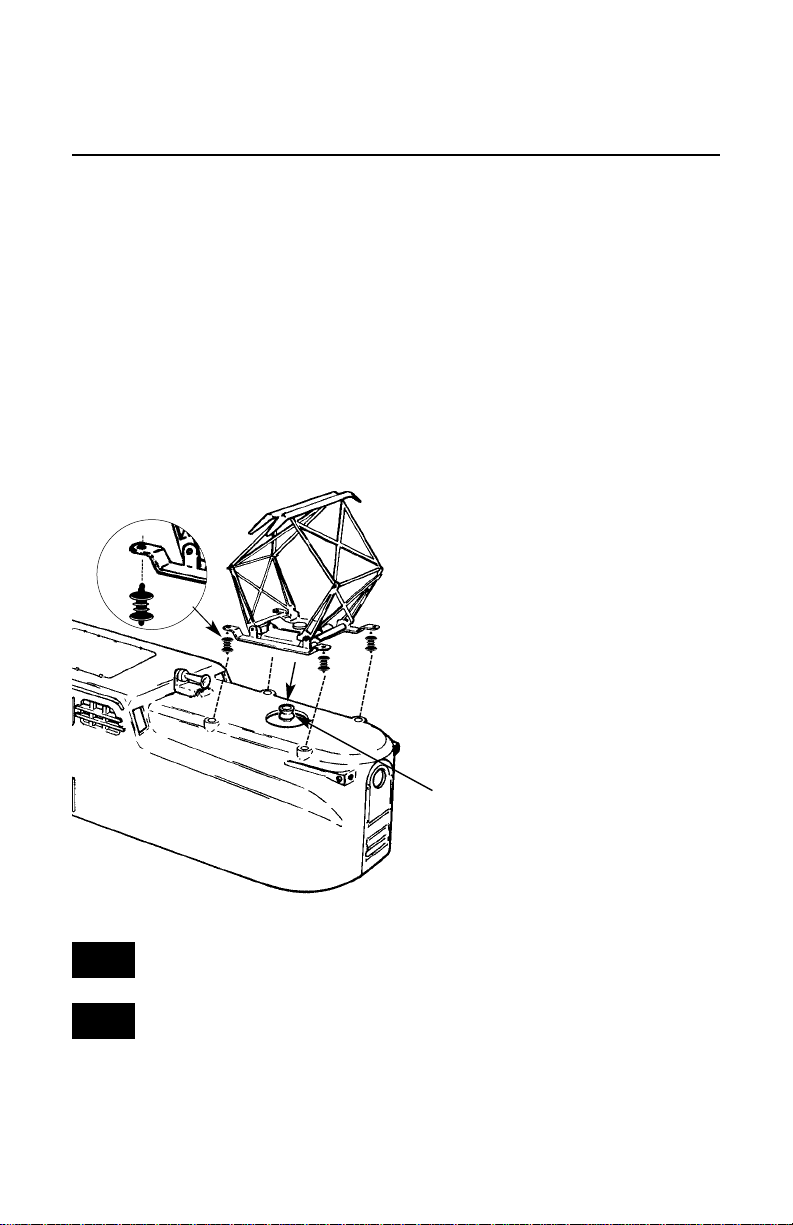

The four insulation pieces are packaged sepa-
rately and need to be installed. Simply snap
them into the four supports as shown here.
Note!
Note!

Limited Warranty/Lionel Service
This Lionel product, including all mechani-
cal and electrical components, moving
parts, motors and structural components,
except for light bulbs, is warranted to the original
consumer-purchaser, for one year against original
defects in materials or workmanship when pur-
chased through an authorized Lionel merchant.
This warranty does NOT cover normal wear
and tear, light bulbs, defects appearing in the
course of commercial use, or damage resulting
from abuse or misuse of the product by the pur-
chaser. Transfer of this product by the original
consumer-purchaser to another person voids this
warranty. Modification of this product voids this
warranty.
Any warranted product which is defective in
original materials or workmanship and is delivered
by the original consumer-purchaser to Lionel
L.L.C. or an Authorized Lionel L.L.C. Service
Center, together with proof of original purchase,
will at the option of Lionel L.L.C. be repaired or
replaced, without charge for parts or labor. In the
event the defective product cannot be repaired, and
a replacement is not available, a refund of the
original purchase price will be granted. Any prod-
ucts on which warranty service is sought must be
sent freight or postage prepaid, as transportation
and shipping charges are not covered by the war-
ranty.
In no event shall Lionel L.L.C. be
liable for incidental or consequen-
tial damages.
Some states do not allow the exclusion or lim-
itation of incidental or consequential damages, so
the above exclusion may not apply to you.
This limited warranty gives you specific legal
rights, and you may have other rights which vary
from state to state.
Instructions for Obtaining Service
If service for this Lionel L.L.C. product is
required, bring the item, along with your dated
sales receipt and completed warranty information
to the nearest Authorized Lionel Service Center.
Your nearest Lionel Service Center can be found by
calling 1-800-4-Lionel, or by contacting our
Website at www.lionel.com
If you prefer to send it back to Lionel L.L.C. for
factory repair, you must first call 810-949-4100 or
FAX [phone] or write to Customer Service,
P.O. Box 748, New Baltimore, MI 48047-0748 stat-
ing what the item is, when it was purchased and
what seems to be the problem. You will be sent a
return authorization letter and label to assure
your merchandise will be properly handled upon
receipt.
Once you have received your return authoriza-
tion and label, make sure that the item is packed
to prevent damage during shipping and handling.
We suggest that you use the product’s original
packaging. This shipment must be prepaid and we
recommend that it be insured.
Please make sure you have followed all of the
above instructions carefully before returning any
merchandise for service.
Warranty Information
Please complete the information below and
keep it, along with your dated sales receipt. You
must present this and your dated sales receipt
when requesting warranty service.
Name ____________________________
Address____________________________
Place of Purchase ____________________
Date of Purchase ____________________
Product Number______________________
Product Description____________________
________________________________
©2000 Lionel LLC, Chesterfield MI 48051-1956
United States of America
