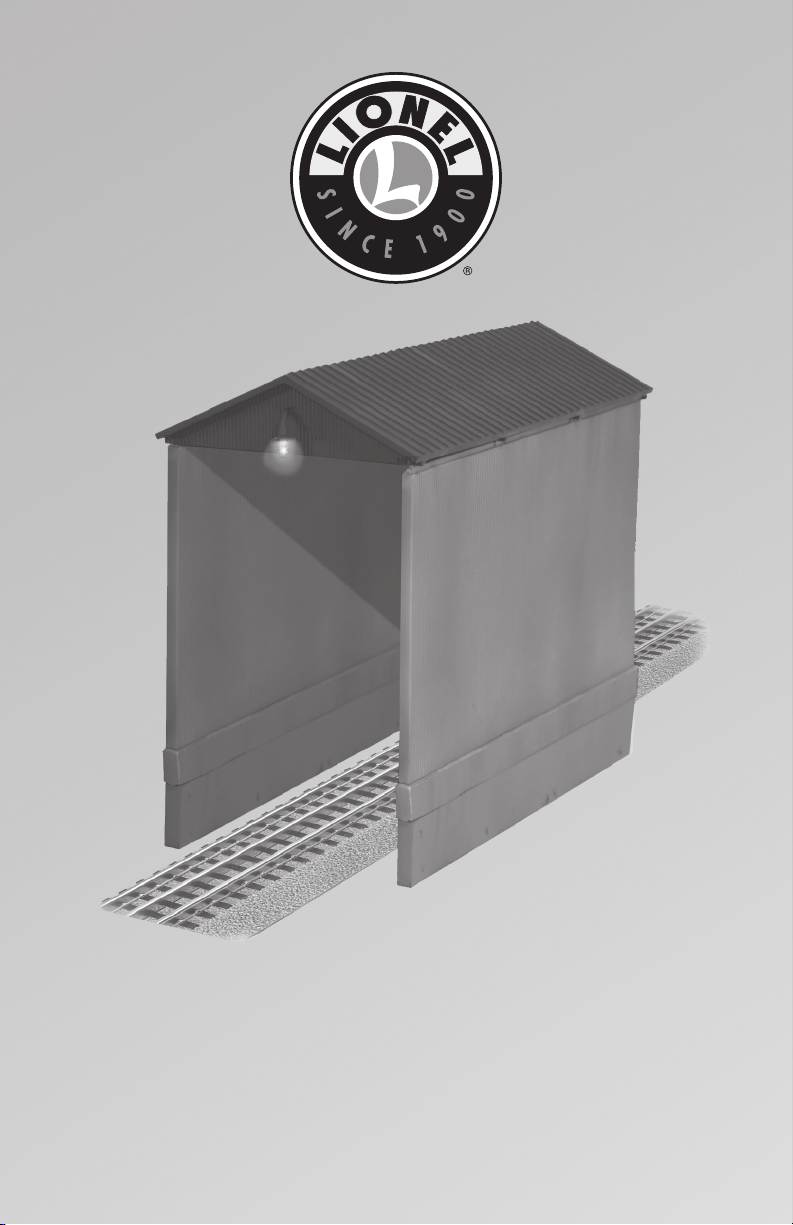

Thank you for your purchase of the Lionel Hopper Shed illuminated accessory. The adjustable height shed looks great on your train yard as a place to simulate unloading
open and covered hopper cars.
2
Installing your Hopper Shed
Lionel Lockon (available separately, part no. 6-62900) or FasTrack Accessory
Power wires (available separately, part no. 6-12053)
To power the lights through a Lionel Lockon, attach the Lockon to the track. Slide the bottom edge
of the outside rail into the metal lip on the Lockon, then press the clip at the end of the Lockon over
the bottom edge of the inside rail. The Lockon is securely in place.
To connect the wires, press down on the top of the terminal clip so that a metal loop is
formed. Slide the bare end of the wire into the exposed loop. Release pressure on the terminal
clip, allowing the crimped metal to pinch the end of the wire in the metal loop. Give a little
tug on the wire to check if the hold is secure.
Connect the red wire to the tab on the underside of the center rail. Connect the black wire
to the outside rail on the underside of a FasTrack straight or curved section.
Transformer/Power supply
You may also use a transformer or a separate accessory power supply to power your Hopper Shed
Lights. Simply connect one wire to the Power/A terminal and the other wire to the Common/
Ground/U terminal on the power supply.
Figure 1. Powering the Hopper Shed
Short height connection
6-62900 for the Lockon 6-12053 for FasTrack Accessory Power Wires
Full height connection

3
Adjusting clearance

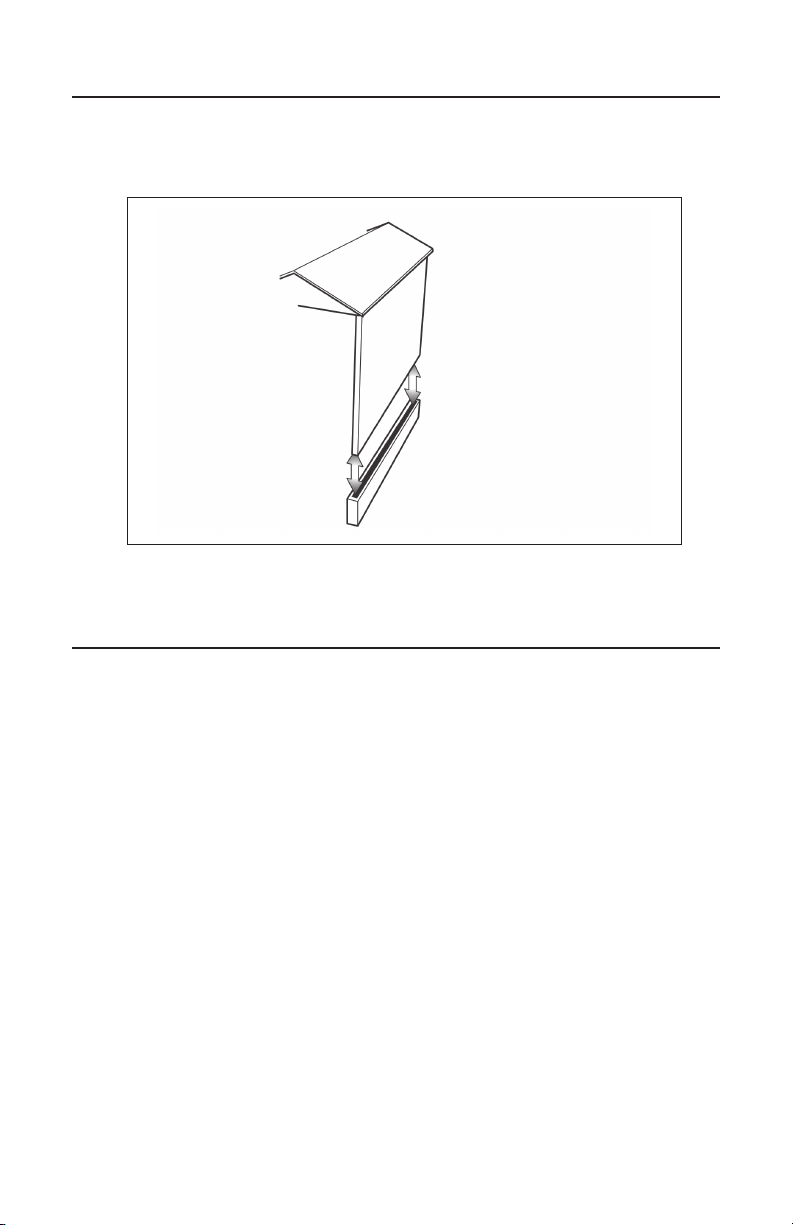

The hopper shed has a clearance of 5-3/4” from the floor to entry ceiling. If you would like to change the clearance to 5-1/4”, hold on to the side wall and slightly pull the spacer
down as shown below.
Replacing the LEDs
Figure 2. Adjusting clearance
Your accessory is illuminated by several LEDs that are expected to last for the life of the accessory. The LEDs are not user serviceable. If service is required, we recommend that
you have your accessory serviced at a Lionel Factory Trained Authorized Service Station or
Lionel Service.
The following Lionel marks are used throughout this Owner’s Manual and are protected under law.
All rights reserved.
Lionel®, FasTrack®, Lockon®

©2019 LIONEL L.L.C.
6301 Performance Dr., CONCORD, NC 28027
UNITED STATES OF AMERICA
PRINTED IN CHINA
