Lippert Components Solera Super Shade Installation instructions

1
lippertcomponents.com 574-537-8900 Rev: 01.17 - Solera®Super Shade
Solera®Super Shade
Installation and Owner’s Manual
(For Aftermarket Application)
Table of Contents
Introduction ..............................................2
Resources Required .....................................2
Installation................................................2
Solera®
Super Shade
Installation and
Owner’s Manual
(For Aftermarket Applications)

2
lippertcomponents.com 574-537-8900 Rev: 01.17 - Solera®Super Shade
Solera®Super Shade
Installation and Owner’s Manual
(For Aftermarket Application)
Installation

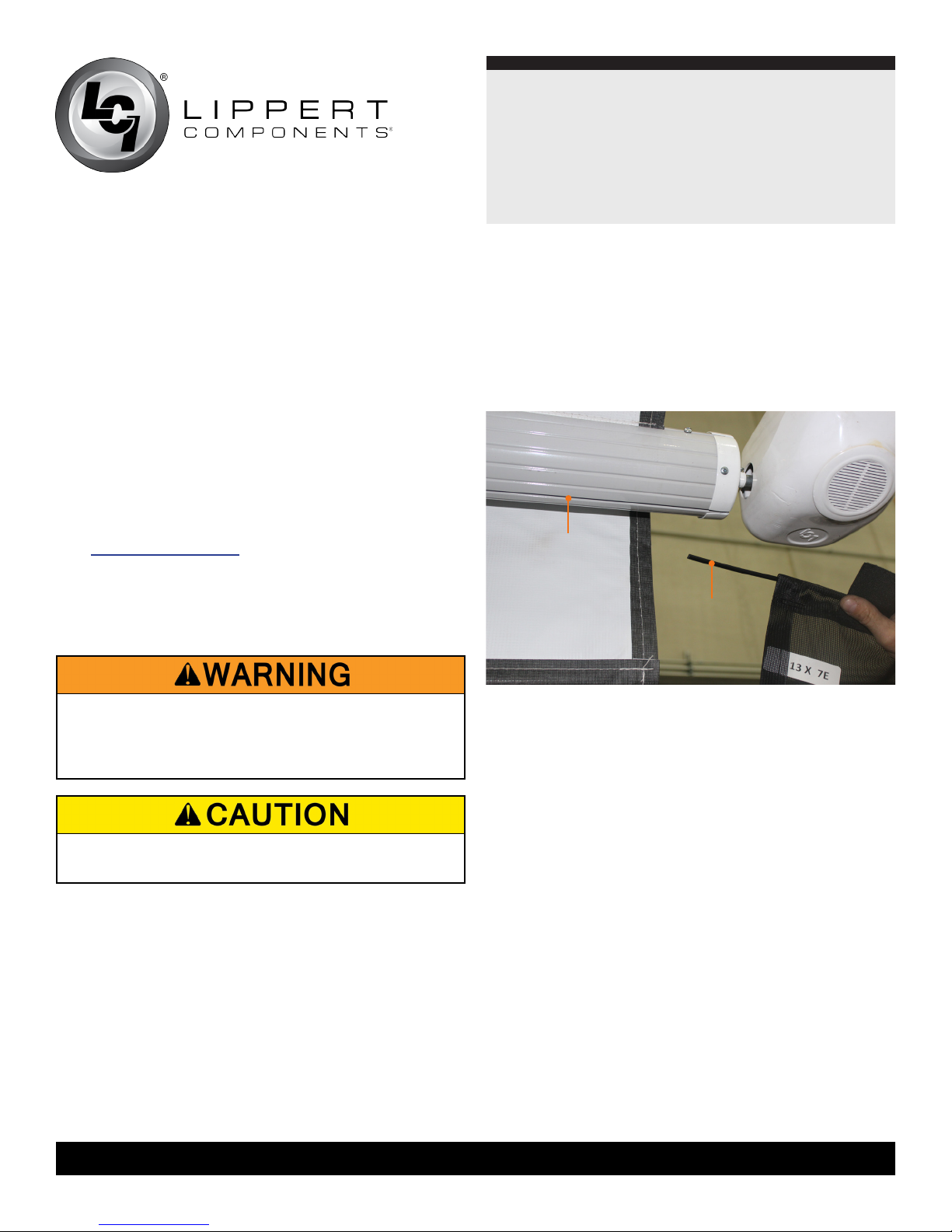

1. Unbox and unfold the Solera Super Shade body and the
zipper insert. Unzip the insert piece from the body and set
the body piece aside.
2. Locate and trim the polycord so that at least 3” of
polycord extends past the fabric on both sides (Fig.1).
3. Locate the open channel in the awning roll tube
accessible through the end cap.
4. Check the roll tube channel to make sure there are no
sharp edges that can snag or tear the fabric.
NOTE: For Solera and Carefree awnings, align the roll
tube channel with the front side of the drive/idler head
(Fig.1 and Fig.2). This allows the insert piece to slide
more easily into the roll tube channel.
Introduction
The Solera®Super Shade for Electric Awnings is the
only recreational vehicle awning shade made specically
for 12V awnings. It is simply the easiest shade to set up
on the market today. The Super Shade can be used on
Solera awnings as well as Carefree awnings and Dometic
awnings. It’s perfect for awnings that provide little shade
because they roll out at. The open-weave fabric cuts
approximately 85% of light for a cool and comfortable
shade. It provides some privacy without blocking your view
and doubles as a windbreak.
The Solera Super Shade for Electric Awnings comes in two
pieces: a 6’ body (below the zipper) and an insert.
Additional information about this product can be obtained
from www.lci1.com/support or by downloading the free
MyLCI app. The app is available on iTunes®for iPhone®and
iPad®and also on Google Play™for Android™users.
iTunes, iPhone and iPad are registered trademarks of Apple
Inc. Google Play and Android are trademarks of Google Inc.
Resources Required
• 1 to 2 Persons
roll tube
channel
polycord
Fig.1
IF STAKING SOLERA SUPER SHADE TO THE GROUND, BE
SURE TO DISABLE ANY AND ALL SELF RE-TRACKING WIND
SENSING OPTIONS ON THE AWNING. FAILURE TO DO SO
COULD RESULT IN DAMAGE TO THE AWNING AND UNIT.
MOVING PARTS CAN PINCH, CRUSH OR CUT. KEEP
CLEAR AND USE CAUTION.

3
lippertcomponents.com 574-537-8900 Rev: 01.17 - Solera®Super Shade
Solera®Super Shade
Installation and Owner’s Manual
(For Aftermarket Application)
7. Take the body of the Super Shade and zip it to the insert
piece (Fig.4).
8. Stake the shade to the ground with the tie downs and
stakes provided.
NOTE: To remove the Super Shade for storage, remove
the spikes and tie downs and unzip the body panel of the
Super Shade. Fold to t in the storage bag provided. The
insert piece can remain on the roll tube and roll up with
the fabric when the awning is retracted.
5. Using the polycord, slide the insert piece into the roll
tube channel, making sure not to snag the insert (Fig.2).
NOTE: The easiest way to install this insert piece is to have
one person hold the insert even with the roll tube, while
another person pulls the insert into the roll tube channel.
6. Once the insert is located in the center of the roll
tube, affix the insert piece with self-adhesive hook and
loop fabric to the roll tube on both ends. This will hold
the insert in place when zipping on the body portion of
the Super Shade (Fig.3).
NOTE: The other section of hook and loop fabric is sewn
into the insert piece (Fig.3).
Fig.2
Fig.3
Fig.4

4
lippertcomponents.com 574-537-8900 Rev: 01.17 - Solera®Super Shade
Solera®Super Shade
Installation and Owner’s Manual
(For Aftermarket Application)
Manual information may be distributed as a complete
document only, unless Lippert Components provides
explicit consent to distribute individual parts.
All manual information is subject to change without
notice. Revised editions will be available for free
download at www.lippertcomponents.com. Manual
information is considered factual until made obsolete by
a revised version.
Please recycle all obsolete materials and contact
Lippert Components with concerns or questions.
Notes
5 0 6 23 3 - S OL- I N STA L-1 /17
