Lippert 1500 Series User manual

12/15/2022
1
AWNINGS
AWNING SERIES IDENTIFICATION
Manual
Pull Strap
1500 Series
Hybrid
2000 Series
Edge
1
2

12/15/2022
2
AWNING SERIES IDENTIFICATION
3000
12V Power
3500
Smart Arm
4000
18V Power
5000
Elite
Roll Tube
Fabric
Rail

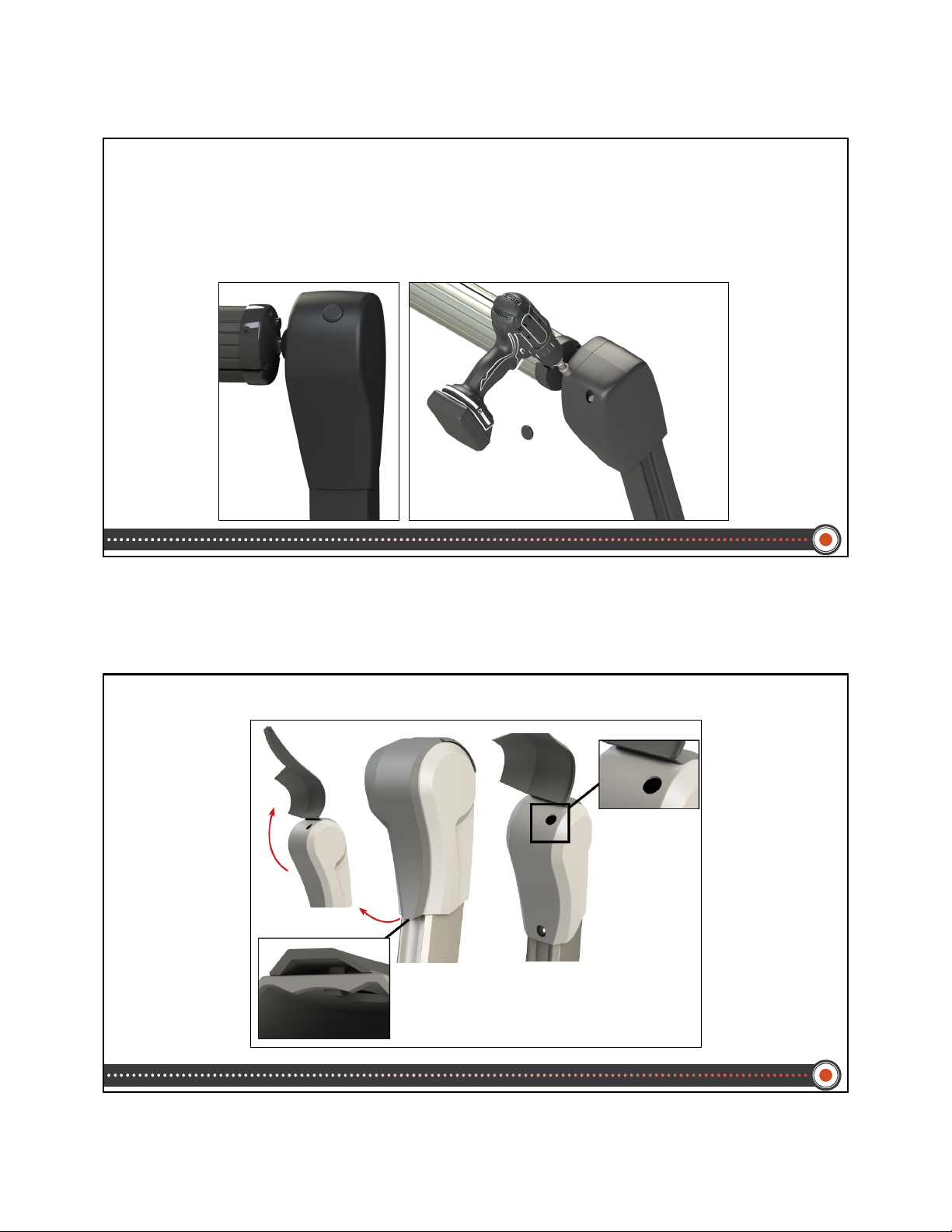

COMPONENT IDENTIFICATION
End Cap
Drive Head
Valance
Polychord
3
4

12/15/2022
3
Outer Arm
Inner Arm
Mount Arm
Strut
Pitch Arm
Support Arm
Assembly

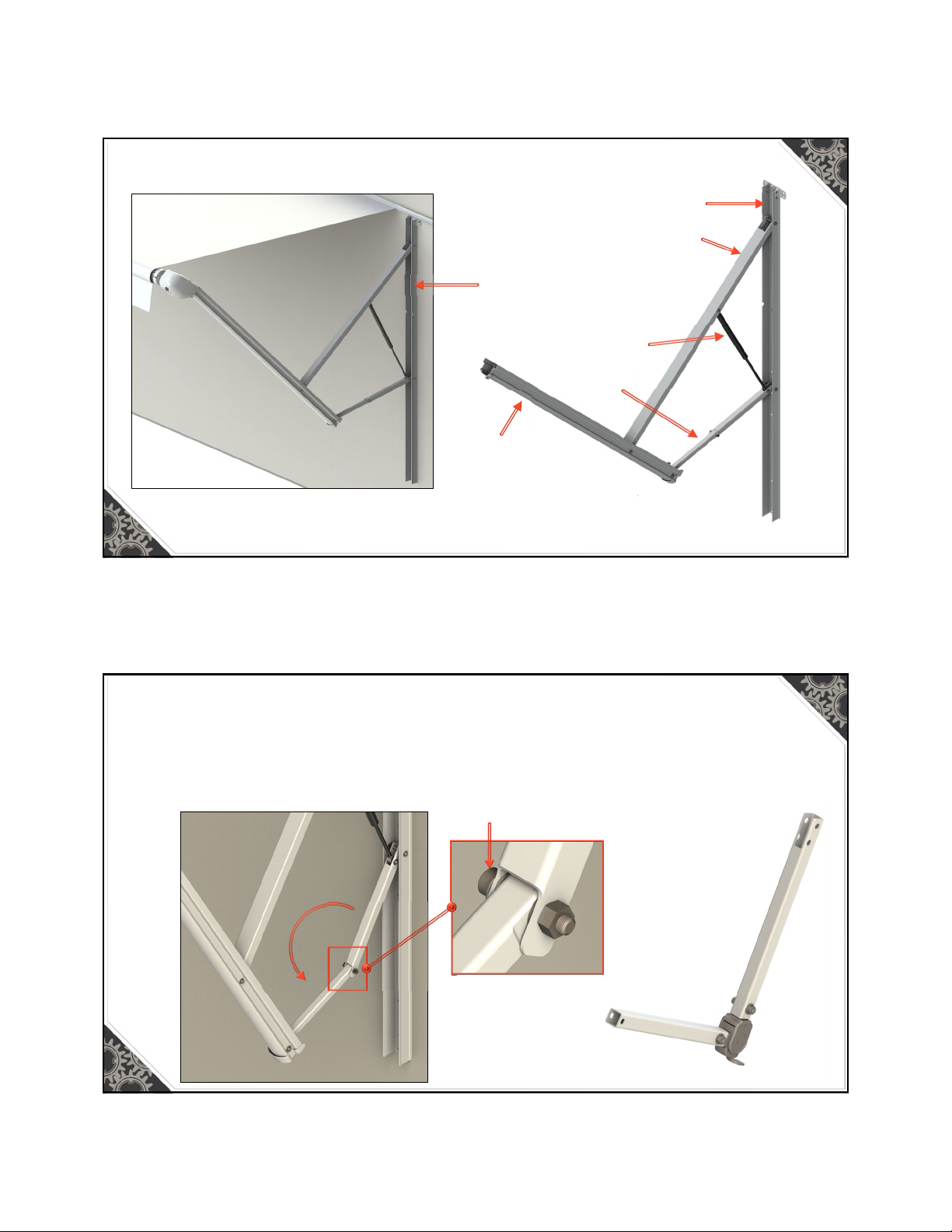

COMPONENT IDENTIFICATION
Pitch
Belleville Washer
and Bolt
Pitch can be set by adjusting the articulating arm to tip one side of the awning to allow water runoff.
•Pull Arm Down
•Leave Alone
NOTE: Locking Pitch Arm
•Auto Pitch at 10+ lbs.
PITCH ARM OPERATION
5
6

12/15/2022
4
AWNING LABELS
Roll Tube
Hardware Label
Awning Label
Variant Code
AWNING MEASUREMENTS
Awning Rail
Roll Tube
Support Arm
Size of awning = center of arm to center of arm. Fabric will be ordered to
that size but will come in 10” shorter.
Example: 10’ awning would have a 10’ awning fabric. When you measure
from center of arm to center of arm it will be 10’ but measuring the fabric
will be 9’ 2”.
7
8

12/15/2022
5
LEDS OPTIONS
Serenity Light
LED Strip Installed
on Rail
LED Strip Installed
on Fabric
Bezel LED
Awning Fabric
Polycord
MANUAL PULL STRAP AWNING
3 Point
Tension
Head
Manual Spring
Cam Lock
9
10

12/15/2022
6
MANUAL PULL STRAP AWNING

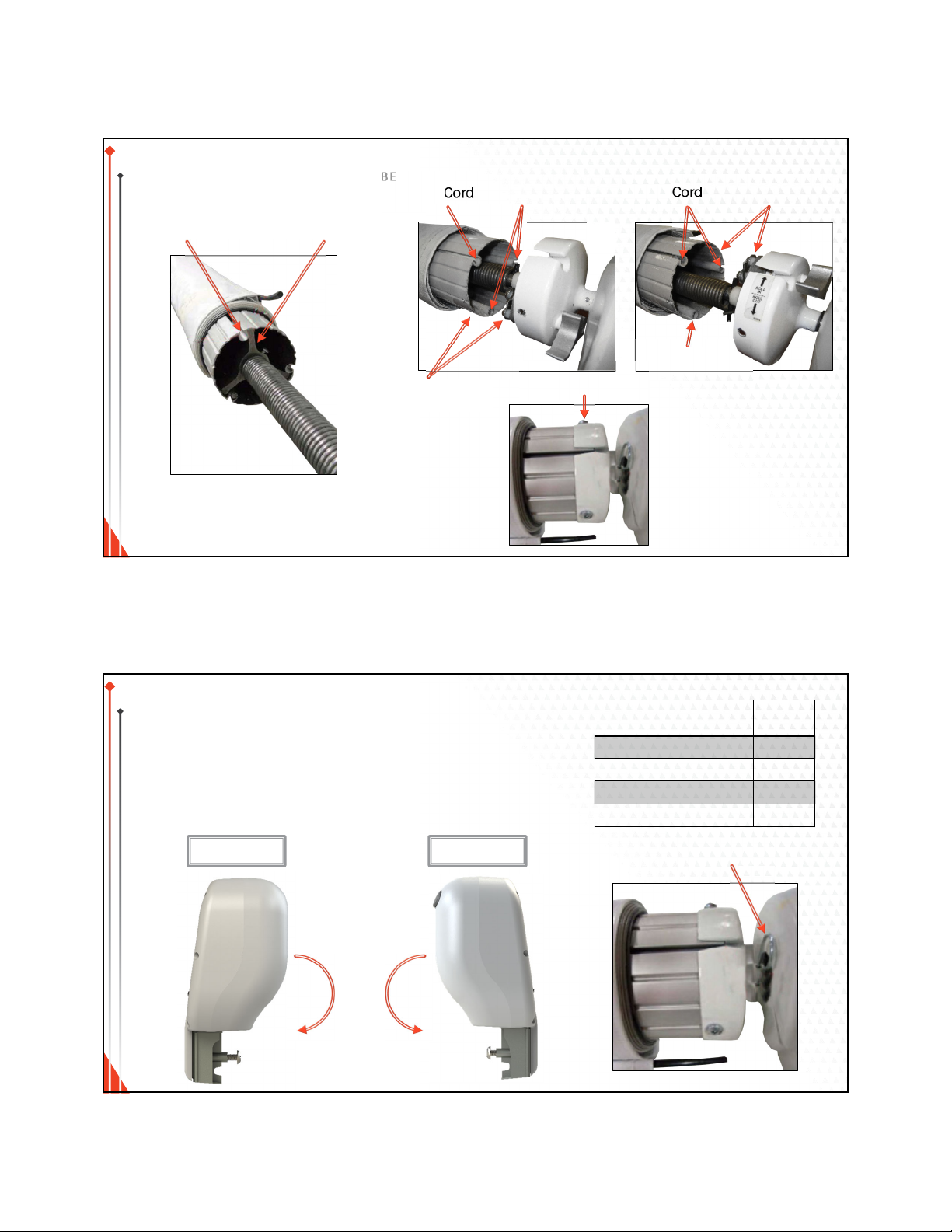

DRIVE HEAD INSTALLATION TO ROLL TUBE
Roll Tube Cord Rail 3 Way Pivot Arm
No Cord Cord
Drive Head Knob/Lock
Line Location
Cord Drive Head Knob/Lock
Line Location
No Cord
Screw
MANUAL PULL STRAP AWNING
ADDING TENSION
•Rotate drive head counterclockwise a number of turns according to
chart and insert cotter pin to secure head.
•Rotate idler head clockwise a number of turns according to the number
of times the drive head was turned and insert cotter pin to secure head.
Awning Length # of
Turns
6’ (only one spring used) 15
7’ – 16’ 9
17’ – 21’ 10
22’ – 28’ 11
Cotter Pin
Idler Head Drive Head
11
12

12/15/2022
7
MANUAL
1500 SERIES (HYBRID) AWNING
Crank
Eye Bolt
Drive Head
12V POWER
2000 SERIES (EDGE) AWNING Drive Head
Idler Head Support Arm
Assembly
Pitch Arm
13
14

12/15/2022
8
12V POWER
2000 SERIES (EDGE) AWNING
Power Wires
Switch
Harness
Switch
Switch Plate
Switch Kit
Motor
Gear Pack
12V POWER
3000 SERIES (POWER) AWNING
Drive Head
Idler Head
Original
Current
15
16

12/15/2022
9
3000 SERIES (POWER) AWNING
12V POWER
Motor
Power Wires
Switch
Harness
Switch
Switch Plate
Switch Kit
12V POWER
3500 SERIES (SMART ARM) AWNING
IR Sensor
Touch Pad
Extend
Retract
Light
Wind
Lock
Main Harness
17
18

12/15/2022
10
18V POWER
4000 SERIES (18V) AWNING
Drive Head
Idler Head
Original
Current
4000 SERIES (18V) AWNING
18V POWER
Battery Pack
Drive
Head
Battery
Pack
Charger
Extend
Retract
19
20

12/15/2022
11
12V POWER
5000 SERIES (ELITE) AWNING
Drive Head
Idler Head
AWNING INSTALLATION
1. On the awning rail, mark the position of the centerlines of the support arm assemblies. Ensure that the support
arm assemblies will not interfere with any lights, vents or other obstructions.
2. Using a non-permanent method of marking, mark a perpendicular line from the awning rail down to the floor
line. This is the centerline of the support arm assembly.
Floor Line
Awning Width is from the Center Line to Center Line
21
22

12/15/2022
12

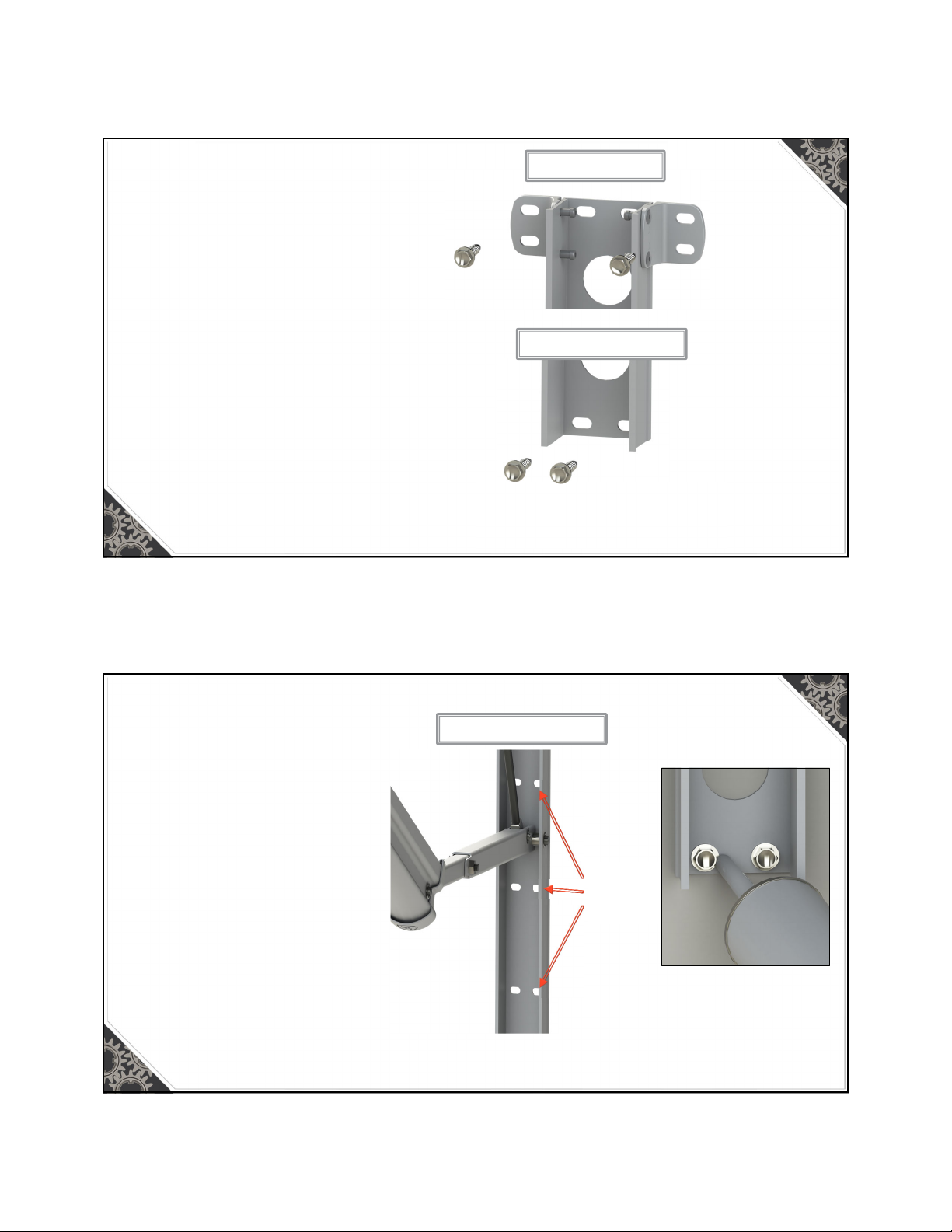

3. Lift the support arm assembly up and secure by
setting the awning assembly to the desired
height and attaching it to the side of the unit
with two (2) #14 x 1 1/4” screws at the top and
two (2) #14 x 1 1/4” screws at the bottom.
NOTE: Best practice for setting the awning
height is to push the top of the support arm
assemblies up to be flush with the bottom of
the awning rail. The awning height can be
adjusted lower if desired, but ensure that the
distance from the awning rail to the top of the
support arm assemblies is consistent at both
ends of the awning.
AWNING INSTALLATION
Bottom of Mount Arm
Top of Mount Arm
Make sure the awning assembly is
square on the unit prior to mounting
the bottom 2 screws
4. Cut the zip ties and connect the wires
from the drive head assembly to a power
source and run the awning half way out.
Remove the wire cover to expose the
fastening points. Install the remaining
two (2) #14 x 1 1/4” screws at any of
the three locations shown in the center
of the support arm. Repeat this process
for the other side of the awning
assembly.
NOTE: Four rivets with 3/16” grip range
can be used in place of the 2 middle
and 2 lower screws on laminated walls.
5. Seal all fastener locations and wire
penetrations to protect against water
intrusion.
6. Reinstall all wire covers into the support
arm assemblies.
AWNING INSTALLATION
Center of Mount Arm
Possible
Fastener
Locations
23
24

12/15/2022
13
AWNING INSTALLATION
7. Insert the drive head assembly shaft into end cap. Align the holes
and secure with waxed screw and repeat for idler head.
8. To protect the fabric from damage during installation, file any
sharp edges or burrs from the awning rail channel.
9. Use silicone lubricant and spray the inside of the awning rail
channel.
10. Remove the tape from the fabric. Unroll a small portion of fabric.
NOTE: The next steps will require three people: One to feed the
polycord into the awning rail channel; two to walk the support arm
assemblies along the awning rail while the fabric slides into
position.
11. Use a screwdriver to spread open end of awning rail channel.
Slide the polycord into the awning rail channel and walk the
support arm assemblies and fabric down the awning rail channel
until the support arm assemblies are in line with the centerline
marks made previously.
12. Extend and retract the awning several times to ensure that the
fabric is square on the roll tube.
13. Secure the fabric in the awning rail no more than 1” inside the
edge of the fabric on both ends using a #6 x 1/2” hex head
screw. Install the screw down through the awning rail into the
fabric and the polycord.
Keep the head of
the wax screw 1/8”
from fastened to
avoid compromising
the integrity of the
screw
Fabric
Stitching
Awning Rail 1”
AWNING WIRING INSTALLATION
Harness from
motor to OEM
connection
Additional harness
if OEM connection
is at the bottom of
the mount arm
1. Pull the wires from the unit through the support arm assembly. These wires may be located at
the bottom or the top of the support arm assembly.
2. Connect wiring from the unit to the switch and the awning drive head.
25
26

12/15/2022
14
AWNING RAIL LED INSTALLATION
1. Seal the back of the LED light rail.
2. Mount the LED light rail directly below the
awning rail and secure to the side of the unit.
3. Remove the wire covers in the drive side
mount arm.
4. Route the light wire over the top of the upper
brackets on the drive side mount arm and run
the light wire down through the mount arm.
5. Cut the power and ground wires to the desired
length and connect to the unit wiring. Make
sure to connect the red wire on the light side
to the power wire on the unit side and connect
the black wire from the light side to the
ground wire from the unit side.
NOTE: Solera Power Awning must be installed
prior to LED Light Rail installation.
NOTE: The LED light rail must be wired
through a 3 amp maximum fused circuit.
LED Light Rail Light Wire
Mount Arm
Awning Rail
AWNING FABRIC LED STRIP KIT INSTALLATION
1. Starting on the drive side of the awning, slide
the LED light strip (non-wired end).
2. Install set screw through the polycord.
3. Route the light wire over the top of the upper
brackets on the drive side mount arm and run
the light wire down through the mount arm.
4. Cut the power and ground wires to the desired
length and connect to the unit wiring. Make
sure to connect the red wire on the light side
to the power wire on the unit side and connect
the black wire from the light side to the
ground wire from the unit side.
NOTE: The LED light rail must be wired
through a 3 amp maximum fused circuit.
LED Light Rail
LED Wire
Awning Rail
LED Light Rail
Awning Fabric
Polycord
27
28

12/15/2022
15
MANUAL OVERRIDE
1. Remove the rubber grommet from the drive head assembly, exposing the manual override nut on the
motor.
2. Using a 7/16” socket and cordless or electric drill or screw gun, spin the manual override nut
counterclockwise to retract the awning.
3. When the awning is completely retracted, replace the rubber grommet in the drive head assembly.
5000 SERIES (ELITE) AWNING MANUAL OVERRIDE
29
30

12/15/2022
16
AWNING WIRING TROUBLESHOOTING
Check amps at
motor connection
Check voltage at
Lippert harness
connection with
OEM wiring
All electrical measurements need to be done under retract
Harness from
motor to OEM
connection
Additional harness
if OEM connection
is at the bottom of
the mount arm
3500 SERIES (SMART ARM) AWNING ERROR CODES
Lock LED Blinks Continuously
Level 1 Fault: Moisture is detected main harness.
•Interior Switch Extend: Locked and Retract: Functional
•Interior OneControl Touch Panel: Functional
•Interior Light Switch: Locked
•Exterior Touch Pad: Functional
Dry out harness and power cycle to clear fault.
Level 2 Fault: Moisture is detected in the touch pad.
•Interior Switch: Functional
•Interior OneControl Touch Panel: Functional
•Exterior Touch Pad Extend and Light: Locked
Dry out touch pad or replace.
Manual Override Exterior Touch Pad:
1. Press Extend
2. Press Retract
3. Press Light
4. Press Wind
5. Press and hold unlock button for 10 seconds to unlock touch pad.
6. Touch pad will re-lock automatically 3 seconds after pressing any button.
31
32

12/15/2022
17
MAINTENANCE
If the awning is retracted while wet, extend the awning and let
it dry as soon as conditions allow before retracting. This will
help prevent the formation of mildew and add greatly to the
life of the awning.
NOTE: Fibernew fabric repair kit – Fibernew.com
NOTE: Mildew does not form on the fabric itself, but on the
accumulated dust, dirt and grime.
Periodically clean vinyl or woven acrylic fabric using a mixture
of 1/4 cup of dish soap and five gallons of warm water.
1. Liberally apply the mixture on the top of the fabric and
retract the awning for five minutes. This will apply the
mixture to the bottom of the fabric as well.
2. Extend the awning and hose off with fresh water.
3. Repeat if necessary.
4. Allow to dry before retracting

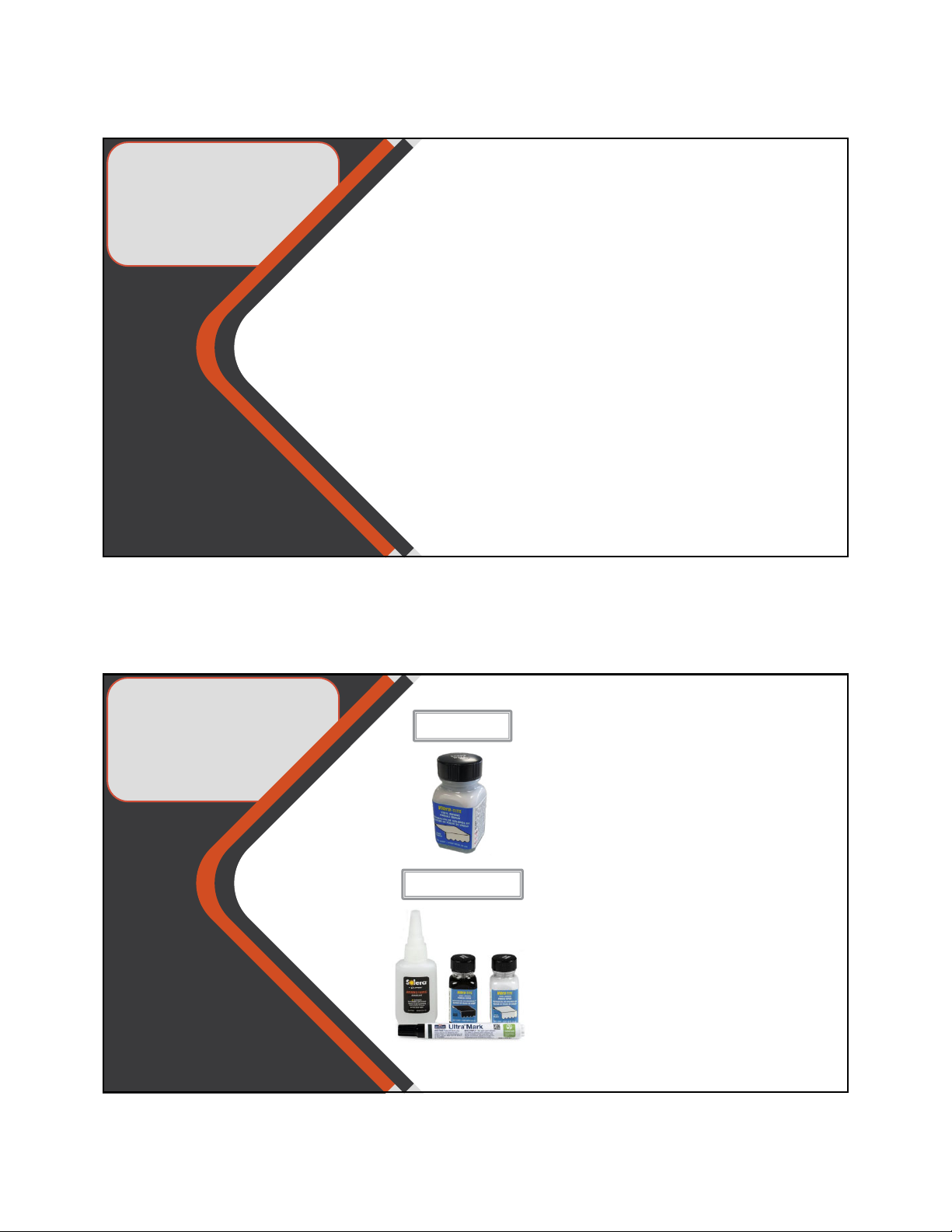

REPAIR
•Vibra-TITE® fabric repair kit.
•Vibra-TITE® fabric repair.
•Seam Separation repair.
•Scratch/Scuff repair.
Pinhole Repair
Fabric repair kit
33
34

12/15/2022
18
TECHNICAL SUPPORT
Question and Answer
If you have questions, please feel free to ask
us now. Otherwise, we are available and
happy to discuss anything presented with you.
www.Lippert.com 432–LIPPERT customerser[email protected]
35
