Solera® 3000WS Series
Awning (Wind Sensor)
OWNER'S MANUAL

Rev: 12.27.22 Page 2 CCD-0007002
Introduction
The Solera® Power Awning features an internal motor to steadily operate the awning. Additionally, the pitch
arm assembly allows for rain dump and adjustable pitch features. The pitch arm assembly also provides
added stability. The Solera Power Awning has been upgraded to include a wind sensor in the drive side arm
that pairs with the Lippert Unity board which can be controlled on the One Control app.
Additional information about this product can be obtained from lci1.com/support or by downloading
the free LippertNOW app. The app is available on Apple App Store® for iPhone® and iPad® and also on
Google Play™ for Android™ users.
Apple App Store®, iPhone®, and iPad® are registered trademarks of Apple Inc.
Google Play™ and Android™ are trademarks of Google Inc.
For information on the assembly or individual components of this product, please visit:
https://support.lci1.com/solera 3000-series-awning
NOTE: Images used in this document are for reference only when assembling, installing and/or operating
this product. Actual appearance of provided and/or purchased parts and assemblies may differ.
NOTE: This manual will refer to the “drive side” and “idler side” throughout for various instructions.
The “drive side” is the right hand side of the awning when facing the awning from the exterior
of the unit. The “idler side” is the left hand side of the awning when facing the awning from
the exterior of the unit.
TABLE OF CONTENTS
Introduction 2
Safety 3
Syncing the Bluetooth®Wind Sensor to the One Control App 4
Preparation - Initial Pairing of the Wind Sensor to the OneControl App 4
Operation 6
Extending and Retracting the Awning Using the OneControl App. 7
Settings for Automatic Retraction Due to Wind Events 7
Extending the Awning with the Power Button Switch 8
Retracting the Awning with the Power Button Switch 8
Adjusting Pitch - All Solera Awnings 9
Troubleshooting 10
Manual Override 10
Troubleshooting Adjusting Pitch - All Solera Awnings 11
Maintenance 11
Resources Required 11
Fabric Care 11
Wiring Diagram 12
Notes 13

Rev: 12.27.22 Page 3 CCD-0007002
This manual provides operational procedures for Solera Power Awning. Operating the Solera Power
Awning in any other manner than described may result in personal injury, damage to the unit or the
awning assembly as well as voiding the Lippert Components Limited Warranty.
The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause
death or serious personal injury if not performed safely and within the parameters
set forth in this manual.
Failure to follow instructions provided in this manual may result in death, serious personal injury
and/or severe product and property damage, including voiding of the component warranty.
Always wear eye protection when performing service, maintenance or installation procedures.
Other safety equipment to consider would be hearing protection, gloves and possibly a full face
shield, depending on the nature of the task.
The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury
and/or product or property damage if not safely adhered to and within the parameters set forth
in this manual.
Safety
Read and understand all instructions before installing or operating this product. Adhere to all safety labels.
This manual provides general instructions. Many variables can change the circumstances of the instructions,
i.e., the degree of difficulty, operation and ability of the individual performing the instructions.
This manual cannot begin to plot out instructions for every possibility, but provides the general instructions,
as necessary, for effectively interfacing with the device, product or system. Failure to correctly follow the
provided instructions may result in death, serious personal injury, severe product and/or property damage,
including voiding of the Lippert limited warranty.
Moving parts can pinch, crush, or cut. Keep clear and use caution.

Rev: 12.27.22 Page 4 CCD-0007002

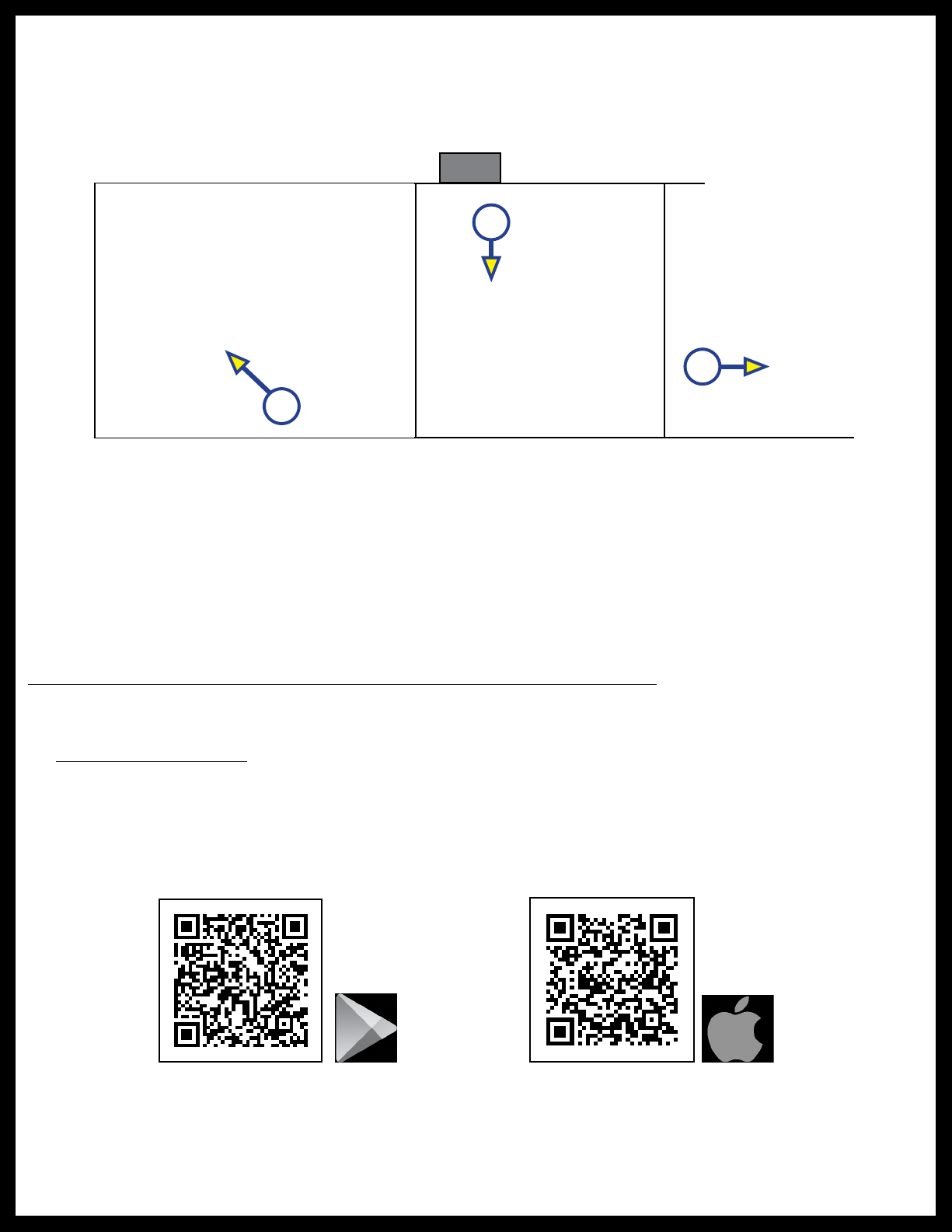

Syncing the Bluetooth®Wind Sensor to the One Control App
Located on the outside of the drive side arm will be a QR label (Fig. 1A). The QR label is also located inside
the owner's manual (Fig. 1B), or on the wind sensor (Fig. 1C) located on the inside of the drive side arm
should the front of the arm sticker wear off or the manual is lost. Scan the QR code when ready to pair to the
OneControl application.
Fig. 1
C
2. Open the app and either register or log in.
When on, the automatic retraction due to wind feature will operate without any other inputs.
If people are between the awning arm and the frame, they will be injured. The awning will sound an
audible chime before starting a wind-triggered auto-retraction and continue to time as it retracts.
This is intended to draw attention of people who may be between the awning arm to give them time
to get clear. When the automatic retraction due to wind feature is on, never hang objects from your
awning. When the awning retracts, those objects and your awning will be damaged.
Preparation - Initial Pairing of the Wind Sensor to the OneControl App
The wind sensor MUST be activated by the OneControl application in order for the wind sensor to operate.
Resources Required
• Android, iOS smart device
• Internet connection
1. To get started, if you have not already downloaded the Lippert OneControl App to control your
Bluetooth® unit devices, scan the QR code below for your smart device.
A
B

Rev: 12.27.22 Page 5 CCD-0007002
3. From the Main Menu, tap the + icon (Fig. 2A) in the upper right corner.
4. Select Awning Sensor (Fig. 3A) from the list of devices to add or manage.
5. There are two ways to connect. You can either scan the QR code on the label (Fig. 4A), which is
located on the front of the drive side of the awning arm, the label in your owner's manual or the label
on the actual wind sensor inside the awning arm or enter the 12 digit MAC address (Fig. 4B) on the
label manually.
Fig. 2
EXAMPLE LABEL
A
B
Fig. 3
A
Fig. 4
A

Rev: 12.27.22 Page 6 CCD-0007002
6. Tap either Scan with Camera (Fig. 5A), or Connect Manually (Fig. 5B). Either scan the QR code or type
in the MAC Address (Fig. 5C). The awning will now appear in the OneControl menu. It may be visible
under Modes (Fig. 5D).
Fig. 5
A
B
C
D
Operation
When extending your awning, be sure to give the awning appropriate clearance. Trees, branches,
nearby units, and other obstructions will damage your awning. The awning arms and frame are a
pinch-point. Be sure the awning mechanism is clear of people before retracting. Otherwise, harm
will result. Make sure the awning is free from obstructions and not tied-down before retracting.
Obstructions and objects will be damaged and will damage the awning.

Rev: 12.27.22 Page 7 CCD-0007002
Extending and Retracting the Awning Using the OneControl App.
A. To extend or retract the awning, press and hold the Extend or Retract buttons on the home screen (Fig. 6A).
B. To automatically fully extend or fully retract the awning, double tap the appropriate icon on the
home screen (Fig. 7A).
Fig. 6 Fig. 7
A A
Settings for Automatic Retraction Due to Wind Events
To set a wind sensitivity level, tap the arrow (Fig. 8A) in the Awning Sensor cell on the home screen and
use the slider (Fig. 8C) to adjust the wind sensitivity level, or to toggle the automatic retraction due to wind
events on or off (Fig. 8B).
Fig. 8
B
C
A

Rev: 12.27.22 Page 8 CCD-0007002
Extending the Awning with the Power Button Switch
NOTE: Some units may not use the Lippert switch (Fig. 9).
1. Verify the unit battery is fully charged and connected to the electrical system.
NOTE: If the unit is equipped with a locking latch, be sure to unlock the latch prior to extending the awning.
2. Press and hold EXTEND (Fig. 9A) until the awning is extended completely.
NOTE: Extension is considered complete when the fabric is completely unrolled, the valance seam is visible
and a section of the roll tube is exposed (Fig. 10).
NOTE: The awning fabric should always be above the roll tube. However, if the extend switch is engaged
too long or extend is hit inadvertently instead of retract, the awning will roll up backward. This is not
a defect. To correct the fabric orientation, press the RETRACT button. The awning will then extend to
its correct orientation and normal operation can resume.
Retracting the Awning with the Power Button Switch
NOTE: Some units may not use the Lippert switch (Fig. 9).
1. Verify the unit's battery is fully charged and connected to the electrical system.
NOTE: The awning can be retracted without resetting the pitch.
2. Press and hold RETRACT (Fig. 9B) until the awning is retracted completely.
Tying down the roll tube once the awning is extended will not allow the free-oating support arms
and the wind sensor to work as designed and may cause damage to the awning or Unit.
A
B
Valance Seam
Exposed Roll
Tube Section
Fabric
Roll
Tube
Valance Awning
Head
Fig. 9 Fig. 10
Warning Chime - If the awning is paired to the OneControl app, during the automatic closure
due to a wind event, a warning chime will sound. This is intended to warn users to stand clear
as the awning retracts.
NOTE: The awning may automatically retract if the wind sensor is activated.
NOTE: If the unit is equipped with a locking latch, be sure to engage the latch after retracting the awning.

Rev: 12.27.22 Page 9 CCD-0007002
Adjusting Pitch - All Solera Awnings
NOTE: The awning will pitch itself to purge the pooling of excess water and may dump a significant
amount of water without notice.
1. Pitch can be set by adjusting the articulating arm to tip one side of the awning to allow water runoff.
2. Extend the awning to desired position.
3. Choose the side of the awning for optimum shade or convenient water runoff. Pull downward on the
joint of the pitch arm until desired pitch is set (Fig. 11). Belleville washers and bolt (Fig. 12A) allow for
the joint to remain in the position set by the operator.
NOTE: Do not push the joints of the articulating arms up past a straight line (Fig. 13A). This will put tension
on the gas strut, which can cause the strut to break.
NOTE: The awning can be retracted without resetting the pitch.
A
During incidents of high wind, heavy rain or extended time away from the unit, it is advisable to
retract the awning completely to prevent damage to the awning and the unit.
Pitch
Fig. 11 Fig. 12
Fig. 13
A

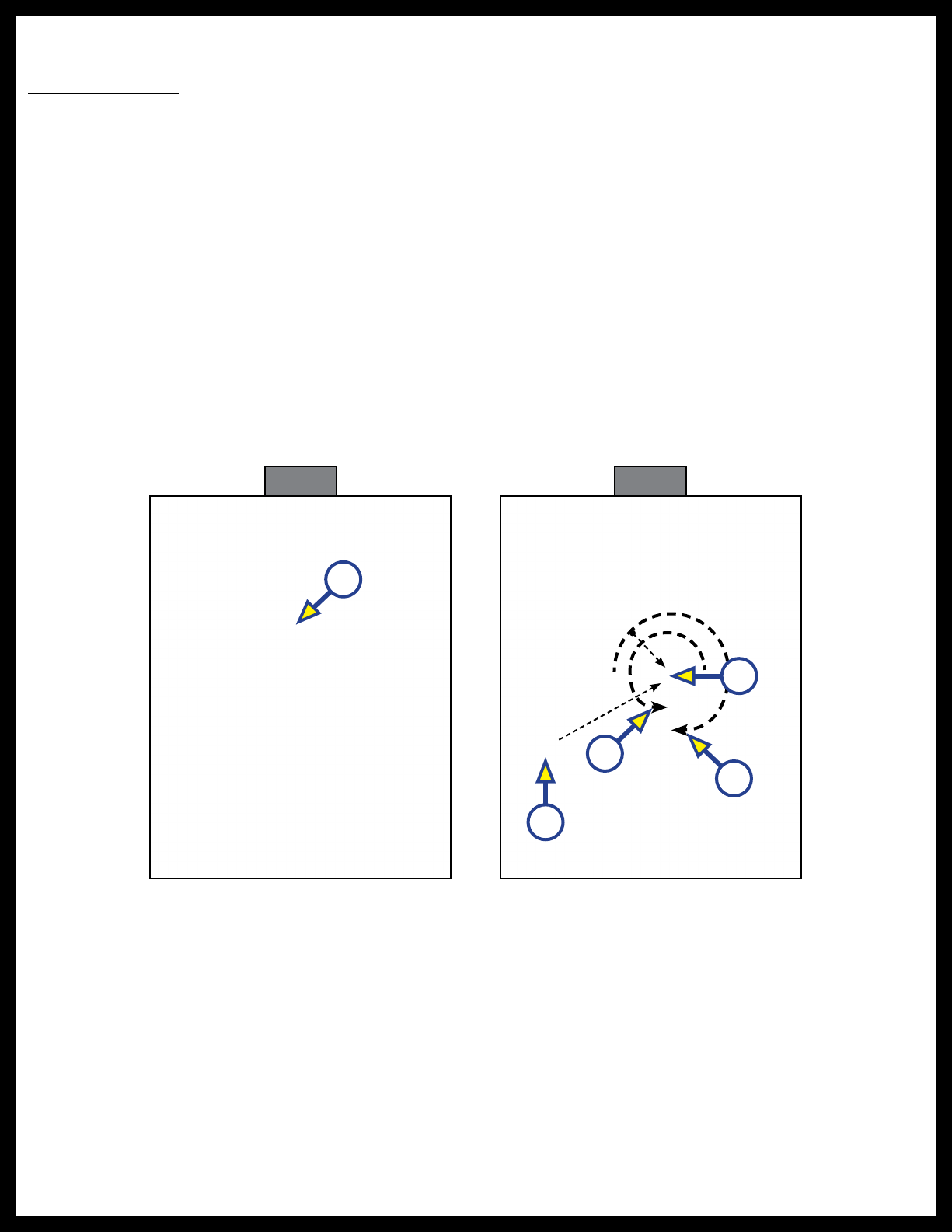

Rev: 12.27.22 Page 10 CCD-0007002
Troubleshooting
Manual Override
In the event of power loss or motor failure, the awning can be extended or retracted manually. Perform the
following procedure to manually extend or retract the awning.
NOTE: This procedure may also be performed to extend or retract the awning in the event of dry camping
or camping without a battery.
1. Remove the rubber grommet (Fig. 14A) from the drive head assembly, exposing the manual override
nut on the motor.
NOTE: The drive head assembly is always located on the right side of the awning as it is viewed from
outside of the unit.
2. Using a ⁄" socket and cordless power drill, spin the manual override nut (Fig. 15A) clockwise to
extend (Fig. 15B) or counterclockwise to retract (Fig. 15C) the awning.
NOTE: Use caution when extending or retracting the awning manually. The use of a step stool or ladder
may be required to completely extend or retract the awning.
3. When the awning is completely extended or retracted, remove socket or drive device and replace the
rubber grommet (Fig. 15D) in the drive head assembly.
A
Fig. 14 Fig. 15
D
C
A
B

Rev: 12.27.22 Page 11 CCD-0007002
Maintenance
Resources Required
• 5 gallon bucket
• Clean water
• 1/4 cup of dish soap
Fabric Care
Over-spray of cleaning solution can cause eye and sensitive skin irritation. Flush aected area
with clean water and seek medical attention, if necessary. Wear eye protection and appropriate
protective clothing to avoid personal injury.
Moving parts can pinch, crush or cut. Keep clear and use caution.
If the awning is retracted while wet, extend the awning and let it dry as soon as conditions allow before
retracting. This will help prevent the formation of mildew and add greatly to the life of the awning.
NOTE: Mildew does not form on the fabric itself, but on the accumulated dust, dirt and grime. Periodically
clean vinyl or woven acrylic fabric using a mixture of 1/4 cup of dish soap and five gallons of
warm water.
1. Liberally apply the mixture on the top of the fabric and retract the awning for five minutes. This will
apply the mixture to the bottom of the fabric as well.
2. Extend the awning and hose off with fresh water.
3. Repeat if necessary.
4. Allow to dry before retracting.
Troubleshooting Adjusting Pitch - All Solera Awnings
NOTE: If the articulating arm does not hold position, it can be tightened by adjusting the bolt (Fig. 16A) in
the center of the articulating arm.
NOTE: When tightening the bolt do not tighten more than 1/4 turn at a time and do not tighten to the
point of crushing the pitch arm.
NOTE: Existing Belleville washers and bolt are installed in a specific orientation for tensioning. Removal of
these components or modification of the orientation will cause adverse effects on the pitch
arm functionality.
A
Fig. 16

Rev: 12.27.22 Page 12 CCD-0007002
Wiring Diagram
*Awning LED Lights
Battery,
Power Source
or Converter
15A Circuit Breaker
per RVIA Code
(OEM Supplied)
Wind Sensor
Awning Motor
Wind Senor
Harness
*Awning LED
light strip
connects to a
5amp latching
output on
Unity Control.
NOTE: Awning
motor leads
connect to a
15amp reverse
polarity
output on
Unity Control.
Lippert Unity Control
*Ground
*LED light switch and extend or
retract rocker switch connect
to the configurable input
connector on the Unity Control.
*Awning LED Light Switch
Awning
Manual
Extend
or
Retract
Rocker
Switch
NOTE: *If applicable, light kits are optional.

Rev: 12.27.22 Page 13 CCD-0007002
Notes

The contents of this manual are proprietary and copyright protected by Lippert Components, Inc.
Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent from
an authorized Lippert representative has been provided. Any unauthorized use shall void any applicable
warranty. The information contained in this manual is subject to change without notice and at the sole
discretion of Lippert. Revised editions are available for free download from lippert.com.
Please recycle all obsolete materials.
For all concerns or questions, please contact Lippert.
Ph: 432-LIPPERT (432-547-7378) | Web: lippert.com | Email: [email protected]
