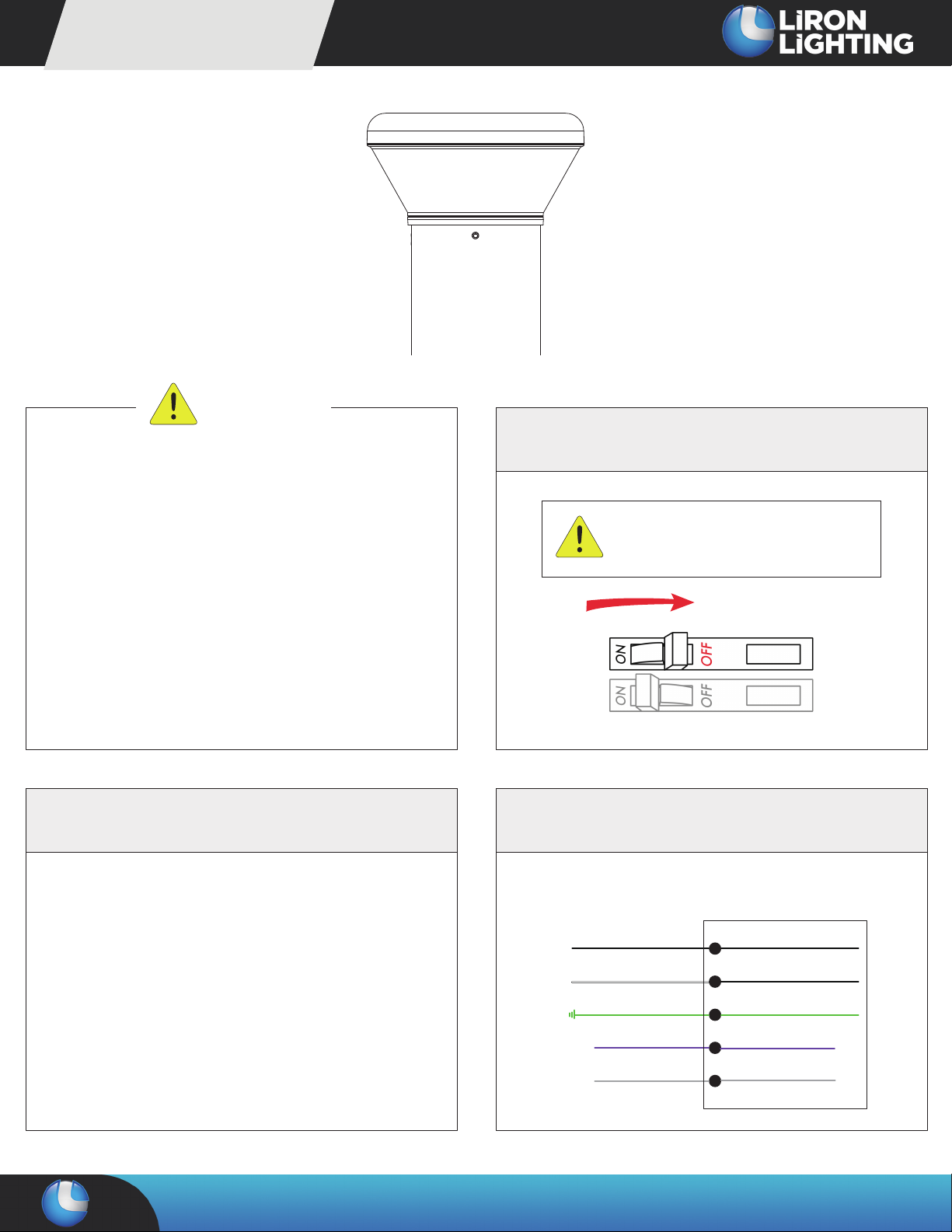

LiRON LiGHTING LEDBLR User manual

WARNING
PLEASE READ ALL INSTRUCTIONS
BEFORE ATTEMPTING INSTALLATION
Tools:
1. Sharp Side Cutter
2. Electric Drill
3. Level
4. Measuring Tool
5. Wire Stripper / Knife
6. Philips Screwdrivers
7. Wire Cutters
To prevent personal injury or product damage only licensed electricians should install.
To avoid electric shock or component damage disconnect power before attempting installation
or servicing.
This product must be installed in accordance with the national electric code (NEC) and all
applicable federal, state and local electric codes and safety standards.
Disconnect product and allow cooling prior to servicing.
Any alteration or modification of this product is expressly forbidden as it may cause serious
personal injury, death, property damage and/or product malfunction.
To prevent product malfunction and/or electrical shock this product must be properly grounded.
This luminaire is designed to operate in ambient temperatures ranging from -40°C to 45°C and to
be horizontally mounted with the LEDs facing down.
This product must be installed in accordance with the applicable installation code by a Person
familiar with the construction and operation of the product and the hazards involved.
In 75°c supply conductors.
This product is not available for several special environments, such as places with corrosive gas
liquids or high pressure water vapor.
The allowable ambient temperature is 10℃(50℉) to 40℃(104℉) when configuring the
emergency battery kit.
SHOCK HAZARD!
WIRINGTOOLS REQUIRED
Black
White Neutral
Green/Yellow Green
Ground
Line
Purple
Gray
CORD/ SUOOLY WIRING
LEDBLR
To avoid electric shock or component damage
disconnect power before attempting
installation or servicing.
LUMINAIRE
PAGE 1 of 2
Email: [e-mail]: Sales@lironli
E
10835 S Wilcrest Dr, Ste C Houston TX 77099 Customer Service : 833-875-4766 Email : [email protected]
Due to continuous product improvements, specifications and dimensions are subject to change without notice. Certain options have limited compatibility with some other product selections. Consult www.lironlighting.com for most current technical information.
I I
DIM+
DIM-

Installation Guide
1. Place the Bollard base over Anchor Bolts. Loosely tighten the washers and nuts provided. Tighten all nuts and screws.
Be sure supply leads extend far enough to make fixture connections. Wiring connections can be made now.
Slide the bollard over on bollard base lined up with the grooves. Be sure to check the LED position on the Bollard.
Use the four set screws to secure the bollard to the bollard base.
PAGE 2 of 2
Email: [e-mail]: Sales@lironli
E
10835 S Wilcrest Dr, Ste C Houston TX 77099 Customer Service : 833-875-4766 Email : [email protected]
Due to continuous product improvements, specifications and dimensions are subject to change without notice. Certain options have limited compatibility with some other product selections. Consult www.lironlighting.com for most current technical information.
I I
ROUND BOLLARD
Bollard Base
Anchor Bolts
Leveling screws
(by others 1/4-18 UNC)
