Introduction
The 12.5kW Power System is a 3-phase, dual-input, 6-slot chassis with 2.5KW Power Supply Units (PSUs)
that provides stable DC output power (12.5VDC / 1000A). This 19-inch power system uses up to 6 high-
power, dual-input, hot-swappable PSUs for flexibility in full power or redundant operation. For more
information about the 12.5kW Power Shelf, refer to the Lite-On 12.5kW Power Shelf Datasheet.
The 2.5kW Dual-Input PSUs efficiently supply both main output DC power and standby DC power from
either AC or DC sources. These compact PSUs provide 2.5kW, 12.5V / 200A and support PMBUS 1.2 with
boot loader, LED status indicators, and circuit protection features. For more information about the 2.5kW
PSU, refer to the Lite-On 2.5kW Dual-Input Power Supply Unit Datasheet.
This user guide provides instructions to install the 12.5kW Power System. For instructions on initial startup,
refer to the Lite-On 3-Phase, Dual-Input, 12.5kW Power Supply System Startup Guide.
General Safety Convention
This user guide uses the safety conventions described below. Ensure that you follow the safety instructions
in this guide and observe its directives to protect you from injury and to protect your equipment from
damage.
WARNING
Indicates highly-dangerous consequences such as fire, serious injury, or death when
failing to comply with the instructions.
Caution
Indicates dangerous consequences such as moderate injury or equipment damage when
failing to comply with the instructions.
Required Tools for Installation and Maintenance
The following tools are required for installing and maintaining the Power System.
•10mm and 13mm wrenches
•Digital Multimeter (DMM) for testing and verifying power
•Torque driver to tighten bolts
Unpacking and Checklist
Carefully unpack the rack, Power Shelf, and Power Modules and move them to the staging area for
assembly. It is recommended that you keep the packaging in case equipment needs to be returned to the
supplier.
The following tools are required for unpacking.
•Screwdriver for removing screws from rack packaging
•Wrench for removing bolts from rack packaging
•Crowbar for opening wooden boxes (if nailed)
•Box cutter or utility knife for opening cardboard packaging

USER GUIDE
PF-2123-1LDx
3-Phase 12.5kW Power System
PF-2123-1LDx-UG-02 Page 4 of 19 April 2017
WARNING
A least two people are required to remove the rack from its shipping container to ensure
that the rack stays upright and does not fall on personnel.
To unpack the rack from its shipping crate:
1. Remove the front panel from the shipping crate.
2. Remove any shipping bolts from the rack that hold the rack to the crate.
3. If necessary, remove any shipping blocks or straps from around the rack.
4. If necessary, raise the leveling feet to their highest position.
5. Secure a ramp to the front of the crate.
6. Using two or more people, carefully roll the rack out of the crate and down the ramp.
7. Inspect the rack to ensure that it was not damaged during shipping.
To unpack items from cardboard shipping boxes:
1. If necessary, remove any shipping straps from around the box.
2. Place the box upright and cut through the tape on the top of the box.
3. Remove the item(s) from the box along with any shipping foam if necessary.
4. Remove the item(s) from any shipping foam or wrapping material.
After all items have been unpacked, verify that you have received all the items as specified by the shipping
paperwork.
Equipment Inspection
After unpacking the equipment, inspect it for damage that might have resulted from shipment. Check for
the items below and contact the shipper in the unlikely event that damage is found.
•Bent connectors, alignment pins, or chassis
•Any cracks or chips on plastic components
•Unusual scratches or marks
•Dents in sheet metal or panels
•Corrosion or evidence of water or chemical damage
•Indications that the device was dropped
•Loose parts inside the equipment
Power Shelf and Rack Preparations
These instructions assume that the rack has been moved into place and is installed properly. If necessary,
refer to the User Guide of the rack for more information about installing it.
The Power Shelf slides into a 19-inch rack and is supported in the rack by shelf support brackets. If the
Shelf Support Brackets are not already installed in the rack, follow instructions “Shelf Support Brackets
Installation” on page 5 to install the brackets.
Before the Power Shelf is installed into the rack, Linking Bus Bars are loosely installed on the rear of the
Power Shelf; they are tightened after the Power Shelf is mounted into the rack. Follow instructions in
section “19-Inch to 21-Inch OCP Rack Adapter” if installing the Power Shelf into a 21-inch OCP rack.

USER GUIDE
PF-2123-1LDx
3-Phase 12.5kW Power System
PF-2123-1LDx-UG-02 Page 5 of 19 April 2017
Shelf Support Brackets Installation (non-Lite-On 19-inch rack)
The weight of the power shelf is supported in the rack by two Shelf Support Brackets. To install the Shelf
Support Brackets into the rack, follow the instructions from the manufacturer of the rack.
19-Inch to 21-Inch OCP Rack Adapter
The 12.5kW Power System is a 19-inch wide device, but with a Lite-On rack adapter, it can be mounted
into an OCP 21-inch rack
The mounting location(s) of the power shelf in the rack depends whether the rack is a single or dual power
zone power system. The location is described in the table below.
Rack Power Zone Type
Rack OU Locations
Single Zone Power
20, 21, 22
Dual Zone Power
9, 10, 11, and 28, 29, 30
To Install 19 inch to 21-inch Adapter into the Rack:
1. As shown below, install a support bracket (part number 825603) on the left side of the rack and
one support bracket on the right side of the rack using four (4) M6 screws for each side. Note: both
support brackets are identical.

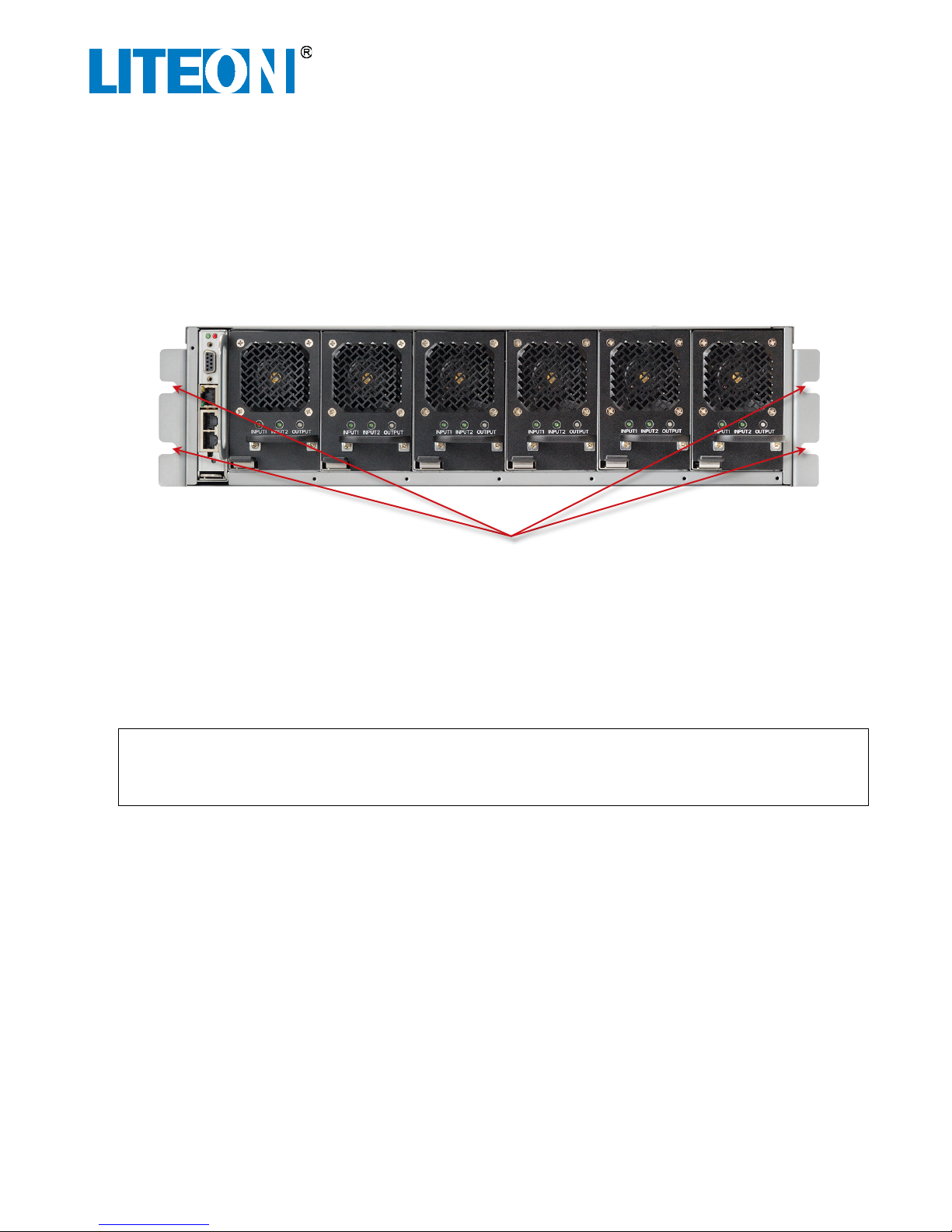

Support Brackets

USER GUIDE
PF-2123-1LDx
3-Phase 12.5kW Power System
PF-2123-1LDx-UG-02 Page 6 of 19 April 2017
2. Torque all M6 support bracket screws to 6.1 N-m (4.5 ft-lbs).
The support brackets should be connected to the rack as shown below.
3. As show below, install the front bracket (part number 825604) over the top of the previously
installed support brackets using two (2) M5 screws for each side. Note: the power shelf is shown in
the image below for reference only; it has not yet been installed according to these instructions.
4. Torque all M5 screws to 3.6 N-m (2.66 ft-lbs).
Installed Support Brackets
Front Bracket and screw locations

USER GUIDE
PF-2123-1LDx
3-Phase 12.5kW Power System
PF-2123-1LDx-UG-02 Page 7 of 19 April 2017
Linking Bus Bar Installation (single bus bar)
If using a 3-bus bar adapter, skip to the next section.
Linking Bus Bars are installed, but not tightened, to the output power connectors on the rear of the Power
Shelf before it is mounted into the rack. After the Power Shelf is installed in the rack, the other ends of the
Linking Bus Bars are connected to the rack bus bars and their bolts are tightened then. Linking Bus Bars
may be color coded: red for +12V and black for ground.
Caution
If the Linking Bus Bars are color coded, ensure that they are installed on the correct bus
that corresponds with its color.
WARNING
Sixteen (16) M8 Linking Bus bolts are included with the Power Shelf; use only these bolts
to install the Linking Bus Bars. The use of incorrect bolts could cause the bus bars to short
out which could result in electrical sparks or fire.
To Install Linking Bus Bars to the Power Shelf:
1. With four (4) supplied M8 Linking Bus bolts, install a Linking Bus Bar to an output power bus bar on
the Power Shelf, but do not tighten the bolts. Refer to the illustration below. These bolts will be
tightened later after the Power Shelf is mounted into the rack.
2. Install the remainder of Linking Bus Bars to the bus bars on the Power Shelf, but do not tighten the
bolts. The Power Shelf is now ready to be installed into the rack.
Optional Linking Bus Bar Installation (3 bus bars)
If you are using a single bus bar, it should already be installed as described in the previous section; skip this
section.

USER GUIDE
PF-2123-1LDx
3-Phase 12.5kW Power System
PF-2123-1LDx-UG-02 Page 8 of 19 April 2017
Linking Bus Bars are installed, but not tightened, to the output power connectors on the rear of the Power
Shelf before it is mounted into the rack. After the Power Shelf is installed in the rack, the other ends of the
Linking Bus Bars are connected to the rack bus bars and their bolts are tightened then. Linking Bus Bars
may be color coded: red for +12V and black for ground.
Caution
If the Linking Bus Bars are color coded, ensure that they are installed on the correct bus
that corresponds with its color.
WARNING
Sixteen (16) M8 Linking Bus bolts are included with the Power Shelf; use only these bolts
to install the Linking Bus Bars. The use of incorrect bolts could cause the bus bars to short
out which could result in electrical sparks or fire.
To Install Linking 1 to 3 Bus Bars to the Power Shelf:
1. With four (4) supplied M8 Linking Bus bolts, install one of the 1 to 3 Linking Bus Bars to the output
power bus bar on the Power Shelf, but do not tighten the bolts. Refer to the illustration below.
These bolts will be tightened later after the Power Shelf is mounted into the rack.
2. Install the remaining 1 to 3 Linking Bus Bars to the bus bars on the Power Shelf, but do not tighten
the bolts. The Power Shelf is now ready to be installed into the rack. Refer to the illustration
below.
Finger tighten bolts before installing shelf

USER GUIDE
PF-2123-1LDx
3-Phase 12.5kW Power System
PF-2123-1LDx-UG-02 Page 9 of 19 April 2017
Power Shelf Installation
After the Shelf Support Brackets are installed into the rack and the Linking Bus Bars are installed on the
rear of the Power Shelf, it can be installed into the rack.
WARNING
To prevent risk of electrical shock to personnel, ensure that power is not activated inside
the rack while installing equipment. Use a DMM to test any potentially live wires and
verify that electrical power is turned off to the rack.
Caution
The Power Shelf with Linking Bus Bars weighs more than 50 pounds. Use two or more
people to move the Power Shelf and to install the Power Shelf into the rack.
To Install the Power Shelf into the Rack:
Caution
Two people are required to install the Power Shelf with its installed Linking Bus Bars into
the rack. One person pushes the Power Shelf into the rack from the front of the rack and
the other person guides the Linking Bus Bars in place from the rear of the rack.
1. Carefully lift the Power Shelf with its Linking Bus Bars and move it into the rack on top of the Shelf
Support Brackets.
2. Push the Power Shelf into the rack until the latch brackets connect into the matching slots in the
front of the rack. Ensure that the Linking Bus Bars are properly aligned to the rack bus bars.
Finger tighten bolts before installing shelf

USER GUIDE
PF-2123-1LDx
3-Phase 12.5kW Power System
PF-2123-1LDx-UG-02 Page 10 of 19 April 2017
Cable and Wire Installation
After the Power Shelf is installed into the rack, it can be connected to rack bus bars.
Output Power Connections
Output power from the Power Shelf is connected to the rack bus bars via Linking Bus Bars. At this point in
the installation, the Linking Bus Bars should already be connected to the Power Shelf bus bars, but not yet
tightened. The steps below describe how to install the remaining bolts for the Linking Bus Bars.
To install the output power connections (Linking Bus Bars):
1. Using four (4) supplied M8 Linking Bus bolts for each Linking Bus Bar, connect each Linking Bus
Bars to its corresponding bus bars in the rack. Do not tighten them yet. Refer to the illustration
below.
2. After all Linking Bus Bars have been installed with four (4) M8 Linking Bus bolts, torque all sixteen
(16) bolts to 16 N-m (11.8 ft-lbs).
Bus Bar Insulator Installation
The Bus Bar Insulator consist of two pieces attached to each other: one piece covers the power supply
shelf bus bar and the other piece slides to cover the Linking Bus bar bolts. The Bus Bar Insulator is attached
to the power supply shelf from the factory.
To install the bus bar insulator:
1. Ensure that the Bus Bar Cover is installed on the bus bar. The Sliding Cover should already be
pushed towards the power supply shelf. Refer to the illustration below; for simplicity, the actual
bus bars are not shown.
