Ride & Relax®5-in-1 TrikeRide & Relax®5-in-1 Trike
ADULT ASSEMBLY AND SUPERVISION REQUIRED
AGES: 9 MONTHS - 5 YEARS
639814C

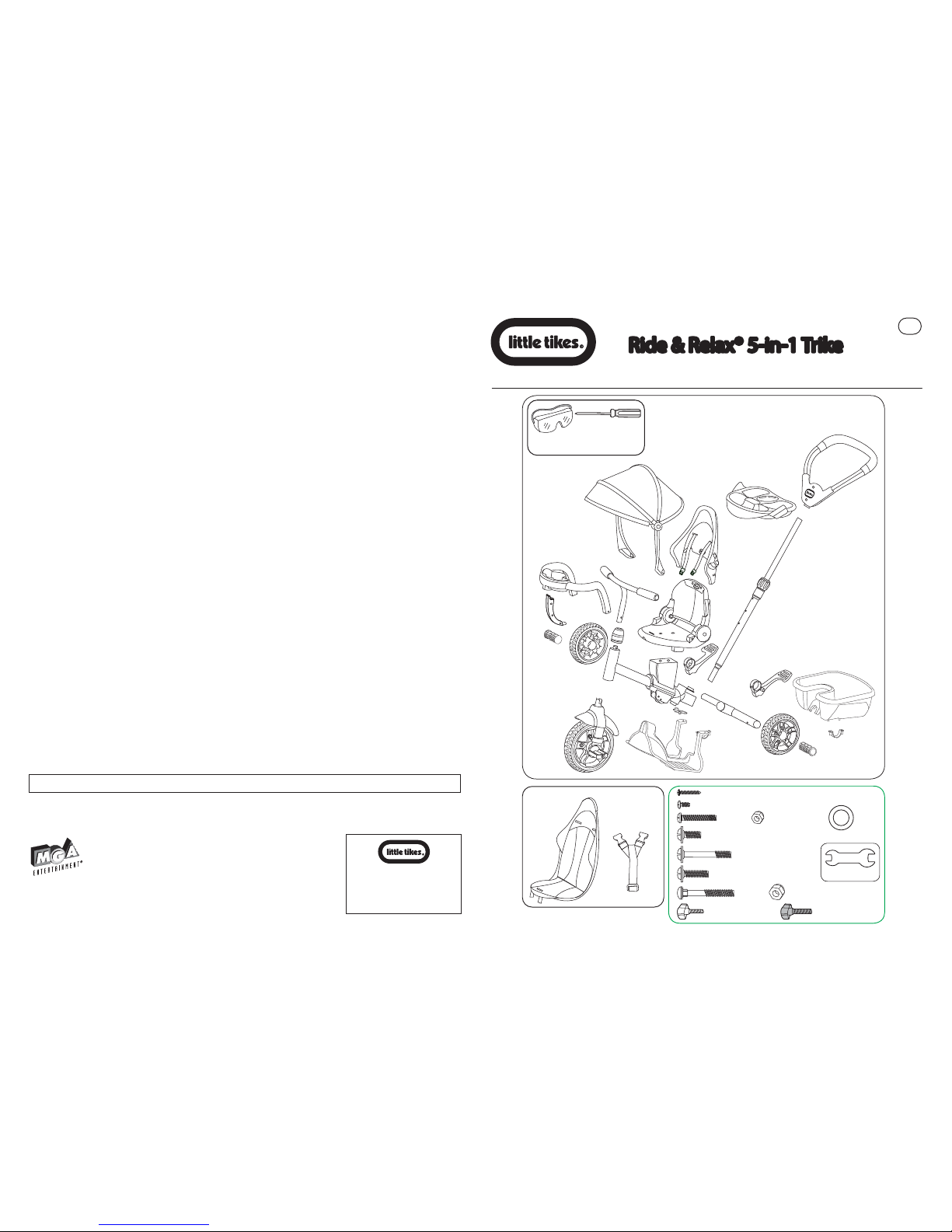

REQUIRED (NOT INCLUDED)
N1 x 2 (for B)
T1 x 8 (for K, M1/M2)
T2 x 1 (for E)
T3 x 1 +
T4 x 1 (for S)
T5 x 2 (for O)
T6 x 2 (for C)
T8 x 6 (for C, G & Q)
N2 x 1 (for D) + x 1
ENG
AB
C
D
E
F
GJ2
J1
I
I
K
L x2
M2
M1
N
O
P
Q
R
S
U
V
W
Visit our website at
www.littletikes.com
to register your product and
to enter our sweepstakes.
(No purchase necessary)
Please keep this manual as it contains important information.
MGA Entertainment UK Ltd
50 Presley Way
Crownhill
Milton Keynes
MK8 0ES
Bucks, UK
0800 521 558
www.littletikes.com
www.littletikes.co.uk
© The Little Tikes Company,
an MGA Entertainment company.
LITTLE TIKES® and RIDE & RELAX® are
trademarks of Little Tikes in
the U.S. and other countries. All logos, names,
characters, likenesses, images, slogans, and
packaging appearance are the property of
Little Tikes.
Little Tikes Consumer Service
2180 Barlow Road Hudson, Ohio 44236 U.S.A.
1-800-321-0183
Printed in China
0715-0-C
16
Included
T7 x 2 +
T9 x 2 (for Q lower)
T
Phillips screwdriver

Please save sales receipt for proof of purchase.
ADULT ASSEMBLY REQUIRED.
ASSEMBLY HINT
Assemble all parts together loosely at first. Check that assembly is correct, then tighten all screws.
MAINTENANCE & CLEANING
DISPOSAL
• Read entire instructions carefully before assembling this product.
WARNING:
• Keep these instructions for future reference.
• Prior to assembly, this package contains small parts: hardware which is a choking hazard and may contain
sharp edges and sharp points. Keep away from children until assembled.
• Ensure working area is free of danger. Always dispose of packaging material in such a way that it may not
cause any harm. Plastic bags can be dangerous. To avoid suffocation, keep plastic bags away from babies and
children.
• To prevent serious injury, children must not use the equipment until completely assembled.
• This product is intended for outdoor domestic family use only.
• This product is for private, residential use only (no commercial or public use).
• Adult assembly required. Choking hazard to children under the age of 3 years - contains small parts prior to
assembly.
• Check all hardware during usage period and tighten as required. It is particularly important that this
procedure be followed at the beginning of each season. If these checks are not carried out, the toy could
overturn or otherwise become a hazard. Replacement should be made in accordance with the
manufacturer's instructions.
• Do not attempt to modify or repair this product. For help contact Little Tikes Consumer Service.
• Clean trike with a slightly damp cloth (cold water) and mild soap. Never use a corrosive or abrasive
substance to clean the product.
WARNING: ASSEMBLY
STOP!
PLEASE READ INSTRUCTIONS
BEFORE ASSEMBLING AND OPERATING.
WARNING: TO AVOID SERIOUS INJURY:
152
• Disassemble and dispose of equipment in such a manner that no hazardous conditions, such as but not
limited to, small parts and sharp edges, exist at the time equipment is discarded.
WARNING! Not to be used by children over the age of five (5) years due to size limitation.
•
Continuous adult supervision required.
• Never use nearmotor vehicles.
• Never use near streets, swimming pools, hills, steps, orsloped driveways.
• Always wear closed shoes when using the tricycle.
• Never allow more than one rider on the tricycle.
• Instruct children on proper use of this product before allowing them to ride.
• This product is not to be used in a manner other than for which it is intended.
• It is recommended that rider always wear a properly fitted helmet that complies with U. S. Consumer Product
Safety Commission (CPSC) standard 16 CFR 1203.
• Ride-on toys should be used with caution since skill is required in order to avoid falls or collisions which may
cause injury to the user or third parties.
• Intended for children 9 months to 5 years.
• Maximum child’s weight: 50 lbs. (23 kg).
• The maximum permissible load for basket: 5 lbs. (2.27 kg). The maximum permissible load for accessory tray: 2
lbs. (0.9 kg). The maximum permissible load for child’s tray: 2 lbs. (0.9 kg). Excessive weight may cause a
hazardous or unstable condition.
• Safeguard the product against rolling away when parking it by using the rear wheel brakes.
The Little Tikes Company makes fun, high quality toys. We warrant to the original purchaser that this
product is free of defects in materials or workmanship for one year * from the date of purchase
(dated sales receipt is required for proof of purchase). At the sole election of The Little Tikes
Company, the only remedies available under this warranty will be the replacement of the defective
part or replacement of the product. This warranty is valid only if the product has been assembled
and maintained per the instructions. This warranty does not cover abuse, accident, cosmetic issues
such as fading or scratches from normal wear, or any other cause not arising from defects in material
and workmanship. *The warranty period is three (3) months for daycare or commercial purchasers.
U.S.A and Canada: For warranty service or replacement part information, please visit our website at
www.littletikes.com, call 1-800-321-0183 or write to: Consumer Service, The Little Tikes Company,
2180 Barlow Road, Hudson OH 44236, U.S.A. Some replacement parts may be available for purchase
after warranty expires—contact us for details.
Outside U.S.A and Canada: Contact place of purchase for warranty service.This warranty gives you
specific legal rights, and you may also have other rights, which vary from country/state to
country/state. Some countries/states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
LIMITED WARRANTY

1
314
B
J2
M2
J1
M1
B
J1 J2
PEG
II
I
2
SLOT
T1 x 4
M2
M1
PEG PEG
This page is intentionally left blank.

134
3
B
A
4
A
F
5
K
K
L
L
T1 x 4

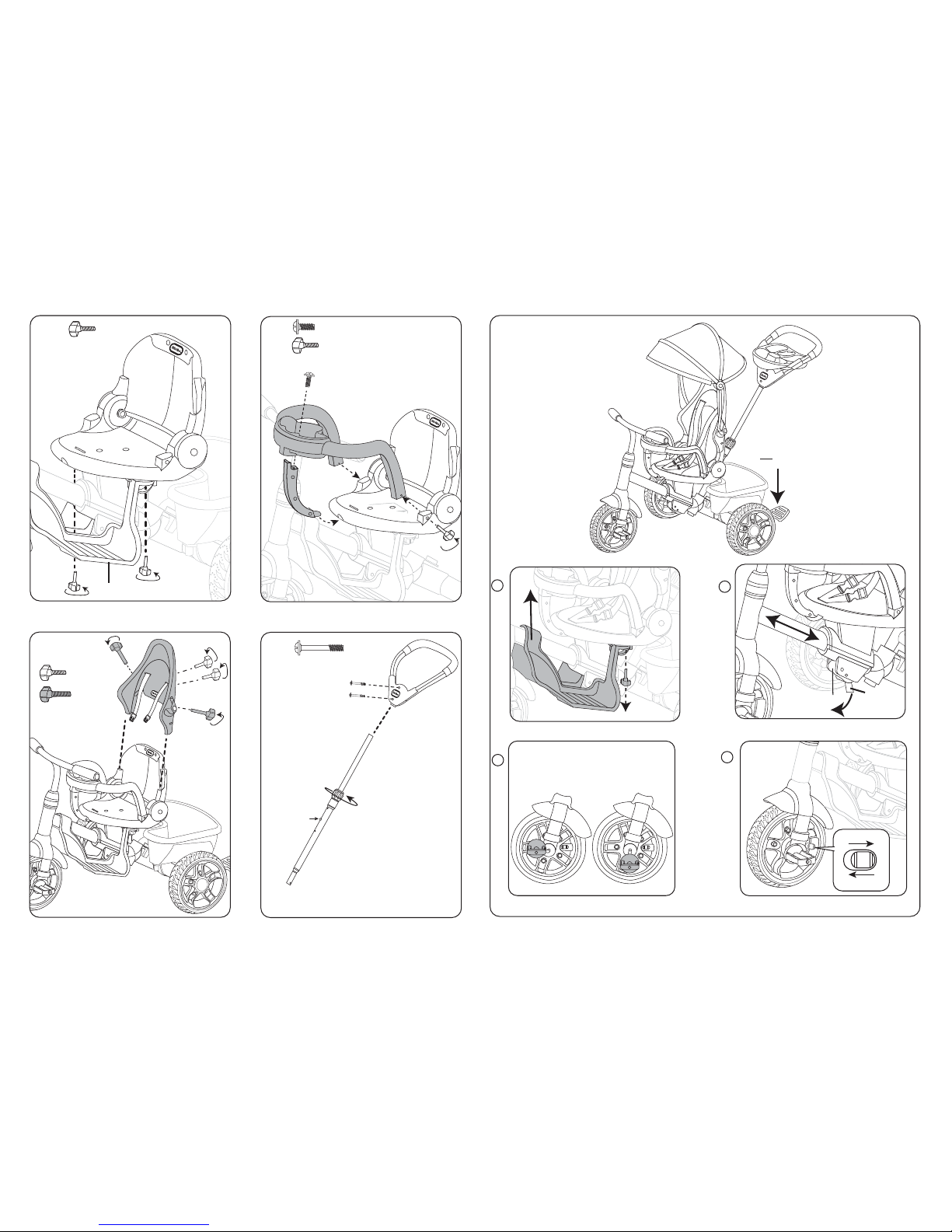

POSITION 4
Remove seat cover
and sun shade
Push seatbelts through the openings on the seat cushion.Undo
the clip under the seat and remove seatbelt.
Remove seat back
Lock both rear brakes
when parked. 1
23
45
Pull down seat lock lever on trike frame (A).Then, slide the seat to the
desired position. Press the seat lock lever up to lock the seat in place.
Aseat lock
lever
Remove handle with tray.Then, close the cap on the frame (A).
A
Move pedals to horizontal or vertical
positions as shown.Then engage pedals.
HORIZONTAL VERTICAL
N1 x 2T7 x 2
engage pedals
Press to move
the button.

512
6
D
E
8
7
E
D
F
G
A
T3 x 1
N2 x 1
9T6 x 2
C
A
POSITION 3
1
23
4
Remove the safety bar (S): unscrew each side of safety bar
and lift up.Then, push the lock (underneath the seat) forwards
to unlock. Pull out the safety bar.
S
Pull down seat lock lever on trike frame (A).Then, slide the seat to the
desired position. Press the seat lock lever up to lock the seat in place.
Lock both rear brakes
when parked.
Aseat lock
lever
Secure handlebars (D) with a screw and nut (T3+N2).
Then, push cap (E) down and secure with a screw (T2).
Move pedals to horizontal or vertical positions as shown.
HORIZONTAL VERTICAL
T2 x 1
x 1
5
engage pedals
disengage pedals
Press to move
the button.

116
10
C
G
12
C
Q
13 T5 x 2
N
O
POSITION 2
2
3
Pull down seat lock lever on trike frame (A).Then, slide the seat to the
desired position. Press the seat lock lever up to lock the seat in place.
A
1
Remove the foot rest (G) between the safety bar (S) and handlebars.
seat lock
lever
Lock both rear brakes
when parked.
Move pedals to horizontal or vertical positions as shown.
HORIZONTAL VERTICAL
S
G
T8 x 2
T8 x 2
T9 x 2
T8
T8
T9
T9
11
C
S
T4 x 1
T
4
engage pedals
disengage pedals
Press to move
the button.
T8 x 2
Gently twist knobs (T8) until they are securely
fastened.
Gently twist knobs (T8) until they are securely
fastened.
Gently twist knobs (T8,T9) until they are securely
fastened.

7
10
16
N
U
A
14
15
N
A
U
N
N
A
17
N
U
A
POSITION 1
Lock both rear brakes
when parked.
Retractable sun shade in Positions 1-3
2-point reclining seat in
Positions 1-4
3
45
1
Move pedals to horizontal or vertical positions as shown.
HORIZONTAL VERTICAL
disengage pedals
2
Press to move
the button.

9
8
18
20
O
N
P
V
Q
C
R
19
Q
21
Q
V
V
N
K
22
V
S
23
W
V
25
W
24
V

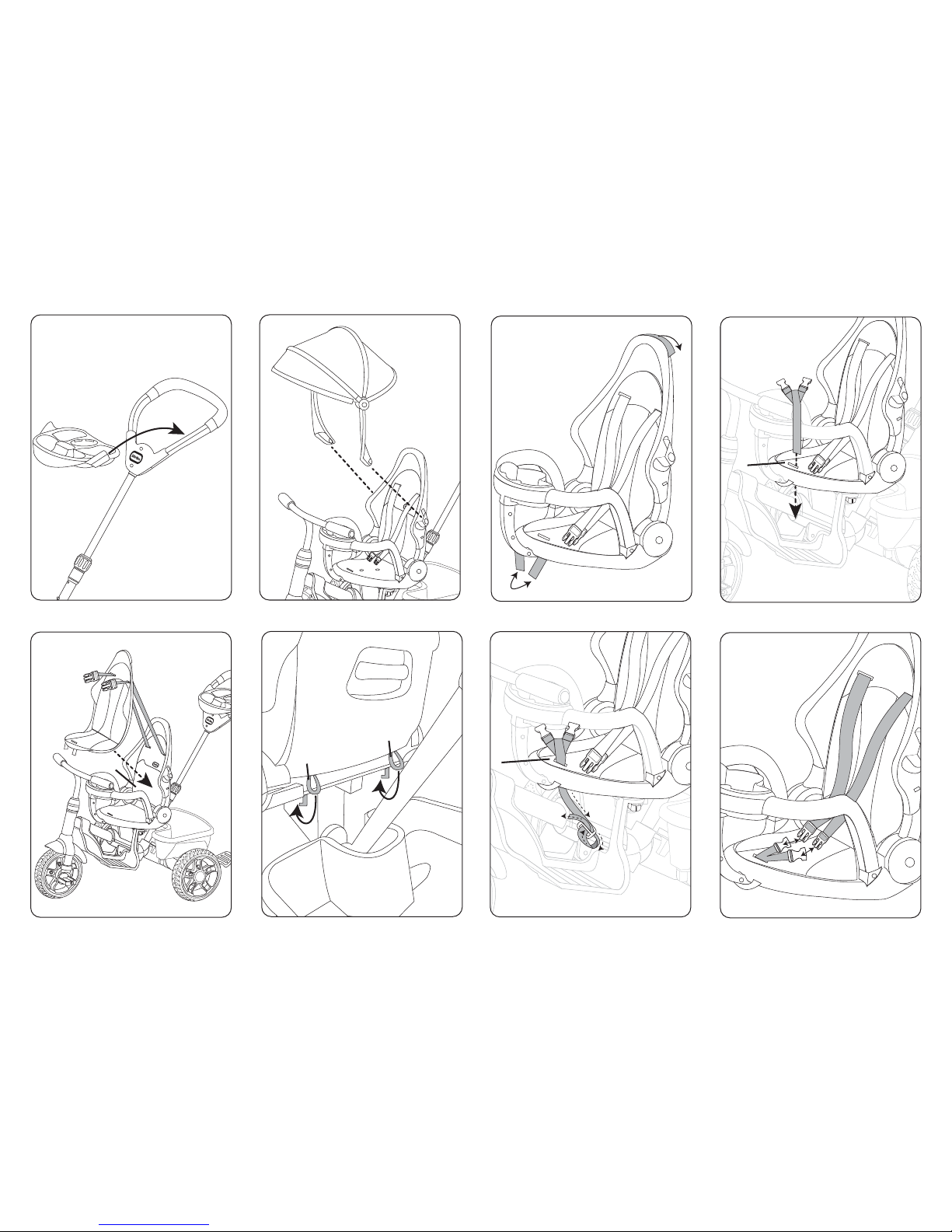

Slide seat belts through the seat cushion (V).
