Livith EASY SPIN User manual

MANUAL EASY SPIN
FLEX / MULTIFLEX
MULTISPIN
RIGID / RIGID FLAT
SMARTRING
VERTICAL / VERTICAL F
GRUVY / GRUVY FLAT
WWW.LIVITH.IT

2
WARRANTY TERMS
AND CONDITIONS

3
WWW.LIVITH.IT
INDEX
07
12
15
17
27
10
16
14
25
INSTALLATION
GUIDE
ACCESS PLATES
SYSTEM
PERFORMANCE
ASSISTANCE
FALL INDICATOR
MAINTENANCE
GUIDE
PPE USE GUIDE
DEVICE
CERTIFICATES
WARRANTY TERMS
AND CONDITIONS

4

5
WWW.LIVITH.IT
INTRODUCTION
Dear Customer,
Thank you for choosing a Livith product.
This Manual was created to assist you during the design, installation, use and maintenance
phases and to provide you with the necessary information on the product you have
purchased.
The design, installation, use and maintenance of Livith products must be carried out only
aer viewing the following manual and according to the assembly instructions. Livith
declines all responsibility for malfunctions related to the incorrect performance of the
product these operations or to the use of the components of the devices in an improper
way and not in compliance with the indications of this manual and of the product
assembly instructions.
If the technical information provided by us should not be reected during
one of the operations, please contact us immediately by visiting the
website www.livith.it
It is forbidden to reproduce this Manual, even partially, by any means or technique,
without authorization from Livith SpA.
The anchoring devices produced by Livith SpA to which this manual refers comply with
the following TECHNICAL STANDARDS:
UNI 11578: 2015
REGULATORY REFERENCES
EN 795: 2012 CEN / TS 16415: 2013

6
WARNINGS
All the devices produced and marked by Livith SpA have undergone all the performance
and durability tests required by the technical standards to which this manual refers.
Livith SpA operates as a quality company, therefore it guarantees the quality of its
products and manufacturing processes by aixing the appropriate marking and ISO
9001: 2018 certication.
Any other use is prohibited, in particular as elements used for liing equipment
or other loads.
The user who uses it as an anchor point as a part of a fall arrest system must be
equipped with PPE and connection devices equipped with an energy absorber
or other components, compliant with UNI EN 355: 2003, aimed at limiting the
dynamic force of fall arrest within 6kN.
Use by qualied personnel is recommended.
All Livith devices and systems have been designed as anchoring devices that are part of
fall arrest systems and therefore exclusively aimed at protecting against falls from height.
Livith declines all responsibility for damage to person or things related to the use of
the devices with unsuitable PPE.
Livith declines all responsibility for damage to persons or things related to the use
of the devices in a way that does not comply with the current safety regulations.
CERTIFICATE NUMBER: 68754 / A / 0001 / UK / IT

7
WWW.LIVITH.IT
INSTALLATION GUIDE
Read and keep this Manual and make it available for future users and maintainers
of the anchoring device.
This device must be installed by competent and qualied operators or companies.
The marking must be accessible.
Follow the instructions for correct xing provided by Livith SpA or dened by the
FIXITH ETC TM soware.
For any additional xing elements go to the website www.livith.it
These indications are not a substitute for the specic calculation report and can be taken
as a reference only for the installation of Livith products.
Livith declines all responsibility for malfunctions related to incorrect xing or poor
capacity to absorb loads by load-bearing structures intended to house the anchoring
devices.
For any assistance in this regard, go to the website www.livith.it
This manual contains instructions intended to inform about the correct assembly, use
and maintenance of LIVITH anchoring devices, as well as the correct design of fall arrest
systems.
Therefore it is essential to preserve the manual for the entire life of the device, since it is
an integral part of it.
The person responsible for managing the anchoring device must ensure that this user
manual, together with the technical le of the work, are kept in good condition and must
make them available for the user, the maintenance technician or the inspector, before any
access at height and use of the system.
In case of loss, this manual can be requested in paper form from LIVITH SpA.
ADVICES AND REQUIREMENTS

8
The installation of the device must take place avoiding that, in case of fall arrest,
the deection of the line leads it to come into contact with sharp edges or with
other elements that could contribute to damage it.
Once installed, anchoring devices can be subject to the capture of atmospheric
discharges. It will therefore be responsibility of the owner or manager of the fall
arrest system to check, based on the regulations in force on the matter, whether
or not the building is subject to lightning risk and if necessary take charge and
burden of protecting the building with suitable measures and systems suitably
designed according to current standards.
The installation of the anchoring devices must be carried out away from high
voltage cables, electrical systems and must not have connections with them or
with antennas or other systems that can become live and act as conductors, as
the devices produced by Livith S.p.A can accidentally go live. An accurate risk
assessment is required in this regard.
In case of installation on inclined slopes. It is also necessary to install a snow stop
system near the anchoring device to reduce the snow load acting on it.
Livith S.p.A declines all responsibility related to the system being put out of
service due to the failure to install snow stopper systems.
For further information please consult the Warranty Conditions at the end of this
Manual.
Installation specication

9
WWW.LIVITH.IT
MAX. FORCE EXERTED ON THE ANCHORS * [KN]
Max number of
operators
1 Operator 2 Operators
EASYSPIN 9.0 -
FLEX 9.0 12.0
MULTIFLEX 9.0 12.0
MULTISPIN 9.0 12.0
RIGID 9.0 -
RIGID FLAT 9.0 -
SMARTRING 9.0 -
VERTICAL H40 6.6 11.0
VERTICAL 7.8 10.4
VERTICAL F H30 7.0 -
VERTICAL F H40 6.3 -
GRUVY 9.0 -
GRUVY FLAT 9.0 -
* See chapter regarding system performance on page. 10
Type A devices oer all the performance characteristics required for Type A fall arrest
anchors, governed by the standards to users..
To know the geometric characteristics of the dierent devices, download the
technical data sheets on www.livith.it
TECHNICAL FEATURES

10
Livith deformable Type A devices are designed to cushion the dynamic impulsive force
stressing the anchor in the event of a fall, by plastically deforming.
Hereaer are the deformations and stresses acting on the Type A anchors deformable in
the event of a fall.
For all non-deformable Livith devices, check with the forces indicated on page. 9 of this
Manual, considering the device in its undeformed conguration and the stress factor
acting in the most severe operating direction.
SYSTEM PERFORMANCE
DATA 1 OP. 2 op.
Maximum stress force [kN] 6.56 11.0
Deformed height [mm] 230 135
DATA 1 OP. 2 op.
Maximum stress force [kN] 7.83 10.4
Deformed height [mm] 170 135

11
WWW.LIVITH.IT

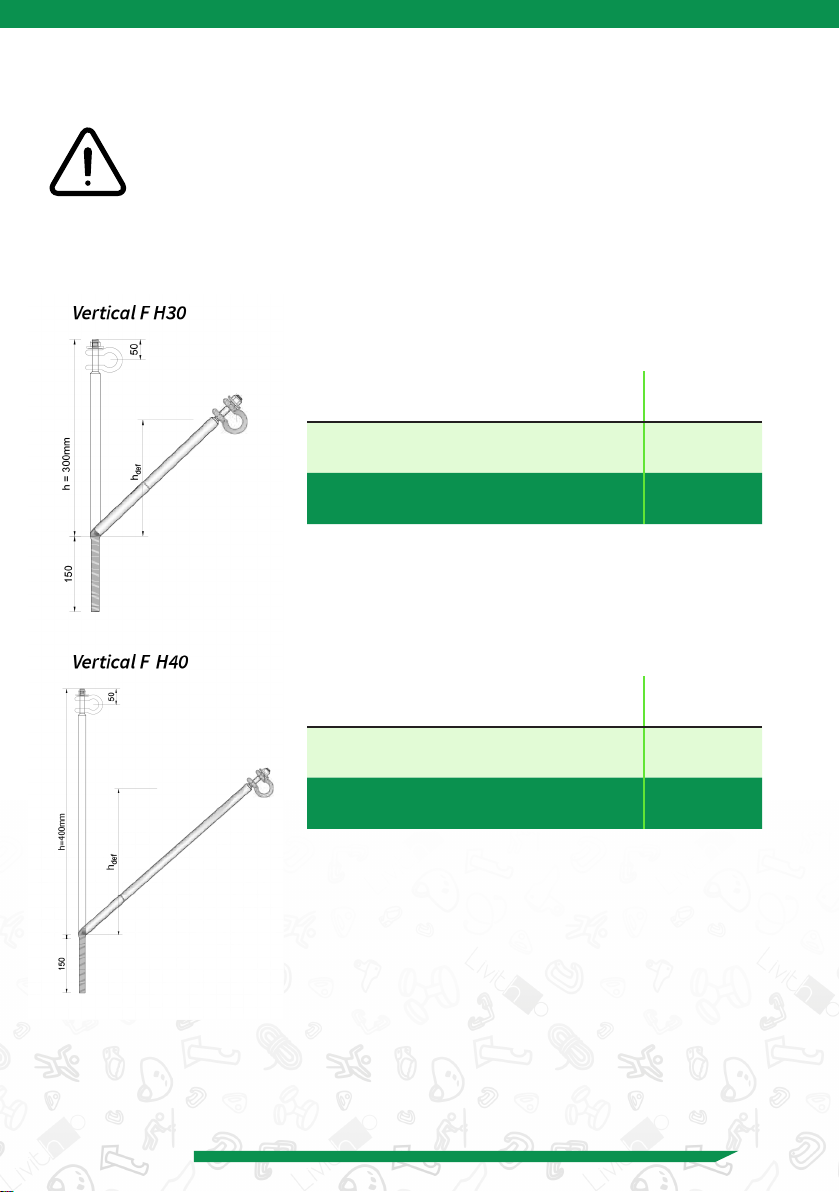

DATA 1 OP.
Maximum stress force [kN] 7.03
Deformed height [mm] 180
DATA 1 OP.
Maximum stress force [kN] 6,29
Deformed height [mm] 240
The presence of rigid elements such as slabs or wooden joists in the
roong package can prevent deformation of the anchor. In this case it is
advisable to consider the undeformed height of the anchor to carry out
the check and the following maximum stressing forces:
9kN x 1 operator;
12kN x 2 operators.

12
LABEL COMPILATION
An information plate must be installed near the access to the roof or to the fall arrest
system, in a visible place.
If this type of plate is present, ll in as follows:
FIRST INSTALLATION
In "LAST INSPECTION DATE" enter the installation date;
In "NEXT INSPECTION DATE" enter the date of the next scheduled inspection *.
Similarly, in the event of a subsequent MAINTENANCE WORK, ll in the nameplate again
as follows:
In "LAST INSPECTION DATE" enter the date of the inspection carried out;
In "NEXT INSPECTION DATE" enter the date of the next scheduled inspection *.
* For the frequency of periodic inspections, see the Maintenance Guide on page. 25
BASE PLATE

13
WWW.LIVITH.IT
In the case of SMART type plates, in addition to the information described for the BASE
plate, the system can be activated with this procedure:
1. in the browser of your smartphone, type the address smart.livith.it
2. press the SCAN key and frame the QRCODE on the plate
3. log in (if you log in for the first time, register*)
4. fill in the required fields and register the system
At the scheduled deadlines, the client and installer will automatically receive an email
alerting on the need to renew maintenance.
Once the system is activated, even unregistered users will be able to consult the associated
information such as a coverage graph, photos, maintenance instructions and more on
their electronic device by framing the QRCODE.
For more information visit the website https://www.livith.it/smart
* It is possible to sign in as SMART-enabled users with the LIVITH customer code that can be found on all
invoices and with your own VAT number.
SMART PLATE

14
MULTISPIN
VERTICAL / VERTICAL F
EASY SPIN
Any deformation of the anchor
indicates the NON-integrity of
the fall indicator.
FALL INDICATOR
Multispin, Vertical, Vertical F and Easy Spin Livith devices are equipped with a fall indicator.
Aer installing the devices and before each use, check
the integrity of the fall indicator, according to the example schemes
shown below.
The breaking of the metal strap
and the sliding of the anchor
point with lack of visibility of the
fall indicator indicates the non-
integrity of the fall indicator.

15
WWW.LIVITH.IT
PPE USE GUIDE
LANYARD TYPES
The use of single or double lanyards conforming to UNI EN 354: 2010 and of
guided type devices compliant with to UNI EN 353-2: 2003 is allowed.
SELF-RETRACTING TYPE
Malfunctions on reduced inclinations of the automatic locking system.
Greater risk of pendulum eect.
Rapid deterioration if in synthetic ber.
GUIDED ROPE TYPE
Air dra variable with the length of the device.
Risk of pendulum eect.
Rapid deterioration of the textile ber rope.
Reduced ergonomics due to the need to support the sliding of the device along
the guideline.
The anchoring to the cable of the Livith Lines can be done through connectors with
automatic closure and with automatic or manual locking (UNI EN 362: 2005).
List of Devices, and any dangers associated with their use:
COMBINED CONNECTION DEVICES

16
ASSISTANCE
All anchoring devices produced by Livith SpA have a higher degree of
corrosion resistance than that required by the technical standard.
Each component complies externally and internally with the corrosion protection criteria
sub divided into the following representation:
STAINLESS STEEL COMPONENTS
ZINC PLATED COMPONENTS
ZINC PLATED AND FIRE PAINTED
COMPONENTS
ALUMINIUM COMPONENTS
> 250 hours of neutral salt spray>
> 1500 hours of neutral salt spray>
Any traces of oxidation occur exclusively as surface phenomena due to work on the construction
site and / or to transfer material, and do not contribute in any way to modify or compromise the
operation and durability of the devices.
The installer must release a copy of the installation documentation to the customer.
In this regard, in order to facilitate the document compliance required by
current legislation, Livith completes this manual with specic pre-set and simple
compilation forms relating to:
• General information of the installation;
• Master data of installed devices and xings;
• Declaration of correct installation;
• Maintenance log;
• Document delivery receipt;
This booklet also provides a housing for the schematic installation plan and any
photographic documentation. Please refer to these documents any type of explanation.
lnfo on the website www.livith.it.
RESISTANCE TO CORROSION
POST-INSTALLATION DOCUMENTATION

17
WWW.LIVITH.IT
DEVICE CERTIFICATES
ISSUED BY
The technical features of the products
and the related methods of use are indicated
in the technical documentation included
in the specic product sheets.
Livith S.p.A. certies that the anchoring devices
Has been created, designed, realised and tested in compliance with the rules
EN 795:2012 | UNI 11578:2015
TYPE A
LIVITH S.p.A.
EASYSPIN
Certicate of Conformity
Via Berchet, 11 - 35131 Padova (PD)
P.I. e C.F. 06496100485
CERTIFICAT E
NUMBER LVH-ESP-D-019
INFO:
www.livith.it
LIVITH S.p.A.
APRIL 11TH 2019
LAST UPDATE

18
Download the Declaration of Conformity and the Technical Data Sheets of the
devices from your reserved area on the website www.livith.it.
ISSUED BY
The technical features of the products
and the related methods of use are indicated
in the technical documentation included
in the specic product sheets.
Livith S.p.A. certies that the anchoring devices
Has been created, designed, realised and tested in compliance with the rules
EN 795:2012 | CEN/TS 16415:2013 | UNI 11578:2015
TYPE A
LIVITH S.p.A.
FLEX
MULTIFLEX
Certicate of Conformity
Via Berchet, 11 - 35131 Padova (PD)
P.I. e C.F. 06496100485
CERTIFICAT E
NUMBER LVH-FLX-D-019
INFO:
www.livith.it
LIVITH S.p.A.
APRIL 11TH 2019
LAST UPDATE

19
WWW.LIVITH.IT
ISSUED BY
The technical features of the products
and the related methods of use are indicated
in the technical documentation included
in the specic product sheets.
Livith S.p.A. certies that the anchoring devices
Has been created, designed, realised and tested in compliance with the rules
EN 795:2012 | CEN/TS 16415:2013 | UNI 11578:2015
TYPE A
LIVITH S.p.A.
MULTISPIN
Certicate of Conformity
Via Berchet, 11 - 35131 Padova (PD)
P.I. e C.F. 06496100485
CERTIFICAT E
NUMBER LVH-MTS-D-019
INFO:
www.livith.it
LIVITH S.p.A.
APRIL 11TH 2019
LAST UPDATE
DEVICE CERTIFICATES

20
ISSUED BY
The technical features of the products
and the related methods of use are indicated
in the technical documentation included
in the specic product sheets.
Livith S.p.A. certies that the anchoring devices
Has been created, designed, realised and tested in compliance with the rules
EN 795:2012 | UNI 11578:2015
TYPE A
LIVITH S.p.A.
RIGID
RIGID PIATTO
Certicate of Conformity
Via Berchet, 11 - 35131 Padova (PD)
P.I. e C.F. 06496100485
CERTIFICAT E
NUMBER LVH-RGD-D-019
INFO:
www.livith.it
LIVITH S.p.A.
APRIL 11TH 2019
LAST UPDATE
Download the Declaration of Conformity and the Technical Data Sheets of the
devices from your reserved area on the website www.livith.it.
This manual suits for next models
10
Table of contents
