Livoo DOM413 BL-198DLR User manual

Instruction Manual
WWW.LIVOO.FR
Reference: DOM413
Version: 1.4
Language: English
Porta le air cooler

Instruction Manual
1
You have purchased a LIVOO rand product and we thank you for it. We give great attention to the design,
ergonomics and ease of use of our products. We hope that this product will give you complete satisfaction.
This instruction manual is availa le too on our we site www.livoo.fr
SAFETY INSTRUCTIONS
PLEASE, TAKE TIME TO READ WELL THE INSTRUCTIONS FOR USE
PARTICULARLY BEFORE THE FIRST USE.
A misuse of the appliance can damage it or hurt the user. Assure
that you use the appliance for the use for which it is designed, we
refuse any responsi ilities as for the damages y an incorrect use
or a ad manipulation.
1. Before connecting your appliance, verify that the supply
voltage indicated on the indicator plate of the appliance
corresponds properly to that of your electrical
installation.
2. No responsi ility may e assumed in case of damages
caused y non-compliance of this manual y the user or
y faulty use or handling.
3. This appliance is meant for ONLY DOMESTIC USE and
FOR INTERNAL USE.
4. Use this appliance only as indicated in the instruction
manual.
5. Completely assem le the air cooler efore starting it.
6. Before each use, ensue that the supply cord is in good
condition.
7. If the supply cord is damaged, it must e replaced y
the manufacturer, its service agent or similarly qualified

Instruction Manual
2
persons (*) in order to avoid a hazard.
8.Never plunge the appliance, its supply cord or the plug
in water or any other liquid.
9. Do not handle the plug on the appliance with wet
hands.
10.This appliance can e used y children aged from 8
years and a ove and persons with reduced physical,
sensory or mental capa ilities, or lack of experience
and knowledge if they have een given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not e made y children without
supervision.
11. When you disconnect the supply cord, always remove
it from the plug. Do not pull on the cord itself.
12. Unplug the appliance during filling and cleaning.
13. Ensure that the fan is switched off from the supply
mains efore removing the guard.
14. Never insert your fingers, crayons or any other o ject
across the ventilation grills.
15. Ensure that the air cooler is always placed on a flat
surface, dry and sta le.
16. Do not use your air cooler close to a window. Rain may
cause risks of electric shocks.
17. Do not use chemical products or a rasive detergents
for cleaning, which may easily damage or deform your
appliance.
18. Do not place either the air cooler or its parts near an

Instruction Manual
3
over, a cooking appliance or any other source of heat.
19. Do not use the appliance in the presence of explosive
or inflamma le vapours.
20. Never try to disassem le or repair your appliance
yourself. In case of repair y an unqualified person, the
guarantee is cancelled.
21. For reducing the risk of electric shock, never use this
product with wet hands, never spill a liquid on the
product or su merge it in water.
22. Do not place the appliance on or near a hot gas or in a
heated oven.
23. Do not use outside (For internal use only). This
appliance is not suita le for industrial or open air use.
24. Never leave the appliance working without
surveillance.
25. Avoid overheating the device y preventing the
locking of entry and exit of air. Clean all the entries
and exits from time to time to remove the accumulated
dust.
26. This appliance is not designed to e used with an
external timer or a separate remote control system.
27. Do not try to remove the parts and do not insert a
metallic o ject inside the appliance.
28. This appliance is intended to e used in household and
similar applications such as:
•staff kitchen areas in shops, offices and other
working environments
•farm houses
•y clients in hotels, motels and other

Instruction Manual
4
residential type environments
•ed and reakfast type environments
(*)
Authorised qualified electrician: after-sales department of the manufacturer or the importer or any
other qualified person, approved and authorised for carrying out this kind of repair for avoiding any
danger. In any case, you must send the appliance to this electrician.
SPECIAL SAFETY INSTRUCTIONS
Information:
NEVER COVER THE APPLIANCE , even temporarily, ecause it
may overheat and generate a risk of fire.
Do not use the air cooler near a shower, athtu or a swimming
pool.
TECHNICAL SPECIFICATIONS
Voltage : 220-240V~50Hz
Puissance : 80W
3 speeds
Water tank capacity: 10 L
Remote control: 1 attery X CR2025
DOM413 BL 198DLR
Description Symbol Value Unit
Maximum fan flow rate F 7,5 m
3
/min
FAN power input P 80 W
Service value SV 0.09 (m
3
/min)/W
Stand y power consumption P
SB
/ W
Fan sound power level L
WA
65 dB(A)
Maximum air velocity C 10 meters/sec
Service Value Measurement Standard IEC 60879: 1986 (corr.1992) Performance and construction of
electric circulating fans and regulators.
Contact details for further information
DELTA | 1 rue Foch – 67450 Mundolsheim – France

Instruction Manual
5
DESCRIPTION
ASSEMBLY OF THE AIR COOLER
1. Open the package and take out the air cooler, wheels and wrench. Place the air cooler on a flat
floor.
2. Installation of the wheels: place 4 wheels to the holes located at the ase of the air cooler. Two
wheels with rakes should e installed at the ack holes and the other two wheels to the front
holes. Insert the wheels tightly the air coolers ody (Fig.-1)
3. Water tank refilling: Turn the water tank lock to horizontal position. (Fig.-2)
Take out the water tank and add clean water to the large section of the tank. Be sure that water
level in the tank will etween MAX and MIN, which can e seen at the ack of the tank (Fig. 3-4)

Instruction Manual
6
PANEL CONTROL

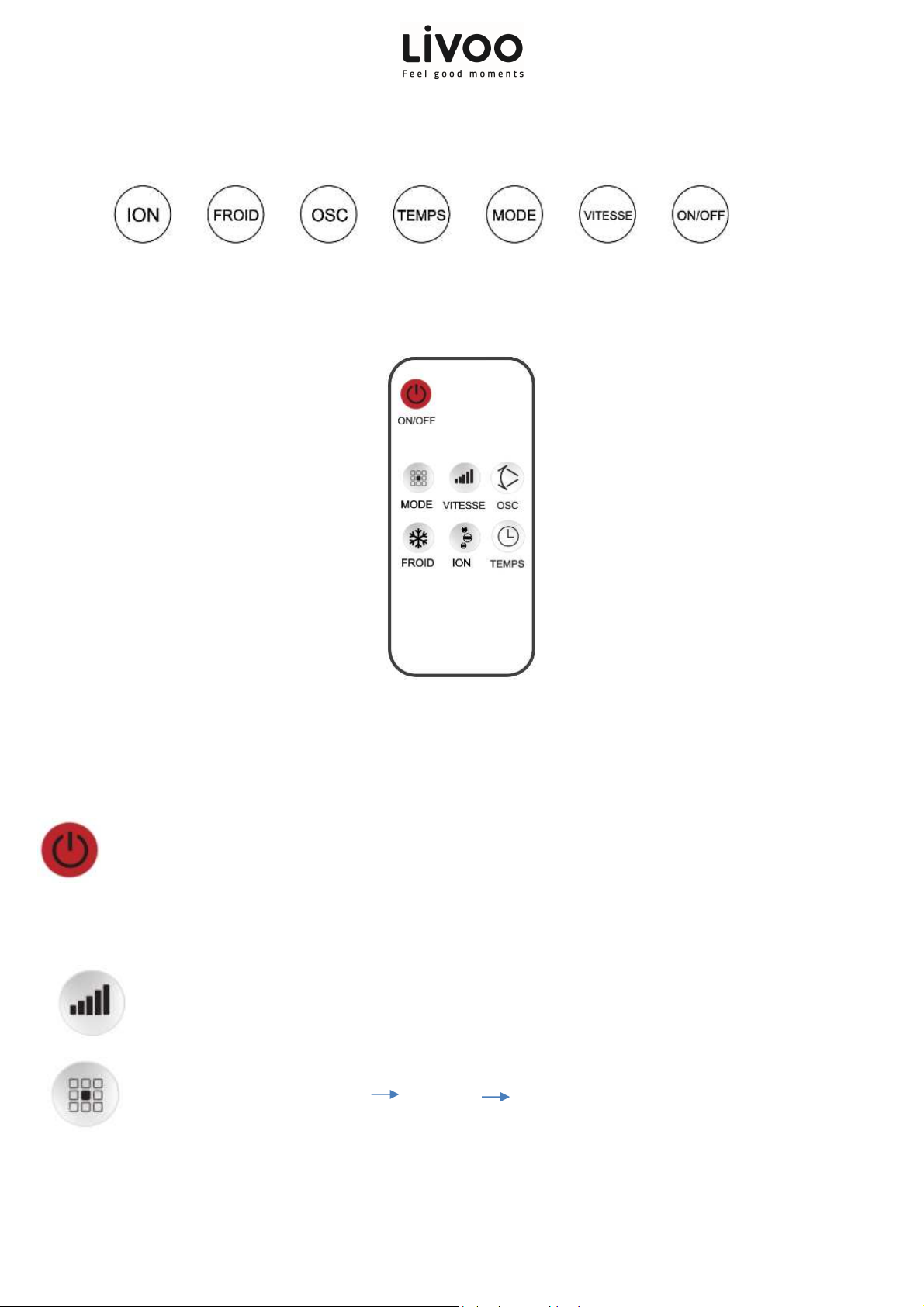

REMOTE CONTROL
USE
Insert plug to the electrical outlet, the LED indicator automatically shows the room temperature
Press the “ON/OFF” button to switch the unit “ON”, the fan works at medium speed. The function of the
unit can be controlled via on board control panel or by remote.
ON/OFF button
•Pressing on the ON/OFF utton to turn on the unit on at intermediate speed. After few minutes, the
fan will drop to show speed or to the pre-programmed memory setting. To switch ack the stand y
position, simple press the “off” utton.
Speed button (VITESSE): Press this utton to change the fan speed: low-medium-high speed.
Wind button (MODE): Normal nature sleep
•Normal mode: wind low ased on low/med/high
•Natural mode: the wind imitates low of natural strong and soft wind
•Sleep mode: the sleep function operates at natural fan speed and slowly lowers the speed efore
turning it off together. At high speed, the evaporative cooler functions for 30 minutes then shifts to

Instruction Manual
7
medium speed to run for 30 minutes and low speed for 30 minutes efore it turns off or until the end
of preset time.
Cooler button (FROID): Press the utton one time: air cooler is working, indicator of control
panel lights up. Press the utton second time to stop it.
Caution: Please pay attention to the water level in the tank efore activating the air cooler function.
Water should stay etween Min and Max level. It is recommended to replace water in the tank at least
once in a week.
Swing button (OSC): Press swing utton to change the wind direction. The swing icon will appear
on the screen when the function is activated. Press the utton again to stop the oscillation. The
vertical direction of air flow can e adjusted manually y directing the outlet louvers up and
down.
Timer button (TEMPS): Set the operating time from one hour to 12 hours. Each pressure
represents 30 minutes. Indicators on the control panel indicate the selected run time.
Ioniser (ION) : Press “Ion” utton to activate the ionizer function. Indicator light will signify that
the ionizer is on as the negative ions releases. Ions attract harmful particles in the air such as
dust, pollen, mold, spores etc. to eliminate them and clean the air.
Remote
•The remote control is supplied with 1 attery CR2025. Do not use other types of atteries.
•In case of prolonged non-operation, remove the attery from the remote control.
Frozen ice box
Use frozen ice ox to get colder air
First put them in the freezer, after well frozen, pull the water tank out, fill the ice ox with water and put
the frozen ice oxes into it.
The ice ox contains powder which helps to keep ice in the ox longer.
You can also use the ice ox without powder.
Attention, do not leave the ice ox with the powder within reach of children.
Be careful, do not ingest the powder in the ox.
Warning: The water level of water tank must be less than “MAX” level (with or without ice
boxes use)
CLEANING AND MAINTENANCE
Cut off the power and unplug appliance before cleaning
1. Clean dust filter :
Pull out the plug, unscrew ack part and pull the holder of air filter, then clean air filter with soft
rush or water.

Instruction Manual
8
2. Clean the cooling pad:
After removing the dust filter you can see the cooling pad. Press the lock in the middle and gently
pull out the pad. Use a clean cloth or soft rush to remove dust and dirt from the pad. Rinse with
clean water if needed and leave open air dry. Never use any harmful chemical solution for may
cause damage to the pad. Your cooler takes water from narrow section of the tank and pumps it on
the cooling pad. The water flowing through the cooling pad goes down to the large section of the
tank. The cycle results to a sorption of dust and dirt in the air which makes the air safer and fresher
to reathe. The filter that is located at the middle portion of the tank cleanses the water that
passes through it and should e attached to its place upon use of the unit.
3. Clean water tank :
Take the water tank out and wipe it or clean it with water.
4. Clean the housing:
Wipe off the housing y neutral cleaner and soft cloth.
TROUBLESHOOTING
Pro lem Possi le Cause Solution
1.Fan does not work 1. Power cord is not
plugged or not properly.
2. The “On” utton on the
control panel is not
activated.
1. Plug the power cord
properly
2. Press the On/Off utton at
the ack panel to on position
3. Press the “On” utton on
the control panel.
2. The temperature of air
eing expelled y the
cooler is not cold
enough.
1.Dust accumulates on the
dust filter and cooling pad
2. Water level in the tank is
elow“MIN” level.
1. Follow the steps in
cleaning the dust filter and
cooling pad.
2. Turn off the unit, refill the
tank with clean water, turn
the power position and cool
to on.
3.Press the Off ottom,
the machine continual
working
If you use the heating
function, the machine need
cooling down to avoid over-
head
The machine will Off in 30
seconds

Instruction Manual
9
Correct disposal of the unit
(Electrical and Electronic Equipment)
(Applica le in the European Union and the rest of Europe that have adopted separate collection systems
countries)
The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old
household electrical appliances must not e disposed of in the normal household waste stream.
Old appliances must e collected separately in order to optimize the recovery and recycling of the materials they contain and
reduce the impact on human health and the environment.
The sym ol of the crossed out dust in is marked on all products to remind the o ligations of separate collection.
Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.
•Photo no contractual
• Worried a out the quality of his products the manufacturer reserves the right to make modifications without advance
