Instruction Manual
WWW.LIVOO.FR
Meat grinder
Reference : DOP149
Version : 1.4
Language : English

Instruction Manual
1
You have purchased a product LIVOO brand and we thank you. We take great care in design, ergonomics
and ease of use of our products. We hope that this product will give you complete satisfaction.
This instruction manual is available too on our website www.livoo.fr
GENERAL SAFETY INSTRUCTIONS
PLEASE, TAKE TIME TO READ WELL THE INSTRUCTIONS FOR USE
PARTICULARLY BEFORE THE FIRST USE.
A misuse of the appliance can damage it or hurt the user. Assure that
you use the appliance for the use for which it is designed, we refuse
any responsibilities as for the damages by an incorrect use or a bad
manipulation.
1. Make sure your mains voltage corresponds to that specified
on the appliance before plugging in. The appliance must be
connected to an earthed mains safety socket.
2. To protect against electrical hazards, do not immerse the
cord, plug, or appliance itself in water or other liquids.
3. Never let the machine operate unattended. Keep out of
reach of children or incompetent persons.
4. The appliance is not intended to be operated by means of an
external timer or separate remote control system.
5. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard. (*)
6. Do not use the device:
-if the grip or the power cable is damaged
-in case of malfunction
-if the device was damaged in any way
-if it fell in the water

Instruction Manual
2
-if you dropped it
7. Never use the appliance near hot surfaces. Never move the
appliance by pulling the cord. Do not wind the cord around
the appliance or twist it.
8. Stand the appliance on a stable, flat surface.
9. Never use accessories which are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
10. Care shall be taken when handling the sharp cutting blades,
emptying the bowl and during cleaning.
11. There is potential injury from misuse.
12. It is absolutely necessary to keep this appliance clean at all
times as it comes into direct contact with food.
13. Regarding the instructions for cleaning surfaces in contact
with food or oil, thanks to refer to the below paragraph
"cleaning" in manual.
14. Regarding the instructions for the use of accessories,
operation times and speed settings, thanks to refer to the
below paragraphs.
15. Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or
cleaning.
16. This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
17. This appliance can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction

Instruction Manual
3
concerning use of the appliance in a safe way and if they
understand the hazards involved.
18. Children shall not play with the appliance.
19. Switch off the appliance and disconnect from supply before
changing accessories or approaching parts that move in use.
20. Accessories, other than those supplied with the appliance,
shall include instructions for their safety use.
21. This appliance is intended to be used in household and
similar applications such as:
Staff kitchen areas in shops, offices and other
working environments
Farm houses
By clients in hotels, motels and other residential type
environments
Bed and breakfast type environments
(*) Competent qualified electrician: after sales department of the producer or importer or any person who
is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case
you should return the appliance to this electrician.
SPECIFICATIONS
Voltage : 220-240V~ 50-60Hz
Power : 500W
Maximum continuous operating time (KB): 15 minutes
3 chopping grids and a stainless steel biscuit disc
1 sausage and kebbes kit (dumplings)
Reverse direction function
Integrated storage with hatch for grilles and accessories
Stores cord underneath the unit
Large carrying handle
Accessory: a push-button

Instruction Manual
4

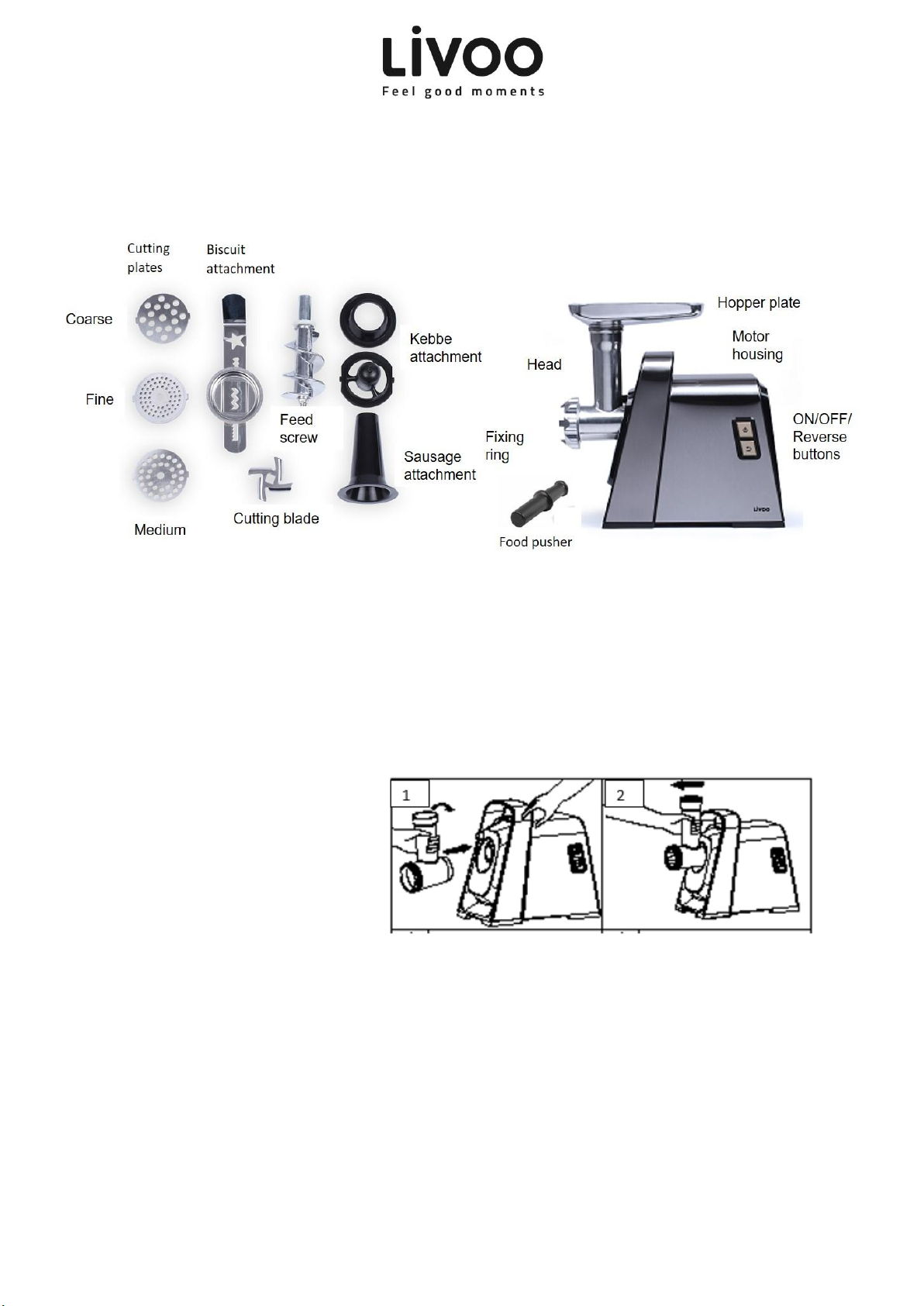

DESCRIPTION
ASSEMBLING YOUR APPLIANCE
Check that voltage indicated on the rating label corresponds to the mains voltage in your home.
Wash all parts (except motor housing) in warm soapy water.
1. Hold the head and insert it in
the inlet with one hand,
revolve toward left and insert
it into by pushing down the
locking knob and taking care
to match the slot. Then turn
to the left to lock and release
the locking knob. (fig. 1 and
2).

Instruction Manual
5
2. Place the feed screw into the
head, long end first, by
turning the feed screw slightly
until it is set into the motor
housing (fig.3).
3. Place the cutting blade onto
the feed screw shaft with the
blade facing the front as
illustrated (fig.4). If it is not
fitted properly, meat will not
be ground.
MINCING MEAT
1. Cut all foods into pieces
(Sinewless, boneless and fatless
meat are recommended), in
approximate size:
20 x 20mm so that they fit easily
into the hopper opening.
2. Plug in and press “ON”switch
button.
3. Feed foods into hopper plate
hole. Use only the food pusher
(fig.7).
4. After use, switch the unit off and
unplug it from the power supply.
4. Place the desired cutting plate
next to the cutting blade, fitting
protrusions in the slots (fig.5).
5. Support or press the center of
the cutting plate with one finger
then screw the fixing ring until
tight with another hand (fig.6).
Do not over tighten.
7. Place the hopper plate on the head and fix into position.
8. Locate the unit on a firm place.
9. The air passage at the bottom and the side of the motor housing should be kept free and not
blocked.

Instruction Manual
6
REVERSE FUNCTION
1. In case of jamming, switch the appliance off by pressing “OFF” button, then press reverse
switch.
2. Feed screw will be rotating in the opposite direction, and the head will get empty.
3. If it doesn't work, switch the unit off and clean it.
MAKING KEBBE
1. Place kebbe attachments onto
the feed screw shaft together,
fitting protrusions in the slots
(fig.8).
2. Screw fixing ring into place until
tight. Do not over tighten (fig.9 +
fig.10).
3. Form Kebbes as illustrated below and deep fry:
EXAMPLES OF RECIPES
FOR STUFFING
-Mutton 100g
-Olive oil 1 ½ tablespoon
-Onion (cut finely) 1 ½ tablespoon
-Spices to your taste
-Salt to your taste
-Flour 1 ½ tablespoon
1. Mince mutton once or twice.
2. Fry onion until brown and add minced mutton, all spices, salt and flour.

Instruction Manual
7
MEAT COATING
-Lean meat 450g
-Flour 150-200g
-Spices to your taste
-Nutmeg (finely cut) 1
-Powdered red pepper to your taste
-Pepper to your taste
1. Mince meat three times and mix all ingredients together in a bowl. More meat and less flour create
better consistency and taste.
2. Grind the mixture three times.
3. Disassemble by reversing the assembling steps from 5-3 to remove the cutting plate and cutting
blade.
MAKING SAUSAGE

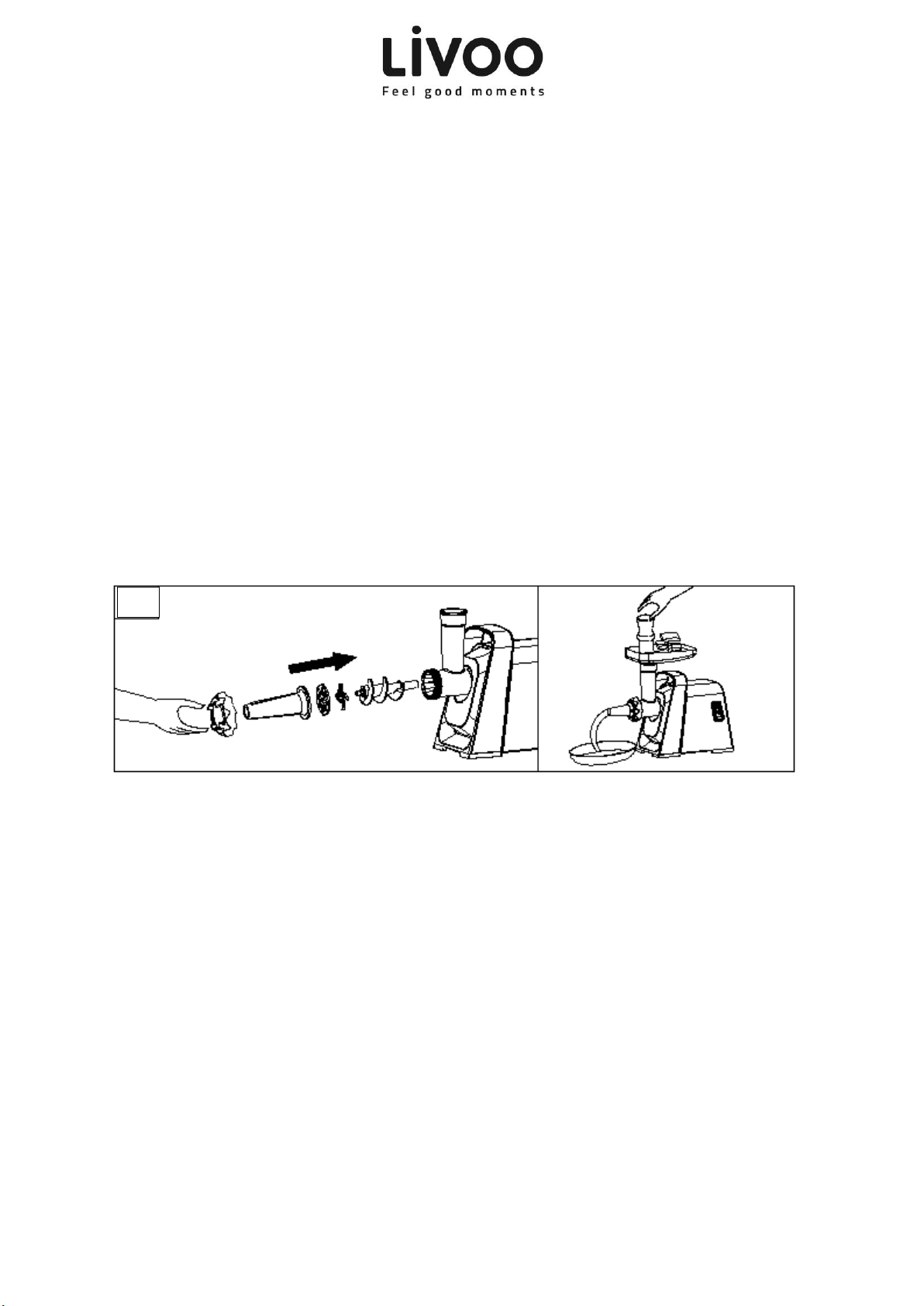

Before starting, please assemble sausage attachment as per following (fig.11)
1. Never prepare very thick sausages in order to avoid any pressure on casing.
2. Note: soak the casings for around 10-15 minutes in warm water to make them flexible.
3. Connect appliance, switch it on.
4. Push the ingredients into the hopper plate hole and slowly take off the casing from the attachment
tip as it fills.
5. Twist the casing to shape the sausages.
MAKING BISCUIT
Before starting, please assemble biscuit attachment as per previously mentioned instructions.
1. Select the desired form of biscuit and place the mixture on the hopper plate.
2. Connect appliance, switch it on.
3. If necessary, press on the preparation with the pusher. Do not engage fingers.
4. Hold the dough elongated when out and cut to desired length.
11

Instruction Manual
8
CLEANING AND STORAGE
1. Make sure that the motor has stopped completely.
2. Disconnect the plug from the power outlet.
3. Disassemble by reversing the steps from 6 to 1 figures.
4. If the fixing ring is not easily removed by hands, please use
tools.
5. To remove the cutting plate easily, place a screwdriver
between the cutting plate and the head as illustrated and lift
it up (fig.12 + 13).
6. Remove food scraps of meat, etc. Wash each part in warm
soapy water.
7. Never immerse the motor housing in water, but only wipe it
with a damp cloth.
8. Do not put accessories into dishwasher.
9. A bleaching solution containing chlorine will discolor
aluminum surfaces.
10. Thinners and petrol will crack or change the color of the unit.
11. Wipe all the cutting parts with a soft cloth and metal parts
with grease or vegetable oil-wet cloth to prevent them from
rusting.

Instruction Manual
9
Disposal of this product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
The European Directive 2012/19/EU on Waste Facilities Electrical and Electronic (WEEE)
This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product or their local authority office, for details of
where and how they can take this item for environmentally safe recycling.
Photo no contractual
Worried about the quality of his products the manufacturer reserves the right to make modifications without advance
notice
LIVOO
BP 61071
67452 Mundolsheim - FRANCE
