LMC NTGD-55 User manual

Rev. 10/22
No Till Drill
NTGD-55 & NTGD-78
Operator’s Manual

2
Page left blank intentionally

3
TO THE DEALER:
Assembly and proper installation of this product is the responsibility of the LMC dealer. Read manual
instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the
Owner’s/Operator’s Manual are completed before releasing equipment to the owner.
TO THE OWNER:
Read this manual before operating your LMC equipment. The information presented will prepare you to do a
better and safer job. Keep this manual handy for ready reference. Require all operators to read this manual
carefully and become acquainted with all the adjustment and operating procedures before attempting to
operate. Replacement manuals can be obtained from your selling dealer. The equipment you have purchased
has been carefully engineered and manufactured to provide dependable and satisfactory use. Like all
mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified. Observe all safety
information in this manual and safety decals on the equipment. For service, your authorized LMC dealer has
trained mechanics, genuine LMC service parts, and the necessary tools and equipment to handle all your
needs. Use only genuine LMC service parts. Substitute parts will void the warranty and may not meet
standards required for safe and satisfactory operation.
Record your implement model and serial number in the space provide below. Your dealer will need this
information to give you prompt, efficient service.
Model Number: ______________________________________
Serial Number: _______________________________________
Date Purchased: ______________________________________

4
Introduction …………………………………………………………………………………………….. 5
Technical Specifications ……………………………………………………………………………….. 5
Safety …………………………………………………………………………………………………… 6
Safety Signal Words ……………………………………………………………………………………. 6
General Safety Guidelines ……………………………………………………………………………… 7
Safety Decal Care ………………………………………………………………………………………. 7
Before Operation ……………………………………………………………………………………….. 8
During Operation ……………………………………………………………………………………….. 9
Highway And Transport Operations …………………………………………………………………… 10
Assembly ……………………………………………………………………………………………….. 12-13
Operating Instructions…………………………………………………………………………………... 14-17
Adjusting Disc Alignment……………………………………………………………………………. 18-19
Lubrication and Maintenance…………………………………………………………………………... 20
Setting Application Rates………………….. …………………………………………………………... 21
Application Rates ………………………………………………………………………………………. 22
Torque Specifications ………………………………………………………………………………….. 23
Parts Breakdown ……………………………………………………………………………………….. 25-42
Warranty ………………………………………………………………………………………………... 43
Table of Contents

5
Thank you for purchasing your LMC No-Till Drill. The LMC No-Till Drill is designed to be used in LIGHT
DUTY no-till or prepared seeding conditions. It is important to properly maintain and keep in place all safety
guards and shields that came with you machine.
These seeders can seed corn, beans, oats, wheat, etc. The two boxes are equipped with closeable slides for each
row. The seeder is equipped with 2 separate boxes. Each is made with a stainless steel box and nylon/plastic
seed rollers to disperse seeds effectively and accurately.
Technical Specifications
• Suitable for drilling and fertilizing corn, beans, oats, etc. in level or gently rolling fields.
• Spring load coulters to increase seed/ground contact.
• The double disc coulters create an opening to fertilize and seed easily in tilled soil.
• The depth of seeding can be adjusted. Seeding quantity can be adjusted.
• The seeder can plant seeds, fertilize roll and drag all at the same time.
NTGD-78NTGD-55
Weight 1400 lbs.1036 lbs.
Req. HP Minimum 35 HPMinimum 30 HP
Seeding Rows 107
Row Spacing 7 1/2”7 1/2”
Seed/Fertilizer Rate See Seed Rate Chart page 20See Seed Rate Chart page 20
Sowing Depth 3/4” - 2”3/4” - 2”
Working width 55” 78”
Cat. hitch 1 & 2 1 & 2
Double disc openers 7 sets 10 sets
Front cup/rear cups 710
Hopper Capacity - front 4.00 5.50
Hopper Capacity - rear 3.00 4.50
Introduction

6
Safety
It is important that you read the entire manual and to become familiar with this product before you begin using
it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues
arising from modification. We strongly recommend this product not be modified and /or used for any
application other than that for which it is designed. If you have any questions relative to a particular
application, DO NOT use the product until you have first contacted us to determine if it can or should be
performed on the product.
Read and understand this manual and all safety signs before operating and maintaining . Review the safety
instructions and precautions annually.
Safety Signal Words
TAKE NOTE! This safety alert symbol found though out this manual is used to call you attention to
instructions involving you personal safety and the safety of others. Failure to follow these instructions
can result in injury or death.
This symbol means:
Attention!
Become alert!
Your safety is involved!
Note the use of the signal words, DANGER, WARNING and CAUTION with the safety messages.
The appropriate signal word for each has been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or
serious injury. This signal word is to be limited to the most extreme situations typically for machine
components which, for functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury, and includes hazards that are exposed when guards are removed. It may also be used
to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
Important Safety Information

7
General Safety Guidelines
Safety of the operator is one of the main concerns in designing and developing a new piece of equipment.
Designers and manufacturers build in as many safety features as possible. However, every year many accidents
occur which could have been avoided by a few seconds of thought and a more careful approach to handling
equipment. You, the operator, can avoid many accidents by observing the following precautions in this section.
To avoid personal injury, study the following precautions and insist those working with you, or for you, follow
them.
Replace any DANGER, WARNING, CAUTION or instruction safety decal that is not readable or is missing.
Location of such decals are indicated in this manual. Do not attempt to operate this equipment under the
influence of drugs or alcohol.
Review the safety instructions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a
responsible adult familiar with farm machinery and trained in this equipment’s operations. Do not allow
persons to operate or assemble this unit until they have read this manual and have developed a
thorough understanding of the safety precautions and of how it works.
To prevent injury of death, use a tractor equipped with a Roll Over Protection System (ROPS). Do not paint
over, remove or deface any signs or warning decals on your equipment. Observe all safety signs and practice
the instructions on them.
Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question -
Don’t try it!
• Keep safety signs clean and legible at all times.
• Replace safety signs that are missing or have become illegible.
• Replaced parts that displayed a safety sign should also display the current safety sign
• Safety signs are available from your Distributor or Dealer Parts Department or the factory.
Safety Decal Care
Important Safety Information

8
How to install Safety Signs:
• Be sure that the installation area is clean and dry.
• Decide on the exact position before you remove the backing paper.
• Remove the smallest portion of the split backing paper.
• Align the decal over the specified area and carefully press the small portion with the exposed sticky
backing in place.
• Slowly peel back the remaining paper and carefully smooth the remaining portion of the decal in place.
• Small air pockets can be pierced with a pin and smoothed out using the piece of decal backing paper.
• Carefully study and understand this manual.
• Do not wear loose-fitting clothing, which may catch in moving parts.
• Always wear protective clothing and substantial shoes.
• Assure that all tires are inflated evenly.
• Give the unit a visual inspection for any loose bolts, worn parts or cracked welds, and make necessary
repairs. Follow the maintenance safety instructions included with this manual.
• Be sure that there are no tools lying on or in the equipment.
• Do not use the unit until you are sure that the area is clear, especially of children and animals.
• Don’t hurry the learning process or take the unit for granted. Ease into it and become familiar with your
new equipment.
• Practice operation of your equipment and its attachments. Completely familiarize yourself and other
operators with its operation before using.
• Use a tractor equipped with a Roll Over Protection System (ROPS) and fasten your seat belt prior to
starting engine.
• The manufacturer does not recommend usage of tractor with ROPS removed.
• Move tractor wheels to the widest recommended settings to increase stability.
• Securely attach to towing unit. Use a high strength, appropriately sized hitch pin with a mechanical retainer
and attach safety chain.
• Do not allow anyone to stand between the tongue or hitch and the towing vehicle when backing up to the
equipment.
• Do not use the unit until you are sure that the area is clear, especially of children and animals.
Before Operation
Important Safety Information

9
• Children should not be allowed on the product.
• Clear the area of small children and bystanders before moving the feeder.
• If using a towing unit, securely attach feeder by using a hardened 3/4” pin, a metal retainer, and safety
chains if required. Shift towing unit to a lower gear before going down steep downgrades, thus using the
engine as a retarding force. Keep towing vehicle in gear at all times. Slow down for corners and rough
terrain.
• Make sure you are in compliance with all local and state regulations regarding transporting equipment on
public roads and highways. Lights and slow moving signs must be clean and visible by overtaking or
oncoming traffic when feeder in transported.
• Beware of bystanders, particularly children! Always look around to make sure that it is safe to start the
engine of the towing vehicle or move the unit. This is particularly important with higher noise levels and
quiet cabs, as you may not hear people shouting.
• NO PASSENGERS ALLOWED! Do not carry passengers anywhere on, or in, the tractor or equipment,
except as required for operation.
• Keep hands and clothing clear of moving parts.
• Do not clean, lubricate or adjust your equipment while it is moving.
• When halting operation, even periodically, set the tractor or towing vehicle brakes, disengage the PTO,
shut off the engine and remove the ignition key.
• Be especially observant of the operating area and terrain. Watch for holes, rocks or hidden hazards. Always
inspect the area prior to operation.
• DO NOT operate near the edge of drop-offs or banks.
• DO NOT operate on steep slopes as overturns may result.
• Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops.
During Operation
Important Safety Information

10
• Adopt safe driving practices.
• Keep the brake pedals latched together at all times. Never use independent braking with machine in tow
as loss of control and/or upset of unit can result.
• Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an
emergency stop to be safe and secure. Keep speed at a minimum.
• Reduce speed prior to turns to avoid the risk of overturning.
• Avoid sudden uphill turns on steep slopes.
• Always keep the tractor or towing vehicle in gear to provide engine braking when going downhill. Do not
coast.
• Do not drink and drive!
• Comply with state and local laws governing highway safety and movement of farm machinery on public
roads.
• Use approved accessory lighting flags and necessary warning devices to protect operators of other vehicles
on the highway during daylight and nighttime transport. Various safety lights and devices are available
from your dealer.
• The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their
use. Local laws should be checked for all highway and marking requirements.
• When driving the tractor and equipment on the road or highway under 40 kph (20 mph) at night or during
the day, use the amber warning lights and a slow moving vehicle (SMV) identification emblem.
• Plan your route to avoid heavy traffic.
• Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including narrow
bridges, intersections, etc.
• Be observant of bridge loading ratings. Do not cross bridges rated at lower than the gross weight at which
you are operating.
• Watch for obstructions overhead and to the side while transporting.
• Always operate in a position to provide maximum visibility at all times. Make allowances for increased
length and weight of the equipment when making turns, stopping the unit, etc.
• Pick the most level route when transporting across fields. Avoid the edges of ditches or gullies and steep
hillsides.
• Be extra careful when working in inclines.
Highway and Transport Operations
Important Safety Information

11
• Maneuver the tractor or towing vehicle at safe speeds.
• Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death.
• Avoid loose fill, rocks and holes, they can be dangerous for equipment operation or movement.
• Allow for unit length when making turns,
• Operate the towing vehicle from the operator’s seat only.
• Never stand alongside of unit with engine running or attempt to start engine and/or operate machine while
standing alongside of unit.
• Never leave running equipment attachments unattended.
• As a precaution, always recheck the hardware on equipment following every 100 hours of operation.
Correct all problems. Follow the maintenance safety procedures.
Highway and Transport Operations
Important Safety Information

12

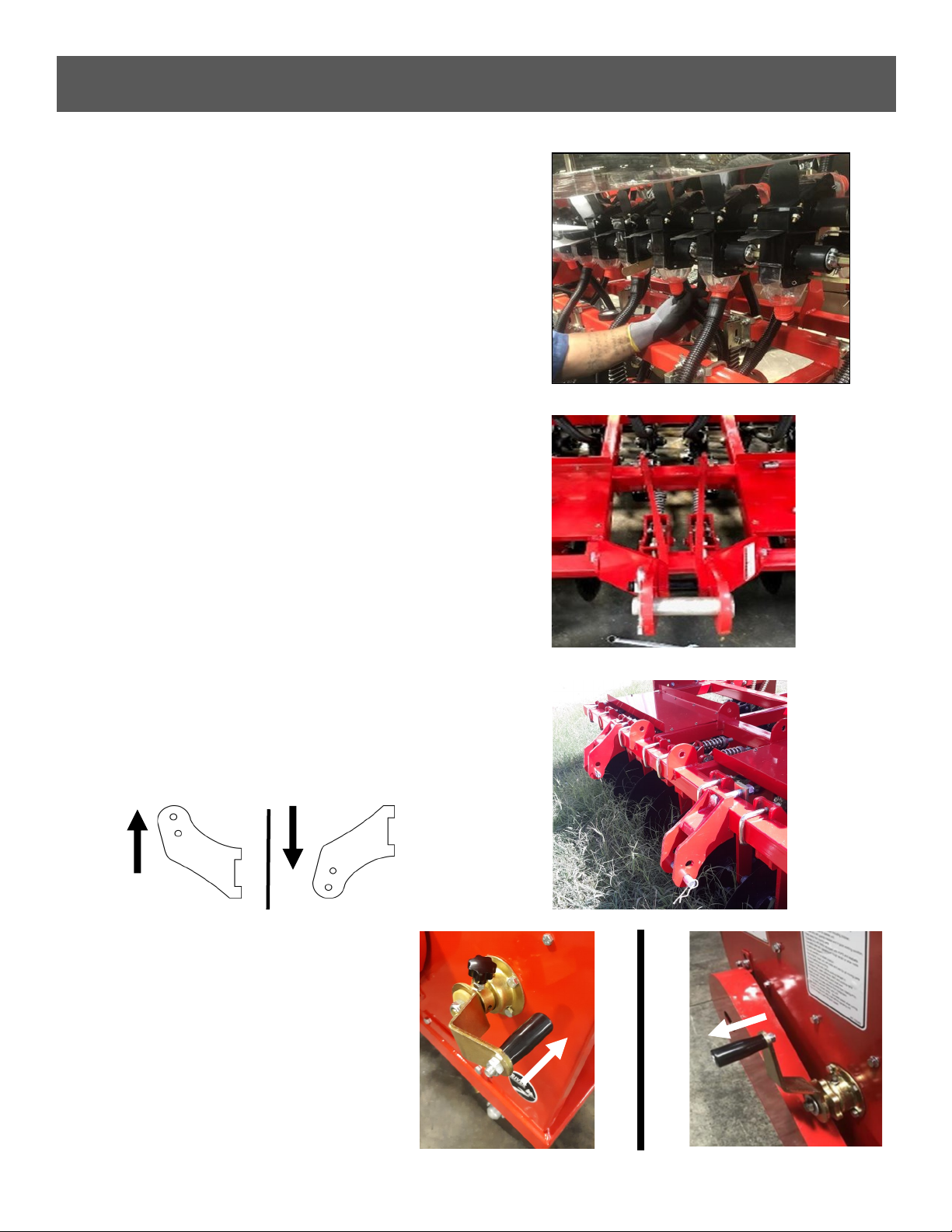

Step 1:
Carefully uncrate and remove all parts. Ensure the
double disc openers and coulters are inline and set at
their proper 7 1/2” spacing.
Step 2:
Mount hopper box with the lid opening facing the
front of the implement. DO NOT TIGHTEN THE
BOLTS AT THIS TIME!
Step 3:
Install the short sprocket shaft, sprocket and chain. The
11 tooth sprocket goes on the left and 12 tooth sprock-
et on the right.
Step 4:
Lightly push the seed box forward to tighten the chain.
Use an allen wrench to tighten the drive sprocket after
ensuring the chain is straight. Tighten bolts left loose
in Step 2. Install chain shields.
Assembly
Assembly

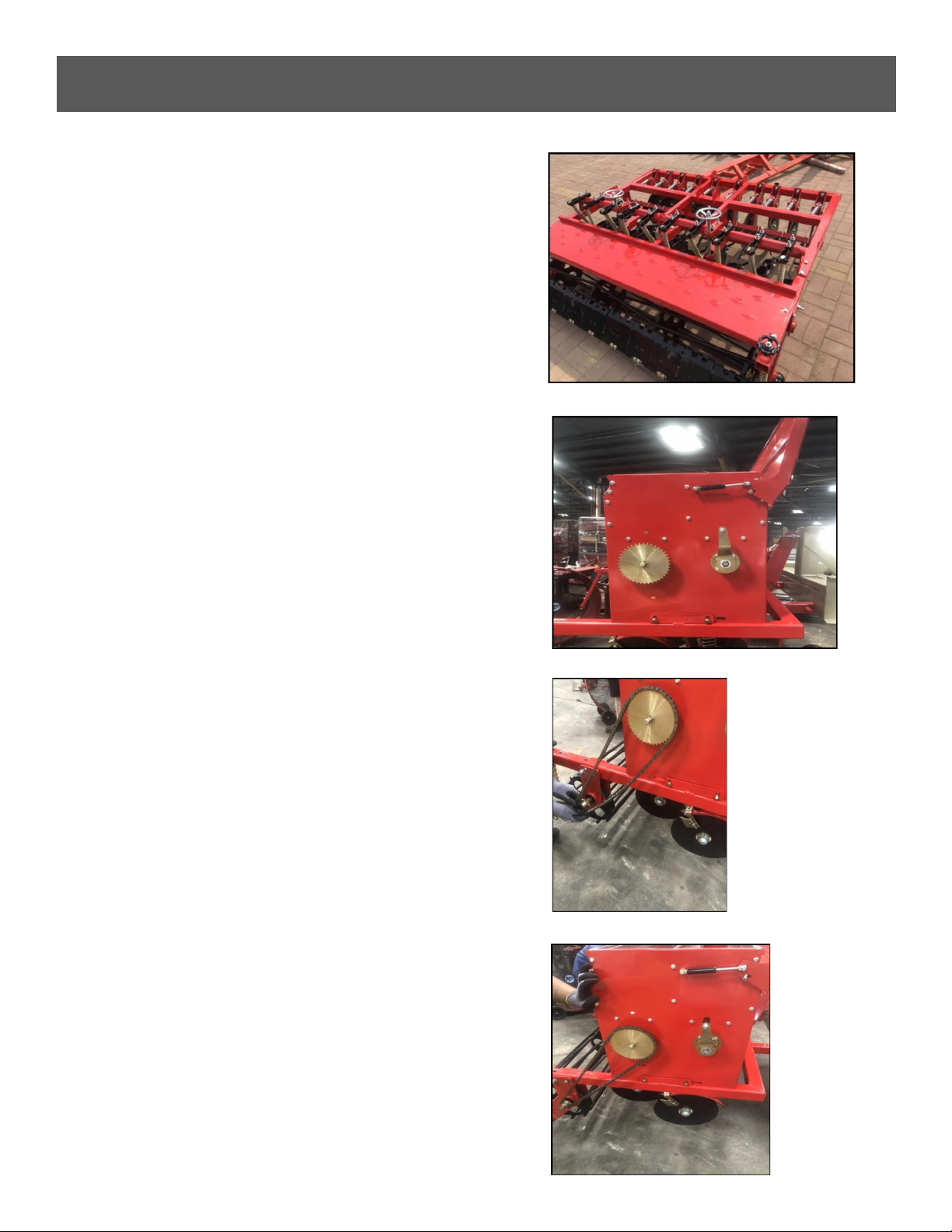

13
Step 5:
Install seed cup bottoms and hoses to cups (23" in
back - 28" in front).
Step 6:
Install A frame on inside of mounts.
Step 7: Install lower hitch blocks.
Note: Hitch Blocks (Item 60) are in the up position for shipping
only (Fig. 7A). Remove hardware, position Hitch Blocks with
holes pointing downward (Fig. 7B). Torque hardware to proper
specifications. See “Torque Specifications” page 21.
Step 8:
Fig. 7A
Shipping
Posion
Fig. 7B
Working
Posion
Handle in Transport Position Handle in Work Position
The Seed Rate Handle is turned in for
“Transport” purposes to prevent damage.
Remove the nut, flip the handle to face away
from the seeder and tighten before making
adjustments to the seeder.
Assembly
Assembly

14
Before beginning work:
• Be sure all the seed cups completely close and open the same, so all cups are putting out the exact amount
of seed. If they are not in sync, one cup will put out more than others.
• Ensure when completely closed, the seeding gears are not protruding from the outside the cup.
• Adjust the clamps to ensure all cups close and open completely and uniformly.
NOT FLUSH—GEARS PROTRUDING FLUSH—GEARS NOT PROTRUDING
The seed cups may come with either of two different
style of seed cups or a combination of both. Typically
the front seed box section is equipped with a “LARGE
SEED CUP and the rear section typically has the LEG-
UME SEED BOX.
To adjust seed output:
The LARGE SEED front section is usually driven with an 11-26 Gear ratio, while the back LEGUME SEED
section is being reduced to put out less with a 12-40 Gear Ratio.
Large seed cup box - front Legume seed cup box - rear
Assembly
Operating Instructions

15
Seeding/Fertilizing rate adjustment handle:
To adjust the fertilizer rate, you will need to adjust hand wheels (on each side of hopper). The seed/fertilize
rate depends on the seed/fertilizer you want to plant, please refer to your seed/ fertilizer supplier’s chart to get
the proper seed/fertilize rate.
Before adjusting the seed rate, return the rate on the Scale to zero by rotating the hand wheel, then check and
make sure all seeding/fertilizing wheels are fully closed on all seeding/ fertilizing boxes. (SEE BEFORE
BEGINNING section) If not, you need to loosen the clips on both sides of the seeding/fertilizing wheel and
push the wheel into the box. Tighten the clips. When the seeding/fertilizing box is closed and the meter
indicates “0”. Adjust fertilizing rate by rotating the hand wheel. The meter has 8 numbers from 0-8, from zero
to Maximum.
Weight, size, relative humidity, and moisture content can affect seeding rates. Users can adjust the position of
the seed/fertilizer “TONGUE” and lock in different positions by moving the cotter pin to meet the different
seeding/fertilizing size. The smaller the seed, the higher up the TONGUE should be positioned. For larger
seed, the “TONGUE” should be opened more.
Locking nut
Important: Tighten locking nut on handle assembly before operating.
Positioning holes
Tongue and positioning holes
Assembly
Operating Instructions

16

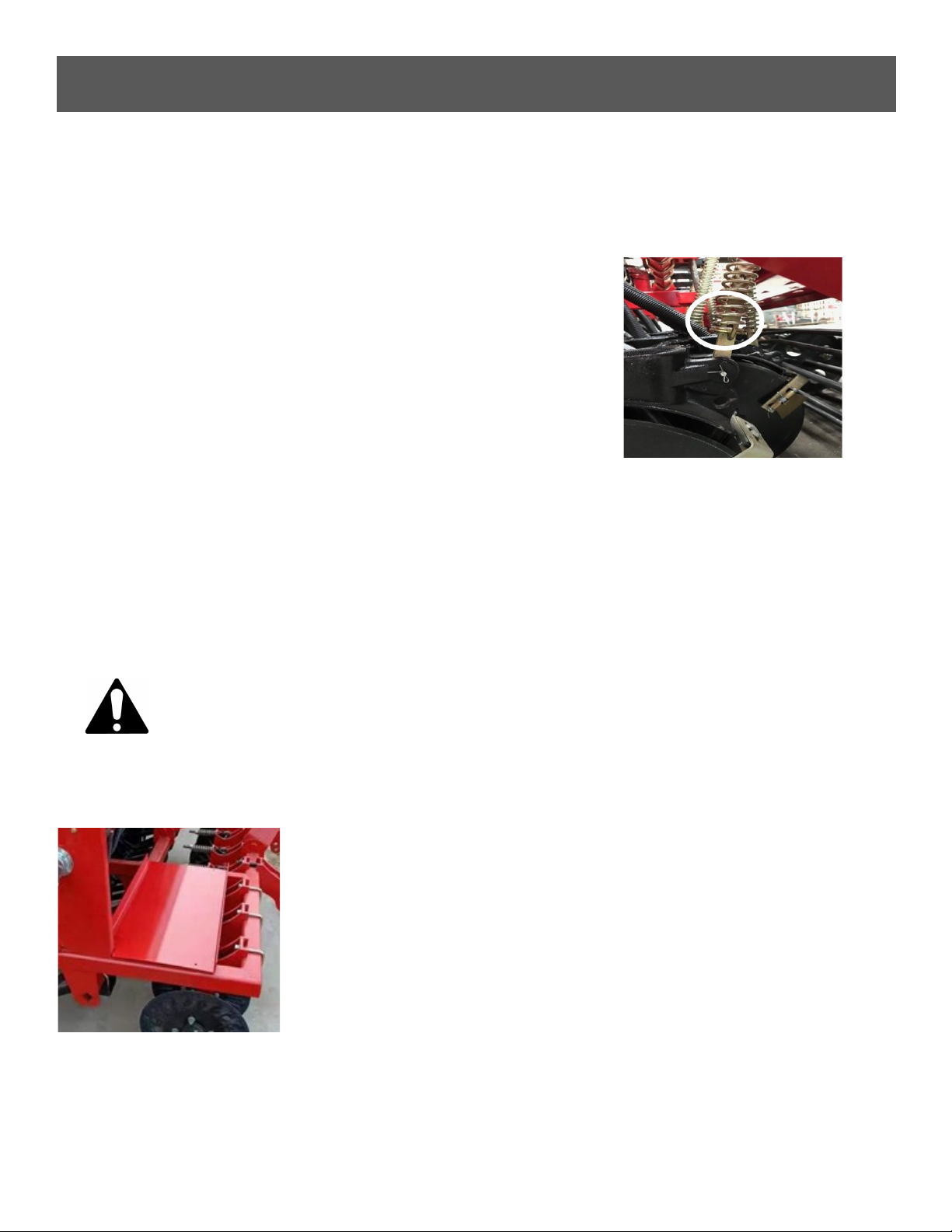

Seed cup shutoff:
Depending on the crop being planted, it may be necessary to not disburse from all of the seed cups. This is eas-
ily done by simply sliding the “Seed shut off flap” in and out.
Closed
The depth in which the application is done is controlled by adjust-
ing the basket located near of the machine. Adjusting the “Sowing
depth control device “ as follows:
Turning knob counter-clockwise will make the basket drop which
in turn will raise the disc openers and lessen the depth of the appli-
cation. Turning the knob clockwise would raise the basket which
would lower the disc openers and make the application deeper.
Open Closed OpenClosed Open
Turning the Torsion Bar wheel will increase spring tension on the
individual discs to apply additional pressure.
Seed depth - Torsion Bar
Seed depth - Rear Roller
Assembly
Operating Instructions

17
Seed depth - Disc Support Bar
The top link on the tractor hitch should be properly adjusted to carry the machine level in an operating
position. During operation, the tractor lift must be fully lowered to allow the machine to follow the contour of
the ground.
The machine is totally ground driven so proceed with a speed that is most comfortable and safe for existing
conditions. Be sure to stop forward motion before lifting the machine off the ground. This practice will stop
rollers from “free spinning’ and therefore eliminate the unwanted application when turning around. Never
operate the machine in reverse.
Additional pressure can be added by moving the curved clip into
another hole on the Disc Support Bar.
Additional weight platform
Important: The machine comes equipped with additional weight platforms to
help penetrate harder soils. Do not overload!
Assembly
Operating Instructions

18

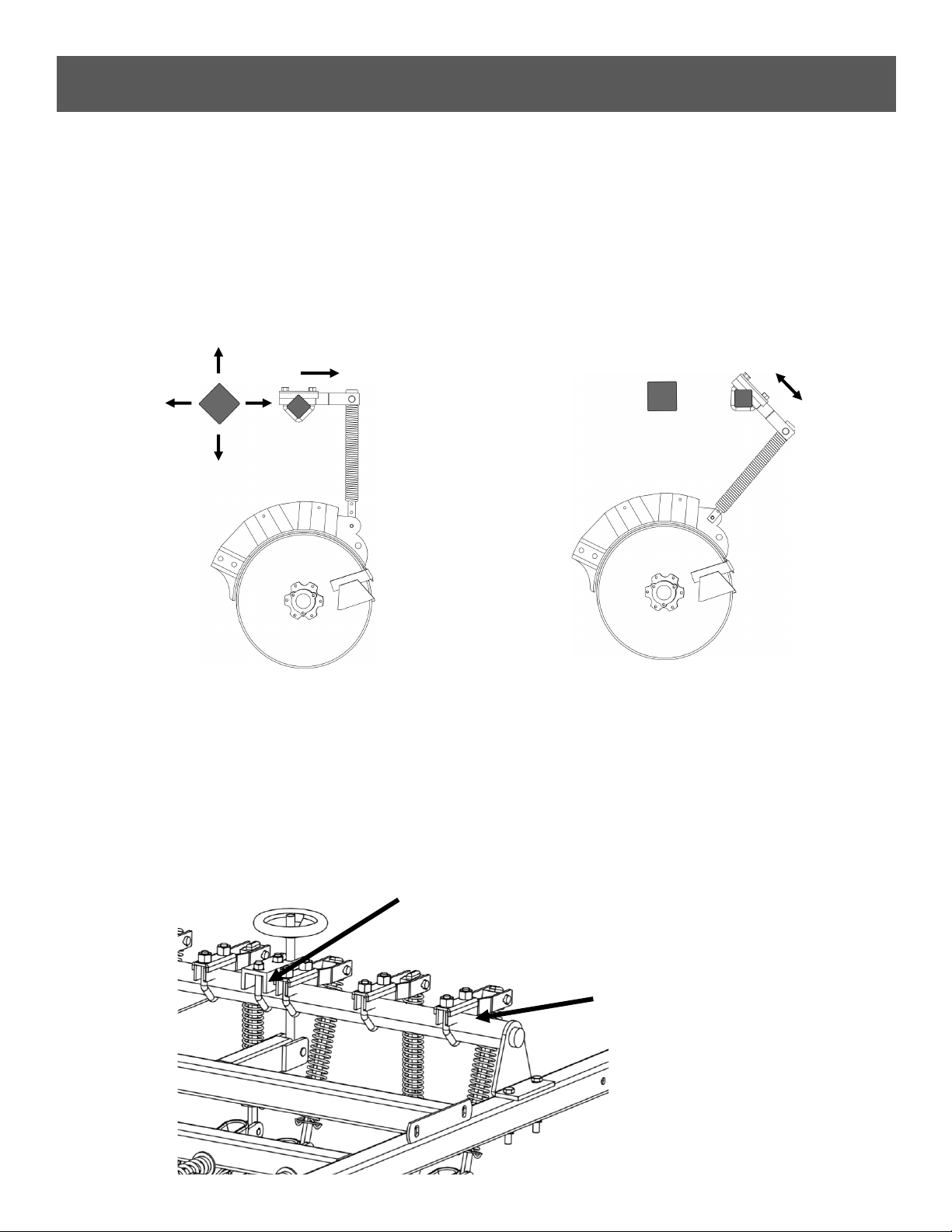

Disc Alignment:
The Disc Support Bracket must be in the correct orientation prior to operating the implement. The corners of
the Disc Support Bar must be in the 12 O’clock, 3 O’clock, 6 O’clock & 9 O’clock positions. The Disc
Support Bracket will be parallel to the ground, Fig. “A”.
If the Disc Support Bracket is not parallel to the ground, as shown in Fig “B”, disconnect the Disc Support
Brackets and Torsion Bar Clamp, Fig “C”.
Correct Position of Disc
Support Bracket
Fig. “A”Fig. “B”
Incorrect Position of Disc
Support Bracket
Disc Support Bracket
Torsion Bar Clamp
Fig. “C”
Assembly
Adjusting Disc Alignment

19
Disc Alignment (cont.):
Position the Disc Support Bar as shown in Fig. “D”. Adjust the Torsion Adjustment Wheel so that the threads
are about 3-1/2” from the threaded bracket to the adjustment wheel, Fig. “E”. Be sure to tighten all hardware
before operating the implement.
3-1/2”
Fig. “E”
Correct Position of Disc
Support Bracket
Fig. “D”
Assembly
Adjusting Disc Alignment

20
Important: It is important to thoroughly clean the seeder after use. Failure to do so can cause irreparable
damage to the seed cups and drive system. Grease and turn the Seed adjustment handle to ensure grease
lubricates the threads.
There are a few ways to clean out the hoppers:
• Each hopper is equipped with a cleanout spout in the front of each hopper.
• The rear hopper is equipped with a quick release lever located under the center of the hopper. By pulling
down the lever, all the hopper tongues will open and cause the seed/fertilizer to drop out of each of the
seed cups.
• Each seed cup can be emptied individually by pulling the cotter pin on the side of the cup and dropping
down the hopper tongue.

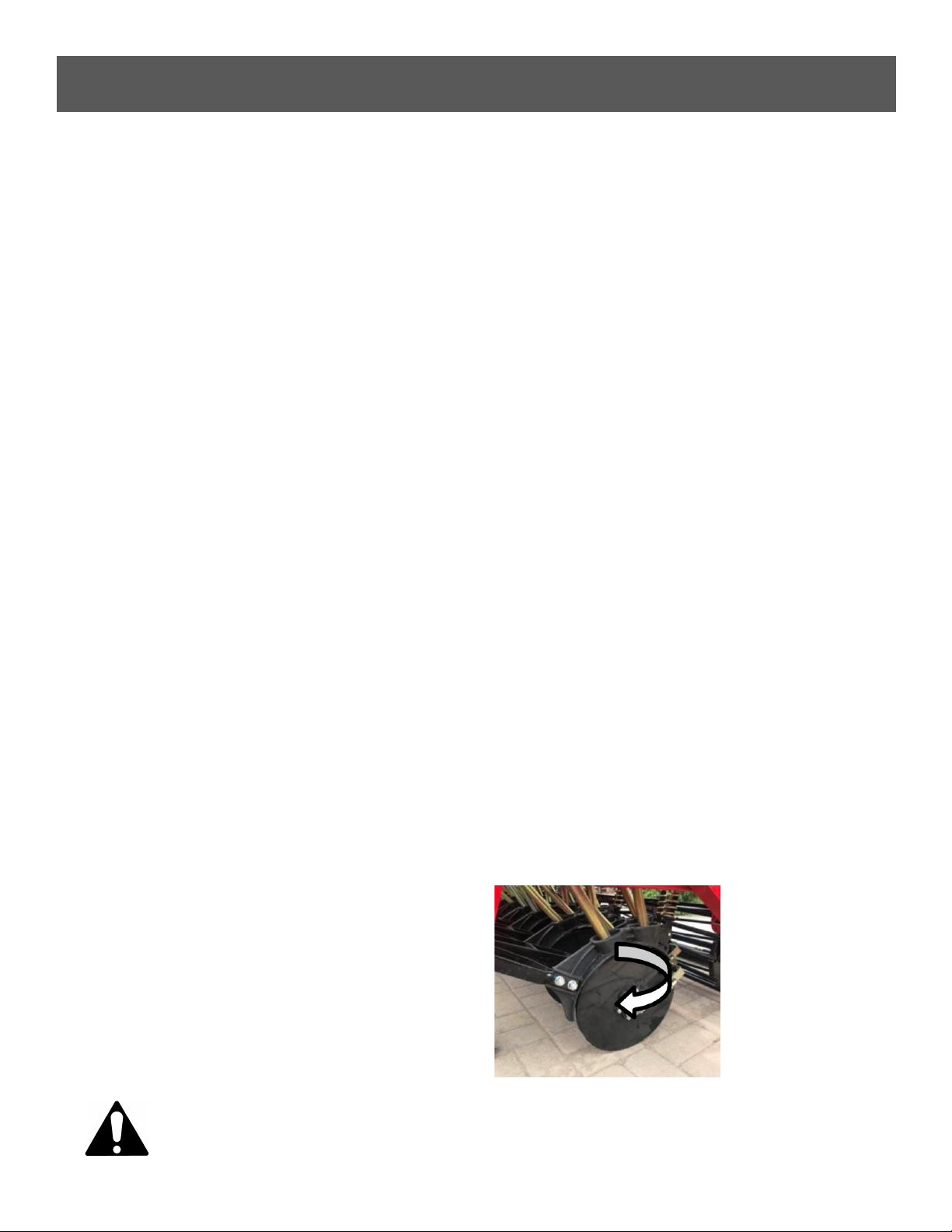

Changing Discs
Important: When replacing the discs, it is extremely important to remember that one of the disc hubs has left
hand threads and the other right hand threads. The threads can be stiped if removed improperly. Left side hub,
turn Clockwise to loosen and turn counter-clockwise to tighten. Right side hub, turn counter-clockwise to
loosen and clockwise to tighten.
Step 1: Remove the dust cap.
Step 2: Remove the external scraper dust cap.
Step 3: Remove hub nuts.
Step 4: Unscrew the hub from the disc support.
Step 5: Replace the discs and reassemble.
1 Hour Check all fasteners and hardware including set screws in sprockets and bearing collars and re-
tighten as necessary.
8 Hours Grease bearings on roller and apply grease to torsion bar wheel mechanism.
As needed: Remove any crop residue, grasses, weeds, or debris wrapped around shaft discs or rollers. This
can cause bearings to overheat and lead to premature failure.
Always: Protect the machine from weather. NEVER leaver fertilizer in hopper. Do not leave seed in
hopper for more than 24 hours. Remove all fertilizer and seeds from hopper. Thoroughly clean
hoppers and lubricate all drive chains before storage.
Important: When replacing the discs, it is extremely important to remember that
the left disc hub has reverse (LH) threads. The right disc hub has normal (RH)
threads. If turned incorrectly, they can strip.
Lubrication and Maintenance
