LOCOR® TOP-DOWN BATH TISSUE DISPENSER USER GUIDE (SKU NUMBERS D67011, D67012, D67013)
Designed for maximum sanitary use, this top-down bath tissue dispenser offers double tissue roll capacity with minimal roll exposure.
1.DISPENSER MOUNTING
See the reverse side for the mounting instructions and the mounting
template.
2.DISPENSER COVER
The cover can be opened with the supplied key that is included in the
package. Insert the key into the slot at the top of the cover. Push down
and pull forward and the cover will open.
3.PAPER ROLL LOADING & START-UP
For use with the LoCor bath tissue only (SKU numbers 26821 and 26824).
Other types of tissue are not acceptable.
For the start-up, first open the cover. To load the top tissue roll, swing
the mandrel (on the top) outward, slide the core of the tissue roll onto
the mandrel and swing the mandrel back horizontally.
To load the bottom tissue roll, slide the bottom mandrel outward and
then slide the core of the tissue roll onto the bottom mandrel. Slide the
bottom mandrel back until the roll is in contact with the back of the
body.
Loosen the “paper tails” on both of the tissue rolls (the “tails” are
glued to the roll initially). Be sure that the “tail” of the bottom roll is
visible at the bottom of the dispenser. Close the cover. The dispenser
is now ready to dispense.
4.RESERVE ROLL ACCESS
When there is no more tissue on the bottom roll, push the bottom
mandrel all the way to the back of the dispenser and the reserve roll
will drop down.
9.DIAGNOSTICS
If there is no more tissue on the bottom roll and the bottom mandrel
cannot be pushed backward (which prevents you from using the
reserve roll), open the cover for examination. Do not use extra force
on the mandrel; that may result in broken parts.
For further assistance, contact technical dispenser support at
[phone].

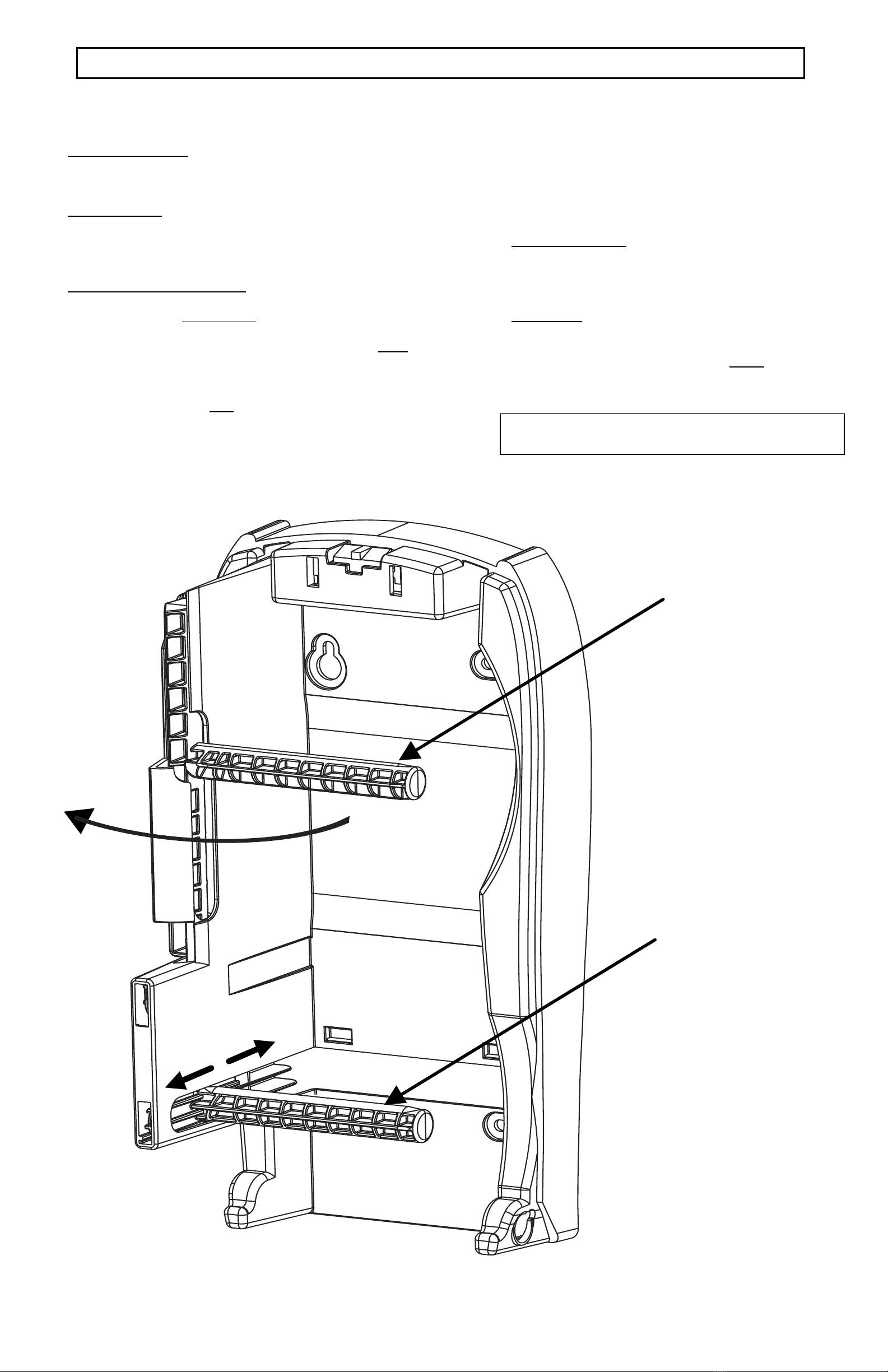

TOP MANDREL
BOTTOM MANDREL
FIGURE 1.

Mounting Instructions
Mounting Template
Step 1
Measure a minimum of 18”from the floor
to the bottom of the dispenser, as marked
on template.
Step 2
Place a level at the bottom of the dispenser
marked on template, level template and tape
onto wall. Mark the 4 mounting holes at the
hole centers. Remove template and drill 4
pilot holes.
Step 3
Fasten the top left screw to the wall,
leaving a gap between the screw head and
the wall to all allow the dispenser to slide
over.
Step 4
Hang the dispenser on the installed screw.
Fasten remaining 3mounting screws. Be
sure to securely tighten all screws.
Please use the hardware provided or appropriate hardware for the wall
material the dispenser is to be mounted to.
Note: Mount according to ADA Guidelines, installer is
responsible for compliance.
Tools:
Screwdriver
Power Drill with appropriate drill size
Pencil
Level and Tape Measure
Place level here (step 2)
BOTTOM OF THE DISPENSER BOTTOM OF THE DISPENSER
Mounting Holes
Mounting Holes
18” (step 1)
Floor
