Logic CABLE CUBBY Series User manual

MODEL SERIES
LC-404-N19 CABLE CUBBY SERIES
www.logicav.in
INSTALLATION MANUAL
CABLE MANAGER
www.logicav.in

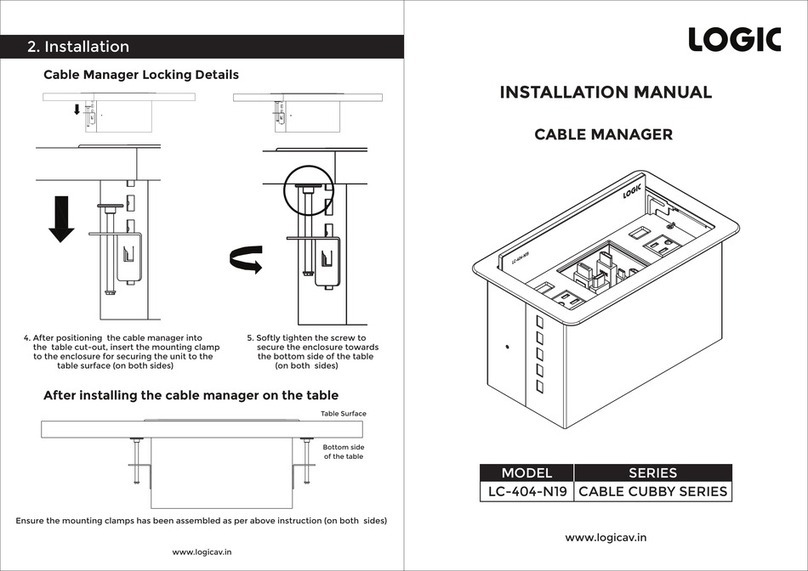

Cable Manager Locking Details
4. After positioning the cable manager
into the table cut-out, insert the
mounting clamp into the enclosure
for securing the unit to the table surface
(on both sides)
5. Softly tighten the screw to secure
the enclosure towards the bottom
side of the table (on both sides)
After installing the cable manager on the table
Ensure the mounting clamps has been assembled
as per the above instruction (on both sides)
Bottom
Surface
Table

Cable Manager x 1 A: Cut-out template x1
Checklist 2. Installation
1. Product Dimension
www.logicav.in www.logicav.in
130 mm
mm
225 mm
B: Mounting
clamp x 2
IMPORTANT: Prior to installation, ensure that you have received all
the parts as per the checklist.
236.00 141.00
130.00 225.00
R6.50
130.00
214.60
106.50
Instructions to provision the cut-out on the table:
ATTENTION: The cut-out on the table for the cable cubby should be
executed only by an experienced craftsperson to prevent
any damage/ scarring.
CAUTION : Wear safety glasses while operating power equipment.
Failure to comply may result in eye injury
1. Place the cut-out
template on the table
2. Follow template dimensions,
to carry out the cut-out on the table
3. Then position the cable manager
into the table cut-out
View after positioning the
cable manager into the table
Table Top Cut out
Table Top
Table Top
Dimension in mm
