Logik L46FE12 User manual

46” Full HD LED TV
Instruction Manual
L46FE12
L46FE12_IB_120419_Running Change_Annie.indd 1 12年4月19日 下午3:00

L46FE12_IB_120419_Running Change_Annie.indd 2 12年4月19日 下午3:00

Contents
Preparation.........................................................................................................................................................................................5
Unpacking the TV ...............................................................................................................................................................................................................5
Installing / Removing the Base Stand .........................................................................................................................................................................6
Front / Right Side View and Controls...........................................................................................................................................................................7
Rear View and Sockets......................................................................................................................................................................................................8

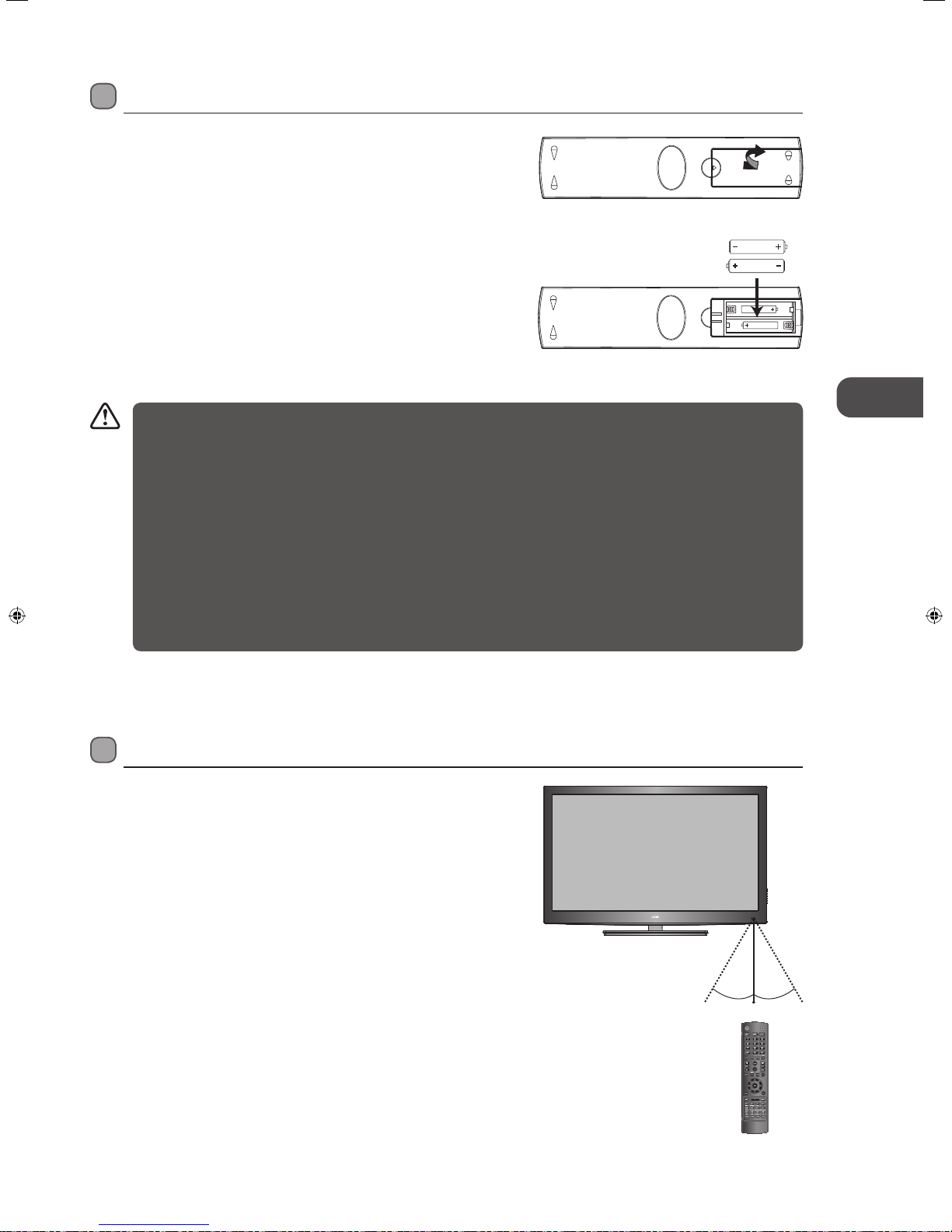

Installing Batteries in the Remote Control ................................................................................................................................................................9
Remote Control Operation Range................................................................................................................................................................................9
Remote Control .................................................................................................................................................................................................................10
Connections......................................................................................................................................................................................13
Making Video and Audio Connections.....................................................................................................................................................................13
Connecting an AV Device Using an HDMI Cable...................................................................................................................................................13
Connecting a Computer Using a VGA Cable ..........................................................................................................................................................14
Connecting an AV Device Using a Component (YPbPr) Cable ........................................................................................................................14
Connecting an AV Device Using a SCART Cable ...................................................................................................................................................15
Connecting an AV Device Using Composite Cable..............................................................................................................................................15
Connecting a Coaxial Audio Receiver Using an Audio Cable...........................................................................................................................16
Initial Setup ......................................................................................................................................................................................17
Turning the TV On for the First Time .........................................................................................................................................................................17
− Target Region Setting.........................................................................................................................................................................................18
− Selecting the Input Source................................................................................................................................................................................18
− Channel Selection ...............................................................................................................................................................................................19
− Display Channel Information ...........................................................................................................................................................................19
− Volume Adjustment.............................................................................................................................................................................................19
Customising TV Settings .................................................................................................................................................................20
Channel Setting (TV, DTV or Radio Mode).............................................................................................................................................................. 20
− Auto Tuning ........................................................................................................................................................................................................... 20
− DTV Manual Tuning (DTV Mode).....................................................................................................................................................................21
− ATV Manual Tuning (ATV Mode)......................................................................................................................................................................21
− Channel Edit (DTV Mode).................................................................................................................................................................................. 22
− Channel Edit (ATV Mode).................................................................................................................................................................................. 23
− Signal Information (DTV Mode)...................................................................................................................................................................... 24
− CI (Common Interface) (DTV Mode).............................................................................................................................................................. 24
− Software Update (Over Air Download) (DTV Mode)............................................................................................................................... 25
− Software Update (USB)...................................................................................................................................................................................... 26
Picture Setting .................................................................................................................................................................................................................. 26
Sound Setting ................................................................................................................................................................................................................... 28
− Stereo / Dual Sound Reception (ATV Mode).............................................................................................................................................. 29
− Speaker Sound Output Selection (DTV Mode)......................................................................................................................................... 29
Time Settings..................................................................................................................................................................................................................... 29
Option Setting ...................................................................................................................................................................................................................31
− OSD Language.......................................................................................................................................................................................................31
− TT Language...........................................................................................................................................................................................................31
− Audio Language (DTV Mode).......................................................................................................................................................................... 32
− Subtitle Language (DTV Mode)...................................................................................................................................................................... 33
− Hearing Impaired................................................................................................................................................................................................. 33
− PVR File System (DTV Mode)............................................................................................................................................................................ 34
− Aspect Ratio........................................................................................................................................................................................................... 35
− Blue Screen ............................................................................................................................................................................................................ 36
− Backlight ................................................................................................................................................................................................................. 36
− HDMI CEC (Consumer Electronics Control) (HDMI Mode).................................................................................................................... 37
− Restore Factory Default..................................................................................................................................................................................... 38
Lock Setting ....................................................................................................................................................................................................................... 38
− Lock System........................................................................................................................................................................................................... 38
− Set Password ......................................................................................................................................................................................................... 39
− Block Channel ....................................................................................................................................................................................................... 40
− Parental Guidance ................................................................................................................................................................................................41
− Key Lock .................................................................................................................................................................................................................. 42
L46FE12_IB_120419_Running Change_Annie.indd 3 12年4月19日 下午3:00

Using the Features ...........................................................................................................................................................................43
EPG (Electronic Programme Guide) (DTV Mode)................................................................................................................................................. 43
− Switch On / O EPG............................................................................................................................................................................................. 43
− Select a Programme ........................................................................................................................................................................................... 43
Teletext (ATV Mode)........................................................................................................................................................................................................ 44
− To Turn on Teletext Function...........................................................................................................................................................................44
Digital Teletext (DTV Mode)......................................................................................................................................................................................... 45
− Teletext within Digital Service........................................................................................................................................................................ 45
Entertainment ..................................................................................................................................................................................46
Connecting a USB Storage Device............................................................................................................................................................................. 46
Viewing Photos................................................................................................................................................................................................................. 46
Listening to Music............................................................................................................................................................................................................ 47
Viewing Movies ................................................................................................................................................................................................................ 48
My Text................................................................................................................................................................................................................................. 49
PVR (Personal Video Recorder).......................................................................................................................................................50
Time Shift Function (DTV Mode)................................................................................................................................................................................ 50
Recording DTV Programme onto a USB Storage Device ...................................................................................................................................51
Timer Programming ....................................................................................................................................................................................................... 52
Play Recorded Programme .......................................................................................................................................................................................... 53
Maintenance.....................................................................................................................................................................................54
Hints and Tips...................................................................................................................................................................................55
Display Modes ..................................................................................................................................................................................56
− YPbPr Mode........................................................................................................................................................................................................... 56
− PC Mode.................................................................................................................................................................................................................. 56
− HDMI Mode ........................................................................................................................................................................................................... 56
Specifications ...................................................................................................................................................................................57
Safety Warnings ...............................................................................................................................................................................59
L46FE12_IB_120419_Running Change_Annie.indd 4 12年4月19日 下午3:00

GB
5
Preparation
Preparation
Unpacking the TV
Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
Screw A x 6
(P.N.: 100-016-4011)
Screw B x 5
(P.N.: 100-012-4031)
AV Cable
(P.N.: 617-151-1230)
Remote Control / AAA Batteries x 2
(P.N.: 845-051-00B11 & 413-100-0007)
Instruction Manual
(P.N.: 002-B53-LOGIK-V2)
Quick Start Guide
(P.N.: 002-L39-LOGIK)
Digital TV Switchcover Addendum
(P.N.: 002-I00-LOGIK)
Thank you for purchasing your new Logik 46" Full HD LED TV.
Your new TV has many features and incorporates the latest technology to enhance your viewing
experience. We recommend that you spend some time reading this instruction manual so that you fully
understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.
Video
Video
R
R
L
L
TV with Stand Support
TV Base
(P.N.: 154-700-EH4672)
L46FE12_IB_120419_Running Change_Annie.indd 5 12年4月19日 下午3:00

GB
6
Preparation
4. To remove the stand assembly, untighten the 5 screw
B holding the stand assembly to the rear of the TV.
Slide the stand assembly out.
5. Mounting on the wall. This TV is designed to be
wall-mounted with a standard 400 mm x 400 mm
mounting kit (sold separately) designed for flat-panel
TVs. Mount this TV according to the instructions
included in the mounting kit. Due to space restrictions,
we recommend that you make all connections (refer to
page 13-16 and page 46 for details) before mounting
on to the wall.
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side facing up. Please make sure a soft cushioned material (such as a pillow or
thick piece of foam) is placed beneath the screen.
3. To install the TV stand, first attach
the base stand to the TV by using
screw A. Align the screw holes
then secure with a screw driver
(not included) using the 6 screw A
provided to fix the base stand to
the TV.
Installing / Removing the Base Stand
400 mm
400 mm
Four mounting holes
(size M6 screw)
The screw holes will
only align if the front
of the base stand is at
the front of the TV.
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be
sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it.
DO NOT exert pressure on the front of the TV at any time because the screen could crack.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK
Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
Keep all the spare screws should you want
to use the stand assembly option.
Remove the stand assembly before mounting the TV onto the wall.
Screw A x 6
(P.N.: 100-016-4011)
Screw B x 5
(P.N.: 100-012-4031)
TV Front Base Stand
Front
screw
unscrew
L46FE12_IB_120419_Running Change_Annie.indd 6 12年4月19日 下午3:00

GB
7
Preparation
Front / Right Side View and Controls
Item Description
1POWER LED
Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby
mode. The LED will alternatively flash red and blue when the timer programming has
started in the standby mode.
2IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
3 VOL + / – Adjusts the volume.
Press to select and adjust a setting in the OSD menu.
4 CH + / – Press to select a channel or select a sub-menu from the OSD menu.
5MENU Displays the OSD (on screen display) menu.
6 SOURCE
Press to select among different input signal sources:
DTV / ATV / AV / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 / PC / USB.
Confirmed the selection on OSD menu.
7 / I Switches the TV on from standby mode.
Switches the TV back to standby mode.
3
4
5
6
7
1 2
L46FE12_IB_120419_Running Change_Annie.indd 7 12年4月19日 下午3:00

GB
8
Preparation
Rear View and Sockets
Socket Description
1POWER ON/OFF Switches on the POWER ON/OFF switch to turn the TV to standby mode.
2 HDMI1 / 2 / 3 Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
3 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
4 PC IN / PC AUDIO Connects to a computer or other devices with a VGA interface.
5 RF Connects to the aerial socket on the wall with the RF coaxial cable.
6 Y, PB, PR / AUDIO (L/R) Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
7 VIDEO / AUDIO (L/R) Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
8 CI (Common Interface) Slot Allows the insertion of a Common Access Module. (Refer to page 24 for details.)
9 USB Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
10 DIGITAL AUDIO OUT
(COAXIAL) Connects to the audio socket on the digital/standard 5.1 audio system.
2 43 5
1
DIGITAL
AUDIO OUT
（COAXIAL）
USB
OUTPUT 5V 500mA
HDMI3 IN AUDIO
HDMI1 IN
HDMI2 IN
PC IN
6
7
8
2
9
10
L46FE12_IB_120419_Running Change_Annie.indd 8 12年4月19日 下午3:00

GB
9
Preparation
Remote Control Operation Range
Point the remote control at the TV no more than 5 metres from the
remote control sensor on the TV and within 60° in front of the TV.
The operating distance may vary depending on the brightness of the
room.
Installing Batteries in the Remote Control
1. Press and lift the back cover to open the battery compartment of the
remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends
of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
3. Close the battery compartment cover.
30° 30°
5M
Handling the Batteries
• Improper or incorrect use of batteries may cause
corrosion or battery leakage, which could cause
fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will
not function. Replace both batteries at the same
time with new ones.
• Do not install new batteries with used ones and do
not mix different types of batteries.
• Do not dispose of used batteries as domestic
waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
• Take care of your fingernails when you press and
hold the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct
sunlight or near sources of excessive heat.
• Remove the battery from the remote control
when not in use for a long period of time, as it
could cause corrosion or battery leakage and may
result in physical injury and/or property damage
including fire.
L46FE12_IB_120419_Running Change_Annie.indd 9 12年4月19日 下午3:00

GB
10
Preparation
1.
Switches the TV between on and standby mode.
2. MUTE
Mutes and restores your TV sound.
3. INPUT
Selects among the dierent input signal sources:
DTV / ATV / AV / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 /
PC / USB.
4. MENU
Displays the OSD (On Screen Display) menu.
5.
Turns on / o the SRS Tru Surround HD function.
6. 0-9 Number Button
• Selects a programme. (ATV / DTV mode)
• Selects numbered items in a menu. (DVD mode)
7. LIST
• Displays channel list. (ATV / DTV mode)
• Selects a track number above 10. For example, to select track
23 press twice followed by 3. (DVD mode)
8. RECALL
Returns to the previous viewing channel. (ATV / DTV mode)
9. ASPECT
Watches the screen in various formats: Auto / 4:3 / 16:9 / Zoom /
Smart Zoom / Full / Subtitle. (Full only operates in YPBPR / HDMI
mode)
10. S.MODE
Selects sound mode: Standard / Music / Movie / Sports /
Personal.
11. P.MODE
Selects picture mode: Dynamic / Standard / Mild / Personal.
12. GUIDE
Display the EPG (Electronic Programme Guide). (DTV mode)
TITLE
Displays the DVD title content. (DVD mode)
13. SLEEP
Sets the TV sleep timer: OFF / 10 / 20 / … / 180 / 240 min.
14. VOL + / –
Adjusts the volume.
15. CH + / –
Selects a channel.
16.
• Displays the present channel information such as the current
time and channel name. (ATV / DTV mode)
• Displays the present disc information. (DVD mode)
Remote Control
12
8
11
12
5
15
16
6
7
9
3
14
10
4
13
L46FE12_IB_120419_Running Change_Annie.indd 10 12年4月19日 下午3:00
