Logik LTT68S10E User manual

GB
Table Top Fridge
INSTRUCTION MANUAL
Benkekjøleskap
INSTRUKSJONSHÅNDBOK
Pöytäjääkaappi
KÄYTTÖOHJE
Kylskåp
BRUKSANVISNING
Lille køleskab
INSTRUKTIONSVEJLEDNING
NO
FI
SE
DK
Table Top Fridge
Instruction Manual
LTT68S10E
LTT68S10E_IB_5L_111021_ELabel.indb 1 11年10月21日 下午6:04

LTT68S10E_IB_5L_111021_ELabel.indb 2 11年10月21日 下午6:04

Contents GB
Unpacking .................................................................................................................6
Location ..............................................................................................................7
Reversing the Door Swing ...................................................................................7
Levelling the Unit ................................................................................................9
Cleaning Before Use ............................................................................................9
Before Using Your Unit .........................................................................................9
Product Overview ....................................................................................................10
Operation ................................................................................................................11
Switching On Your Unit ......................................................................................11
Adjusting the Temperature ................................................................................11
Noises Inside the Unit! .......................................................................................12
Shopping for Chilled Foods ................................................................................12
Tips for Keeping Food Perfect in the Unit ...........................................................12
Cleaning ..................................................................................................................13
Defrosting .........................................................................................................13
Cleaning the Interior and the Exterior of the Unit ..............................................13
Cleaning Tips .....................................................................................................13
Maintenance ...........................................................................................................14
Care When Handling / Moving Your Unit ...........................................................14
Servicing ...........................................................................................................14
Switching O for Long Periods of Time ..............................................................14
Disposal ..................................................................................................................14
Specication ...........................................................................................................15
Safety Warnings ...................................................................................................... 61
Innhold NO
Pakke ut ..................................................................................................................17
Plassering ..........................................................................................................18
Snu dørretningen .............................................................................................. 18
Justering av enheten .........................................................................................20
Rengjøring før bruk ...........................................................................................20
Før du bruker enheten .......................................................................................20
Produktoversikt .......................................................................................................21
Bruk ........................................................................................................................22
Slå på enheten din ............................................................................................22
Justere temperaturen ........................................................................................22
Lyder fra enheten! .............................................................................................23
Når du handler kjølevarer ..................................................................................23
Tips for best oppbevaring av mat i enheten .......................................................23
Rengjøring ..............................................................................................................24
Avriming ...........................................................................................................24
Rengjøring av enheten på innsiden og utsiden .................................................24
Rengjøringstips ................................................................................................. 24
Vedlikehold .............................................................................................................25
Forsiktighet ved håndtering / ytte enheten .....................................................25
Vedlikehold .......................................................................................................25
Skru av i lengre perioder....................................................................................25
Deponering .............................................................................................................25
Spesikasjoner ........................................................................................................26
Sikkerhetsadvarsler .................................................................................................61
LTT68S10E_IB_5L_111021_ELabel.indb 3 11年10月21日 下午6:04

Innehåll SE
Packa upp................................................................................................................28
Plats .................................................................................................................. 29
Byta öppningssida för dörren ............................................................................29
Se till att enheten står plant ..............................................................................31
Rengöring före användning...............................................................................31
Innan du börjar använda enheten .....................................................................31
Produktöversikt .......................................................................................................32
Användning ............................................................................................................33
Sätta på enheten ...............................................................................................33
Justera temperaturen ........................................................................................33
Ljud inifrån enheten! .........................................................................................34
När du handlar kylda livsmedel .........................................................................34
Tips för att hålla livsmedlen i perfekt skick i enheten ........................................ 34
Rengöring ...............................................................................................................35
Avfrostning .......................................................................................................35
Rengöra enhetens in- och utsida .......................................................................35
Rengöringstips ..................................................................................................35
Underhåll ................................................................................................................ 36
Försiktighet vid hantering/ytt av enheten .......................................................36
Service .............................................................................................................. 36
Långvarig avstängning ......................................................................................36
Kassering ................................................................................................................36
Specikationer ........................................................................................................37
Varningar gällande säkerhet ...................................................................................62
Sisällysluettelo FI
Laitteen purkaminen pakkauksesta ........................................................................39
Sijainti ............................................................................................................... 40
Oven avautumissuunnan vaihtaminen ..............................................................40
Laitteen asettaminen suoraan...........................................................................42
Käyttöä edeltävä puhdistaminen ......................................................................42
Ennen laitteen käyttöä ......................................................................................42
Tuotteen esittely .....................................................................................................43
Käyttö .....................................................................................................................44
Laitteen käynnistäminen ..................................................................................44
Lämpötilan säätäminen .................................................................................... 44
Laitteen sisältä kuuluvat äänet! ........................................................................45
Jäähdytettyjen ruokien ostaminen ....................................................................45
Vihjeitä siitä, miten ruoka pidetään laitteessa hyvässä kunnossa ...................... 45
Puhdistaminen........................................................................................................46
Sulattaminen ....................................................................................................46
Laitteen puhdistaminen sisältä ja ulkoa ............................................................46
Puhdistusvinkkejä ............................................................................................. 46
Huolto .....................................................................................................................47
Laitteen käsittely/liikuttelu ...............................................................................47
Huolto ...............................................................................................................47
Sammuttaminen pitkäksi aikaa ........................................................................ 47
Hävittäminen ..........................................................................................................47
Tekniset tiedot ........................................................................................................48
Turvallisuusvaroituksia ............................................................................................62
LTT68S10E_IB_5L_111021_ELabel.indb 4 11年10月21日 下午6:04

Indholdsfortegnelse DK
Udpakning ..............................................................................................................50
Beliggenhed ......................................................................................................51
Sådan vender du døren ..................................................................................... 51
Nivellering af enheden ......................................................................................53
Rengøring før brug ............................................................................................ 53
Før ibrugtagning af enheden .............................................................................53
Produktoversigt.......................................................................................................54
Betjening ................................................................................................................55
Tænde for din enhed .........................................................................................55
Justere temperaturen ........................................................................................55
Støj inden i enheden! ........................................................................................56
Indkøb af nedkølede madvarer ..........................................................................56
Råd til perfekt opbevaring af madvarer i enheden ............................................56
Rengøring ...............................................................................................................57
Afrimning ..........................................................................................................57
Rengøring af inderside og yderside af enheden ................................................57
Rengøringstip ...................................................................................................57
Vedligeholdelse ......................................................................................................58
Forsigtig når enheden håndteres eller yttes ....................................................58
Eftersyn .............................................................................................................58
Slukning i tilfælde af lang stilstand ................................................................... 58
Bortskaelse ...........................................................................................................58
Specikation ...........................................................................................................59
Sikkerhedsadvarsler ................................................................................................63
LTT68S10E_IB_5L_111021_ELabel.indb 5 11年10月21日 下午6:04

6
GB Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
The Main Unit
Drip Tray
P.N.: 501105040021
Upper Adjustable Shelf
P.N.: 502901000035
Lower Adjustable Shelf
P.N.: 502901040003
Ice Tray
P.N.: 501113810004
Instruction Manual
P.N.: LTT68S10E-002
Thank you for purchasing your new Logik Fridge.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
LTT68S10E_IB_5L_111021_ELabel.indb 6 11年10月21日 下午6:04

7
GB
Location
When selecting a position for your unit you should make sure the floor is flat and firm, and
the room is well ventilated with an average room temperature of between 16°C and 38°C.
Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct
sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures
may also cause the unit not to perform properly. This unit is not designed for use in a garage
or outdoor installation. Do not drape the unit with any covering.
When installing the unit, ensure that 2 cm of free space is left at both sides and 3 cm at the
rear of the unit. The door can be opened to the right or the left, depending on what better
suits the location. Please ensure there is adequate space for the door to fully open.
• If you want to have the door swing reversed, we recommend that you contact a
qualified technician. You should only try to reverse the door yourself if you believe
that you are qualified to do so.
• All parts removed must be saved to do the reinstallation of the door. You should
rest the unit on something solid so that it will not slip during the door change
process. Do not lay the unit flat as this may damage the coolant system. Ensure
the unit is unplugged and empty.

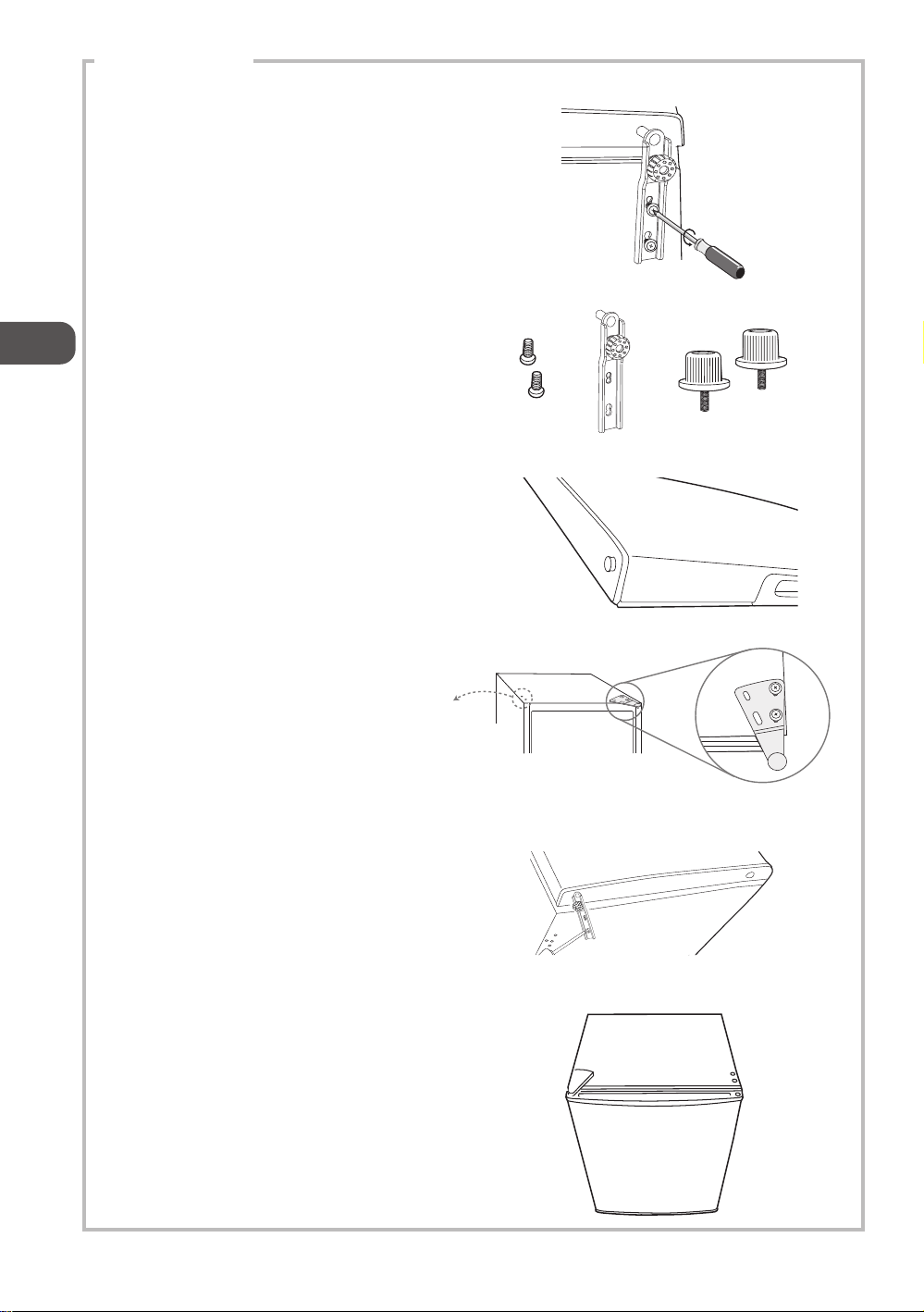

Reversing the Door Swing
Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner.
• Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their highest position.
• To take the door off it is necessary to tilt the unit backwards. You should rest the
unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door. You should
rest the unit on something solid so that it will not slip during the door reversing
process.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
1. Tilt the unit carefully. 2 people are
required to tilt the unit during the door
reversing process.
INSTALLATION
LTT68S10E_IB_5L_111021_ELabel.indb 7 11年10月21日 下午6:04

8
GB
2. Undo the two screws from the bottom
bracket. Remove both feet from the unit.
3. Place the two screws, the bottom bracket
and the feet to one side.
4. Slide the door down about 15cm (6”) and
off the top hinge pin. Lift it away from
the unit.
5. Remove the plastic caps from the
top of the unit. Remove the two
screws from top bracket and replace
on the other side.
6. Slide the door back on to the Top hinge,
making sure it’s the right way up. Screw
the bottom hinge into place on the new
side. Replace the other foot on the other
side.
7. Slowly and carefully place the unit on the
ground. Check that the door is aligned
horizontally and vertically and that the
seals are closed on all sides before finally
tightening the bottom hinge. Re-adjust
the levelling feet.
Remove
INSTALLATION
LTT68S10E_IB_5L_111021_ELabel.indb 8 11年10月21日 下午6:04

9
GB

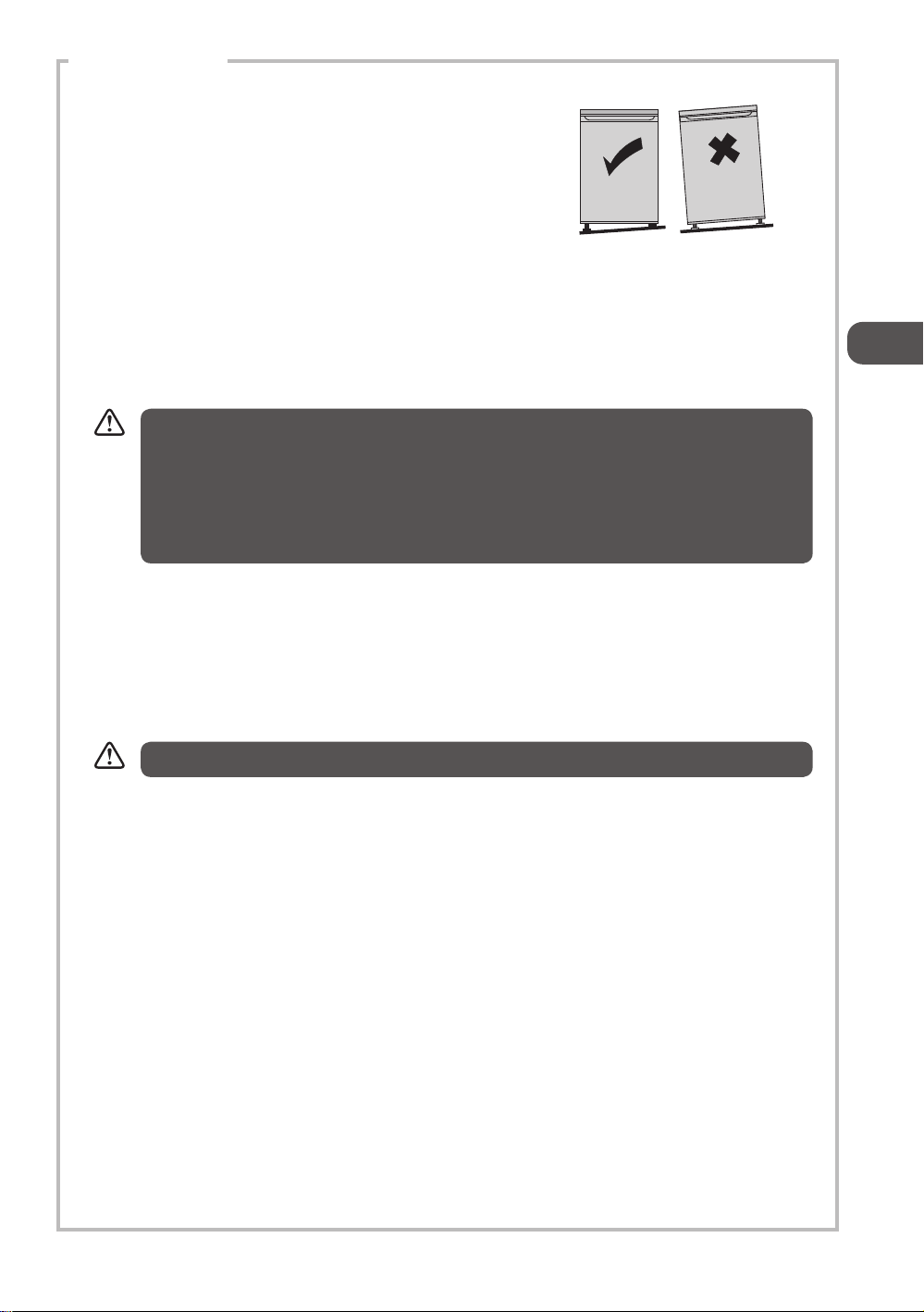

Levelling the Unit
To do this use the two levelling feet at the
front of the unit.
If the unit is not level, the door and magnetic
seal alignments will not be covered properly.
Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm
water using a ‘wrung-out’ sponge or cloth. Wash the shelves in warm soapy water and dry
completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.
If you require more information refer to the Cleaning section.
• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the
unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time
to settle.
Before Using Your Unit
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is
working properly and to allow the it time to fall to the correct temperature. Your unit should
not be overfilled.
The ice box compartment is for ice only and not for freezing food.
INSTALLATION
LTT68S10E_IB_5L_111021_ELabel.indb 9 11年10月21日 下午6:04

10
GB
Product Overview
Ice Box
Levelling
Feet
Thermostat
Control Dial
Adjustable
Shelves
Door
Shelves
Drip Tray Ice Tray
LTT68S10E_IB_5L_111021_ELabel.indb 10 11年10月21日 下午6:04

11
GB
Operation

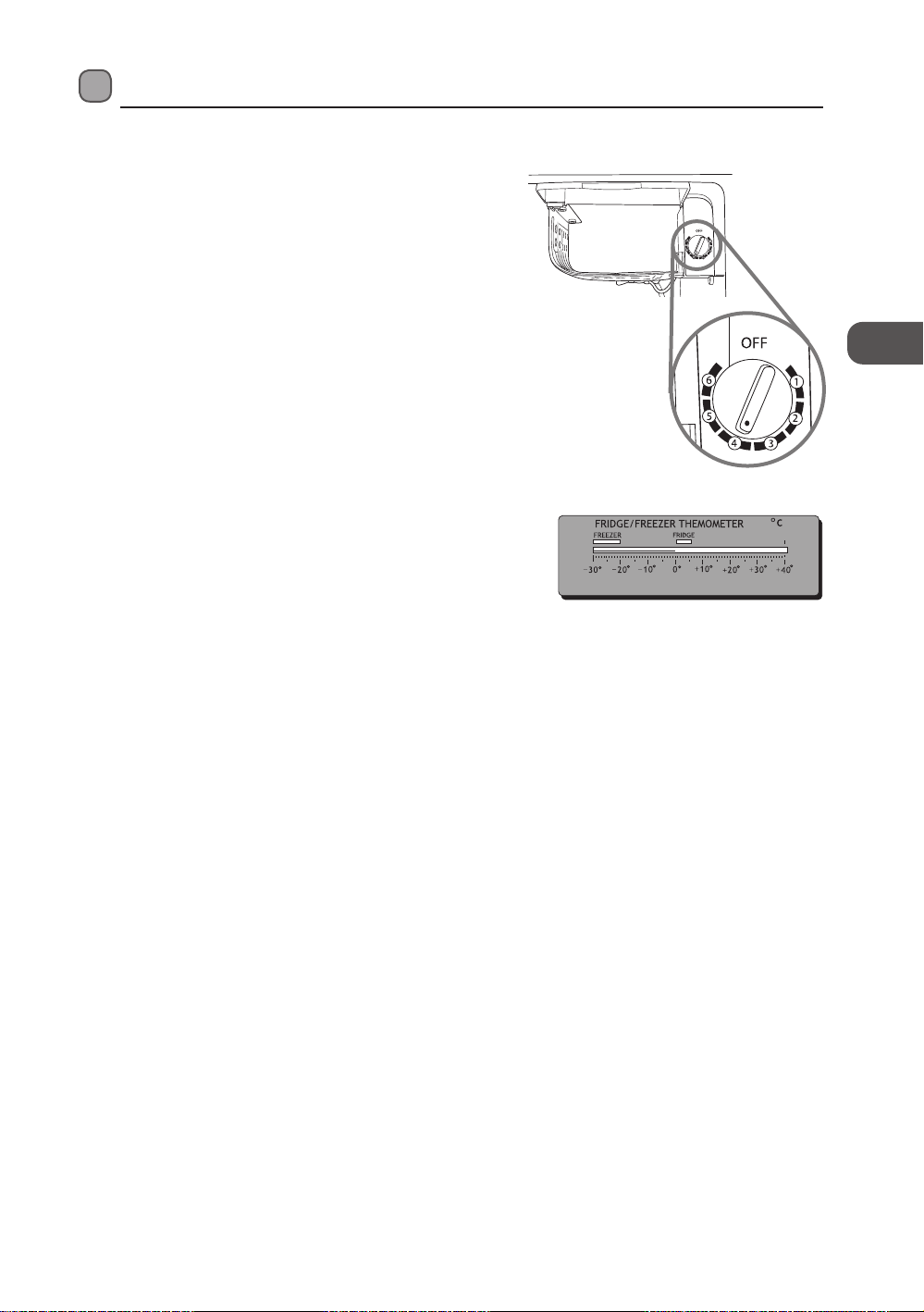

Switching On Your Unit
1. Before connecting the unit to the mains supply make
sure that the thermostat control dial is set at position
OFF. This is located on the inside the unit next to the
ice box. Connect the mains cable to the mains socket.
2. Adjust the thermostat control dial to the desired
position, bear in mind that the higher the number,
the lower the temperature. Position 4 is the
recommended setting when operating at normal
room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if
it is in a particularly hot or a particularly cold room, or
if you open the door often.
4. To ensure that the unit is cool enough to sufficiently
chill your food wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept
cold enough and wish to check the temperature you
will need a special fridge/freezer thermometer. These
are available from most supermarkets and hardware
shops.
Place the thermometer in the centre of the unit,
where it can be read easily. Leave overnight, the
temperature in the unit should be between an
average of 5°C.
Adjusting the Temperature
The internal temperature of the unit is controlled by a thermostat. The recommended position
is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for
hotter environments. Please adjust according to the environment.
LTT68S10E_IB_5L_111021_ELabel.indb 11 11年10月21日 下午6:04

12
GB
Noises Inside the Unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal,
but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will
not affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
Shopping for Chilled Foods
• Take a quick look at the chilled food package and make sure it is in perfect condition.
• Try to keep chilled food together whilst shopping and on the journey home as this will help
to keep the food cold.
• Don’t buy chilled food unless you can chill it straight away. Specially insulated bags can be
bought from most supermarkets and hardware shops. These bags can keep chilled food cold
for longer while transporting.
• Food that has been left in a car or at room temperature for a prolonged period of time could
raise the food temperature to a dangerous level, which allows harmful bacteria to grow.
• Always unpack and place chilled food in the unit before storing dry food.
Tips for Keeping Food Perfect in the Unit
• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect
juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the
unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain
the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the
door. We recommend that you only open the door when you need to put food in or take
food out.
LTT68S10E_IB_5L_111021_ELabel.indb 12 11年10月21日 下午6:04

13
GB
Cleaning

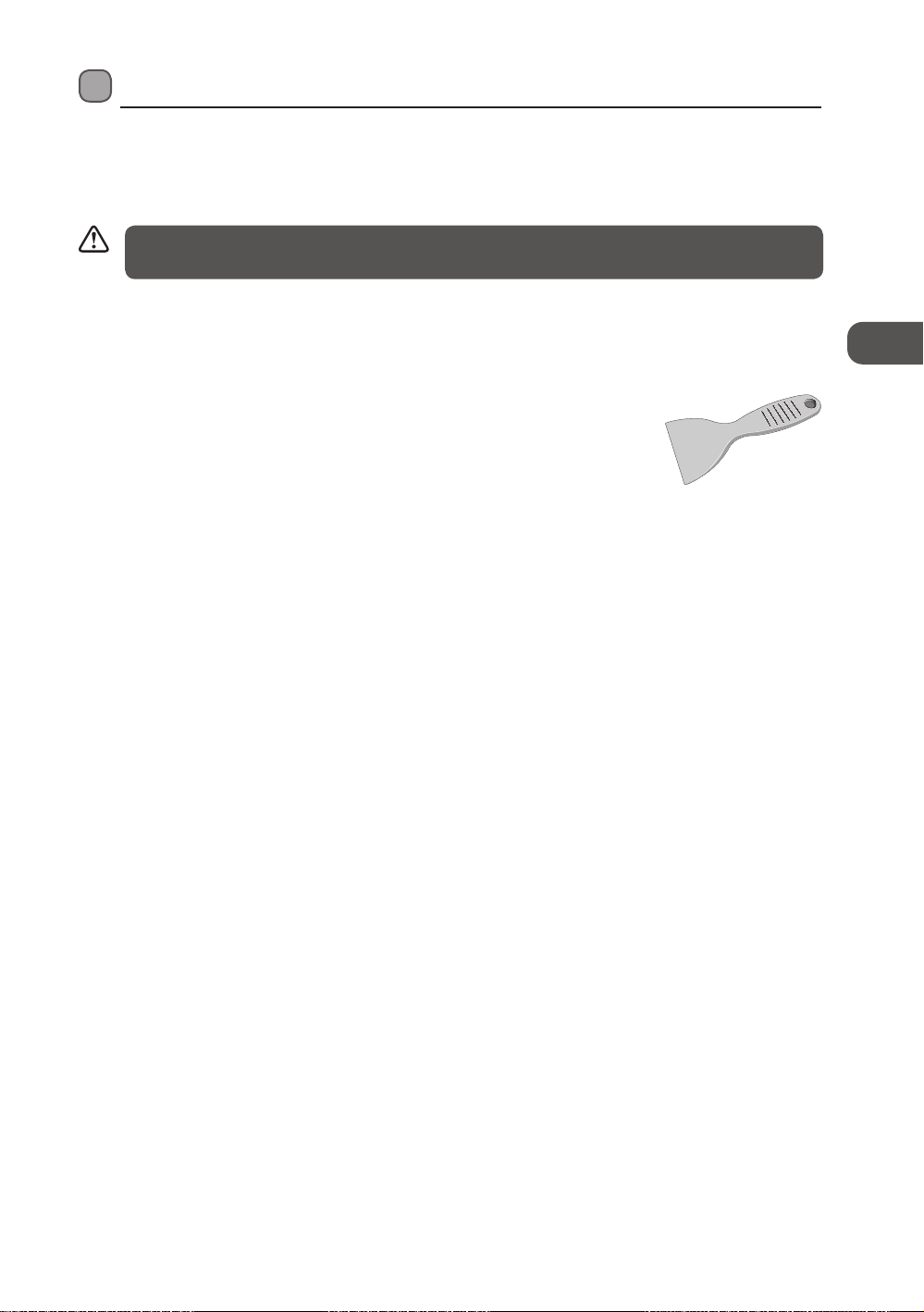

Defrosting
Frost might build up in the unit after the it has been used for a period of time. Scrape away the
frost using a plastic scraper.
Do not use a metal or sharp instrument to scrap away the frost, nor should you use any
electrical appliances to aid defrosting.
We recommend that defrosting should be carried out when the frost layer builds up to 3cm
(~1.18”). Choose a time when the stock of frozen food is low, follow these procedures:
1. Take out the food, turn the unit off at the mains supply and leave the door open.
2. Place a shallow bowl or pan below the unit. Scrap away the frost
using the plastic scraper. Defrosting the remaining frost can be
speeded up by placing a bowl of hot water inside the unit and
closing the door. As the solid frost loosens, scrap it away with the
plastic scraper and remove.
3. When defrosting is complete, clean your unit’s interior and exterior.
Cleaning the Interior and the Exterior of the Unit
• Remove all the shelves before cleaning.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with
warm water using a ‘wrung-out’ sponge or cloth. Wipe completely dry before replacing the
shelves.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make
sure that the door is closed to avoid the polish getting on the magnetic door seal or inside
the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a soft brush attachment.
Cleaning Tips
Condensation may appear on the outside of the unit. This maybe due to a change in room
temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified
technician for assistance.
LTT68S10E_IB_5L_111021_ELabel.indb 13 11年10月21日 下午6:04

14
GB
Maintenance

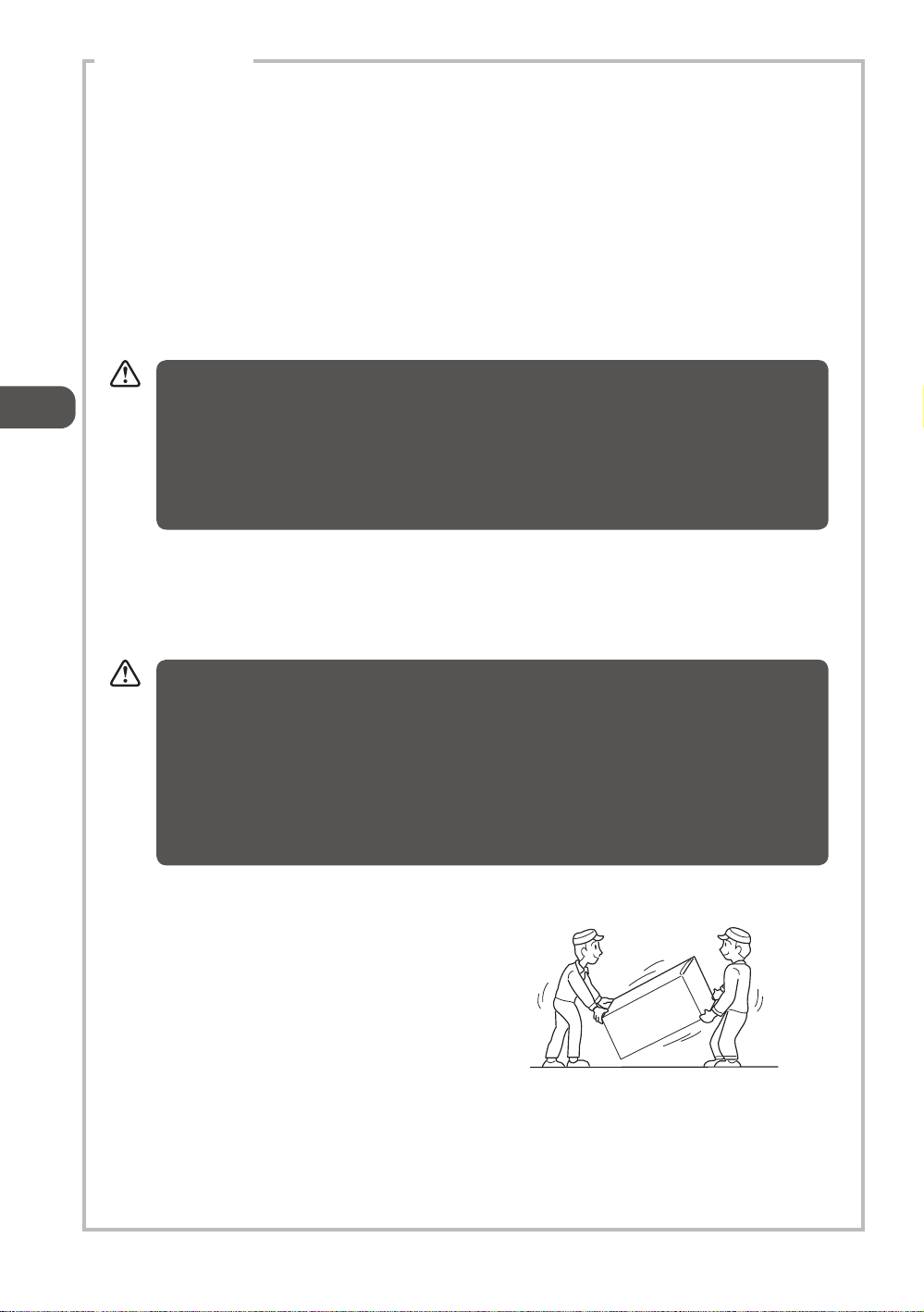

Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be
lifted by holding the edges of the top surface.
Servicing
This unit should be serviced by an authorised engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried
out by inexperienced persons may cause injury or serious malfunction. Contact a qualified
technician.
Switching O for Long Periods of Time
When the unit is not in use for a long period of time, disconnect it from the mains supply,
empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
Disposal
Old units still have some residual value. An environmentally friendly method of disposal will
ensure that valuable raw materials can be recovered and used again. The refrigerant used in
your unit and insulation materials require special disposal procedures. Ensure that none of the
pipes on the back of the unit are damaged prior to disposal.
Up to date information concerning options of disposing of your old unit and packaging from
the new one can be obtained from your local council office.
When disposing of an old unit break off any old locks or latches and remove the door as a
safeguard.
LTT68S10E_IB_5L_111021_ELabel.indb 14 11年10月21日 下午6:04

15
GB
Specication
Model LTT68S10E
Appliance Category 5, Refrigerator with a two-star compartment
Overall Dimension (W x D x H) 472 x 450 x 632mm
Fresh Food Storage
Compartment Volume 61L
Defrosting Type Manual Defrost
Climate Class ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Storage Temperature 0-8 °C, average ≤ 4°C
Energy Consumption 0.39kWh / 24h
Annual Energy Consumption 142kWh/annum
Airborne Acoustical Noise 45dB
Energy Grading A
Rated Current 0.6A
Rated Voltage 220 - 240V~
Features and specifications are subject to change without prior notice.
LTT68S10E_IB_5L_111021_ELabel.indb 15 11年10月21日 下午6:04

16
Normal energy
consumption
Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source
(radiator, oven).
Situated near to a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx 20°C.
Where there is a high ambient room
temperature.
Use Only open the doors when necessary
and for as short a time as possible.
Frequent opening of the doors for
long periods will cause a loss of
coldness.
Store food in an organised way. If food is not stored in an organised
way, searching for an item will mean
the door is open for longer.
Allow hot food and drinks to cool
down before placing them in the
unit.
Placing hot food in the unit will cause
the compressor to run for a long
time, as the unit will have to work
harder to lower the temperature.
Store food covered or packaged. The evaporation or condensation of
liquids will cause a loss of coldness in
the unit.
Do not over-fill the appliance to
allow air to circulate.
LTT68S10E_IB_5L_111021_ELabel.indb 16 11年10月21日 下午6:04

17
NO
Pakke ut
Fjern all emballasje fra enheten. Ta vare på emballasjen. Hvis du kaster den, må det skje i
samsvar med lokale forskrifter.
Følgende elementer er inkludert:
Hovedenhet
Skål for dråpeoppsamling
D.N.: 501105040021
Øverste justerbare hylle
D.N.: 502901000035
Nedre justerbare hylle
D.N.: 502901040003
Isterningbrett
D.N.: 501113810004
Instruksjonshåndbok
D.N.: LTT68S10E-002
Tusen takk for at du kjøpte ditt nye Logik kjøleskap.
Vi anbefaler at du bruker litt tid på å lese instruksjonshåndboken slik at du forstår
fullt ut alle driftsmessige funksjoner den tilbyr.
Les alle sikkerhetsinstruksjoner nøye før bruk, og oppbevar denne
instruksjonshåndboken på et sikkert sted for fremtidig referanse.
LTT68S10E_IB_5L_111021_ELabel.indb 17 11年10月21日 下午6:04

18
NO
Plassering
Når du skal velge plassering for enheten din bør du sørge for at gulvet er flatt og solid, og
at rommet er godt ventilert med en gjennomsnittlig romtemperatur på mellom 16°C og
38°C. Unngå å plassere enheten nær en varmekilde, f.eks. komfyr, varmtvannsbereder eller
radiator. Unngå også direkte sollys da det kan forårsake økt energiforbruk. Ekstremt kald
omgivelsestemperatur kan også medvirke til at enheten ikke yter sitt beste. Enheten er ikke
egnet for bruk i garasje eller utendørs. Ikke dekk til enheten.
Når enheten installeres, må du sørge for minst 2 cm klaring på begge sider og 3 cm klaring
bak enheten. Døren kan åpnes til høyre eller til venstre, avhengig av hva som passer best for
plasseringen. Sørg for at det er nok plass til at døren kan åpnes helt opp.
• Dersom du ønsker å snu døren i den andre retningen, anbefaler vi at du tar
kontakt med en kvalifisert fagmann. Du bør bare forsøke å snu døren selv dersom
du tror du er kvalifisert til det.
• Alle deler som fjernes, må tas vare på for å kunne sette døren på plass igjen. Du
bør la enheten hvile mot noe solid, slik at den ikke glir mens du snur døren. Legg
ikke enheten ned, dette kan skade kjølesystemet. Pass på at enheten er koblet fra
og tømt.
Snu dørretningen
Nødvendige verktøy: Phillips-skrutrekker / flat skrutrekker / sekskantnøkkel.
• Pass på at enheten er koblet fra og tømt.
• Juster de to nivåføttene til høyeste posisjon.
• For å ta døren av er det nødvendig å tippe enheten bakover. La enheten hvile mot
noe fast, f.eks. en stol, like under det fremste panelet.
• Alle deler som fjernes, må tas vare på for å kunne sette døren på plass igjen. Du
bør la enheten hvile mot noe solid, slik at den ikke glir mens du snur døren.
• Legg ikke enheten ned, dette kan skade kjølesystemet.
• Vi anbefaler at 2 personer håndterer enheten ved montasje.
1. Tipp enheten med forsiktighet. To
personer er nødvendig for å tippe
enheten når man skifter om på
dørretningen.
INSTALLASJON
LTT68S10E_IB_5L_111021_ELabel.indb 18 11年10月21日 下午6:04

19
NO
2. Ta ut de to skruene på nederste brakett.
Ta av begge føttene på enheten.
3. Legg de to skruene, den nederste
braketten og føttene til sides.
4. Skyv døren ned ca. 15 cm (6”) og av den
øverste hengslebolten. Løft den bort fra
enheten.
5. Ta av plastikkhettene fra øverst på
enheten. Ta ut de to skruene på
øverste brakett og monter de på
den andre siden.
6. Skyv døren tilbake ned på den øverste
hengslen, pass på at den er riktig vei.
Skru den nederste hengslen på plass på
den nye siden. Sett den andre foten på
den andre siden.
7. Sakte og forsiktig sett enheten ned
på underlaget. Kontroller at døren er
rettvinklet både loddrett og vannrett, og
kontroller også at forseglingene er tette
på alle sider før du endelig skrur til den
nederste hengslen. Juster nivåføttene på
nytt.
Fjern
INSTALLASJON
LTT68S10E_IB_5L_111021_ELabel.indb 19 11年10月21日 下午6:04

20
NO
Justering av enheten
For å gjøre dette bruker du de to nivåføttene
foran på enheten.
Dersom enheten ikke er i vater, vil døren
og de magnetiske forseglingene ikke være
tilstrekkelig dekket.
Rengjøring før bruk
Vask enhetens innside med en tynn natronoppløsning. Rengjør deretter med varmt vann
med en vridd svamp eller klut. Vask hyllene med varmt såpevann og tørk dem helt før du
setter dem tilbake i enheten. Rengjør enhetens utside med en fuktet klut.
Se Rengjøring dersom du trenger mer informasjon.
• Før du kobler til, MÅ DU
Kontrollere at du har en stikkontakt som er kompatibel med enhetens støpsel.
• Før du skrur på!
Skru ikke enheten på før minst to timer etter at den har vært flyttet. Kjølevæsken
trenger tid for å stabilisere seg.
Før du bruker enheten
Før du setter mat inn i enheten må den være påslått i 24 timer for å sikre at den fungerer
ordentlig og har oppnådd riktig temperatur. Enheten må ikke overfylles.
