Logitech BRIO 500 User manual

BRIO 500
Setup Guide
Guide d’installation

CONTENTS
English . . . . . . . . . . . . . . . . .3
Français . . . . . . . . . . . . . . . 11
Español . . . . . . . . . . . . . . . . 19
Português . . . . . . . . . . . . . . 27

KNOW YOUR PRODUCT

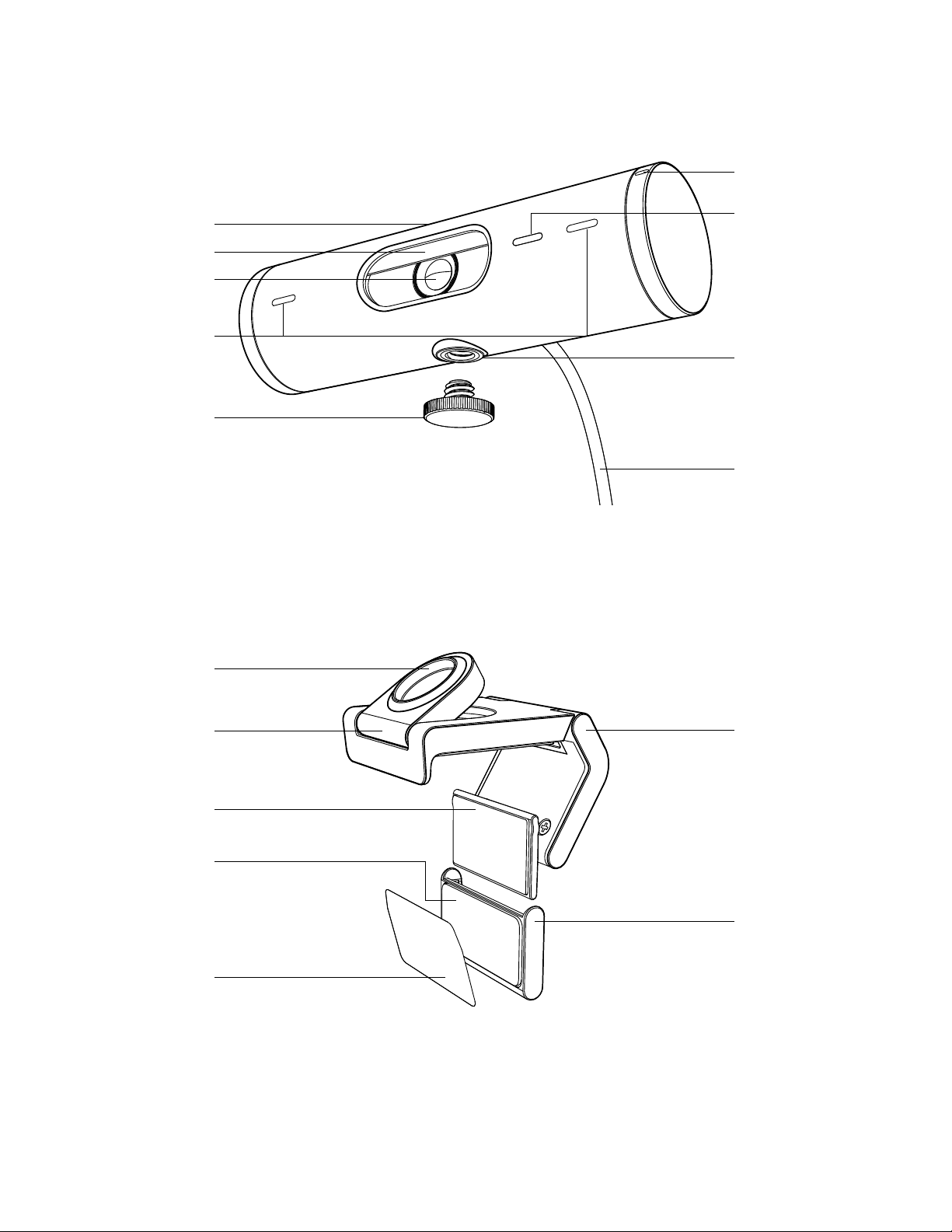

BRIO 500 FRONT VIEW WITH
FUNCTION INDICATIONS
MOUNT DESIGN OVERVIEW
Privacy shutter dial
¼-20 adaptor for
3rd party mounts
Attached
USB-C cable
Rear adjustment
hinge for monitor
sizing
Removable mount
adaptor
LED activity light
Magnetic mount
receiver
Padded foot
Micro-suction pad
protective lm
(Remove before
setting up mount)
Tilt adjustment
hinge
Brio 500 webcam
Privacy shutter
Magnetic thread
mount screw
(Removable)
Ultrawide-angle
lens with 90° dFOV
Dual noise reduction
microphones
Micro-suction pad
Micro-suction pad allows the mount to
stay securely attached to your monitor. This
removable pad leaves no residue and can be
cleaned with water.
3English

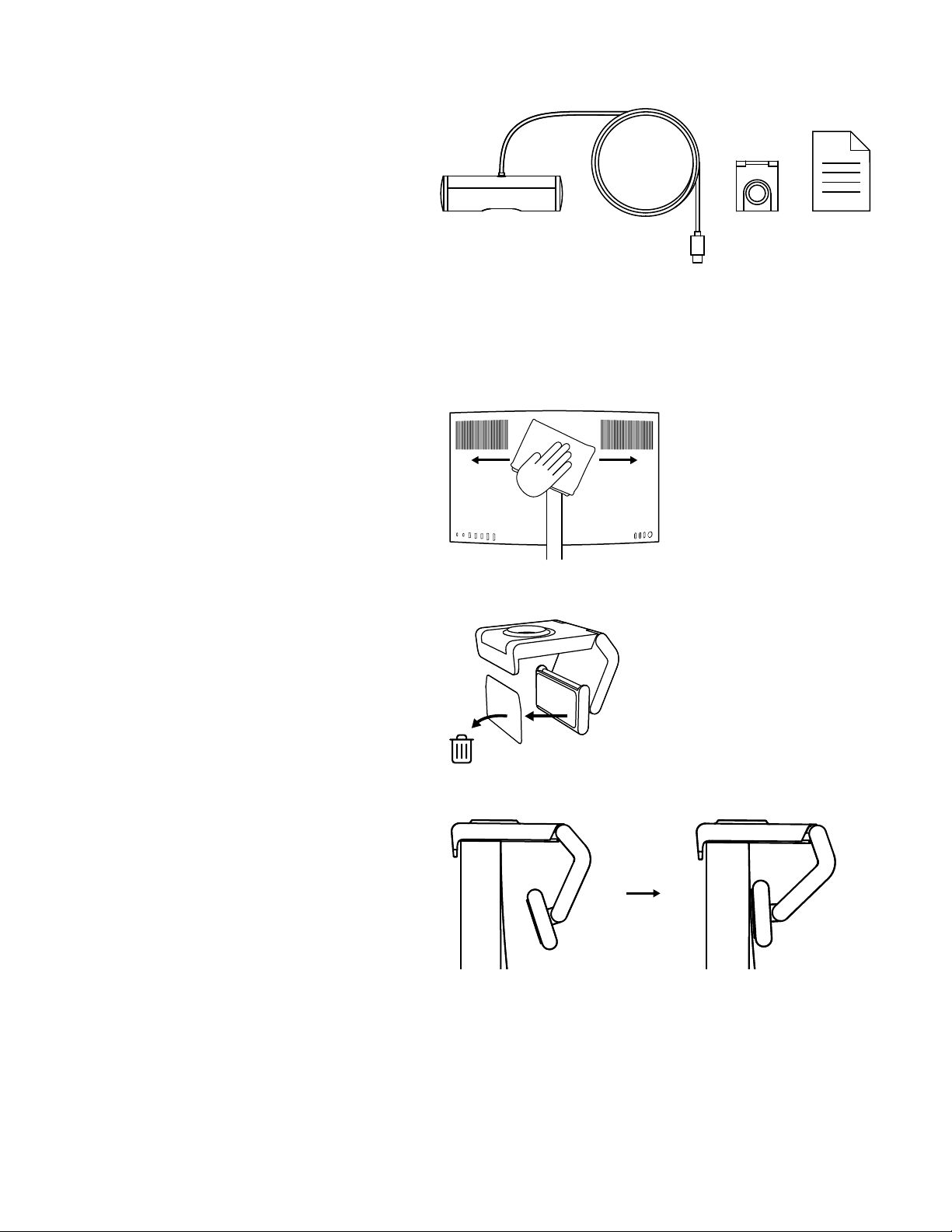

STEP 1: WHAT’S IN THE BOX
1. Webcam with attached USB-C cable
2. Mount clip with removable
mountadaptor
3. User documentation
STEP 2: DETERMINE MOUNT PLACEMENT
Placement to allow one-handed camera
adjustments (using micro-suction pad)
1. Determine the best placement for
yourwebcam before continuing.
2. Wipe the back of your monitor to clear
any dust or dirt.
USB-C
3. Remove the protective lm from
themicro-suction pad.
4. Open the mount fully and place on top
of your monitor, being sure that the pad
of the front clip makes contact with the
front of the monitor.
5. Rotate the rear foot down until it makes
contact with the back of the monitor.
6. Press the micro-suction pad to the back
of your monitor rmly to create a good
bond.
Note:
– The mount adaptor can be removed and reused for
mounting adjustments without leaving residue.
– To clean the micro-suction pad, rinse with water
toremove debris, and let it air dry in order
toregain strong suction.
4English

STEP 4: ATTACH CAMERA TO THE MOUNT
Place the webcam into the magnet
attachmentpoint on top of the mount.
Listenforan audible click indicating the webcam
is properly seated on the mount.
(Optional) Placement without
themicro-suctionpad
Slide the removable mount adapter
downtoremove it from the webcam foot.
Adjustthe foot on the mounting clip until
itisush with the back of your device
andpressrmly in place.

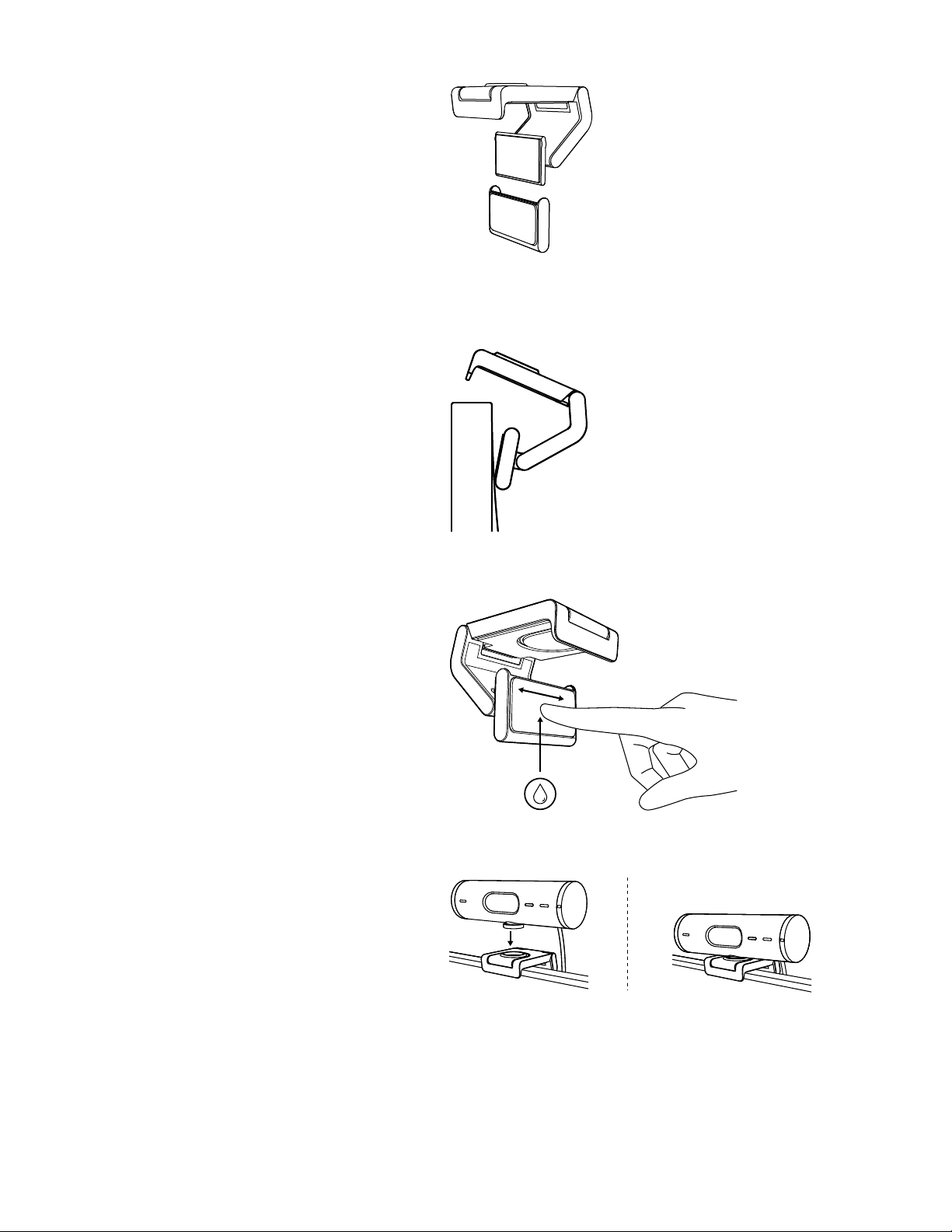

STEP 3: MOUNT ADAPTOR REMOVAL
ANDCLEANING
1. Remove the webcam from mount and gently
peel the adaptor from one corner to remove.
2. With a wet nger gently rub the pad clear
ofdust and dirt and let the micro-suction pad
air dry completely before remounting (do not
use cloth or tissue to dry).
3. Repeat the monitor placement setup steps
tobest deploy your webcam.
5English

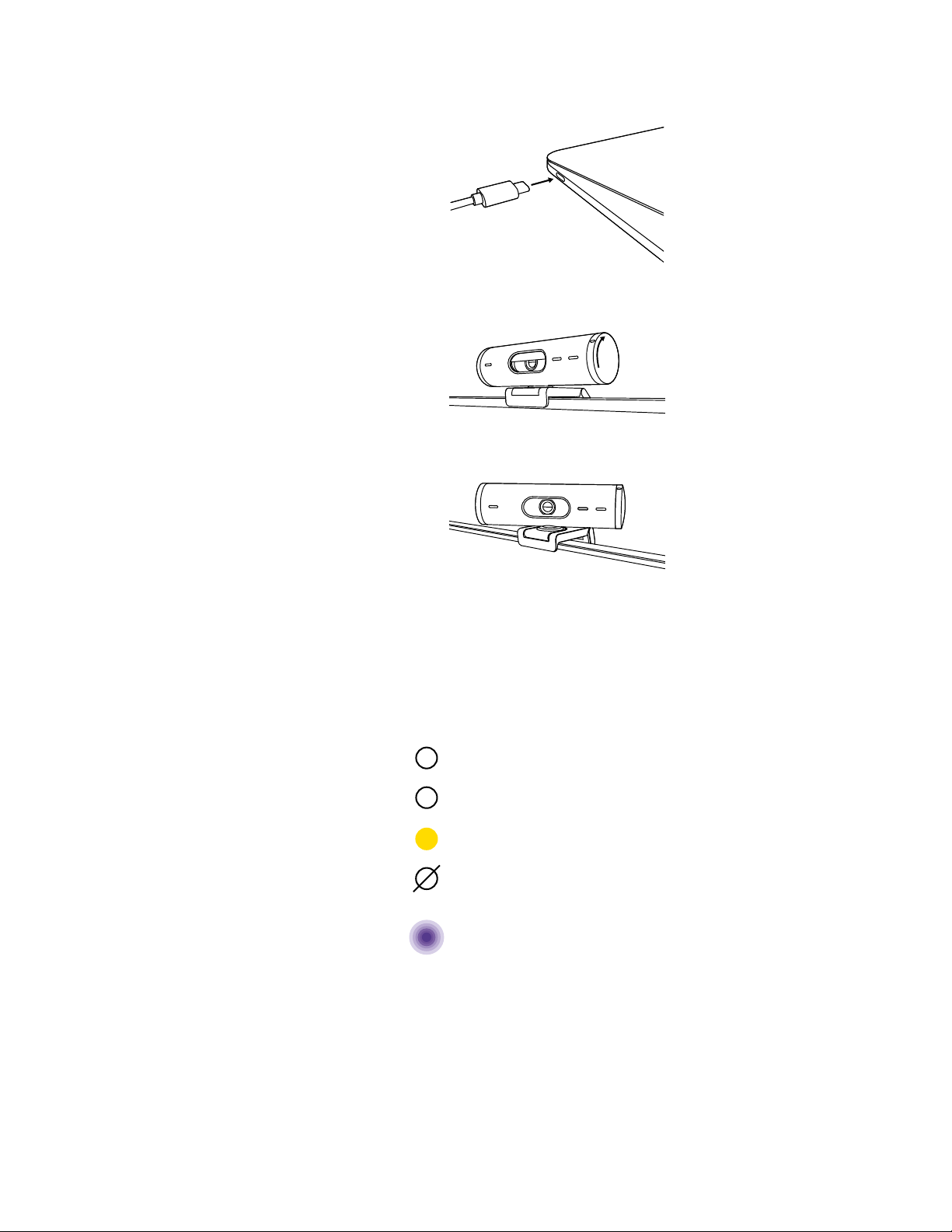

STEP 5: CONNECT THE WEBCAM VIA USBC
& GET STARTED
1. Plug the USB-C connector into the USB-C
port on your computer, monitor, laptop,
ordocking station.

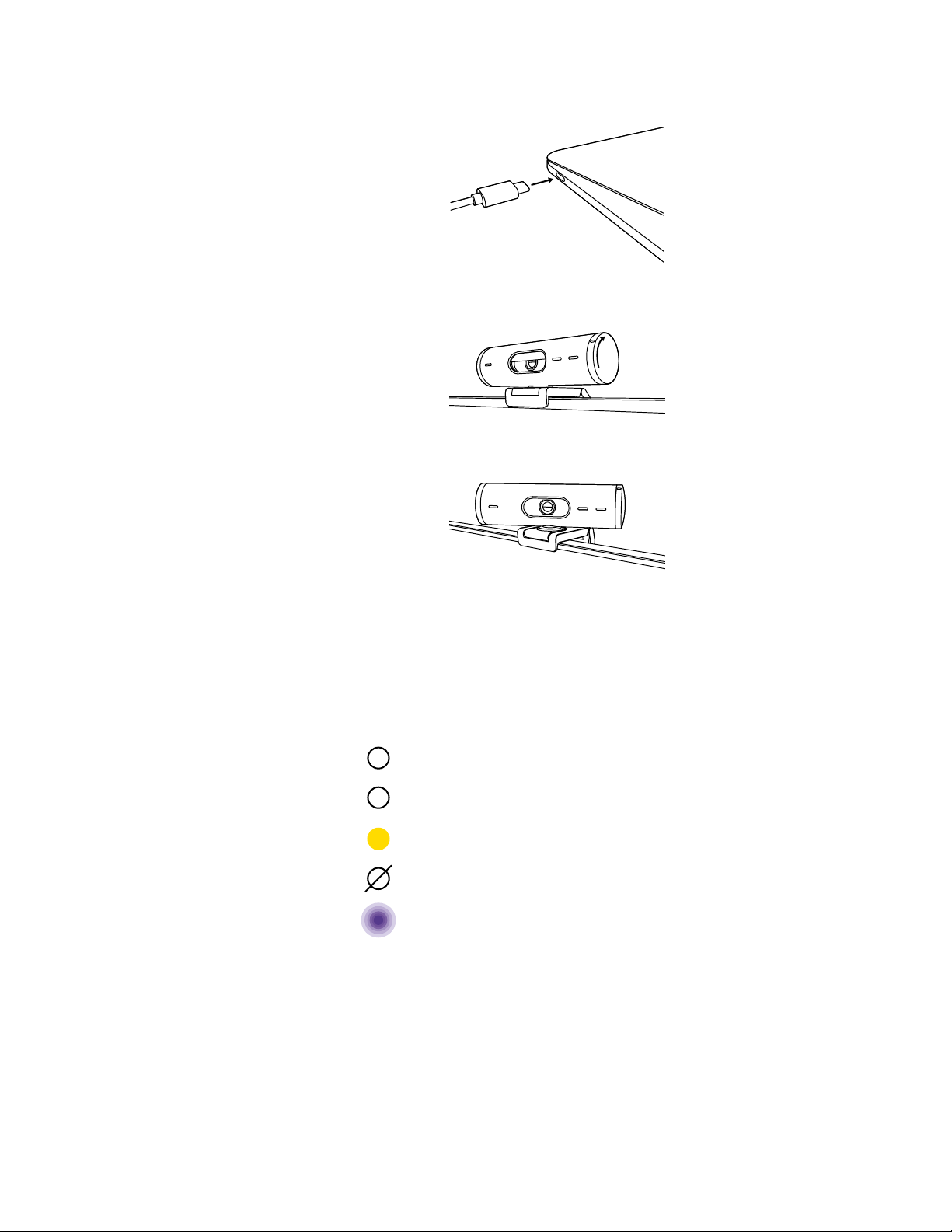

STEP 6: SUCCESSFUL CONNECTION
LED activity light will light up when the webcam
isin use by any video application.
LED activity lights:
• Video ON/Audio ON: White
• Video ON/Audio OFF: White
• Video OFF/Audio ON: Yellow
• Video OFF/Audio OFF: No light
• Firmware Update: Breathing Lilac
2. Rotate the dial on the right side of the
webcam to open/close the privacy shutter.
3. Adjust the webcam by turning side to side
and tilting up and down to nd the best
framing for your video meetings.
6English

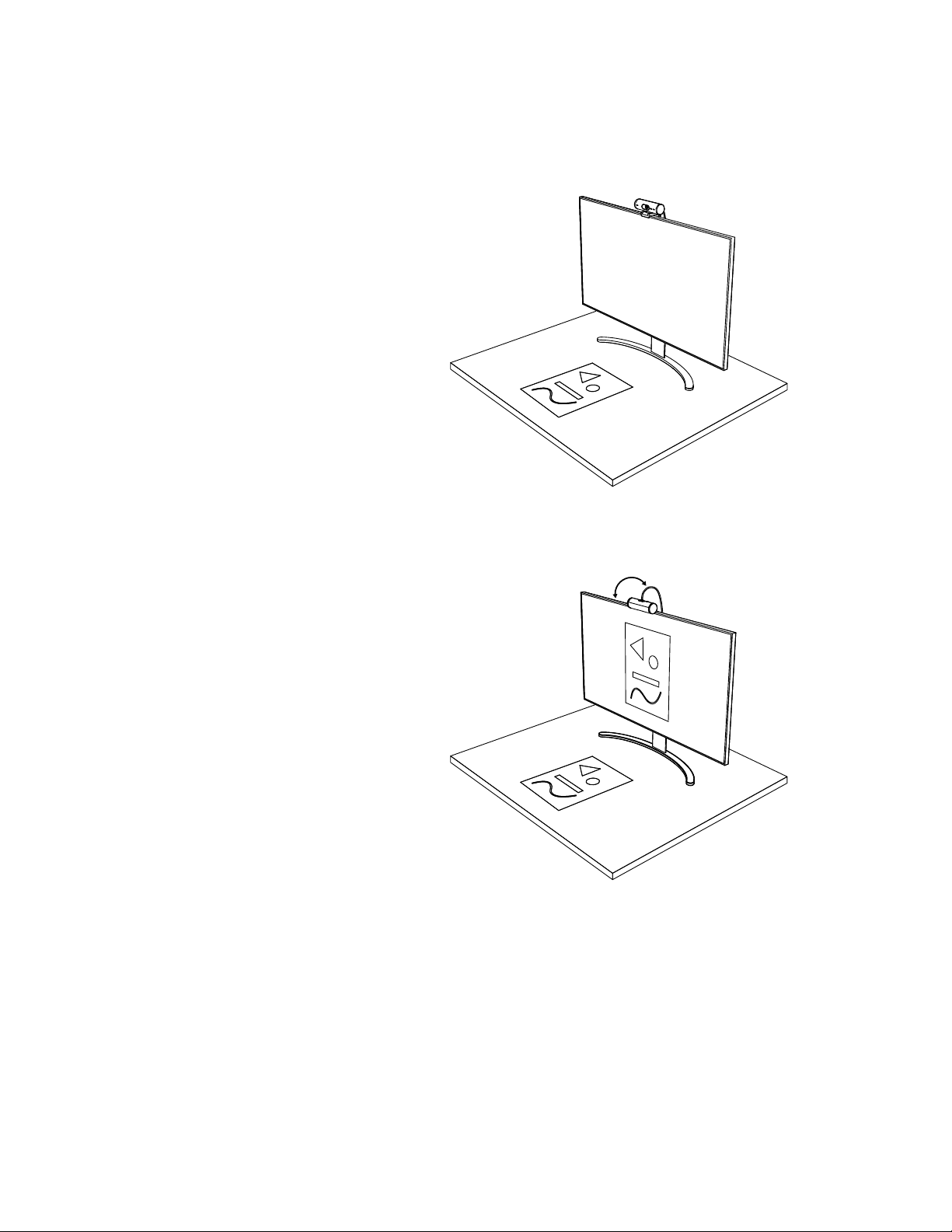

STEP 7: SHOW MODE
Easily show physical items in video calls by
tilting the camera down to present sketches,
objects, and work in progress. There are
twoways to use Show Mode:
1. If mount is secured with micro-suction
pad: Using one hand, tilt the camera
down to show your desktop, and tilt
backup to show yourself.
2. If mount is not secured with micro-suction
pad: Hold the mount still with one hand and tilt
the camera up or down with the other.
7English

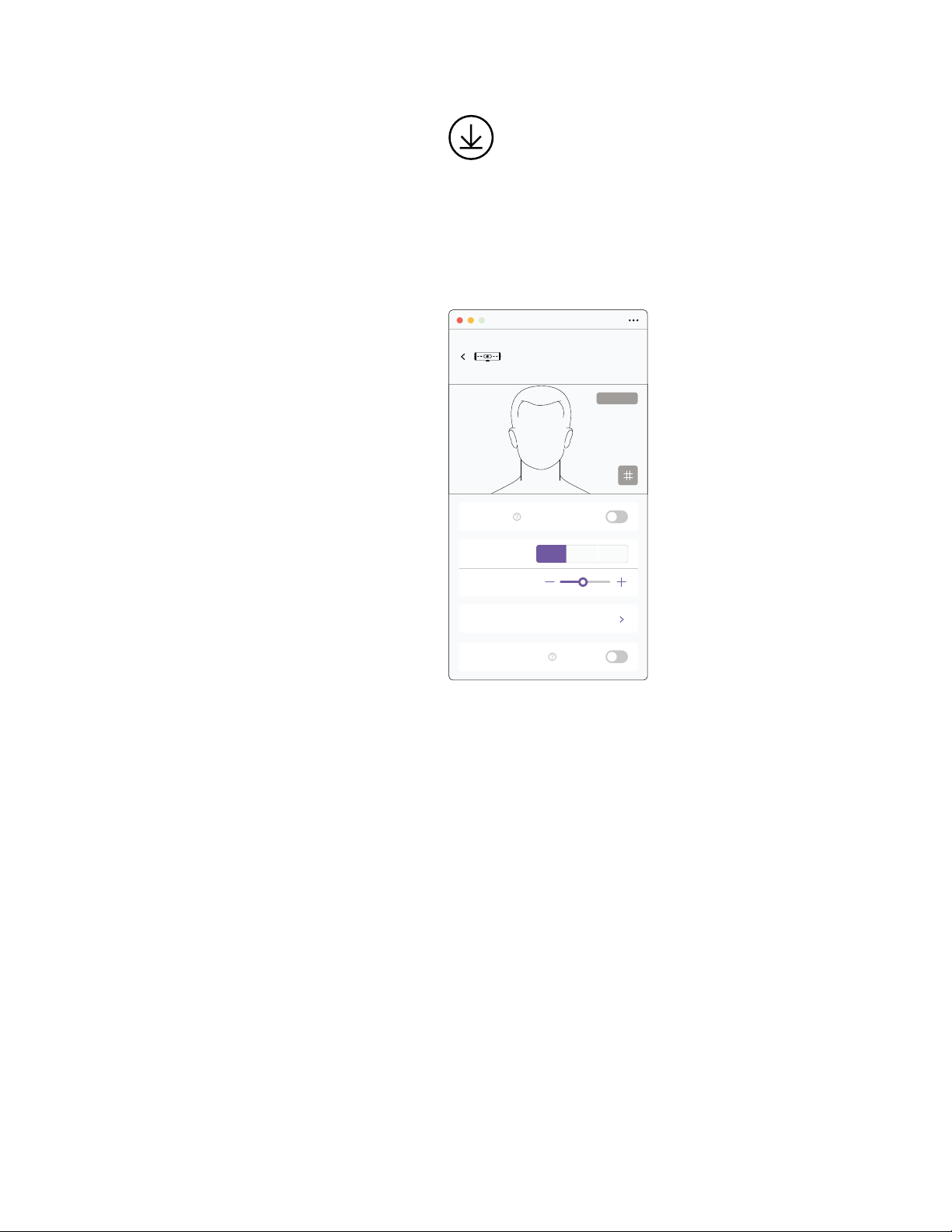

STEP 8: LOGI TUNE
Logi Tune helps boost your webcam
performance with periodic software and
rmware updates.
It is recommended to update your webcam.
To do so, download Logi Tune from
www.logitech.com/tune
ADJUSTABLE OPTIONS
• Show Mode
• Auto-framing
• Zoom adjustment
• Field of View (90°/78°/65°)
• Image adjustment
• Auto-focus
• Disable mics
• LED on/o for video and audio
www.logitech.com/tune
Brio 500
CONNECTED
Show Mode
RightSight
Field of view 90°78°65°
Zoom
Image adjustments
Disable Show Mode
8English

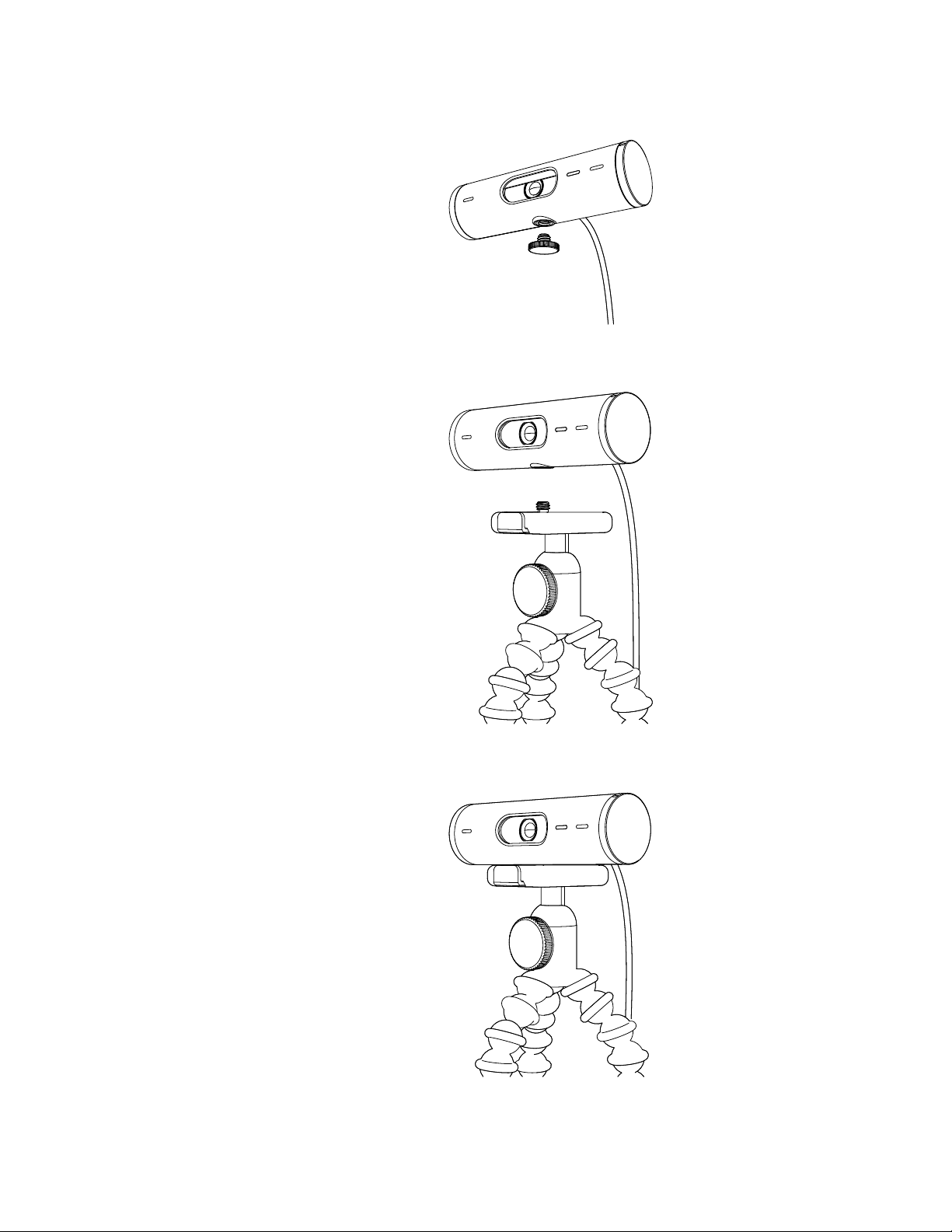

STEP 9: OPTIONAL ATTACH TO A TRIPOD
For placement on a tripod (not included)
1. Rotate counterclockwise to remove
the mounting screw from the bottom of
the webcam.
2. Locate the ¼ inch tripod thread on
thebottom of the universal mounting clip.
3. Secure the webcam on your tripod
bytwisting it into the ¼ inch thread.
4. Repeat the monitor placement setup steps
to best deploy your webcam.
5. Please refer to step 5 and 6 to complete
your webcam setup.
9English

DIMENSIONS
WEBCAM:
Height x Width x Depth:
1.2 in (31.5 mm) x 4.3 in (110 mm) x 1.2 in (31.5 mm)
Height x Width x Depth (incl. mount clip):
2 in (51.5 mm) x 4.3 in (110 mm) x 1.8 in (45 mm)
Weight: 4.2 oz (121 g), incl. mount clip & cable
Attached Cable length: 5 ft (1.5 m)
MOUNTING CLIP:
Height x Width x Depth:
1 in (25 mm) x 1.8 in (45.8 mm) x 2.6 in (65.1 mm)
Weight: 1.4 oz (40 g), incl. Removable mount adapter
