LogTag LTI-WiFi User manual

Version A
www.logtagrecorders.com
Quickstart Guide

What’s Included 3
Downloading the Connection Wizard 4
Running the Connection Wizard 5
Connecting to your WiFi Network 6
LogTag Online 10
Registering a New Device & Downloading Results 11
Downloading Results continued... 13
Quickstart Guide Contents

Page 3
What’s Included
Please check you have each of the items shown below before
continuing with setting up your LTI-WiFi.

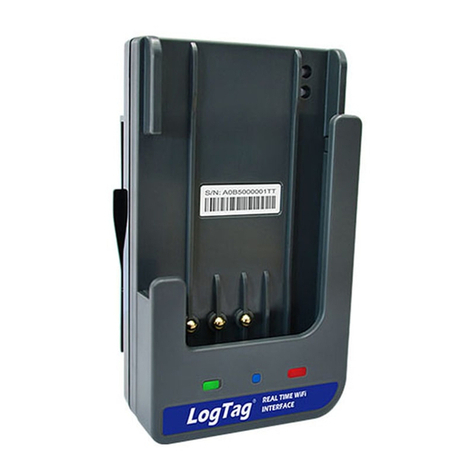

LTI-WiFi USB Cable
Note: The LTI-WiFi cradle can be used with any standard LogTag
loggers with 3 silver contact pins

Page 4
Downloading the Connection Wizard
Your LTI-WiFi requires you to connect it to your WiFi Network. To do
that, we have an easy tool for you to use called the LogTag Online
Connection Wizard.
Note: If you have the latest LogTag Analyzer (version 3.1.6
onwards), you can just run the wizard instead without having to
download it by opening LogTag Analyzer then clicking ‘Connection
Wizard’ from the ‘LogTag Online’ menu.
Alternatively, you can download the LogTag Online Connection
Wizard here. Please click the link below:
https://logtagrecorders.com/download/connectionwizard.exe
If you have issues with the link above, you can download the .zip
version instead and ensure you unzip the file before running it via
the link below:
https://logtagrecorders.com/download/connectionwizard.zip
Connect your LTI-WiFi to your
computer via the USB cable.
The USB socket on the interface
is located at the back of the
interface cradle.
Warning: Please ensure no other LogTag software is currently
running on your computer before running the Wizard software.

Page 5
Running the Connection Wizard
The first page of the Wizard will be displayed.
If you are using LogTag Analyzer (version 3.1.6 onwards), you can
click ‘Connection Wizard’ from the ‘LogTag Online’ menu anytime.
When you’re ready to begin, click “Start”.
Easy Setup will be
selected by default.
Keep this option
checked and click
“Next”.
You will be asked to sign in to your LogTag Online account. If you
do not have an account, click the link below or alternatively, open
your browser, type the following link into the address bar and follow
the on-screen instructions.
https://logtagonline.com/signup
or click Create a LogTag Online Account link.
You have now created your account and are now ready to set up
the WiFi connection on your LTI-WiFi.
Y
ou
h
ave now create
d
y
our account an
d
are now rea
dy
to set u
p
t
h
e
WiFi
connect
i
on on
y
our
LTI
-
WiFi.
Please ensure there is internet connection on your computer prior
to starting this process.
Pl
ease ensure t
h
ere
i
s
i
nternet connect
i
on on
y
our com
p
uter
p
r
i
or
to start
i
n
g
t
hi
s process.

Page 6
Connecting to your WiFi Network
Type your LogTag Online account details and click “Sign In”,
followed by “Next”.
The Wizard will now scan
for any connected LogTag
devices.
If the scan doesn't find any
devices, double-check the
device is plugged in to your
computer with the USB cable
provided and click “Scan
Again”.
As soon as a device has been
identified, it will appear in the
table (left) and automatically
register that device to your
LogTag Online account.
The Status will turn green with
the text “Registered” once
complete.
Click the “Next” button once you are ready.

Page 7
1
23
4
1. Click the Network Name and your WiFi device will begin
searching for nearby Wireless Networks.
Note: This process can take up to 2 minutes, please wait whilst
the network scan is in progress.
2. Once you have selected your WiFi Network from the list, type
the password for the network. Remember that passwords are
case-sensitive.
3. (Optional) Once you have typed your password, you can
click the eye icon to reveal the password. Incorrectly typed
passwords is one of the most frequent reasons why device
setup fails.
4. Once you have selected your WiFi Network and typed the
password, click “Next”.
Note: Some WiFi Networks won't appear in this list for security
purposes. If you are aware that your network is one of these, you
can manually type the name of your network (SSID) in the
Network Name field instead of clicking the menu arrow.

Page 8
The device is now being configured with the WiFi details you
provided in the previous screen, which typically takes 10 seconds.
The Connection Wizard is now checking that the LTI-WIFI can
connect to your WiFi network and to LogTag Online. The red
network LED blinks while the interface establishes a connection
with the wireless network.
Once the Wizard displays “Config Complete. Check Device for
status”, click “Next”.

Page 9
Or click “Again” if you want to run the Wizard to repeat the
configuration process from the beginning.
Setup is complete.
If you see this screen below, click “Close” to close the Connection
Wizard or click ‘LogTag Online Sign In page’ link to take you to the
LogTag Online website.
Note: The network LED on the LTI-WiFi turns solid blue after
15-20 seconds once connection is successful. If the red
network LED is flashing, please check you have entered the
WiFi credentials correctly. If you are continuing to encounter
networking or logger communications issues, please refer to the
troubleshooting section by opening your browser and typing the
below URL in the address bar:
help.logtagrecorders.com/WiFi-Interface/Topics/Interfaces/
Troubleshooting.htm

Page 10
LogTag Online
LogTag Online is a secure online service that stores the data
recorded from your logger against your account.
Signing in to your LogTag Online Account
Click this link or open your browser and navigate to:
https://logtagonline.com
1. Type your Email and
Password
2. Then click “Sign In”.
3. Upon signing in,
you will see the
Dashboard.

Page 11
Registering a new device &
Downloading Results
Connect your LTI-WiFi to your
computer via the USB cable.
The USB socket on the interface
is located at the back of the
interface cradle.
Green ‘Ready’ LED
‘Network’ LED
(Dual Color)
Red ‘Busy’ LED
The blue ‘network’ LED
is permanently on to
indicate it is connected
to LogTag Online cloud
server.
Please ensure the LTI-WiFi is connected to the WiFi network and
the cloud server.
Please
e
n
su
r
e
the
LTI
-
WiFi
is
co
nn
ected
to
the
WiFi
n
et
w
o
r
k
a
n
d
the
cloud
se
rv
e
r
.

Page 12
After you have docked a logger into LTI-WiFi, it will automatically
register the logger in LogTag Online and show in the Recently
Registered Devices section on the dashboard in LogTag Online.
The red ‘Busy/Error’ LED is
permanently on while the
data is being downloaded
from the logger.
Simply dock a logger with 3 silver contact pins into the LTI-WiFi
interface cradle.
The green ‘Ready’ LED flashes
to indicate the download was
successful.
Registering a new device &
Downloading Results continued...
Please ensure your logger has started prior to docking it in to the
LTI-WiFi interface.
Pl
ease ensure your
l
o
gg
er
h
as starte
d
pr
i
or to
d
oc
ki
n
g
i
t
i
n to t
h
e
LTI-WiFi in
te
r
face
.
The green ‘Ready’
LED is permanently
on to indicate it is
ready to accept a
logger.

Page 13
Downloading Results continued...
Note: If your logger is attached to a location, the data will be added
to the location, and no data file will appear in the LogTag Drive.
Data is also downloaded from the logger and show up as LTD files
in the ‘Recently Uploaded Files’ section on the main dashboard in
LogTag Online or as saved files in LogTag Drive.
