Loll Designs GO PORCH SWING User manual

Loll Designs inspires people to appreciate the outdoors.
PRODUCT CARE Your new Loll furniture is a no maintenance product. You’ll never need to paint or stain it and it can be left outside all year regardless of the season. It will not rot, even if left standing in water. Nonetheless, we’re pretty sure your Loll furniture will get a lot of use and will at some point need cleaning. We recommend a garden hose and incorporating a soft bristle brush. Adding a tablespoon or two of your favorite eco- friendly soap to the wash will get everything squeaky clean. Mineral deposits left over from hard water can be removed with a solution of vinegar and water. Loll offers a cleaning kit that has everything you need for great results. Also see our cleaning video at lolldesigns.com/videos. 5 YR WARRANTY Loll Designs strives to build long-term relationships based on condence and trust with our customers. We sit beside, on top, and beneath the quality of our ne furniture and will make things right if you are not completely satised with your purchase. Loll Designs hereby guarantees that the piece will be of good quality and workmanship, free from faults and defects. Loll warrants that all components will not fail, under normal use, for ve years from the year mark on the piece or the date of purchase. *For commercial orders the warranty is three years. DAMAGED PRODUCT
Sometimes accidents occur. Please inspect your Loll furniture when you receive it to make sure that it has not been damaged during shipping. If damage has occurred please take digital pictures of the damaged furniture and the box it was shipped in, and email them to [email protected] or call Customer Service using our toll free number: 877.740.3387, ext. 1. The damage will be assessed and you will be contacted with a solution to the problem. It may be helpful to save all of your packaging material in case a return is necessary.
ASSEMBLY INSTRUCTIONS & PRODUCT INFO:
ASSEMBLY TIPS *Please read before beginning assembly! To avoid damaging furniture perform the assembly of your Loll furniture on a clean soft surface like a blanket, carpet, or the attened cardboard box the furniture was shipped in. Components should not be unnecessarily forced together! If it seems parts aren’t tting together you likely have something wrong and you should reread the instructions to ensure you are aligning the proper components. If your piece of furniture requires “Blocks” for assembly one side may have protective lm on it. This surface is hidden after assembly so the lm can remain on the block or it can be removed. Use a Cordless Screw Gun if you have one and know how to use it. Set the clutch setting at medium torque. We do not recommend using an electric drill with a cord and without a clutch to install bolts in inserts as you can easily overtighten and damage the product. All bolts come standard with a thread coating to reduce bolts loosening after assembly while still allowing removal and reuse of the bolt. Start all bolts by hand, with the Allen Key, or the Loll Tool and tighten rmly until parts are drawn tight together and you can’t muscle the bolt any tighter. It’s virtually impossible to over tighten by hand. Watch the assembly videos at www.lolldesigns.com/videos for even more information and visual aids. If you have more questions please contact your Loll Sales Associate or Customer Service for support at 877.740.3387. A Pro Tool Kit can also be purchased from Loll for multi piece assembly jobs. ** Please Recycle the BOX and paper packaging. The green plastic stretch wrap we use is compostable.
LOLL TOOL Locate the box marked “Tool Included” before beginning assembly.
BLOCK & BOLT INSTALLATION Insert bolts through countersunk hole side of blocks as shown below.
CORRECT INCORRECT
We want you to love your Loll. Reach out if you need lollygagging assistance. 877-740-3387 [email protected] 5912 Waseca Street | Duluth, Minnesota 55807
Countersunk Hole
*Bolt shown
actual size.

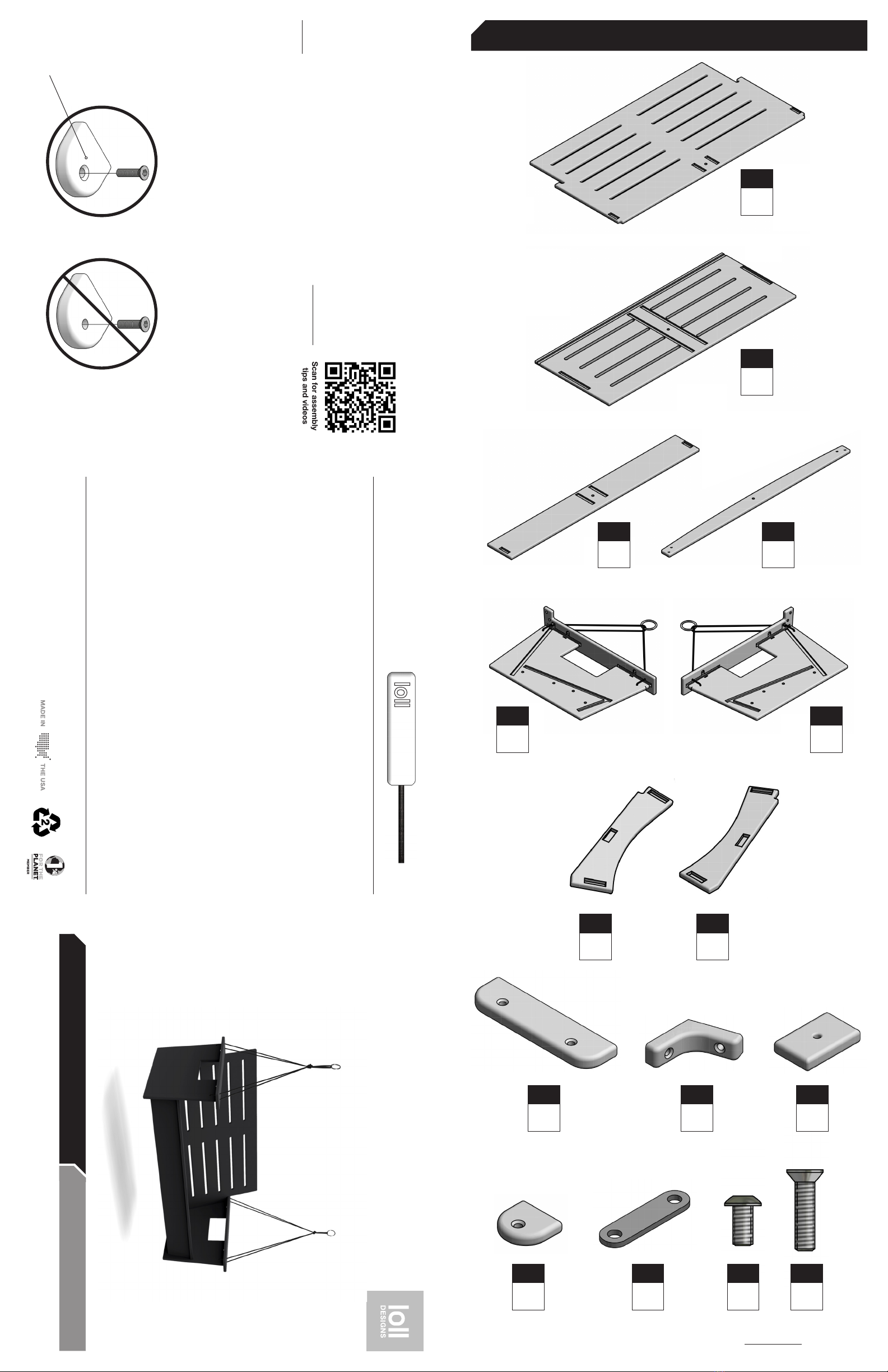

INCLUDED PARTS
17x
1˝
8x
1/2˝
4x
GB
4x
DMB
3x
P8
1x
P9
2x
BB
1x
P3R
1x
P3L
1x
RIGHT
SIDE
1x
P7
1x
P5
1x
P4
1x
LEFT
SIDE
1x
P2
GO PORCH SWING

1
2
3
1x
1x
1x
1x
1x
1x
BB
P5
LEFT
SIDE
P4
P2
GB
2x
1˝
1x
1˝
1x
1˝
1xGB

4
6
5
2x
1x
GB
RIGHT
SIDE
4x
1˝
1x
1x
2x
1x
3x
P3R
BB
GB
P3L
P8
3x
1˝

7
8
2x
1x
P9
P7
4xDMB
6x
1˝
8x
1/2˝

GO PORCH SWING SWING HANGING SUGGESTIONS lolldesigns.com | 1-877-740-3387
In general, we recommend approximately a 2-ft minimum clearance in the back and front, and a foot on either side. As far as the seat height, we recommend it to be approximately 18˝ from the ground, but that can be a general approxima- tion, due to each specic user.
It is the responsibility of the end user to mount
their swing securely.
Check that the swing hangs level. Use a level on the swing seat for best measurement.
Use quick links for easier connections
As the total ceiling height will vary from space to space, we recom- mend purchasing chain links from your local hardware store so you can customize a length suitable to your area.
1 ft
from
side
44 ¾in- be-
tween
rings
1 ft
from
side
2 ft
from
front
2 ft
from
back
18 in
seat to oor
22 in22 in
ring to armrestring to armrest
