Longshine GS9120 User manual

1
FCC Certifications
This Equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received;
including interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to
electromagnetic compatibility, EN 55022 class A for ITE, the essential
protection requirement of Council Directive 89/336/EEC on the
approximation of the laws of the Member States relating to
electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may
be possible that information in this document is not up-to-date. Please
check with your local distributors for the latest information. No part of
this document can be copied or reproduced in any form without written
consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective
companies.
Copyright © 2006, All Rights Reserved.

2
Unpacking Information
Thank you for purchasing this product. Before installation,
please verify that your package contains the following items.
1. One 16/24-Port Gigabit Ethernet Switch with
4-Port Mini-GBIC
2. One AC power cord
3. Rack-mount brackets (optional)
4. User’s Manual
Introduction
General Description
Easily boost your networking throughput; the product
equips 16/24 Gigabit ports that lead you to a real Gigabit
connection. Users are now able to transfer large and high
bandwidth-needed files faster and hence get a real efficiency
improvement. In addition to the cooper ports, 4 of the ports
supports fiber connection with the equipped Mini-GBIC ports
for obtaining long-distance communication.
This product offers users with fast and reliable network.
The store-and-forward architecture filters errors and forwards
packets in a non-blocking environment. Flow control prevent
data loss while transmitting. The 802.3x and backpressure
flow control mechanisms work respectively for full and half
duplex modes.
The switch features with easy installation and maintenance.
It supports Nway auto-negotiation protocol that detects the
networking speed (10/100/1000 Mbps) and the duplex modes
(Full/Half) automatically. Auto-MDI/MDI-X function alleviates
the effort to use crossover cables. Also, rich diagnostic LEDs
are provided for users to get real-time information of the
connection status.

3
Key Features
 Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab
and IEEE 802.3z standards.
 16/24 * 10/100/1000 Mbps RJ-45 Nway ports
 4* Mini-GBIC port for optional fiber optical
communication
 Supports NWay protocol for speed (10/100/1000Mbps)
and duplex mode (Half/Full) auto-detection
 Supports MDI/MDI-X auto crossover
 Supports full and half duplex operation on all copper
ports
 Supports back-pressure (half duplex) and flow control
(IEEE 802.3x)
 Wire-speed packet filtering and forwarding rate
 Store-and-forward architecture
 Supports 9K bytes Jumbo frame.
 Supports 8K bytes MAC address entries in whole
system
 340K(16-Port) \500K(24-Port) bytes buffer memory
 Internal power adapter
 FCC,VCCI,CE Class A. Meet RoHS

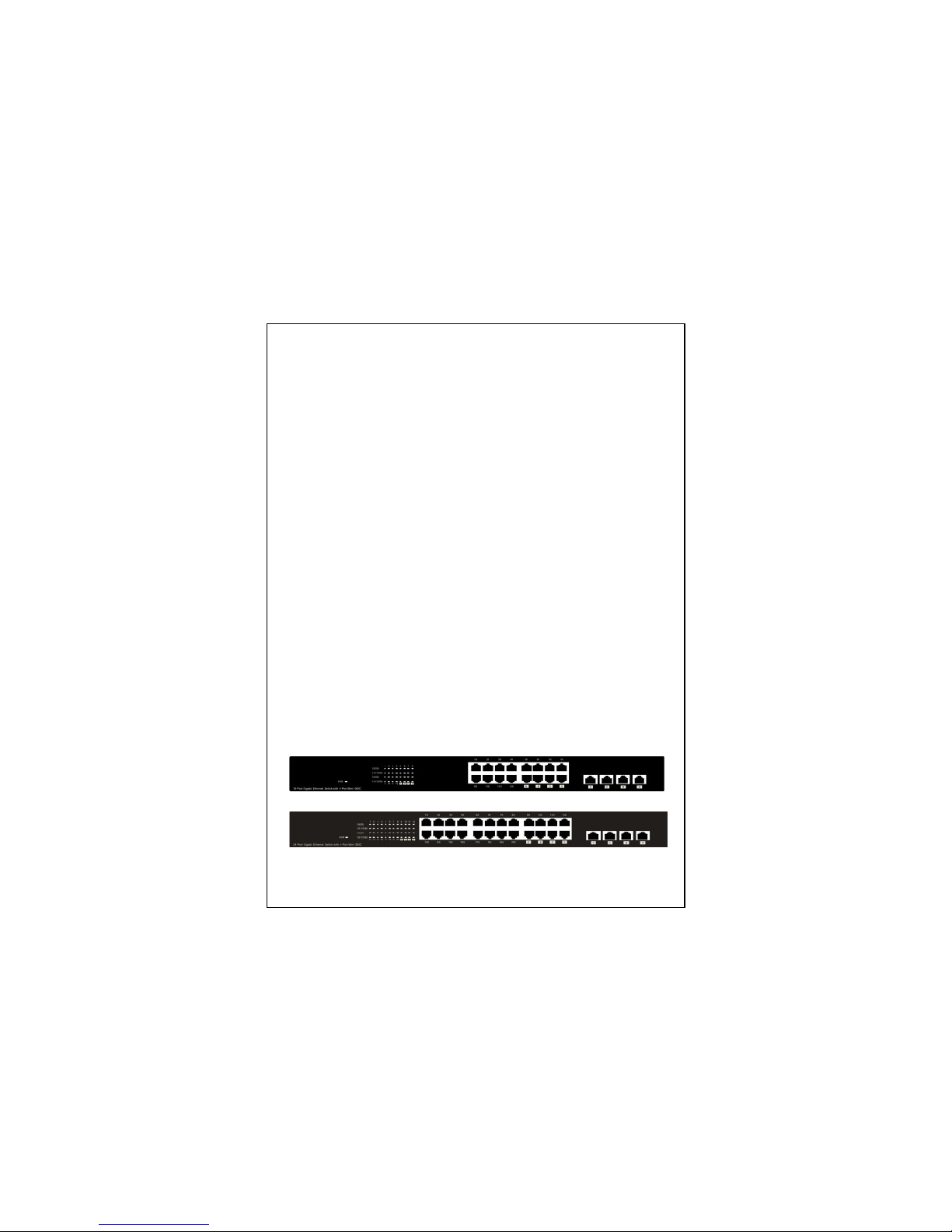

The Front Panel
The front panel consists of LED indicators. For detailed LED
definition, please refer to the next paragraph.

4
LEDs Definition
System LED
LED Status Operation
Steady Green The switch is powered on
Power Off The switch is powered off
Port LEDs
LED Status Operation
Steady Green Valid port connection at 1000 Mbps
Blinking Green Valid port connection and there is
data transmitting/ receiving
1000M
Off Port disconnected or the port is
connected at 10 Mbps or 100 Mbps
Steady Green Valid port connection at 10/ 100
Mbps
Blinking Green Valid port connection and there is
data transmitting/ receiving
10/
100M
Off Port disconnected or the port is
connected at 1000 Mbps
Attention：The Mini GBIC slot shares the same LED
indicators with Gigabit RJ-45 (copper) ports.

5
The Rear Panel
Power Receptacle
To be compatible with the electric service standards around
the world, the switch is designed to afford the power supply in
the range from 100 to 240VAC, 50/60Hz. Please make sure
that your outlet standard to be within this range.
To power on the switch, plug the female end of the power cord
firmly into the receptacle of the switch and the other end into
an electric service outlet. After the power cord installation,
please check if the power LED is illuminated for a normal
power status.
Installation
This switch can be placed on your desktop directly, or mounted
in a rack. The installation is a snap. Users can use all the
features of the switch with simply attaching the cables and
turning the power on.
Before installing the switch, we strongly recommend:
1. The switch is placed with appropriate ventilation
environment. A minimum 25mm space around the unit
is recommended.
2. The switch and the relevant components are away from
sources of electrical noise such as radios, transmitters
and broadband amplifiers
3. The switch is away from environments beyond
recommend moisture

6
Desktop Installation
1. Attach the provided robber feet to the bottom of the
switch to keep the switch from slipping. The
recommend position has been square-marked.
2. Install the switch on a level surface that can support
the weight of the unit and the relevant components.
3. Plug the switch with the female end of the provided
power cord and plug the male end to the power outlet.
Rack-mount Installation
Rack mounting facilitate to an orderly installation when
series of networking devices being installed. The switch is
supplied with rack mounting brackets and screws for rack
mounting the unit.
Procedures to Rack-Mount the Switch in the rack:
1. Disconnect all the cables from the switch before
continuing.
2. Place the unit the right way up on a hard, flat surface
with the front facing you.
3. Locate a mounting bracket over the mounting holes on
one side of the unit.
4. Insert the screws and fully tighten with a suitable
screwdriver.
5. Repeat the two previous steps for the other side of the
unit.
6. Insert the unit into the rack and secure with suitable
screws (optional).
7. Reconnect all the cables.

7
Network Cables Installation
1. Crossover or straight-through cable: All the ports on
the switch support Auto-MDI/MDI-X functionality. Both
straight-through or crossover cables can be used to connect
the switch with PCs as well as other devices like switches,
hubs or router.
2. Category 3,4,5 or 5e UTP/STP cable: To make a valid
connection and obtain the optimal performance. Appropriate
cables corresponding to different transmitting/receiving
speed is required. To choose a suitable cable, please refer to
the following table.
Media Speed Wiring
10Mbps Category 3,4,5 Utp/STP
100Mbps Category 5 UTP/STP
10/100/1000Mbps
copper
1000Mbps Category 5,5e UTP/STP
1000Mbps Fiber
(Mini GBIC
required)
1000Mbps
T
he cable type differs from
the mini-GBIC you choose.
Please refer to the instruction
came with your mini-GBIC.
Port Operation
The auto-negotiation feature allows ports running at one
of the following operation modes:
Media Speed Duplex Mode
Full Duplex10Mbps Half Duplex
Full Duplex100Mbps Half Duplex
10/100/1000Mbps
(copper)
1000Mbps Full Duplex
1000Mbps(Fiber)
(mini GBIC required) 1000Mbps Full Duplex

8
Note: For the last port, when both the fiber and cooper
interfaces are connected, the system adapts the fiber
interface and disables the relevant cooper port
automatically.
Backbone Network Application
This switch is ideal for boosting the throughput of backbone.
For an application sample of network topology, please refer to
the following chart.

9
Product Specifications
Standard
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3x full-duplex flow control
IEEE802.3z/ab 1000BASE-T
Interface 16/24 *10/100/1000 Mbps auto MDI/MDI-X RJ-45 switching ports
4* Mini-GBIC module sockets
Cable
Connections
RJ-45 (10BASE-T): Category 3,4,5 UTP/STP
RJ-45 (100BASE-
T
X): Category 5 UTP/STP
RJ-45 (1000BASE-T): Category 5,5e or
enhanced UTP/STP
Fiber: depend on Mini-GBIC types
Transmission
Mode 10/100Mbps Full-duplex, Half-duplex 1000Mbps Full-duplex
LED indications
System:
Power
16/24 * 10/ 100M: Link/ACT
16/24 * 1000M: Link/ACT
Memory 8K MAC entries 340K bytes Buffer Memory (16 Port)
500K bytes Buffer Memory (24 Port)
Emission FCC, CE, VCCI class A
Operating
Temperature 00~ 400C (320~ 1040F)
Operating
Humidity 10% - 90%(non-condensing)
Power Supply Internal power supply
100-240V/50-60 Hz universal input
61NB-G6290+200/C
