Looket P20 User manual

User Manual v.1.0
Looket PMP

2
Notices for safety
Welcome
Note
Thank you for your purchasing the Looket PMP (P20 / P30 / P40).
Please carefully read this user guide instruction before using the product.
Online information and Product Registration
You can find more information about the player and register your unit in Looket website.
http://www.looket.com
The firmware upgrade news will be provided through registered e-mail address.
Your unique product serial number and model no. can be found on the back side of the product.
Information and instruction in the manual is subject to change without notice at any time.
Disclaimer and limitation of liability
Sysonchip, Inc. and its affiliated companies assume no responsibility for any damages and loss
resulting from the use of this manual and also by deletion of data as a result of malfunction, dead
battery, or misuse of the product in any way.
Neither the manufacturer, importers nor dealers is responsible for any accidental damage including bodily
injury or any damage resulting from misuse or unsuitable operation by you
The information on this manual is prepared with the current player specification. The manufacturer is
adding new features to the product and may persistently apply new technologies hereafter.
All standards may be changed at any time without notice.

3
Table of contents
Before Using
- Certifications & Copyrights
- Notice for safety
- Caution
- Unit package
- Designation
- Designation
Getting Started
- Turn on / Turn off
- Charging the battery
- Connecting AV out port
- Cable connection for recording
- USB cable connection
Operation - Video player
- Audio player
-FMRadio
- Photo viewer
- File browser
- Recording
-Setup
Additional Information
4
11
19
49

4
Before Using

5
Certifications & Copyrights
- Certifications
CE, FCC, MIC
- Copyrights
＊The software, video and audio which have an intellectual property are protected by copyright
and international laws. It is definitely each user’s responsibility when he/she reproduce or distribute
the contents created using Looket PMP.
＊SysOnChip has all the rights of the patent, literary property, and intellectual property related to this
manual. You shall not reproduce any part of this manual unless authorized by SysOnChip.
Using any part of this manual without any official permission from SysOnChip is strictly illegal.

6
Notices for safety
Notice for safety
⊙If water or other liquids are present, power off the player and unplug the AC adapter.
⊙If smoke or smell emit from player or adapter, power off the player and unplug the AC adapter.
⊙Unplug adapter when it is not in use.
⊙When it is electrical storms, unplug the AC adapter. Electrical shock can result.
⊙Use only the supplied power adapter (AC) authorized by the manufacturer. Using with other power
supply are strictly out of warranty with any reason.
⊙Do not overload a single power circuit because of overheating or fire.
⊙Firmly unplug the adapter into the wall socket.
⊙Do not place heavy objects on the power cable. Do not twist power cable.
⊙Do not touch power adapter with wet hand because of electrical shock.
⊙Do not use or leave this Looket PMP near a stove or fire.
⊙Do not look at the LCD light directly at a close distance.
⊙Keep out of the reach of children.
⊙Do not use while walking or driving, which may cause any injury or accidents.
⊙Do not attempt to disassemble or modify this Looket PMP, AC adapter, and any accessories included.
⊙LCD may be temporarily discolored at the very low or too high temperature.

7
!Caution
⊙Never connect or disconnect the power plug with wet hand.
⊙Do not leave Looket PMP in places of high temperature, such as in a sun-heated car.
⊙Do not damage the AC adapter cord by pulling it and do not attempt to extend it.
⊙Do not drop or put pressure or strong impact on Looket PMP.
⊙Keep this Looket away from magnetic objects (credit cards, floppy disk, etc.).
⊙Do not take a picture or leave Looket PMP with the lens aimed directly at the sun.
⊙If the Looket is subjected to a sudden temperature change, for example by bringing it from a cold
place into a warm room, condensation may form on the inside. Use the device after the temperature
difference has subsided.
⊙Use only the supplied Li-ion battery authorized by the manufacturer. Using with other battery may
cause severe problems, accidents or critical damages on Looket PMP, which will be strictly out of
warranty.

8
Unit package
Looket PMP
Data CD
AV Cable
USB Host Cable
USB Slave Cable
Earphones
AC Adapter (110 ~ 240V)
Quick Manual
Lithium-ion Battery 2EA
RCA Adapter (optional)
Carrying Case (optional)
Remote Controller (optional)
* Package contents might vary depending on countries without notice.

9
Designation
1) Dual Stereo Speaker
2) TFT LCD
3) Charging LED
(Blue / Blinking)
4) Navigation Key
or Joystick
5) Escape Button
6) Menu Button
7) Hold Switch
8) LCD Off Switch
9) Power Off Button
10) Remote Control
Connector(optional)
11) AV Out / Earphones
Connector
12) AV In Connector
13) USB Host / Slave
Connector
14) Power Connector
(5V, 1.5A)
15) Battery Cover Lock
16) Stand
17) HDD LED

10
Designation
1) Dual Stereo Speaker: Built-in stereo sound speaker
2) TFT LCD : 16.7 Million color display & QVGA LCD
3) Charging LED : Blinking - during charging / Blue light on - after full charging
4) Navigation Key : 5 Directional switch. Up, Down, Left, Right, Enter
5) Escape Button : Return to previous menu or escape the current mode.
6) Menu Button : Popup setup menu
7) Hold Button : Navigation key, menu, and ESC button are freezed. Only power button is operated.
8) LCD Off Button : LCD On/Off Selection
9) Power On/Off Button : Press and hold it for 2 sec.
10) Remote Control Connector : Connector for an optional remote controller/FM transmitter
11) AV Out / Earphone Connector : Connector for other AV products like a television, a projector, or earphones.
12) AV In Connector : Connector for other AV products like a television, digital camcorder, VTR or DVD for recording.
13) USB Host / Slave connector : Host function – Connect with other USB products(Memory, Digital camera, etc)
Slave function – Connect with PC for data copy
14) Power connector
15) Battery cover Lock
16) Stand
17) HDD LED

11
Getting Started
- Turn on / Turn off
- Charging the battery
- Connecting AV out port
- Cable connection for recording
- USB cable connection
(Slave connection & Host connection)
- Disconnecting USB connection

12

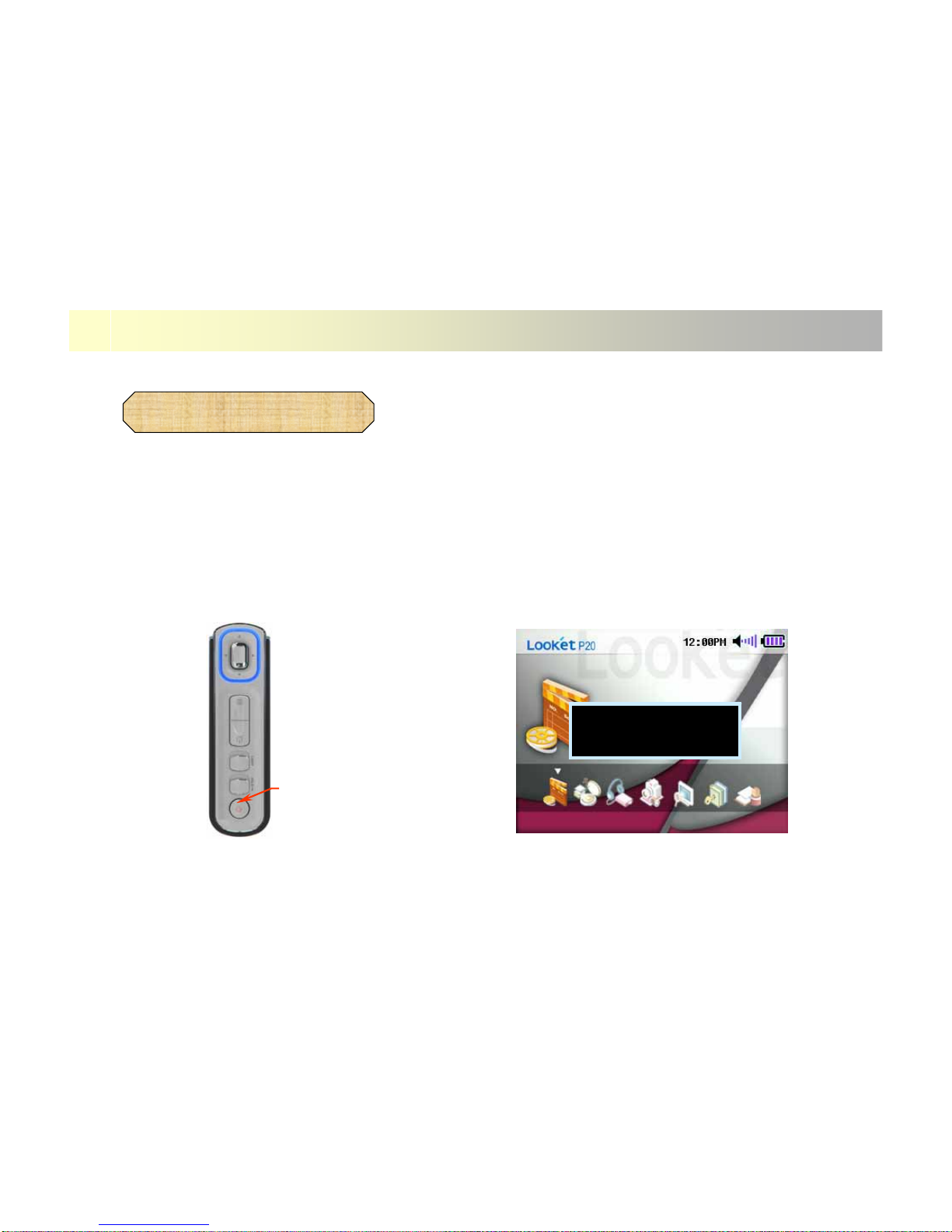

Turn on / Turn off
Warning !
LCD Off switch is enable
1) Press the POWER button of the left side for 2-sec. You will see the light of HDD LED
on top cover
2) If LCD off switch is selected, the warning message will appear in LCD as below for
short moment.
Press the power
button for 2 seconds

13
Charging the battery
※Low battery display
Low Battery
Before using Looket PMP, the battery must be fully charged.
• Open the battery cover.
• Put Lithium-ion battery in Looket PMP.
• Close the battery cover. And lock the battery cover switch.
• Connect Looket PMP with AC adapter, and then plug the adapter into the wall socket.
• The charging blue LED will be blinking during charging, and turn on once it is fully charged.
• To start Looket PMP, press and hold the POWER button for 2 sec.

14

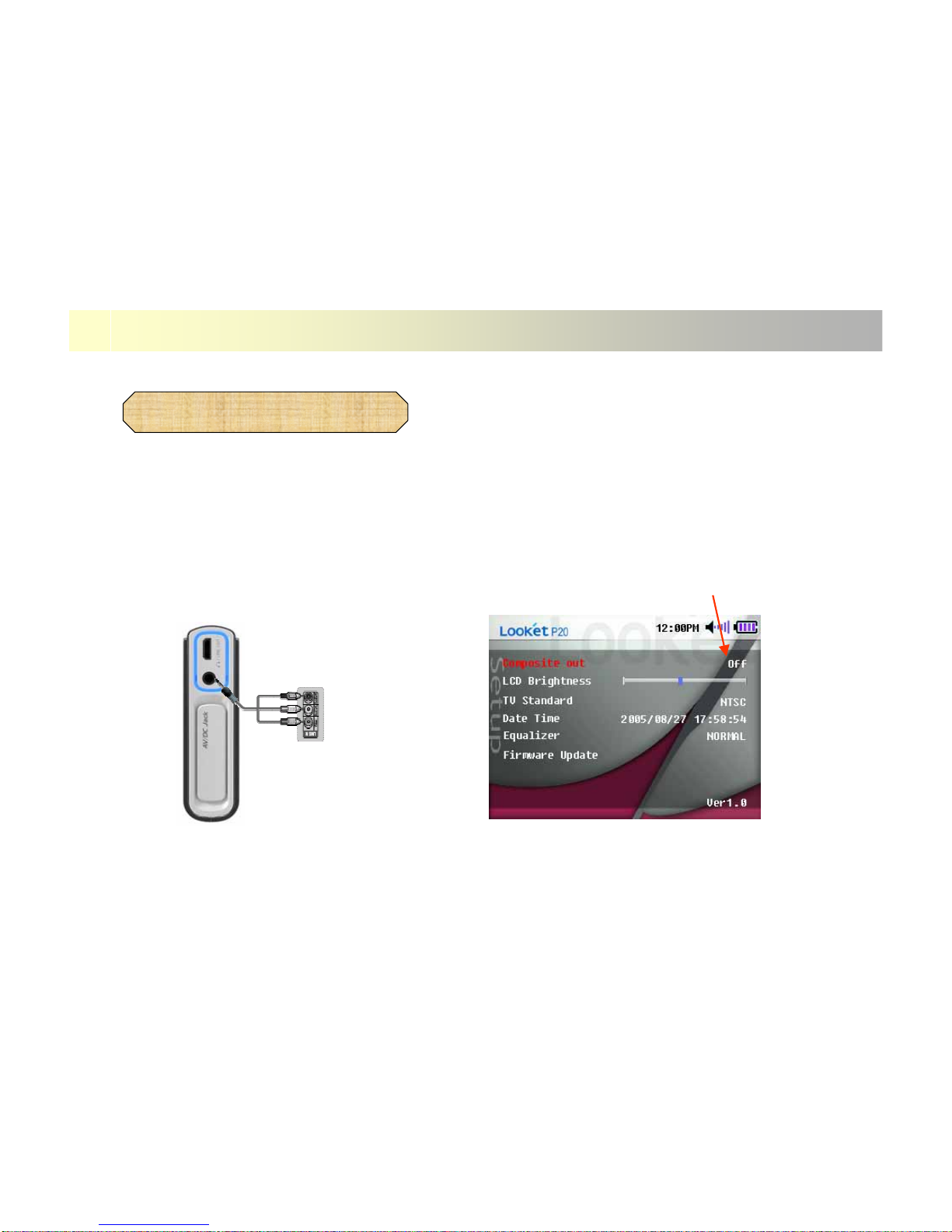

Connecting AV out port
On/Off selection
TV
VTR
Projector
Looket PMP can be usable with other electronic products like TV, VTR, Beam Projector, etc.
1) Connect the AV out connector of Looket PMP with the AV cable included in the package.
The AV cable consists of phone jack and RCA jack.
2) Enter SETUP menu, and change ‘Composite Out’ to ‘ON’.

15
Cable connection for recording
Camcorder
VTR
Other products
다른 전자 제품이 RCA 잭인 경우 다른 전자 제품이 RCA 잭이 아닌 경우
※Looket can be input signal of other AV products
• Open the AC/DC jack cover and insert the phone jack of the AV cable into the AV IN connector.
• Connect the RCA jack of AV Cable to the cable of other AV product like the picture 1.
In case other AV product has different connector type, see right bottom picture.

16
USB cable connection
Type ‘A-male’
Type ‘B’
Connecting to PC
• Connect the Looket USB cable included in the package to the USB port of your PC
• During USB connection with PC, do not operate any key of Looket PMP.
• If any Movie, Audio, FM, or Photo player is executed, escape from the play mode. Otherwise
USB cannot connected.
※When the PC have Window98 Second version O/S, please install the driver from the enclosed CD.

17
USB cable connection
Type ‘A-Female’
Type ‘B’
USB Memory stick
Digital camera
Memory Card Reader
Connect to other USB products
• Connect the Looket USB Host cable included in the package to your other USB products
such as USB memory sticks, digital cameras, memory card readers, etc.
• Refer to ‘File Browser’ function.

18
Disconnecting USB connection
①
②
③
④
※To disconnect the USB connection from your PC, follow the below instructions.
- Click the ①picture in the right bottom side of screen..
- Click the right button of your mouse when you see the message ②.
- When you see the ③message, now you may unplug the USB cable from your Looket and computer.
- If you see the message ④, finish the program you are using for Looket properly and start the disconnecting
procedure again.

19
Operation
- Video Player
- Audio Player
-FMRadio
- Photo Viewer
- File Browser
- Recording
-Setup

20
Getting started
Video player
Play this movie continuously?
Yes No
(1) Press and hold the power button (2) Select the Video Player in the main menu
and press in the middle of navigation key.
(4) If the file was stopped in the middle before,
it will ask you to start from beginning or
continuously.
(3) Choose the movie file when
you see the file structure like
below.
(5) Choose “Yes” to play continuously,
choose “No” to start from the beginning.
