Lopo GS-205B Plus User manual

1
Operation Manual
(GS-205B Plus)
Safety Instructions
When using your heat press,
basic precautions should always be followed,
including the following:
1. Read all instructions.
2. Use heat press only for its intended use.
3. To reduce the risk of electric shock, do not immerse the heat press in water or
other liquids.
4. Never pull cord to disconnect from outlet, instead grasp plug and pull to
disconnect.
5. Do not allow cord to touch hot surfaces, allow heat press to cool completely before
storing.
6. Do not operate heat press with a damaged cord or if the equipment has been
dropped or damaged.To reduce the risk of electric shock, do not disassemble or
attempt to repair the heat press. Take it to a qualified service person for
examination and repair. Incorrect assembly or repair could increase the risk of fire,
electric shock, or injury to persons when the equipment is used.
7. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
8. Close supervision is necessary for any heat press being used by or near children.
Do not leave equipment unattended while connected.
9. Burns can occur when touching hot metal parts.
10. To reduce the likelihood of circuit overload, do not operate other high voltage
equipment on the same circuit.
11. If an extension cord is necessary, then a 20 amperage rated cord should be used.
Cords rated for less amperage may overheat. Care should be taken to arrange the
cord so that it cannot be pulled or tripped over.

2
Technical Parameters
Model:
GS-205B Plus
Heater Size:
L300mm/ARC L:226mm
Power(120volt)
300W，2.7A
Power(240volt)
300W，1.4A
Temperature Range：
Max.200℃/392℉
Time Range：
0~999S
Machine Size：
39.8×45.5×26.4cm
Packing Size：
52.cm*47.5cm*32.5cm
Packing Weight：
12Kg
Net weight：
8.6Kg
Certificate：
CE,FCC
Warranty:
One year on whole machine
except heaters

3

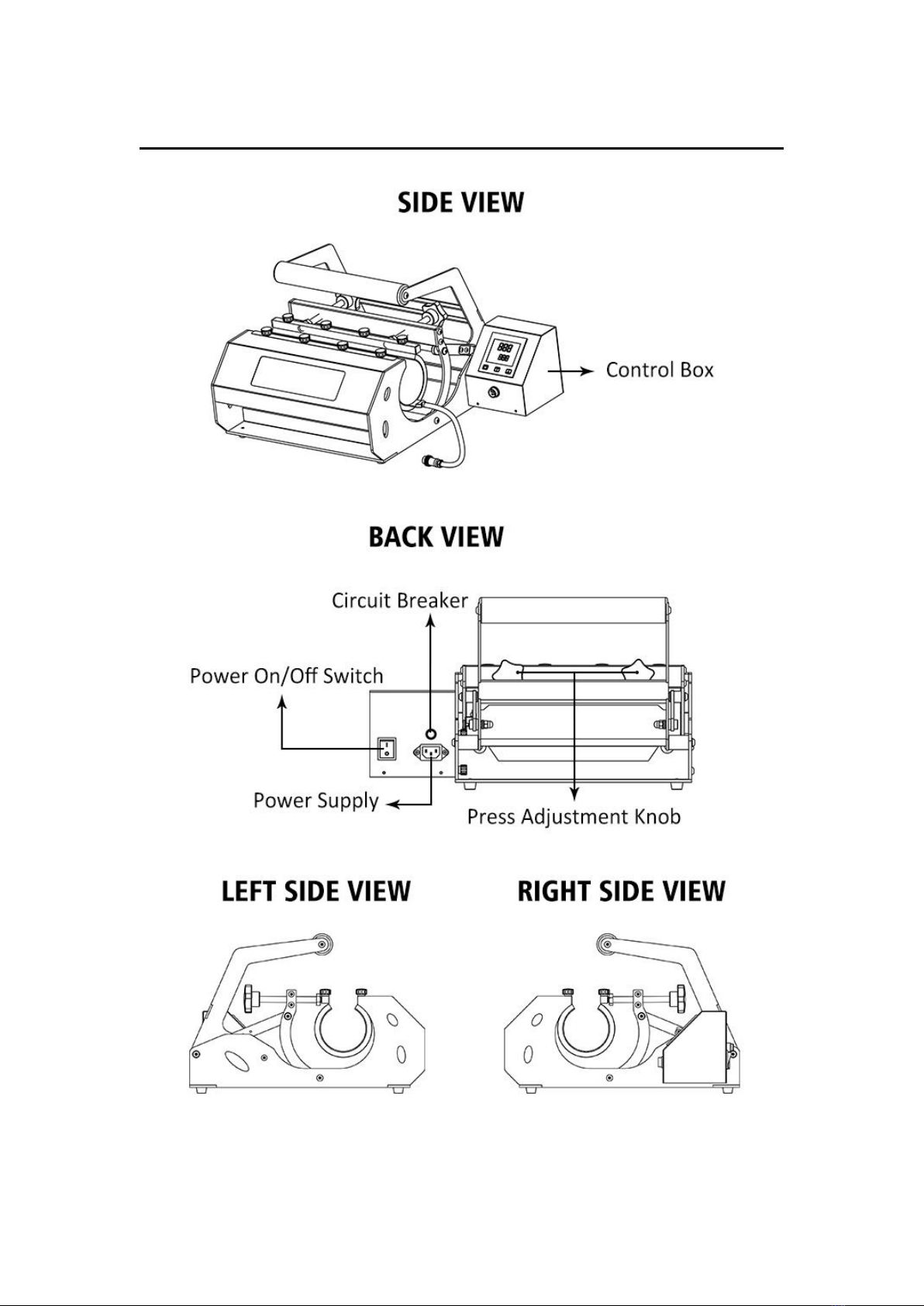

Machine View

4
Control Panel Guide

5
Operation Instructions
1.Connecting the System
2.Turn On the System
1.1 Connect the power cord into a
properly grounded electrical outlet
with a sufficient amperage rating.
1.2 VOLTAGE
120 Volt –The GS-205B requires a full 10
amp grounded circuit for 120 volt
operation.
240 Volt –The GS-205B requires a full 7
amp grounded circuit for 240 volt
operation.
1.3 EXTENSION CORDS If used, should
be as short as possible and not less
than 12 gauge.Heavy duty cords are
recommended.
1.4 CIRCUITS that have less than 10 amps or
that have other high demand equipment
or appliances(especially more than one
heat seal machine) plugged in, should not
be used.
NOTE: If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
a similarly qualified person in
order to avoid hazard.
CAUTION :
Failure to follow these instructions will cause:
1) Erratic controller functions.
2) Inaccurate displays and slow heat-up.
3) The circuit breaker to disengage.

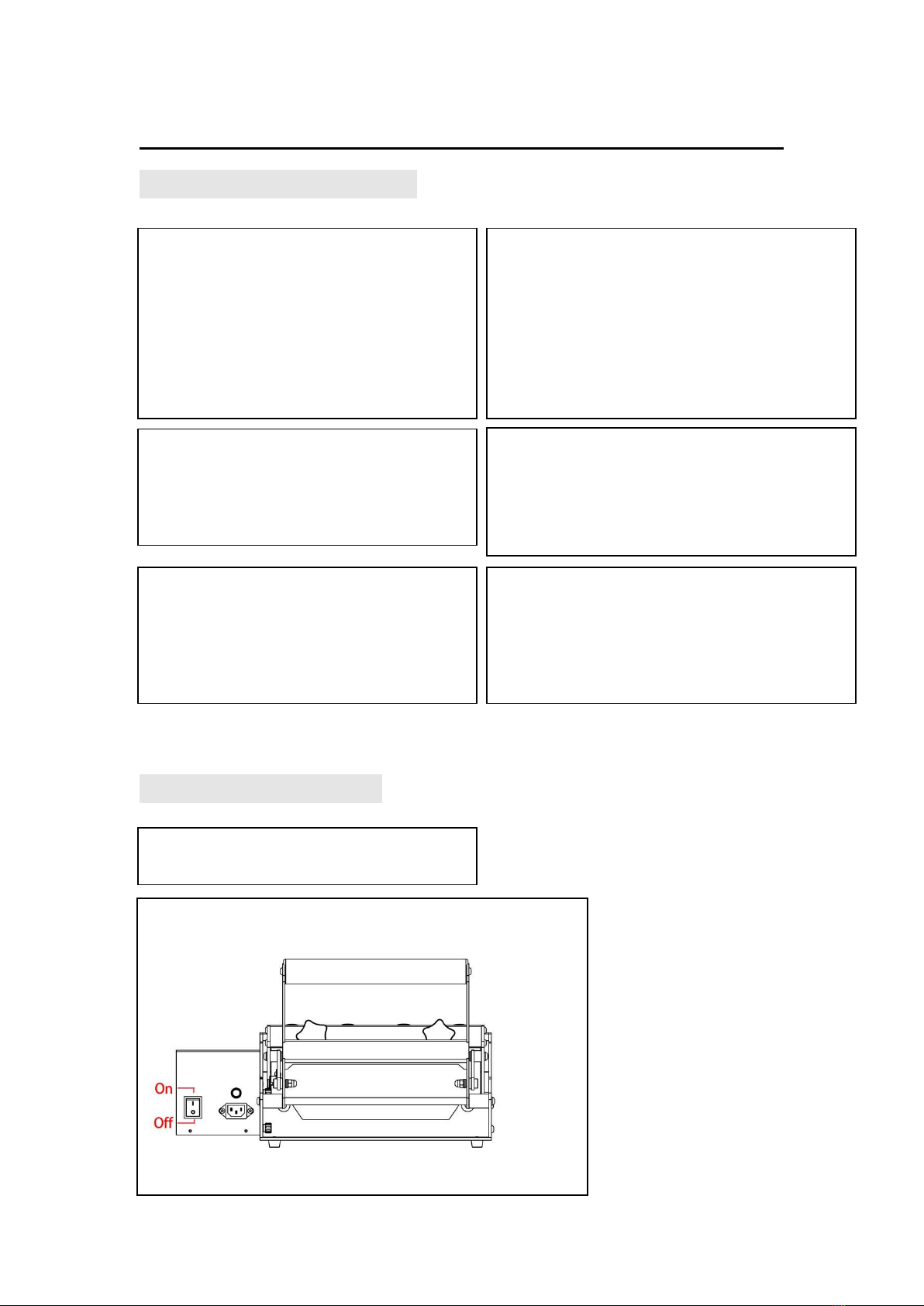

2.1 Switch The System On(figure2.1)
2.1

6
3.Adjusting the Temperature
4.Adjusting the Time
5.Adjusting the Pressure
5.2 A
REMEMBER: To allow for the thickness of your garment when adjusting the pressure.
3.1 Press the “set” button once time.

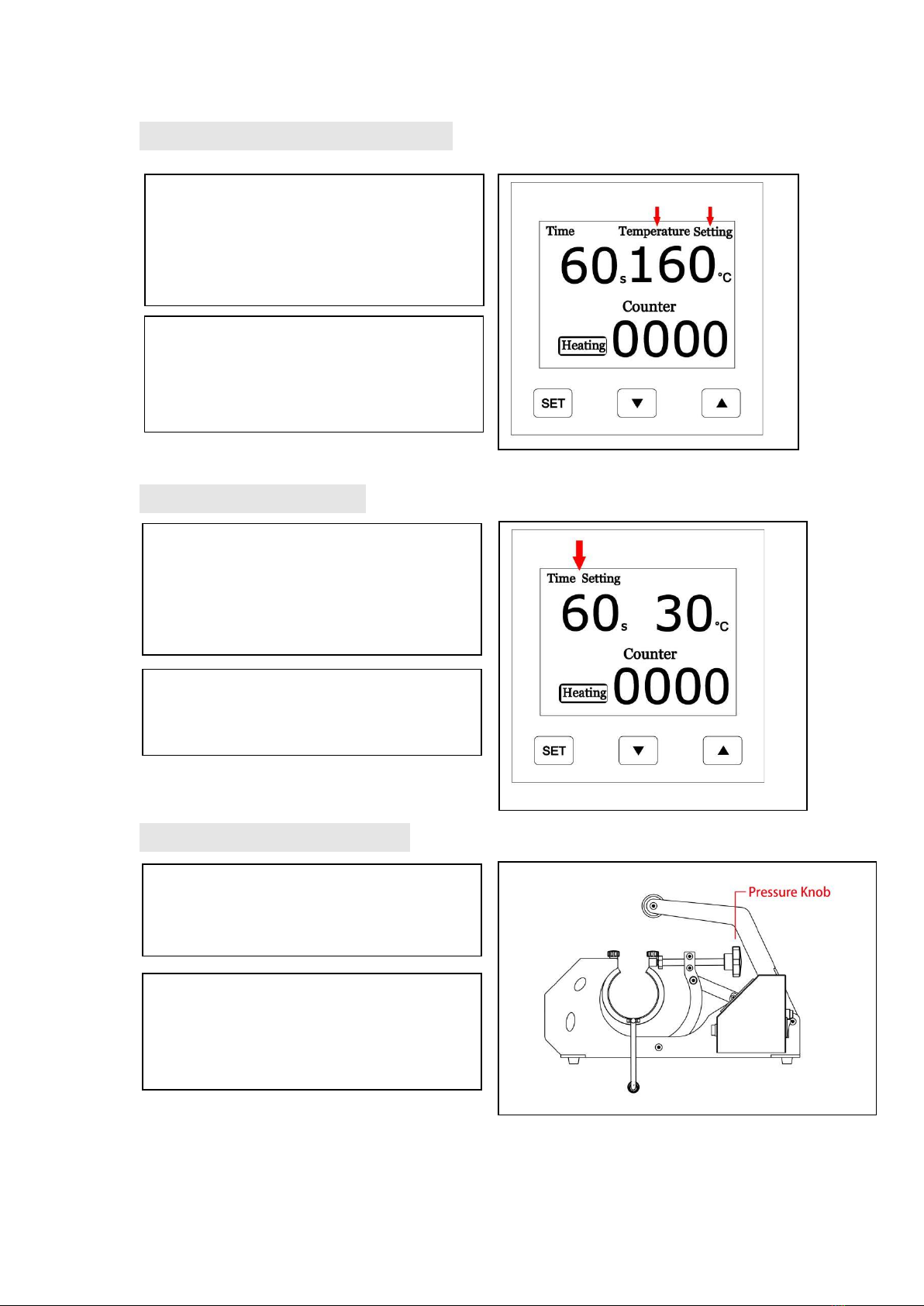

“Temperature”lights will illuminate, press
the “up”and “down”button to set target
start temperature (see figure 3.1)
3.2 Press the “set” button second time.
“Setting”lights will illuminate, press the
“up”and “down”button to set printing
temperature (see figure 3.1)
4.1 Once you have adjusted the temperature,
press the “set”button again. “Time”lights
located in the display will illuminate. (see
figure 4.1)
4.2 Next, press the “up”and “down”button to
set target printing time.The time setting range
can be set from 0~999.
5.1 The Pressure Adjustment Knob is
located as picture.(See figure 5.1)
5.2 Adjust the pressure by turning the
knob clockwise to increase pressure
and counter clockwise to decrease
pressure.
3.1
4.1
5.1

7
6.Printing And Pressing
7.Switch Between F/C
⚫Once your equipment has reached the designated start temperature:
⚫Position mug and application and proceed to press.
⚫This procedure will start the automatic timing process.
⚫Please note machine will heat up from start temperature to printing temperature
then time starts to count down.
⚫The timer will automatically count down to zero then circuit board will alarm when
the press cycle is complete.
⚫The timer will automatically re-set and you are ready to continue with the next
application.
⚫

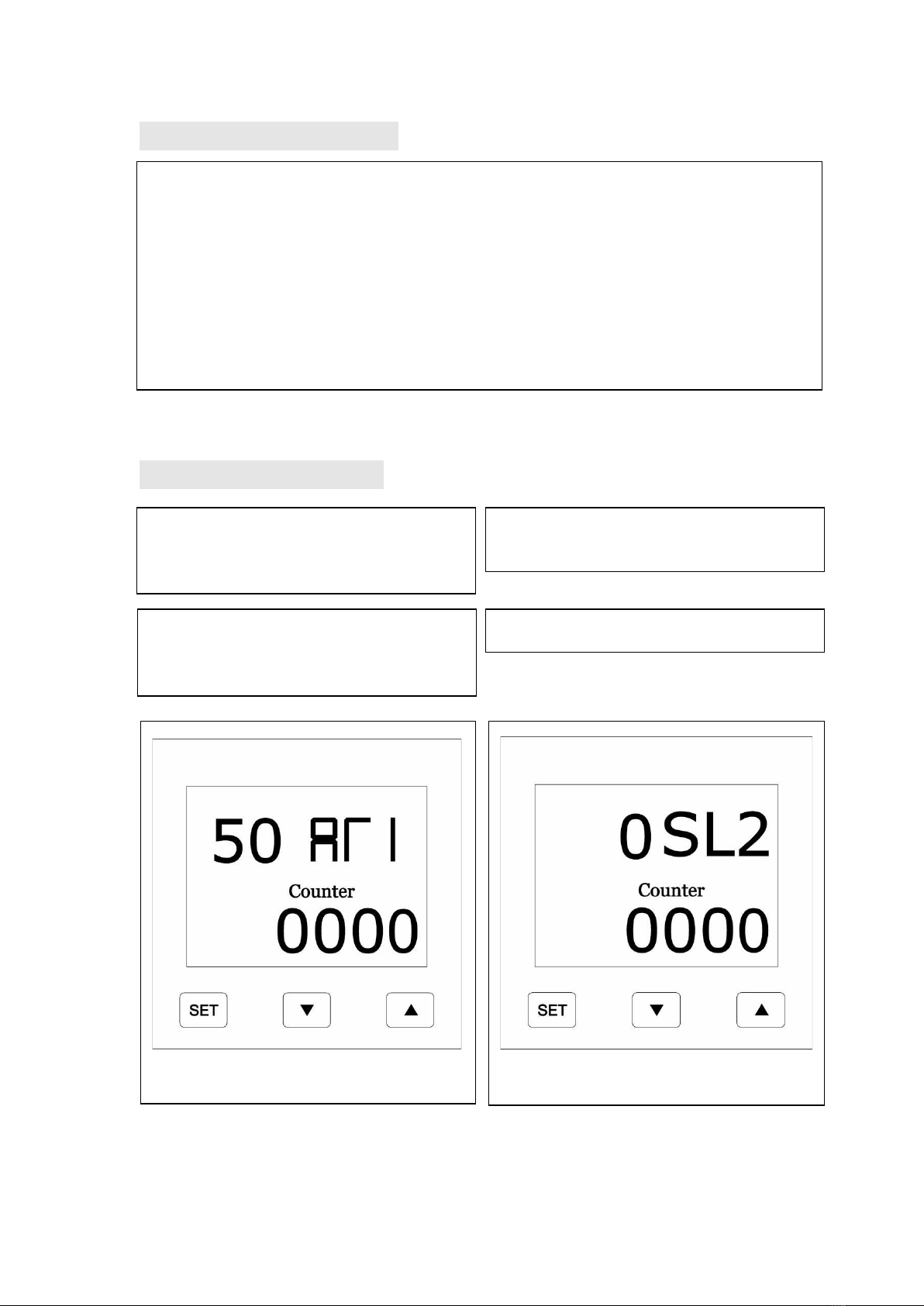

7.1 Press “set” button for 4 seconds to
enter into second level menu.Display
as below.(see figure 7.1)
7.2 Press “set”button to select “SL2”
mode(See figure 7.2)
7.3, press up and down button to set
value at 0 or 1, 0 for celsius, 1 for
Fahrenheit.
7.4 Press “set” button 4 seconds to quit.
7.2
7.1

8
8.Temperature Calibration
if temperature on heater is higher than
circuit board shows,pls raise the Pb
value.
Example:
Heater temperature:190C
Circuit board temperature:185C
Pls set Pb Value at ( +5 )
If temperature on heater is lower than
circuit board shows,pls reduce the Pb
value.
Example:
Heater temperature:185C
Circuit board temperature:190C
Pls set Pb Value at ( -5 )
8.1 Press “set” button for 4 seconds to
enter into second level menu.Display
as below.(see figure 8.1)
8.2 Press “set”button to select “Pb”mode
(See figure 8.2)
8.3 press “up”and “down”button to make
temperature calibration.
8.4 Press “set” button 4 seconds to quit.
8.1
8.2

9
Exploded Views And Parts List
No.
Material No.
Part Name(English)
Qty
1
J.03.05.0908
Machine base
1
2
J.03.03.0038
Rubber foot
4
3
J.03.06.0117
Ball headed bolt M4*10
4
4
J.03.04.0127
Magnet switch
1
5
J.02.04.0145
4phase avaiation plug(Female)
1
6
J.03.04.0148
Circuit board GSK-H08
1

10
7
J.03.04.0078
Terminal block
1
8
J.03.05.0609
Base board of control box
1
9
J.02.04.0131
Traic DX146-10
1
10
J.03.05.0610
Control box-205B
1
11
J.03.04.0079
On-off switch
1
12
J.02.04.0141
Fuse assembled
1
13
J.03.04.0077
Socket DB-14-1
1
14
J.03.05.0912
Holding shaft-205B plus
1
15
J.03.03.0057
Washer 20x10x1.8 black
2
16
J.03.03.0129
Washer 20x10x6 black
2
17
J.03.06.0139
Ball headed bolt M6-12
2
18
J.03.05.0915
Arm link-205B plus
1
19
J.03.06.0129
Ball headed bolt M6-8
2
20
J.03.06.0118
Flat washer 12-6-1.5
2
21
J.03.06.0165
Ball headed bolt M5-12
4
22
J.03.03.0129
Washer 16x8x10.5black
2
23
J.03.03.0097
Washer 14x8x1.8 black
2
24
J.03.05.0913
Armlink holding shaft 205B plus
1
25
J.03.03.0139
Washer 20x10x28 black
2
26
J.03.06.0139
Ball headed bolt M6-12
2
27
J.03.06.0077
Countersunk screw M3x8
1
28
J.03.06.0023
M3 magnet 12*3
1
29
J.03.06.0141
Ball headed bolt M4*6
2
30
J.03.05.0916
Magnet holding base
1
31
J.02.05.0071
Handle holding shaft
1
32
J.03.05.0914
Handle set
1
33
J.03.06.0159
Cap nut black M6
2
34
J.03.06.0126
Nut silver M6
2
35
J.03.03.0097
Washer 14x8x1.8 black
2
36
J.02.05.0070
Handle shaft 205B plus
1
37
J.03.06.0139
Ball headed bolt M6*12
2
38
J.03.03.0138
Rubber case 205B plus
1

11
39
J.03.05.0915
Short arm link 205B plus
2
40
J.03.06.0092
Shoulder screw M6-8-12
2
41
J.03.03.0122
Washer 15x8x3.5 black
2
42
J.03.03.0140
Block washer-black
2
43
J.03.06.0117
Ball headed bolt M4*10
2
44
J.03.06.0231
Pressure screw knob
2
45
J.03.06.0275
Flat washer 6-10-1
2
46
J.03.06.0142
Shoulder screw M5-6*12
2
47
J.03.05.0911
Heater holding shaft
1
48
J.02.05.0072
Pressure screwM10*110
2
49
J.03.05.0910
Pressure screw holder
1
50
J.03.06.0032
Handle screw M5-18-10
8
51
J.03.01.0024
Logo sheet
1
52
J.03.06.0014
Handle screw M4-15-10
3
53
J.02.06.0047
30oz tumbler heater 220V
As need
J.02.06.0048
30oz tumbler heater 110V

12

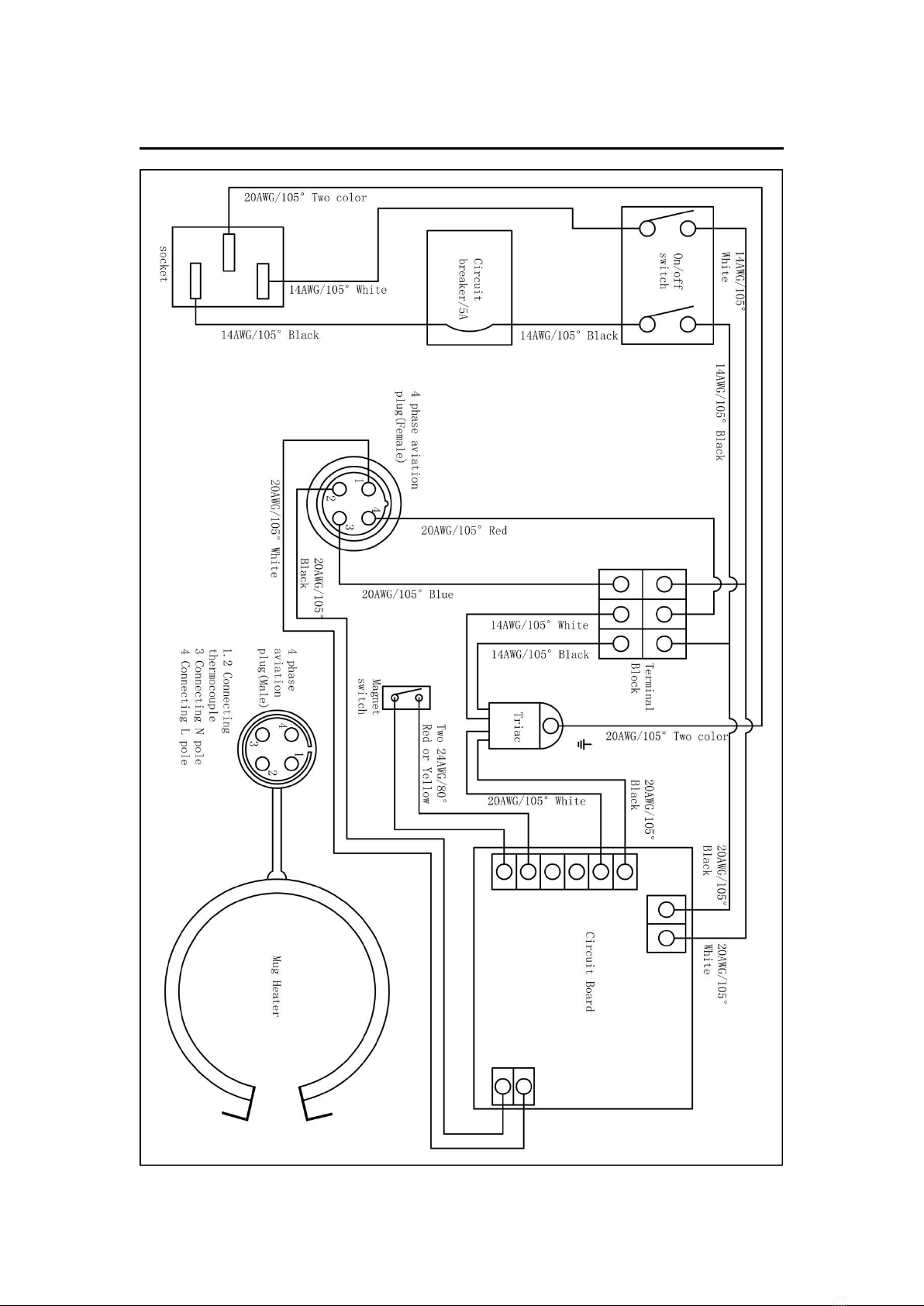

Electrical Schematic
