LOWE'S Crescent Hill User manual

IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
Home Styles ConsumerAssistance: www.homestyles-furniture.com,
[email protected], 888-680-7460, 877-831-0319
Hardware List
88 5549 101

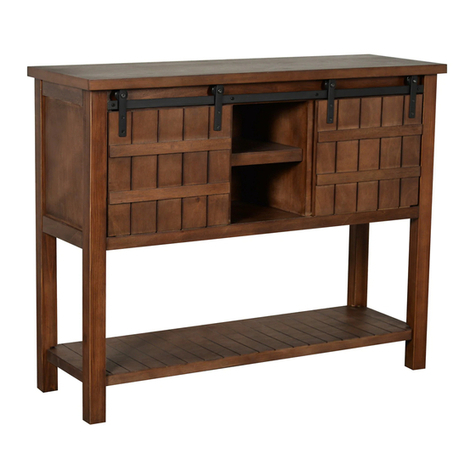

Crescent Hill
Entertainment Credenza
For assembly see instructions in carton 88 5549 102
Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level
Small Hex Wrench
1 Pc.
Hex Wrench
1 Pc. Cam Lock
12 Pcs. (+4 extra) Head Cap Bolt (short)
4 Pcs. (+1 extra) Flat Washer 8 Pcs. (+1 extra) Tapered Wood Screw
4 Pcs. (+1 extra) Wood Screw 12 Pcs. (+1 extra)
Spring Washer
8 Pcs. (+1 extra)
Pull Handle
2 Pcs.
Magnet
2 Pcs. Machine Screw
4 Pcs.
Adjustable Pin
24 Pcs.
Head Cap Bolt (long)
8 Pcs. (+1 extra)
M6x25
M4x25
M3x15 M3x15
M6x50
Cam Lock Screw
12 Pcs. (+1 extra)
A.
Top
1 Pc.
I.
Shelf
4 Pcs.
J.
Door
1 Pc.
K.
Door
1 Pc.
L.
Base
1 Pc.
M.
Leg
1 Pc.
N.
Leg
1 Pc.
O.
Leg
1 Pc.
P.
Leg
1 Pc.

IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
Home Styles ConsumerAssistance: www.homestyles-furniture.com,
[email protected], 888-680-7460, 877-831-0319
88 5549 102
Crescent Hill
Entertainment Credenza
Also need the following from carton 88 5549 101 :
Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level
B.
Side Panel
1 Pc.
C.
Side Panel
1 Pc.
D.
Middle Panel
1 Pc.
E.
Middle Panel
1 Pc.
F.
Back Panel
2 Pcs.
H.
Shelf
2 Pcs.
G.
Back Panel
1 Pc.

Assembly Instructions 3
IMPORTANT
* Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* Do not tighten up all the bolts until each part is properly assembled.
* Use a soft cloth between these parts and the floor.
*After assembly item must be level to work properly. Use the included adjustable levelers to level.
STEP 1
Place Base (L) upside down on
a soft cloth then attach Legs (M),
(N), (O) and (P) to Base (L) with
Flat Washers, Spring Washers
and Head Cap Bolts (long).
(See Figure 1)
STEP 2
Turn the unit over to its’ upright position.
Insert Cam Lock Screws into pre-drilled
holes of the unit and Top (A).
(See Figure 2)
Attach Magnet to Top (A) with
Tapered Wood Screws. (See Figure 3)
Head Cap Bolt (long)
Cam Lock Screw
Cam Lock Screw
Magnet
Tapered Wood Screw
Spring Washer
Flat Washer
Figure 1
Figure 2
Figure 3
/4
L
A
M
N
O
P

Assembly Instructions 4
B
C
D
FF
A
H
H
I
I
I
I
GE
Head Cap Bolt (short)
Cam Lock
Cam Lock
Adjustable Pin
STEP 3
Attach Side Panels (B) and (C) with
Head Cap Bolts (short).
STEP 4
Turn the unit over to its’ upright
position.
Attach Middle Panels (D) and (E) to
the unit with Cam Locks.
(See Figure 4)
Slide Back Panels (F) and (G) into
position.
STEP 5
Attach Top (A) to the unit with Cam Locks.
Insert Adjustable Pins into side panels and
middle panels at the desired level.
Place Shelves (H) and (I) into position.
Figure 4
/4

Assembly Instructions 5
STEP 6
Attach Pull Handles to Doors (J)
and (K) with Machine Screws.
(See Figure 5)
Attach Doors (J) and (K) to unit
by sliding the door life hinges
into the side panel lift hinges.
(See Figure 6)
Level the unit by adjusting the adjustable
levelers on the bottom of the legs.
(See Figure 7)
STEP 7
Insert Wood Screws into the
pre-drilled holes in the back
panel.
J
K
Figure 5 Figure 6 Figure 7
Wood Screw Note : Please make sure unit
is level before tightening
these screws.
