slither.io TM
3 | P a g e
Table of Contents
Safety ............................................................................................................................................................ 5
Operation.................................................................................................................................................. 5
Transporting.............................................................................................................................................. 5
Handling Components .............................................................................................................................. 5
Disconnect Power ..................................................................................................................................... 5
Grounding ................................................................................................................................................. 5
Electrical Shocks........................................................................................................................................ 5
Monitor ..................................................................................................................................................... 5
Power Cord ............................................................................................................................................... 5
Surge Suppressor ...................................................................................................................................... 5
Water and Other Liquid Sources............................................................................................................... 6
Connectors................................................................................................................................................ 6
Computer .................................................................................................................................................. 6
Tempered Glass Warning.......................................................................................................................... 6
Hazard to Epileptics .................................................................................................................................. 6
Manual ...................................................................................................................................................... 6
Specifications ............................................................................................................................................ 6
Product Specifications.................................................................................................................................. 7
Electrical Power ........................................................................................................................................ 7
Temperature ............................................................................................................................................. 7
Humidity.................................................................................................................................................... 7
Dimensions................................................................................................................................................ 7
Fuse Replacement Guide ............................................................................................................................. 7
12V Power Distribution............................................................................................................................. 7
Setup............................................................................................................................................................. 8
Unpack Materials ...................................................................................................................................... 8
Cabinet Assembly...................................................................................................................................... 9
Card Reader Installation and Setup ........................................................................................................10
Check Electrical Settings .........................................................................................................................16
Startup Game..........................................................................................................................................16
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
4 | P a g e
Diagnostic and Adjustments ......................................................................................................................17
Basic Functional Test on Initial Power Up............................................................................................... 18
Test Menus.............................................................................................................................................. 19
Main Menu.......................................................................................................................................... 19
Diagnostics ..........................................................................................................................................20
Pricing and Payout Adjustments (Cash)..............................................................................................21
Pricing and Payout Adjustments (Tokens) .......................................................................................... 22
Pricing and Payout Adjustments (Swipes) ..........................................................................................23
Game Settings ..................................................................................................................................... 24
System Settings...................................................................................................................................25
Audits ..................................................................................................................................................26
Resets Menu ....................................................................................................................................... 27
Volume................................................................................................................................................28
Calibration...........................................................................................................................................29
Utilities Menu......................................................................................................................................30
System Information............................................................................................................................. 31
Choosing the Right Pricing Adjustments for Your Location.................................................................... 32
PC Hardware ...........................................................................................................................................33
HP Elitedesk 705 G3 MT BIOS .................................................................................................................34
PC Hard Drive Recovery ..........................................................................................................................35
Troubleshooting .........................................................................................................................................36
Technical Support....................................................................................................................................... 40
Electrical and Mechanical Illustrations......................................................................................................41
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
5 | P a g e
Safety
Operation
Before operating game, read this manual. Failure to properly install and operate this game could result in
malfunction or accident. Operate the game in accordance with the manual.
Transporting
The cabinet is very heavy. Because the monitor is high, the cabinet is also very top-heavy. Use appropriate
care when moving or transporting cabinet. It contains fragile glass and electronic components. Avoid rough
handling.
Handling Components
Many components are extremely sensitive to handling, environmental and Electrostatic Discharge (ESD)
events—especially the computer. Do not handle it roughly. Before servicing, call your distributor and inquire
about the PC warranty. Use proper ESD procedures when servicing. Protect components from harmful
environmental conditions, such as extreme temperatures, excessive moisture or other damaging effects.
Disconnect Power
Always turn the power off and unplug the unit before servicing or making adjustments unless otherwise
instructed. Installing or repairing components while power is on can damage the components and void the
warranty.
Grounding
Avoid electrical shock. Do not plug in AC power until you have inspected and properly grounded the unit.
Only plug into a grounded, three-wire outlet. Do not use a “cheater” plug or cut off the ground pin on the line
cord.
Electrical Shocks
There is no isolation transformer in the cabinet. Disconnect AC power before servicing. However, be aware
that lethal voltages can remain in the electronic components even when AC power is disconnected. Use
extreme caution when servicing. Verify that there is a working ground connection. If the unit sustains water
damage, cease using it immediately and unplug AC power.
Monitor
The monitor contains no user serviceable parts. Do not attempt to service the monitor.
Power Cord
If the power cord is damaged or lost, replace it with an identical cord as supplied by the manufacturer or an
authorized service agent.
Surge Suppressor
It is recommended that you plug your game’s power cord into a surge suppressor to help protect from power
surges that may damage sensitive electronic components.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
6 | P a g e
Water and Other Liquid Sources
Do not install game near sprinkler or other water jet sources. Do not use water jet to clean game. Keep
minimum clearance behind game and wall for proper ventilation but also prevent access of liquid from spills
and sprays from entering ventilation holes.
Connectors
When servicing machine, ensure all connectors mate properly. If connectors do not slip in easily, do not force
them. Connectors are often keyed and only connect one way. Check for correct orientation.
Computer
The computer contains sensitive components, including a hard drive. Do not handle it roughly. Call your
distributor before servicing its internal components. Ask about warranty information as it relates to the PC.
Cycle AC power on or off with the cabinet power switch.
A dongle has been inserted into one of the USB ports. This is required for game play.
Do not remove the dongle except for troubleshooting purposes.
Tempered Glass Warning
When handling the LCD display glass cover take special care and set the glass down softly on a flat surface
free of debris. The edge of the glass is sensitive to hard impact. Shattered glass from the monitor can travel
long distances and cause bodily injury. Use proper procedures when handling broken materials.
Hazard to Epileptics
A small portion of the population has an epileptic condition that may cause seizures. Affected persons
experience seizure while watching some television pictures or playing certain video games. People who have
not had seizures may still have an undetected epileptic condition. If anyone in your family has experienced
epilepsy symptoms (seizures or loss of awareness), consult your physical before using video games. While
children play video games, a parent should observe. Be alert to the following symptoms: dizziness, altered
vision, eye or muscle twitching, involuntary movements, loss of awareness, disorientation or convulsions. If
you or your child experiences these symptoms, discontinue use immediately and consult your physician.
Manual
Keep this manual available and ready for use. If the game fails to function properly, turn off the machine and
unplug the AC line cord. Contact your local distributor. You may not reproduce this document or any of its
contents without written authorization from Raw Thrills, Inc.
Specifications
For reasons such as performance, this product’s specifications may change without notice. Federal patent,
copyright and other intellectual property laws protect the content, devices and design of the game and its
equipment.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
7 | P a g e
Product Specifications
Electrical Power
United States, International and Japan
Operating AC Current: 5/2.5 Amps
Voltage: 120/230 ~ VAC 50/60Hz
Temperature
50° F to 104° F
(10° C to 40° C)
Humidity
Must not exceed 95% relative humidity
Dimensions
Assembled
Height: 107.00” (2.72 meters)
Width: 54.75” (1.39 meters)
Depth: 32.50” (0.83 meters)
Fuse Replacement Guide
NOTE: FOR CONTINUED PROTECTION AGAINST FIRE AND ELECTRICAL DAMAGE, USE ONLY SPECIFIED FUSE
TYPE AND VALUE.
12V Power Distribution
Please see unit for specified fuse labeling. Abbreviations:
7x
5A 250V
5A, 250VAC Fast Acting 3AG Fuse
Littlefuse 0312005.MXP (or equivalent)
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
8 | P a g e
Setup
Unpack Materials
1. Place the shipping crates on a flat, stable surface.
2. Cut the banding straps and remove the cardboard lids.
3. Lift off the large cardboard containers surrounding the cabinet assembly and remove any shipping
cleats.
4. Remove the coin door key from the coin return slot.
5. Open the top coin door.
6. Locate the keys for the back doors, the cash box door, and the ticket doors.
7. Open the cash box door and remove the cash box.
8. Check for shipping damage to the following:
Marquee and monitor
Cabinet decals
9. Check the AC line cord for visible signs of damage.
Pay particular attention to the plug and line cord insulation.
Marquee Assembly can tip forward and cause damage. Take care when removing assembly from box and
when installing atop cabinet to ensure that the assembly doesn’t fall forward. Tighten all screws securely.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
9 | P a g e
Cabinet Assembly
Note: 2 people are required, and ladders are recommended. Marquee assembly is top heavy and can
tip over if not fully secured!
1. Place cabinet in desired floor location. Remove upper back door and carefully place such that it will
not fall over or be damaged. Set up ladders next to the cabinet for marquee installation.
2. Locate the marquee assembly as well as the following hardware:
a. (6) black tamper proof Torx machine screws, ¼ - 20 thread, 1-1/2” long
b. (6) ¼” black split lock washers
c. (6) ¼” black flat washers
3. Using a T-27 bit, securely mount the marquee assembly atop the cabinet as shown in the assembly
setup diagram, avoiding any pinching/crushing of the wire harness which should pass through the access
hole. Connect marquee harness to cabinet harness, accessible through upper door.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
10 | P a g e
Card Reader Installation and Setup
Due to the rising popularity of aftermarket debit card systems (i.e. Embed, Intercard, Semnox, etc.) for
cashless/coinless operation of amusement machines in addition to E-Ticket payouts on redemption
games, this slither.io cabinet is equipped with UCL compatible harnessing to ensure that the installation
process is easier and less prone to miswiring.
PAPER TICKETS NOTE: If your location utilizes paper tickets, contact your distributor to purchase “Ticket
Door Completion Kit” as the game cabinet is not equipped with ticket dispensers or ticket bins in default
configuration. Follow instructions on page 12 to install kit contents.
UCL, or Universal Card Link, is a debit card standard established by the American Amusement Machine
Association. Visit https://coin-op.org/standardization/ for the latest UCL standard and manual
information.
The UCL connections on the game use pins 1, 2, 6, 8, and 9. The other pins are unused. Each UCL
connector can supply up to 1A at 12VDC.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
11 | P a g e
You can choose to use 1 or 3 card readers in the pricing adjustments section of the test menu. It is
recommended to use 3 card readers for best results and player access.
There are (3) supplied UCL connections, each located under the control panel near the player positions.

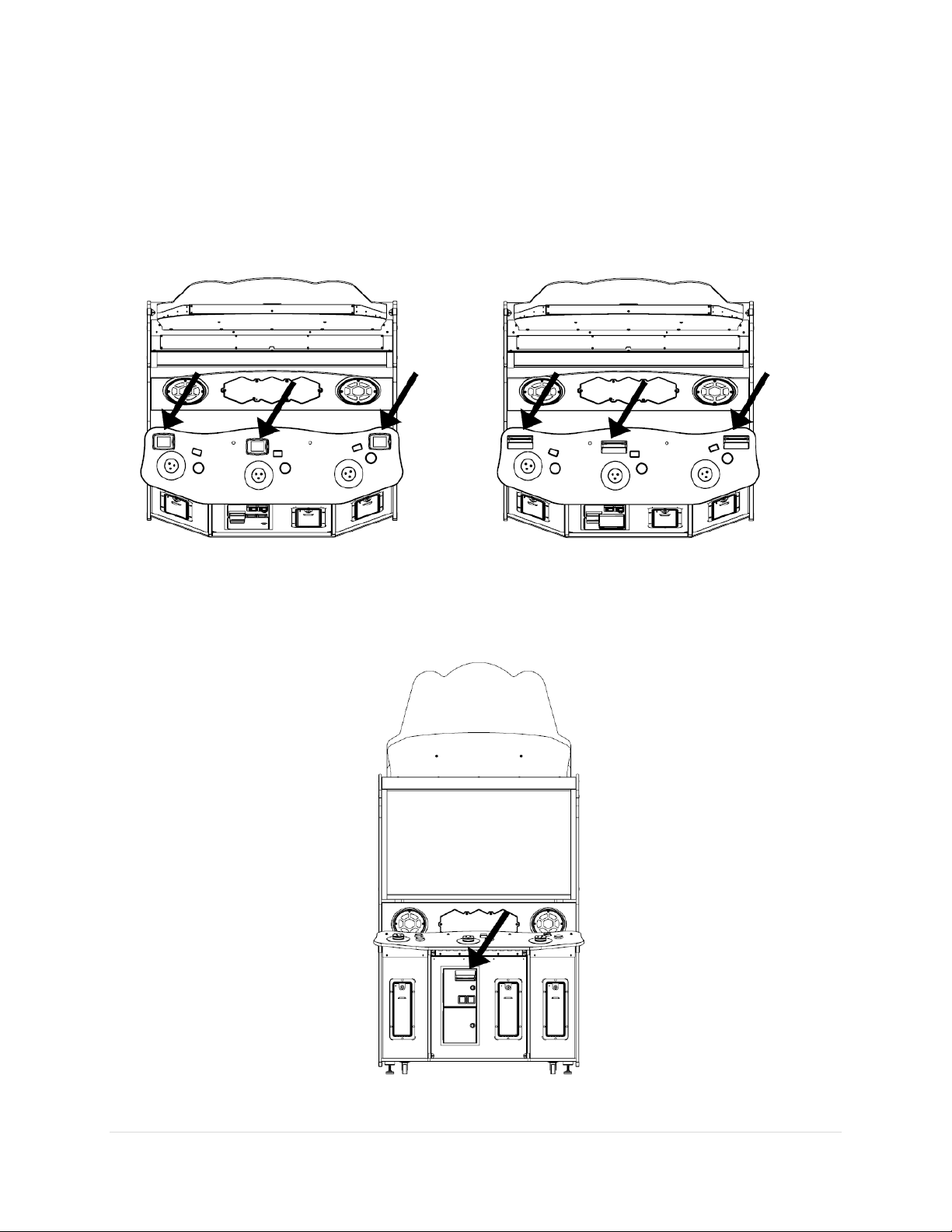

There is enough slack to accommodate mounting (3) card readers on the control panel, as shown below,
or on the front panels, as each operator desires.
If only (1) card reader will be used, it is recommended that the card reader be mounted to the coin door
as shown below, using Player 2 UCL connector due to its proximity to coin door, although any UCL
connector can be used.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
12 | P a g e
Ticket Door Completion Kit Installation for Paper Tickets Usage
NOTE: If your location will use E-Tickets, skip this section.
The ticket door completion kit for slither.io contains all additional parts required to support dispensing
paper tickets from all 3 player positions on cabinet. After completing installation (including all harness
connections), continue with the remainder of setup process, specifically choosing optimal settings for
your location.
Locate keys and open all 3 ticket doors, being careful not to let doors slam to the floor.
Locate and secure the ticket bins (low ticket indicator switch attached) on lower studs on inner surface
of ticket doors with (4) M4 keps nuts using 7mm nut driver (or wrench). Green ground wire ring
terminals from main cabinet harness will need to be removed from each door to mount bin, however
they must be re-installed under nut when tightening nuts on bin.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
13 | P a g e
Locate ticket dispensers (boxed in kit) and attach to upper studs on inner surface of ticket doors with (4)
M4 keps nuts using 7mm nut driver (or wrench), being sure to not crush dispenser wires or wires from
bundles attached to ticket door.
Route wire bundle attached to ticket door through the space between ticket bin mounts, as most of the
wires will be tucked into this wireway during operation. From this bundle, locate (2) FASTON terminals
and (1) 2 position male connector in this bundle. Locate ticket door related cabinet harness (can be
identified by tracing previously mentioned ground wire ring terminals from mounting ticket bin). Locate
the following connectors on cabinet harness: (1) 2 position female connector and (1) 4 position female
connector.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
14 | P a g e
Feed 4 position female connector from main cabinet harness through wireway and connect to mating 4
position male connector wired to ticket dispenser. Connect mating 2 position connectors from ticket
door bundle and main harness. Install FASTON terminals to switch terminals as shown below; take note
of WHITE and BLACK wire designations.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
15 | P a g e
After all connections are made, place adhesive-backed cable tie mount on inner surface of door just
below dispenser as shown in photos below. Using wire ties, secure wires to mount such that they will
not be damaged or prevent door closing or obstruct operation of dispenser. Excess slack of wires can be
conveniently tucked behind ticket bin. Check that doors close properly and continue with setup.
FOR FULL COLOR PICTURES PLEASE SEE THE DIGITAL VERSION OF THE MANUAL AVAILABLE AT
RAWTHRILLS.COM
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
16 | P a g e
Check Electrical Settings
1. Verify the voltage in the nearest AC outlet.
2. Verify the AC outlet ground connection is present and working.
Startup Game
1. Plug the line cord into an AC outlet.
2. Turn the main cabinet power switch on.
3. Verify the game and all components are operating normally. See Basic Functional Test on Initial
Power Up in the Diagnostics and Adjustments section for the recommended procedure.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
17 | P a g e
Diagnostic and Adjustments

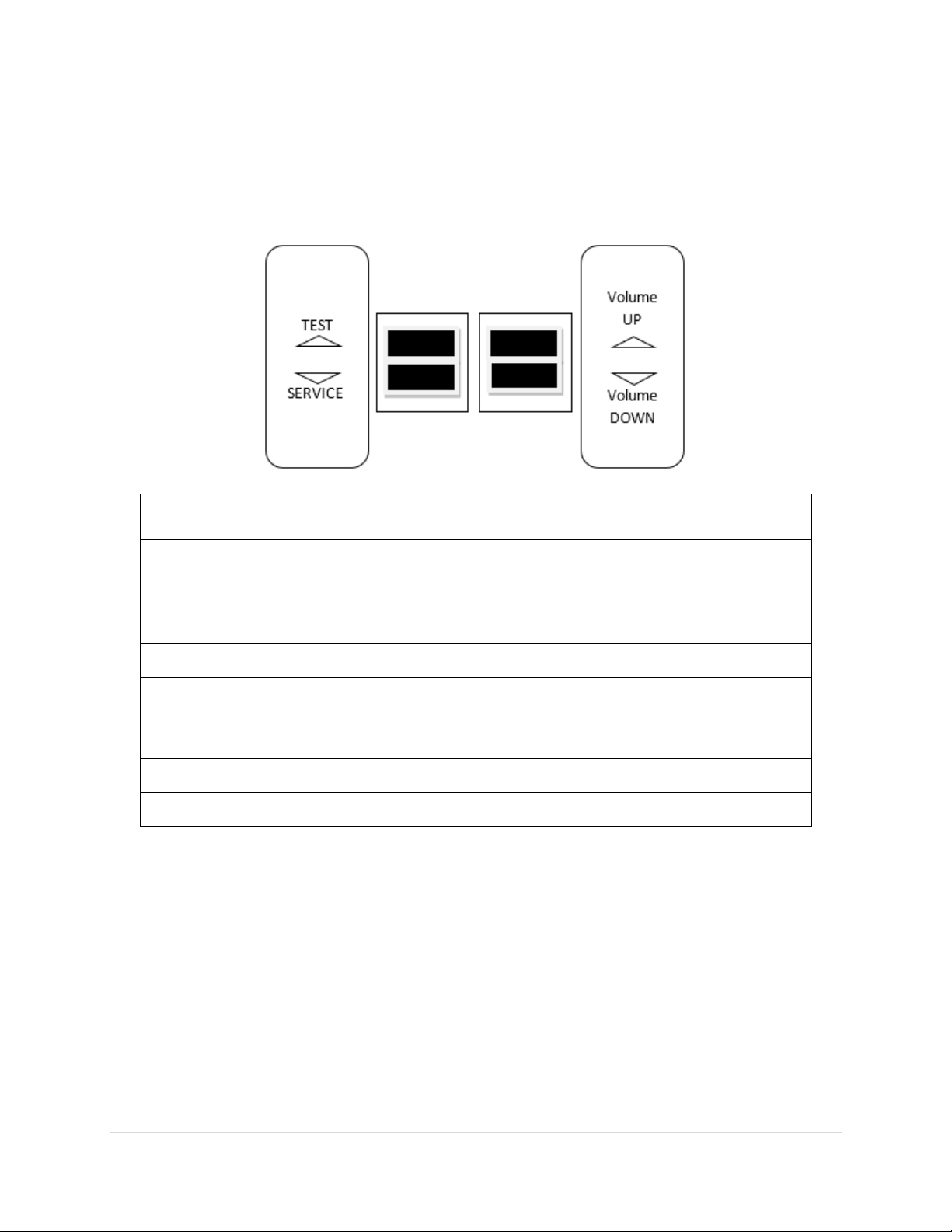

The Service Button Panel has four buttons, three of which can navigate the menu system.
The control panel buttons and joysticks/guns can also advance through test menu screens.
Navigating the Test Menu
Button
Action
TEST (Not in Test Menu)
Enters Test Menu
TEST (In Test Menu)
Selects Highlighted Option
SERVICE (On Main Menu)
Exits Test Menu
SERVICE/Start Buttons (Not on Main
Menu)
Cancels Selection
VOLUME UP/Spinners
Move Up
VOLUME DOWN/Spinners
Move Down
TEST/Boost Buttons
Selects Highlighted Option
An on-screen message acknowledges changes or when you exit a selection without making a change.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
18 | P a g e
Basic Functional Test on Initial Power Up
1. Enter the Input Test and verify all switch inputs are working.
2. Enter the Video Test and verify the monitor is working properly.
3. Enter the Audio Test and verify the audio works and is not distorted.
4. Enter the Cabinet Lights Test and verify that all the lights are working properly.
5. Enter the Meter Test and verify the coin meter is working properly.
6. Enter the Ticket Test and verify the ticket dispensers are working properly.
7. Enter the Watchdog Test and verify the game reboots.
8. Upon a successful reboot, you are ready to adjust pricing, volume and other functions.
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
19 | P a g e
Test Menus
Main Menu
Choose from all available operator settings and menus here. You can use the test menu bracket and volume
buttons to navigate. The spinners/boost/start buttons also are available to use for easier navigation through
these menus.
MAIN MENU
DIAGNOSTICS
PRICING AND PAYOUT ADJUSTMENTS
GAME SETTINGS
SYSTEM SETTINGS
AUDITS
RESETS
VOLUME
CALIBRATION
UTILITIES
SYSTEM INFORMATION
EXIT
For More Sales And Product Information, Please Visit : BMIGaming.com

slither.io TM
20 | P a g e
Diagnostics
This menu allows all game functions to be verified or diagnosed. You can improve collections by periodically
verifying proper game function and operation. This includes periodic Hard Drive checks to verify that
software has not been corrupted or reporting an error.
DIAGNOSTICS
INPUT TEST
VIDEO TEST
AUDIO TEST
CABINET LIGHTS TEST
METER TEST
TICKET TEST
WATCHDOG TEST
EXIT
Input Test: Test all the switches on the game
Video Test: Checks color pattern of monitor
Audio Test: Tests audio from speakers
Cabinet Lights Test: Test all cabinet lighting
Meter Test: Tests functionality of “hard meter”
Ticket Test: Tests functionality of ticket mech
Watchdog Test: Tests functionality of watchdog (if working properly, game will reboot)
For More Sales And Product Information, Please Visit : BMIGaming.com
