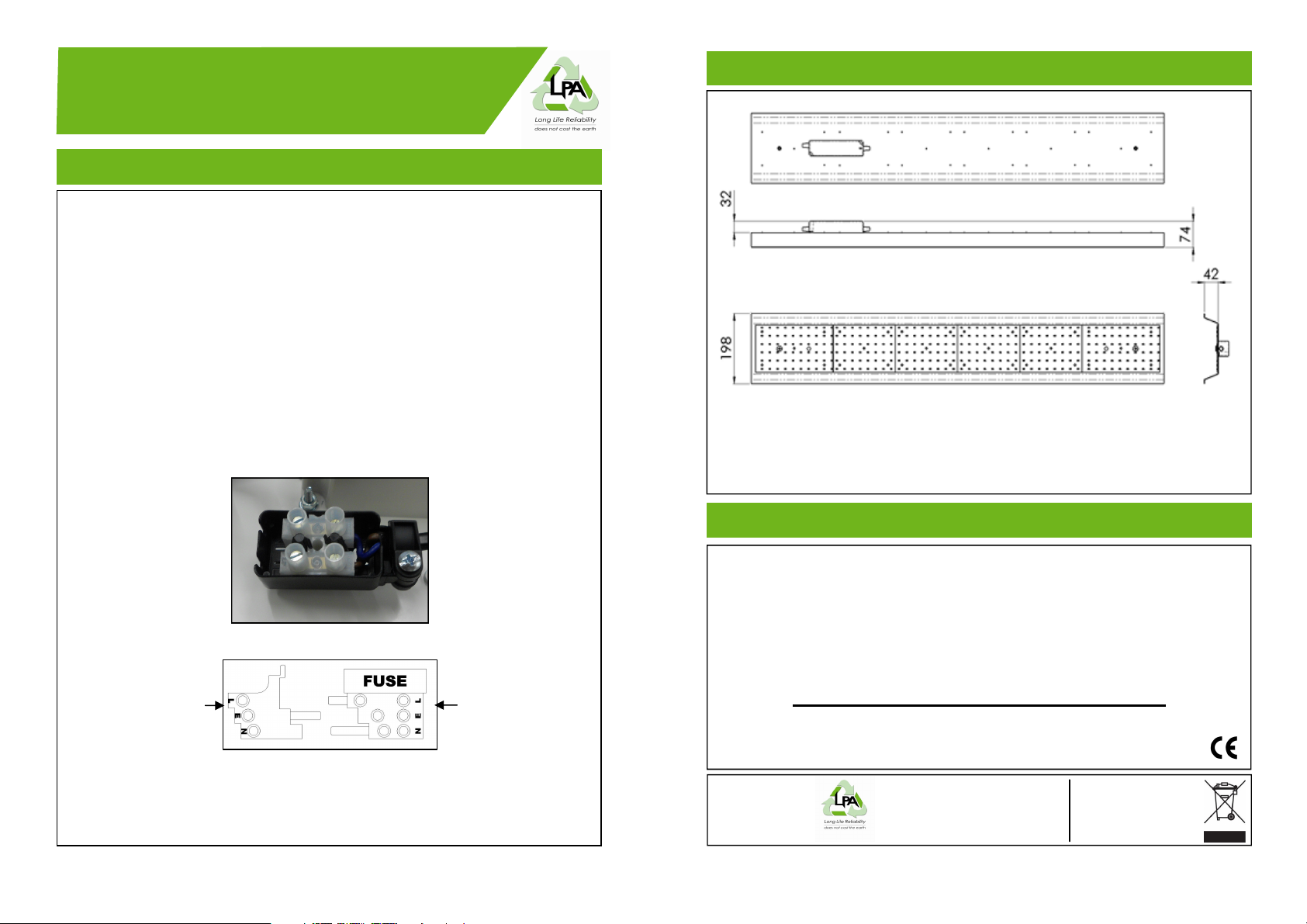

LPA LumiTray User manual

Ensure mains is disconnected from the luminaire before installation or
servicing.
• Remove fasteners from the diffuser frame and remove the diffuser from
the fitting
• Unscrew the knurled nuts located on the gear tray, lower the gear tray
so the cables behind can be accessed
• Unplug the gear tray from the housing by unplugging the connector
located on the rear of the gear tray.
• Remove existing connector cables from the cage clamp located
internally on the back of the housing
• Wire supply cable ’A’ into the cage clamp on the housing
• If Dali Dimming is required, wire the 2 core dimming input cable from
the Dali controller into the connection block labelled ‘Dimming’
• This connection terminal is non polarised
• Offer LumiTray up to the housing, plug connector ’A’ into fused terminal
block ’B’
• Mount the LumiTray onto fixings and tighten knurled nuts by hand until
the tray is secure. Take care not to strain or bend the boards by
tightening too tight.
• Reattach diffuser and tighten fastenings until secure
Standard Installation
LumiTray™ - LED Insert
Installation and Operating instructions
A B
Form Ref. Q01070C Issue 04 - 99315306
Safety Considerations
LPA Excil Electronics
Ripley Drive
Normanton
Wakefield
WF6 1QT
Website
Email
Switchboard
Fax
www.lpa-group.com
[email protected]
[phone]
[phone]
• Installation should be carried out by a suitably qualified person in ac-
cordance with relevant regulation and legislation.
• Maximum ambient operating temperature T
a
is +50ºC
• There are no user serviceable parts on this product.
WARNING - THIS LUMINAIRE MUST BE EARTHED.
Drawings
Please take care when handling the LumiTray, so as not to
damage the LEDs. Do NOT apply force to the LEDs or boards.
Form Ref. Q01070C Issue 04 - 99315306

Ripley Drive, Normanton,
West Yorkshire. WF6 1QT
Tel: [phone] Fax:
01924 224111
Title: 993 LumiTray
Doc. Ref: 99315306
Approved for Manufacture
By: Date:
This document and any information derived from it are the confidential and copyright
property of Excil Electronics Ltd. and must not be used for purposes other than those for
which it was supplied without our written
approval.
LPA Excil Electronics Ltd. ©
Form Ref. Q01070 Issue 04
