LS Industrial Systems XGB Series User manual

XGB Fast Ethernet I/F Module
XGT Series
Right choice for ultimate yield
LSIS strives to maximize customers' profit in gratitude of choosing us for your
partner.
User’s Manual
LS values every single customer.
Quality and service come first at LSIS.
Always at your service, standing for our customers.
z Read this manual carefully before
installing, wiring, operating, servicing
or inspecting this equipment.
zKeep this manual within easy reach
for quick reference.
Programmable Logic Controller
■HEAD OFFICE
LS tower, Hogye-dong, Dongan-gu, Anyang-si, Gyeonggi-do
1026-6, Korea http://eng.lsis.biz
Tel. [phone], 4888 Fax.[phone]
■LS Industrial Systems Tokyo Office >> Japan
Address: 16F, Higashi-Kan, Akasaka Twin Towers 17- 22,
2-chome, Akasaka, Minato-ku, Tokyo 107-8470, Japan
Tel: [phone] Fax: [phone]
e-mail:[e-mail]
■LS Industrial Systems Dubai Rep. Office >> UAE
Address: P.O.BOX-114216, API World Tower, 303B, Sheikh
Zayed road, Dubai, UAE. e-mail: [e-mail]
Tel: [phone] Fax: [phone]
■LS-VINA Industrial Systems Co., Ltd. >> Vietnam
Address: LSIS VINA Congty che tao may dien Viet-Hung
DongAnhHanoi,Vietnam e-mail:[email protected].vn
Tel: [phone] Fax: [phone]
■LS Industrial Systems Hanoi Office >> Vietnam
Address: Room C21, 5th Floor, Horison Hotel, 40 Cat Linh,
Hanoi, Vietnam
Tel: [phone] Fax: [phone]
■Dalian LS Industrial Systems co., Ltd, >> China
Address: No. 15 Liaohexi 3 Road, economic and technical
development zone, Dalian, China e-mail: [e-mail]
Tel: [phone] Fax: [phone]
■LS Industrial Systems (Shanghai) Co., Ltd. >> China
Address: Room E-G, 12th Floor Huamin Empire Plaza,
No. 726, West Yan’an Road, Shanghai, China
Tel: [phone]
■LS Industrial Systems(Wuxi) Co., Ltd. >> China
Address: 102-A National High & New Tech Industrial
Development Area, Wuxi, Jiangsu, China e-mail: [email protected].cn
Tel: [phone] Fax: [phone]
■LS Industrial Systems Beijing Office >> China
Address: B-tower 17th Floor, Beijing Global Trade Center building,
No. 36, BeiSanHuanDong-Lu, DongCheng-District, Beijing, China
Tel: [phone]
■LS Industrial Systems Guangzhou Office >> China
Address: Room 1403, 14F, New Poly Tower, 2 Zhongshan Liu
Rad, Guangzhou, China e-mail: [e-mail]
Tel: [phone] Fax: [phone]
■LS Industrial Systems Chengdu Office >> China
Address: Room 2907, Zhong Yin B/D, No. 35, Renminzhong(2)-
Road, Chengdu, China e-mail: [e-mail]
Tel: [phone] Fax: [phone]
■LS Industrial Systems Qingdao Office >> China
Address: 12th Floor, Guodong building, No52 Jindun Road,
Chengdu,China e-mail:[email protected]
Tel: [phone] Fax: [phone]
10310000873
XGB FEnet
/
2008. 1
※ LS Industrial Systems constantly endeavors to improve its product so that
Information in this manual is subject to change without notice.
ⓒ LS Industrial systems Co., Ltd 2006 All Rights Reserved.
XGT Series
XGB Fast Ethernet I/F Module
XBL-EMTA

Revision History
1
Revision History
Version Date History Remark
V 1.0 July.2007 First edition
※The number of user manual is indicated right part of the back cover.
ⓒLS Industrial Systems Co., Ltd 2007 All Rights Reserved.

Contents
2
[ Contents ]
Chapter 1 General .....................................................................................................................................................5
1.1 Before Reading This Manual ................................................................................................................................................................... 5
1.2 Before Using This Device......................................................................................................................................................................... 5
1.2.1 Relevant user manuals.................................................................................................................................................................. 5
1.2.2 Version Information ........................................................................................................................................................................ 5
1.3 Characteristics........................................................................................................................................................................................... 5
1.3.1 XGB Fast Ethernet I/F module characteristics ............................................................................................................................ 5
1.3.2 Designation..................................................................................................................................................................................... 6
1.3.3 Max. modules can be installed...................................................................................................................................................... 6
1.3.4 Relevant software........................................................................................................................................................................... 6
Chapter 2 Specifications............................................................................................................................................7
2.1 General Specifications .............................................................................................................................................................................. 7
2.2 Transmission Specifications ..................................................................................................................................................................... 8
2.3 Cable Specifications.................................................................................................................................................................................. 8
2.3.1 Cable classification......................................................................................................................................................................... 8
2.3.2 Frequency classification ................................................................................................................................................................ 9
2.3.3 Category 5 twisted paired cable (UTP) examples (CTP-LAN5) .............................................................................................. 10
2.4 Performance Specifications.....................................................................................................................................................................11
2.4.1 General performance specifications............................................................................................................................................11
2.4.2 Performance Specifications by Communication Service...........................................................................................................11
2.4.3 Diagnosis function specifications ................................................................................................................................................ 12
2.5 Dimensions and Names of Parts........................................................................................................................................................... 13
2.5.1 Dimensions and names of parts ................................................................................................................................................. 13
2.5.2 Designation of Parts..................................................................................................................................................................... 13
Chapter 3 Installation ...............................................................................................................................................14
3.1 Cautions for Installation........................................................................................................................................................................... 14
3.1.1 Environmental conditions ............................................................................................................................................................ 14
3.1.2 Installation cautions...................................................................................................................................................................... 14
3.1.3 Handling cautions......................................................................................................................................................................... 14
3.2 Installation and wiring.............................................................................................................................................................................. 15
3.2.1 Network connection ..................................................................................................................................................................... 15
3.2.2 UTP cable wiring .......................................................................................................................................................................... 15
3.2.3 Cautions for system and network connection............................................................................................................................ 16
3.2.4 Check points before start-up ....................................................................................................................................................... 17
Chapter 4 System configuration..............................................................................................................................18
4.1 General .................................................................................................................................................................................................... 18
4.1.1 General.......................................................................................................................................................................................... 18
4.2 Examples of system configuration......................................................................................................................................................... 18
4.2.1 Combination network configuration ............................................................................................................................................ 18
4.2.2 Network configuration using XGB............................................................................................................................................... 18
4.2.3 Network configuration using XGB and MMI .............................................................................................................................. 19
4.2.4 Network configuration between LSIS modules ......................................................................................................................... 19

Contents
3
4.2.5 Network configuration using XGB and other LSIS PLC........................................................................................................... 19
Chapter 5 Protocols of various services .................................................................................................................20
5.1 General .................................................................................................................................................................................................... 20
5.1.1 XGB Fast Enet I/F module protocol introduction....................................................................................................................... 20
5.1.2 Protocol by service....................................................................................................................................................................... 20
5.2 XGT dedicated protocol.......................................................................................................................................................................... 21
5.2.1 General.......................................................................................................................................................................................... 21
5.2.2 Frame structure ............................................................................................................................................................................ 21
5.2.3 XGT dedicated protocol data type .............................................................................................................................................. 22
5.2.4 Instruction of XGT dedicated protocol ........................................................................................................................................ 22
5.2.5 Header and data structure of XGT dedicated protocol ............................................................................................................. 23
5.2.6 Frame examples .......................................................................................................................................................................... 24
5.3 Modbus TCP/IP protocol ........................................................................................................................................................................ 26
5.3.1 General.......................................................................................................................................................................................... 26
5.3.2 Structure of Modbus TCP/IP frame ............................................................................................................................................ 26
5.3.3 MBAP Header structure .............................................................................................................................................................. 27
5.3.4 Available function code ................................................................................................................................................................ 27
5.3.5 Frame structure by function code ............................................................................................................................................... 27
Chapter 6 Dedicated Service ..................................................................................................................................34
6.1 Dedicated Service Function Introduction .............................................................................................................................................. 34
6.1.1 Server model ................................................................................................................................................................................ 34
6.1.2 System configuration ................................................................................................................................................................... 34
6.1.3 Dedicated service classification .................................................................................................................................................. 34
6.2 Setting Dedicated Service...................................................................................................................................................................... 35
6.2.1 Basic parameter ........................................................................................................................................................................... 35
6.3 XGT Server.............................................................................................................................................................................................. 37
6.3.1 TCP XGT server........................................................................................................................................................................... 37
6.4 Modbus TCP/IP Server .......................................................................................................................................................................... 38
Chapter 7 P2P Service............................................................................................................................................39
7.1 P2P Service Function Introduction ........................................................................................................................................................ 39
7.1.1 Client model.................................................................................................................................................................................. 39
7.2 Setting P2P Service ................................................................................................................................................................................ 40
7.2.1 Setting P2P parameter ................................................................................................................................................................ 40
7.2.2 Enable link..................................................................................................................................................................................... 45
7.3 XGT Client ............................................................................................................................................................................................... 47
7.3.1 XGT client introduction................................................................................................................................................................. 47
7.4 Modbus TCP Client................................................................................................................................................................................. 48
7.4.1 Modbus TCP Client...................................................................................................................................................................... 48
7.5 User define frame.................................................................................................................................................................................... 49
7.5.1 TCP user define frame client....................................................................................................................................................... 49
7.5.2 TCP/UDP user define frame server............................................................................................................................................ 57
7.5.3 TCP user define frame client....................................................................................................................................................... 58
7.6 P2P Diagnosis Function ......................................................................................................................................................................... 59
7.6.1 Service condition diagnosis using XG-PD ................................................................................................................................. 59
Chapter 8 High Speed Link Service........................................................................................................................61
8.1 General .................................................................................................................................................................................................... 61

Contents
4
8.1.1 General.......................................................................................................................................................................................... 61
8.2 Setting HS link service ............................................................................................................................................................................ 61
8.2.1 Basic parameter ........................................................................................................................................................................... 61
8.2.2 HS link parameter......................................................................................................................................................................... 62
8.3 HS Link Flag ............................................................................................................................................................................................ 67
8.3.1 HS link flag classification.............................................................................................................................................................. 67
8.3.2 HS link flag introduction ............................................................................................................................................................... 67
8.3.3 HS link flag memory address ...................................................................................................................................................... 68
Chapter 9 Remote Communication Control...........................................................................................................70
9.1 General .................................................................................................................................................................................................... 70
9.2.1 Remote 1 (RS-232C Cable)........................................................................................................................................................ 72
9.2.2 Remote 2 (RS-232C Cable)........................................................................................................................................................ 74
9.2.3 Direct remote 1 on Enet connecting PC..................................................................................................................................... 76
9.2.4 Direct remote 2 on Enet connecting PC..................................................................................................................................... 78
Chapter 10 Troubleshooting....................................................................................................................................80
Warranty ......................................................................................................................................................................................................... 82

Chapter 1 General
5
Chapter 1 General
1.1 Before Reading This Manual
This manual includes specifications, installations and various services for Fast Ethernet Interface Module of XGB Ethernet PLC
(Hereafter, referred to as XGB Fast Enet I/F module,100Mbps). Ethernet is one of technical standards of IEEE. It provides HS data
communication on the base of CSMA/CD network.
XGB Fast Enet I/F module is an interface module for data communication between PC devices by using the electrical media
(10/100BASE-TX, 100BASE-FX).
1.2 Before Using This Device
1.2.1 Relevant user manuals
Refer to below user manuals for achieving program.
(1) XGT PLC Instruction and Programming manual
(2) XG5000 manual
(3) XGB series manual
1.2.2 Version Information
XGB series Fast Enet I/F module (XBL-EMTA) is suitable to following versions.
(1) XG5000 programming tool: above Ver 2.0
(2) XG-PD: above Ver 2.0
(3) XGB CPU: above Ver 1.4
1.3 Characteristics
XGB Fast Enet I/F module provides its services for ARP, ICMP, TCP/IP and UDP/IP protocol and includes following characteristics.
1.3.1 XGB Fast Ethernet I/F module characteristics
(1) Ethernet II, IEEE 802.3 standard functions
(2) HS link function for HS data communication between LSIS modules
(a) Communication dedicated parameter setting program (XG-PD)
(b) Transmission Max. 32 blocks x 200 words, Reception, Max. 64 block x 200 words, Transmission-Reception Max. 64
blocks x 200 words)
(3) HS link and communication is available with Max. 4 modules (Dedicated communication + P2P communication)
(4) Loader service by Enet (XG5000): (Dedicated TCP/IP PORT: 2002 assignment)
(5) Connection to other system is available by using P2P communication and XG-PD
(Variable READ/WRITE services (Dynamic Connection function))

Chapter 1 General
6
(6) Auto/10/100BASE-TX media service
(7) Various communication functions
(a) System connection by using public network
(b) LSIS protocol (XGT) and other company protocol (Modbus TCP/IP) (dedicated service)
(c) Simple client function for the communication between LSIS communication module and other company communication
module (XGT, Modbus TCP, user define P2P client function)
(d) Host enable table for Upper PC (MMI) and communication protection
(e) Dynamic Connection/Disconnection function by using P2P service
(8) Various diagnosis functions, module and network condition information
(a) CPU module condition
(b) Communication module condition
(c) Communication service (HS rink, main service, P2P) condition
(d) PING function to check the existence of other module
(e) Packet types and minute packet reception rate to LSIS communication module (it predicts network load)
(f) Diagnosis function for communication module by network
1.3.2 Designation
XGB Fast Enet I/F module designates as bellows.
Designation Description Remark
XBL-EMTA 10/100BASE-TX Over category 5, UTP cable
[Table 1-1] XBL-EMTA Designation
1.3.3 Max. modules can be installed
XGB series can be installed max. 2 communication modules.
Series Max. modules can be installed
XGB 2
[Table 1-2] Max. modules can be installed
1.3.4 Relevant software
Essential programming tools and other configuration software for using XGB Fast Enet I/F module is as followings.
Refer to followings and apply this suggestion for the right program and communication.
Designation Programming Tool Communication Setting Tool
XBL-EMTA XG5000 (more than Ver. 2.0 ) XG-PD (more than Ver. 2.0)
[Table 1-3] Relevant software
Remark
1) Download and usage of upper program is available at http://www.lsis.biz or this program installation CD’s can
be provided at the nearest shop.
2) Programming for XG5000 and XG-PD is available by using CPU module loader port and refer to cables from
the wiring diagram of relevant CPU modules.

Chapter 2 Specifications
7
Chapter 2 Specifications
2.1 General Specifications
[Table 2-1] shows general specification of XGB series.
No. Item Specifications References
1 Operating Temp. 0+55℃∼ ℃
2 Storage Temp. -25 +70℃∼ ℃
3 Operating Humidity 5 95%RH,∼non-condensing.
4 Storage Humidity 5 95%RH,∼non-condensing.
Occasional vibration -
Frequency Acceleration Amplitude Sweep count
10 ≤f <57Hz −0.075mm
57 ≤f ≤150Hz 9.8m/s2{1G} −
Continuous vibration
Frequency Acceleration Amplitude
10 ≤f <57Hz −0.035mm
5 Vibrations
57 ≤f ≤150Hz 4.9m/s2{0.5G} −
10 times for
each X, Y, Z
axis
IEC61131-2
6 Shocks
• Maximum shock acceleration : 147 ㎨(15g)
• Duration time: 11 ㎳
• Pulse wave : half sine pulse( 3 shocks per axis, on X,Y,Z axis)
IEC61131-2
Square wave Impulse
noise ±900V LSIS internal
standard
Electronic discharge Voltage: ±4㎸(Discharge by contact) IEC61131-2
IEC610004-2
Radiated
electromagnetic field
noise
27~500MHz, 10V/m IEC61131-2
IEC61000-4-3
Item Power supply
Digital I/O
Analog I/O
Communication Interface
7 Noise Immunity
Fast transient & Burst
noise
Voltage 2kV 1kV
IEC61131-2
IEC61000-4-4
8 Atmosphere Free of corrosive gases and excessive dust
9 Cooling method Natural air-cooling
10 Altitude Up to 2,000m
11 Pollution degree Less than 2
[Table 2-1] General specification
Remark
1) IEC (International Electro-technical Commission): An international civilian institute who establishes international standards in the
area of electric and electronics.
2) Pollution degree: An indicator, which indicates pollution degree, which determine insulation performance of equipment.
* Pollution degree 2: Normally, only non-conductive pollution occurs. Occasionally, however, a temporary conductively caused by
condensation shall be expected.

Chapter 2 Specifications
8
2.2 Transmission Specifications
[Table 2-2] shows transmission specifications of XGB Fast Enet I/F module media.
Item Specifications Remark
Transmission speed Auto/10M/100Mbps -
Transmission type Base band -
Flow control HALF/FULL -
Modulation Type NRZI 4B/5B coding
Transformer CT 1:1 Node-Hub
Max. distance between nodes 100m -
Max. segment length - -
Max. number of nodes Hub connection -
Nod interval - -
Max. protocol size Data 512bite -
Communication zone access
method CSMA/CD -
Transmissio
n
specification
s
Check method of frame error CRC32 -
[Table 2-2] Transmission specifications
2.3 Cable Specifications
2.3.1 Cable classification
XGB Fast Enet I/F module takes UTP cable which is over Cat 5. [Table 2-3] shows cable specifications.
Classification Details Purpose
UTP(or U.UTP) So called unshielded cable used for
HS signal
ㆍMax. 200MHz
ㆍPhonetic + Data + low grade of video signal
FTP(or S.UTP) Cable with cable core only shielded
solely
ㆍMax.100MHz
ㆍElectronic impediment (EMI) and electric stability
considered
ㆍPhonetic + Data + low grade of video signal(
STP(or S.STP) Double-shielded structure, pair
shielded and core shielded cable
ㆍMax. 500MHz
ㆍPhonetic + Data + Video signal
ㆍSubstitute for 75coaxial cable
[Table2-3]Cableclass
Remark
1) XGB Fast Enet I/F module does not support AUI (10BASE-5).
2) Twisted paired cable unit (above category 5) takes 100Mbps class hub and if network speed is 10 Mbps, it
can be used with 10Mbps class hub (below category 3). Make sure this to install system.

Chapter 2 Specifications
9
Remark
1) UTP : Unshielded Twisted Paired Copper Cable
FTP : (Overall) Foiled Twisted Paired Copper Cable
STP : (Overall) Shielded (and Shielded Individually Pair) Twisted Paired Copper Cable
2) Patch Cable (or Patch Cord)
Stranded conductor composed of stranded cable instead of solid conductor may be used to increase the
flexibility of UTP 4-paired cable. Representative specification and material are un-coated AWG 24
(7/0203A).
In other words, the diameter of a single cable is 0.203mm, and this cable is of 1+6 structure as
standardized with annealed copper cable.
2.3.2 Frequency classification
Classification Frequency (MHz) Transmission speed
(Mbps) Purpose
Category 1 Phonetic frequency 1 ㆍPhone network (2-Pair)
Category 2 4 4 ㆍMulti-Pair communication cable
Category 3 16 16 ㆍPhone network + computer network
Category 4 20 20
ㆍComputer network transmission
speed up
ㆍLow- loss communication cable
Category 5 &
Enhanced Category5 100 100
ㆍDigital phone network + computer
network
ㆍLow -loss, broadband cable
[Table 2-4] Frequency classification
Remark
1) Presently classified items are Category 3, 5, Enhanced Category 5 and Category 6 inside and outside of the
country, where Category 4 has been replaced by Category 5 and Category 7 is being under development all
over the world as STP structure.
-UTP- -STP-
-FTP-

Chapter 2 Specifications
10
2.3.3 Category 5 twisted paired cable (UTP) examples (CTP-LAN5)
Item Unit Value
Conductor resistance (Max.) /km 93.5
Insulation resistance (Min.) M·km 2,500
Withstand voltage V/min AC 500
Characteristic impedance (1~100MHz) 100 ± 15
10MHz 6.5
16MHz 8.2
Decrement Below
dB/100m 20MHz 9.3
10MHz 47
16MHz 44
Near-end crosstalk decrement Below
dB/100m 20MHz 42
[Table 2-5] UTP cable specification

Chapter 2 Specifications
11
2.4 Performance Specifications
2.4.1 General performance specifications
[Table 2-6] shows general performance specifications of XGB Fast Enet I/F module.
Item Specifications Remark
Max. modules can be installed 2 Per 1 CPU unit
Max. numbers of connection channels 6 channels
TCP/IP : 4 channels
Remote 1: 1 channel
Remote 2: 1 channel
Consumption DC 5V 300㎃-
Weight 71g -
[Table 2-6] General performance specifications
2.4.2 Performance Specifications by Communication Service
[Table 2-7] shows performance specifications by communication service of XGB Fast Enet I/F module.
Specifications
Item Driver Communication
method Port Number Remark
TCP/IP 2004
XGT server UDP/IP 2005
Dedicated
Mod bus TCP server TCP/IP 502
Max. 4 channels
Max. 512 bytes
HS link - UDP/IP 2006 Max. 64 blocks
200 words per block
TCP/IP 2006
XGT client UDP/IP 2005
Mod bus TCP client TCP/IP 502
TCP/IP User’s
assignment
Function
classification
P2P
User define frame
UDP/IP User’s
assignment
Max. 3 channels
Max. 32 blocks
Max. 512 bytes
[Table 2-7] Performance specifications by communication service

Chapter 2 Specifications
12
2.4.3 Diagnosis function specifications
[Table 2-8] shows diagnosis function specifications of XGB Fast Enet I/F module.
Item Specifications
Communication module information
HS link station no.
IP/Subnet mask IP/Gateway IP/DNS Server IP
Main service/HS link/P2P enable
Setting media
Hardware/ software version
Dedicated service
Transmission packet number / Reception packet number / Error
packet number / State
Setting drive
HS link Transmission/ Reception packet number
HS link flag(Run, Link, Mode, State, TRX, Error)
Service condition
P2P service Connection state / Service state
Service count / Error count
Total
transmission/Reception
packet number
Media Information
Packet Rate per sec.
▪Broad, Multi, Uni, UDP, ARP, EARP, Throw-out
Ping test IP Address / Setting times / Time out
Diagnosis
Function
Auto scan Non- service
[Table 2-8] Diagnosis function specification

Chapter 2 Specifications
13
2.5 Dimensions and Names of Parts
2.5.1 Dimensions and names of parts

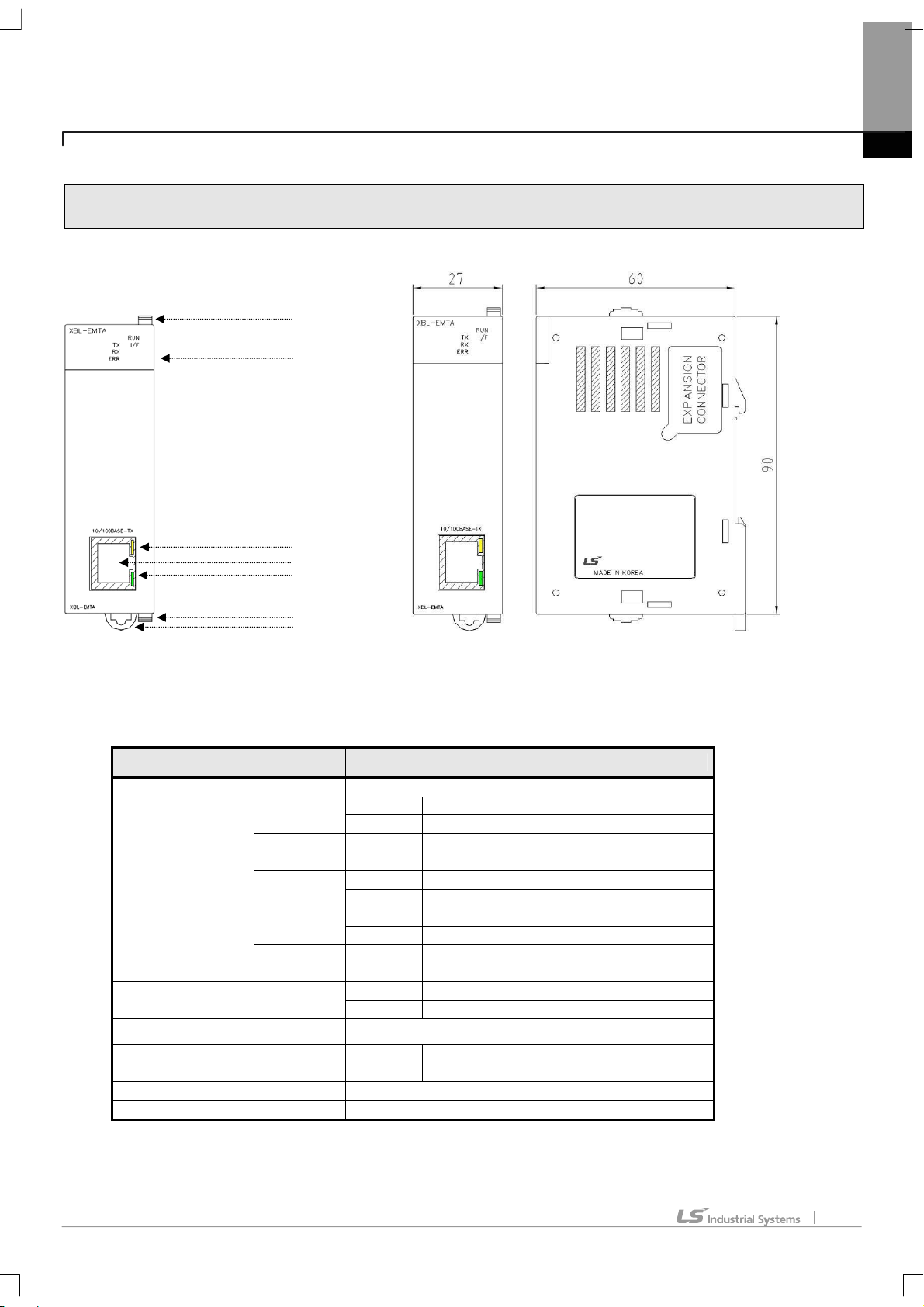

[Fig. 2-1] Dimensions and names of parts
2.5.2 Designation of Parts
Item Description
①Fixing lever Extension module fixing part (the upper)
On Normal operating
RUN Off Stop operating
flicker CPU and I/F
I/F Off Stop CPU and I/F
flicker Data transmission time
TX Off Stop data transmitting
flicker Data receiving time
RX Off No data reception
On H/W error
②LED
ERR flicker S/W error
flicker Packet reception time
③LINK LED (Yellow) Off No packet reception
④RJ45 connector RJ45 connector part
On 100Mbps operating time
⑤SPEED LED (Green) Off 10Mbps operating time
⑥Fixing lever Expansion module fixing part (the lower)
⑦Fixing lever DIN rail fixing part
[Table 2-9] Designation of Parts
① Fixing lever
② LED part
③ LINK LED
④ RJ45 connector
⑤ SPEED LED
⑥ Fixing lever
⑦ Fixing lever

Chapter 3 Installation
14
Chapter 3 Installation
3.1 Cautions for Installation
This device has high reliability regardless of its installation environment. But the followings should be noted for securing reliability and
stability.
3.1.1 Environmental conditions
(1) Install on a water-proof and dust control panel
(2) Place free of continuous impact or vibration
(3) Place out of direct sunrays
(4) Place without dewing by sudden temperature change
(5) Place where ambient temperature is between 0-55℃.
3.1.2 Installation cautions
(1) If producing screw holes or wiring, it should be noted that any impurities from wiring work are not to be inserted into PLC.
(2) Install on an accessible place.
(3) Do not install on high voltage device or same panel.
(4) Continuous it 50mm and wider out of duct or surrounding modules.
(5) Ground on a place where little noise is detected
3.1.3 Handling cautions
(1) Do not drop or do not apply any excessive impact on it.
(2) Do not separate PCB from case(shield), which may cause breakage.
(3) Make sure that while wiring, any impurities should not be inserted into the upper part of this module.
(4) Do not attach or detach the module once power is on.
(5) Cable should be selected considering the approved specification, install this device within the permitted
max. distance.
(6) AC and external I/O signal of positioning module are not subject to any surge or induced noise generated from AC.
(7) If wiring is too close to any hot devices or materials or contacts with oils for a long time, it may cause short circuit,
malfunction or destruction.
(8) If wiring by using pipes, it needs grounding pipes.

Chapter 3 Installation
15
3.2 Installation and Wiring
3.2.1 Network connection
[Fig. 3-1] Network connection
3.2.2 UTP cable wiring
Max. distance between nodes of 10/100BASE-TX is 100m(module - Hub).
The hub is in general use straight cable with TD and RD stranded inside. If only 2 of these communication modules are connected
1 to 1, cross-cable form may be used.
Pin no. Signal Straight cable (module-Hub) 1 to 1 cross-cable
1
2
3
6
4, 5, 7, 8
TD+
TD-
RD+
RD-
N/A
1 — 1
2 — 2
3 — 3
6 — 6
1 — 3
2 — 6
3 — 1
6 — 2
[Table 3-1] Cable wiring
Remark
1) Hub power should be separated from PLC power.
2) Contact professional manufacturers for processing cable terminal, manufacture and installation.
8 pin R
J
-4
5
plug
Twisted paired
cable
Hu
b
네트워크
(Network)
Network

Chapter 3 Installation
16
(1) Cautions for UTP installation
(a) UTP cable should be satisfied the characteristics of category 5.
(b) Do not access Max. tension strength of the cable during a period of wiring processing.
(c) Do remove only the length of wiring, do not damage the insulator for removing covering (Sheath).
(d) Keep suitable distance between EMI source and UTP cable during the period of installing UTP cable.
Min. separation distance
Condition 2.0KVA or less 2.5 KVA 5.0KVA or more
Power line unshielded, or electric facility open or near to
nonmetallic pipe 127mm 305mm 610mm
Power line unshielded, or electric facility near to metallic
pipe buried 64mm 152mm 305mm
Power line inside metallic pipe buried (or equivalently
shielded) near to metallic pipe buried - 76mm 152mm
Transformer / Electric motor light 1,016mm /305mm
[Table 3-2] Cautions for UTP installation
3.2.3 Cautions for system and network connection
(1) IP address should be different including this module. If not, normal communication is not available.
(2) Set each exchange number differently for using HS link service.
(3) Use specified communication cable. Other cables may occur communication trouble.
(4) Check disconnection or short circuit of communication cable before installation.
(5) Do tighten communication cable connector.
(6) If cable connection is not stable, it may occur some severe trouble of communication.
(7) Do wiring processing of communication cable separately from power supply line or inductive noise.

Chapter 3 Installation
17
3.2.4 Check points before start-up
The following describes check points before start-up communication module.
(1) Communication module
Check points
Installation and operation of XG5000, Performance and operation of XG-PD
Connection condition of communication cable (only the condition of connecting cable)
Module installation condition
[Table 3-3] Check points before start-up
(2) Start-up processing
It shows start -up from finishing installation of module on PLC.
Start
Power- ON :
1) Check power source
2) Check the connection of communication cable
3) Power- ON.
4) Check LED ‘ON’ of power supply
5) Check LED status on CPU module
-> If abnormal, refer to the troubleshooting contents of each PLC manual.
6) Check LED status (normal/abnormal) of communication module
-> If abnormal, refer to chapter 10. Troubleshooting of this manual.
7) Download after setting system parameter correctly

Programming : Program at XG5000, Write on CPU module

Sequence check :
Check module operation by program

Program correction :
Do correct if sequence program has problem

Saving program:
1) Save program in floppy disc or hard disc.
2) Print out circuit diagram and list by printer.
End

Chapter 4 System Configuration
18
Chapter 4 System Configuration
4.1 General
4.1.1 General
XGB Fast Enet I/F module supports open Enet. It provides network configuration that is to connect LSIS and other company PLC, PC
on network.
4.2 Examples of System Configuration
4.2.1 Combination network configuration
[Figure 4-1] Combination network configuration
XGB Fast Enet I/F module provides system configuration by using main communication, Modbus TCP/IP, user define frame, HS link
communication connecting LSIS PLC with other LSIS PLC, PC on network.
4.2.2 Network configuration using XGB
[Figure 4-2] Network configuration using XGB
Communication between XGB Fast Enet I/F modules is available to perform 1:1 communication by using cross cable or 1:N
communication by connecting network. It provides data sending/receiving by using the dedicated service, Modbus TCP/IP, user define
frame and HS link communication.

Chapter 4 System Configuration
19
4.2.3 Network configuration using XGB and MMI
[Figure 4-3] Network configuration using XGB and MMI
Communication between XGB Fast Enet I/F module and PC is available to perform 1:1 communication by using cross cable or 1:N
communication by connecting network. It provides connecting and data sending/receiving by using XG5000, XG-PD or MMI on PC.
XG5000, XG-PD do download/upload parameter and program and furthermore these provide data sending/receiving by using the
dedicated service, Modbus TCP/IP, user define frame.
4.2.4 Network configuration between LSIS modules
[Figure 4-4] Network configuration between LSIS modules
XGB Fast Enet I/F module and Enet I/F of XGT series provide system configuration. 1:1 communication is available using cross cable
or 1:N communication is available by connecting network. It provides data sending/receiving by using main service, Modbus TCP/IP,
user define frame.
4.2.5 Network configuration using XGB and other LSIS PLC
[Figure 4-5] Network configuration using XGB and other LSIS PLC
XGB Fast Enet I/F module provides communication with other LSIS PLC, HMI, MMI. . 1:1 communication is available using cross
cable or 1:N communication is available by connecting network. To communicate, protocols between PLCs should be same.
