LS Industrial Systems XGT Series User manual

Pnet I/F Module
XGT Series
Right choice for ultimate yield
LSIS strives to maximize customers' profit in gratitude of choosing us for your
partner.
User’s Manual
LS values every single customer.
Quality and service come first at LSIS.
Always at your service, standing for our customers.
z Read this manual carefully before
installing, wiring, operating, servicing
or inspecting this equipment.
zKeep this manual within easy reach
for quick reference.
Programmable Logic Controller
■HEAD OFFICE
Yonsei Jaedan Severance Bldg. 84-11 5 ga, Namdaemun-ro,
Jung-gu Seoul 100-753, Korea http://eng.lsis.biz
Tel. [phone]~4649 Fax.[phone]
■LS Industrial Systems Tokyo Office >> Japan
Address: 16F, Higashi-Kan, Akasaka Twin Towers 17- 22,
2-chome, Akasaka, Minato-ku, Tokyo 107-8470, Japan
Tel: [phone] Fax: [phone]
e-mail:[e-mail]
■LS Industrial Systems Dubai Rep. Office >> UAE
Address: P.O.BOX-114216, API World Tower, 303B, Sheikh
Zayed road, Dubai, UAE. e-mail: [e-mail]
Tel: [phone] Fax: [phone]
■LS-VINA Industrial Systems Co., Ltd. >> Vietnam
Address: LSIS VINA Congty che tao may dien Viet-Hung
DongAnhHanoi,Vietnam e-mail:[email protected].vn
Tel: [phone] Fax: [phone]
■LS Industrial Systems Hanoi Office >> Vietnam
Address: Room C21, 5th Floor, Horison Hotel, 40 Cat Linh,
Hanoi, Vietnam
Tel: [phone] Fax: [phone]
■Dalian LS Industrial Systems co., Ltd, >> China
Address: No. 15 Liaohexi 3 Road, economic and technical
development zone, Dalian, China e-mail: [e-mail]
Tel: [phone] Fax: [phone]
■LS Industrial Systems (Shanghai) Co., Ltd. >> China
Address: Room E-G, 12th Floor Huamin Empire Plaza,
No. 726, West Yan’an Road, Shanghai, China
Tel: [phone]
■LS Industrial Systems(Wuxi) Co., Ltd. >> China
Address: 102-A National High & New Tech Industrial
Development Area, Wuxi, Jiangsu, China e-mail: [email protected]
Tel: [phone] Fax: [phone]
■LS Industrial Systems Beijing Office >> China
Address: B-tower 17th Floor, Beijing Global Trade Center building,
No. 36, BeiSanHuanDong-Lu, DongCheng-District, Beijing, China
Tel: [phone]
■LS Industrial Systems Guangzhou Office >> China
Address: Room 1403, 14F, New Poly Tower, 2 Zhongshan Liu
Rad, Guangzhou, China e-mail: [e-mail]
Tel: [phone] Fax: [phone]
■LS Industrial Systems Chengdu Office >> China
Address: Room 2907, Zhong Yin B/D, No. 35, Renminzhong(2)-
Road, Chengdu, China e-mail: [email protected]m
Tel: [phone] Fax: [phone]
■LS Industrial Systems Qingdao Office >> China
Address: 12th Floor, Guodong building, No52 Jindun Road,
Chengdu,China e-mail:[e-mail]
Tel: [phone] Fax: [phone]
10310000636
XGT Cnet
/
2008.
3
※ LS Industrial Systems constantly endeavors to improve its product so that
Information in this manual is subject to change without notice.
ⓒ LS Industrial systems Co., Ltd 2006 All Rights Reserved.
XGT Series
Pnet I/F Module
XGL-PMEA

Safety Instructions
Before using the product …
For your safety and effective operation, please read the safety instructions
thoroughly before using the product. Safety Instructions should always be
observed in order to prevent accident or risk with the safe and proper use the
product.
Instructions are divided into “Warning” and “Caution”, and the meaning of the
terms is as follows.
This symbol indicates the possibility of serious injury
or death if some applicable instruction is violated
This symbol indicates the possibility of severe or
slight injury, and property damages if some
applicable instruction is violated
Moreover, even classified events under its caution category may develop
into serious accidents relying on situations. Therefore we strongly advise users
to observe all precautions properly just like warnings.
The marks displayed on the product and in the user’s manual have the
following meanings.
Be careful! Danger may be expected.
Be careful! Electric shock may occur.
The user’s manual even after read shall be kept available and accessible to
any user of the product.
Warning
Caution

Safety Instructions
Safety Instructions for design process
1. Please install a protection circuit on the exterior of PLC so that the
whole system may operate safely regardless of failures from
external power or PLC. Any abnormal output or operation from PLC
may cause serious problems to safety in whole system.
(1) Install protection units on the exterior of PLC like an interlock circuit
that deals with opposite operations such as emergency stop,
protection circuit, and forward/reverse rotation or install an interlock
circuit that deals with high/low limit under its position controls.
(2) If any system error (watch-dog timer error, module installation error,
etc.) is detected during CPU operation in PLC, all output signals are
designed to be turned off and stopped for safety. However, there
are cases when output signals remain active due to device failures
in Relay and TR which can’t be detected. Thus, you are
recommended to install an addition circuit to monitor the output
status for those critical outputs which may cause significant
problems.
2. Never overload more than rated current of output module nor
allow to have a short circuit. Over current for a long period time may
cause a fire .
3. Never let the external power of the output circuit to be on earlier
than PLC power, which may cause accidents from abnormal output or
operation.
4. Please install interlock circuits in the sequence program for safe
operations in the system when exchange data with PLC or modify
operation modes using a computer or other external equipments
Read specific instructions thoroughly when conducting control
operations with PLC.
Warning

Safety Instructions
Safety Instructions for design process
Safety Instructions on installation process
I/O signal or communication line shall be wired at least 100mm
away from a high-voltage cable or power line. Fail to follow this
instruction may cause malfunctions from noise
Caution
1. Use PLC only in the environment specified in PLC manual or
general standard of data sheet. If not, electric shock, fire,
abnormal operation of the product may be caused.
2. Before install or remove the module, be sure PLC power is off.
If not, electric shock or damage on the product may be caused.
3. Be sure that every module is securely attached after adding a
module or an extension connector. If the product is installed
loosely or incorrectly, abnormal operation, error or dropping may
be caused. In addition, contact failures under poor cable
installation will be causing malfunctions as well.
4. Be sure that screws get tighten securely under vibrating
environments. Fail to do so will put the product under direct
vibrations which will cause electric shock, fire and abnormal
operation.
5. Do not come in contact with conducting parts in each module,
which may cause electric shock, malfunctions or abnormal
operation.
Caution

Safety Instructions
Safety Instructions for wiring process
1. Prior to wiring works, make sure that every power is turned off.
If not, electric shock or damage on the product may be caused.
2. After wiring process is done, make sure that terminal covers
are installed properly before its use. Fail to install the cover may
cause electric shocks.
Warning
1. Check rated voltages and terminal arrangements in each
product prior to its wiring process. Applying incorrect voltages
other than rated voltages and misarrangement among terminals
may cause fire or malfunctions.
2. Secure terminal screws tightly applying with specified torque. If
the screws get loose, short circuit, fire or abnormal operation may be
caused. Securing screws too tightly will cause damages to the
module or malfunctions, short circuit, and dropping.
3. Be sure to earth to the ground using Class 3 wires for FG
terminals which is exclusively used for PLC. If the terminals not
grounded correctly, abnormal operation or electric shock may be
caused.
4. Don’t let any foreign materials such as wiring waste inside the
module while wiring, which may cause fire, damage on the
product or abnormal operation.
5. Make sure that pressed terminals get tighten following the
specified torque. External connector type shall be pressed or
soldered using proper equipments.
Caution

Safety Instructions
Safety Instructions for test-operation and
maintenance
1. Don’t touch the terminal when powered. Electric shock or
abnormal operation may occur.
2. Prior to cleaning or tightening the terminal screws, let all the
external power off including PLC power. If not, electric shock or
abnormal operation may occur.
3. Don’t let the battery recharged, disassembled, heated, short or
soldered. Heat, explosion or ignition may cause injuries or fire.
Warning
1. Do not make modifications or disassemble each module. Fire,
electric shock or abnormal operation may occur.
2. Prior to installing or disassembling the module, let all the
external power off including PLC power. If not, electric shock or
abnormal operation may occur.
3. Keep any wireless equipment such as walkie-talkie or cell
phones at least 30cm away from PLC. If not, abnormal operation
may be caused.
4. When making a modification on programs or using run to
modify functions under PLC operations, read and comprehend
all contents in the manual fully. Mismanagement will cause
damages to products and accidents.
5. Avoid any physical impact to the battery and prevent it from
dropping as well. Damages to battery may cause leakage from its
fluid. When battery was dropped or exposed under strong impact,
never reuse the battery again. Moreover skilled workers are needed
when exchanging batteries.
Caution

Safety Instructions
Safety Instructions for waste disposal
 Product or battery waste shall be processed as industrial waste.
The waste may discharge toxic materials or explode itself.
Caution

Revision History
Version Date Remark Page
V1.0 ’06.02 FirstEdition -
V 1.1 ’07.10 XGI-CPUU added -
The number of User’s manual is indicated right part of the back cover.※
ⓒLS Industrial Systems Co., Ltd 2006 All Rights Reserved.

◎Table of Contents ◎
Chapter 1 Introduction ---------------------------------------------------------------------- 1-1~1-2
1.1 Introduction ----------------------------------------------------------------------------------------------------- 1-1
1.2 Characteristics ------------------------------------------------------------------------------------------------- 1-1
1.3 Product Information ------------------------------------------------------------------------------------------- 1-2
Chapter 2 Specifications ----------------------------------------------------------------- 2-1 ~ 2-4
2.1 General Specifications --------------------------------------------------------------------------------------- 2-1
2.2 Performance Specifications --------------------------------------------------------------------------------- 2-2
2.3 Structure & Characteristics ---------------------------------------------------------------------------------- 2-3
2.3.1 Structure of Pnet I/F module ---------------------------------------------------------------------- 2-3
2.4 Cable Specifications ------------------------------------------------------------------------------------------ 2-4
2.4.1 Cable specifications of Belden network --------------------------------------------------------- 2-4
Chapter 3 Installation and Test Operation ------------------------------------------ 3-1 ~ 3-5
3.1 Precautions for Installation ---------------------------------------------------------------------------------- 3-1
3.1.1 Precautions for Installation ------------------------------------------------------------------------ 3-1
3.1.2 Installation of cable --------------------------------------------------------------------------------- 3-1
3.2 From Setting to Operation ----------------------------------------------------------------------------------- 3-3
3.3 Installation of the product ------------------------------------------------------------------------------------ 3-4
3.3.1 Installation of XGL-PMEA ------------------------------------------------------------------------- 3-4
3.4 Test Operation -------------------------------------------------------------------------------------------------- 3-5
3.4.1 Precautions for system configuration ----------------------------------------------------------- 3-5
Chapter 4 System Configuration ------------------------------------------------------ 4-1 ~ 4-2
4.1 System Configuration of Network ------------------------------------------------------------------------- 4-1
4.1.1 XGL-PMEA + Smart I/O ---------------------------------------------------------------------------- 4-1
4.1.2 XGL-PMEA + Composite System --------------------------------------------------------------- 4-2

Chapter 5 Communication Program -------------------------------------------------- 5-1 ~ 5-9
5.1 Communication Program ------------------------------------------------------------------------------------ 5-1
5.1.1 Type of communication program ---------------------------------------------------------------- 5-1
5.2 SyCon Configuration Setting -------------------------------------------------------------------------------- 5-1
5.3 XG-PD ------------------------------------------------------------------------------------------------------------ 5-1
5.3.1 Introduction ------------------------------------------------------------------------------------------- 5-2
5.3.2 High-speed link parameters setting ------------------------------------------------------------- 5-2
Chapter 6 SyCon Setting --------------------------------------------------------------- 6-1 ~ 6-21
6.1 Introduction ---------------------------------------------------------------------------------------------------- 6-1
6.1.1 Main functions ---------------------------------------------------------------------------------------- 6-1
6.1.2 Characteristics --------------------------------------------------------------------------------------- 6-1
6.2 Installation ------------------------------------------------------------------------------------------------------- 6-1
6.2.1 System requirements ------------------------------------------------------------------------------- 6-1
6.2.2 Software installation ------------------------------------------------------------------------------------- 6-2
6.3 Communication settings in SyCon ------------------------------------------------------------------------ 6-8
6.3.1 Initial screen ------------------------------------------------------------------------------------------ 6-8
6.3.2 Composition of menu ------------------------------------------------------------------------------- 6-9
6.3.3 New file ----------------------------------------------------------------------------------------------- 6-11
6.3.4 Master selection------------------------------------------------------------------------------------ 6-12
6.3.5 Slave selection------------------------------------------------------------------------------------ 6-15
6.3.6 Bus parameter ------------------------------------------------------------------------------------ 6-18
6.4 On-line Function --------------------------------------------------------------------------------------------- 6-18
6.4.1 Introduction ------------------------------------------------------------------------------------------ 6-18
6.4.2 Online to the CIF ----------------------------------------------------------------------------------- 6-18
6.4.3 Automatic network scan ------------------------------------------------------------------------- 6-19
6.4.4 Start/Stop communication ----------------------------------------------------------------------- 6-20
6.4.5 Debug mode ---------------------------------------------------------------------------------------- 6-20
6.4.6 Diagnostic functions ------------------------------------------------------------------------------- 6-20
Chapter 7 High-speed Link ------------------------------------------------------------- 7-1 ~ 7-15
7.1 Introduction ----------------------------------------------------------------------------------------------------- 7-1
7.2 Process of High-speed Link Send/Receive Data ------------------------------------------------------- 7-2
7.3 Operation Sequence of High-speed Link ----------------------------------------------------------------- 7-3
7.4 SyCon Configuration Setting ------------------------------------------------------------------------------- 7-4
7.5 High-speed Link Information ------------------------------------------------------------------------------- 7-10
7.5.1 Monitor of High-speed link information ------------------------------------------------------- 7-12

Chapter 8 Program Example ------------------------------------------------------------ 8-1 ~ 8-13
8.1 Example of Communication with Pnet I/F Module ---------------------------------------------------- 8-1
8.1.1 SyCon settings --------------------------------------------------------------------------------------- 8-1
8.1.2 XG-PD settings -------------------- ---------------------------------------------------------------------- 8-9
Chapter 9 Troubleshooting -------------------------------------------------------------- 9-1 ~ 9-8
9.1 Symptoms and Management by LED Status ---------------------------------------------------------- 9-1
9.2 System Diagnosis of XG-PD ------------------------------------------------------------------------------- 9-1
9.2.1 Information on communication module ------------------------------------------------------ 9-2
9.2.2 High-speed link------------------------------------------------------------------------------------- 9-2
9.2.3 Log ----------------------------------------------------------------------------------------------------- 9-3
9.2.4 Auto-scan---------------------------------------------------------------------------------------------- 9-4
9.3 Diagnosis of Communication Module through XG5000---------------------------------------------- 9-5
9.4 Troubleshooting ---------------------------------------------------------------------------------------------- 9-6
9.4.1 SyCon abnormal connection -------------------------------------------------------------------------- 9-6
9.4.2 XG-PD abnormal connection ------------------------------------------------------------------------- 9-7
9.4.3 Abnormal connection with slave module ----------------------------------------------------------- 9-8
Appendix ------------------------------------------------------------------------------------- A-1 ~ A-8
A.1 Terminology ---------------------------------------------------------------------------------------------------- A-1
A.2 List of Flags --------------------------------------------------------------------------------------------------- A-3
A.2.1 High-speed link flags -------------------------------------------------------------------------------- A-3
A.2.2 Link devices
(N) ------------------------------------------------------------------------------------- A-6
A.3 External Dimensions ----------------------------------------------------------------------------------------- A-8

Chapter 1 Introduction
1 - 1
Chapter 1 Introduction
1.1 Introduction
This user’s manual is to describe Profibus-DP (Decentralized Peripherals) Master I/F module (hereinafter
referred to as Pnet I/F module) among communication modules of XGT PLC system.
Profibus-DP is specified in IEC Fieldbus Standard IEC 1158.
In this communication, Token Ring is used to control the communication and to configure the network
easily. Pnet I/F module is a module to control the field bus with Twisted Shielded Pair Copper Cable
applied.
1.2 Characteristics
XGT Pnet I/F module has the characteristics as follows;
▶Conforms to the international standard of EN 50170
▶Supports Auto Baud Rate Detect
▶Supports Sync/Freeze mode
▶Max. input data : 244 Bytes/Slave
▶Max. output data: 244 Bytes/Slave
▶Max. data size : 244 Bytes/Slave, 6 KB/Master
▶Communication speed : 9.6k, 19.2k, 93.7k, 187.5k, 500k, 1.5M, 3M, 6M, 12M
Active Stations, Master Devices
PC
Passive Stations (Slave Devices) are polled
PROFIBUS

Chapter 1 Introduction
1 - 2
1.3 Product Information
Our product group of XGT Pnet I/F modules is as shown below.
Classific
-ation Connection Cable Designation Product Code Details Remarks
Master
Module Twisted Pair (electric) XGL-PMEA 47200001 - -
G7L-PBEA 46270031 Connect to K120S terminal added K120S/K80S/GM7
GPL-D22A 47060007 DC input 16 points
GPL-D24A 47060009 DC input 32 points
GPL-TR2A 47060008 TR output 16 points (0.1A, Sink)
GPL-TR4A 47060010 TR output 32 points (0.1A, Sink)
GPL-RY2A 47060011 Relay output 16 points
GPL-DT4A 47060012 DC input16 points/ TR output 16 points
Fixed,
9-pin communication
connector
GPL-D22C 47060046 DC input 16 points
GPL-D24C 47060047 DC input 32 points
GPL-TR2C 47060048 TR output 16 points(0.5A, Source)
GPL-TR4C 47060049 TR output 32 points(0.5A, Source)
GPL-RY2C 47060051 Relay output 16 points
GPL-DT4C 47060050 DC input 16 points/ TR output 16 points
Removable, 9-pin
communication
connector
GPL-TR2B 47060059 TR output 16 points(0.5A, Source)
GPL-TR4B 47060058 TR output 32 points(0.5A, Source)
GPL-DT4B 47060060 DC input 16 points/ TR output 16 points
GPL-TR2A1 47060084 TR output 16 points(0.5A, Sink)
GPL-TR4A1 47060076 TR output 32 points(0.5A, Sink)
GPL-DT4A1 47060078 DC input 16 points/ TR output 16 points
Fixed, 9-pin
communication
connector
GPL-TR2C1 47060085 TR output 16 points(0.5A, Sink)
GPL-TR4C1 47060077 TR output 32 points(0.5A, Sink)
GPL-DT4C1 47060079 DC input 16 points/ TR output 16 points
GPL-AV8C 47060123 Analog Voltage Input, 8 channels
GPL-AC8C 47060124 Analog Current Input, 8 channels
GPL-DV4C 47060125 Analog Voltage Input, 4 channels
Slave
Module Twisted Pair (electric)
GPL-DC4C 47060126 Analog Current Output, 4 channels
Removable, 9-pin
communication
connector
Table 1.1 Product group of Pnet I/F
Remark
1) Fixed: I/O terminal block is fixed on module.
2) Removable: I/O terminal block is removable.

Chapter 2 Specifications
2 - 1
Chapter 2 Specifications
2.1 General Specifications
General specifications of XGT series are as specified below in Table 2.1.
No. Item Specification Related specifications
1 Operating
temp. 0+55℃∼ ℃ -
2 Storage temp. -25 +70℃∼ ℃ -
3 Operating
humidity 5 95%RH, no dew allowed∼-
4 Storage
humidity 5 95%RH, no dew allowed∼-
For discontinuous vibration -
Frequency Acceleration Amplitude Number
10≤f< 57 ㎐- 0.075mm
57≤f≤150 ㎐9.8 ㎨(1G) -
For continuous vibration
Frequency Acceleration Amplitude
10≤f< 57 ㎐- 0.035mm
5 Vibration
immunity
57≤f≤150 ㎐4.9 ㎨(0.5G) -
Each 10 times in
X,Y,Z directions
IEC61131-2
6 Impact
immunity
* Max. impact acceleration: 147 ㎨(15G)
* Authorized time: 11 ㎳
* Pulse wave : Sign half-wave pulse
(Each 3 times in X,Y,Z directions)
IEC61131-2
Square wave
impulse noise ±1,500V Test specification of
LS Industrial Systems
Static electric
discharging
Voltage : 4kV
(contact discharging)
IEC 61131-2,
IEC 61000-4-2
Radiation electromagnetic
field noise 27 ~ 500MHz, 10 V/m IEC 61131-2,
IEC 61000-4-3
Class Power
module
Digital/Analog I/O
communication interface
7 Noise
immunity
Fast
Transient
/burst
noise Voltage 2kV 1kV
IEC 61131-2,
IEC 61000-4-4
8 Ambient
conditions No corrosive gas or dust
9 Operating
height 2,000m or less
10 Pollution level 2 or less
11 Cooling type Natural air cooling
Table 2.1 General Specifications
Remark
1) IEC(International Electrotechnical Commission):
An international nongovernmental organization which promotes internationally cooperated standardization
in electric/electronic fields, publishes international standards and manages applicable estimation system
related with.
2) Pollution level:
An index indicating pollution level of the operating environment which decides insulation performance of
he devices. For instance, Pollution level 2 indicates the state generally that only non-conductive pollution
occurs. However, this state contains temporary conduction due to dew produced.

Chapter 2 Specifications
2 - 2
2.2 Performance Specifications
Performance specifications of Pnet I/F module are as described below.
Item Details
Module Type Master
Network Type Profibus-DP
Standard EN50170/DIN19245
Interface RS-485 (Electric)
Transmission Route Bus type
Modulation Type NRZ
MAC Local Token Ring
Distance (m) Transmission Speed (bps)
1,200 9.6k/19.2k/93.7k/187.5k
400 500k
200 1.5M
Max. Distance &
Transmission Speed
100 3M/6M/12M
Max. number of stations per
network 126
Max. number of stations per
segment 32 (including master & repeater)
Cable used Electric-twist shielded pair cable
Max. communication size 7 KB
Max. size per slave 244 bytes
XGK-CPUH/XGI-CPUU XGK-CPUS/CPUA/CPUE
Max. number of units to be
installed 12 12
XGK-CPUH/XGI-CPUU XGK-CPUS/CPUA/CPUE
Installation Position Basic base ~ 7 stages added Basic base ~ 3 or 1 stages added
Communication Parameters
to set XG-PD , SyCon (Dedicated Configuration Tool)
Internal-consumed current
(mA) 550
Weight (g) 114
[Table 2.2] Performance Specifications

Chapter 2 Specifications
2 - 3
2.3 Structure & Characteristics
2.3.1 Structure of Pnet I/F module
[Table 2.3] LED display
LED Status LED description
On Normal
Completion of initialization
RUN
Off Error
Occurrence of error
Flickering Normal Normal status of CPU module and interface
I/F
Off Error
Error of CPU module and interface
On Normal
Service is normal status when High-speed link enabled
Flickering Stand by Communication break status between Pnet I/F module and slave when
downloading at High-speed link enabled by Sycon High-speed link
HS
Off Error
High-speed link service error is occurred when High-speed link enabled
Flickering Stop Stop status of communication status between Pnet I/F module and slave
module
P-RUN
On Run Run status of Communication between Pnet I/F module and slave
module
On Normal Normal status of High-speed link communication
STAT
Off Error
Abnormal status of Master module
On Error
It needs to check the slave module
ERR
Off Normal
Normal status
◀ LED display
◀ Connection area of Sycon Configuration Tool
◀ Connection area of communication cable
◀ Designation area

Chapter 2 Specifications
2 - 4

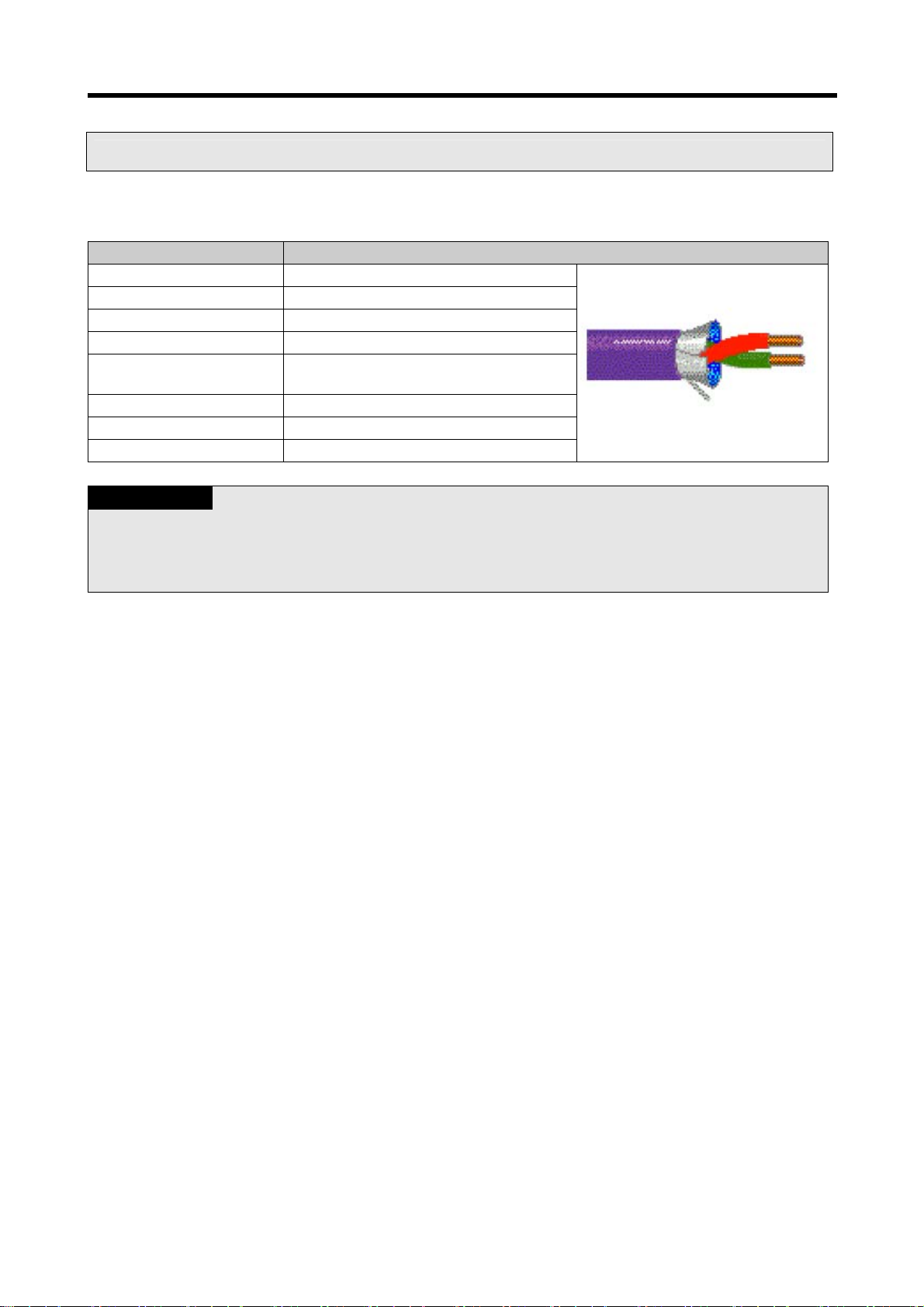

2.4 Cable Specifications
2.4.1 Cable Specifications of Belden Network
Classification Details
AWG 22
Type BC-Bare Copper
Insulation PE-Polyethylene
Insulated strength 0.035 (Inch)
Shield Aluminum Foil-
Polyester Tape/Braid Shield
Capacitance 8500 ㎊/ft
Characteristic impedance 150Ω
Number of cores 2
Remark
1. Cable type
1) Tomas cable: Profibus-DP UNITRONIC-BUS L2/FIP/BUS
2) Belden cable: 3079A

Chapter 3 Installation and Test Operation
3 - 1
Chapter 3 Installation and Test Operation
3.1 Precautions for Installation
3.1.1 Precautions for Installation
For system configuration through Pnet I/F module, carefully make sure of the following items prior
to installation.
1) Check the basic factors necessary for system configuration to select an appropriate
communication module.
2) Select the exclusive Pnet cable to be used for this communication module.
3) Before the communication module is installed, check for any foreign material on the base
connector the module will be installed on and any damage on the connector pin of the module.
4) All the communication modules can be installed on the basic base ~ the added base 7 stages
(XGK-CPUH/XGI-CPUU), the basic base ~ added base 3 stages (XGK-CPUS/CPUA), the basic
base ~ added base 1 stages (XGK-CPUE).
5) For installation of the module, exactly insert the protuberant part at the bottom of the module
with the communication cable disconnected into the base groove and then apply enough
strength until its top is locked up with the locking device of the base. If the lock is not applied, it
may cause an error on the interface with CPU.
3.1.2 Installation of cable
Profibus cable is used Shielded Twisted Pair Cable. The maximum transmission distance by
specification, speed and type of cable is as shown below [Table 3.1] and [Table 3.2].
Characteristics Type A Type B
Impedance 135~160(freq. 3~20MHz) 100~130(freq. > 100kHz)
Capacity Lower than 30 pF/m Lower than 60 pF/m
Resistance Lower than 110 -
Conductor Area Larger than 0.34 mm2(22 AWG) Lager than 0.22 mm2(24 AWG)
[Table 3.1] Specification of cable
Baud rate
(Kbit/s) 9.6 19.2 93.75 187.5 500 1500 3000 6000 12000
Cable Type A 1200 1200 1200 1000 400 200 100 100 100
Cable Type B 1200 1200 1200 600 200 70 - - -
[Table 3.2] Trasmission distance by Cable and Speed

Chapter 3 Installation and Test Operation
3 - 2
Remark
1) It defines two type of bus cable in Profibus standards. But it is usually recommended Type A
which place is newly installed. The type name of A and B ask to cable maker.
2) AWG(American Wire Gauge): Number system of size(a diameter) of wire
1) General safety instruction
(1) It has need to connect the termination resistor.
(2) If distance between stations, it can be extended through extension of segment (Maximum 9
repeater, 10 segment). It can be connected 32 stations (repeater included) per segment
and maximum 126 stations can be connected. (Repeater has no number of station) There
are extension segment that has no station.
(3) Shield of cable is grounded to housing of connector.
(4) It has to use exclusive connector which is inductor built-in in internal.
(5) It can not use the Spur Line.
(6) If the gap between stations is large, a large current is able to flow on a shield. In this case,
Install the cable which is set the a potential difference of ground. Special attention is
required more than 1.5Mbps.
(7) It maintains minimum distance more than 1m between station at 12Mbps.
2) Termination
(1) Each segment has to terminate the end. If segment is many, every segment have to
terminate the end.
(2) Termination is able to On/Off by switch of exclusive connetor.
(3) Install the Master the end of one part, if it is possible.

Chapter 3 Installation and Test Operation
3 - 3
3.2 From Setting to Operation
The sequence of the product from installation to operation will be described below. After the product
installation is complete, install and configure the system to be operated as specified in the following
sequence.
Operation Sequence
6
Install Pnet I/F module on the base.
ÆCheck the applicable base/slot position for correct
installation.
6
Configure the system between Pnet I/F module and
slaves.
ÆUse the exclusive Pnet cable for communication.
6
With power On, check the LED status of the
communication module.
ÆCheck if the interface of the communication module
is normal with CPU.
6
Specify the configuration through SyCon Configuration
Tool.
ÆSpecify the module to be configured as Pnet I/F
master module and download it.
6
Download High-speed link parameters.
ÆUpload SyCon from XG-PD, set Send/Receive
parameters, download High-speed link parameters
and let link enabled. (operation of the product)
6
Use system diagnosis function in XG-PD to check the
normal operation of the product.
6
Start Run
