LS LSLV-iV5 Series User manual

LS ELECTRIC strives to maximize your profits in gratitude for choosing us as your partner.
AC Variable Speed Drive
2.2-37kW [200V] 2.2-500kW [400V]
LSLV-iV5 series

Safety Instructions
i
Safety Instructions
To prevent injury and property damage, follow these instructions. Incor-
rect operation due to ignoring instructions will cause harm or damage.
The seriousness of which is indicated by the following symbols.
Symbol
Meaning
Warning
This symbol indicates the possibility of death or serious
injury.
Caution
This symbol indicates the possibility of injury or damage
to property.
Remark
Even if the instructions are indicated as ‘Caution’, it can cause a serious result
according to the kind of operation and the environment.
The meaning of each symbol in this manual and on your equipment is as
follows.
Symbol
Meaning
This is the safety alert symbol.
Read and follow instructions carefully to avoid dangerous
situation.
This symbol alerts the user to the presence of “dangerous
voltage” inside the product that might cause harm or electric
shock.
After reading this manual, keep it in the place that the user always can
contact easily.
This manual should be given to the person who actually uses the prod-
ucts and is responsible for their maintenance.
WARNING
Do not remove the cover while power is applied or the unit is in operation.
Otherwise, electric shock could occur.
Do not run the inverter with the front cover removed.
Otherwise, you may get an electric shock due to high voltage terminals or
charged capacitor exposure.
Do not remove the cover except for periodic inspections or wiring, even if
the input power is not applied.
Otherwise, you may access the charged circuits and get an electric shock.
Wiring and periodic inspections should be performed at least 20 minutes

Safety Instructions
ii
WARNING
after disconnecting the input power and after checking the DC link voltage
is discharged with a meter (below DC 30V).
Otherwise, you may get an electric shock.
Operate the switches with dry hands.
Otherwise, you may get an electric shock.
Do not use the cable when its insulating tube is damaged.
Otherwise, you may get an electric shock.
Do not subject the cables to scratches, excessive stress, heavy loads or
pinching.
Otherwise, you may get an electric shock.
This inverter must be earthed/grounded.
CAUTION
Install the inverter on a non-flammable surface. Do not place flammable ma-
terial nearby.
Otherwise, fire could occur.
Disconnect immediately the input power if the inverter gets damaged.
Otherwise, it could result in a secondary accident and fire.
After the input power is applied or removed, the inverter will remain hot for
a couple of minutes.
Otherwise, you may get bodily injuries such as skin-burn or damage.
Do not apply power to a damaged inverter or to an inverter with parts miss-
ing even if the installation is complete.
Otherwise, electric shock could occur.
Do not allow lint, paper, wood chips, dust, metallic chips or other foreign
matter into the drive.
Otherwise, fire or accident could occur.

Safety Instructions
iii
Caution for Use
Transportation and Installation
Be sure to carry inverter in a proper way suitable for its weight, or it may result in
damage to inverter.
Be sure to use heat-treated wooden crate when you adopt wooden packaging for
the product.
Do not pile up inverters above allowable limit.
Be sure to install the inverter as directed in this instruction manual.
Do not turn off the power supply to the damaged inverter.
Do not open the front cover while carrying the inverter.
Do not place the heavy material on the inverter.
The direction of installation should be observed properly as criterions specified in
this manual show.
Make sure that you should not put screw, metal material, water, oil and the inflam-
mable something else.
Keep in mind that inverter is very vulnerable to drop from the mid air and strong
shock.
Don't let the inverter exposed to rain, snow, fog, dust, etc.
Do not cover, nor block, the ventilating system having cooling fan. It may cause the
inverter overheated.
Be sure to check the power is off when installing the inverter.
To prevent the risk of fire or electric shock, keep the connected wire in a sound
condition. Use the wire that meets the standard in a recommended length.
Be sure to ground the inverter. (Under 10 Ωto 200V class, Under 100 Ωto 400V
class)
Be certain to use the inverter under the following conditions.
Environment
Description
Ambient
Temperature
- 10 ~ 40 ℃(Non-frozen)
(Less than 80% load is recommended at 50℃.)
Ambient Humidity
Below 90% RH (Dewdrop should not be formed)
Storage
Temperature
-20 ~ 65℃
Ambient
Condition
Free of corrosive gas, inflammable gas, oil sludge and dust,
etc
Altitude/Vibration
Below 1000m above sea level, Below 5.9m/sec²(=0.6g)
Ambient Air Pressure
70 ~ 106 kPa

Safety Instructions
iv
Wiring
Caution
A professional installer should have done the wiring and checking.
Do wiring after installing the inverter body.
Do not connect phase-leading capacitors, surge filter, radio noise filter to the output
of inverter.
Output terminals (terminals named U, V, W respectively) should be connected in a
proper phase sequence.
Make sure that there is not any short circuit terminal, wrong wiring. It may cause
spurious operation or failure.
Refrain from using a cable other than the cable shielded when you connect control
circuit wiring.
Adopt the shielded wire only when wiring the control circuit. It may cause the failure
of inverter in its operation. Use the twisted pair shield wire for the ground terminal of
the inverter.
Warning
To prevent an electric shock, be sure to check if MCCB and MC are
switched OFF before wiring
Otherwise, it may cause an electric shock.
Adjustment before starting trial operation
Do not supply the excessive range of voltage displayed in the user manual to the
each terminal. It may cause damage to the inverter.
Current hunting can be occurred in the low speed territory during testing. It occurs
where the capacity is above 110kW with no-load and the axis is not connected.
The current hunting has a gap according to the motor characteristic. It will be dis-
appeared when the load is connected and it is not the indication of abnormal condi-
tion.
If the hunting is occurred seriously, please stop the testing and operates with the
load.
Be sure to check relevant parameters for the application before starting trial opera-
tion.
How to Use
Be sure not to approach the machine when retry function is selected. The machine
may start working suddenly.
Stop key on the keypad should be set to be in use. For safety, additional emergency
stop circuit should be required.
Inverter restarts if alarm condition is cleared while FX/RX signal is on. Therefore, be
sure to operate the alarm reset switch after checking if FX / RX signal is off.
Never modify the inverter for inappropriate use.
When a magnetic contactor is installed on the power source, do not frequently start
or stop using this magnetic contactor. It may cause the failure of inverter.

Safety Instructions
v
Noise filter should be used for the minimization of troubles by electro-magnetic
noise. Electronic equipments close to the inverter should be protected against the
damage caused by troubles.
Be sure to install the AC reactor at the input of inverter in case of input voltage un-
balance. Otherwise, generator or phase-leading capacitors may be destroyed by
the harmonic current from inverter.
If 400V class motor is used with the inverter, insulation-enforced motor should be
used or countermeasures against the suppression of micro-surge voltage generat-
ed by the inverter should be carried out.
Otherwise, micro-surge voltage is generated across input terminal for the motor and
this voltage lowers allowable insulation break-down voltage and then, may cause
the destruction of the motor.
Be sure to set the parameters once more, in case of initialization of parameters, all
values of parameters is set to values of factory setting.
High speed operation can be set easily, therefore be sure to check the performance
of motor or machine before changing parameter value.
DC braking function cannot produce a zero-servo torque. If required, additional
equipment should be installed.
When inverter trip or emergency stop (BX) occurs without keypad connected, LED
on the control board will blink by the interval of 0.5 sec. But LED will blink by 1 sec
when keypad is connected. This function displays which trip will be occurred ac-
cording to the connection of keypad.
Do not change wiring, nor disconnect connector or option card during the operation
of inverter.
Do not disconnect the motor wiring while the voltage of inverter is output. Mishan-
dling may cause damage to the inverter.
Be sure to handle the inverter and option care in the order recommended in the
Electro Static Discharge (ESD) Countermeasure. Mishandling may lead to damage
to the circuit on the PCB caused by ESD.
Countermeasure against malfunction troubles
If inverter is damaged and then gets into uncontrollable situation, the machine may
lead to the dangerous situation, therefore to avoid this situation, be sure to install
the additional equipments such as brake.
Maintenance, inspection and parts replacement
Do not perform the megger (insulation resistance check) test on the control board.
Please refer to intervals for parts replacement on Chapter 8.
Disposal
Handle the inverter as an industrial waste when disposing of it.
Our inverter contains the raw material of value that can be recycled from the aspect
of energy and resource preservation. All the package materials and metal parts are
recyclable. Plastics are also recyclable, but may be burnt under the controllable en-
vironment depending on the local regulation.

Safety Instructions
vi
General Instruction
The drawing in this user manual is represented the details of the inner inverter, so,
the drawing is described without cover part and circuit breaker. But, cover and cir-
cuit breaker should be mounted before the operation following to the instruction of
user manual.
Turn off the power of inverter when the inverter is not used.
Cleaning
Be sure to operate the inverter under a clean condition.
When cleaning the inverter, be sure to check the inverter is off. Start cleaning it with
all the plugs connected with the inverter socket removed.
Never clean the inverter using wet cloth or water. Wipe the stained area softly using
the cloth completely wet with a neutral detergent or ethanol.
Never use the solution such as acetone, benzene, toluene, alcohol, etc. They may
cause the coating on the surface of the inverter to peel off. In addition, do not clean
LCD display, etc. using detergent or alcohol.
Storage
Be sure to keep the inverter under the following conditions if you don't use it for a
long period of time.
Make sure that you satisfy the recommended storage environment. (See page v.)
If the storage period exceeds 3 months, be sure to keep it at the ambient tempera-
ture of -10 ~ +30˚C to prevent『Deterioration by Temperature』of electrolytic con-
denser.
Be sure to keep it in a proper package to prevent moisture, etc. Put the desiccant
(Silica Gel), etc., in the package so that the relative humidity in the package can be
maintained at 70% or less.
When it is exposed to moisture or dust (mounted on the『System』or 『Control
Panel』, etc. installed at the construction site), remove it and then keep it under the
environmental condition specified in the page v.
Caution
If the inverter has been left long with electric current not charged, the na-
ture of electrolytic condenser can be deteriorated. So be sure to have it
plugged in for 30 ~ 60 minutes once a year. Do not perform wiring and op-
eration of the output side (secondary side).

1. Introduction
1-1
Chapter 1 - Introduction
1.1 Key Features
Current Controlled Vector Control Inverter with Speed Sensor using IGBT as
Power Semiconductor Device.
Tension/Torque Control and Wide Variety of Process Control
Process PI Control, Draw Control, Droop Control, Synchronous Control, WEB
Control etc.
Auto-tuning of Motor Parameters for Precise Speed/Torque Control :
Rotational/Standstill mode
Encoder error (H/W and S/W) detection function
Auxiliary battery function and Emgergent operation by battery operation
Various option for communication and application
Inverter Application
Application
Applicable
Machine/System
Features
Process Control
Steel Strip
Paper Mill
Textile
Film
Coater
Printing Machine
Tension Control
Wide Range of Speed Control
Hoisting Control
Lifts (Elevators)
Parking
Stacker Crane
Crane
Hoist
High Speed Operation
High Starting Torque
Positioning
Wide Range of Speed Control
Machine Control
Machine Tool
WireDrawing
Extruder
High Speed Operation
High Starting Torque
Positioning
Others
Conveyor
Industrial WashingMachine
High Speed Operation
Positioning
This instruction manual is designed for LS STARVERT-iV5 series Vector
Control Inverters, which have excellent characteristics in speed and torque
control with pulse encoder mounted on the shaft of 3 phase induction motor,
and covers installation, maintenance, wiring and operation for these inverters.

1. Introduction
1-2
1.2 Inverter Nameplate and Model
1.2.1 Inverter nameplate (Example)
1.2.2 Inverter model name
SV [][][][] iV5 –2 DB (MD) (380V) (ENC)
LS STARVERT Series
Max. Applicable Motor
022 : 2.2kW ~ 5000 : 500kW
iV5 Series
Input Voltage
2 : 200V Class (200 ~ 230V) ,
4 : 400V Class (380 ~ 480V)
Built-in DB Circuit
DB : Built-in DB Circuit (DB Resistors Integrated)
DC : DC Power Input
Blank : No Built-in DB Circuit (Use external DB Unit)
MD : Mold Type (2.2~22kW)
(Electrical specification of MD type is based on specifications of 5.5~2.2kW except for the specification
of exterior and its size.)
Input Voltage
(380V) : 380V Input Voltage –30~220kW(400V)
Blank : Below 22kW (200V/400V) and 280~500kW(400V)
ENCODER TYPE
-
-
-
-
-
-
-
- Blank : 5V Line Drive, 15V Open Collector
- 24V ENC : 24V Line Drive/Open Collector
Inverter Model Name
Input Power Source Specifications
Rated Capacity
Rated Capacity
Output Power Source Specifications
Running Freq. / Rated Output Current
Serial Code
Output Capacity
SV [][][][]iV5-2DB
INPUT 200 - 230 V 3 Phase
[][][]A 50/60Hz
OUTPUT 0 - Input V 3 Phase
[][][]A 0 –3600rpm
[][][]HP / [][][]kW
Ser. No [][][][][][][][][][][]
Inspected by [].[].[][][]

2. Specification
2-1
Chapter 2 - Specification
2.1 Standard Specification
2.1.1 200V Class (AC power input type)
SV[][][]iV5-2(DB)
022
037
055
075
110
150
185
220
300
370
Max.applicable
motoroutput
Note1)
[HP]
3
5
7.5
10
15
20
25
30
40
50
[kW]
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
Output
Capacity [kVA] Note2)
4.5
6.1
9.1
12.2
17.5
22.5
28.2
33.1
46
55
Rated current [A]
12
16
24
32
46
59
74
88
122
146
Speed
0 ~ 3600 (rpm)
Voltage
0 ~ 200V (230VNote3))
Input
Voltage
3200 ~ 230V (-10% ~ +10%)
Frequency
50 ~ 60Hz (5%)
Inverter weight
[kg(lbs)]
6
(13)
6
(13)
14
(30)
14
(30)
27.5
(60)
27.5
(60)
28
(61)
28
(61)
42
(93)
42
(93)
2.1.2 400V Class (AC power input type)
SV[][][]iV5-4(DB)
022
037
055
075
110
150
185
220
300
370
450
Max.applicable
motoroutput
(Note1)
[HP]
3
5
7.5
10
15
20
25
30
40
50
60
[kW]
2.2
3.7
5.5
7.5
11
15
18.5
22
30
37
45
Output
Capacity [kVA] Note2)
4.5
6.1
9.1
12.2
18.3
22.9
29.7
34.3
46
57
70
Rated current [A]
6
8
12
16
24
30
39
45
61
75
91
Speed
0 ~ 3600 (rpm)
Voltage
0 ~ 380V (480 Note3))
Inverter weight
[kg(lbs)]
6
(13)
6
(13)
14
(30)
14
(30)
27
(59)
28
(61)
28
(61)
28
(61)
42
(93)
42
(93)
63
(139)
SV[][][][]iV5-4
550
750
900
1100
1320
1600
2200
2800
3150
3750
5000
Max.applicable
motoroutput
Note1)
[HP]
75
100
120
150
175
215
300
373
420
500
666
[kW]
55
75
90
110
132
160
220
280
315
375
500
Output
Capacity [kVA] Note2)
85
116
140
170
200
250
329
416
468
557
732
Rated Current [A]
110
152
183
223
264
325
432
546
614
731
960
Speed
0 ~ 3600 (rpm)
Voltage
0 ~ 380V (480V Note3))

2. Specification
2-2
SV[][][][]iV5-4
550
750
900
1100
1320
1600
2200
2800
3150
3750
5000
Inverter weight
[kg(lbs)]
63
(139)
68
(150)
98
(216)
98
(216)
122
(269)
122
(269)
175
(386)
243
(536)
380
(838)
380
(838)
476
(1050)
Input
Voltage
3380 ~ 480V (-10% ~ +10%) Note4)
Frequency
50 ~ 60 Hz (5%)
※The electrical specifications of the MD type (2.2~22kW Class) are the same as
the above. (In case of 2.2 and 3.7 kW products, refer to the weight in above
table.)
SV[][][]iV5-
2/4DB(MD)
055
075
110
150
185
220
Inverter weight
[kg(lbs)]
7.7
(16.9)
7.7
(16.9)
13.7
(30.2)
13.7
(30.2)
20.3
(44.7)
20.3
(44.7)
2.1.3 400V Class (DC power input type)
SV[][][]iV5-4(DC)
055
075
110
150
185
220
300
370
450
550
Max.applicable
motoroutput
Note1)
[HP]
7.5
10
15
20
25
30
40
50
60
75
[kW]
5.5
7.5
11
15
18.5
22
30
37
45
55
Output
Capacity [kVA]Note2)
9.1
12.2
18.3
22.9
29.7
34.3
46
57
70
85
Rated current [A]
12
16
24
30
39
45
61
75
91
110
Speed
0 ~ 3600 (rpm)
Voltage
0 ~ 380V (480V Note3))
Input rated voltage
DC 540 ~ 680V (+10%) Note5)
Inverter weight
[kg(lbs)]
12
(26)
12
(26)
24
(53)
24.5
(54)
25
(55)
25
(55)
38.5
(84)
38.5
(84)
50
(110)
50
(110)
SV[][][]iV5-4(DC)
750
900
1100
1320
1600
2200
2800
3150
3750
5000
Max.applicablemotor
output(Note1)
[HP]
100
120
150
175
215
300
373
420
500
666
[kW]
75
90
110
132
160
220
280
315
375
500
Output
Capacity [kVA] Note2)
116
140
170
200
250
329
416
468
557
732
Rated current [A]
152
183
223
264
325
432
546
614
731
960
Speed
0 ~ 3600 (rpm)
Voltage
0 ~ 380V (480V Note3))
Input rated voltage
DC 540 ~ 680V (+10%) Note5)
Inverter weight
[kg(lbs)]
55
(121)
79
(174)
79
(174)
98.5
(217)
98.5
(217)
154.5
(340)
206
(454)
343
(756)
343
(756)
466
(1028)

2. Specification
2-3
Note)
1. It represents the output capacity of maximum applicable motor in case 4-pole
motor is used. (220V is based on 220V and 400V is based on 440V.)
2. Rated capacity (=√3*V*I) is calculated based on 220V for 200V class, 440V for
400V class.
3. Maximum output voltage cannot be generated above specified input voltage.
4. Derate the rated current by 10% when the input voltage is in the range above
480V.
5. Rated current is derated by 10% above 680VDC of input voltage.
2.2 Common Specification
Items
Detailed Specification
Inverter type
Voltage source inverter using IGBT
Control
Control method
Vector control inverter with speed sensor attached,
Sensorless Vector control inverter
Speed control
accuracy
Analog setting: 0.1% (25 10℃) of max. Speed
(1,800 rpm)
Digital setting: 0.1% (0 ~ 40℃) of max. Speed
(1,800 rpm)
Speed setting
resolution
Analog setting: 0.1% of maximum Speed
Digital setting: 0.1 rpm
Cut-off frequency of
ASR
50Hz
Torque control
accuracy
3%
Overload Capacity
CT: 150%/1Min
Accel/
Decel
Time
setting
0.00 ~ 6000.0 sec (Time unit can be set)
Combination
4 combinations of acceleration/deceleration Time
Pattern
Linear, S-Curve
Braking
Braking method
Dynamic braking using external resistors
Braking torque
150%
Braking resistor
External braking resistor should be attached.
Input
Speed settings
Digital setting via keypad
Multi-step speed setting by input terminal
selection
Analog input settings
Remote setting by option card

2. Specification
2-4
Items
Detailed Specification
Analog input
3 channels
(AI1, AI2, AI3*, (AI4,AI5: Extended I/O))
-1010V, 1010V, 010V, 100V,020mA,
200mA, Motor NTC (*Only AI3(AI5:Extended I/O)
selectable)
Selectable among 17 different user-defined
functions
AI3(AI5): Motor NTC only available with Higen
motors
Contact input
FX, RX, BX, RST, P1 ~ P7
Selectable among 46 different user-defined input
functions
Output
Analog output
2 channels (AO1, AO2)
-10V 10V, 10 -10V, 0 10V,
10 0V output
Selectable among 39 different user-defined
functions
Contact output
2 channels (1A-1B, 2A-2B)
Fault alarm relay: 1 channel (30A-30C, 30B-30C)
Open Collector
1 Channel (OC1/EG)
Protection
Overcurrent, Overvoltage, Low voltage, Inverter
overheat, Inverter thermal sensor malfunction,
Motor overheat, Motor thermal sensor malfunction,
Overspeed, Instantaneous IGBT gate block (BX),
Fuse blown open, External Trip, Pulse encoder
malfunction, Electronic thermal function, Inverter
overload, Ground fault current, IGBT short,
Communication error, Input/Output phase open
protection
Environment
Installation condition
Indoor, Free of Corrosive gas and Direct sunlight
(Pollution Degree 2)
Ambient temperature
-10 ~ 40C (Non-frozen condition)
Humidity
Below RH 90% (Dewdrop should not be formed)
Cooling method
Forced ventilation by cooling fan
IP Type
IP00: 2.2 ~ 22 kW (MD), 30 ~ 500kW
IP20: 5.5 ~ 2.2 kW (Press)
Altitude, Vibration
Below 1000m above sea level,
Below 5.9m/s2(=0.6G)

3. Installation and Wiring
3-1
Chapter 3 –Installation and Wiring
Be sure to check mechanical and electrical installation environment before you
start the inverter. Read through the checking list below. Be sure to read through
the Caution for Safety on this User's Manual prior to the operation of inverter.
Checking List
Mechanical Installation Checking List
Be sure to check the surrounding environment is allowed for operation. (Read
through the ‘Caution on Installation’)
Inverter is a heat-generating device. Be sure to sufficiently secure the
surrounding space to prevent thermal saturation phenomenon.
Be sure to check air is circulated in a normal condition.
Be sure to check motor and drive system are ready to start.
Electrical Installation Checking List
Make sure that the protective grounding is properly done.
Replace the condenser with new one if it lasted longer than two years.
Set the input voltage to the nominal input voltage of the inverter.
Check if the input voltage connected with R, S, T and then fasten them tightly
using an accurate torque wrench.
Check if input power fuse and circuit breaker are properly installed.
Install the motor cable away from the other cable.
Check if the ext. input/output is properly connected.
Check if the input voltage is properly connected with the output terminal of
inverter.
This chapter describes general items for the installation and wiring of an
inverter and includes instruction for wiring to power terminal and control
one and caution in case of wiring, and also explains the function of each
terminal for both power and control.

3. Installation and Wiring
3-2
3.1 Caution on Installation
3.1.1 Do not install the inverter in a location where excessive vibration
is present.
Be cautious when installing on presses or moving equipment.
3.1.2 Caution on ambient temperature
Ambient temperature greatly affects inverter lifetime, therefore be sure to
keep the ambient temperature of installation location at –10 to 40℃.
3.1.3 Install the inverter on the uninflammable material. The inverter
operates at high-temperature.
3.1.4 Avoid a humid and hot location.
3.1.5 Install the inverter in a location free of oil mist and dust.
Totally enclosed panel can be used to protect the inverter against that
materials. Cooling air must be clean, free from corrosive materials and
electrically conductive dust.

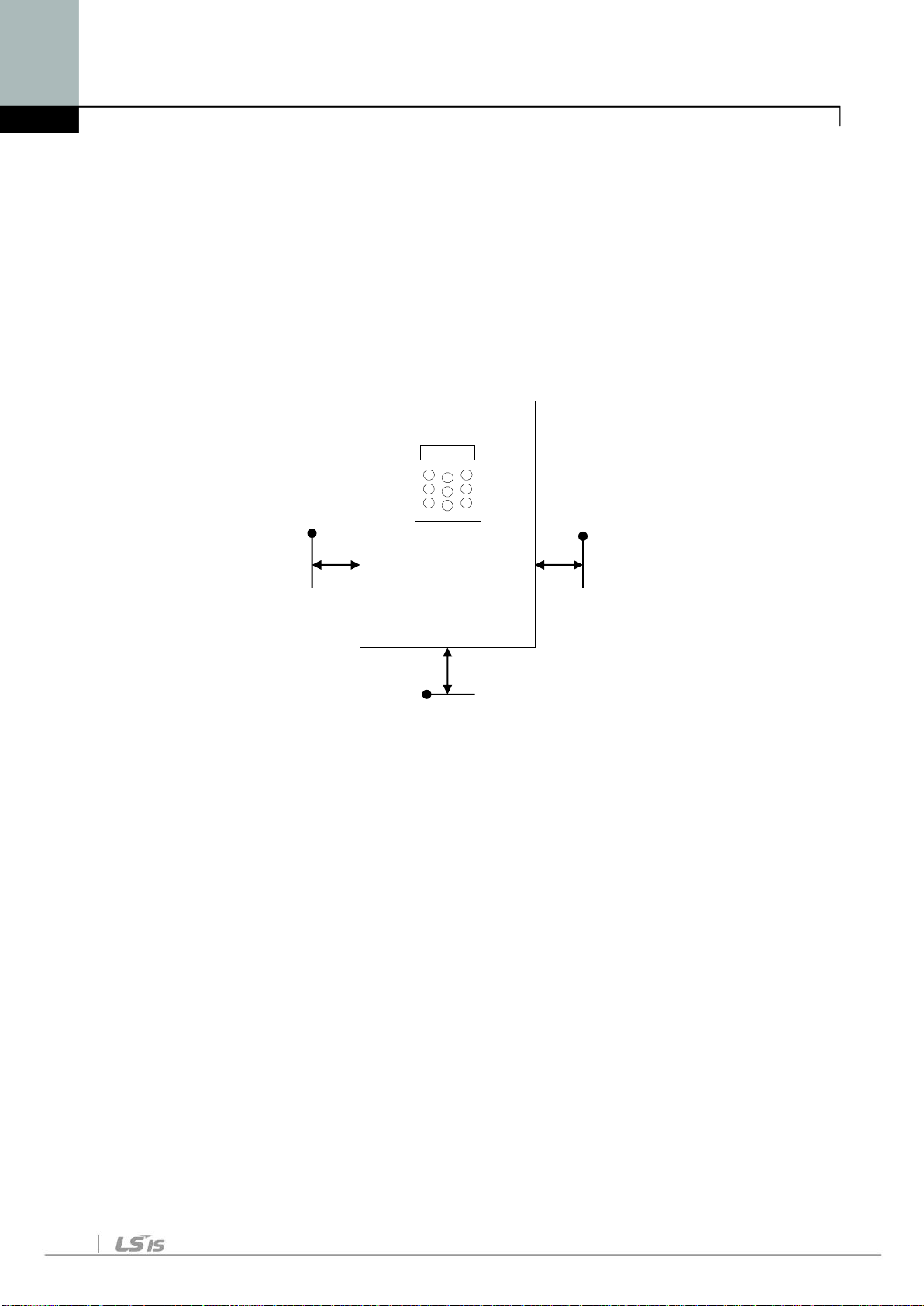

Measurement point of
Ambient temperature
5 cm
5 cm
5 cm
SV-iV5

3. Installation and Wiring
3-3
3.1.6 Secure the installation space enough to protect the inverter
against the overheating.
At least the room that 30 cm from upper and lower of inverter and 20 cm
from left and right of inverter is required for installing more than 30 kW
products.
3.1.7 Special care should be taken in case the inverter is to be installed in
the panel.
In case more than 2 inverters are to be installed or ventilation fan is to be
installed in the panel, make sure that inverter and ventilation fan is properly
installed. If they are poorly installed, it causes the increase of an ambient
temperature and less effective ventilation. Therefore, be sure to keep the
ambient temperature of inverter below the allowable temperature.
3.1.8 Install the inverter tightly not to get loose using proper sized bolt or
screw.
Min. 5 cm
Min. 10 cm
Min. 5cm
SV-iV5
Min. 10 cm

3. Installation and Wiring
3-4
3.2 Basic Wiring
Do the wiring of inverter and then check the wiring of main circuit and control circuit
before starting it. Read through the checking list as below.
Checking List
Inverter, Peripherals, Option card
Is the inverter supplied in the form as ordered?
Are the type and numbers of peripherals (Resistance, DC reactor, Noise
filter, etc.) supplied as ordered?
Is the type of option supplied as supplied?
Place of the inverter to be installed and how to install it
Is the inverter installed on a right place in a right way?
Power voltage, Output voltage
Is power voltage within the range of inverter input voltage specified?
Does the rated output comply with the inverter output specification?
Is the rating done properly?
Main Circuit Wiring
Is the power input using the circuit breaker?
Is the rating of the circuit breaker done properly?
Is the power wiring input properly to the inverter input terminal? [If the input
power is connected with the input terminal (U, V, W) it may cause damage
to the inverter]
Is the motor wiring connected with the inverter output terminal in a proper
phase sequence? (Otherwise, the motor will be rotated adversely.)
Is 600V vinyl insulation wire adopted for the power and motor wires?
Is the main circuit wire in a proper size?
Is the ground line installed in a proper way?
Are the screws of the main circuit terminal and the ground terminal
fastened tightly?
In the event several motors are operated with one inverter, does each
motor have a overload protecting circuit?
In the event it adopts braking resistance or braking resistance unit, is an
electronic contactor installed at the inverter power side so as to isolate the
inverter from the power by protecting the resistance from overload?
Isn't power condenser, surge killer, or radio noise filter connected with the
output side?

3. Installation and Wiring
3-5
Checking List
Control Circuit Wiring
Is a twisted pair shielded wire adopted for the inverter control circuit wiring?
Is the covered wire with shield connected with the ground terminal?
In the event it is operated in 3-Wire sequence, is the control circuit wiring
done after the parameter of multi-function contact input terminal is
modified?
Is the wiring of the optional devices done properly?
Aren't there any wiring mis-connected?
Are the inverter control circuit terminal screws fastened tightly?
Aren't there any wire fragments or screw left?
Doesn't the remaining wire connected with the terminal contact the
terminals nearby?
Is the control circuit wiring isolated from the main circuit wiring in the duct
or control panel?
Doesn't the length of wiring exceed 300m ? (In the case of the produce of
3.7kW or less, the entire length of wiring should be 100m or less)
Doesn't the wiring of safety input exceed 30m?

3. Installation and Wiring
3-6
AC Power Input Type
SV022, 037, 055, 075, 110, 150, 185, 220iV5-2(DB)
SV022, 037, 055, 075, 110, 150, 185, 220iV5-4(DB)
PE
R
S
T
G
U
V
W
B1 B2
FX
P1(MM0)
P2(MM1)
P3(ATO)
CM
VREF
AI 1
5G
IM
3P AC input
(220/440V)
(50/60Hz)
GE
A+
RA
GE
RB
E
GE
MCMCCB
Multi-function input1
Multi-function input2
Multi-function input3
Common
Potentiometer
10 k ohm, 1/2W
Multi-function input
DB Resistor
(optional)
G
Encoder A
Phase input
Note) : Main circuit , : Control circuit
Shield
P4(FHM)
P5(BAT)
P6(BRC)
P7(MCC)
STARVERT - iV5
Multi - function input 4
Multi- function input5
Multi - function input6
Multi -function input7
AI 2
AI 3
Power supply (+10V)
Analog input 1
Analog input 2
Analog input 3
Common
Analog input
(10 ~ -10V)
(-10 ~10V)
( 0 ~ 10V)
(10 ~ 0V)
(0 ~20mA)
( 20 ~0mA)
(Motor NTC/PTC)
Encoder B
Phase input
Power supply (5V)
Common(0V)
Open collector
output
ACR
AO1
AO2
5G
Analog output1
Analog output 2
Common
Analog
output
(-10 ~ 10V)
(10 ~ -10V)
(0 ~ 10V)
(10 ~0V)
30A
30C
30B
1A
1B
2B
2A
Fault relay output
( ~ AC 250V, 1A)
( ~ DC 30 V, 1A)
Auxiliary relay
output
( ~ AC 250V, 1A)
( ~ DC 30V, 1A)
Open collector
output
(24V, 50mA)
OC1
EG
B+
A-
B-
A phase encoder pulse output
B phase encoder pulse output
Encoder output Common
Encoder output Common
AC1
AC2
Aux. power source
for control circuit Insulated
Trasformer
Note 1)
RX
BX
RST
FWD run/stop command
REV run/stop command
Emergency stop
Fault reset
24 V
(50/60Hz)(220V)
Encoder
(Line Drive Type)
Note 1) It is used when inverter control circuit is energized from auxiliary power
source (220 VAC) separated from main power supply. Use insulated transformer to
separate from main power supply. (Transformer capacity: Above 100VA
recommended) Only 11~22kW-2(Press) and 5.5~22kW-4(Press/Mold) supported
(Other products will be released later.)
Main Power Circuit
Control Circuit

3. Installation and Wiring
3-7
AC Power Input Type
SV300, 370iV5-2
SV300, 370, 450, 550, 750, 900, 1100, 1320, 1600, 2200, 2800, 3150, 3750iV5-4
Note: AC Fans for 300~2200iV5-4 series should be changed the input power
source of transformer 1st tap corresponding with that of inverter. (Factory
default is 380VAC)
PE
R
S
T
G
U
V
W
P1 N
FX
RX
BX
RST
P1(MM0)
P2(MM1)
P3(ATO)
CM
VREF
AI1
5G
IM
3 phase AC
input
(220/440V)
(50/60Hz)
GE
A+
RA
GE
RB
E
GE
MCMCCB
24 V
DB Resistor
(Optional)
G
Encoder A
Phase input
Note) : Main circuit, : Control circuit
Shield
P4(FHM)
P5(BAT)
P6(BRC)
P7(MCC)
STARVERT - iV5
AI2
AI3
Encoder B
Phase input
Power supply (+5V)
Common (0V)
Open collector
output
ACR
P2
B2
P/B1
N
G
DB Unit
(Option)
30A
30C
30B
1A
1B
2B
2A
Open collector
output
( 24V, 50mA)
OC1
EG
AO1
AO2
5G
Analog
output
(-10 ~ 10V)
(10 ~ -10V)
(0 ~ 10V)
(10 ~ 0V)
A-
B+
B-
FWD run/stop command
REV run/stop command
Emergency stop
Fault reset
Multi-function input 1
Multi-function input 2
Common
Multi-function input
Potentiometer
10 kohm, 1/2W Power supply
(+10V)
Analog input 1
Analog input 2
Analog input 3
Common
Analog input
(10 ~ -10V)
(-10 ~ 10V)
(0 ~10V)
(10 ~ 0V)
(0 ~ 20mA)
(20 ~ 0mA)
(Motor NTC/PTC)
A phase encoder pulse output
B phase encoder pulse output
Encoder output Common
Encoder output Common
Fault relay output
( ~ AC 250V, 1A)
( ~ DC 30V, 1A)
Auxiliary relay
output
( ~ AC 250V, 1A)
( ~ DC 30V, 1A)
Multi-function output 1
Multi-function output 2
Common
Encoder
(Line Drive Type)
Multi-function input 3
Multi-function input 4
Multi-function input 5
Multi-function input 6
Multi-function input 7
Note 1) It is used when inverter control circuit is energized from auxiliary power
source (220 VAC) without main power supply. Use insulated transformer
to separate from main power supply. (Transformer capacity: above 100VA
recommended)
Main Power Circuit
Control Circuit
