LSI LASTEM DNB146 User manual

INSTUM_ 04861 Page 1/15
Environmental monitoring solutions
3-axis ultrasonic anemometer
DNB146
User manual
Updated 07/03/2022

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 2/15
Table of contents
1 Description................................................................................................................................................. 3
1.1 Main features .................................................................................................................................... 3
1.2 Technical specifications..................................................................................................................... 3
2 Installation................................................................................................................................................. 5
2.1 General safety rules........................................................................................................................... 5
2.2 Mechanical installation...................................................................................................................... 6
2.3 Electrical connections........................................................................................................................ 7
2.3.1 RS-485 serial connection ........................................................................................................... 8
2.3.2 Analog Output connection ........................................................................................................ 8
2.3.3 Connection to LSI LASTEM data logger...................................................................................... 8
3 Configuration............................................................................................................................................. 9
3.1 Connecting PC to the sensor ............................................................................................................. 9
3.2 Accessing the configuration............................................................................................................ 10
3.3 Disabling compass ........................................................................................................................... 10
4 LSI Lastem data logger configuration ...................................................................................................... 11
4.1 Use of analog outputs...................................................................................................................... 11
4.2 Use of digital output........................................................................................................................ 11
5 Modbus-RTU............................................................................................................................................ 12
5.1 Supported commands ..................................................................................................................... 12
5.2 Map of registers............................................................................................................................... 12
6 Maintenance............................................................................................................................................ 13
6.1 Testing ............................................................................................................................................. 13
6.2 Periodic maintenance...................................................................................................................... 15
7 Accessories / Spare parts......................................................................................................................... 15
8 Disposal.................................................................................................................................................... 15
9 How to contact LSI LASTEM..................................................................................................................... 15

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 3/15
1Description
1.1 Main features
DNB146 is 3-axes ultrasonic anemometer for measuring surface wind speed and wind direction.
It is ideal for general meteorological applications requiring high wind speed range, no moving parts for low-
maintenance or measurements with fast response even in very low-range wind speed conditions.
The sensor is equipped with a magnetic compass for automatic alignment to the Magnetic North.
It has 5 4÷20 mA analog outputs and a digital output on RS-485 serial with Modbus-RTU protocol.
The anemometer can be connected to LSI LASTEM acquisition systems, or any other device using such kind
of input.
1.2 Technical specifications
DNB146
Wind speed
Principle
Ultrasounds
Measuring range
0÷70 m/s
Resolution
0.01 m/s
Accuracy
± 1% read value
Wind direction
Principle
Ultrasounds
Measuring range
0÷360°
Resolution
0.1°
Accuracy
± 1°
Sonic
temperature
Range
-40÷60 °C
Resolution
0.1°C
Accuracy
± 1°
Compass
Range
0÷3600/10°
Resolution
0.1°
Accuracy
± 1°
General features
Power supply
12÷30 Vdc
Power consumption
110 mA @ 15 Vdc
Serial output
RS-485:
•Wind speed
•Wind direction
•Elevation
•Sonic temperature
•Compass
•Errors
Communication protocols
Modbus-RTU
Analog outputs
5 x 4÷20 mA (max. load 500 Ω)
•Wind speed
•Wind direction
•Elevation
•Sonic temperature
•Compass

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 4/15
General features
Electrical connection
26-pole male connector
Operating temperature
-40÷60 °C
Protection degree
IP 66
Weight
1500 g
Housing
Luran/aluminum
Mounting
On mast ∅33 mm
On mast ∅55 mm (using DNB192 adapter –not included)
Data logger compatibility
Analog outputs:
•M-Log code ELO008 (one quantity must be excluded)
•R-Log code ELR515 (one quantity must be excluded)
•E-Log
•ALIEM
RS-485 digital output:
•Alpha-Log
•E-Log code ELO3305.1

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 5/15
2Installation
For the installation choose a well-exposed spot for the anemometer. The WMO (World Meteorological Or-
ganization) suggests that the sensor should be assembled 10 m off the ground; in a place where the dis-
tance between the anemometer and surrounding obstacles which might disturb the measurements is at
least 10 times the height of those objects from the ground. As such a position is difficult to find, the WMO
suggests that the sensor should be assembled in a spot which is reasonably uninfluenced by local obstruc-
tions.
2.1 General safety rules
Please read the following general safety rules to avoid injuries to people and prevent damages to the prod-
uct or to possible other products connected with it. To avoid any damages, use this product exclusively ac-
cording to the instructions herein contained.
The installation and maintenance procedures must be carried-out only by authorized and skilled service
personnel.
Power the instrument in a suitable manner. Pay attention and observe the power supplies like indicated for
the model in your possession.
Carry-out all connections in a suitable manner. Pay strict attention to the connection diagrams supplied
with the instrument.
Do not use the product in case of suspected malfunctions. In case of suspected malfunction, do not power
the instrument and contact authorized technical support immediately.
Before you carry-out any operation on electrical connections, power supply system, sensors and communi-
cation apparatus:
•Disconnect the power supply.
•Discharge the accumulated electrostatic discharges touching an earthed conductor or apparatus.

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 6/15
2.2 Mechanical installation
1. Mount the anemometer on the
mast ∅33 mm. In case of mast
∅50 mm, use the DNB192
adapter.
2. Screw the 26-pole fe-
male connector of the
cable to the anemome-
ter. Ensure connection
stability by tightening
the connector external
nut.
3. The anemometer does not require
positioning as the orientation is
determined by the internal com-
pass. However, if it must be disa-
bled (§3.3), for example due to
magnetic interference with sur-
rounding metallic objects, it must
be positioned with the metal sup-
port opposite the connector facing
Nord.
4. Once the align-
ment is complete,
fix it on the sup-
port mast by tight-
ening the cable tie
at the bot-tom of
the anemometer.
Please note the following:
➢The anemometer measures the provenience of the wind.
➢The measure refers:
oto magnetic North if the compass is active (default condition)
oto geographical North (support reference opposite the connector) if the compass is disabled
➢Geographical North differs from magnetic North indicated by the compass; the difference, called
magnetic declination, depends on the area in which the sensor is installed; for example, in North
America it is about 15° while in Europe it is less than 3°.

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 7/15
2.3 Electrical connections
All connections are performed through a 26-pole male connector situated at the bottom of the anemome-
ter. The figure and the table below show numbers and function of the connector contacts:
Pin connector
Signal
Description
Cable wire color
H
PWR-
Negative Power Supply
Brown
J
PWR- (TX+*)
Negative Power Supply (Tx B RS-422*)
Black
G
PWR+
Positive Power Supply
Grey & Brown
K
PWR+ (TX-*)
Positive Power Supply (Tx A RS-422*)
Red
F
DATA + (RX+*)
Pole B RS-485 (Rx B RS-422*)
White & Green
W
DATA - (RX-*)
Pole A RS-485 (Rx A RS-422*)
Grey
X
SG
Ground RS-232
Yellow
Y
TXD
Tx data RS-232
White & Yellow
L
RXD
Rx data RS-232
Yellow & Brown
E
OUTV1
Analog Out voltage 1
Pink & Brown
V
OUTV2
Analog Out voltage 2
Red & Blue
c
OUTV3
Analog Out voltage 3
Grey & Red
Z
OUTV4
Analog Out voltage 4
Brown & Green
M
OUTV5
Analog Out voltage 5
Green
D
REF
Analog ground
Blue
U
OUTmA1
Analog Out current 1
Pink
b
OUTmA2
Analog Out current 2
White
a
OUTmA3
Analog Out current 3
White & Grey
N
OUTmA4
Analog Out current 4
White & Red
C
OUTmA5
Analog Out current 5
Violet
T
Q0
Reserved
-
S
Q1
Reserved
-
P
Q2
Reserved
-
B
Q3
Reserved
-
A
Q4
Reserved
-
R
SHIELD
Shielding
Shield
*RS-422 available on request.

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 8/15
2.3.1 RS-485 serial connection
For more information regarding RS-485, consult the EIA (Electronic Industries Association).
2.3.2 Analog Output connection
2.3.3 Connection to LSI LASTEM data logger
For the wiring connection to LSI LASTEM data logger see the DISACC200074 supplied with the anemometer.

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 9/15
3Configuration
The DNB146 anemometer is ready for working with LSI LASTEM data loggers. The table below shows its
configuration.
Path\Parameter
Description
Value
Baud
Communication speed of the serial ports
9600 bps
Threshold
Minimum wind speed threshold
0.02 m/s
Average interval
Time interval of the average calculation
1 s
Analog output\ma-V Ranges
Analog output type and range
4÷20 mA
Output quantity\user
Sensor output quantities
(AN1, AN2, AN3, AN4, AN5)
789tce
(Wind speed, Wind direction,
Elevation, Sonic temperature,
Compass)
Wind Units
Wind speed unit of measurement
m/s
COMM Mode
Method of communication
ModBusRTU
COMM Mode\ModBusRTU
Serial data format
8N1
ID
Modbus address
1
3.1 Connecting PC to the sensor
By means of a terminal emulation program, such as Windows Hyper terminal, it is possible to modify the
sensor configuration parameters from the PC by connecting via an RS-232/RS-485 converter (not supplied).
To access the configuration, proceed as follows:
1. Connect the cable to the sensor.
2. Connect the cable wires to the RS-232/RS-485
converter:
➢White & Green: Data +
➢Grey: Data -
3. Connect the cable wires to the power sup-
ply*:
➢Grey & Brown: + Vcc
➢Brown: - Vcc
*E-Log supplies 12 Vdc on terminals 31+, 32-, while M-Log and R-Log
on terminals 28-, 30+. Alpha-Log on terminals 14+, 16-.
4. Connect the RS-232/RS-485 converter to the
PC and identify the serial port number associ-
ated to the device.
5. Start the terminal emulation program and
choose the serial port number identified in
the previous point, then set the communica-
tion parameters to 9600 bps, 8data bits,
None Parity, 1Stop bit, No flow control.

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 10/15

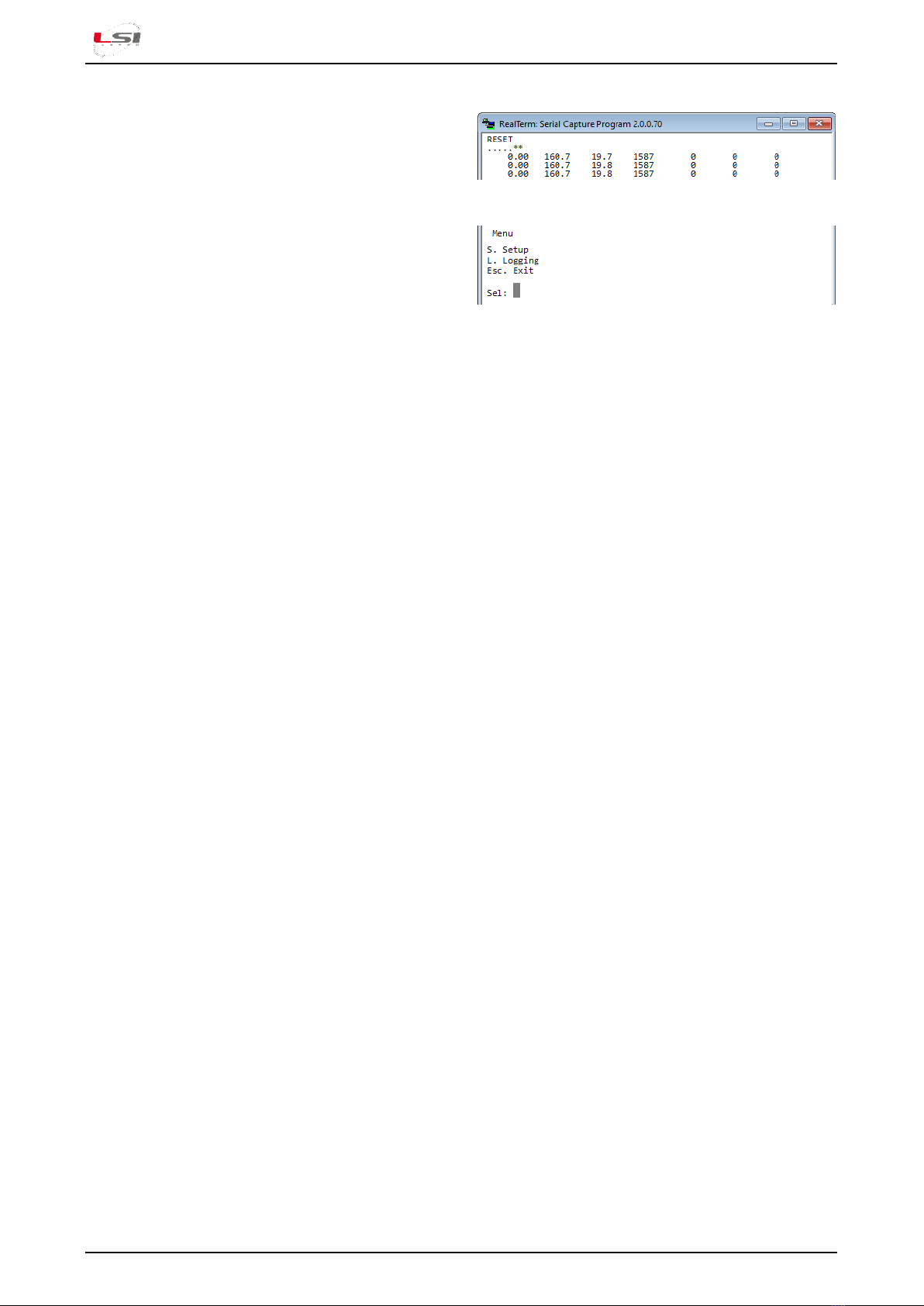

3.2 Accessing the configuration
Once the anemometer has been connected to the PC
(§3.1), turn on the sensor and check the reception of
the values on the terminal.
Press the key ?to access the main menu.
The menu items can be selected by entering the let-
ter assigned to each item. Upon selection a submenu
is opened or the selected parameter is displayed with
its value. Changes to values are confirmed with Enter
or discarded with Esc.
If no key is pressed on the PC, the sensor spontaneously returns to the previous menu until exiting Setup.
3.3 Disabling compass
To disable the compass, connect the anemometer to the PC (§3.1), turn on the sensor and hold down the #
key. Then proceed with the configuration for operation with manual North orientation.
To position the sensor, refer to §2.2.

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 11/15
4LSI Lastem data logger configuration
The DNB146 sensor is configured to work with both analog and digital outputs. Configure the type of sensor
output based on the data logger in use.
Sensor outputs
Data logger
Analog (5 x 4÷20 mA)
Digital (RS-485 Modbus RTU)
Alpha-Log
X
ALIEM
X
E-Log
X
X
M-Log
X*
X
R-Log
X*
X
* The analog inputs available are 4, so it is necessary to exclude a measurement.
4.1 Use of analog outputs
To use the sensor with analog outputs, start the 3DOM program and proceed as follows:
➢Open the current configuration of the data logger.
➢Add the DNB146 An sensor from the sensor library.
➢Then, for each measurement:
oIn the General tab, if you use multiple sensors of the same type, customize the name of the
measures to distinguish them from each other.
oIn the Elaborations tab, choose the desired elaborations.
➢Save the configuration and send it to the data logger.
4.2 Use of digital output
To use the sensor with analog outputs, start the 3DOM program and proceed as follows:
➢Open the current configuration of the data logger.
➢Add the DNB146 Dig sensor from the sensor library. If the data logger in use is Alpha-Log, you will
be asked to set the Modbus as input type and the communication parameters of the serial port
where the sensor will be connected.
➢Then, for each measurement:
oIn the General tab, if you use multiple sensors of the same type, customize the name of the
measures to distinguish them from each other.
oIn the Elaborations tab, choose the desired elaborations.
➢If the data logger in use is E-Log, set the Modbus protocol and the communication parameters of
the sensor in the serial line 2 of the data logger.
➢Save the configuration and send it to the data logger.

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 12/15
5Modbus-RTU
The DNB146 ultrasonic anemometer implements the Modbus protocol in RTU slave mode.
5.1 Supported commands
The sensor supports the Read input registers (0x04) command for accessing the acquired data.
If the data request refers to an incorrect command or register, the sensor does not generate any response
message.
5.2 Map of registers
Register #
Register
address
Data
Multiplication
factor
Format
1
0x00
Wind speed (m/s)
100
unsigned 16 bits
2
0x01
Wind direction (°)
10
unsigned 16 bits
3
0x02
Elevation (°)
10
signed 16 bits
4
0x03
Sonic temperature (°C)
10
signed 16 bits
5
0x04
compass (°)
10
unsigned 16 bits
6
0x05
Error code (-)
1
unsigned 16 bits
7
0x06
Previous error code (-)
1
unsigned 16 bits
8
0x07
Number of invalid measurement (-)
1
unsigned 16 bits
To obtain the correct measurement, the received value must be divided by the relative multiplication fac-
tor.
Error codes table
Error code
Description / Anomaly
1x
First pair lower transducer* error
2x
First pair upper transducer error
3x
Second pair lower transducer error
4x
Second pair upper transducer error
5x
Third pair lower transducer error
6x
Third pair upper transducer error
x0
None (combined with 0 for transducer too)
x1
Electrical interruption transducer circuit. Transducer’s break. Obstruction of the path
x2
x5
Time anomaly or wave amplitude anomaly of ultrasonic pulse
x7
Compass anomaly
xN
Internal codes
* Sonic transducers are grouped in pairs of facing elements. For the first pair, the upper transducer is next to the metallic support which indicates
the North direction. The other pairs follow anti-clockwise.
Error example:
In case of an anomaly in transducer 4, due to a physical obstruction in the measurement volume, which
brings to the rejection of 2 raw measurements during a measure loop, the three numbers are:
41 0 2
Without anomalies:
0 0 0
For additional information regarding the protocol, visit the website www.modbus.org.

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 13/15
6Maintenance
6.1 Testing
This type of testing is only required if the user wishes to verify the well functioning of each part of the
anemometer. Please note that these tests are not intended to establish the operational limitations of
the sensor.
Visual check
-body of the anemometer is in a level position
-there are no foreign objects in the transducer area
Operational check for 4÷20 mA output
To check the current output you need a multimeter and an air flow (you can use a hair dryer).
1. Set the multimeter to measure signals in direct current (DC) and 20 mA scale.
2. Referring to DISACC200074, connect the multimeter to the first output (wind speed) and power
on the anemometer.
3. Place the sensor where there are not wind flows (0 m/s) and read 4 mA on the multimeter.
4. Subject the sensor to the air flow and read a value grater then 4 mA on the multimeter.
5. Connect the multimeter to the second output (wind direction).
6. Subject the sensor to the air flows with the angles 0, 90, 180 and 270° checking the correspond-
ing current values as indicated in the following table:
Air flow provenience (°)
Output (mA)
0 (o 360)
4 (o 20)
90
8
180
12
270
16
7. Connect the multimeter to the third output (elevation).
8. Subject the sensor to the air flows from bottom to top and read a value between 12 and 20
mA on the multimeter.
9. Subject the sensor to the air flows from top to bottom and read a value between 4 and 12
mA on the multimeter.
10. Connect the multimeter to the fourth output (sonic temperature).
11. Check that the output value is congruent with the ambient temperature. Below are the current
values based on some temperature values.
°C
mA
°C
mA
°C
mA
°C
mA
°C
mA
-4
9.76
4
11.04
12
12.32
20
13.60
28
14.88
-2
10.08
6
11.36
14
12.64
22
13.92
30
15.20
0
10.40
8
11.68
16
12.96
24
14.24
32
15.52
2
10.72
10
12.00
18
13.28
26
14.56
34
15.84
12. Connect the multimeter to the fifth output (compass).
13. Check that the output value is congruent with the value read by the anemometer. Below are the
current values based on some angle values.

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 14/15
°
mA
°
mA
°
mA
°
mA
°
mA
°
mA
0 (o 360)
4 (o 20)
60
6.67
120
9.33
180
12.00
240
14.67
300
17.33
10
4.44
70
7.11
130
9.78
190
12.44
250
15.11
310
17.78
20
4.89
80
7.56
140
10.22
200
12.89
260
15.56
320
18.22
30
5.33
90
8.00
150
10.67
210
13.33
270
16.00
330
18.67
40
5.78
100
8.44
160
11.11
220
13.78
280
16.44
340
19.11
50
6.22
110
8.89
170
11.55
230
14.22
290
16.89
350
19.56
Operational check for RS-485 Modbus-RTU output
Verification of the RS-485 digital output can be done using a PC in which the third-party program modpoll
(https://www.modbusdriver.com/modpoll.html) is installed. For the air flow you can use a hair dryer.
1. Connect the anemometer to the PC using a RS-232/RS-485 serial converter (§3.1); power on the
sensor.
2. Open a DOS Prompt window and type the following command (it is assumed that the transmission
parameters are set as follows: Baudrate: 9600 bps, Parity: None and that the PC serial port used is
COM1):
modpoll -a 1 -r 1 -c 8 -t 3 COM1 [Enter]
The program displays the measurement values in the following order: Wind Speed, Wind Direction,
Elevation, Sonic Temperature, Compass, Error Code, Previous Error Code and Error Measurements.
For the list of available commands, type the command modpoll /help.
[CTRL] + [C] to stop the program.
3. Subject the sensor to the air flows with the angles 0, 90, 180 and 270° and, for each angle, check
the values obtained considering that the wind speed value is multiplied by 100 and the others, with
the exception of the error codes, are multiplied by 10 (§5.2).
Here an example with a polling rate of 5 seconds:
modpoll 3.1 - FieldTalk(tm) Modbus(R) Master Simulator
Copyright (c) 2002-2011 proconX Pty Ltd
Visit http://www.modbusdriver.com for Modbus libraries and tools.
Protocol configuration: Modbus RTU
Slave configuration...: address = 1, start reference = 1, count = 2
Communication.........: COM1, 9600, 8, 1, none, t/o 1.00 s, poll rate 5000 ms
Data type.............: 16-bit register, input register table
-- Polling slave... (Ctrl-C to stop)
[1]: 33
[2]: 869
[3]: 0
[4]:234
[5]:1110
[6]:0
[7]:0
[8]0

3-axis ultrasonic anemometer –User manual
INSTUM_ 04861Page 15/15
6.2 Periodic maintenance
The absence of moving parts minimizes the sensor maintenance.
•Clean the anemometer paying attention at the pairs of transducers.
•Check and possibly restore the integrity of the connector seal.
LSI LASTEM suggests to check the anemometer calibration every 2 years.
7Accessories / Spare parts
Code
Description
DNB192
Adapter for DNB146 sensor to pole Ø 50 mm
SVICA2203
ISO9001 type calibration certificate (Wind Speed)
SVICA2304
ISO9001 type calibration certificate (Wind Direction)
SVACA2216
ISO17025-ACCREDIA type calibration certificate (Wind Speed)
8Disposal
This product is a device with high electronic content. In accordance with the standards of environmental
protection and collection, LSI LASTEM recommends handling the product as waste of electrical and elec-
tronic equipment (RAEE). For this reason, at the end of its life, the instrument must be kept apart from oth-
er wastes.
LSI LASTEM is liable for the compliance of the production, sales and disposal lines of this
product, safeguarding the rights of the consumer. Unauthorized disposal of this product
will be punished by the law.
9How to contact LSI LASTEM
In case of problem contact the technical support of LSI LASTEM sending an e-mail to support@lsi-
lastem.com, or compiling the technical support request module at www.lsi-lastem.com.
For further information refer to addresses and numbers below:
•Phone number +39 02 95.414.1 (switchboard)
•Address: Via ex S.P. 161 –Dosso n. 9 - 20049 Settala, Milano
•Web site: www.lsi-lastem.com
•Commercial service: [email protected]om
•After-sales service: [email protected]om, Repairs: [e-mail]
