Human Machine Interface
XP-Remote
User’s Manual
 Read this manual carefully before
installing, wiring, operating, servicing
or inspecting this equipment.
Keep this manual within easy reach
for quick reference.
XGT Panel
http://www.lsis.com

Before using the product…
To use the product safely and effectively, please read this instruction manual thoroughly before use.
►Please keep to the safety precaution, for it is to prevent accidents and potential danger from
occurring.
►Safety precaution is classified into ‘Warning’and ‘Caution’and their meanings are as follows.
Violating the instruction may result in serious personal injury or death.
Violating the instruction may result in slight personal injury or product
damage.
►The indicated illustrations on the product and in the manual have the following meanings.
Be cautious, for danger may be present.
Be cautious,for there is a possibility of an electric shock.
►After reading the instruction manual, keep it handy for quick reference.
Warning
Caution

2
Revision History
Version Date Main Changes Revision Page
V 1.0 ’11 10 1. The initial edition issued -
V 1.32 ’1506 1. Add Fix Screen Size to XGT Panel Size 47
2. Add Adjust Screen Size to Frame Size 48
3. Add Full Screen 49
4. Add XP-VNC control caution 38
5. Revise Restriction 54, 55
※The number of the User’s Manual is printed on the right side of the back cover of the User’s Manual.
ⒸLSIS Co., Ltd 2015All Rights Reserved.

3
Thank you for purchasing LSIS’s HMI.
Before using the product, please read this User’s Manual to understand the functions, performances
and installation and programming method of the product you have purchased and ensure this User’s
Manual is well distributed to the end user and the responsible person for maintenance .
The following User’s Manual is the one regarding to this product.
Also, visit our homepage http://www.lsis.com/and download the manual in PDF file.
List of Relevant Manuals
Manual Title Manual Contents Manual Number
XGT Panel
Communication
User’s Manual
User’s Manual on XGT Panel communication describing
Circuit Diagram to connect XGT Panel products with
control devices such as PLC and inverter and their
communication setting
10310000758
XP-Builder
User’s Manual
User’s Manual on XP-Builder software describing screen
data, communication, environment setting, logging/recipe
data backup, simulator and printing function needed to use
XGT Panel products
10310000759
XGT Panel
User’s Manual
It describes dimensions, special features and system
configuration of XGT Panel series. 10310000757
XP-Manager
User’s Manual
XP-Manger is software that can support
XGT Panel’s
various functions and perform
data communication
between XGT panels via XP Link.
10310001110

4
-Table of Contents –
Chapter1 Starting....................................................................................................................... 6 ~ 13
1.1 Special Features of the XP-Remote.......................................................................................................6
1.2 System Requirements for Executing the XP-Remote............................................................................8
1.3 Installation of the XP-Remote .............................................................................................................9
Chapter 2 Introduction and Demonstration of the XP-Remote ......................................14 ~ 18
2.1 Introduction of the XP-Remote...............................................................................................................14
2.1.1 What is the XP-Remote?..............................................................................................................14
2.1.2 Execution Condition of the XP-Remote ......................................................................................14
2.2 Demonstration........................................................................................................................................15
2.2.1 Execution of the XGT Panel Monitor ...........................................................................................15
2.2.2 Monitoring with the XP-Remote....................................................................................................15
2.2.3 Controlling the XGT Panel with the XP-Remote...........................................................................18
Chapter 3 The XP-Remote Configuration.............................................................................19 ~ 23
3.1 Screen Configuration..............................................................................................................................19
3.2 Menu Configuration................................................................................................................................21
3.3 Toolbar Configuration..............................................................................................................................23
Chapter 4 Project.....................................................................................................................24 ~ 31
4.1 Reconnect..............................................................................................................................................24
4.1.1 Connect by Using the nextAddress..............................................................................................24
4.1.2 ConnectAfter Finding and Opening a Project ..............................................................................26
4.1.3 ConnectAfter Opening Recent Projects .....................................................................................28
4.2 Close ......................................................................................................................................................30
4.3 End.........................................................................................................................................................31
Chapter 5 Online......................................................................................................................32 ~ 40
5.1 Screen Sync Mode.................................................................................................................................32
5.1.1 Convert Screen by the XGT Panel...............................................................................................33
5.1.2 Convert Screen on the XP-Remote..............................................................................................34
5.2 Screen Non-Sync Mode.........................................................................................................................35
5.2.1 Convert Screen by the XGT Panel...............................................................................................36

5
5.2.2 Convert Screen on the XP-Remote.............................................................................................36
5.3 Obtain the Control Right.........................................................................................................................37
5.4 Return the Control Right.........................................................................................................................39
5.5 Obtain the Control Right From the XGT Panel.......................................................................................40
Chapter 6 Screen..................................................................................................................... 41 ~ 49
6.1 Go to the XGT Panel’s Current Screen..................................................................................................41
6.2 Go to the Starting Screen.......................................................................................................................42
6.3 Go to the Previous Screen.....................................................................................................................43
6.4 Go to the 1 minus Screen.......................................................................................................................44
6.5 Go to the 1 plus Screen..........................................................................................................................45
6.6 Screen Conversion Combo Box.............................................................................................................46
6.7Fix Screen Size to XGT Panel Size........................................................................................................47
6.8Adjust Screen Size to Frame Size..........................................................................................................48
6.9Full Screen .............................................................................................................................................49
Chapter 7 Tools........................................................................................................................50 ~ 53
7.1Screen Capture......................................................................................................................................50
7.2Options...................................................................................................................................................51
7.2.1 Online............................................................................................................................................51
7.2.2 Control...........................................................................................................................................52
7.2.3General.........................................................................................................................................53
Chapter 8 Restriction ..............................................................................................................54 ~ 56
8.1 Restriction...............................................................................................................................................54
8.2 Difference in Movement Between XP-Remote and XGT Panel............................................................55
Annex 1 Problem Solving.......................................................................................................57 ~ 58
Annex1.1Communication Problems ...........................................................................................................57
Annex1.2Control Right Problems................................................................................................................58

6
Chapter 1 Starting
1.1 Special Features of the XP-Remote
XP-Remote is a tool to monitor and control the XGT Panel installed in the office or in the plant.
The XGT Panel can be monitored by several people at the same time.
(1) Remote monitoring of XGT Panel is available
(2) The XGT Panel can be controlled remotely in the same way as at the site.
(3) Fast monitoring and controlling is available even from a remote area.
(4) It consists of big icons to use its functions easily.
(5) It is easy to convert to a particular screen regardless of drawing contents.
(6) It can reduce uploading time when saving the project and re-starting monitoring.
(7) Available to monitor the XGT Panel and other screens.
LAN

7
(8) Multiple users can monitor one XGT Panel.
LAN
LAN

8
1.2 System Requirements for Executing the XP-Remote
(1) Personal Computer and Memory
A computer with memory of at least 512MB or higher in the CPU of Pentium 4 or higher
(2) Communication Port
Ethernet ports
(3) Hard Disc
XP-Remote installation file size is about 40MB, it needs available area of at least 100MB or above to
install.
(4) Mouse
Mouse that can be connected with the computer
(5) Monitor
Resolution of 1024 X 768 or above
(6) Computer Operation System
Execution is available on the version of Window XPor Window 7.

9
1.3 Installation of the XP-Remote
[Installation Sequence]
(1) Execute installation files
(2) Select a language to be installed
(3) Prepare for installing the installation wizard as follows:

10
(4) Starting the XP-Remote Installation’ is displayed as seen in the following screen. Press the [Next] button to
continue installation.
(5) After inputting the user information, press the Next button.

11
(6) Specify a folder location to install the XP-Remote. About 100MB installation space is needed for the XP-Remote.
Check if there is sufficient space in the folder subject to installation. If the installation space is not sufficient,
warning message will appear and proceeding to the next step is impossible. Press the [Next] button after
selecting a folder.
(7) Preparing for installation is completed. Press the Installation button to start installing.

12

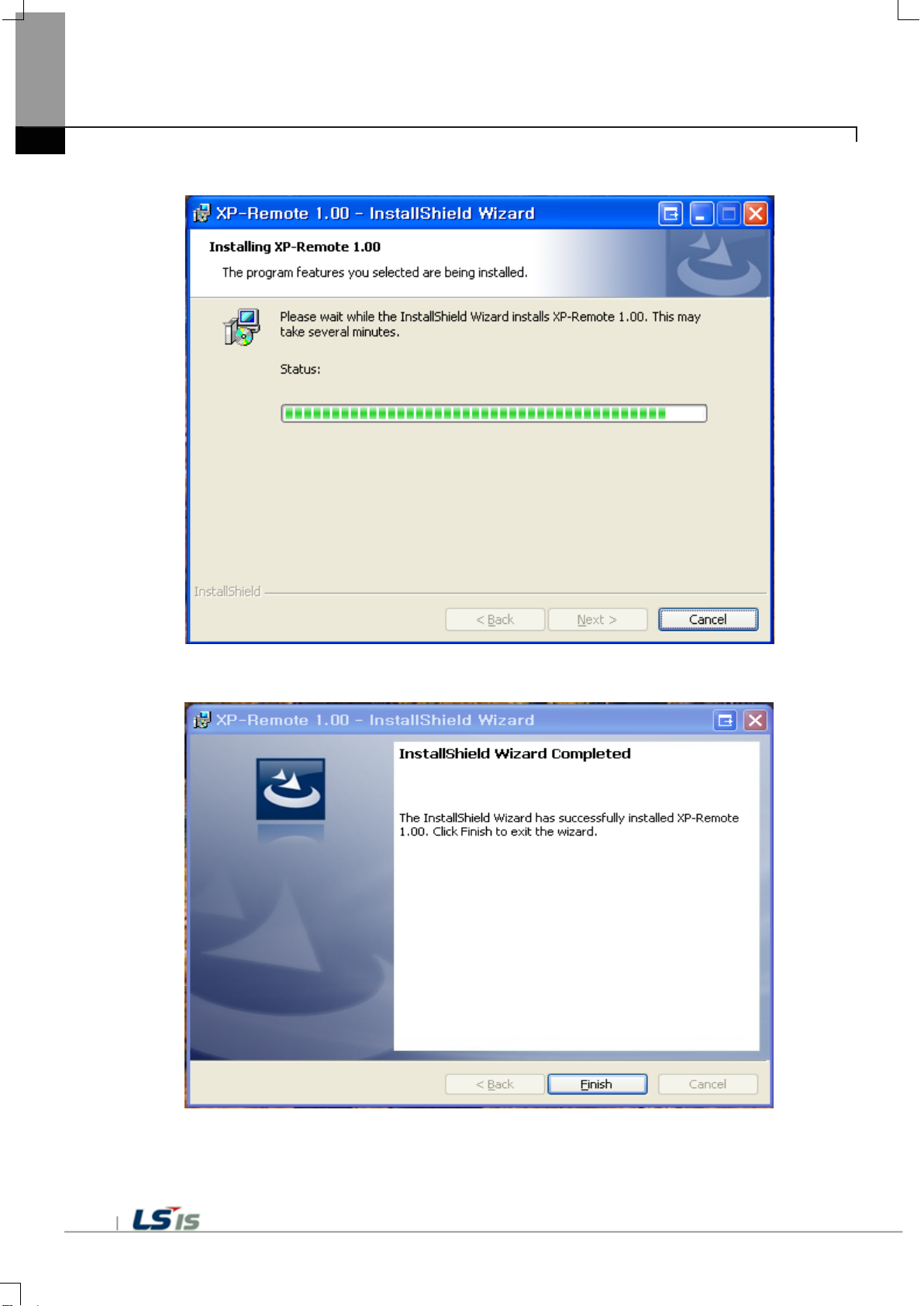

(8) Installation progress is displayed.
(9) Press the End button to end installation normally.

13
(10) Execute the XP-Remote from the [Start] Menu or execute ‘Go To Directly’ generated on the Desktop to start
the task.
[Deleting Sequence]
(1) To remove the XP-Remote, select [Remove XP-Remote] from the [Start] Menu or use the Control edition’s
[Add/Delete Program] function.
(2) Select an Yes.
(3) Information on the installed programs is collected and those programs are deleted.

14
Chapter 2 Introduction and Demonstration of the XP-Remote
2.1 Introduction of the XP-Remote
2.1.1 What is the XP-Remote?
The user can remote monitor and control the XGT Panel by using the XP-Remote. The user can perform
the XGT Panel’s functions above with the office computer not with the site’s XGT Panel. The user does
not perform works under poor site conditions any more.

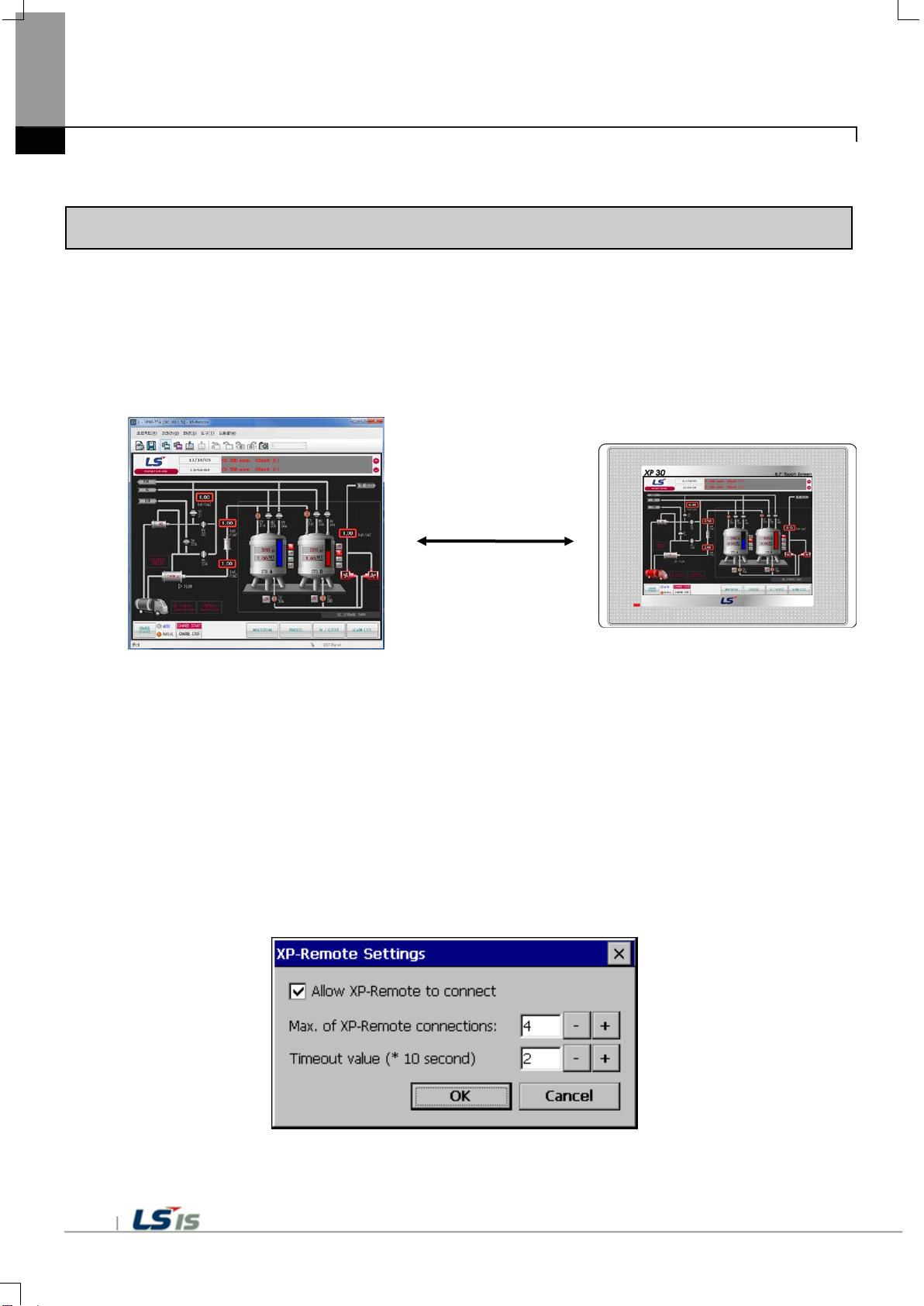

2.1.2 Execution Condition of the XP-Remote
The XP-Remote shall be satisfied the following conditions to ensure remote monitoring and controlling:
(a) XP-Builder 1.30 or above
(b) XGT Panel 1.30 or above
(c) Environment under which LAN communication is available
(d) Check the XGT Panel Setting [Settings]-[XP-Remote]-[XP-Remote]’s [Allow XP-Remote to connect]
options
(e) XP-Remote version should be same or above version with XGT Panel.
LAN

15
2.2 Demonstration
The user can understand easily on overall methods to use the XP-Remote through the following
demonstration processes.
2.2.1 Execution of the XGT Panel Monitor
[Sequence]
(a) Turn the XGT Panel on.
(b) Send drawings by using the XP-Builder (1.30 version or above)
(c) Check the XGT Panels button [Settings]-[XP-Remote]’s [Allow XP-Remote to connect] options.
(d) Press the XGT Panel button [Start] to start monitoring.
2.2.2 Monitoring with the XP-Remote
The XP-Remote shall be executed to monitor the XGT Panel from any remote computer.
[Sequence]
(a) Execute [XP-Remote 1.00] from the widows’ starting program
(b) Select XP-Remote Menu [Tools]-[Options]-[Online] tap.
(c) Select a network adopter with the same band with the XGT Panel’s IP band and close the dialog box
by pressing Confirm.

16

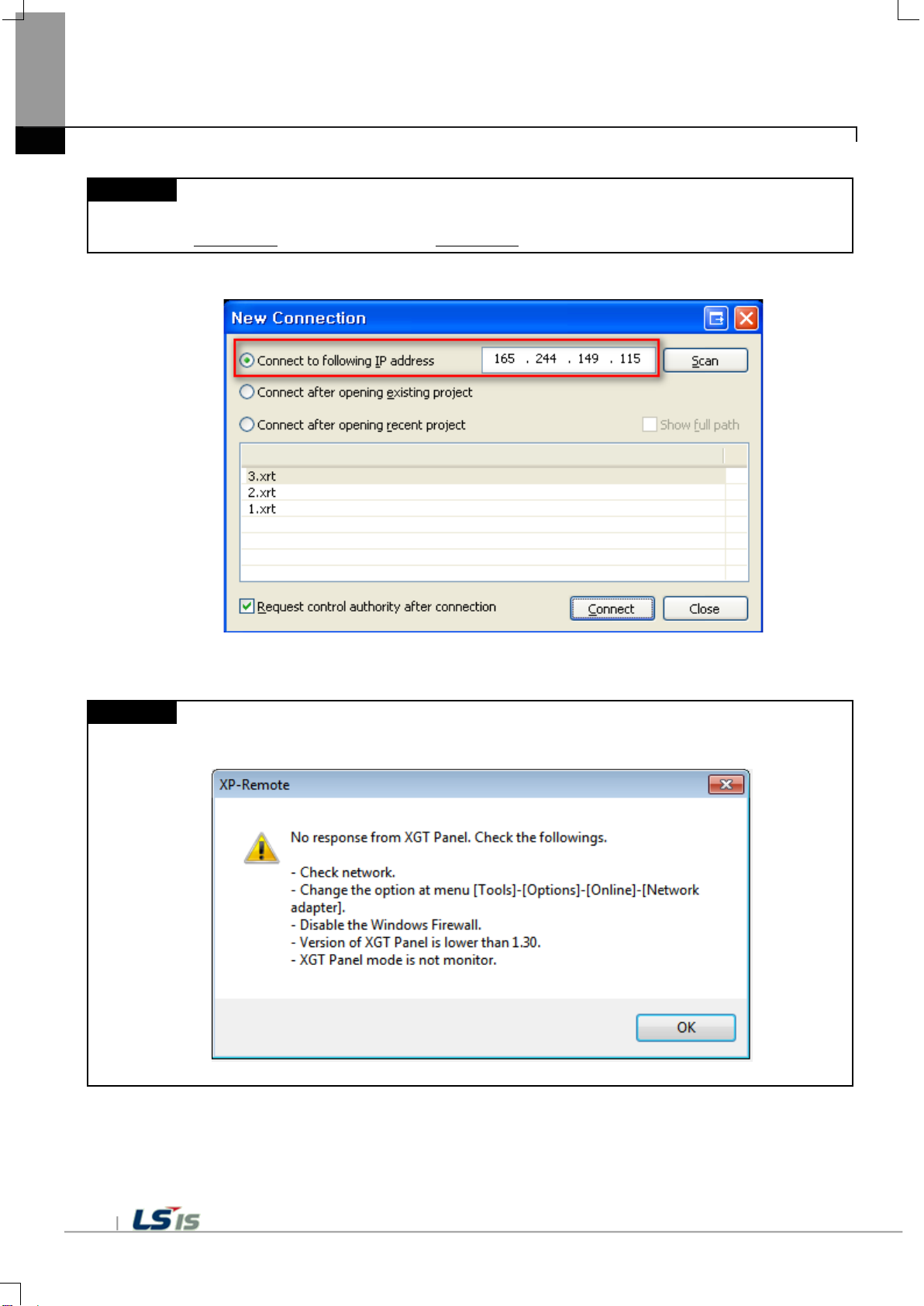

Note
(1) ‘The same band with the XGT Panel’s IP band’ means that it is the same IP band if the XGT Panel’s IP
Address is “165.244.149.113 and the PC’s IP is “165.244.149.113 (In case of Subnet Mask is 255.255.255.0)
(d) Select XP-Remote Menu [Project]-[Reconnect] and input the XGT Panel’s IP Address.
(e) Press the [Connect] button to connect with the XGT Panel.
Note
(1) The following message will appear in case that communication with the XGT Panel is failed. Check
communication errors and attempt again to make a Reconnect.
(2) For detailed solution when communication fails, refer to “Annex 1 Problem Solving”.

17

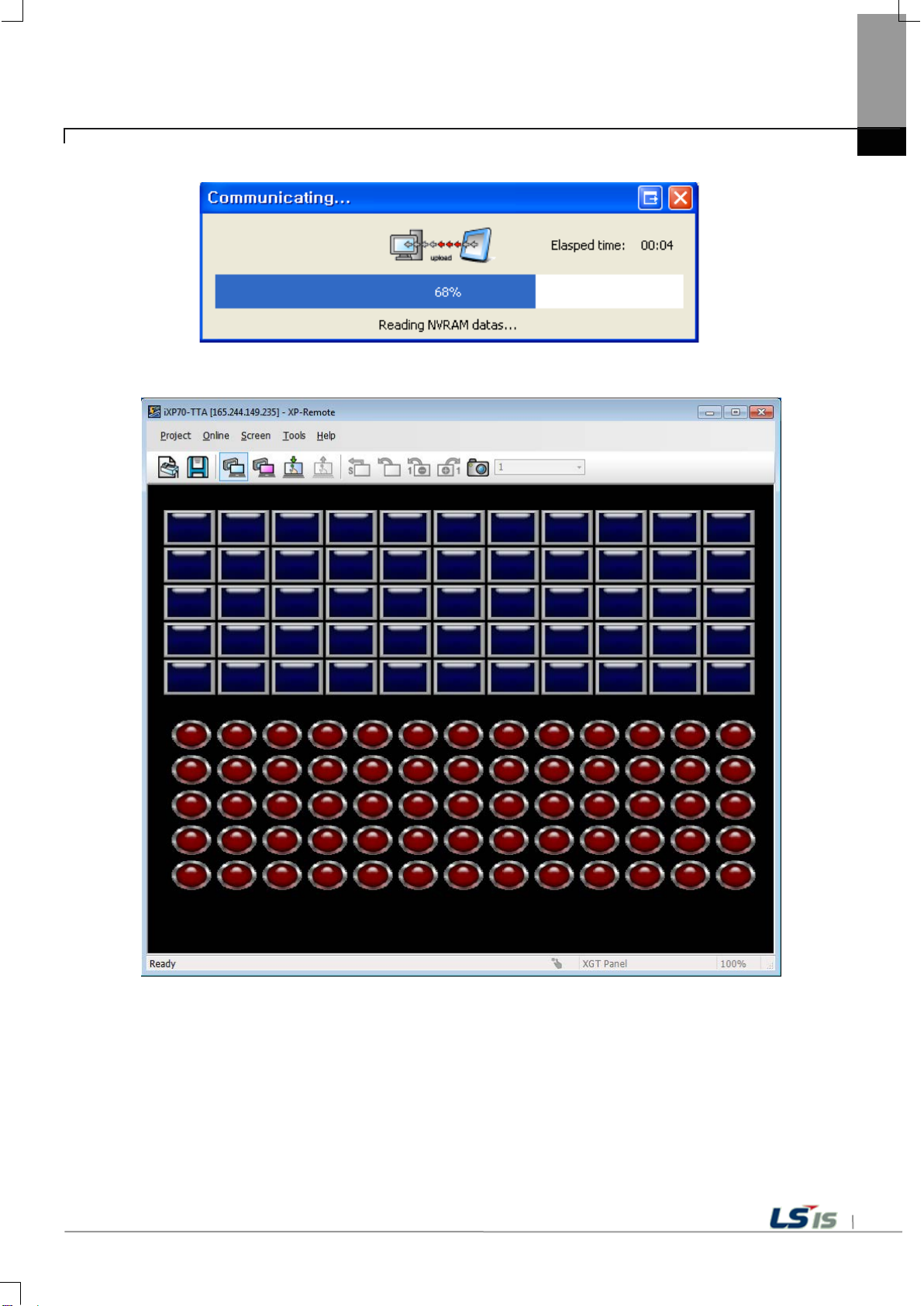

(f) The XGT Panel’s data connected with the XP-Remote will be synchronized.
(g) The XP-Remote monitor will start.

18
2.2.3 Controlling the XGT Panel with the XP-Remote
For remote controlling with the XP-Remote, the following procedures are necessary. Basically, only
connecting with the XP-Remote does not allow remote controlling.
[Sequence]

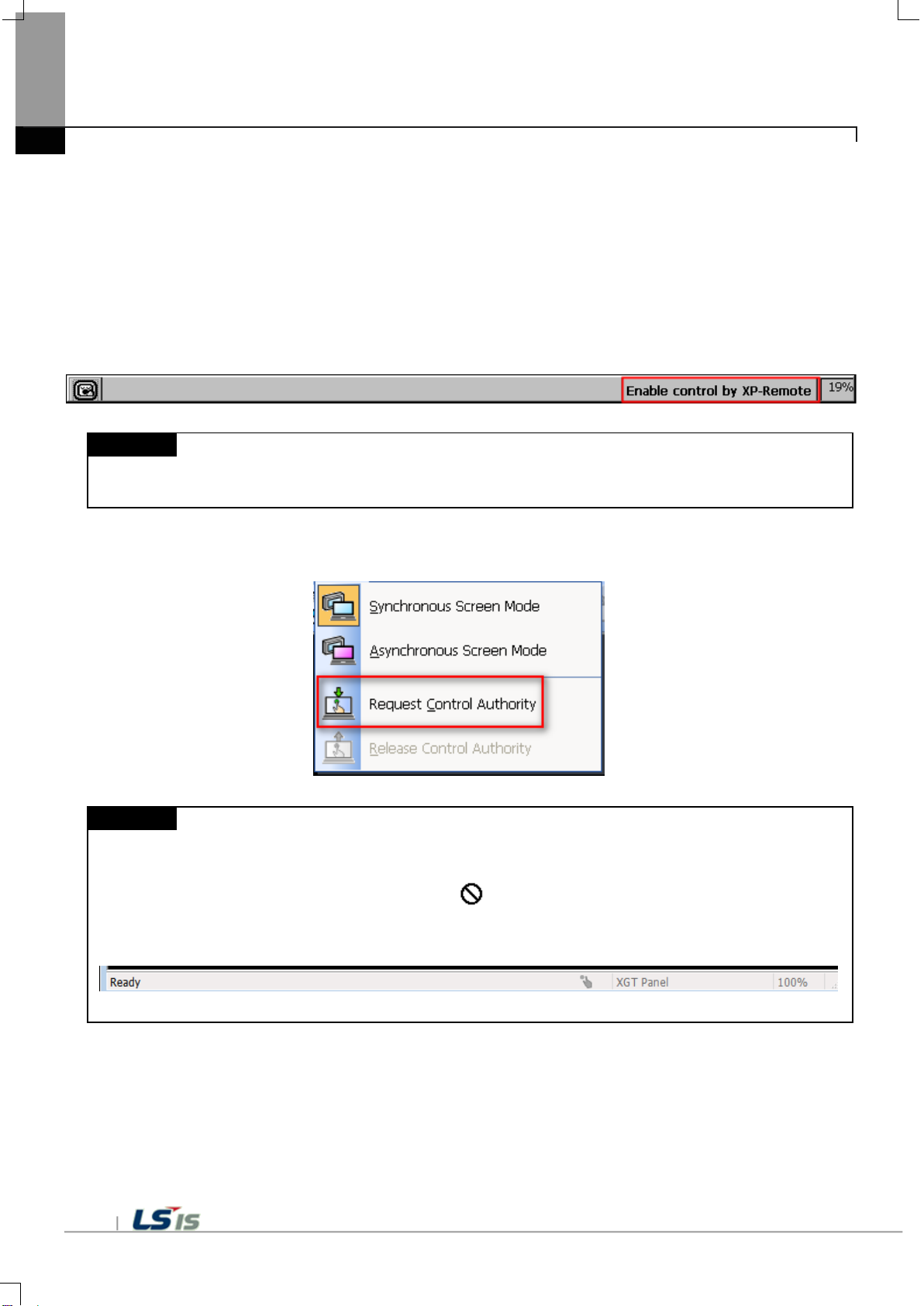

(a) Press and hold the empty space of the XGT Panel screen about 2 seconds.
(b) Press the [Enable control by XP-Remote] button and allow the XP-Remote to control.
Note
(1) When displaying the Status Bar by pressing the XGT Panel’s empty space once again, this button is displayed
in [Disable control by XP-Remote].
(c) Press the XP-Remote Menu [Online]-[Obtain the Control Right] to obtain a control right.
Note
(1) If the control right is not obtained, the mouse cursor will have the following shape when it is moved on the
screen.
(2) If the control right is not obtained, the XP-Remote’s Status Bar will display the following icons:
(d) Press the mouse’s left button to control the XGT Panel.

19
Chapter 3 XP-Remote Configuration
3.1 Screen Configuration
The XP-Remote screen consists of the following components:
(1) Screen
(a)
(b)
(c)
(d)
(e)
