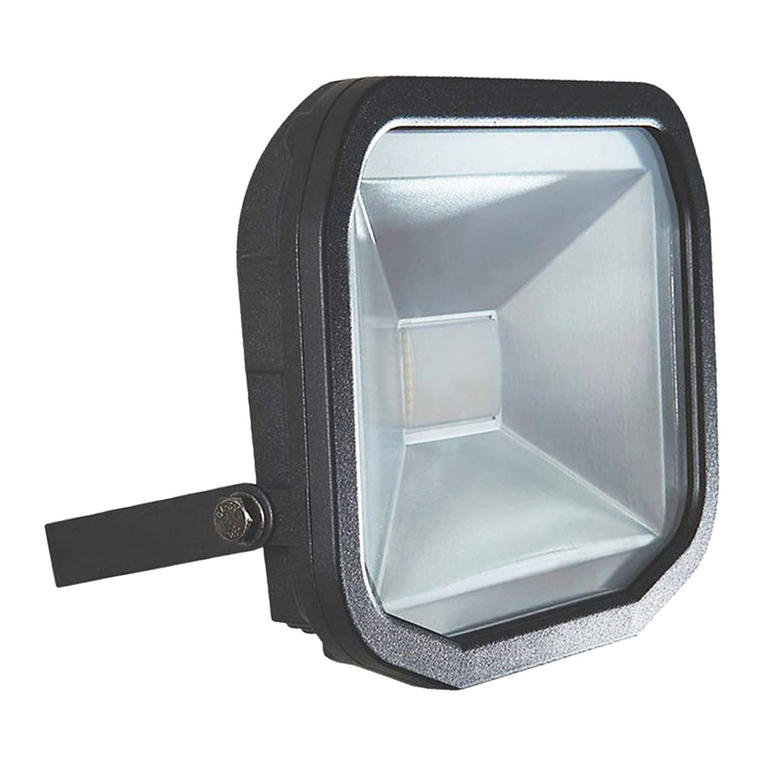

luceco Guardian LFS10W1B30 Manual

Note - This product range is designed for domestic outdoor use.
Not suitable for interior or commercial use.
Turn Off
Power Supply
INSTRUCTIONS FOR NEW INSTALLATIONS
1. Turn OFF power supply, ensure all required equipment and tools
are present.
2. The floodlight is intended for exterior use and is IP65 rated. Select
a suitable mounting position. Recommended mounting heights as
follows, area illuminated is typically mounting height x3.
3. With a suitable mounting position identified, securely fix the U
shape mounting bracket to the mounting surface.
4. The floodlight is supplied pre-wired with with 1.0M of H05RN-F
cable, removing the need to open the housing.
NOTE – To comply with regulations, installation must be carried out
by qualified electrician and in accordance with the current IEE Wiring
Regulations (BS7671) and Building Regulations. A copy of the instructions
must be left for the user/maintenance engineer for future reference.
ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/
ISOLATED BEFORE COMMENCING INSTALLATION
PART CODE: LFS10W1B30 / LFS10W1B50 / LFS20W1B30
/ LFS20W1B50 / LFS30W1B30 / LFS30W1B50
Tech Help Line
UK - 0845 194 7584
Non UK - [phone]
Visit our website at
Luceco is a registered trade mark of Nexus Industries Ltd.
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND www.luceco.uk
Guardian Slimline
LED Floodlights - Non PIR
Installation & Operating Instructions
MB-05/2015
CRI
80
>IP65
RATED W
30,000
HOURS
3
GUARANTEE
year
standard
Wattage Height Suggested Halogen Equivalent
10 2.0m - 3.0m 100w
20 2.5m - 4.0m 200w
30 3.0m - 5.0m 300w
5. Connect the pre-wired cable to the electricity supply,
observing the correct polarity.
LIVE = BROWN
EARTH = GREEN/YELLOW
NEUTRAL = BLUE
6. Check connections and fixings, turn ON power and operate
the floodlight as required.
Technical Specs
Product Code Wattage Lumen output Efficacy Llm/W CCT Voltage Power factor
LFS10W1B30 10 600 60 3000 220-240V 50Hz >0.9
LFS10W1B50 10 600 60 5000 220-240V 50Hz >0.9
LFS20W1B30 20 1200 60 3000 220-240V 50Hz >0.9
LFS20W1B50 20 1200 60 5000 220-240V 50Hz >0.9
LFS30W1B30 30 1800 60 3000 220-240V 50Hz >0.9
LFS30W1B50 30 1800 60 5000 220-240V 50Hz >0.9

Floodlight beam angle (95°)
and light distribution
Tech Help Line
UK - 0845 194 7584
Non UK - [phone]
Visit our website at
Luceco is a registered trade mark of Nexus Industries Ltd.
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND www.luceco.uk
Installation & Operating Instructions
MB-05/2015
Environmental Protection W.E.E.E (Wheelie Bin Symbol)
This symbol is known as the “crossed-out wheelie Bin Symbol”. When this symbol is marked on a product or battery, it means that it should not be disposed of
with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment.
Only dispose of electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within.
Your co-operation is vital to ensure the success of these schemes and for the protection of the environment.
United Kingdom Warranty
For other territories and for further information, please see www.luceco.uk for details
Products are protected by warranty for a period of 3 years from date of purchase against defects in material and workmanship (unless otherwise stated). Should a
product fail to perform as described within the warranty period it will be repaired or replaced with the same or equivalent product by Luceco, free of charge
provided that you: (1) return the product to us with shipping charge prepaid, (2) provide us with proof of the original date of purchase and (3) quote our return
authorisation number. Repaired or replaced products will be returned to you with shipping charges prepaid.
Replacement products may be refurbished or contain refurbished materials. If in our sole discretion, we are unable to repair or replace a defective product, we will
refund the purchase price of the product. This warranty will not apply if in our judgment, the product fails due to damage in shipment, handling, storage, accident,
abuse or misuse, or if it has been used in a manner not conforming to our product instructions, has been modified in any way, or has any serial number removed or
defaced. Repair or attempted repair will void this warranty. Our maximum liability under the terms of this warranty is limited to the purchase price of the product
covered by the warranty. The warranty is given under English Law. If any part of this warranty is deemed unenforceable (including any provision in which we exclude
our liability to you) the enforceability of any other parts of the warranty will not be affected. These terms do not reduce your statutory rights.
