Lucent Technologies Lineage 2000 User manual

Product Manual
167-790-125
Comcode 107006215
Issue 2
September 1996
Lucent Technologies
Lineage®2000
Flexible Power System
693AA DC/DC Converter
Notice:
Every effort was made to ensure that the information in this
document was complete and accurate at the time of printing.
However, information is subject to change.
©1996 Lucent Technologies
All Rights Reserved
Printed in U.S.A.

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 Table of Contents 1
Table of Contents
1 Introduction
Description of Product 1 - 1
Technology Highlights 1 - 2
Additional Information 1 - 3
Technical Support 1 - 3
USA, Canada, Puerto Rico, and the US Virgin Islands 1 - 3
Central and South America 1 - 4
Europe, Middle East, and Africa 1 - 4
Asia Pacific Region 1 - 4
Product Repair and Return 1 - 4
USA, Canada, Puerto Rico, and the US Virgin Islands 1 - 4
Central and South America 1 - 4
Europe, Middle East, and Africa 1 - 4
Asia Pacific Region 1 - 5
Customer Service 1 - 5
2 Product Description
Converter Specifications 2 - 1
Physical Description 2 - 3
Features 2 - 3
Additional Information 2 - 5
3 Engineering Information
Engineering Installation Preparations 3 - 1
Shipping and Receiving Converters 3 - 1
Additions to Existing Plants 3 - 1
Heat Dissipated to Environment 3 - 2
4 Displays, Controls, and Interface Signals
General 4 - 1
Displays and Controls 4 - 1
Interface Signals 4 - 3
Additional Information 4 - 3

Lucent Technologies Lineage®2000 693AA DC/DC Converter
2 Table of Contents Issue 2 September 1996
5 Installation
Introduction 5 - 1
Installation Tools and Test Equipment 5 - 1
Unpacking and Handling 5 - 1
Adding a Converter to a New or Operating FPS Power
Plant 5 - 2
Disconnecting a Converter from an Operating Plant 5 - 2
Initial Start-up and Checkout 5 - 3
Introduction 5 - 3
Electrical Testing for Converters 5 - 3
Background Information 5 - 3
Initial Power Up and Adjustment 5 - 3
6 Maintenance
Introduction 6 - 1
Fan Maintenance 6 - 1
Lamp Test 6 - 2
Diagnostics 6 - 2
Introduction 6 - 2
Equipment Required 6 - 2
Replacement of Fan 6 - 2
7 Spare Parts
8 References
9 Product Warranty

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 List of Figures 1
List of Figures
Figure 1-1: Lineage® 2000 FPS 693AA DC/DC Converter 1-5
Figure 1-2: Lineage® 2000 FPS Power Plants 1 - 6
Figure 4-1: Functional Description 4 - 4
Figure 6-1: Troubleshooting Flowchart (Sheet 1 of 3) 6 - 3
Figure 6-1: Troubleshooting Flowchart (Sheet 2 of 3) 6 - 4
Figure 6-1: Troubleshooting Flowchart (Sheet 3 of 3) 6 - 5

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 List of Tables 1
List of Tables
Table 2-A: FPS 693AA DC/DC Converter Specifications 2 - 1
Table 7-A: Recommended Spare Parts 7 - 1
Table 8-A: Drawing References 8 - 1

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 Introduction 1 - 1
1 Introduction
Description of
Product ThisLucent Technologiesproductmanual (167-790-125)covers
product features and specifications, converter technology,
installation and testing, as well as operation and maintenance.
This manual describes the Flexible Power System 693AA
DC/DC Converter which transforms 24-volt dc source voltages
into highly regulated, low noise, -50-volt, 10-ampere dc power
sources for usewith telecommunicationsloads.This converteris
used in the Lineage®2000 Flexible Power System (FPS)
DC/DC converter plant.
When used in the Lineage®2000 FPS DC/DC converter plant,
the power system can serve power needs within the 10 to 120
ampere range. To achieve this current range, the system grows
in capacity from a one-shelf plant, which accepts up to six
converters, into a two-shelf plant capable of housing 12
converters.
Included in the shelf assemblies is a sophisticated plant monitor
and control panel, facilities to terminate the input distribution,
and output distribution and protection panels. The monitor and
control panel serves both one- and two-shelf plants. Input
termination and output distribution/protection facilities are
provided with each shelf. Figure 1-1 shows a 693AA DC/DC
Converter. Figure 1-2 illustrates one and two shelf DC/DC
Converter or Rectifier/Converter plants.
The Lineage®2000 FPS series converters are designed
specifically for applications where size, weight, ease of
installation and maintenance are of overriding importance.

Lucent Technologies Lineage®2000 693AA DC/DC Converter
1 - 2 Introduction Issue 2 September 1996
When plugged into a converter plant shelf assembly as shown in
Figure 1-2, all interconnections between the converter, the
monitor and control panel and the input and output distributions
are completed. This front access, plug-in design plant permits
growth and easy maintenance without interrupting service.
Because the DC/DC converter plants are physically
interchangeable with Lineage®2000 ECS battery plant rectifier
shelves, these converter plants may be used with ECS battery
plants to provide fully integrated systems where dual voltage,
battery backed power is needed.
These features make the FPS series converters the ideal choice
for power applications in the 10 to 120 ampere range. UL
recognized and CSA certified, these FPS series converters can
be operated with or without the monitor and control panel,
providing the user with maximum flexibility.
Technology
Highlights The Lucent Technologies family of Lineage®2000 FPS series
converters represents a significant advancement in space
utilization and ease of installation over previously available
products.A unique Bell Laboratories design, which incorporates
100 kHz switching frequency, advanced technology, and
forced-air cooling, has resulted in converters which occupy
minimal space. This 10-pound switchmode converter design
provides excellent output regulation over a wide range of load
currents, and input voltages. Processing the power at higher
frequencies allows for substantial reduction in the size and
weight of the energy storage elements.
The SR series converters use forced-air cooling to help achieve
high power density and light weight. Each unit is equipped with
easily replaceable, self-contained cooling fans (see Section 6).
Thermal alarm circuitry offers additional protection by shutting
down the converter and providing an alarm when the internal
temperature exceeds approximately 70°C. Forced air cooling
improves the reliability of the converter by reducing the internal
ambient temperatures of the converter to essentially the outside
ambient temperature.
FPS series converters feature automatic load-share circuits
which force the converters to equally share the plant load, thus
reducing the stress on individual converters. FPS series
converters are self protected; short circuits and system overloads

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 Introduction 1 - 3
are handled automatically, if the short circuit is removed, or the
system load reduced, the converters automatically resume
normal operation.
Signalinterfacesbetweenthe FPS seriesconverters andthe plant
monitor and control panel provide alarm monitoring, converter
output voltage adjustment, plant current monitoring, lamp test,
and converter on/stand by control.
These features allow Lucent Technologies to offeraswitchmode
converter product and associated power plants that meet the
same standards for system flexibility and reliability found in our
ECS power plants equipped with SR series rectifiers.
Additional
Information The data listed below provide the J-codes and product manual
select codes for the FPS products associated with the FPS
10A/-48V FPS Series Converter.
693AA DC/DC Converter
Apparatus code: 693AA
Product Manual: 107006215
Select code: 167-790-125
FPS DC/DC Converter Plant
J-Code: J85500K-1 List 10
Product Manual: 107006256
Select code: 167-790-124
FPS Monitor and Control Unit
Apparatus code: 115C
Product Manual: 107008328
Select code: 167-790-048
Technical
Support Technical support for Lucent Technologies equipment is
available to customers around the world.
USA, Canada,
Puerto Rico, and
the US Virgin
Islands
Onapost-sale basis,duringtheProductWarrantyperiod,our
Technical Support telephone number 1-800-CAL RTAC
(1-800-225-7822) provides coverage during normal business
hours. Product Specialists are available to answer your technical
questions and assist in troubleshooting problems. For

Lucent Technologies Lineage®2000 693AA DC/DC Converter
1 - 4 Introduction Issue 2 September 1996
out-of-hours EMERGENCIES, the 800 number will put you in
touch with a Regional Technical Assistance Center Engineer via
our 24 hour a day, 7 day per week Help Desk.
When Technical Support is required in the Post-Warranty
Period, the service may be billable unless you hold an extended
warranty or contractual agreement.
Central and
South America If you need product technical support, contact your local Field Support/Regional Technical Assistance Center or contact your
sales representative who will be happy to discuss your specific
needs.
Europe, Middle
East, and Africa If you need product technical support, contact your local Field Support/Regional Technical Assistance Center or contact your
sales representative who will be happy to discuss your specific
needs.
Asia Pacific
Region If you need product technical support, contact your local Field Support/Regional Technical Assistance Center or contact your
sales representative who will be happy to discuss your specific
needs.
Product Repair
and Return Repair and return service for Lucent Technologies equipment is
available to customers around the world.
USA, Canada,
Puerto Rico, and
the US Virgin
Islands
For information on returning of products for repair, customers
may call 1-800-255-1402 for assistance.
Central and
South America If you need to return a product for repair, your sales representative will be happy to discuss your individual situation.
Europe, Middle
East, and Africa If you need to return a product for repair, your sales representative will be happy to discuss your individual situation.

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 Introduction 1 - 5
Asia Pacific
Region If you need to return a product for repair, your sales representative will be happy to discuss your individual situation.
Customer
Service For customer service, any other product or service information,
or for additional copies of this manual or other Lucent
Technologies documents, call 1-800-THE-1PWR
(1-800-843-1797). Specify the select code number for manuals,
or drawing number for drawings. Contact your regional
customer service organization or sales representative for
information regarding spare parts.
Figure 1-1: Lineage®2000 FPS 693AA DC/DC Converter

Lucent Technologies Lineage®2000 693AA DC/DC Converter
1 - 6 Introduction Issue 2 September 1996

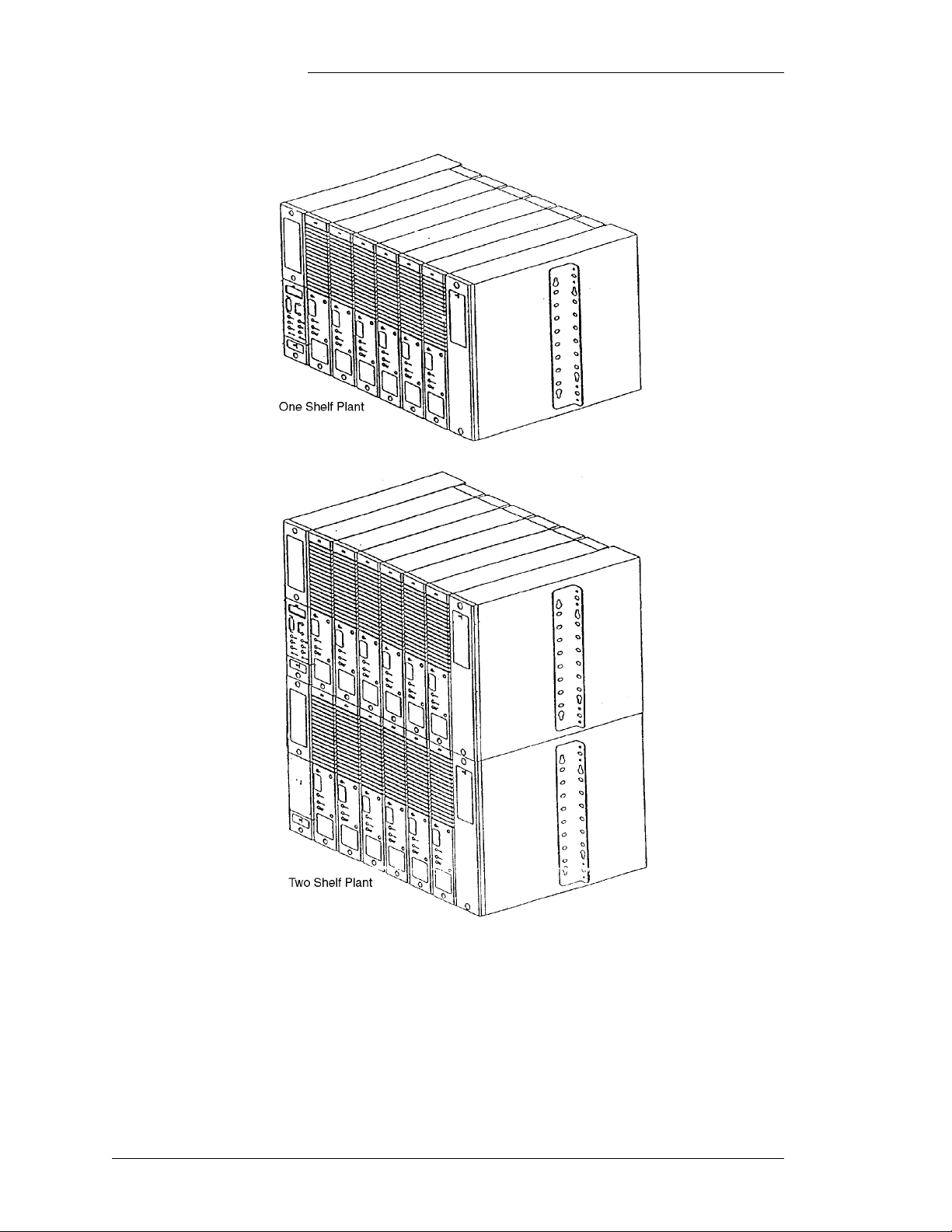

Figure 1-2: Lineage®2000 FPS Power Plants

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 Product Description 2 - 1
2 Product Description
Converter
Specifications
Table 2-A: FPS 693AA DC/DC Converter Specifications
Nominal Output Voltage -50 volts dc
Operating Voltage Range 48-52 volts dc
Output Current 0-10 amperes over the operating voltage range
Nominal Input Voltage 24 volts dc
Input Voltage Range 20-30 volts dc
Input Current (see note 2) List 1 current: 22 amperes
List 2 current: 30 amperes
Maximum current: 32 amperes
Efficiency 83% typical
82% minimum
Regulation +/-3.5%
AC Ripple 250 millivolts peak-to-peak maximum, over the range 10
Hz to 20 MHz
Output Noise 28 dBrnc
Load Share Accuracy 0.5 ampere
Heat Dissipation 95 watts/325 BTU/hr typical (see note 1)
Temperature 32 to 122°F (0 to 50°C)

Lucent Technologies Lineage®2000 693AA DC/DC Converter
2 - 2 Product Description Issue 2 September 1996
Altitude -200 to 13,000 feet
-61 meters to 3962 meters
For altitudes above 5000 feet, derate the temperature by
3.6°F per 1000 feet.
For altitudes above 1524 meters, derate the temperature by
0.656°C per 100 meters.
Humidity 10-95% noncondensing
Audible Noise 57 dBA measured from 2 feet or 0.6 meter from the
converter.
Electrostatic Discharge IEC 801-2 Level 5 (15 KV) at 40% relative humidity.
Radiated and Conducted
Emissions FCC Part 15, Level A
Electromagnetic Immunity 10 V/m over the range of 20 to 2000MHz
Earthquake Rating Zone 4, upper floors
Safety Agency Approvals Recognition per UL 1950 CSA approved per 22.2/154
Note 1: Data specified for input voltage of 27 volts and output of 50 volts and 10 amperes.
Note 2: List 1 input current specified at input voltage of 27 volts, an output of 50 volts and 10 amperes and
efficiency of 83%. List 2 input current specified at input voltage of 20 volts, an output of 50 volts and
10 amperes and efficiency of 83%. Maximum input current specified at input voltage of 20 volts, an
output of 52 and 10 amperes and efficiency 82%.
Table 2-A: FPS 693AA DC/DC Converter Specifications

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 Product Description 2 - 3
Physical
Description The Lineage®2000 693AA DC/DC Converter is a plug-in unit
designed for use with FPS power plants as illustrated in Figure
1-2. The frame mounting dimensions and weight of converters
and the plants are given below.
Features The following list describes the standard features designed into
the Lineage®2000 FPS series converter covered in this manual.
Converter Height: 12 inches
Width: 2.6 inches
Depth: 15 inches
Weight: 10 pounds
Single-shelf plant Height: 12 inches
Width: 21.5 inches
Depth: 15 inches
Weight: 35 pounds
Single-shelf plant equipped with
six converters Weight: 95 pounds
Frame Mounting Requirements Standard 23 and 26 inch relay racks
Vertical mounting centers: 1.00 inches (25 mm)
Horizontal mounting centers: 22.32 inches (567 mm)
or 24.32 inches (618 millimeters)
Light weight, easy to install These connectorized, pluggable units may be installed in
an FPS power plant in less than two minutes.
Simplified plant
administration Converters may be installed in a working plant without interrupting service or requiring adjustment. System
failures are repaired by replacing the defective converter.
Defective fans may be replaced in the field.
Front access only The converters and the FPS power plants may be installed
and serviced without the need for rear access.
User friendly Front panel LED indicators on the converters and the plant
monitor and control panel indicate the system status. A
digital meter indicates plant output voltage and load
current.
Lamp test A push-to-test switch on the plant monitor and control
panel activates all converter alarm and status LED
indicators.

Lucent Technologies Lineage®2000 693AA DC/DC Converter
2 - 4 Product Description Issue 2 September 1996
Parallel operation The converters are capable of operating in parallel with
other 693AA DC/DC Converters.
Load share A load share circuit automatically forces the converters to
share the plant load. The load share circuit is made fail-safe
by using an isolated load share bus between the converters.
Upon failure, the failed converter is disconnected from the
load share bus.
Active inrush current
limiting Upon application of the dc source voltage, an active circuit limits the peak inrush current, thus eliminating nuisance
tripping of customer provided input breakers.
Output current limit The converter provides a constant output voltage up to its
rated output current, at which point it begins to provide
constant current. The maximum output current is limited to
less than 125% of the rated output and no user adjustment
is necessary.
Internal selective
high-voltage shutdown If the converter plant voltage goes too high, only the defective converter or converters will shut down.
Restart circuit If a converter has been shut down due to high voltage, it
will try to restart a maximum of three times automatically.
After three unsuccessful tries, the converter shuts down
and locks down.
Converter alarm The converter alarm provides both a local visual indication
of low output voltage and a signal to the plant monitor and
control panel. An CFA is generated by the following
output undervoltage, thermal alarm, and/or an operated
internal fuse.
Thermal alarm The FPS series converters are fan cooled to increase their
reliability. Excess internal temperatures caused by fan
failure or other conditions initiate a thermal alarm. See
Section 6 - Maintenance for details on fan replacement.

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 Product Description 2 - 5
Additional
Information
Dynamic response Step changes in load over the range of 10 to 90 percent, or 90 to
10 percent, will not cause the voltage measured at the point of
regulation to overshoot or undershoot more than 5 percent. After
the step change, the voltage will return to and stay within the
regulation band within 300 milliseconds.
Lightning protection The converters are capable of withstanding without damage
repeated surges of the following waveforms (per IEEE
C62.41-1991 and IEEE 587-1980 requirements):
• Rise time of 8 microseconds to 3000 amperes peak amplitude
and decay time to 1500 amperes in 20 microseconds.
• 0.5 microsecond - 100 kHz ring wave with a peak voltage of
6000 volts.
Shipping The converter in its shipping container will withstand the
vibrations and shocks normally encountered in shipping without
damage or degradation of performance.

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 Engineering Information 3 - 1
3 Engineering Information
Engineering
Installation
Preparations
This section contains the information that should be considered
before installing the converters in a shelf assembly. Detailed
instructions, starting with uncrating and continuing through
converter turn-on are given in Section 5 for installing the
converter shelves into Lineage®2000 ECS battery plants or into
stand alone facilities are provided in the FPS plant product
manuals. Refer to Section 1 for additional information.
Lucent Technologies also offers “turn-key” engineering and
installation services for the products described in this product
manual. Consult your Lucent Technologies representative for
details.
Shipping and
Receiving
Converters
The 10A/-48V FPS Series Converters are packaged individually
and shipped in foam-filled cartons whose dimensions are
approximately 18 inches by 20 inches by 10 inches.
When factory ordered, FPS power plants are typically shipped
assembled in a plant frame. Refer to their product manual for
details. When not shipped assembled in a plant frame, the FPS
power plants are shipped with all mounting hardware necessary
for assembly to standard frames.
Additions to
Existing Plants When adding converters to existing power plants, consideration
must be given to converter loads and the availability of both dc
source power and protection for load feeder circuits.

Lucent Technologies Lineage®2000 693AA DC/DC Converter
3 - 2 Engineering Information Issue 2 September 1996
Although the converters and FPS power plants are keyed to
prevent accidental insertion of converters having input or output
voltages that differ from the plant voltage, care should be
exercised to avoid using excess force to seat a converter in a
plant.
Heat Dissipated
to Environment The maximum heat load imposed on the environment by a
converter is provided in Table 2-A in Section 2. The 693AA
DC/DC Converters are designed for forced air cooling: the
building or area must have a maximum ambient temperature no
greater that 50°.
Warning
Converters and rectifiers in the Flexible Power System
product family appear similar and may be identified only by
the label.
Warning
Do not block converter ventilation openings or damage may
result due to overheating.

Lucent Technologies Lineage®2000 693AA DC/DC Converter
Issue 2 September 1996 Displays, Controls, and Interface Signals 4 - 1
4 Displays, Controls, and
Interface Signals
General The following information provides a functional description of
the displays, controls and interface signals associated with
normal plant operations and maintenance procedures. The FPS
series converter and the Monitor and Control Unit are shown in
Figure 4-1.Eachitem identifiedby an index numberis listedand
described below.
Displays and
Controls The plant operational controls and status indicators are listed
below and shown in Figure 4-1.
1. Digital volt/ampere meter: A three-digit, backlit, LCD
meter which displays plant voltage or plant current for FPS
Converter Plants and rectifier plant voltage and current for
FPS Rectifier/Converter Plants.
2. Meter select switch: A two position switch used to select
the plant output, volts or current, to be displayed on the
plant meter.
3. Normal: This green LED lights while the plant converters
are operating normally and are able to furnish power to the
load. While in this operational mode, the converters can be
switched to the standby mode by a control signal
originated by the customer and routed to the converter
through the Monitor and Control Unit.

Lucent Technologies Lineage®2000 693AA DC/DC Converter
4 - 2 Displays, Controls, and Interface Signals Issue 2 September 1996
4. Power Minor alarm (PMN): A yellow LED which lights
to signify one or more of the following conditions: one
converter alarm (13) or one converter in Standby (12).
5. LED Test: When depressed, this momentary closure
switch lights all plant status LEDs and all segments on the
plant meter.
6. Voltage test jacks: Test jacks are provided to measure the
plant output voltage in FPS Converter Plants and the plant
rectifier output voltage in FPS Rectifier/Converter Plants.
7. Major Fuse alarm (MJF): A red LED which lights to
signify that an output distribution fuse or circuit breaker
has operated while exposed to excessive current. Manual
operation of the circuit breakers typically does not cause
an MJF alarm.
8. Power Major alarm (PMJ): A red LED which lights to
signify one or more of the following conditions: two or
more converter alarms (13), two or more converters in
Standby (12), or a major fuse alarm (7).
9. Voltage Adjustment (V Adj): A screwdriver adjustable,
recessed potentiometer which adjusts the plant output
voltage for FPS Converter Plants and the plant rectifier
output voltage for FPS Rectifier/Converter Plants.
10. On: This green LED lights while the converter is operating
normally and is able to furnish power to the load. While in
this operational mode, the converter can be switched to the
standby mode under local control (11) or by a control
signal originated by the customer and routed to the
converter through the Monitor and Control Unit.
11. Power On/Standby switch: This two-position switch
determines the operation status of the converter.
12. Standby: This yellow LED lights while the converter is in
the standby mode. In this mode, the converter control and
alarm circuits are powered; however, the power circuits are
inhibited to prevent the converter from producing output
power. To switch the converter from Standby to On, both
the local and remote control signals must be switched to
the power On state.
13. Alarm: This red LED lights to indicate that the converter
has shut down due to an output undervoltage condition, a
thermal alarm, or an operated internal fuse.
