Lumagen RadianceXS User manual

RadianceXS
TM
Video Processor
Owner’s Manual

LEGAL NOTICES:
TO THE EXTENT NOT PROHIBITED B LAW, IN NO EVENT SHALL LUMAGEN, ITS SUPPLIERS, OR
ITS DEALERS, BE HELD LIABLE FOR INJUR TO PERSONS OR PROPERT , AN LOST REVENUE,
LOST PROFIT, SPECIAL, INCIDENTAL, INDIRECT, CONSEQUENCIAL, OR PUNITIVE DAMAGES,
IMPAIRMENT OF OR DAMAGE TO OTHER GOODS, HOWEVER CAUSED REGARDLESS OF THE
THEOR OF LIABILIT , RESULTING FROM THE USE OF, OR INABILIT TO USE, THIS PRODUCT,
EVEN IF LUMAGEN, ITS SUPPLIERS, OR ITS DEALERS, HAS BEEN ADVISED OF THE
POSSIBILIT OF SUCH DAMAGE.
LUMAGEN SHALL NOT BE LIABLE FOR OMISSIONS OR ERRORS IN ITS DOCUMENTATION OR
SOFTWARE. LUMAGEN RESERVES THE RIGHT TO MAKE CHANGES TO ITS PRODUCTS AND
DOCUMENTATION WITHOUT NOTICE.
Unless you are experienced in the installation and set-up of high-performance video
electronics, we suggest you hire a professional home-theater specialist to do
installation and configuration of this product. We recommend that you choose a
professional who has been certified by the Imaging Science Foundation™ (ISF).
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the CC rules, Canadian ICES-003, and CISPR 22. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Unauthorized modifications to this equipment may void Lumagen’s limited warranty and the
user’s authority to operate this equipment.
Lumagen is a registered trademark of Lumagen, Inc. Vision HDP, Vision HDQ, RadianceXE,
RadianceXD, RadianceXS, Radiance Mini and other Lumagen product names, are trademarks of
Lumagen, Inc. Other trademarks are the property of their respective owners.
WARNINGS:
• Do not defeat the safety features of the power supply or power cord, such as,
but not limited to, removing the ground pin connection.
• Do not open, insert objects into, or spill liquid into, this equipment.
• Do not block the cooling vents.
• Do not program an output resolution that exceeds the maximum specified
refresh rate of the attached television, or projector.
• Improperly set gray-bar intensity may accelerate screen burn-in. Consult a
home-theater specialist for help setting gray-bar intensity.

Table of Contents
Section 1 – Introduction 1
Document Conventions and Menu Navigation ................................................................ 2
Unpacking ................................................................................................................. 2
Remote Control Battery Installation .............................................................................. 2
Installation Guidelines................................................................................................. 2
Section 2 – Overview 3
Front Panel .............................................................................................................................3

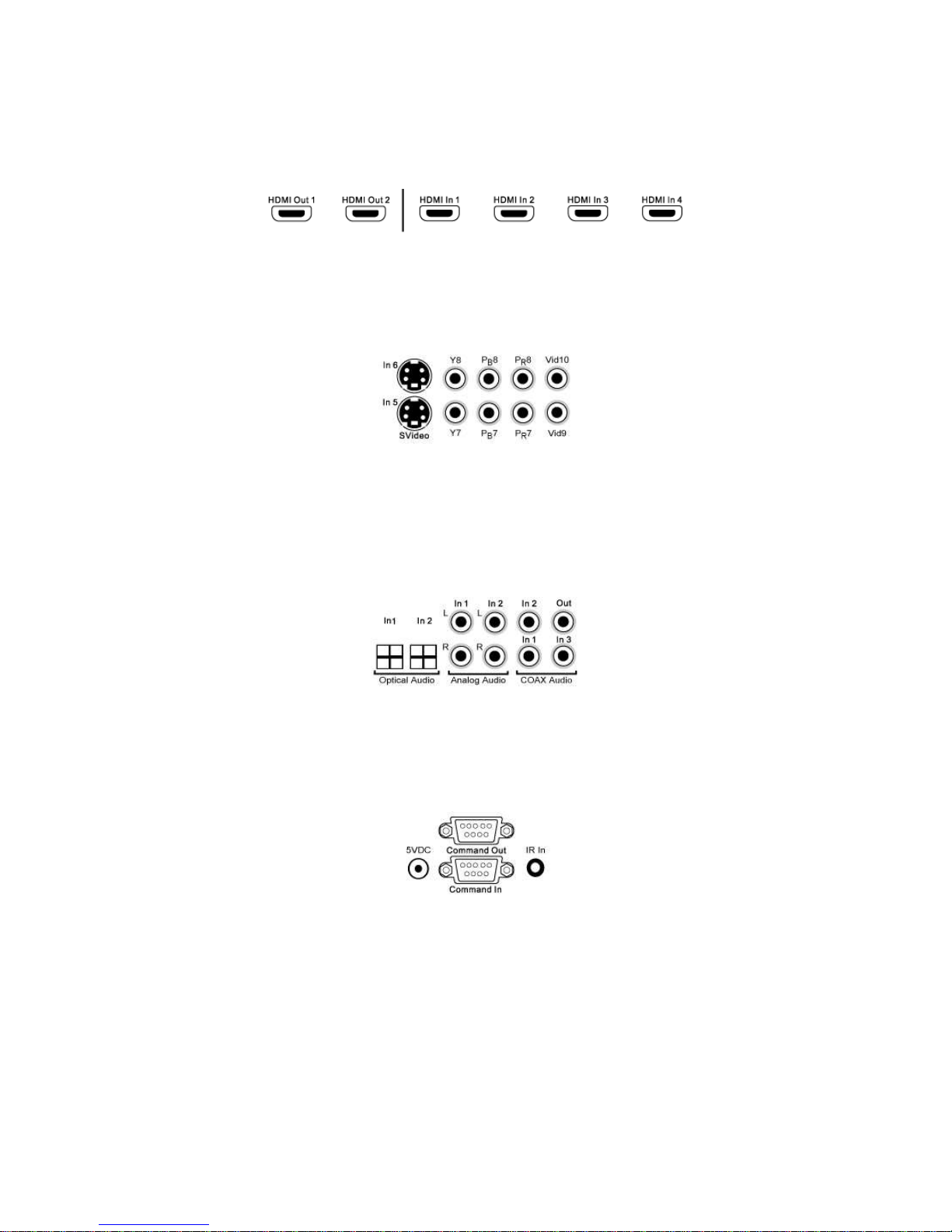

Rear Panel ..............................................................................................................................3
HDMI Connections..................................................................................................................4
Analog Video Input Connections.............................................................................................4
Audio Input and Output Connections .....................................................................................4
Miscellaneous Connections.....................................................................................................4
Remote Control .......................................................................................................... 5

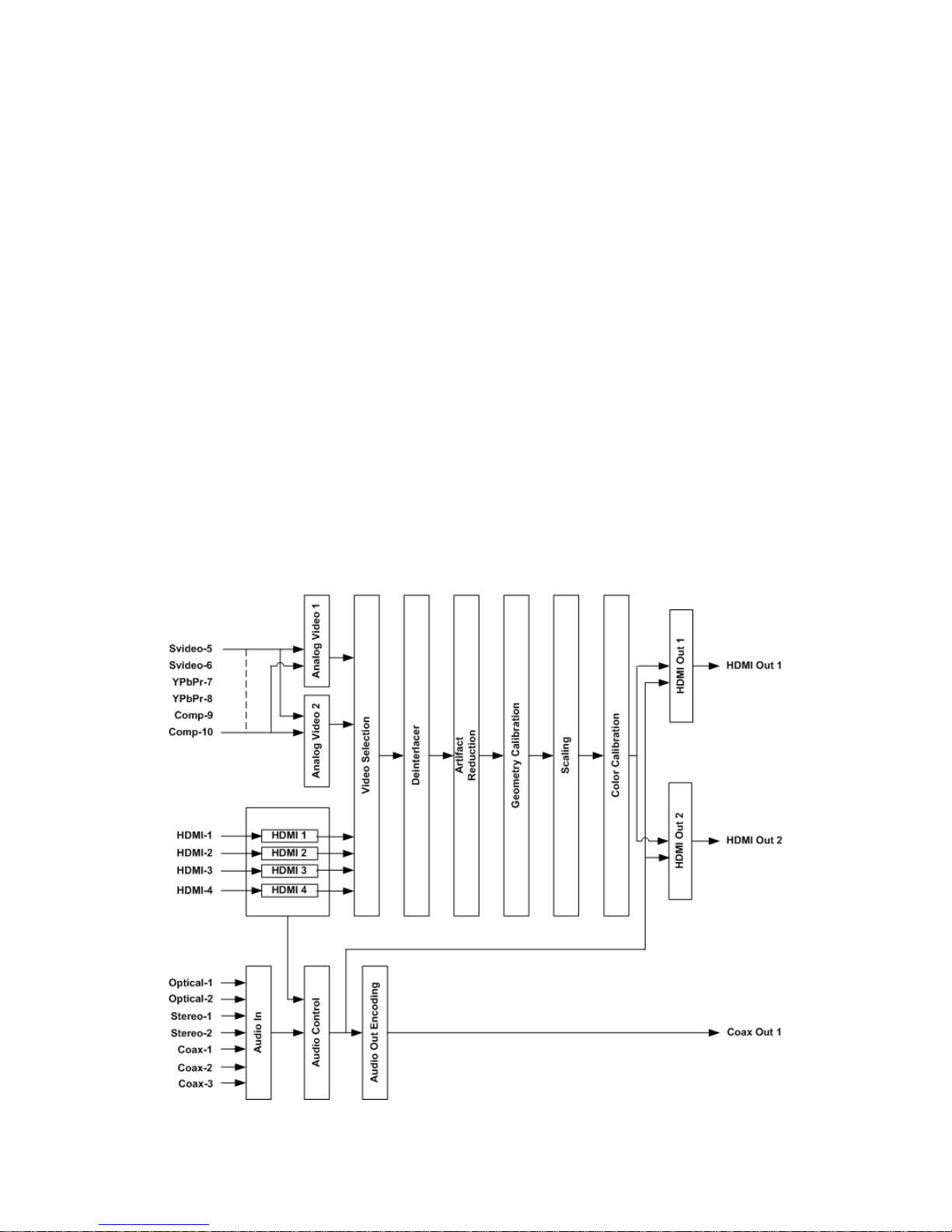

Block Diagram............................................................................................................ 6
Configuration Memories............................................................................................... 7
Section 3 – Quick Start Guide 9
Installation Instructions ....................................................................................................9

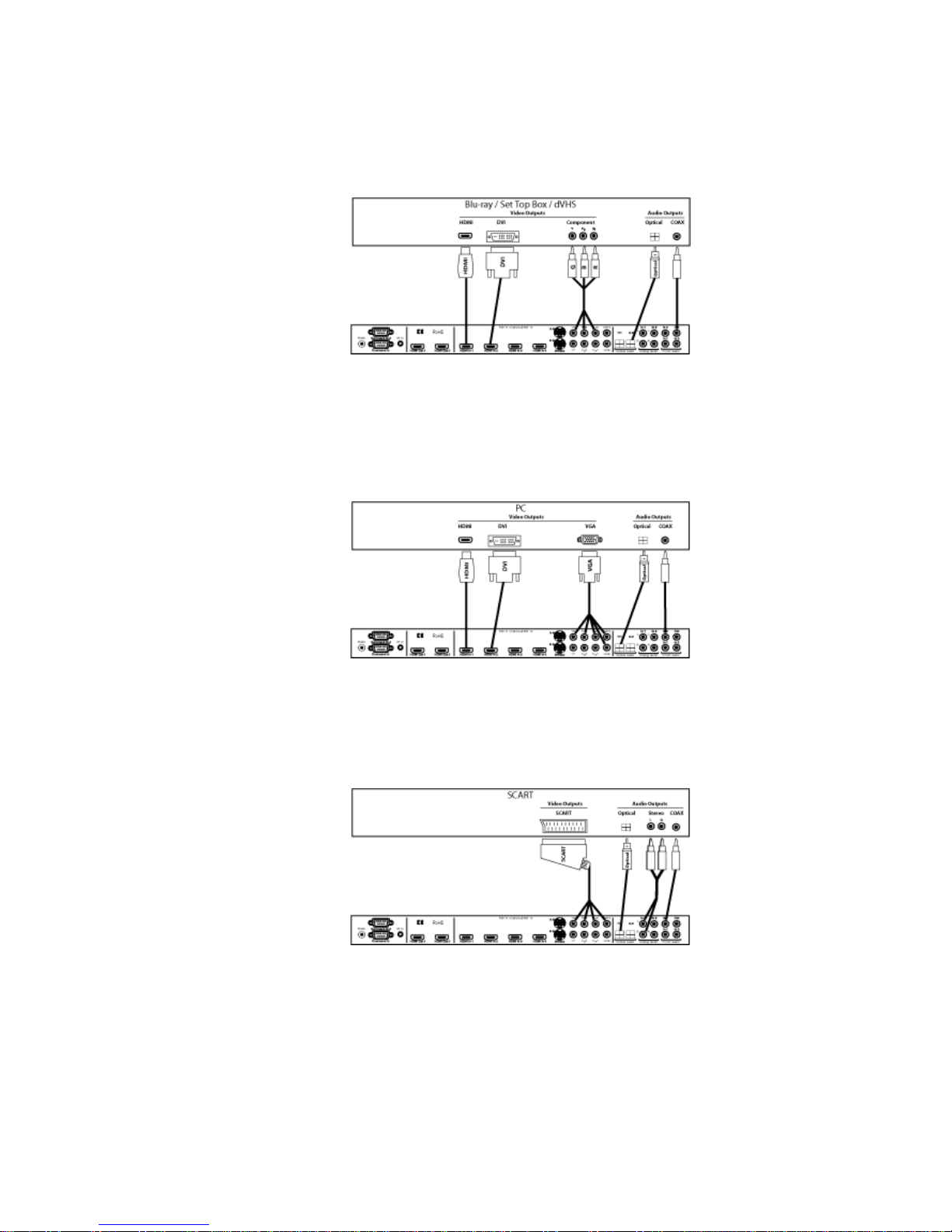

System Configuration Examples ................................................................................. 10
Source Device Connection Examples ........................................................................... 11
Section 4 – Basic Commands 13
Power ..................................................................................................................... 13
Input Selection......................................................................................................... 13
Configuration Memory Selection ................................................................................. 13
Input Aspect Ratio Selection ...................................................................................... 13
Image Zoom ............................................................................................................ 13
Status Screen........................................................................................................... 14
On-Screen Help........................................................................................................ 14
Quick Keys............................................................................................................... 14
Section 5 – Video Configuration 15
Video Output Setup Menu.....................................................................................................15
Custom Modes Menu ............................................................................................................16
Output Mode – Global Presets.................................................................................... 16
Exact Output Timing ................................................................................................. 16
Rate Match .............................................................................................................. 16
CMS Menu.............................................................................................................................16
Gamma actor ......................................................................................................... 16
Color Gamut ............................................................................................................ 16
Grayscale and Gamma .............................................................................................. 16
Color Decoder .......................................................................................................... 16
Black....................................................................................................................... 17
White...................................................................................................................... 17
Styles Menu ..........................................................................................................................17
Output HDMI ormat ................................................................................................ 17
Color ormat............................................................................................................ 17
Dither ..................................................................................................................... 17
Mask....................................................................................................................... 17
Shrink ..................................................................................................................... 17
Screen Aspect Ratio.................................................................................................. 17

Table of Contents
Graybar Intensity...................................................................................................... 18
3D Glasses Adjust..................................................................................................... 18
Misc. Output Settings ...........................................................................................................18
3D Output EDID Configuration ................................................................................... 18
Sync Polarity............................................................................................................ 18
Copy Output Settings................................................................................................ 18
HDMI Input Setup ................................................................................................................19
HDMI Physical Input ................................................................................................. 19
HDMI Video Type ..................................................................................................... 19
HDMI Level.............................................................................................................. 19
HDMI input EDID Display Information......................................................................... 19
HDMI input hotplug mode ......................................................................................... 19
Auto Aspect ............................................................................................................. 20
Analog Input Setup ..............................................................................................................20
Component Input Type ............................................................................................. 20
Analog Input Level.................................................................................................... 20
Component Input Gain.............................................................................................. 20
Input Picture Controls ..........................................................................................................20
Black and White Levels.............................................................................................. 20
Color ormat............................................................................................................ 21
Color and Hue.......................................................................................................... 21
Y/C Delay ................................................................................................................ 21
Input Size Controls...............................................................................................................21
Scale Bias................................................................................................................ 21
Input Sizing ............................................................................................................. 21
Vertical Shift ............................................................................................................ 21
Non-linear Stretch .................................................................................................... 22
Input Masking .......................................................................................................... 22
Input Control Menu ..............................................................................................................22
Deinterlacing Mode ................................................................................................... 22
Inter rame Motion Detection (I MD) ......................................................................... 23
Deinterlacing ield lip .............................................................................................. 23
Genlock ................................................................................................................... 23
Game Mode ............................................................................................................. 23
Reinterlace .............................................................................................................. 23
Input Enhancement Controls................................................................................................23
Sharpness................................................................................................................ 23
Noise Reduction ....................................................................................................... 23
Adaptive Contrast..................................................................................................... 23
Copy Enhancement Settings ...................................................................................... 24
Miscellaneous Input Controls ...............................................................................................24
Input Label .............................................................................................................. 24
Copy Input Settings .................................................................................................. 24
Selecting an Output Configuration for an Input Memory................................................ 24
PiP/PoP ................................................................................................................................24
PiP/PoP Remote Control Buttons ................................................................................ 25
PiP/PoP Setup Menu ................................................................................................. 25
PiP Input Mask ......................................................................................................... 25

Table of Contents
PiP/PoP Per-Input Mode Selection............................................................................... 25
Section 6 – Audio Configuration 26
Introduction to the Audio Menu.................................................................................. 26
Audio Menu Navigation ............................................................................................. 27
Audio Menu Selections .............................................................................................. 27
Audio Menu Structure ............................................................................................... 27
Audio User EDID ...................................................................................................... 29
Input Memory Specific Audio EDID ............................................................................. 29
Audio Source Selection Defaults ................................................................................. 29
Section 7 - Calibration 30
Set the display’s picture controls to neutral.................................................................. 30
Calibrate black and white levels using display controls .................................................. 30
Color Management ................................................................................................... 31
Calibrate 100 IRE white to D65 using the display’s controls ........................................... 31
Calibrate Radiance primary color gamut ...................................................................... 31
Calibrate Radiance grayscale and gamma.................................................................... 31
Iterate the gamut and grayscale/gamma calibrations.................................................... 32
Calibrate Radiance output color and hue ..................................................................... 32
Iterate gamut, grayscale/gamma and color/hue calibrations. ......................................... 32
Calibrate Radiance input overscan, black, white, color and hue ...................................... 32
Section 8 – Miscellaneous Commands 34
System Settings....................................................................................................................34
Menu Mode.............................................................................................................. 34
Timeouts ................................................................................................................. 34
OSD Enable ............................................................................................................. 34
Input Reselect.......................................................................................................... 34
Menu Placement....................................................................................................... 34
Input Menu.............................................................................................................. 34
Initial Power State .................................................................................................... 34
Initial Input State ..................................................................................................... 34
On/Off Message ....................................................................................................... 35
Message Control....................................................................................................... 35
Test Patterns ........................................................................................................... 35
Remote Control ........................................................................................................ 35
LED Setup ............................................................................................................... 35
RS-232 Setup........................................................................................................... 35
3D Glasses............................................................................................................... 35
PipPop Mode Setups ................................................................................................. 36
Pip Select Mode........................................................................................................ 36
Zoom Step............................................................................................................... 36
Quick Keys............................................................................................................... 36
Configuration Memory Usage ..................................................................................... 36
Saving the Configuration ......................................................................................................36
Save ....................................................................................................................... 36
Undo....................................................................................................................... 37
Restore IS calibration .............................................................................................. 37
Revert To actory Settings......................................................................................... 37

Table of Contents
Section 9 – 3D Support 38
3D Types...............................................................................................................................38
rame Packed .......................................................................................................... 38
Side-by-Side ............................................................................................................ 38
Top-Bottom ............................................................................................................. 38
rame Sequential ..................................................................................................... 39
Separate Left and Right............................................................................................. 39
3D Output Settings ...............................................................................................................39
3D Output Setup Menu.............................................................................................. 39
3D Output Mode = Auto............................................................................................ 39
3D Output Mode = Specific ormat............................................................................. 39
3D Output Type = Auto............................................................................................. 39
3D Output Type = Specific 3D Type............................................................................ 40
3D EDID Configuration.............................................................................................. 40
3D Setup Procedures ............................................................................................................40
Normal Setup........................................................................................................... 40
Display Optimization ................................................................................................. 40
Setup for Non-Compliant Displays............................................................................... 40
Setup for Non-Compliant Video Sources ...................................................................... 41
3D Support for 2D Displays........................................................................................ 41
Section 10 – Command Interface 42
Direct Commands .................................................................................................................42
Output Vertical Resolution ......................................................................................... 42
Output Mode Commands........................................................................................... 42
Output Vertical Rate ................................................................................................. 42
Output Aspect Ratio.................................................................................................. 42
Miscellaneous Commands.......................................................................................... 42
Menu Shortcuts ....................................................................................................................42
IR Command List ..................................................................................................................42
ASCII Command List.............................................................................................................42
Section 11 – Specifications 43

Section 1 – Getting Started
RadianceXS rev 06/29/11
1
Section 1 – Introduction
Thank you for purchasing a Lumagen
®
Radiance™ video processor. The Lumagen Radiance Video Processor
series boasts the highest-performance video switching, processing and calibration available. This makes it
ideal for high-definition home and commercial theater applications. Lumagen’s Radiance series refines and
enhances the video images presented by high definition front projectors, top-level rear-screen and flat-panel
displays. At the same time the Radiance functions as a central switching hub ideal for home and corporate
theater systems.
The RadianceXS, combines proprietary strides in video technology with enhanced connectivity and the
flexibility of up to 10 video and 11 audio inputs. The RadianceXS is HDMI 1.4 “3D” and supports audio
formats for Dolby-Digital TrueHD™ and DTS Master-Audio™. The RadianceXS supports HDMI 1.4a “3D”
video formats.
By incorporating advanced de-interlacing MPEG artifact reduction and temporal noise reduction, the
Radiance series expands upon the company’s well-known Vision series – a line which received industry
recognition for advancements in switching, calibration and proprietary No-ring™ scaling technologies.
The Radiance offers 10-bit processing, per-pixel standard definition (SD) and high definition (HD) video de-
interlacing with adaptive diagonal filtering, scaling technology that does not add ringing (unlike competing
products), MPEG mosquito and block artifact reduction and “3D” temporal noise reduction for both SD and
HD sources. or these reasons, the Radiance™ processor sets the industry benchmark for switching,
calibration and video processing performance.
Key Features
• 10-bit processing for deinterlacing plus a 12-bit calibration pipeline
• Proprietary Lumagen No-ring™ scaling
• Support for HDMI 1.4 “3D”
• Each input has 4 user configuration memories
• Each input user configuration memory has 8 resolution sub-memories (for HD inputs)
• Each resolution sub-memory is linked to one of 8 output configurations.
• Picture-In-Picture (PiP) and Picture-Outside-Picture (PoP)
• 2:2, 3:2 and 3:3 pull-down for SD/HD film sources
• Per-pixel SD/HD video de-interlacing
• Adaptive diagonal filtering
• MPEG mosquito and block artifact reduction
• Temporal noise reduction for SD and HD sources
• Output resolution from 480p to 1080p, plus 1080i
• User programmable non-linear-stretch (NLS) mode
• 4:3, LBOX, 16:9, 1.85, 2.35 and NLS input aspect ratios
• Programmable output aspect ratio from 1.10 to 2.50
• Extensive support for anamorphic lenses
• Automatic detection for NTSC, PAL and SECAM
• Extensive suite of test patterns
• Parametric grayscale and Gamma calibration
• ull CMS (Color Management System) using a 3D linear-gamma color palette
• Programmable input/output color-space
• Y/C-delay calibration
• CUE and ICP filtering
• Eight channel audio up to 192 kHz, DD True-HD™ 5.1, and DTS Master Audio™ 5.1
• IR and RS232 control inputs (See Tech Tip 11 and 12 on the Lumagen.com support page)
• RS232 control output
• LVTTL IR format command input LVTTL IR format command input (See Tech Tip 9)
• Universal, 100-240V~50/60Hz input power supply
• Power consumption 16 Watts
• Optional rack mounting ears
• Optional SDI input modual

Section 1 – Getting Started
RadianceXS rev 06/29/11
2
Document Conventions and Menu Navigation
Commands are selected with the supplied infrared remote or the RS232 serial port. To prevent possible
command conflict, only one of these methods of command should be used at a time. See the Serial RS232
Command Interface section for information on serial commands. The infrared remote control command
notation is described below:
• Remote buttons are named as shown on the remote in a bold font. Example: MENU.
• or comma separated lists, press the buttons in the sequence shown.
• or parenthesized lists, select one button from the list.
• or square-bracketed lists, press the buttons as needed.
Example: or the list [

, 

, 

, 

], press the arrow keys as needed.
• or menu commands press the MENU button. The 

 and 

 arrow keys are used to select the
function. The 

 arrow key (or OK) is used to enter sub-menus. This is shown as: MENU →
MenuItem → MenuItem. The 

 arrow key (or EXIT) steps up one menu level.
• Numerical entries are listed as value. The 

 arrow key acts as a backspace key.
• Some commands are activated immediately without the need to press OK. Other commands must
be explicitly accepted by pressing OK. If needed, OK is listed as part of the command, and will
complete the command and return the menu to one level higher in the menu system.
• or many commands, pressing EXIT cancels a partially completed command and returns to one
level higher in the menu system. or advanced commands changes are completed from within
the command and EXIT just returns to one level higher in the menu system.
• There are four independent configuration memory types for each input (MEMA, MEMB, MEMC
and MEMD). The input setup and output resolution/timing can be set independently for each
memory. To program an input memory, first select the input, then select the desired
configuration memory and use the menu system to configure.
• Some menu commands are only available when their associated input is selected.
• Before changes are saved, they can be discarded by entering standby (STB ) mode.
• A Save must be performed after any changes or all changes will be discarded the next time the
unit enters standby (STB ), or power is lost. To save press MENU, 

, OK, OK, OK.
Unpacking
• Unpack the box.
• Make sure that you remove all of the accessories from the packing.
• Save the box and packing materials in case you need to ship your Radiance.
Verify that your box contains the following items:
• Lumagen Radiance video processor
• Universal power-supply, INPUT: 100-240V~50/60Hz
• Remote control
• AAA Batteries (2)
• Radiance Owner’s Manual
• RS232 Null-modem cable
Remote Control Battery Installation
Use the following procedure to install batteries in the remote:
1. Locate the battery compartment on the back of the remote control.
2. Move the locking tab to open the door.
3. Remove the old batteries (if applicable).
4. Install two new AAA batteries, observing the battery polarity shown in the battery compartment.
5. Replace the battery compartment cover.
Installation Guidelines
• Install the Radiance on a flat, level surface such as a table or shelf.
• Alternately the Radiance can be installed in an equipment rack by using optional rack ears.
• Select a well-ventilated, dry location.
• Verify that the cooling vents are clear of obstructions to provide convection cooling.
• Only use the Lumagen approved power supply.
• Avoid sudden temperature changes, temperature extremes and excessive humidity.
• Unplug power to the Radiance before cleaning.

Section 2 – Overview
RadianceXS rev 06/29/11
3
Section 2 – Overview
Front Panel
The front panel has a light-emitting-diode (LED) indicator, which is red when the unit is in “standby” and, by
default, is green when the unit is “on.” Note that the green “on” indicator can be turned off if preferred.
Rear Panel
There are four HDMI and six analog video inputs. Audio can be received on the active HDMI input, one of
two analog stereo inputs, or one of five digital audio inputs (2 TOS, plus 3 COAX).
There are two HDMI audio/video outputs and one COAX audio output. Video can be output on one or both
of the HDMI outputs. Audio can be output on the HDMI outputs and/or the COAX output.
Additional connections are provided for LVTTL command input (38 KHz IR format), RS232 command output,
RS232 command input/update, plus the 5 VDC power input.
These connections are described on the following page.

Section 2 – Overview
RadianceXS rev 06/29/11
4
HDMI Connections
2 HDMI SD/HD Outputs. HDMI1 supports video resolutions from 480p/576p up to 1080p60
with support for HDMI 1.3 audio formats.
4 HDMI SD/HD Inputs. Supports resolutions from 480i/576i up to 1080p60
Note: CEC bit pass-through connected from HDMI inputs to HDMI Output 1.
Analog Video Input Connections
2 Component / RGsB Inputs / RGBcvS. Supports resolutions up to 720p60, 1080i30. Input 8
can be used as an RGBHV Input. In this Mode VSync uses Input 9, and HSync uses Input
10. Each of these inputs can support RGBcvS. or RGBcvS, an input is combined with the
adjacent composite video input (i.e. Input 8 + cvS on Input 10).
2 S-video Inputs. Supports NTSC, PAL and SECAM.
2 Composite Inputs. Supports NTSC, PAL and SECAM.
Audio Input and Output Connections
2 Stereo Analog Audio Inputs
2 Optical Digital Audio Inputs
3 COAX Digital Audio Inputs
1 COAX Digital Audio Output
Miscellaneous Connections
1 IR format command input (See Tech Tip 9 on the Lumagen.com website).
1 RS232. Used for command input and for software update (See Tech Tip 6 and 11).
1 RS232. Used for command output. Typically used to turn a display on and off.
1 Power Input (5 Volts DC)

Section 2 – Overview
RadianceXS rev 06/29/11
5
Remote Control
Power / Standby
ON Power On
STB Standby
Navigation Control
CLR Clear menu or partial commands
HELP Display context-sensitive help
EXIT Go back one menu level
OK Enter/Accept command, display info screen


 Menu navigation / zoom in


 Menu navigation / zoom out


 Menu navigation / input aspect


 Menu navigation / input aspect
Numeric Entry
1-9 Input 1 to 9
+10 Input 10 and greater
Picture-In-Picture (PIP)
OFF Turn PIP off
SEL Turn PIP on. Ready for PiP input selection
SWAP Swap PIP and main view
MODE Select PIP mode
Input Aspect Ratio
4:3 4:3 (1.33) aspect ratio
LBOX Letterbox
16:9 16.9 (1.78) aspect ratio
1.85 1.85 aspect ratio
2.35 2.35 aspect ratio
NLS Non-Linear-Stretch
Misc Buttons
INPUT Precedes input # selection
ZONE <not implemented>
ALT Alternate info screens
PREV Previous output
Configuration Memories
MEMA Memory A
MEMB Memory B
MEMC Memory C
MEMD Memory D

Section 2 – Overview
RadianceXS rev 06/29/11
6
Block Diagram
The function of the Radiance is to act as a video switch, process the selected video source and then output
video in the appropriate format and resolution. Standard definition (SD), enhanced-definition (ED), high-
definition (HD) video inputs, plus a number of PC formats are supported. Video inputs are converted to
progressive video (if necessary) and are then scaled to the video output resolution.
Interlaced video has been in use for more than 50 years and is still the most common video format. It
displays half of the lines of picture information each sixtieth (or fiftieth) of a second. Each half of the image
is called a field and displays either all the even lines, or all the odd lines. So, an entire image, called a
frame, takes a thirtieth (or twenty-fifth) of a second to display on the screen. An “i” suffix on the resolution
specification is used to indicate interlaced formats.
In contrast, progressive video presents each frame as a whole. A “p” suffix on the resolution specification is
used to indicate progressive formats. Converting interlaced video to progressive video is referred to as
“deinterlacing.”
The Radiance is comprised the following major functional sections:
• Video input selection with conversion to digital (if needed) and video decoding
• Video deinterlacing
• Video filtering and scaling
• Video output of HDMI digital video
• Audio input selection
• Audio control
• Audio output encoding
The functional blocks are shown below.

Section 2 – Overview
RadianceXS rev 06/29/11
7
Composite and SVideo inputs automatically select between NTSC, PAL and SECAM formats. The component,
RGB and HDMI inputs accept SD, ED and HD video at 24, 50 or 59.94 Hertz. HDCP encryption is supported
for the HDMI inputs. This is not just a “pass-through” function. If the signal is encrypted, the HDMI inputs
are decrypted, processed, scaled and then re-encrypted for output as HDMI. or HDCP encrypted inputs, a
HDCP capable display is required.
If the video input is interlaced, it is first deinterlaced into a progressive format. User enabled noise reduction
algorithms are then applied. Proprietary No-ring™ scaling algorithms are used to scale the resulting
progressive video to the optimal size for the display.
As part of the scaling process, digital filtering is used to enhance the image detail. This enhancement allows
standard definition inputs, such as DVDs, to appear to be much higher resolution. This is especially valuable
when standard-definition sources are viewed on the large screen sizes common in home theaters.
Commands can be sent to the Radiance by infrared remote or via the serial RS232 port. The RS232 port is
used for software updates. Setup is done with the on-screen menu. User functions (e.g. select input) use
direct commands.
Configuration Memories
To understand how the Radiance functions, it is important to note that setup and calibration parameters are
split into “input memories” and “output configurations.” Input memories control video source setup. Output
configurations control display setup and calibration and are specified by selecting a Mode, CMS and Style for
each input, input User memory, input resolution, and 2D/3D input.
The Radiance has four input memories (MEMA, MEMB, MEMC and MEMD). Each input memory has eight
sub-memories that are automatically selected for input resolutions of 480, 576, 720p, 1080i50, 1080i60,
1080p24, 1080p60 and Other. The “Other” memory is reserved as a “catch-all” for unspecified resolutions.
The following applies to software revision 102910, and later revisions: Each Input sub-resolution memory
can be independently linked to any one of the (8) output modes, (8) CMS and (8) Style memories. They
store setup data for the video display setup and calibration. In the factory default condition all input sub-
resolution memories are linked to “Mode 0,” “CMS 0,” and “Style 0.” To change these enter MENU →
→→
→
Output→
→→
→ (2D/3D) →
→→
→ OK →
→→
→ (Mode, CMS, Style). These settings can be changed for each input sub-
resolution memory. To “Save” new settings, enter MENU →
→→
→ Save →
→→
→ OK →
→→
→ OK →
→→
→ OK.
Default “Input Memory” to “Output ” configuration (for 102910, or later, software)

Section 2 – Overview
RadianceXS rev 06/29/11
8

Section 3 – Quick Start Guide
RadianceXS rev 06/29/11
9
Section 3 – Quick Start Guide
Installation Instructions
1. Install two AAA batteries in the Lumagen Remote Control.
2. Connect audio/video sources to the appropriate Radiance inputs.
NOTE:
While the Radiance can be connected after the Audio-Video-Receiver (AVR) on the
AVR HDMI Output, Lumagen recommends instead that the Radiance be used as the
switching device with Radiance Output 1 connected to an HDMI input on the AVR.
Default connections for System with AVR plus display/projector
3. Connect the Radiance outputs. If using only one Radiance output, use Output 1 if the Radiance
needs to pass audio, or Output 2 if not. If using an AVR, or audio PrePro, connect it to
Radiance Output 1 and the display/projector to Output 2, as shown below.
NOTICE:
When using an AVR for audio, connect it to Output 1 and the display/projector to
Output 2 as shown above. To save effort, do NOT connect the display/projector to
Output 1 for this case, as it would require additional setup to function properly.
4. Plug the DC power cord from the Radiance power supply into the DC power jack on the back of
the Radiance . Then connect the power cord to the Radiance power supply and plug it into a
wall outlet.
5. Turn the other equipment on and use the Radiance remote control to turn the Radiance on.
6. Select the desired Radiance input using the Radiance remote control. The ten video inputs are
numbered 1 to 10. or inputs 1 through 9, press the “Input” button and then press the corresponding
number button on the remote. or input 10, press the “Input” button, then the “0” button
7. Audio inputs can be associated with the active input using the following command:
MENU →
→→
→ Input →
→→
→ Audio Setup →
→→
→ Source →
→→
→ (select audio input) →
→→
→ OK
8. Make sure the appropriate HDMI input on the display/projector is selected, and the selected
source device is outputting active video.
9. You should now have an image on your display/projector. Note: The Radiance automatically
selects the appropriate output resolution and frame rate for HDMI/DVI displays and projectors
(including 24p when supported by the display/projector), when connected according to these
instructions.
10. The default output aspect ratio is 16:9 (i.e. 1.78:1). No output aspect ratio selection is needed
for 16:9 displays or projectors. or other output aspect ratios, please see the User Manual .

Section 3 – Quick Start Guide
RadianceXS rev 06/29/11
10
System Configuration Examples
The most common configurations using the Radiance are shown below.
1. Receiver after Radiance.
Placing the AVR and display after the Radiance is the default configuration. Connect your AVR to Radiance HDIM
Out 1, your display/projector to Radiance HDMI Out 2, connect your video sources, and then power everything on.
The Radiance automatically detects and selects the appropriate audio and video modes.
This configuration can improve switching delays using the Radiance’s fast input switching, and guarantees the
video is not degraded by the AVR. It also minimizes the work needed to configure the Radiance since, for output 2,
audio is turned off by default. Note, some amplifiers do not accept audio for non-standard video rates, such as
768p, or at any rate above 720p/1080i, and some amplifiers will not report EDID back to the Radiance unless the
amplifier’s HDMI output is turned off, or is driving a display. If you connect the Radiance coax audio output to a
receiver, you can use HDMI audio or coax/SPID audio input from the video source but you need to change the
Radiance Audio EDID to one of the “USER” modes in the main audio menu. See the Audio section of this manual
for more information.
2. Audio and Video routed separately.
Connect the display to Radiance HDMI Output 2. This output has its audio turned off by default and so is correct
by default for this case.
3. Receiver in front of Radiance.
Connect the display to Radiance HDMI Output 2. This output has its audio turned off by default and so is correct
by default for this case.

Section 3 – Quick Start Guide
RadianceXS rev 06/29/11
11
4. Receiver in front of and after the Radiance.
Connecting the Radiance both in front of and after the AVR is not recommended, but can be used in special
circumstances. This connection scheme can cause HDCP authentication loops, which cause power up and switching
issues in some systems.
Connect the AVR’s HDMI video output to an appropriate Radiance video input, and connect the Radiance’s Output
1 to an appropriate AVR input. Connect the display’s HDMI input to the Radiance’s HDMI Output 2. Change the
Audio EDID in the main Audio menu to “User1 EDID.” If the AVR output is intended only for displaying the AVR’s
On-Screen-Display, Lumagen recommends using a Radiance analog video input.
Source Device Connection Examples
The following illustrations show the types of cables, which can be used to connect typical video sources to the
Radiance. Multiple possibilities are shown for some sources, but only a single audio and a single video connection
are required.
VCR/Laser Disk/DVR
DVD Player/DVD Recorder

Section 3 – Quick Start Guide
RadianceXS rev 06/29/11
12
Bluray / Set Top Box / dVHS / Networked Media Player
PC
Connecting a PC using a HDMI cable is preferred, but Input 8 can be used as an analog VGA (RGBHV)
input. Use the Y channel for green, the P
R
channel for red and the P
B
channel for blue, Input 9 for VSync,
and Input 10 for HSync.
SCART (RGBcvS)
Note: or RGBcvS, a component input is combined with the adjacent composite video input (i.e..
component Input 8 + cvS on Input 10).

Section 4 – Basic Commands
RadianceXS rev 06/29/11
13
Section 4 – Basic Commands
Power
Turn power on by pressing the ON button. Place the Radiance in standby-mode by pressing STB .
Input Selection
The ten video inputs are numbered 1 to 10. or inputs 1 through 9, press the “Input” button and then press the
corresponding number button on the remote. or input 10, press the “Input” button, then the “0” button
Shortcut:
If the menu is not displayed on the screen, inputs 1 through 10 can be selected
by just pressing the corresponding number button on the remote.
If desired, the “Input” button can be programmed to display a screen with the inputs listed as a menu-table. Then
the desired input can be selected either with the number keys, or by using the arrow keys to highlight the desired
input and then pressing the OK button. The command to enable the input menu is:
MENU →
→→
→ Other →
→→
→ Menu control→
→→
→ Menu Options →
→→
→ Input Menu →
→→
→ (Off, On)
Configuration Memory Selection
Each input has four configuration memories. These are referred to as memory “A,” “B,” “C,” and “D.” To select one
of these memories press MEMA, MEMB, MEMC, or MEMD, respectively. Note, RS232 codes are provided to
directly access these memories. Each input memory has eight input “sub-memories” that are automatically
selected based on the input resolution and 2D/3D input video format.
Each configuration memory, and sub-memory, is independent of the other memories. To allow the memories to be
used for mode selection (e.g. day/night), the memory type remains unchanged when a new input is selected. (i.e.
If input 2 memory B is active, pressing “Input, 3” selects input 3 memory B).
Input Aspect Ratio Selection
The input source aspect ratio can be selected by pressing the 4:3, LBOX, 16:9, 1.85, or 2.35 button. To use the
NLS feature, press “4:3, NLS”, “16:9, NLS”, or “1.85, NLS”.
• Use 4:3 for standard definition full-screen material.
• Use LBOX for “letterbox” standard definition material, such as analog-television movies shown with black
bars above and below the image.
• Use 16:9 for material labeled as “Enhanced for 16:9 televisions”.
• Use 1.85 for material labeled as “Aspect ratio 1.85”.
• Use ‘Alt’ 1.85 for material that is “Aspect ratio 1.85 letterboxed in a 16:9 (1.78) window”.
• Use 2.35 for material labeled as “Aspect ratio 2.35”.
• Use NLS to apply a horizontal non-linear stretch, to stretch 4:3 to 16:9, or 16:9 or 1.85 to 2.35.
NOTE:
Make sure the “display aspect ratio” setting is 16:9 in the setup menu of all video
sources (e.g. DVD players or set top boxes), even if your display is not 16:9.
Image Zoom
After the input aspect ratio has been selected, the image can be zoomed in to better fit the screen. The zoom
function uses the 

 and 

 arrow buttons. When the menu is off, by default, the 

 arrow button zooms in and the


 arrow button zooms out.
