Lumapower Signature Tactical LX User manual

prolonged exposure to moisture, the bezel and batteries should be removed, inspected,
and dried if necessary.
WARNING: Lumapower reflectors are made with a highly precise process. Do not
touch or clean the reflecting surface using any cloth which may cause damage to the
surface material affecting the illuminating performance.
Inactive Periods.
If ” Signature-LX “ is left unused for long period, the installed batteries should be
removed from the unit.
Output & Runtime
Accurately specifying light output (lumens) and runtime is complicated for LED flashlights.
Installed batteries and operating temperature are the main factors affecting the light
output and runtime. Lumapower cannot guarantee its products can reach the specification
under the using condition of users.
Specification
LED : Cree LED-XM-L U2
Reflector : Standard OP-textured type, (Optional SMO reflector).
Emitter Output : 25 Lumens to 580 Lumens
Runtime : 80 minutes Ultra-level to 50% with 2 x 123A (1500mAh)
150 minutes High-out to 50% with 2x123A (1500mAh)
180minutes Ultra-Level with 1x18650 (2800mAh)
300minutes High-Level with 1x18650 (2800mAh).
Input Voltage : 2.8V to 12 V
Batteries : primary 123A, rechargeable Li-ion (16340,18650…)
Length : 133mm
Bezel Diameter : 27mm
Body Diameter : 22.5mm
Tail cap Diameter : 27mm
Anti-roll retainer Diameter : 30mm
Reflector/lens Diameter : 23mm
Weight : 80.5g (Full size without battery installed)
Material : T6 aircraft aluminum with Type III HA
Body color : Black
Accessories : spare o-rings (for battery tube), rubber switch cap, Holster
Specifications: All product specifications/features are subject to change without notification.
Reflecting surface
User Manual (ver.1.7)

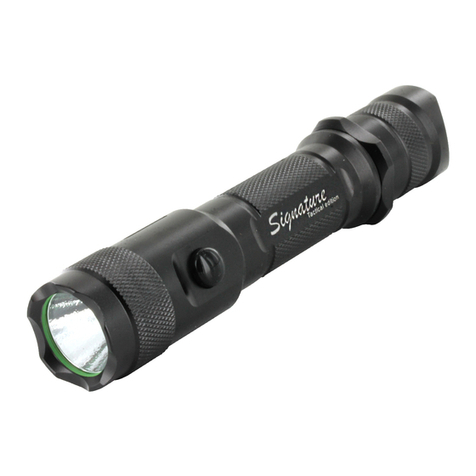

Signature Tactical LX
Lumapower Multi-purpose Flashlight
With Cree LED-XM-L

Welcome to Lumapower
Please take a moment to register your product on our Web site at
http://www.lumapower.com (download the product registration form in the “ORDER
page”) It enables us to keep you posted on our latest advancements, and helps us to
better understand our customers and build products that meet their needs and
Expectations.
This product has been designed and manufactured to the highest quality standards.
However, if something does go wrong with this product, Lumapower and its national
distributors warrant free of charge labour and replacement parts in any country served by
an official distributor.
Unpacking: Check the product carefully. If it has been damaged in transit, report the
damage immediately by calling your dealer and/or the shipping company that delivered it.
Read Instructions. All the safety and operating instructions should be read before the
product is operated.
Follow Instructions. All operating and use instructions should be followed.
Replacement Parts. When replacement parts are required, be sure the replacement parts
have the same characteristics as the original part. Unauthorized substitutions may cause
damage to the unit.
Introduction
The Lumapower “Signature-LX” supports input voltage from 2.8V to 12V. The
“Signature-LX” is fitted with pure white LED module driven by a constant current
regulation circuitry to achieve a consistent level of light output for the useable life of the
batteries. Li-ion rechargeable : Only recommends the use of PCB protected batteries.
Combination Battery Type Pcs
1 Rechargeable 18650 (3.7V) 1
2 Rechargeable 17670 (3.7V) 1
3 Rechargeable 17650 (3.7V) 1
4 Rechargeable 16340 (3.7V) 2
5 Primary 123A (3.0V) 2
6 Rechargeable 17500 (3.7V) 2 (S-35)
7 Primary 123A (3V) 3 (S-35)
*S-35 : Power extender (optional parts)
The ” Signature-LX “ features a forward clicky switch and multi-level SideKick control
circuit with memory functions. Half-press the tail switch to power ON ” Signature-LX
“ momentary, full press to lock it for constant ON. Cycle press the SideKick to select
output mode.
Convertible Design
Reflectors/LED engine module can be easily upgrade.
SideKick output control and Memory
Press to cycle the output from Ultra, High, Medium, Low and Strobe (12Hz-14Hz).
The SideKick module works on Power ON which remains the selected output with your next
start.
Battery Installation
Unscrew the tail or battery tube and insert new batteries with positive (+) ends towards
LED assembly. Restore hand tighten. Depress tail cap pushbutton switch to test.
Note: Flashlight will not light if batteries are inserted in the wrong direction.
Damage may occur with reversed battery polarity.
CAUTION: ”Signature-LX “ flashlights are high-output lighting devices. Due to
possible eye injury, DO NOT look directly into the reflector when the light is
switched on. Do not shine the ”Signature-LX “into the eyes of others. Safety is
your responsibility. External surface temperature will rise during prolonged operation; this
is a normal operating phenomenon.
Battery Replacement
If there is significant decrease in brightness of light output you should replace the batteries
with freshly charged batteries. Unscrew the Tail cap and remove the old battery. Insert a
new battery as mentioned in Battery Installation Guide
WARNING: Lithium batteries can explode or cause burns if disassembled, shorted,
recharged, exposed to water, fire, or high temperatures. Do not place loose batteries in a
pocket, purse or other container containing metal objects or store with hazardous or
combustible materials. Store in cool, dry, ventilated area. Follow applicable laws and
regulations for disposal.
Never use mixed-battery types or brands. Do not mix charged and uncharged
batteries. Input voltage limited to 12V,. Power ON ”Signature-LX “at Ultra-out
position unattended over 15 minutes may cause overheating and damage.
Maintenance
Clean and lubricate threads with a clean cloth and apply thin coat of silicon-based lubricant
to rubber O-rings. Note: Do not use petroleum-based lubrication on O-rings. After
