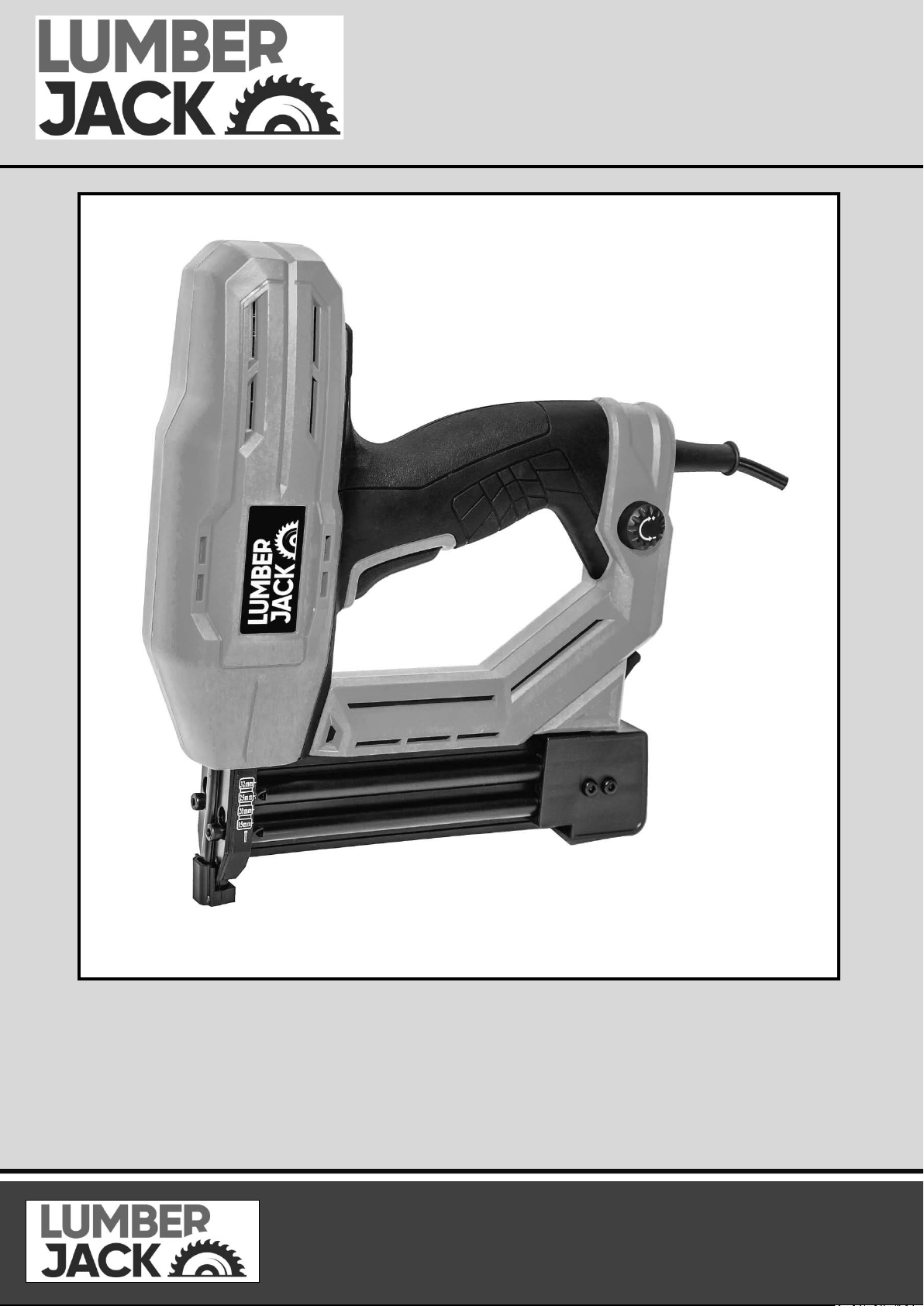

Lumberjack NS18G Installation manual

NS18G
Electric Nailer and Stapler Gun
NS18G
ORIGINAL INSTRUCTIONS
SAFETY AND OPERATING MANUAL

NS18G
TABLE OF CONTENTS
Welcome to Lumberjack!
Dear customer, Congratulations on your purchase. Before using the
product for the first time please be sure to read these instructions for use.
They provide you with all information necessary for using the product safely and to
ensure its long service life.
Closely observe all safety information in these instructions!
General Power Tool Safety Warnings………………………………….…......01
Symbols & Cable Rating Chart ……….…………………………………….………05
Machine Details and Product Features……….…………………………….….06
Operation, Maintenance and Service…………………………………………..08
Lumberjack Guarantee………….…………………………………………………….09
Declaration of Conformity……………………………………………………………11
Parts List…………..………………………………………………………………………...12

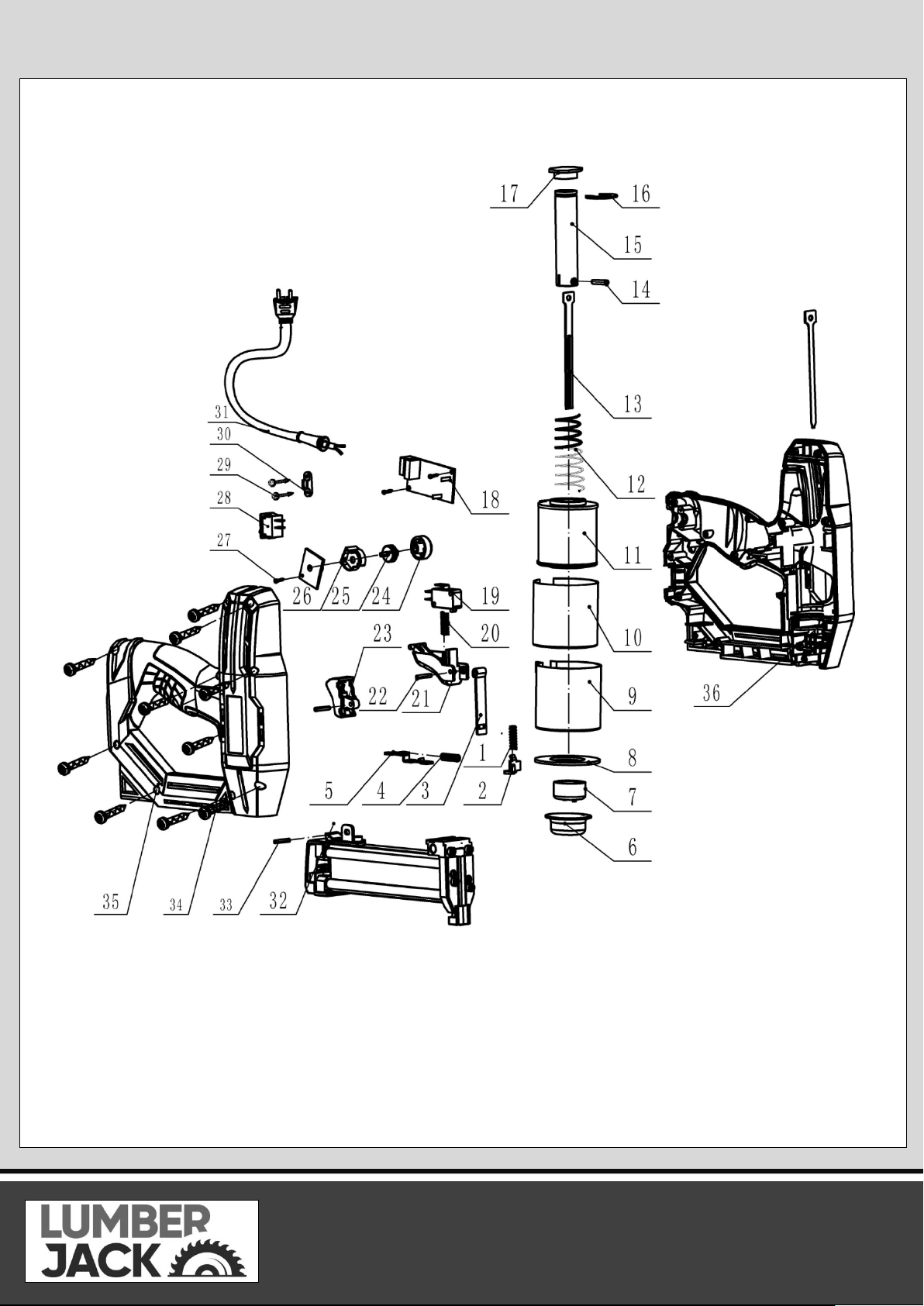

Parts Diagram………………………………………………………………………………13

NS18G 01
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference. The term "power tool" in
the warnings refers to your electric (corded)
power tool or battery-operated (cordless) power
tool.
1. Work area safety
a)Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with grounded power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges and
refrigerators.There is an increased risk of electric
shock if your body is grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.

NS18G 02
GENERAL POWER TOOL SAFETY WARNINGS
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b) If the replacement of the supply cord is
necessary, this has to be done by the
manufacturer or its agent in order to avoid a
safety hazard.

NS18G 03
GENERAL POWER TOOL SAFETY WARNINGS
6. SAFETY INSTRUCTIONS FOR TACKERS
a) Secure the workpiece (a workpiece clamped with
clamping devices or in a vice is held more securely
than by hand) .
b) Never push in the tacker head manually(there is
danger of injury when at the same time the trigger is
activated unintentionally) .
c) Never use the tool for fastening electrical wiring
(contact with electrical wires can lead to .re and
electric shock) .
d) Avoid damage that can be caused by screws, nails
and other elements in your workpiece; remove them
before you start working .
e) In case of electrical or mechanical malfunction,
immediately switch off the tool.
f) Lumberjack can assure flawless functioning of the
tool only when original accessories are used .
g) This tool should not be used by people under the
age of 16 years.
h) Do not expose tool to rain.

NS18G 04
SYMBOLS AND POWER RATING CHART
Danger! – Read the operating
instructions to reduce the risk of
injury.
Caution! Wear safety goggles.
Caution! Wear ear defenders. The
impact of noise can cause damage
to hearing.
Caution! Risk of Injury! Do
not reach into the running
saw blade.
Caution! Wear a dust mask.
Protection class:
Double Insulated.

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
NS18G 05
MACHINE DETAILS AND PRODUCT FEATURES
Machine Details
Specifications:
Mains Voltage -230V / 50Hz
Rated Current - 5A
Rated Firing Speed -≤20pcs/min
Staple specification:
Type 600
Wire Spec. – 18 Gauge
Crown Width – 5.7mm
Staple Length – 15-25mm
Brad Nail Specification:
Type F
Wire Spec. – 18 gauge
Brad Width – 2.0mm
Nail Length – 15-32mm
Gross Weight – 2.5kg
Nett Weight – 2.0kg
Package Contents:
300 X Staples
100 X Nails
1 X Hex key
Intended Use
This tool is intended for stapling and nailing
of cardboard, insulating material, fabrics,
foils, leather and similar materials on
surfaces of wood or materials similar to
wood.

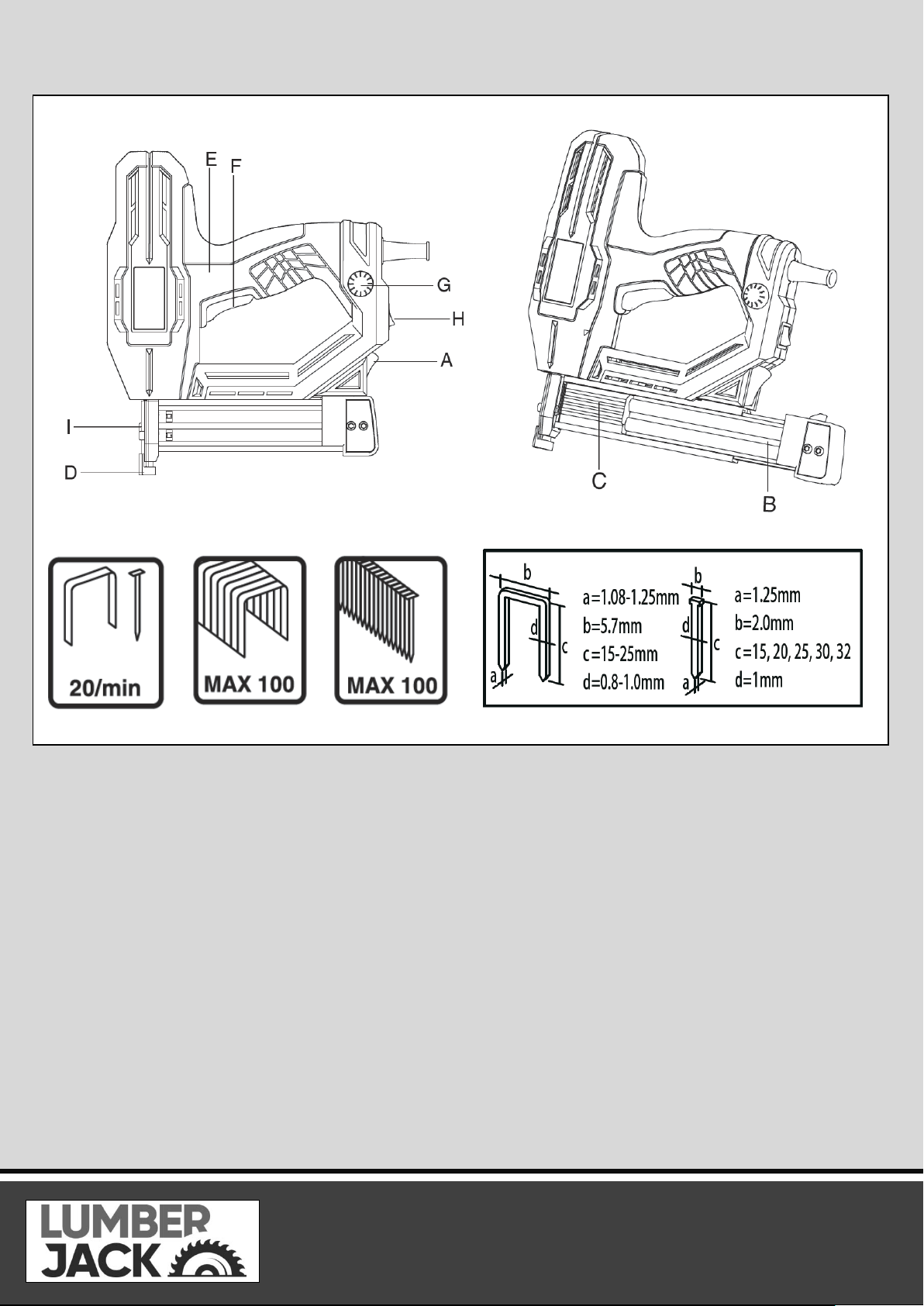

Product Features
A. Lever for loading magazine
B. Slider
C. Magazine
D. Tacker head
E. Soft grip handle
F. Trigger
G. Impact control adjustment knob
H. ON/OFF Switch
I. Non-marring nose tip

AIR6V 01 AIR6V 01 AIR6V 01 AIR6V 01
NS18G 06
MACHINE DETAILS AND PRODUCT FEATURES

NS18G 07
OPERATION
Operation
USE
Loading staples/nails
- Tilt the tool or lay the tool flat, so the staples or
nails will not drop out while loading
- Press lever A while pulling slider B backwards
- Place the nail strip into magazine C
(maximum capacity 90 nails)
Attention: Make sure that
-the staple strip is loaded with the crown
aligning with the top line of the magazine C
-the nail strip is loaded with the tapered end
aligning with the bottom line of the magazine C,
so the brad nail head rest right into the grooves
which corresponds with the symbol of nail
length on tacker head D
-push slider B against tacker head D until it
snaplocks
Operating the tool
-firmly press tacker head D against the work piece
until
it is pushed in a few millimetres.
-briefly press trigger F and then release again
-Trigger F is locked as long as you do not press
tacker
head D against the work piece,
Thus preventing accidental operation
-At 20 shots/min,tacker should be allowed to cool
down after 30 minutes as it is only rated for short-
time duty.
! Remove all staples/nails from the magazine after
each use
Impact control
With knob G the required impact level can be
adjusted in steps
-indicator G shows the selected impact level
-“-” for thin and light materials such as foils and
fabrics
-“+” for thick and tough materials such as hard
woods and walls
-before starting a job, find the optimal impact level
by
testing out on spare material

NS18G 08
OPERATION
APPLICATION ADVICE
. Fastening panels.
.Do not use the tool for fastening ceiling
panelling on profiled wood or grooves.
. Fixing textiles!
. Avoid blank shots in order to reduce the wear
of the impact strike.
NAIL INSTRUCTIONS FOR TACKERS
. Roughly, the hardness of wood is divided into 3
levels:
-High
-Medium
-Low
. Nails of different length are applicable for
different wood hardness.
. The tool has recoil when firing, so two hands
operation is suggested, to have a better control of
the operation.
UNBLOCKING JAMMED FASTENERS
. In the unlikely event that nails become jammed,
follow these
instructions to remove them
! unplug power cord from power source before
removing
-Remove the nose tip I
-Remove the plate retaining bolts
-Remove the safety mechanism retaining plate
-Remove the firing pin retaining plate
! Note the location as well as the order in which parts
are removed from the tacker, this will make it easier
to rebuild it

NS18G 09
LUMBERJACK GUARANTEE
1. Guarantee
1.1 Lumberjack guarantees that for a period of
12 months from the date of purchase the
components of qualifying products (see clauses
1.2.1 to 1.2.8) will be free from defects caused
by faulty construction or manufacture.
1.2. During this period Lumberjack, will repair or
replace free of charge any parts which are
proved to be faulty in accordance with
paragraph 1.1 providing that:
1.2.1 You follow the claims procedure set out in
clause 2
1.2.2 Lumberjack and its authorised dealers are
given reasonable opportunity after receiving
notice of the claim to examine the product
1.2.3 If asked to do so by Lumberjack or its
Authorised dealer, you return the product at
your own cost to Lumberjack’s or supplying
Authorised Dealer’s premises, for the
examination to take place clearly stating
theReturns Material Authorisation number given
by Lumberjack or an Authorised Dealer.
1.2.4 The fault in question is not caused by
industrial use, accidental damage, fair wear and
tear, wilful damage, neglect, incorrect electrical
connection, misuse, or alteration or repair of the
product without approval.
1.2.5 The product has been used in a domestic
environment only
1.2.6 The fault does not relate to consumable
items such as blades, bearings, drive belts, or
other wearing parts which can reasonably be
expected to wear at different rates depending
on usage.
1.2.7 The product has not been used for hire
purposes.
1.2.8 The product has been purchased by you as
the guarantee is not transferable from a private
sale.
2. Claims Procedure
2.1 In the first instance please contact the
Authorised Dealer who supplied the product to
you. In our experience many initialproblems with
machines that are thought to be faulty due to
faulty parts are actually solved by correct setting
up or adjustment of the machine. A good
Authorised Dealer should be able to resolve the
majority of these issues much more quickly than
processing a claim under the guarantee. If a
return is requested by the Authorised Dealer or
Lumberjack, you will be provided with a Returns
Material Authorisation number which must be
clearly stated on the returned package, and any
accompanying correspondence. Failure to provide
a Returns Material Authorisation number may
result in item being refused delivery at Authorised
Dealer.
2.2 Any issues with the product resulting in a
potential claim under the guarantee must be
reported to the Authorised Dealer from which it
was purchased within 48 hours of Receipt.
2.3 If the Authorised Dealer who supplied the
product to you has been unable to satisfy your
query, any claims made under this Guarantee
should be made directly to Lumberjack. The Claim
itself should be made in a letter setting out the
date andplace of purchase, giving a brief
explanation of the problem which has led to the
claim. This letter should be then sent with proof

NS18G 10
LUMBERJACK GUARANTEE
of purchase to Lumberjack. If you include a
contact number with this it will speed your claim
up.
2.4 Please note that it is essential that the letter
of claim reaches Lumberjack on the last day of
this Guarantee at the latest. Late claims will not
be considered.
3. Limitation of Liability
3.1 We only supply products for domestic and
private use. You agree not to use the product for
any commercial, business or resale purposes and
we have no liability to you for any loss of profit,
loss of business, business interruption or loss of
business opportunity.
3.2 This Guarantee does not confer any rights
other than these expressly set out above and
does not cover any claims for consequential loss
or damage. This Guarantee is offered as an extra
benefit and does not affect your statutory rights
as a consumer.
4. Notice
This Guarantee applies to all product purchased
from an Authorised Dealer of Lumberjack within
the United Kingdom. Terms of Guarantee may
vary in other countries.

NS18G 11
CE DECLARATION OF CONFORMITY
TOOLSAVE
Unit C, Manders Ind. Est.,
Old Heath Road, Wolverhampton,
WV1 2RP.
Tel: [phone]
Declares that the Nail & Stapler (NS18G)
Is in compliance with the regulations included in the Directives:2006/42/EC
EC DECLARATION OF CONFORMITY
Certificate for EC-type examination delivered by Intertek Testing Services Hangzhou,16 No. 1
Ave.,Xiasha Economic Development District,Hangzhou,310018,China. (Verification
No.:180300685HZH-V1)
Person who declares: Bill Evans
01.01.2021
The Director

AIR6V 01AIR6V 01AIR6V 01
NS18G 12
No. Description No. Description
1 Bumper spring 16 Switch
2 Insurance link 1 17 The trigger spring
3 Trigger limit plate. 18 The trigger
4 Insurance link 2 spring. 19 Cylindrical pin
5 Insurance link 2 20 Guide rail lock
6 Damping set 21 A knob
7 Damping block 22 Knob rotation
8 Magnetic shield gasket. 23 Potentiometer shield.
9 Magnetic shield 24 Cross head self-tapping screw.
10 Insulation gasket 25 Switch
11 Coil components 26 Cross head self-tapping screw.
12 Core spring 27 Line pressing buttons
13 Core pack 28 The power cord
13.1 Laminations 29 Guide rail component
13.2 Absorption of iron core 30 Cylindrical pin
13.3 Elastic cotter pin. 31 Cross head self-tapping screw.
13.4 Open ring 32 Right shell
14 Damping block 33 The left shell
15 Circuit board 34 Lock spring
Parts List

NS18G 13
Parts Diagram
