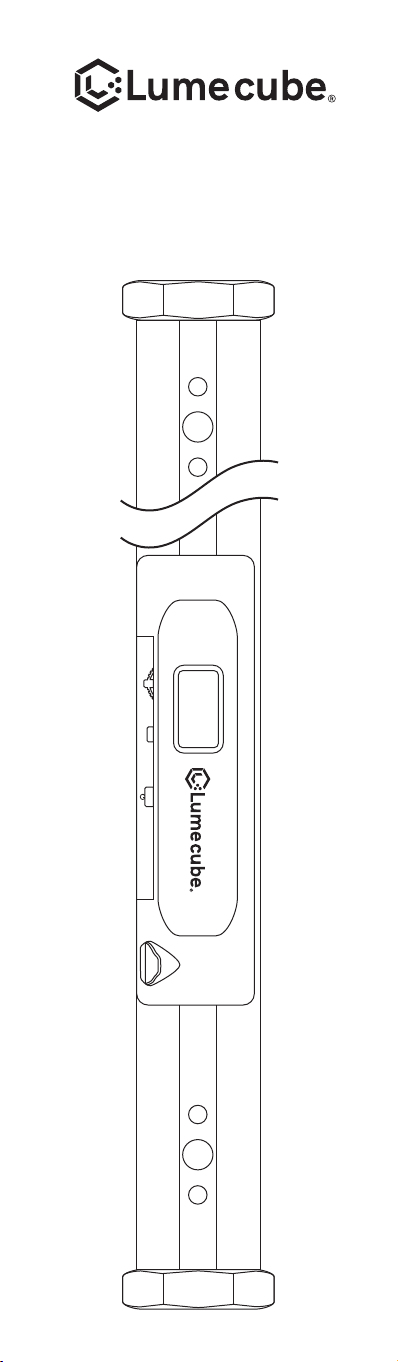

Lume Cube Portable Tube Light User manual

Portable Tube Light
Tube Light Mini
Instructions for Use
-
+
M 5V

-1-
Warning
Caution
Product specification
1. Please keep dry, do not touch the product
with wet hands, and do not expose the
product
Do not immerse the product in water or
expose it to rain.
2. This product is not waterproof, please pay
attention to the rain and wet environment
Waterproof.
3. Please place it out of the reach of children.
4. Built-in lithium battery, do not disassem-
ble, hit, squeeze or put into the fire.
Do not disassemble, hit, squeeze or put into
fire.
5. Do not use in flammable gas, violation of
this warning may cause violation of this
warning may cause an explosion or fire.
6. Do not use, store or charge in a hot
environment or in a closed space under direct
sunlight.
Do not use, store or charge in a hot environ-
ment or in a closed space under direct
sunlight.
7. Please use the special charger for charging
and follow the operating instructions
correctly, and use within the specified voltage
and temperature range.
8.This product involves batteries, please
strictly follow the corresponding operating
instructions regarding the use of batteries.
Otherwise, it may lead to explosion or fire.
1. After charging is completed, the power
cord should be unplugged.
2. After not using the product for a long time,
before using the product again, you should
the power will be fully charged, otherwise it
may lead to no power and can not be turned
on. The machine.
3. In order to extend the service life of the
battery, it is recommended that every three
months once a charge maintenance.
4. This product has a built-in rechargeable
lithium battery, which has a certain life limit.
After a certain period of use, the performance
will be weakened, which is a normal phenom-
enon.
1. Product name: RGB portable tube light
2. Product Model: Tube Light Mini
manual carefully and carefully before use,
and keep this manual for future reference
after reading.

-2-
Standard items
Part Name
Tube light: 1pcs USB charging cable: 1 pcs
Instruction manual: 1 copy Small tripod: 1 pcs
1. Product name: RGB portable tube light
2. Product Model: Tube Light Mini
3. Body material: aluminum alloy
4. Charging time: about 2.5 hours
5. Built-in lithium battery: DC7.4V 2500mAh
6. rated power: 10W
7. RGB color gamut: 0-360 ° full color
8. color temperature range: 2700K-7500K
9. color rendering: Ra>96+ 10.
10 dimming range: 0-100%
11. Number of lamp beads: 124
12. battery life: 100% 7500K power continu-
ous output of about 1.7 hours
13. ambient temperature: -10 ~ 35 degrees,
storage temperature -5 ~ 45 degrees.
Charging temperature 0~45 degrees
14. Charging interface: Type-C
15. Charging power: 5V2A
16. Fixed interface: 2 general 1/4" nuts
17. Product size: Φ39mm, length 313mm
18. Net weight: about 350g
Interface Icons
1/4"screw
1/4" screw
Function button
Adjustment button
Power switch
Charging port Type-C
OLED displa
Charging mouth
Fixed screw holes
Fixed screw holes
②Brightness
⑬Bluetooth icon
①Color temperature
mode
③Color temperature
④Magenta/Green
-
+
M 5V

-3-
Interface Function Description:
6. Light effect: display the current light
simulation effect, 6 kinds of light effect can be
selected.
7. Frequency: display the current light
flashing frequency, 1 ~ 10 adjustable.
8. Wireless: show whether it’s under the
current wireless control mode.
9. Power:
a. Display the current power.
b. When the high temperature power icon will
display "HOT" high temperature warning,
when
using the environment temperature is too
high or continuous use for a long time, it will
high temperature warning sign will appear, at
this time continue to use will be forced to
turn off the light or turn off the output power,
wait for the temperature to recover and
reboot.
c. The charging icon will be displayed when
charging.
d. The 100 icon will be displayed when
charging is full.
1. Brightness: display the current brightness
percentage, 0~100% adjustable.
2. Color temperature: display the current
color temperature value, 3200K~7500K
adjustable.
3. Magenta / green: display the current
magenta / green value, -1 ~ 1 adjustable.
4. Color display: display the current color
value, 0 ° ~ 360 ° full color adjustable.
5. Color saturation: display the current
saturation, 1~100 adjustable.
Operating Instructions
⑤Color mode
⑥Color display
⑦Color saturation
⑭Charging icon
⑮Battery level⑧Light effect mode
⑨Light effect
⑩Frequency
⑫Wireless switch
⑯Battery life display
⑪Wireless mode
Turn on/off the power:
Toggle the power switch to turn the power on
or off.

-4-
Light effect mode FX:
1. In the icon shows the previous mode
dial the button, select the light effect
mode , press the M button again, the icon
turns to FX icon, while the selection icon
appears, select the icon pointing to , then
dial to adjust 0 ~ 100% brightness value.
2. Press the M button, select the icon
pointing to , at this time the dial can
choose six different light simulation effects,
OFF to turn off the light simulation effects.
The 6 light effect modes are as follows:
1: Loop mode 2: Lightning mode
3: Flame mode 4: Candlelight mode
5: Police car mode 6: Screen mode
3. Press the M button, select the icon
pointing to , then dial to adjust the light 1 ~
10 flashing frequency function, OFF for off the
light light frequency.
Color mode HSL.
1. With the icon displaying the previous
mode , dial to select the color mode,
press the M button, the icon changes to
SHL, and at the same time the selection icon
appears .
At the same time, the selection icon ap-
pears, select the icon pointing to, at this time,
dial to adjust 0 ~ 100% brightness value.
2. Press the M button, select the icon
pointing to H, at this time, dial the button to
adjust 0 ° ~ 360 ° full color function.
3. Press the M button, select the icon
pointing to S, at this time, dial the key to
adjust 0~100 color saturation function.
4. Press the M button, SHL icon converted to
icon , then dial to switch to the next
mode.
Color temperature mode CCT:
1. After turning on the LED light, press the M
key, the interface is color temperature
adjustment mode. Press the M button again,
the icon will change to CCT, the selection
icon appears，selection icon to point to ,
at this time, toggle the dial button to adjust
0~100% brightness value.
2. Press the M button, select the icon
pointing to , then dial to adjust the
2700k~7500k color temperature value.
3. Press the M button, select the icon
pointing to G/M, at this time, dial to adjust
-1~1, G/M value.
4.Press the M button, CCT icon is converted to
icon , then dial to change to the next
mode.

Warranty card
Dear users, in order to better serve you,
please fill out this warranty card carefully
after purchasing the product, so that we can
serve you in the future. Please keep the
warranty card properly after purchase, this
warranty card is an important proof of
warranty service, thank you!
1.The product warranty of one year, the
built-in battery warranty of six months.
2. Warranty from the date of first purchase of
the product, the date of purchase to purchase
the product warranty card registration date
shall prevail.
3. Quality problems require warranty, please
send this warranty card, the purchase receipt
and the product together to the dealer or
factory for maintenance service.
Warranty Service Terms
1. The product or parts are out of warranty.
2. Warranty card or valid proof of purchase
cannot be provided.
3. Failure or damage caused by not using
according to the instructions.
4. Failure or damage caused by improper
handling, dropping, or shipping.
5. Failure or damage caused by contact or
exposure to improper temperature, solvent,
acid or alkali, water immersion or
Warranty Exclusions
Wireless mode SET：
1.Toggle the dial under the icon to display the
previous mode , select wireless mode,
press the M button again, the icon turns to
icon, while the selection icon appears, the
selection icon points to , then dial to turn
on or off the wireless function.
4. Press the M button again, the FX icon is
converted to icon , then dial to switch to
the next mode.
Name
Contact Number
Address
Sales Date
Confirmation of
the Seller's Stamp
User’s Name
Contact Number
Mailing Address
Purchase Date
Product Name(Model)
User Information Distributor
Information

Humidity caused by the failure or damage.
6. Failure or damage caused by unauthorized
repair, disassembly, or alteration by the user.
7. Failure or damage caused by force majeure
or accident.
8. Other non-quality problems caused by the
failure or damage.
9. Failure or damage caused by the use of
power or voltage other than those specified.
Product appearance in the process of use
scratching, decolorization, wear and tear,
consumption not within the scope of the
warranty; due to improper use caused The
company has nothing to do with the
damage or economic loss caused by
improper use.
Made in China
P S
E

FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarant ee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution:Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environm ent. This transmitter must not be co‐located or operating in conjunction with any
other antenna or transmitter.
