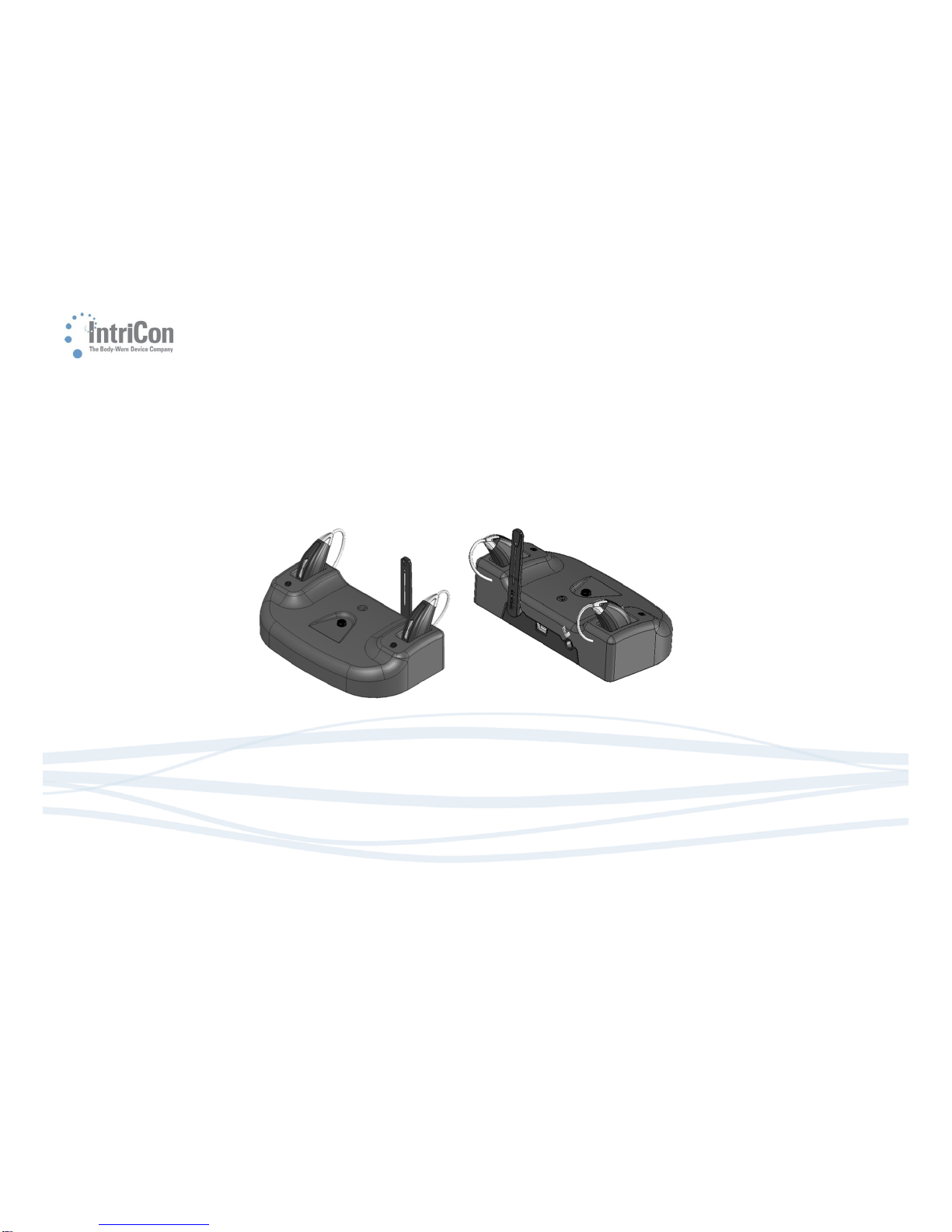

Lumen 1000 PSAP User manual

Quick Start Guide 1
22602 Rev B
LUMEN 1000 PSAP &
CHARGING TV STREAMER

Lumen 1000 PSAP Parts …………………………….........3
Charging TV Streamer Parts ..…………………………….4
Charging TV Streamer Setup .…………………….…...4-7
Lumen 1000: Assembly and Charging …………….….8
Lumen 1000: Positioning on the Ear ………………....9
Charging TV Streamer: Device Commands .….....10
Lumen 1000: Rocker Switch Functions …………....11
Additional Information .…………………………………...12
2
Table of Contents
22602 Rev B

3

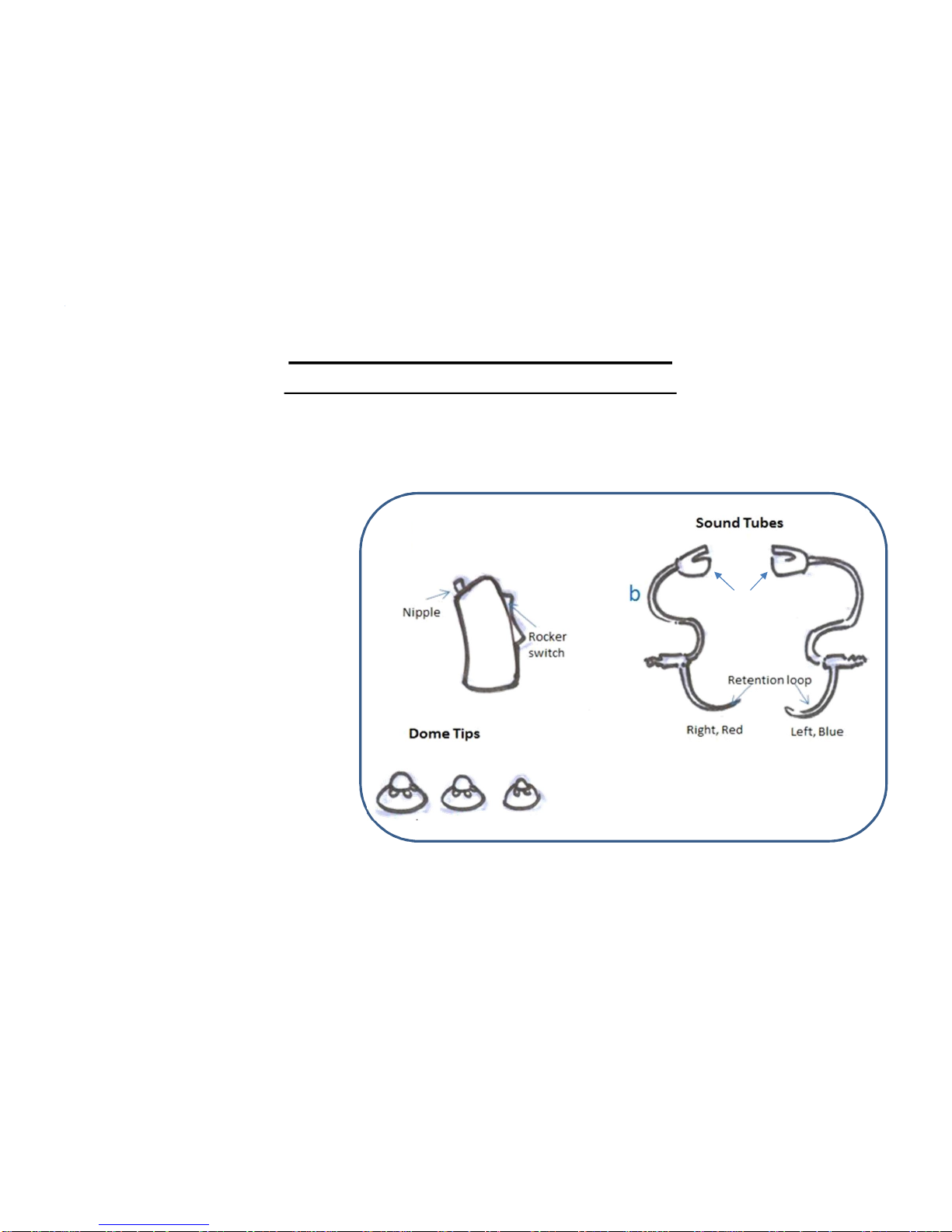

PartsIncluded
a. 2 Lumen 1000 PSAPDevices
b. 6 Sound Tubes (3 Left, 3 Right)
c. 6 Dome Tips (2 Small, 2
Medium, 2 Large)
a
c
22602 Rev B
Lumen 1000 PSAP Parts
(Personal Sound Amplification Product)
Tip
Tip
Base
MediumLarge Small
Lumen 1000
PSAP Devices

Charging TV Streamer Parts
PartsIncluded
a. 1 ChargingTV Streamer
b. 1 Power Plug
c. 1 Mini USB to USB
Cable
a. 1 Audio Cable
b. 1 RCA to female
audio Adapter
ab
c
PowerLED Indicator
(Blue) (M) ModeButton
d
Antenna
e
4
ChargingLED
Indicator(RED)
22602 Rev B
Mini USB toUSB Cable Audio Cable
Charging TV Streamer Power Plug
RCA to female
audio Adapter
ChargingLED
Indicator(Red)

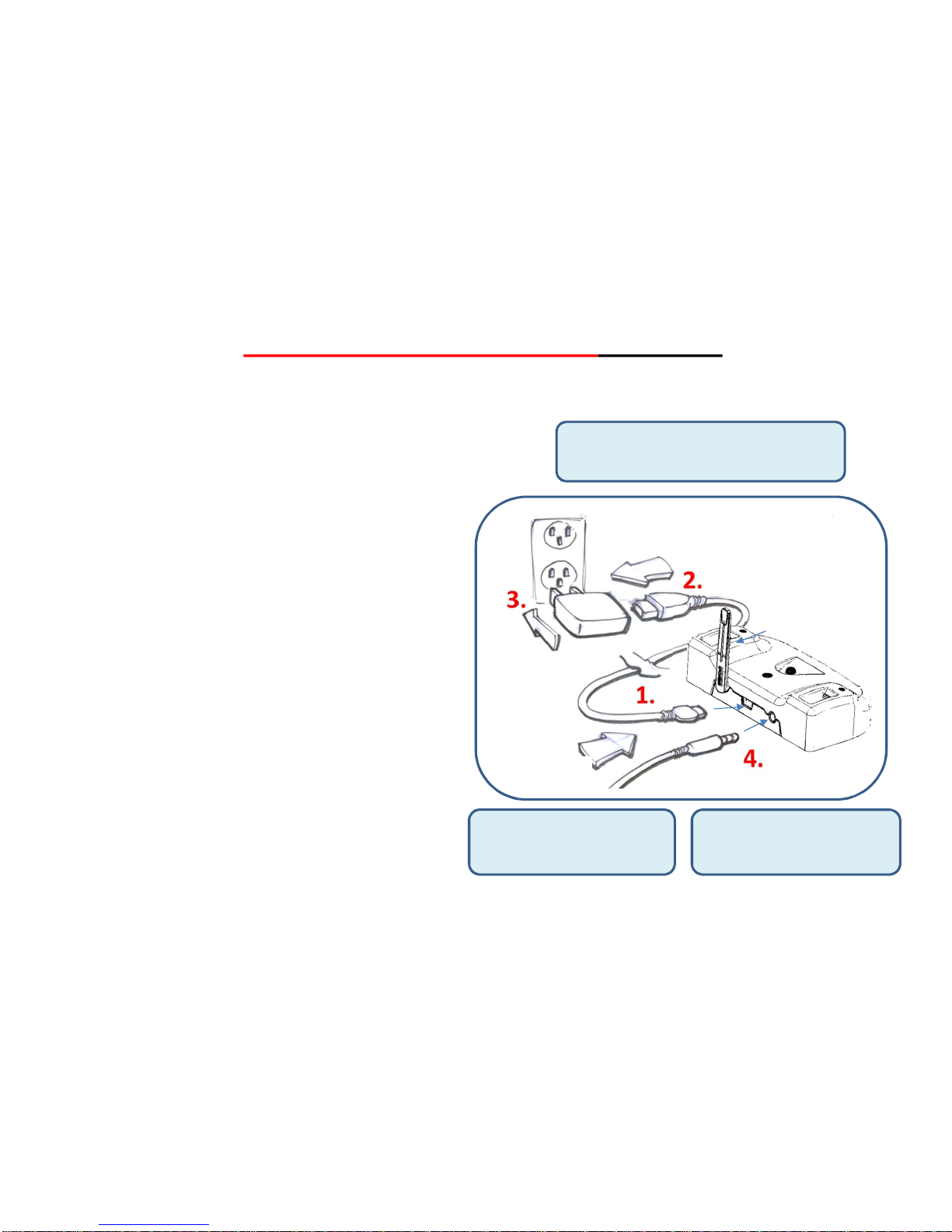

Charging TV Streamer : Set Up
Connecting Charging TV Streamer
1. Raise antenna to vertical position and
insert Mini USB plug into the backof the
ChargingTV Streamer.
2. Attach the USB end of the cable to the
Power Plug.
3. Insert the Power Plug into an electrical
outlet.
4. Insert one end of the audio cable into the
Charging TV Streamer.
5. Connect the remaining end of the audio
cable to the desired audio source (TV,
computer or music player). See following
pages for more details.
Tip: Your Charging TV Streamer
will work best when theantenna is
positionedvertically.
5
5.
Tip: The ChargingTV Streamer
power LED will lightup Solid blue
when the MiniUSB cable is
connected to a power source.
22602 Rev B
Tip: Whenoutsideof the Charging TV Streamer
range (16 feet), the Lumen1000 automatically
switches to thePSAP mode.
USB
Mini USB
Audio Cable
Antenna

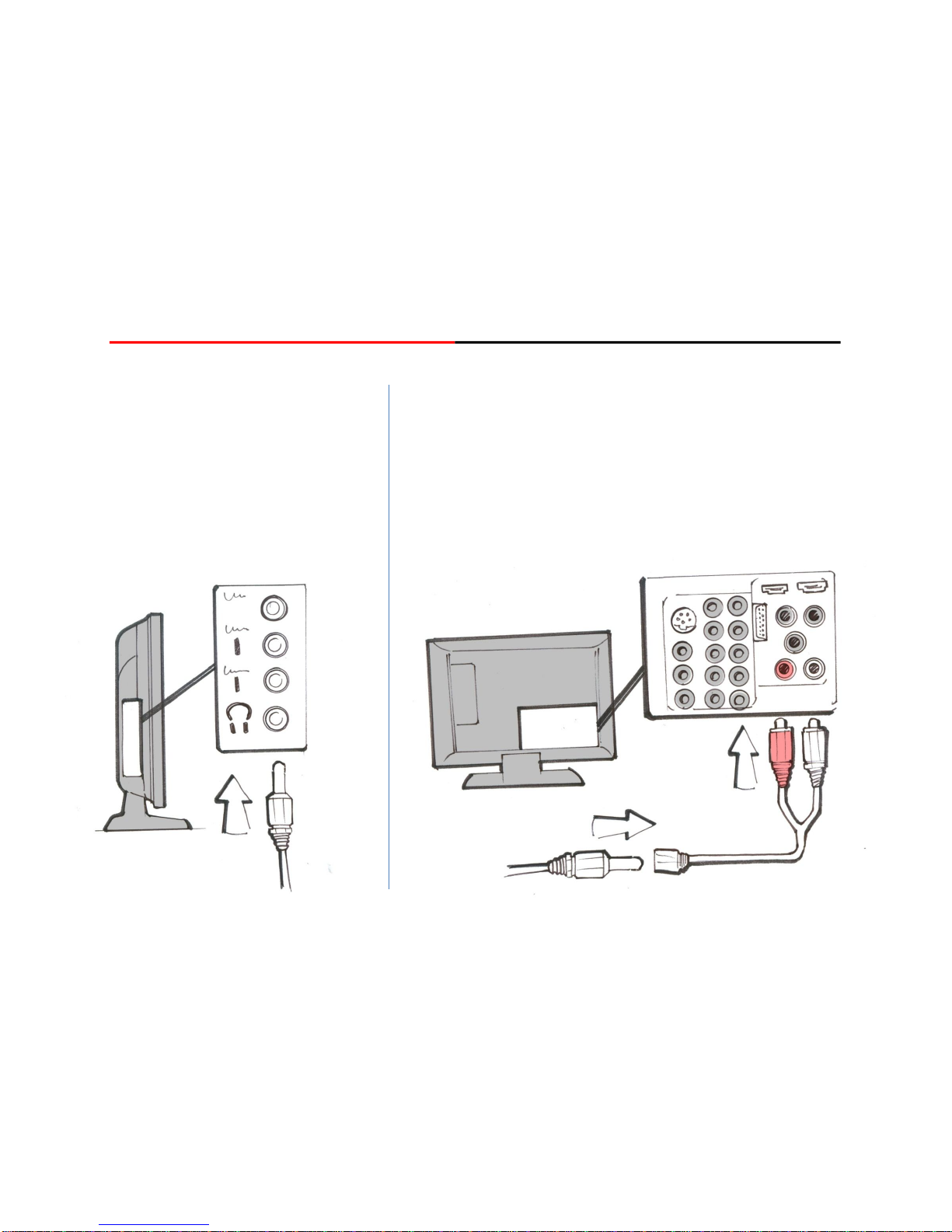

Charging TV Streamer: Set Up – Connect to TV
Headphone Jack
1. Locate headphone jack on the
front, side or back of your TV.
It will be identified by a
headphone icon label, similar
to the diagramshown.
2. Insert Audio Cable into TV
headphone jack
Audio Output Jacks
1. Locate audio output jacks on the front, side or back of
your TV. They will look similarto the diagramshown.(See
your specific products user manualfor more information)
2. Insert the red RCA adapter into the red (R) jack. Insert the
white RCA adapter into the white (L) jack.
3. Insert the audiocable from the ChargingTV Streamer
into the female audio jack on the opposite end of the RCA
cable.
622602 Rev B

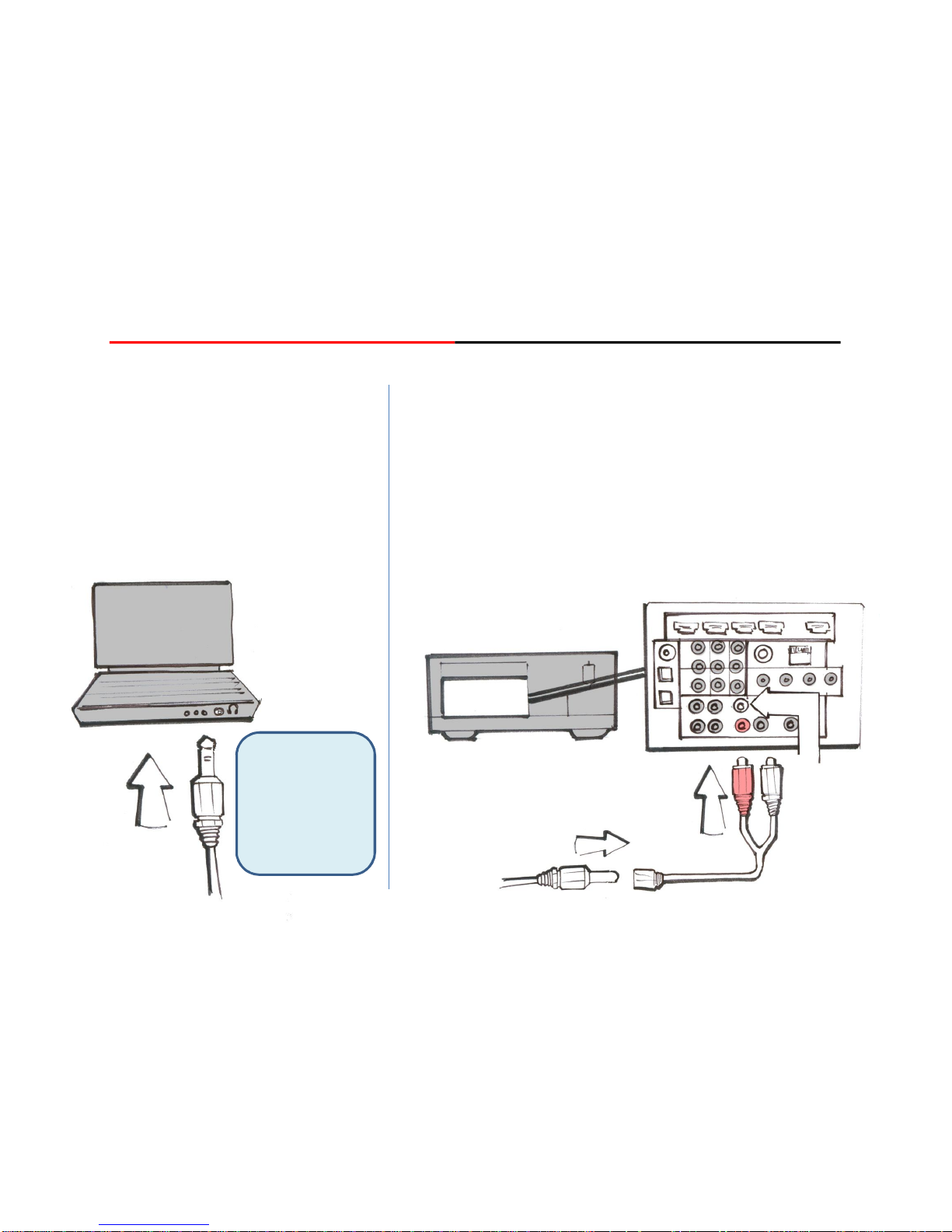

Charging TV Streamer: Set Up – Connect to TV
Computer Headphone Jack
1. Locate headphone jack on the
front, side or back of your
computer. It will be identified by
a headphone icon label, similar
to the diagramshown.
2. Insert Audio Cable into the
computer headphone jack
A/V ReceiverAudio Output Jacks
1. Locate audio output jacks on the front, side or back of
your A/V Receiver. They will look similar to the diagram
shown. (See your specific products user manualfor
more information)
2. Insert the red RCA adapter into the red (R) jack. Insert
the white RCA adapter into the white (L) jack.
3. Insert the audiocable from the Charging TV Streamer
into the female audio jack on the opposite end of the
RCA cable.
Tip: The TV audio
will be muted if the
headphone jack is
used. Use the RCA
cable connection to
hear audio from the
TV speakers andon
your Lumen1000
devices.
722602 Rev B

2.
3.

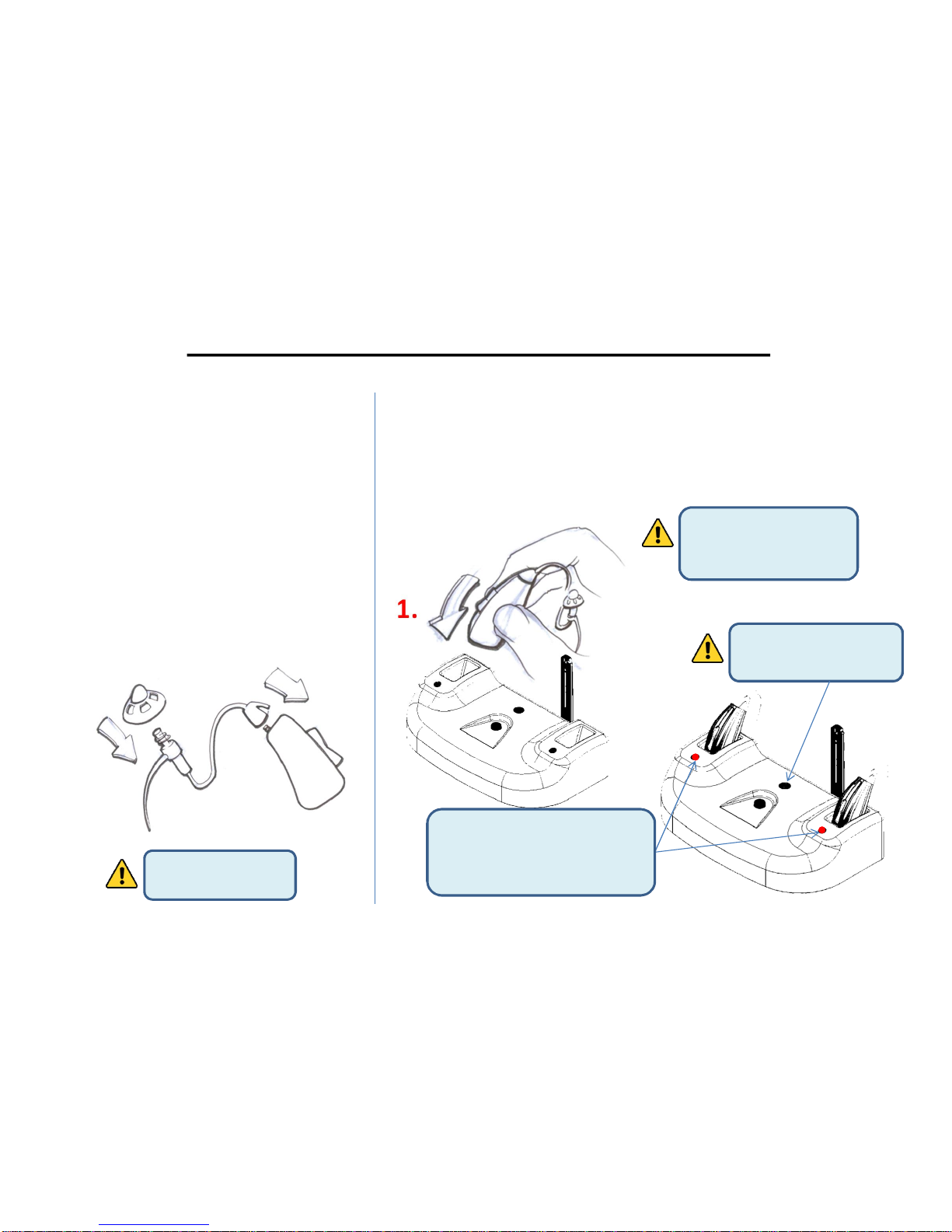

Assemblingthe Lumen1000
1. Choose left and right Sound
Tube
2. Attach Dome Tip to Sound
Tube. Choose a smallor
medium Dome Tip based on
your personal comfort.
3. Snap base of Sound Tube
assembly to nipple on
earpiece.
Lumen 1000: Assembly and Charging
Charging the Lumen 1000
1. Insert body of the Lumen 1000into the charging
slot of the ChargingTV Streamer. The Lumen 1000
must be turned off prior to charging.
2. The Sound Tube will remain hanging on the
Antenna side.
8
Note: Your Lumen 1000
needs to be fully charged
prior to 1st use. A full charge
takesapproximately1 hour.
1.
2.
Tip: The corresponding red LEDon the
ChargingTV Streamerwill turnon
indicatingthe Lumen1000 in that
position is charging. The LED willturn
off when the device isfully charged.
1.
22602 Rev B
Note: Turn off the Charging
TV Streamer(blue LED off)
duringLumen1000 charging
Note: Turn off Charging
TV Streamer to listenin
PSAP modeonly

Lumen 1000: Positioning on the Ear
Instructions for wearing
1. Place listening device over ear.
2. Insert Dome Tip into ear canal.
3. Tuck Retention Loop along bottom of ear cavity.
1. 2. 3.
922602 Rev B

Charging TV Streamer: Device Commands
Function Button LED
Charging TV Streamer ON Press button Light continuously shines solid blue
Charging TV Streamer OFF Press button Light turns off
Charging TV Streamer Device Commands
Using your Charging TV Streamer
1. Wear andturn ON Lumen 1000.
2. Refer to Device Commandstable below for the operatingmodes
1022602 Rev B
Note: Make sure Lumen 1000
and charging TV Streameris both
ON to hear streamingaudio

Lumen 1000: Rocker Switch Functions
Command User Action Audible Prompt Says
Turn ON When in OFF mode, Press rocker down until
an audible response is heard “Battery” followed by “Low”, “One”, “Two”, “Three”, or “Four” dependent on battery level
Turn OFF Press rocker down until an audible response
is heard “Off”
Volume UP Briefly press rocker up None. Audible beep when volume reaches
maximum range
Volume
DOWN Briefly press rocker down None. Audible beep when volume reaches minimum range
Low Battery Continuous use “Battery low” at end of battery life
1122602 Rev B

Additional Information
12
The Lumen1000 battery life is about 4 hours when streaming continuously and 15 hours in
PSAPmode.
ChargingTV Streamer range is approximately 16 feet. The Lumen 1000 automatically switches
from PSAP to streaming mode when Charging TV Streamer isturned ON (blue LED on).
Turn OFF Charging TV Streamer (blue LED off) during Lumen 1000 charging.
Turn OFF the Lumen 1000 before charging. Thiswill ensure the Lumen 1000 receives a full
charge.
If the Lumen1000 battery is completely discharged,place thedevice in the charger. After afew
minutes, remove the device from the charger, press and holdthe rocker down until the “OFF”
voice prompt is heard andthen return the device to thecharger andallowthe device to charge
fully.
When the TV or audiosource is ON and the Lumen 1000is outside theChargingTV Streamer
range,audio from the TVwill NOT be heard. The Lumen 1000 willautomatically switchto PSAP
mode.
It isrequired that you turn off the ChargingTV Streamer to listen in PSAP mode only
22602 Rev B

FCC LABEL REQUIREMENTS
Draft Version 13
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. (REF only - PER 15.19(a)(3))
Changes or modifications not expressly approved by IntriCon for compliance could void the user’s authority to
operate the equipment. (REF only – per 15.21)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and canradiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
a. Reorient or relocate the receiving antenna. Increase the separation between the equipment and
receiver. Connect the equipment into an outlet on acircuit different from that to which the receiver is
connected. Consult the dealer or an experienced radio/TV technician for help. (REF only – per 15.105)
