Lumex FR588W Series User manual

Lumex Series FR588W Powered
Bariatric Clinical Care Recliner
Operating Instructions
CLASS 1 EQUIPMENT - ORDINARY - TYPE B
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX POWERED
BARIATRIC FR588W CLINICAL CARE RECLINER.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahameld.com.
FR588W-INS-LAB-RevD20

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 2
CONTENTS
INTRODUCTION.......................................................................................................................................................3
INTENDED USE .................................................................................................................................................3
IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE .............................................................3
WARNINGS ........................................................................................................................................................3
PRODUCT DESCRIPTION .......................................................................................................................................5
ASSEMBLY...............................................................................................................................................................6
UNPACKING.......................................................................................................................................................6
SETUP ................................................................................................................................................................6
FOOTBOARD INSTALLATION ..........................................................................................................................7
OPERATION .............................................................................................................................................................7
SEAT POSITIONING: TRENDELENBURG POSITION (SHOCK POSITION)...................................................7
SEAT POSITIONING: HAND PENDANT ...........................................................................................................8
CASTER OPERATION .......................................................................................................................................8
TABLE OPERATION ..........................................................................................................................................8
PRODUCT SPECIFICATIONS..................................................................................................................................9
MAINTENANCE......................................................................................................................................................10
CLEANING .......................................................................................................................................................10
LIMITED WARRANTY ............................................................................................................................................ 11

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 3
INTRODUCTION
This manual contains assembly, operation, and maintenance instructions for your Model
FR588W Powered Bariatric Clinical Care Recliner. Read the entire manual carefully before
using your recliner, and refer to it during use if you have questions.
The Lumex FR588W Powered Bariatric Clinical Care Recliner features a soft seat and back
package with wide, soft armrests for improved patient comfort and support during long-
term sitting. The easy-to-activate gas cylinder mechanism provides quick Trendelenburg
positioning and improved lift.
Intended Use
The Lumex FR588W Powered Bariatric Clinical Care Recliner is intended for use by bariatric
patients of all age groups with varying medical and physical conditions. The recliner is ideal
for use by clinics, hospitals, and rehabilitation centers.
The Lumex FR588W Powered Bariatric Clinical Care Recliner supports patient weights up to
700 lb. (318 kg) when evenly distributed.
IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE
The safety statements presented in this chapter refer to the basic safety information that
the FR588W user shall pay attention to and abide by. There are additional safety statements
in other chapters or sections, which may be the same as or similar to the following, or
specic to the operations. Please note the following special statements, used throughout
this manual, and their signicance:
WARNING: Indicates a potential hazard situation or unsafe practice that, if not
avoided, could result in death or serious personal injury.
CAUTION: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in minor or moderate personal injury.
sNOTICE: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in product or property damage.
Info: Provides application recommendations or other useful information to
ensure that you get the most from your product.
WARNINGS
WARNING: Periodically inspect all parts and replace as needed.
 WARNING:Donotusenearanopename,asthechaircouldbea“combustion
source”,resultinginre,propertydamage,andseverephysicalinjury.
WARNING: Service and repair of the Lumex FR588W Powered Bariatric Clinical Care
ReclinermustbeperformedbyanauthorizedLumexdistributor.GFHealthProducts,
Inc.isnotresponsibleforanyconsequenceresultingfromanyunauthorizedservice
or repair.

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 4
 WARNING:Theelectronicsandactuatorcontainnoserviceablecomponents.If
serviceisrequired,theunitmustbereturnedtothefactoryforrepair.DONOT
attempttoopentheelectronicsoractuatororobtainlocalservice;thiswillvoidthe
warranty and may result in damage to the unit. Consult your Lumex dealer for further
information.
 WARNING:Thisproducthasamaximumweightcapacityof700lb.(318kg),EVENLY
DISTRIBUTED.
 WARNING:Casterwheelsmustbelockedduringoccupanttransfer.
 WARNING:Unauthorizedmodicationofyourreclinerortheuseofnon-Lumex
replacement parts may change the structure of the recliner and could create a
hazardous condition, which may result in serious injury and will void the warranty.
WARNING: This product can expose you to chemicals including
Di(2-ethylhexyl)phthalate(DEHP)whichisknowntotheStateofCaliforniatocause
cancerandbirthdefectsorotherreproductiveharm.Formoreinformationgoto
www.p65warnings.ca.gov/furniture.
 WARNING:GFHealthProducts,Inc.specicallydisclaimsresponsibilityforany
bodilyinjuryorpropertydamagewhichmayoccurduringanyusewhichdoesnot
comply with federal, state or local laws or ordinances.

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 5
PRODUCT DESCRIPTION
Hardware Included
Description Qty
Bolt with 1/2" hex head 4
Bolt with 7/16" hex head, split washer 2
Screw with M5 socket head 4
M5 hex key 1
Tools Needed
Socket wrench for 1/2& 7/16 hex head bolts 1
Figure 3
Upholstered Legrest
Power Plug
Footboard
Upholstered Seat
Upholstered Back
Front Caster
Headrest Pillow
Upholstered Armrest
Padded Push Handle
Emergency
Quick-Release Trigger
Side Table
Rear Locking Caster
Figure 1
Figure 2

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 6
ASSEMBLY
Figure 4
Figure 10
Figure 9Figure 8Figure 7
Figure 6Figure 5
Unpacking
1. Check for obvious damage to the carton or its contents. If damage is evident, please
notify the carrier and your Graham-Field authorized distributor.
2. Remove all packaging materials from recliner base.
Setup
1. Plug the recliner's power cord into a properly grounded electrical wall outlet. Using the
hand control pendant, raise the back fully into the upright position (Fig. 4).
2. Align the tubes on the backrest with back support tubes on the mainframe assembly
(Fig. 5). Place the backrest onto the support tubes until the holes on the back are aligned
with the threads of the inner nuts (Fig. 6).
3. Attach and fully tighten all 1/2" and 7/16" bolts to the back support bars with a wrench
(Fig. 7, Fig. 8).
4. Align the holes on the push bar with the holes on the back bar. Attach socket head
screws to the push bar and fully tighten with supplied hex key (Fig 9). Repeat until push
bar is tightly secured to the backrest (Fig. 10).

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 7

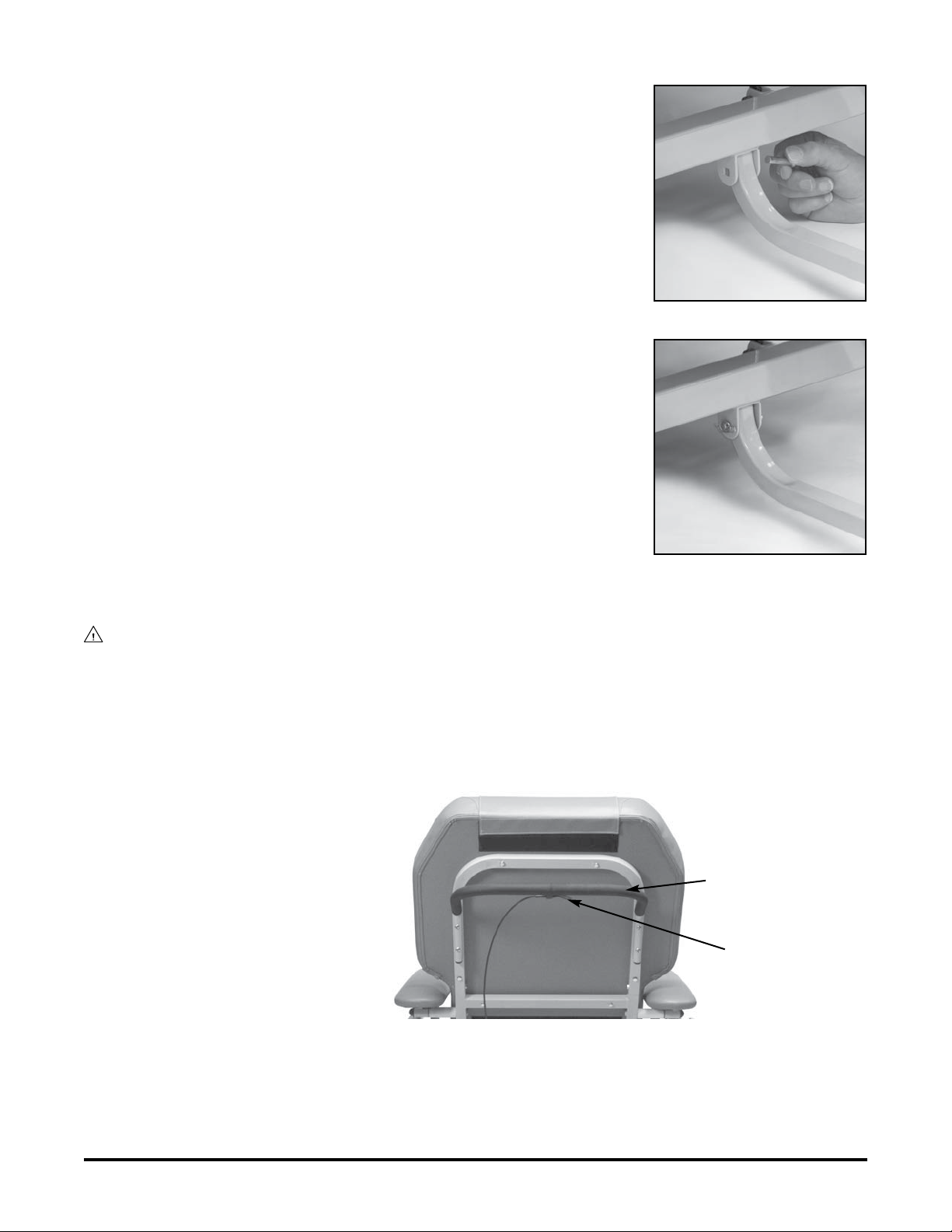

FootboardInstallation
1. Align attachment arms of footboard
assembly inside the hinges on the
crossbar located behind the legrest
upholstery. Ensure that the holes on each
hinge are aligned with the holes on the
attachment arms of the footboard.
2. Insert one bridge pin through the holes on
one hinge and attachment arm (Fig. 11).
3. Insert the cotter clip into the hole on
the bridge pin so that the attachment is
secure (Fig. 12).
4. Repeat steps 2 and 3 for the other side.
OPERATION
WARNING: Disconnection of this device: In case of emergency, always disconnect
thedevicebyremovingthepowercordplugfromthepoweroutlet.
SeatPositioning:TrendelenburgPosition(ShockPosition)
With the exception of Trendelenburg Position, all seat positioning must be controlled by the
hand pendant.
TRENDELENBURG POSITION:
To attain Trendelenburg
position from any position,
grasp the push handle with
one hand while actuating the
emergency quick-release trigger
with the other (see picture at
right), then guide the back down
fully and release the trigger.
To return to seated position:
Press the “up” button on the
hand control until the backrest
is in the upright position.
Figure 11
Figure 12
Backrest Controls
Legrest Controls
Figure 13
Hardware Included
Description Qty
Bolt with 1/2" hex head 4
Bolt with 7/16" hex head, split washer 2
Screw with M5 socket head 4
M5 hex key 1
Tools Needed
Socket wrench for 1/2& 7/16 hex head bolts 1
Figure 3
Upholstered Legrest
Power Plug
Footboard
Upholstered Seat
Upholstered Back
Front Caster
Headrest Pillow
Upholstered Armrest
Padded Push Handle
Emergency
Quick-Release Trigger
Side Table
Rear Locking Caster
Figure 1
Figure 2
Figure 2 detail

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 8

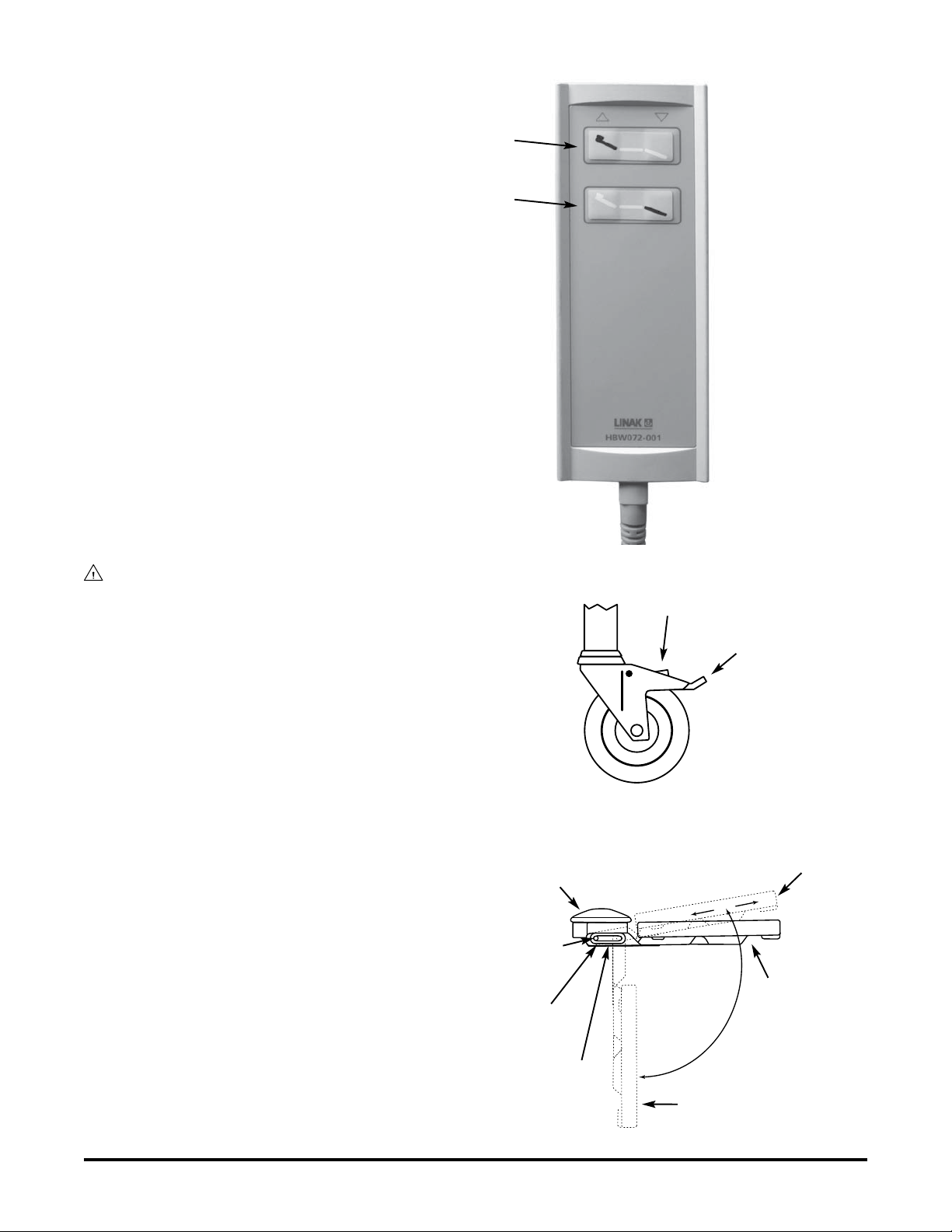

Seat Positioning: Hand Pendant
All seat positioning, with the exception
of the Shock Position, must be controlled
by the hand pendant.
The hand pendant has four buttons that
control the positioning of the chair. The
two top buttons control the backrest
and the two bottom buttons control the
legrest (Fig. 13).
Caster Operation
 WARNING:Casterwheelsmustbe
lockedexceptduringtransport.
Info: This recliner is equipped with four swivel
casters for improved maneuverability. The
rear casters are also equipped with locking
features.
To lock rear caster: To prevent the rear casters from
swiveling and the wheel from turning, step on the
rear pedal of the caster until it latches.
To unlock rear caster: Step on middle button to
unlatch.
TableOperation
To raise table: Raise the table all the way
up and slide in toward the armrest until
tabs engage slots in mount bracket. Press
down lightly on table to ensure lock tabs
are engaged.
To lower table: Lift table up until tabs
disengage slots and pull table away from
armrest and lower table to self-storing
position.
To lock swivel
and wheel
To unlock
Figure 14
Table
(Stored Position)
Table
(Engaged
Position)
Tabs engage into
slots on table
mount bracket
Table Mount
Bracket
3/8" Clevis Pin
Attachment
Armrest
Table
(Disengaged Position)
Figure 15
Figure 11
Figure 12
Backrest Controls
Legrest Controls
Figure 13

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 9

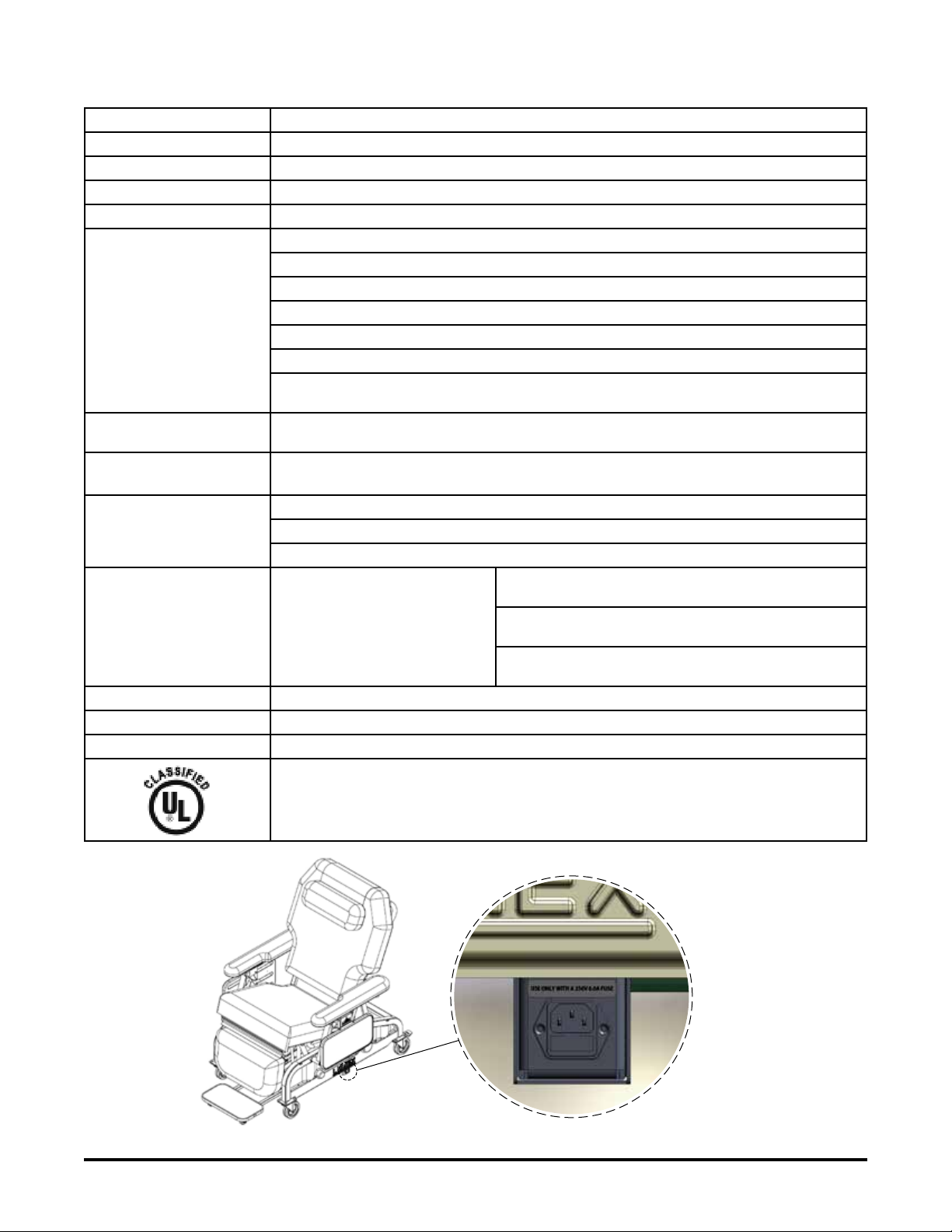

PRODUCT SPECIFICATIONS
Upholstery Flame and stain resistant vinyl upholstery meets CA-TB117-2013 Specications
Power 120Vac, 60 Hz, Max. 2.7A
Class Class 1 Equipment; Type B
Total Weight 264 lb. (120 kg)
Overall Dimensions 54.06"H x 57.95" L x 36.89" W (1373 mm H x 1472 mm L x 937 mm W)
Maximum Weight
Capacity for Motorized
Recliner
Recliner: 700 lb. (318 kg), EVENLY DISTRIBUTED
Upholstered Back: 440 lb. (200 kg), EVENLY DISTRIBUTED
Upholstered Seat: 660 lb. (300 kg), EVENLY DISTRIBUTED
Upholstered Armrest: 110 lb. (50 kg), EVENLY DISTRIBUTED
Upholstered Legrest: 110 lb. (50 kg), EVENLY DISTRIBUTED
Side Table: 22 lb. (10 kg), EVENLY DISTRIBUTED
All weight capacities and maximum loads are to be evenly distributed over
component / product as described above
Applied Parts Upholstered Back, Upholstered Headrest, Upholstered Seat, Upholstered Armrest,
Side Table, Upholstered Legrest, and Footrest
OperatorAccessible
Parts
Applied Parts,Power Supply Cord, Pendant Control,Padded Push Handle, and
Switch Wheels Assembly
Operation Environment
(Normal Use)
An ambient temperature range of 50°F to 104°F (10°C to 40°C)
A relative humidity range of 30% to 75%
An atmospheric pressure range of 10.15 psi to 15.37 psi (70 kPa to 106 kPa)
Transport and storage This equipment shall be
capable, while packed for
transport or storage, of
being exposed for a period
not exceeding 15 weeks to
environmental conditions not
outside the following ranges:
an ambient temperature range of -4°F to +140°F
(–20°C to +60°C)
a relative humidity range of 0% to 85%, including
condensation
an atmospheric pressure range of 7.25 psi to 15.37
psi (50 kPa to 106 kPa)
Disposal Follow all applicable federal, state, and local laws and regulations to dispose of the unit
Battery 12 V 1.3A BA16 battery
Fuse 250 V 6.0A (Use ONLY a 250V 6.0A Fuse)
MEDICAL EQUIPMENT WITH RESPECT TO ELECTRICAL SHOCK, FIRE AND
MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH UL 60601-17
Figure 16 Figure 16 detail

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 10
MAINTENANCE
WARNING: Inspect all components periodically and replace as needed.
Cleaning
Recliner upholstery requires little maintenance. Everyday dirt can usually be removed
using a clean, soft cloth or sponge with mild soap and water. Spills and accidents require
immediate attention for best results.
Always begin cleaning by using steps 1 or 2, then progress to the stronger cleaners
if needed. Most soil can be easily removed with soap and water or the concentrated
cleaners suggested in step 2. If use of a disinfectant is desired, the Centers for Disease
Control and Prevention recommends using a solution consisting of 1/4cup of bleach to
1 gallon of water, then rinsing the solution thoroughly from the surface with clear water. Not
rinsing thoroughly and/or using stronger mixtures will likely result in discoloration of the
upholstery.
Staining Agent Step Cleaning Procedure
Eye Shadow / Mascara 1 Remove excess spill with clean, damp cloth. Clean with a 1:1 solution of mild
dish detergent (such as Ivory®liquid) and water. Rinse with clear water and
dry with a clean cloth.
Grease / Suntan Lotion /
Chocolate
Crayon /
Black Felt Tip Pen
Blood / Urine / Feces 2 Use undiluted application of concentrated antibacterial cleaner (such as
Formula 409®or Fantastik®Spray Cleaner), then wipe with a clean cloth.
Red Lipstick
Oil Base Paint / Tar /
Asphalt
3 Use a 1:1 solution of ammonia and water or a 1:4 solution of bleach and
water, rinse with clear water, and dry with a clean cloth.
Other Tough Stains 4Use undiluted application of naptha (lighter uid). Saturate a soft, clean cotton
cloth with this solution. Rub the stain in a circle 10 times. Rinse thoroughly
with clear water. Use another soft, clean cotton cloth to pat surface dry. Check
results. If stain remains, proceed to step 5.
5 Use 1:1 solution of isopropyl alcohol and water. Saturate a soft, clean cotton
cloth with this solution. Rub the stain in a circle 10 times. Rinse thoroughly
with clear water. Use another soft, clean cotton cloth to pat surface dry. Check
results.
If stain remains, use undiluted isopropyl alcohol. Saturate a soft, clean cotton
cloth with this solution. Rub the stain in a circle 10 times. Rinse thoroughly
with clear water. Use another soft, clean cotton cloth to pat surface dry. Check
results.
If stain remains, use 1:1 solution of acetone and water. Saturate a soft,
clean cotton cloth with this solution. Rub the stain in a circle 10 times. Rinse
thoroughly with clear water. Use another soft, clean cotton cloth to pat surface
dry.

FR588W-INS-LAB-RevD20: Powered Bariatric Clinical Care Recliner Operating Instructions 11
LIMITED WARRANTY
SCOPE OF WARRANTY
GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at
GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are
conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable
GF instructions and manuals, including proper use and maintenance. To the extent that a component is warranted by a
third party, GF conveys all of its rights under that warranty to the original purchaser, to the extent permitted.
This limited warranty shall only apply to defects that are reported to GF’s customer service team within the
applicable warranty period and which, upon examination by GF or its authorized representative, prove to be a
warranty item. This limited warranty is not transferable.
The warranted components and time period are set forth below:
Frame: .....................................................................................ten years
Casters: ...................................................................................one year
Electronics, motors, electrical components:.....................one year
Upholstery:.............................................................................one year
All other durable components not listed above: ..............three years
The applicable warranty period shall commence from date of shipment to the original customer, unless there is an
expiration date on the component in which case the warranty shall expire on the earlier of warranty period or the
expiration date.
OBTAINING WARRANTY SERVICE
A GF Customer Service Representative must authorize warranty service. Please contact the GF Customer
Service department by calling 1.770.368.4700, sending a fax request to 1.770.368.2386 or by e-mailing a request to
cs@grahameld.com. Specic directions will be provided by the Customer Service Representative. Failure to abide
by the specic directions will result in denial of the warranty claim.
EXCLUSIONS
The warranty does not cover and GF shall not be liable for the following:
1) Defects, damage, or other conditions caused, in whole or in part, by misuse, abuse, negligence, alteration,
accident, freight damage, tampering or failure to seek and obtain repair or replacement in a timely manner;
2) Products which are not installed, used, or properly cleaned and maintained as required in the ofcial manual for
the applicable product;
3) Products considered to be of a non-durable nature including, but not limited to: casters, lters, fuses, gaskets,
lubricants, and charts;
4) Accessories or parts not provided by GF;
5) Charges by anyone for adjustments, repairs, replacement parts, installation or other work performed upon or in
connection with such products which are not expressly authorized in writing, in advance, by GF;
6) Any labor or shipping charges incurred in the replacement part installation or repair;
7) Costs and expenses of regular maintenance and cleaning; and
8) Representations and warranties made by any person or entity other than GF.
ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER
THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. GF
MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
IF ANY MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL OR SAMPLE WAS USED MERELY TO
ILLUSTRATE THE GENERAL TYPE AND QUALITY OF THE PRODUCT AND NOT TO REPRESENT THAT THE PRODUCT
WOULD NECESSARILY CONFORM TO THE MODEL OR SAMPLE IN ALL RESPECTS.
THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE PARTS. GF SHALL NOT
BE LIABLE FOR AND HEREBY DISCLAIMS ANY DIRECT, SPECIAL, INDIRECT, INCIDENTAL, EXEMPLARY OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO: DAMAGES FOR LOSS OF PROFITS OR INCOME, LOSS
OF USE, DOWNTIME, COVER, OR EMPLOYEE OR INDEPENDENT CONTRACTOR WAGES, PAYMENTS AND BENEFITS.
The warranties contained herein contain all the representations and warranties with respect to the subject matter
of this document, and supersede all prior negotiations, agreements and understandings with respect thereto.
The recipient of this document hereby acknowledges and represents that it has not relied on any representation,
assertion, guarantee, warranty, collateral contract or other assurance, except those set out in this document.
For additional information on this product or this warranty, please contact a GF Customer Service Representative.
NOTES:
1) Additional terms and conditions may apply.
2) Freight claims must be notated on the appropriate shipping documents and must be made with immediacy.
International, federal and state regulations govern specic requirements for freight claims. Failure to abide by
those regulations may result in a denial of the freight claim. GF will assist you in ling the freight claim.
3) Claims for any short shipment must be made within three (3) days of the invoice date.

1.770.368.4700
Information contained herein is subject to change.
The most current and complete product information can be found on our website.
www.grahameld.com
© 2007, GF Health Products, Inc. All Rights Reserved.
Lumex and Graham-Field are trademarks of GF Health Products, Inc.
GF Health Products, Inc. is an ISO 13485:2016 Certied Company.
Manufactured for:
GF Health Products, Inc.
One Graham-Field Way
Atlanta GA 30340-3140
Made in Taiwan
