LUMINA PRO Lighting SH-LED PAR64F User manual

FLAT PAR LED LIGHT
IR REMOTE
Product Code: SH-LED PAR64F
Please read the instructions carefully before use
User Manual

1A
TABLE OF CONTENTS
1. Safety Instructions
2. Technical Specifications
3. Installation
4. How to set the unit
5. How to control the fixture
6. DMX512 Configuration
7. DMX512 Connections
8. Troubleshooting
9. Fixture Cleaning

2A
1. Safety Introductions
WARNING
Please keep this User Manual for future consultation. If you sell the fixture to another
user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the fixture.
Before operating, ensure that the voltage and frequency of power supply match the
power requirements of the fixture.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Disconnect main power before servicing and maintenance.
Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only,
but always by taking its base.
Maximum ambient temperature is Ta : 400C. Don’t operate it where the temperature is
higher than this.
In the event of serious operating problem, stop using the fixture immediately. Never try
to repair the fixture by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Always use the same type spare parts.
Do not connect the device to any dimmer pack.
Do not touch any wire during operation and there might be a hazard of electric shock.
To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain
or moisture.
The housing must be replaced if they are visibly damaged.
Do not look directly at the LED light beam while the fixture is on.
Warning
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
Do not open the unit within five minutes after switching off.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.

3A
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
Caution
There are no user serviceable parts inside the fixture. Do not open the housing or attempt
any repairs yourself. In the unlikely situation, your unit may require service, please contact
your nearest dealer.
2. Technical Specifications
3, 5, 7channels selectable Flat LED PAR 64 light
4 push button with 4 Digital LED Display
Auto, Sound Activated, DMX512, Master/Slave, IR Remote Control
Light source:181PCS 10mm Ultra Bright LEDs (49 red,72 green,60 blue)
Please ensure there is nothing in between the remote and the fixture. Maximum distance for
the remote to work is 2 meters.
Bulb angle:15-20 degree
Power consumption: 20W
Power input: AC90-250V/ 50-60Hz
Dimensions:L430xW250xH155mm
Weight:2.35kg
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of
the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the
unit when installing the fixture.
The equipment must be installed by professionals.
4. How To Set The Unit
4.1 Control Panel

4A

5A

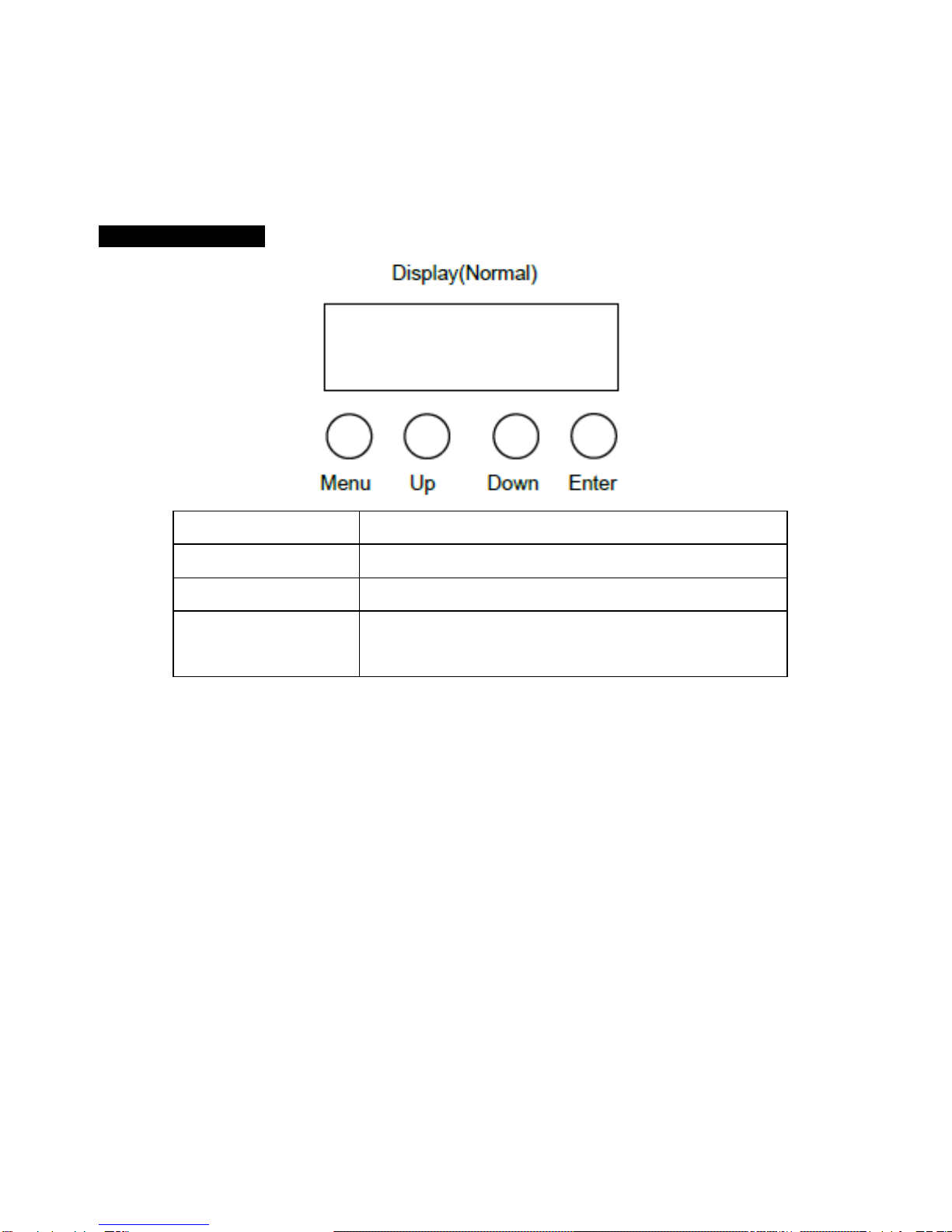

4.2 Main Function
Menu To select the program functions
Up To go forward in the selected functions
Down To go backward in the selected functions
Enter To confirm the selected functions and go into the
next layer menu

6A
5. How to control the fixture
The IR sensor is located at the top of the LED Lights. Please point the remote within
1M from the sensor to control the fixture.
IR Sensor

7A
(1)Auto Auto show
(2)Sound Sound active
(3) DMX DMX512 control, be switch mode between address and channel.
(4) Black Out Press once to shut off the light and again to re-activate it
(5)Red Red light is turned on
(6)Green Green light is turned on
(7)Blue Blue light is turned on
(8)White Red 、Green and Blue light are turned on
(9) + Increase parameters
In Color mode, the light color with the picture in the above of the same
color.
(10) －Reduce parameters
(11) 0~9 Only in DMX and Color mode, the digital key to effective.
In DMX mode, when you press down a key one of digital key digital tube
flickered on, until you have press three key so far.
(12) Jump Hop change mode
(13) Fade Gradual change mode
(14) Color Static color
You must first press the “Color” key if the program is not in Color
mode before you can select color from the keypad.
(15)Flash Only in Auto Dimmer, Jump, and Color mode, the function key to
effective. Singular time into strobe mode, even number exit.

8A
6. DMX512 Configuration
3 channels Mode:
Channel Value Function
CH1 0-255 RED dimmer
CH2 0-255 GREEN dimmer
CH3 0-255 BLUE dimmer
5 channels Mode:
Channel Value Function
CH1 0-255 RED dimmer
CH2 0-255 GREEN dimmer
CH3 0-255 BLUE dimmer
CH4 0-255 Master dimmer
CH5
0-6 Dimmer mode
7-65 Slow to fast strobe
66-69 None
70-128 Pulse strobe from slow to fast
129-132 None
133-191 Strobe fading in from slow to fast
192-195 None
196-255 Strobe fading out from slow to fast
7 channels Mode:
Channel Value Function
CH1 0-255 RED dimmer
CH2 0-255 GREE N dimmer

9A
CH3 0-255 BLUE dimmer
CH4 0-255 Master dimmer
CH5
(CH7<60)
0-6 Dimmer mode
7-65 Slow to fast strobe
66-69 None
70-128 Pulse strobe from slow to fast
129-132 None
133-191 Strobe fading in from slow to fast
192-195 None
196-255 Strobe fading out from slow to fast
CH5
(CH7>=60) 0-255 In standalone mode, running speed from
slow to fast
CH6
(Static color mode) 0-255 Static color select
CH6
( color change mode) 0-255 Strobe from slow to fast
CH7
0-59 Dimmer mode
60-119 Static color mode
120-179 Color jump change mode
180-239 Color gradual change mode
240-255 Sound active mode
7. DMX512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

10A
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the
fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable.
Inadequate or damaged cables, soldered joints or corroded connectors can easily distort
the signal and shut down the system
2. The DMX output and input connectors are pass-through to maintain the DMX circuit when
one of the units’ power is disconnected.

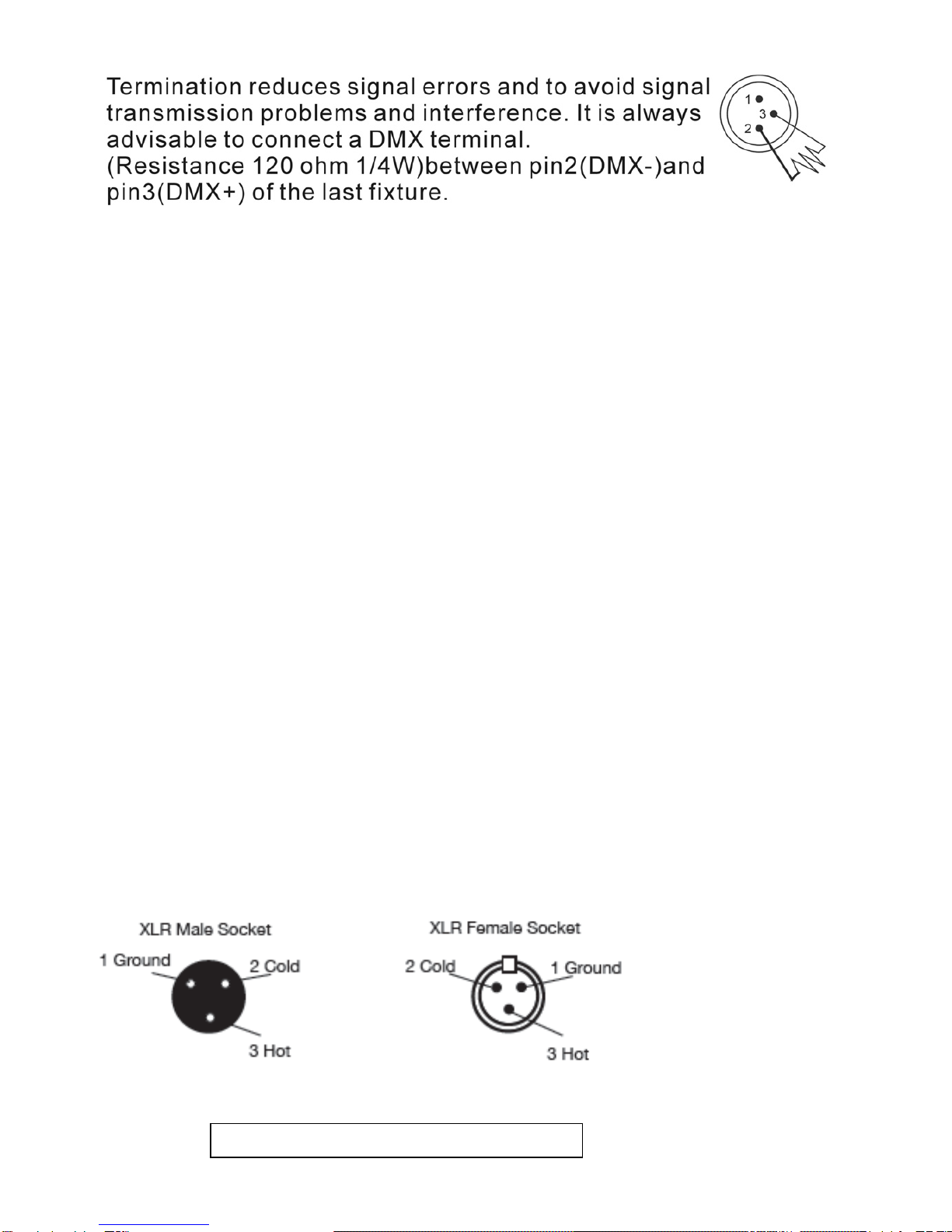

3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal
errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a
3-pin XLR-plug and plug it in the DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin4/5: not used
XLR Pin Configuration

11A
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. Some fixtures don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of the
master/ slave mode signal.
2. Wrong DMX address in the fixture. Set the proper address.
D. No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
E. One of the channels is not working well

12A
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
9. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.

13A
