luminetworx LVES-F2231CA Assembly instructions

Product Installation Manual

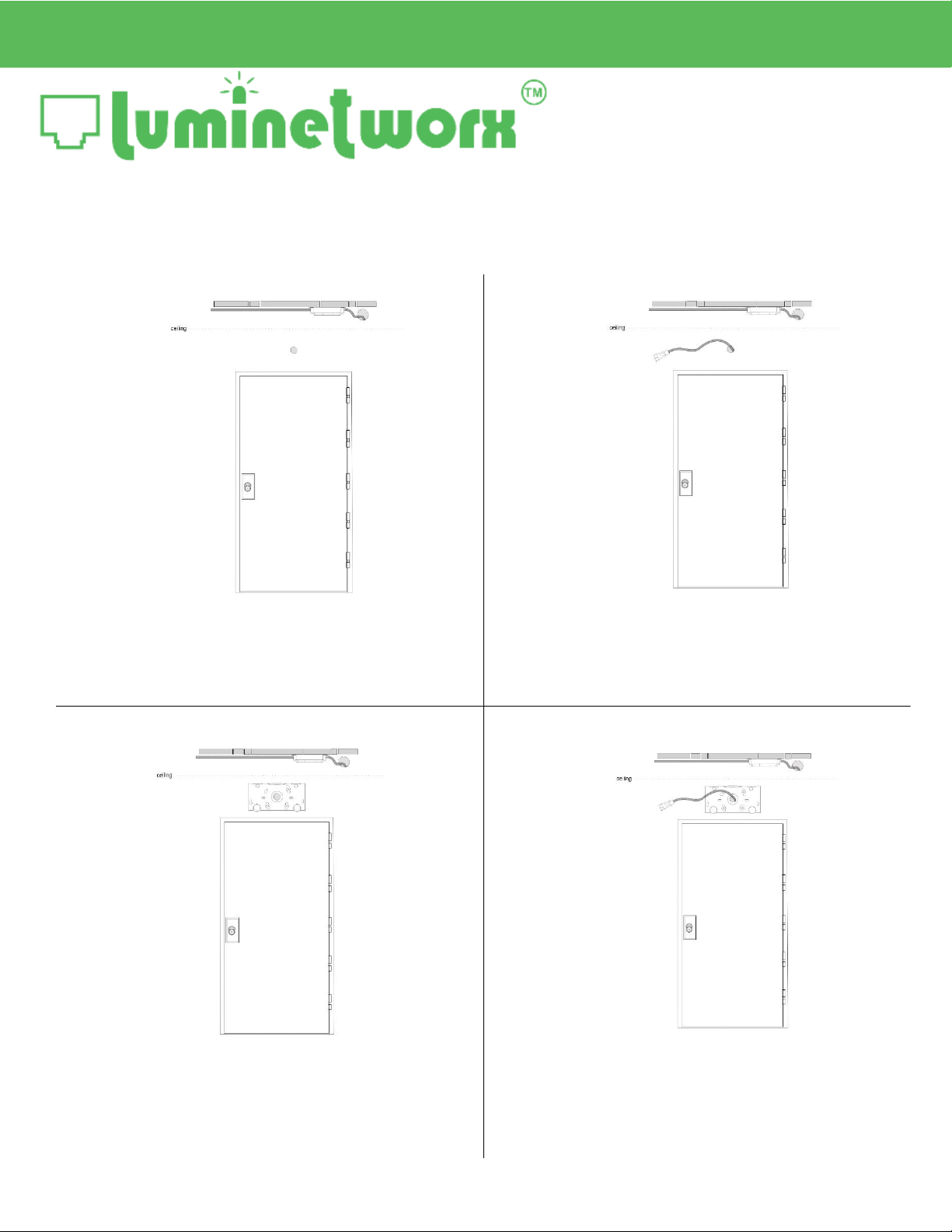

Step 1
Run your plenum rated category cable from the demarc to the approximate
location of your emergency light fixture. Affix the driver to the joist with the
appropriate screws and connect the terminated category cable to the rj45 on the
driver.
Step 2
Make a hole above the ceiling and behind where the fixture is to be installed.
Once both holes are in place feed your whip extension cable provided with the
light fixture through the hole from the plenum space to the wall. Connect the
whip in the plenum space to the second connector on the driver.
Step 3
Affix the fixture mounting plate to the wall feeding the whip through the center
hole of the mounting plate. Be sure to use the proper mounting screws.
Step 4
With the mounting plate secured to the wall and the whip in place proceed to
the next step.
Installation Sheet LVES-F2231CA

Step 5
Connect the fixture to the whip with the provided connector. After the fixture is
connected to the whip attach the fixture to the wall using the previously installed
mounting plate.
Slide 6
See slide 7 below for an example of how to wire up to 6 exit signs. Each
fixture contains two RJ45 connections input and output, either
connection can be used for input or output. Use an ethernet cable with
pinout B to connect between each fixture with a max length off 200’
between each fixture.
Slide 7
