LUNA OPTICS LN-G3-M50 User manual

1
LN-G3-M50
GEN-3 HD DIGITAL TECHNOLOGY
DAY & NIGHT MONOCULAR 6-36x50
INSTRUCTION MANUAL
SOFTWARE VERSION M5/2021/06/17
IMPORTANT: Please read this manual in its entirety prior
to using this device!

2
DIGITAL NIGHT VISION TECHNOLOGY:
1. Your night vision viewer operates with batteries. Unlike a daylight
binocular, where you see the image due to light traveling through the
glass and the prisms, the digital night vision device works by projecting
the image onto an OLED display screen. While the Image Sensor and the
OLED display are the crucial components of your viewer, the optical parts
of the unit are also very important, as they gather the light into the
Image Sensor and then bring the projected image from the OLED screen
to your eye. Since the image is projected on the display screen, just like
any TV, it has certain limited resolution, so your digital night viewer
cannot provide the same crystal clear image, as you see through your
daylight binoculars.
2. Another important point –your digital night vision viewer has option
of full-color, night vision green and black & white image –why? Because,
while full-color image is an excellent choice during daylight, it sometimes
washes out the details in the dark and will not be as effective as
monochrome image during nighttime conditions. The night vision green
color was chosen because green color shows more details than any other
color in the palette and black & white image is especially useful when
reading text or building signs or car plates during nighttime.
3. Your digital viewer is safe to operate during daylight and nighttime
hours. IT IS NOT SAFE FOR YOUR EYES TO LOOK DIRECTLY AT THE SUN
THROUGH THIS PRODUCT! Please note that during daylight you will have
to reduce the brightness level of the unit to prevent the image from
becoming totally washed out. You should also utilize Color Enhancing
Filter, supplied with the unit for daylight operation in order to view more
vibrant colors. (Filter is attached to the front lens and also acts as a
protective lens cover)
4. For more details on how to operate your viewer, please read this
manual completely to ensure proper operation.
YOUR PACKAGE INCLUDES THE FOLLOWING:
1. LN-G3-M50 Monocular
2. 8GB Micro SD-card (installed into the SD-card slot)
3. Color Enhancing Filter (installed onto the front lens –daylight use
only –remove in the dark!)
4. Carry case & Wrist Strap (strap is installed on the monocular)
5. USB Cable, HDMI cable & Micro-SD Card USB Flash Drive Adapter
6. 2xCR123A batteries (optional –NON-RECHARGEABLE!)

3
Please identify all the parts of the device PRIOR to operation!
1
4
2
5
3
8
9
5
1
8
6
3
4
7
10
11
11-c
11-b
11-a

4
GLOSSARY:
1 –Objective Lens Focusing Wheel 8 –Folding Eyecup
2 –IMAGE Button 9 –Menu Super Controller
3 –CAMERA Button 10 –Power / IR Indicator Lights
4 –POWER & IR Button 11 –Connection Area:
5 –Ocular Focusing Wheel 11-a) Micro-SD Card Slot
6 –Battery Compartment Cover 11-b) Micro-USB Connector
7 –Infrared Illuminator Lens & Barrel 11-c) Micro-HDMI Output
INSTALLING THE BATTERIES:
Your device operates on two 3V Lithium type batteries, known as CR123A
type commonly available in Electronics/Camera/Convenience stores.
NOTE: it is possible to use rechargeable batteries (CR123R) but please
make sure each battery peak voltage is equal to or less than 4.2V
WARNING: batteries supplied with the unit are not
rechargeable –do not charge or recharge these batteries!
To install the batteries, unscrew the battery compartment cover (6), and
install two CR123A batteries into compartment inserting the positive (+)
end first. Once the batteries are inside, replace the cover by rotating it all
the way to the end until the stop (do not use force or over-tighten!).
DAYLIGHT COLOR ENHANCING FILTER:
Your monocular is equipped with a unique daytime
color enhancing filter, which provides vibrant and
accurate colors rendition (digital image sensors are
known to distort colors and provide an unnatural
color image during daytime. The filter comes
attached to the objective lens and we strongly recommend keeping it on
during daytime use. During nighttime you will need to remove the filter
(by unscrewing it counter-clockwise). Please keep the filter in the carrying
case when removed from monocular to prevent accidental loss.

5
TURNING THE UNIT ON AND OFF:
Your night vision unit has one-touch push-buttons. To turn the unit ON, press the
POWER Button (4) momentarily once. The LED Power Indicator (10) located on the
back of the unit should light up in green color. Look through the eyecup (8) –you
should see the Welcome screen for a few seconds, followed by image. Even if the
image is not yet sharp, the unit is operating. To turn the unit OFF, press and hold
the POWER Button for 2 seconds. The image will disappear if you turn the unit off
correctly. We suggest to always replace the daytime color filter / protective lens
cover after the unit is turned off and no longer in use.
IMPORTANT: When turning the unit ON or when switching between various
modes (Video, Photo etc.) or when operating the unit with Wi-Fi stream activated,
it is normal to see some image flickering in the display. This is normal and does
not affect the unit. If the flickering does not disappear once the affecting
functions are no longer active, please re-start the unit. If conditions persist, please
contact us at: [e-mail] for assistance.
ON-SCREEN DISPLAY ICONS:
Video Recording Counter Video Resolution
Camera Mode
IR Power Level Time Power source
Image Magnification

6
OPERATING FROM A 5V/2A POWER BANK:
Your digital viewer can also operate from the commonly available 5V USB Power
Bank chargers. Please make sure the output of the Power Bank is at least 2A, as
less powerful output may fail to power the unit especially when the IR illuminator
is activated or during video recording / Wi-Fi connection. To connect the Power
Bank, open the Connection Area (11) rubber cover by gently pulling it outward and
then swing it counter-clockwise to the right and locate the Micro-USB connector
(11-b). Connect the small end of the USB cable (included) to the connector and
then connect the large end of the cable into Power Bank output. You may need to
activate the power bank first, prior to turning the viewer on. There is no need to
remove batteries when using power bank.
FOCUSING THE UNIT:
To obtain the sharp image, you must first rotate the Ocular (Eyepiece) Focusing
Ring (5) in either direction, until you notice in which position you can see the on-
screen display icons well. After that, rotate the Objective Lens Focusing Wheel (1)
focusing at the object you are trying to view until the image is at its best. You may
have to repeat (fine-tune) the process again, until the image is sharp and clear.
Once the clear image is obtained, you will no longer need to adjust the eyepiece,
just rotate the front objective lens to adjust the distance to the object you are
viewing.
SUPER CONTROLLER / MENU FUNCTIONS:
Your monocular features a unique and user-
friendly adjustment called Super Controller
(9). It incorporates various operating
functions and makes navigating and adjusting
menu functions fast, easy and natural without
having to take your eyes off the eyepiece in
the field. It is especially useful when using in
the dark conditions where button location
may be particularly difficult. Super Controller
activates the Main Menu by pressing onto it
for approx. 2 sec.
Once activated, all Menu navigation is done the following way:
-Scrolling through the menu contents: rotate the Super Controller in
either direction (each click scrolls the menu by one step)
-Selecting and confirming function: short-press onto the Super Controller
-Return from selected function to Main Menu: Long-Press onto Super
Controller (2 sec)
-Exiting the Main Menu: Long-Press onto the Super Controller (2 sec)

7
MAIN MENU consists of the following selections:
MODE:
-Video: this mode allows you to record videos when CAMERA button (3) is
pressed during operation
-Photo: this mode allows you to capture still images when CAMERA button
(3) is pressed during operation
-Playback: this mode allows you to playback videos and photos stored on
your SD card
RESOLUTION:
-FHD 1080P@30: Video record in Full-HD (Blue-Ray quality) at 30fps
-HD 720P@60: Video record in HD at 60fps (preferred at nighttime)
-HD 720P@30: Video record in HD at 30fps
-WVGA 480P@60: Video record at DVD quality at 60fps
IMAGE COLOR:
IMPORTANT: IMAGE COLOR CAN BE QUICKLY SELECTED BY SHORT-PRESSING
ONTO MENU CONTROLLER (9) DURING EITHER VIDEO OR PHOTO MODE
-Normal: Image is displayed in Full-Color (best for daytime or well-lit room
–keep the red filter on the front lens during daylight, also good for
nighttime sky watching)
-B&W: Image is monochrome black & white (perfect for nighttime
city/urban setting)
-Green: Image is monochrome green (good for nighttime field use)
-Amber: Image is amber color (good for all daytime/nighttime settings and
especially where light glare might be an issue or whenever extra contrast
is desired)
WI-FI:
-ON: Turns the Wi-Fi signal ON. See page-13 for instructions
-OFF: Turns the Wi-Fi single OFF

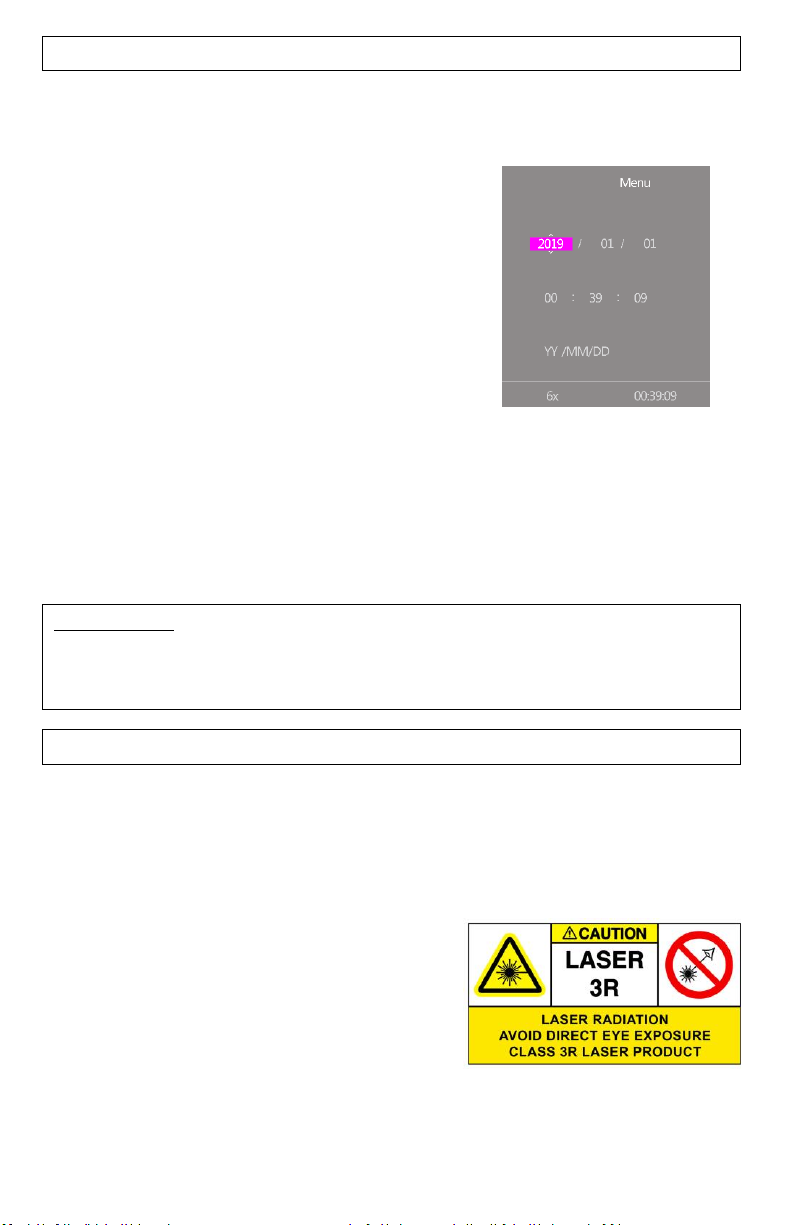

DATE/TIME:
-Please see Page-9 on how to set the date/time on your monocular
FORMAT:
-Cancel: Exit formatting
-OK: Format your SD-card (all files will be erased!)
DEFAULT SETTINGS:
-Cancel: Exit to main menu
-OK: Returns monocular to factory settings
VERSION:
-Displays current software version installed in your device
ELECTRONIC IMAGE MAGNIFICATION ZOOM:

8
Your unit is also equipped with electronic zoom function, which allows you to
change image magnification from 6x to 36x. To increase the image magnification
rotate the Menu Super Controller (9) to the right (clockwise) and look into the
ocular –you will see the image magnification increase with each rotation click by
3x. See below the magnification chart according to each rotation:
6.0x –9.0x –12.0x –15.0x –18.0x –21.0x –24.0x –27.0x –30.0x –33.0x –36.0x
You can observe the current magnification level on the bottom left corner of the
image display once you start rotating the Super Controller. To decrease the image
magnification, rotate the Super Controller to the left (counter-clockwise) and
image magnification will decrease by 3x with each rotation. Factory default setting
is 6x
NOTE: During any image magnification adjustments, please avoid pressing
onto the Super Controller, as this may activate the device main menu.
SHORTCUTS (MULTIPLE BUTTON FUNCTIONS):
The three top buttons can be used to skip the main menu navigation and provide
quick shortcuts to the most popular functions:
POWER & IR BUTTON (4):
a) Initial short-press –turns the power ON
b) When power is ON, single short press activates 1st
power level of IR illuminator. There are 3 IR power
levels –each consecutive short-press increases the
power by one level. 4th short-press turns the IR
illuminator OFF
c) When power is ON, long-press shuts the power OFF
CAMERA BUTTON (3)
a) Factory default setting is VIDEO. Short-press
activates video recording
b) Long-press activates Mode selection. Once
activated each single long-press selects between
VIDEO / PHOTO / PLAYBACK modes
c) Once selection is changed single short-press on this
button will either activate Video recording, Still
Image capture or Playback function
IMAGE BUTTON (2)
a) Default function –OLED display brightness. Each
short-press increases the display brightness by one
level. There are 7 brightness levels and the factory
default setting is level-2. See page-11 for more
image brightness adjustment information

9
SETTING UP DATE AND TIME:
As your viewer has capability to take images and record video, time and date is
automatically stamped onto each image and video recording. To set the correct
date and time, please follow this procedure:
Turn the unit ON. After image appears, press onto
the Super Controller (9) and hold it for
approximately 2 seconds to activate the menu. Scroll
until Date/Time function by rotating the Super
Controller and select it by momentarily pressing
onto it. To adjust the numbers, rotate the Super
Controller in either direction. To switch between
numbers, press onto Super Controller momentarily.
After Date is set, adjust the time. Time is in 24hr
format, so 13:00 is 1pm; 17:30 is 5:30pm and so on. As with the date, changing
hours and minutes is done by rotating the Super Controller and moving between
hours and minutes is done by pressing onto it. Once the time is adjusted you may
choose to change the date format to MM/DD/YYYY or YYYY/MM/DD according to
your preference. Once you are finished setting date and time, you can exit the
menu by pressing Super Controller (9) for approximately 2 seconds. Once set, the
time will be displayed on the bottom of the OLED image display.
IMPORTANT: in order to preserve the set date/time do not remove the dead
batteries from the unit until you are ready to replace them with the new set, then
replace the old batteries with new set as quickly as possible and the date/time will
be preserved.
USING INFRARED ILLUMINATOR:
Your digital viewer is equipped with a built-in powerful Infrared illuminator light
(7). This light operates in a spectrum, which is normally invisible to a human eye,
however with the help of the Image Sensor, located inside the unit, you will see a
beam of light when looking though the ocular lens. Since the Image Sensor does
not actively amplify the available light, you will need to utilize the IR illuminator
often in the nighttime conditions.
WARNING: Your IR illuminator is a Class-3R
laser product. DO NOT LOOK DIRECTLY INTO
THE IR ILLUMINATOR LENS WHILE THE
ILLUMINATOR IS ON!
To turn the Infrared illuminator ON, press the Infrared illuminator button (4)
momentarily –the IR icon on the bottom of the display will light in pink color and
red LED light indicator (10) located next to the eyepiece will light on, indicating the

10
IR illuminator is operating. The illuminator intensity can be further increased by
pressing the IR button (4) second and third time (momentarily). The IR icon in the
image display will change colors from pink to orange to red, indicating the three
different power levels. After the red level (3rd and most powerful) the next
momentary press on the IR button will turn the IR off completely. The red LED light
indicator (10) will disappear when the IR illuminator is properly turned off.
When using the infrared illuminator it is important to remember that like a
flashlight, it is brightest when used in short distances. As the distance increases,
the intensity of the infrared light fades away. The illuminator lens can be focused
by rotating the front lens barrel (7). This allows for the IR beam to be widened
(shorter effective distance) or narrowed (longer effective distance).
Accessory IR illuminators are available (models LN-EIR850-2, LN-EIR940-2 or LN-
ELIR-2), which can be mounted into the single (black) bottom accessory mount
socket. The thread is a standard ¼” type and will accept any accessory with
mounting screw of that size. If the black bottom mount is utilized for tripod
mounting, you can utilize any of the two gold sockets. Please note that due to the
monocular shape a special riser plate will be required to mount our illuminator
(please e-mail us at [e-mail] and request this riser plate if your
extended range illuminator did not come with it).
IMAGE COLOR OPTIONS:
IMAGE COLOR CAN BE QUICKLY CHANGED BY MOMENTARY PRESS ONTO
MENU CONTROLLER
-Normal mode displays images in full-color. This is preferred mode for
daytime use as well as when enough artificial light is present (inside a
well-lit room). If used during nighttime the overall sensitivity of the image
sensor will be significantly reduced.
-B&W mode displays images in black and white. This mode is particularly
useful during nighttime city setting when it might be important to read
the street signs or automobile plates or similar situations where highest
contrast between light and dark colors is necessary.
-Green mode allows you to experience image as seen with traditional
“tube” night vision devices. This mode is best utilized at nighttime in the
field / forest settings
-Amber mode unique state-of-the-art color minimizes incoming light glare
and provides extra contrast allowing to perfectly see the smallest details.
Excellent for nighttime settings, but is also very useful in daylight during
both: bright sunshine or cloudy days where extra contrast is desired

11
IMPORTANT: PLEASE READ!
Due to the inherited limitations of any digital image sensor, video refresh rate will
be significantly slower during nighttime, resulting in visible image lag/delay when
using your monocular in the dark. It is important to take the following steps to
minimize this effect and ensure the best possible image and video recording
quality:
-During nighttime and in any dark condition always activate built-in IR
illuminator –it will provide extra light needed for the image sensor to
“speed up” its refresh rate and image delay will be minimized.
-During nighttime you need to remove the daylight color enhancing filter –
it will block most of the Infrared light from the built-in IR illuminator
resulting in very dark image.
-Always try to utilize a quality tripod for any video recording done at
nighttime. This will ensure steady placement and will minimize image
delay when filming a moving object.
BRIGHTNESS ADJUSTMENT:
Your digital viewer is equipped with dual image brightness control. An automatic
picture optimization sensor adjusts the image according to the available ambient
and artificial light. In addition a manual Image Brightness Button (2) allows you to
fine-tune the image brightness to the most comfortable level. Please note that
during daylight you will need to tone the brightness down to avoid image flickering
and/or washout and to preserve the battery life. During nighttime you could
increase the brightness all the way up, however when utilizing built-in or external
IR illuminator, you may still need to tone the brightness down. Each momentary
press onto the IMAGE Button (2) will increase brightness by one level until it
reaches maximum level –then it will reset to the lowest brightness setting.
TAKING PICTURES AND RECORDING VIDEOS:
WE STRONGLY RECOMMEND MOUNTING YOUR DEVICE ONTO A STEADY
TRIPOD WHEN RECORDING VIDEO OR TAKING STILL IMAGES –
PARTICULARLY WHEN WATCHING DISTANT OBJECTS AND/OR UTILIZING
ZOOM FUNCTION
Your digital viewer has the ability to take High-Resolution pictures and record HD
videos onto the external Micro-SD card. 8GB card is included with your unit and it
is already installed into the SD-card slot. The Micro-SD card can be upgraded up to
128GB, which is especially useful if you plan to record a lot of videos See RE-
FORMATTING 64 & 128GB CARDS TO FAT32 FORMAT on page-14 for important
instructions.

12
Your monocular has a multi-use CAMERA button (3). It can be used to record video
and capture still images. You can switch the function of this CAMERA button by
activating the Main Menu (long press onto Super Controller (9)) and selecting
Mode function and then select either Video for video recording or Photo for still
image capture. Please refer to Page-6 for instructions on how to use Super
Controller and Menu options.
To take a still image, focus the unit onto the object you are viewing and with a
steady hand firmly press the CAMERA button (3) once. The display will give a
countdown (2-1) in the upper left corner and then image is taken and is
automatically stored onto the SD card. All still images are taken at 4032x3024
resolution (12.2MP)
To record a video, focus the unit onto the object and press CAMERA button (3)
once. The system will start recording. To stop recording, press CAMERA button
once again. During recording it is still necessary to re-adjust the focus if you wish
to record different objects, located at different distances. There are 4 different
video recording resolution options:
1. FULL-HD 1080P / 30FPS: Blue-Ray quality recording. Best for recording in
daylight with color filter on when highest video resolution is necessary.
Also good for recording at nighttime without the color filter, when
monocular is stationary on a tripod and no sudden movements are
expected
2. HD 720P / 60FPS: Excellent for daytime and nighttime recording.
3. HD 720P / 30FPS: Daytime and nighttime recording.
4. WVGA 480P / 60FPS: DVD quality recording, great for space saving mode
where large amount of video is expected
IMPORTANT: once your micro-SD card reaches its capacity, video recording and
still image taking will no longer be possible and “SD Card” will be displayed,
indicating it is time to either replace the card or empty your current card. This
feature acts as a safeguard to prevent accidental over-writing your existing video
and photo files.
IMPORTANT: If you see “Memory Error” message displayed, your micro-SD card
is either bad, or, if you have a 64GB or 128GB card, it is not operating in FAT32
format. Please refer to page-14 for re-formatting instructions.
DATA VIEWING AND DATA TRANSFER OPTIONS:
It is possible to view the images and videos directly on the unit’s micro-display. To
do so, while the unit is operating access the main menu by pressing the Super
Controller for 2 seconds. Enter “Mode” menu and choose “Playback”. As always,
scrolling between functions is done by rotating the Super Controller and function

13
selection is done by short-pressing the Super Controller. Once in the Playback
Mode you will be able to switch between photos and videos by rotating the Super
Controller and short-pressing Super Controller will activate any video file. To exit
the Playback Mode simply press Super Controller for 2 seconds.
You can connect the unit directly to the computer via USB connection by utilizing
the micro-USB connector (11-b). To do so, connect the micro-USB part to the unit,
then connect the standard USB part to the computer. Device does not need to be
powered. It will power up once connected. Look through the eyepiece –words
MASS STORAGE will be displayed. Connection will start automatically once the
software download is finished (also done automatically). Once download is done,
you will be able to open and transfer all of your SD-card files onto your computer.
Alternatively, you can remove the micro-SD card from the monocular and use it in
the included USB flash drive adapter to transfer data to your computer. Carefully
open the Connection Area (11) rubber cover by gently pulling it from the left side
outward and then swing it counterclockwise to the right and locate the Micro-SD
Card Slot (11-a). Gently push onto the micro-SD card and it will pop out. If your
computer has a direct micro-SD slot, you can insert the card directly to the slot
bypassing the above options. It is also possible to utilize the full-size SD card
adapter (not included with monocular). To replace the micro-SD card gently push it
into the slot (11-a) until it clicks and stays in it.
CONNECTING TO EXTERNAL VIDEO SOURCE:
You can connect your device to the HD source, such as HDTV or monitor via the
micro-HDMI cable (included with your device). Carefully open the Connection Area
(11) rubber cover by gently pulling it from the left side outward and then swing it
counterclockwise to the right and locate the Micro-HDMI output (11-c) Connect
the small end of the cable to the micro-HDMI Output and then connect the large
end of the cable to the HDMI input on your TV or monitor.
IMPORTANT: Please note that when device is connected via HDMI to any video
monitor or HDTV, it will be impossible to connect via Wi-Fi to the App during active
video recording. If you wish to connect to the Wi-Fi App, you will need to
discontinue video recording.
WI-FI LINK AND OPERATION INSTRUCTIONS:
1. Download “ROADCAM” App on your Android phone/tablet or
on iPhone/iPad. For Android users if you have a problem
finding the app in Google Play Store, please scan
the QR code below

14
2. Enter Main Menu via Super Controller (9) and scroll to Wi-Fi selection.
Turn the Wi-Fi ON. Now look through the eyepiece and observe the Wi-Fi
signal name (typically M5) and Password (typically 12345678).
3. Find the device Wi-Fi signal on your phone (same as shown on the unit’s
display) and select it.
4. Enter password (second line of the unit’s OLED display) –NOTE: only
numbers after “:” are needed to be entered –typical default password is
12345678.
5. Once connected make sure your phone is allowed to stay connected to
this Wi-Fi signal even though there is no internet available. This will
prevent automatic disconnect by your phone.
6. Now open the app and it will display the device name below the orange
cam symbol –simply touch the cam symbol and app will connect to the
device.
7. Follow on screen menu on your smart device to utilize the available
features of the app. NOTE: during Wi-Fi streaming the ZOOM function is
disabled and cannot be utilized!
8. During Wi-Fi streaming single press onto the Super Controller activates
either Video or Photo capture, depending on the selected mode. Repeat
press deactivates video.
9. If the App shuts down during normal use, please re-start it, or re-install it
on your mobile device if it happens more than twice.
RE-FORMATTING 64GB & 128GB MICRO-SD CARDS TO FAT32
FORMAT:
Any micro-SD card above 32GB needs to be re-formatted from EXFAT format to
FAT32 format, which is the format of the night vision monocular (and many other
consumer electronics). Please note that FAT32 is the most widely used format and
is also considered the most reliable format.
In order to re-format the card you must run it through a 3rd party provider. We
suggest using Disk Partition. While nearly all of the providers would want you to
buy their upgraded versions, you can just download their basic free version and it
would be sufficient to re-format the card. Disk Partition seems to be the most
simple and hassle-free provider we could find:
https://www.disk-partition.com/download.html
Download the “Standard Free” version and follow all the download
instructions.
Once downloaded, open the program and insert the micro-SD card into
the computer.

15
Highlight the correct disc by single-click and then choose on the bottom
left side of the menu to “Format Partition” (alternatively right-click on the
highlighted disc and choose the same function). A pop-up window will
appear. You can label your partition (such as “Luna Optics Monocular” or
any other name you desire (it’s optional) and then make sure to select
“FAT32” as the File System. Then click “OK”.
Once the format is finished, click on “Apply” located in the most upper
left corner. You must select “Apply” otherwise the formatting is not
finished.
You card is now formatted, but before you can use your 64/128GB card in
our digital night vision product you must also format the card inside the
product. To do so, insert the card into its slot (11-c), turn your monocular
on and through the menu find and select “Format”, then select “OK”.
Once the card is formatted inside the night vision device it is now ready to
use.
TROUBLESHOOTING:
1. Unit does not turn on and the light indicator is off:
a) please check if the batteries are inserted correctly
b) please make sure the batteries are fresh
2. The light indicator is working, but you cannot see the image:
You may be turning the unit on in a dark area without utilizing the
IR illuminator. Please also remove the Daytime Color Filter.
3. Unable to obtain sharp and clear image:
a) you may need to repeat the process of rotating the ocular and
objective lens several times until you get a good feel of it
b) You may be viewing an object that it too close –the minimum
focusing distance is approximately 80cm or 2.6ft
4. During image magnification adjustment color suddenly changes or Main Menu
activates:
You have accidentally pressed onto the Super Controller either
momentarily (color change) or for more than 1sec (Menu
activation). Press onto it again for approximately 2 seconds and
Menu will disappear.
5. I’m trying to turn the IR illuminator on and instead the unit shuts down:
You are holding the Power/IR button for more than 1 sec. In order
to turn the IR illuminator on, you must press the button only
momentarily.
6. I’d like to use a 64GB or a 128GB micro-SD card, but it’s not working or is
not recognized:
Your 64GB or 128GB micro-SD card must be re-formatted to FAT32
format. Please refer to page-14 for re-formatting instructions
WARNING! NEVER ATTEMPT THE FOLLOWING:

16
NEVER try to disassemble the unit by yourself or by
anyone who is not our authorized technician. Doing so
may result in injury and will void any warranty claims
NEVER charge batteries included with the unit –they
are not rechargeable!
NEVER submerse the unit into water or use it during
heavy rain.
NEVER look directly at the sun through this device.
NEVER look directly at the IR illuminator lens while the
illuminator is active.
TECHNICAL SPECIFICATIONS:
Image Sensor Resolution / Sensitivity: ____________ Full-HD 1920x1080 / 0.005lux
Image Display: _____________________________ 0.38” HD AMOLED-Q 1280x720
Still Image resolution ____________________________4032x3024 (12.2MP) JPEG
Video resolution (signal) ________________________________Full-HD 1080p AVI
Video Recording options _______________________ 1080p / 720p / WVGA / VGA
Image Magnification ____________________________________________6x-36x
Objective Lens _____________________________________________F1.0/50mm
Focusing Distance_______________________________________ 80cm (2.6ft) - ∞
Viewing Distance (daylight, 6x) ___________________________ 1000m (1090yds)
Viewing Distance (IR complete darkness) _____________________ 400m (436yds)
Field Of View______________________________________________________ 9°
Memory ____________________________________ Micro SD card (up to 128GB)
Wi-Fi ____________________________________________________ Android/iOS
Battery Power_____________________________________2 x 3V Lithium (CR123)
External Power ________________________________________ 5V/2A micro-USB
Operating Time (battery power) __________________________________3-3.5hrs
External outputs _________________________________ micro-HDMI / micro-USB
Dimensions________________________170mm x 80mm x 63mm (6.7”x3.1”x2.5”)
Weight___________________________________________________ 510g (17 Oz)
Warranty_________________________________________________________1yr
----------------------------------------------------------------------------------------------------------
LUNA OPTICS, INC. 300 Hawthorn Dr., Fate, TX 75087 (USA)
E-mail: [e-mail] Web: www.lunaoptics.com © 2021
