Lutech Datalys V650 User manual

Multi-parameter Veterinary Monitor
Datalys V650
User Manual

I
Copyright
Version: A
Issued Date: 2013/11
Part No.:046-000531-00
Statements
Our company makes no warranty of any kind with regard to this material, including, but not
limited to the implied warranties of merchantability and fitness for a particular purpose. Our
company assumes no responsibility for any errors that may appear in this document, or for
incidental or consequential damage in connection with the furnishing, performance or use of
this material.
No part of this document can be photocopied, reproduced or translated to another language
without prior written consent of our company.
Responsibility of the Manufacturer
Our company only considers itself responsible for any effects on safety, reliability and
performance of the equipment if:
Assembly operations, extensions, re-adjustments, modifications or repairs are carried out by
personnel authorized by our company, and the electrical installation of the relevant room
complies with safety standards, and the instrument is used in accordance with the instructions
for use.
Note: This device is not intended for home use.
WARNING :This device is not intended for treatment.
WARNING
A WARNING label advises against certain actions or situations that could result in personal
injury or death.
Note
A NOTE label provides useful information about a function or procedure.
Address: 105 Remington Blvd.,Suite A Ronkonkoma, NY 11779 U.S.A.
Tel: [phone]
Fax : [phone]
Email: [e-mail]
Website: www.goldwayvet.com

II
Contents
CHAPTER1 GENERAL INFOMATION.............................................................................................1
1.1 Genaral Infomatino.....................................................................................................................2

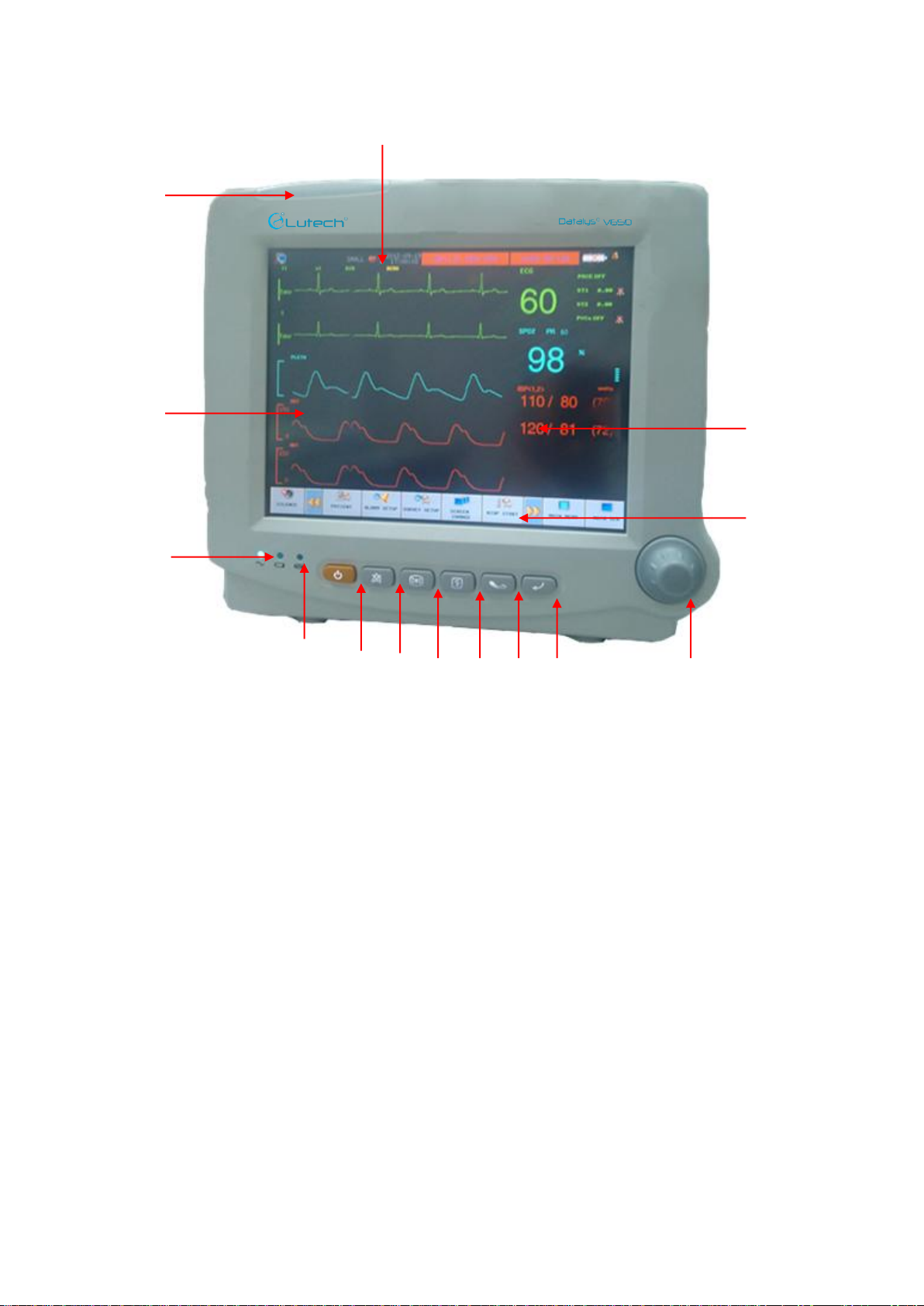

1.2 Button Fuctions and Basic Openraitons..................................................................................3

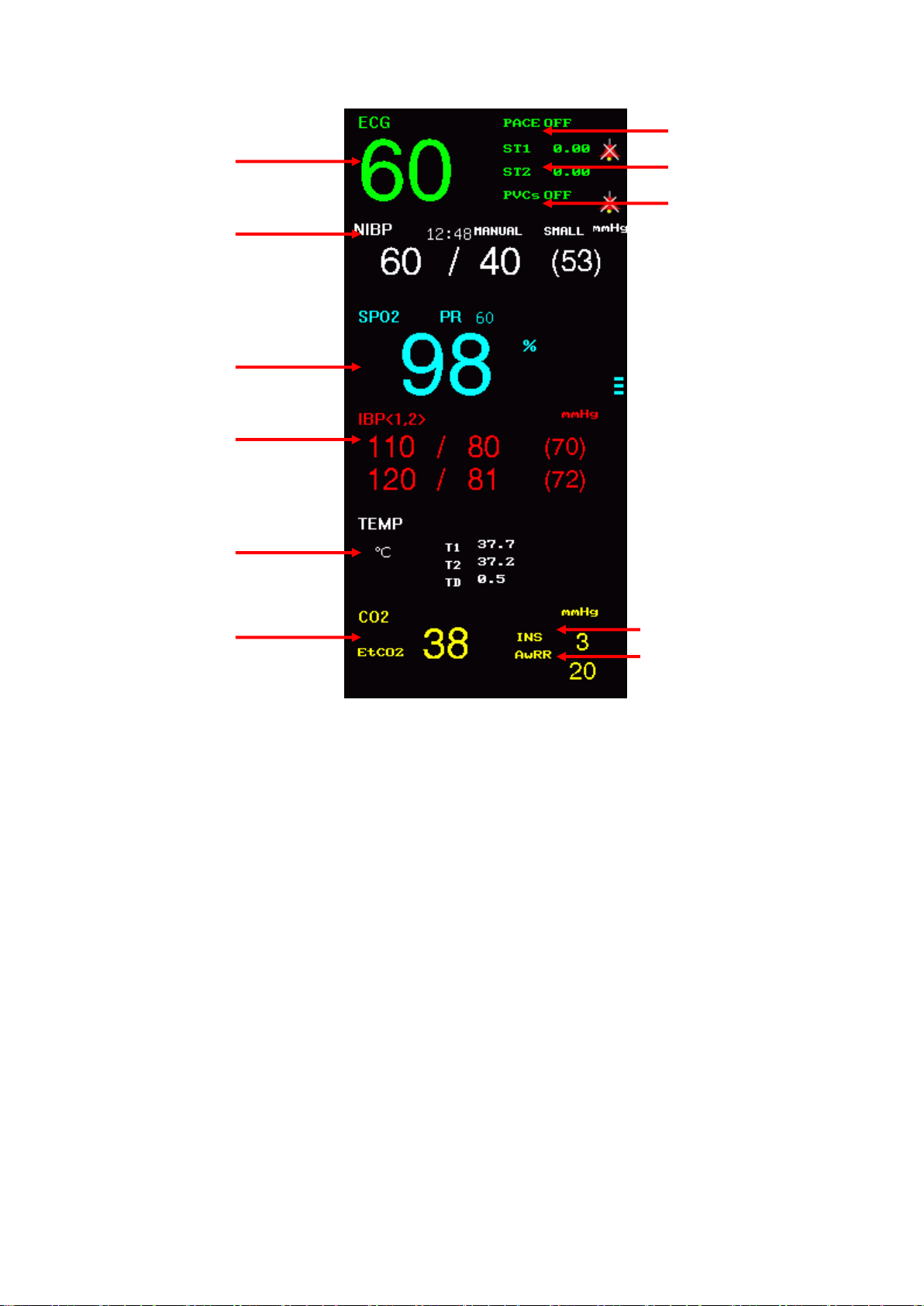

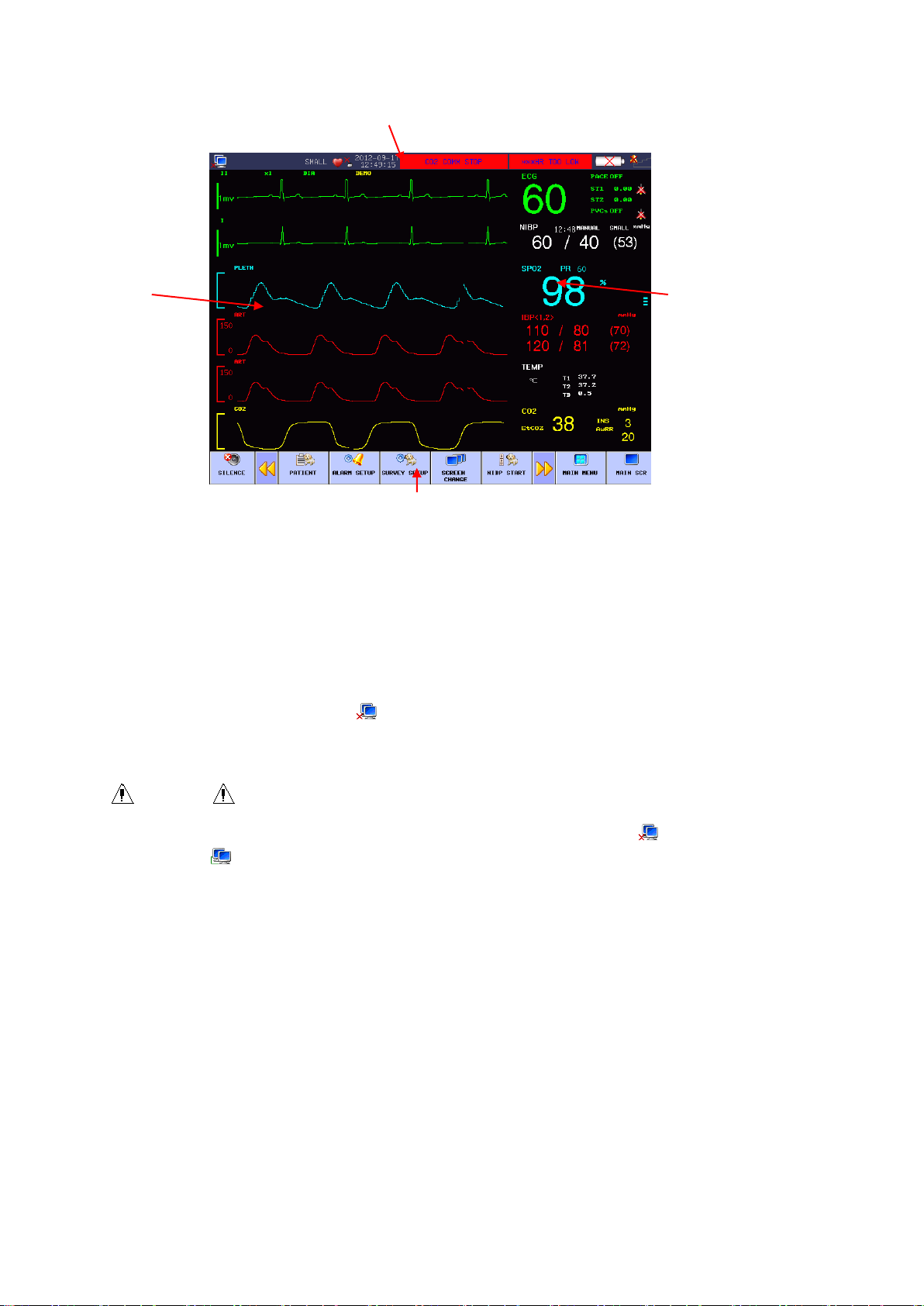

1.3 Screen display.............................................................................................................................4

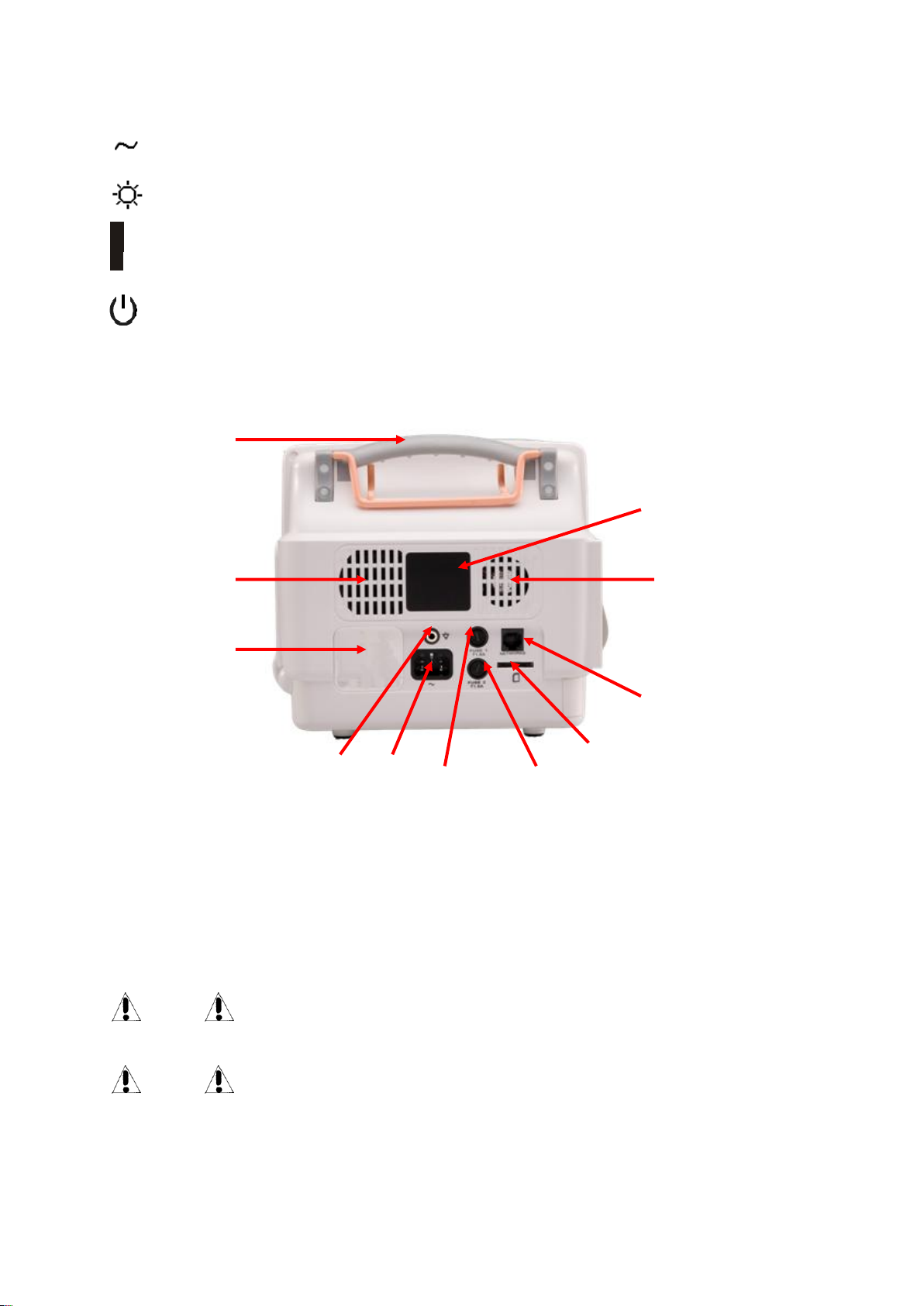

1.4 External Socket...........................................................................................................................9
1.5 Built-in charge battery.............................................................................................................. 11
CHAPTER2 MONITOR ASSEMBLY ..............................................................................................12
2.1 Open Package and Check......................................................................................................12
2.2 Connect with AC Cable............................................................................................................12
2.3Power on....................................................................................................................................13
2.4 Connect with Sensor................................................................................................................13
2.5 Check Recorder........................................................................................................................13
CHAPTER3 SYETEM MENU...........................................................................................................14
3.1 PATIENT MANAGE..................................................................................................................14
3.2 SURVEY SETUP......................................................................................................................16
3.3 SELECTION..............................................................................................................................16
3.3.1 ALARM Volume.............................................................................................................17
3.3.2 HEART BEAT VOLUME ..............................................................................................17
3.3.3 KEY VOL (Keyboard Vol )............................................................................................17
3.3.4 LCD LIGHT (LCD Brightness).....................................................................................17
3.4 MONITOR SETUP (Monitor Setting).....................................................................................17
3.4.1 ALARM SETUP.............................................................................................................18
3.4.2 RECORD (Record output setting)..............................................................................18
3.4.3 TIME SETUP (System Time Setting).........................................................................19
3.4.4 NURSE CALL SETUP..................................................................................................19
3.4.5 MODULE SETUP..........................................................................................................19
3.5 WORK INTERFACE SELECTION.........................................................................................20
3.6 TREND SCREEN .....................................................................................................................20
3.7 TREND TABLE (TREND Figure)............................................................................................21
3.8 NIBP RECALL...........................................................................................................................23
3.9 ALM RECALL(Alarm recall)....................................................................................................23
3.10 WAVE RECALL.........................................................................................................................25
3.11 INFO (Monitoring Information)................................................................................................26
3.12 DRUG CALC (DRUG CAL CULATION & TITRATION LIST).............................................26
3.13 Maintenance..............................................................................................................................26
3.14 DEMO (Password: 5188). .......................................................................................................26
3.15 SCR LOCK(screen lock)..........................................................................................................27
CHAPTER4 SYSTEM WORK INTERFACE ..................................................................................28
4.1 Work Interface Selection .........................................................................................................28

III
4.1.1 STANDARD...................................................................................................................28
4.1.2 LIST FACE.....................................................................................................................28
4.1.3 TREND SCREEN .........................................................................................................29
4.1.4 OxyCRG SCREEN.....................................................................................................................30
4.1.5 BIG FONT INTERFACE.............................................................................................................31
CHAPTER5 ALARM..........................................................................................................................32
5.1 Alarm Type.................................................................................................................................32
5.2 Alarm Level................................................................................................................................32
5.3 Alarm Mode...............................................................................................................................33
5.4 LightingAlarm............................................................................................................................33
5.5 Sound Alarm..............................................................................................................................33
5.6 Alarm Information.....................................................................................................................33
5.7 Alarm Parameter Flashing.......................................................................................................34
5.8 Icon of Alarm Status.................................................................................................................34
5.9 Setting the upper and lower limits of alarm ..........................................................................34
5.10 Verifying theAlarm System.....................................................................................................35
CHAPTER6 RECORDING................................................................................................................36
6.1 General Information on the Recorder....................................................................................36
6.2 Record Type..............................................................................................................................36
6.2.1 Real-time record ...........................................................................................................36
6.2.2 Frozen waveform record..............................................................................................37
6.2.3 The contents of the real time recording.....................................................................37
6.3 Operation and Status Information of Recorder....................................................................37
6.3.1 Requirements on record paper...................................................................................37
6.3.2 Normal service..............................................................................................................37
6.3.3 Insufficient paper...........................................................................................................37
6.3.4 Paper loading procedures...........................................................................................38
6.3.5 Solution to paper jam...................................................................................................38
CHAPTER7 TREND...........................................................................................................................39
7.1 TREND GRAPH (TREND Diagram)......................................................................................39
7.1.1 Select trend diagrams for various parameters to be displayed:............................40
7.1.2 Select 1-hour or 120-hour TREND diagrams:..........................................................40
7.1.3 Observe TREND diagrams of later or earlier duration:...........................................40
7.1.4 Change the display zoom............................................................................................40
7.1.5 Obtain the TREND data at certain time in the current TREND diagram..............40
7.1.6 Operation sample .........................................................................................................40
7.2 TREND TABLE (TREND Figure)............................................................................................41
7.2.1 Select TREND Figures in various resolutions..........................................................42
7.2.2 Observe earlier or later TREND curves.....................................................................42
7.2.3 Observe TREND data of various parameters...........................................................42
7.2.4 Operation sample .........................................................................................................42
7.3 NIBP RECALL...........................................................................................................................42

IV
CHAPTER8 DRUG CALCULATION & TITRATION LIST...........................................................44
8.1 DRUG CALC.............................................................................................................................44
8.1.1 Operation method:........................................................................................................44
8.2 TITRATION................................................................................................................................46
8.2.1 Enter the Titration list:..................................................................................................46
CHAPTER9 PATIENT SAFETY ......................................................................................................48
9.1 Environment ..............................................................................................................................48
9.2 Power Source............................................................................................................................48
9.3 Monitor earthing........................................................................................................................48
9.4 Equal-potential earthing...........................................................................................................49
9.5 Condensation............................................................................................................................49
9.6 Explanations on Symbols Used in the Monitor ....................................................................49
CHAPTER10 MAINTENANCE & CLEANING.................................................................................50
10.1 Maintenance check ..................................................................................................................50
10.2 Cleaning and Sterilization........................................................................................................50
10.2.1 Note on Cleaning and Sterilization.............................................................................50
10.2.2 Cleaning.........................................................................................................................51
10.2.3 Sterilization....................................................................................................................51
CHAPTER11 ECG MONITORING.....................................................................................................53
11.1 Definition of ECG Monitoring..................................................................................................53
11.2 Attentions during ECG Monitoring .........................................................................................53
11.3 Monitoring Procedures.............................................................................................................54
11.3.1 Preparation....................................................................................................................54
11.3.2 Install ECG leads..........................................................................................................55
11.3.3 ECG lead connection recommended for surgery patients......................................56
11.3.4 Use the 5-lead ECG device.........................................................................................57
11.4 ECG Hot Key.............................................................................................................................57
11.5 ECG Menu.................................................................................................................................59
11.5.1 ECG setting in parameter area...................................................................................59
11.5.2 ECG setting in waveform area....................................................................................60
11.5.3 ECG setting in measurements....................................................................................62
11.5.4 About ST Monitoring.....................................................................................................63
11.5.5 Arrhythmia Analysis......................................................................................................66
11.6 10.6 ECG Alarms & Reminders..............................................................................................70
CHAPTER12 RESP MEASUREMENT.............................................................................................72
12.1 Measure RESP.........................................................................................................................72
12.1.1 How to measure RESP................................................................................................72
12.1.2 Setting of RESP monitoring ........................................................................................72
12.2 RESP setting in parameter area.............................................................................................73
12.3 RESP setting in waveform area..............................................................................................74

V
12.4 RESP setting in measurements..............................................................................................75
12.5 RESP alarm information and prompt information................................................................76
12.6 Maintenance & Cleaning .........................................................................................................77
CHAPTER13 SPO2 MONITORING...................................................................................................78
13.1 Definition of SpO2 Monitoring.................................................................................................78
13.1.1 Principle for Measurement of SpO2Volume Recording Parameter......................78
13.1.2 BOS/Pulse Monitoring..................................................................................................79
13.2 Precautions in SpO2/Pulse Monitoring..................................................................................79
13.3 Monitoring Procedures.............................................................................................................80
13.4 Measurement restriction..........................................................................................................81
13.5 SpO2Setting in the parame area...........................................................................................82
13.6 SPO2 setting in waveform area..............................................................................................83
13.7 SPO2 setting in measurements..............................................................................................83
13.8 Alarms & Reminders................................................................................................................84
13.9 Maintenance & Cleaning .........................................................................................................85
13.9.1 Cleaning:........................................................................................................................86
CHAPTER14 NIBP MONITORING....................................................................................................87
14.1 General Information..................................................................................................................87
14.2 NIBP Monitoring........................................................................................................................87
14.2.1 NlBP Measurement ......................................................................................................87
14.2.2 Operational guide .........................................................................................................89
14.2.3 Measurement restriction..............................................................................................91
14.2.4 NIBP Parameter Setting & Adjustment......................................................................91
14.3 NIBP setting in parameter area..............................................................................................92
14.4 NIBP setting in measurements...............................................................................................93
14.5 NIBP Pressure Calibration ......................................................................................................94
14.6 NIBP Leak detection.................................................................................................................95
14.7 NIBP alarm information............................................................................................................96
14.8 Maintenance & Cleaning .........................................................................................................98
14.8.1 Recyclable blood pressure cuff ..................................................................................98
14.8.2 One-time blood pressure cuff......................................................................................99
CHAPTER15 TEMP MONITORING ................................................................................................100
15.1 TEMP Monitoring.................................................................................................................... 100
15.1.1 TEMP measurement setting......................................................................................100
15.2 TEMP setting in parameter area ..........................................................................................100
15.3 TEMP setting in measurements...........................................................................................102
15.4 Alarm information and prompt information..........................................................................102
15.5 Maintenance & Cleaning .......................................................................................................103
CHAPTER16 CO2MONITORING....................................................................................................104
16.1 General.....................................................................................................................................104
16.2 Measuring Principle and Working Process.........................................................................105

VI
16.3 Operating Instruction for CO2Connection..........................................................................105
16.4 CO2Measurement Procedures ............................................................................................107
16.4.1 Measuring Procedure of RESPIRONICS Branded Mainstream and Sidestream
Modules108
16.4.2 Measuring Procedure of PHASEIN Branded Sidestream and Mainstream
Analyzers..................................................................................................................................... 110
16.5 CO2 Settings in ParameterArea.......................................................................................... 112
16.6 CO2 Settings in Waveform Area........................................................................................... 113
16.7 CO2Settings in Measurement Setup................................................................................... 114
16.8 Discharging Waste Gases..................................................................................................... 115
16.9 Maintenance and Cleaning of RESPIRONICS Branded Mainstream and Sdestream
Modules................................................................................................................................................ 115
16.9.1 Common Cleaning...................................................................................................... 115
16.9.2 AirwayAdapter for Cleaning Reusable Mainstream Sensor................................ 115
16.9.3 Method for Sterilizing Reusable Adapter................................................................. 116
16.9.4 Sterilization Times for Reusable AirwayAdapter ................................................... 116
16.9.5 Zeroing......................................................................................................................... 116
16.10 PHASEIN Branded Mainstream and SidestreamAnalyzer Related Information...... 116
16.10.1 Zeroing......................................................................................................................... 116
16.10.2 CO2Module Lighting Information............................................................................. 117
16.10.3 Others........................................................................................................................... 117
CHAPTER17 IBP MONITORING................................................................................................ - 118 -
17.1 General information............................................................................................................- 118 -
17.2 Considerations of IBP monitoring.....................................................................................- 118 -
17.3 Monitoring procedure.........................................................................................................- 119 -
17.4 IBP Menu.............................................................................................................................- 120 -
17.4.1 IBP<1,2>setup in the parameter area.................................................................- 120 -
17.4.2 IBP<1,2>setup in the waveform area..................................................................- 123 -
17.4.3 IBP<1,2>setup in the measurement setup .........................................................- 123 -
17.5 Alarm information and prompt information......................................................................- 126 -
17.6 Maintenance and Cleaning ...............................................................................................- 127 -
CHAPTER18 MEASUREMENT OF ANESTHETIC GASES.................................................. - 129 -
18.1 Overview..............................................................................................................................- 129 -
18.2 Measurement Principle and Work Process.....................................................................- 129 -
18.3 AG Display...........................................................................................................................- 130 -
18.4 MAC Value...........................................................................................................................- 131 -
18.5 Preparations for Measurement.........................................................................................- 131 -
18.6 AG Setup..............................................................................................................................- 132 -
18.6.1 CO2 Setup...............................................................................................................- 132 -
18.6.2 AG O2 Setup...........................................................................................................- 134 -
18.6.3 AG N2O Setup........................................................................................................- 135 -
18.6.4 AGAASettings........................................................................................................- 137 -
18.7 Aderse effects on performance ........................................................................................- 138 -

VII
18.8 SafetyAlarm Information...................................................................................................- 139 -
18.8.1 ISA Sidestream Gas Analyzer Safety Warning Information .............................- 139 -
18.8.2 ISA Mainstream Gas Analyzer Safety Warning Information.............................- 141 -
18.9 Airway Obstruction .............................................................................................................- 143 -
18.10 Discharging Waste Gases.............................................................................................- 143 -
18.11 Consumables ..................................................................................................................- 144 -
18.12 Safety Symbol Information............................................................................................- 144 -
18.13 Patents and Trademarks ...............................................................................................- 145 -
18.14 Maintenance....................................................................................................................- 146 -
18.15 Cleaning the Analyzer....................................................................................................- 146 -
APPENDIX I ACCESSORIES .................................................................................................... - 147 -
APPENDIX II SPECIFICATION................................................................................................... - 149 -
APPENDIX III DESCRIPTION OF SYSTEM ALARM PROMPT ........................................ - 156 -

VIII
Blank page

1
Chapter1 General Infomation
For information about the monitor, please read the General Information on the Monitor chapter.
For introduction on various information displayed on screen, please read the Screen Display chapter.
For operational methods, please read the Button Functions and Basic Operations chapter.
For locations of various interfaces, please read the External Interfaces chapter.
For notices of using the monitor with power supply from a battery, please read the Built-in Chargeable
Battery chapter.
Warning
This monitor is to monitor clinical patients, only for doctors and nurses‟ use.
Warning
Don‘t open cover of the equipment to avoid possible risks in electric shock. Any maintenance or upgrading
on the monitor must be conducted by service personnel trained and authorized by our Company.
Warning
Don‘t use this monitor where there are flammables such as anesthetic agent, so as to prevent from
explosion.
Warning
Users before starting use should check whether the equipment and its accessories can work properly and
safety.
Warning
Please make sufficient alarming setting for each patient in order to prevent from delayed therapy and make
sure there is voice effect during alarming.
Warning
Don‘t use mobile phones around the monitor. Mobile phones will generate strong emission fields and
disturb the monitor.
Warning
During defibrillation don‘t touch patients, tables and the machine.
Warning
Equipments inter-connected with the monitor should form an equal-potential body (as protective effective
earthing).

2
Warning
Users (doctors or nurses) should ensure safety of patients under monitoring, when the monitor
is used together with electrosurgical equipments.
1.1 Genaral Infomatino
The portable Veterinary Monitor is of rich functions, applicable for bedside monitoring on Veterinary, such
as cat, dog, the small animals.
This monitor can monitor main parameters including electrocardiography (ECG), respiration (RESP),
blood oxygen saturation (SpO2), non-invasive blood pressure (NIBP), temperature (TEMP), dual-channel
invasive blood pressure (IBP)(optional) , carbon dioxide (CO2) (optional) and anaesthetic gas (AG)
(optional). It integrates parameter measurement modules, display and record output to build such a solid
and light monitor. Its replaceable built-in battery makes convenience for patient movement and it will
clearly display 7 waveforms and all the monitoring parameter information on the high-resolution interface.
Attention
IBP , CO2and AG are optional.
From left to right they are in turn:
(1) ALARM INDICATOR; (2) Charging INDICATOR; (3) Working INDICATOR; (4) ON/OFF button;
(5) SILENCE button; (6) FREEZE button; (7) PRINT button; (8) START button (for blood pressure); (9)
MAIN button (for key frame return); (10)Knob; (11) MENU; (12) Parameter area; (13) Waveform area;
(14) Information area. The Knob has three working methods as turning left, turning right and pressing to
confirm parameters are mainly applied to the operation of menu.
The outlet of the recorder is located on the left side of monitor and AC power line sockets are on the rear
panel of the monitor.

3
Figure 1-1 Multi-parameter Monitor
This monitor has rich functions, able to provide various functions such as visual/audio alarming, TREND
storage & output, NIBP measurement save and review, medicine calculation, ST analysis, pulse analysis,
heart rate turbulence analysis, etc.
This monitor has a friendly operation interface, able to provide all functions with the keys and buttons on
the front panel, refer to Function Keys part for details.
1.2 Button Fuctions and Basic Openraitons
The monitor can be operated through use of the buttons and knobs. Here are the functions of the buttons as
follows:
(1)
(2)
(14)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)

4
(SILENCE button): Press this button and the alarm will be silence for 3 minutes (this
item can be set in the ―Alarm Setting‖ menu). Press this button over 1 second and the
alarm sound can be shielded. In the information area appears sign. Repress this
button again to pause alarm, resume heart beat sound and cancel some technical alarm
(ECG off, SPO2off), and the sign disappears.
(FREEZE button): Press this button and all waveforms on the screen can be frozen in
the normal mode. Press this button once again and the frozen waveforms can be freed.
(PRINT button): Press this button to start a real-time recording. The recording length
is determined according to the ―real-time recording time‖ in the ―Recorder‖ submenu of
―Setting‖ menu. Press this button once again in the recording process and the recording
will stop at once. Each interval of pressing this button should be greater than 2 seconds
and the frequency should not be excessively high.
（To start/stop NIBP measurement）, press to inflate the cuff to start a blood pressure
measurement. When measuring, press to stop the measurement and deflate the cuff.
(MENU button): Press this button to have the main menu pop up when the interface is
in the state of non-window setting.
(ON/OFF button): Press this button to control the startup and shutdown of the monitor.
a.c. INDICATOR
Work INDICATOR
JOG-DIAL
JOG-DIAL to select and change the settings. Operation can be performed by turning it
clockwise, counterclockwise or pressing it down. JOG-DIAL is mainly used in menu
and window operation
1.3 Screen display
This monitor has a color LED screen, able to concurrently display collected patient parameters, waveforms,
and alarming information provided by the monitor, bed marks, clocks, monitor status and other reminder
information.
The main screen is divided into 4 sub-areas, i.e., Information Area ①, Waveform Area ②, Parameter Area
③and Menu Area④(As shown in Figure 1-2)

5
Figure 1-2 Main screen display
Information Area (①):
Prompt message in the information area appears and disappears together with the reported state. In
accordance with the content, it is divided into:
1. Network setup: Cursor stops in sign, press to enter system setup.
Network Bed No.: monitor with central monitoring system connected network bed No.
IPAddress: IP is 200.200.200.X,（X is Network Bed No.:, from 1 to 100）
Attention
Connection state of CMS (central monitoring system) : when displaying , no connection; when
displaying , connection.
Network Bed No. should not conflict with other monitors, or there will be unnecessary problems for
the monitor.
If any problem happens because of confliction, unplug network wire, restart the monitor, reset the
Network Bed No. and connect the network wire again.
2. Patient Information: press to enter the Patient Information menu when cursor is in bed No., name or
patient group area.
Bed No.: Refer to the bed number of the patient being monitored, this area will be blank if there
is no input.
Name: Patient name, this area will be blank if there is no input.
Sex: Male and Female.
Weight(kg): patient‘s weight
Patient Type: big or small
Information Area
Parameter
Area
Waveform
Area
Menu Area

6
Update patient: Replaced with new patients, once the update, delete the monitoring data on a
patient.
3. Time setup: set up local time
time: display system time
4. Technical alarm: display technical alarm, such as ECG lead off.
5. Physical alarm: display physical alarm, such as T2 too low.
6. Battery: display capacity of batter.
Full capacity
Not full capacity
Low capacity
Very low capacity, need to charge soon.
7. Volume setup: setup alarm volume, heart beat volume, key volume.
Alarm volume: there are five Alarm Vol levels, 1, 2, 3, 4 and OFF, where "OFF" level means the
alarm sound is closed.
Alarm volume on, alarm level 4
Alarm volume off
Attention
Visual alarm and alarm status
Alarm light winks or shines when there is an alarm. The colour of light means the alarm level. Refer
to alarm function chapter for details.
Waveform Area (②)
There are four waveforms in the waveform area, which are respectively from up to down: two-channel
ECG waveform, SpO2 volume graphic waveform and respiratory waveform (possibly from ECG module).
The name of selected waveform is displayed on the upper left part. For details, please refer to chapter of
ECG Monitoring. Each ECG waveform still shows the gain of this channel and the filtering method of
ECG waveform.A 1-mv rod is on the left of ECG waveform.
When you choose/touch each waveform, submenu of waveform will be pop up, which always occupies
most of space of waveform area, so that some waveforms are invisible. The original image will come back
after the menu exit.
Waveforms are refreshed at the set speed. For adjustment on waveform refresh speed, refer to the chapter of
each Parameter Setting.
ParameterArea(③)：
Parameters can display at the fixed position (as shown in ①~○ 12 of the following picture), which are
separately:

7
Figure 1-3 Main Screen
ECG
—Heart Rate or Pulse Rate（①,unit：bpm）
—pacer detection (②PACE)
—ST-segment of channel 1 and channel 2 (③, unit: mv)
—PVCs times (④Unit: times/minute)
NIBP
—None-Invisive Blood Pressure
(From left to right) Systolic, Diastolic, Mean (⑤, Unit: mmHg or kPa)
SpO2
—SpO2（⑥,unit：%）
—Pulse Rate（unit：bpm）
IBP (optional)
—Invisive Blood Pressure
(From left to right) Systolic, Diastolic, Mean (⑦, Unit: mmHg or kPa)
②
③
④
⑤
⑥
⑦
①
○
8
○
9
○
10
○
11

8
TEMP —TEMP
—Temperature（⑧,unit: ℃or℉）
CO2 (optional)
—end-tidal CO2(⑩, Unit: mmHg or kPa)
—inspiratory CO2(⑨, Unit: mmHg or kPa)
—Air Way Respiration Rate (AWRR)（○ 11 ,unit：bpm）
RESP
—Respiration Rate（,unit：bpm）
Attention
CO2 module and RESP module is only display one ,if CO2 module on ,the RESP module wil be
closed by monitor.
The above monitored results will show in the parameter area.
The parameters are refreshed once per second, but NIBP value, once per measurement.
Users can select the monitoring parameters and the main screen will display the relative content.
Menu Area(○4)
1. PATIENT: patient information configuration. Refer to chapter of Patient Informatio for details.
2. ALARM SETUP: set up alarm type
ALARM RECORD TIME: in case of physiological alarm, the system can record the information
before and after the alarm time. The system can give three kinds of time, i.e., 8 seconds, 16
seconds. The seconds in the options are the sum of seconds before and after the alarm time. For
example, 8 seconds mean the information within 4 seconds before the alarm time and within 4
seconds after such a time.
ALM PAUSE TIME (Alarm pause time)：―1 minute‖, ―2 minutes‖ or ―3 minutes‖
ALAM LIMIT (Display alarm limits)：‖ON‖ and‖OFF‖
ALM LATER:Disabled ,5s,10s,15s,20s. Select "Disable", when an alarm occurs, the instrument
that occurs immediately alarm; When Select "five seconds", alarm occurs only when the
parameters continue to exceed the the alarm upper or lower limit of 5 seconds instrument, other
settings and so on. The purpose of this feature is to reduce the instant false alarms, allow doctors
to more accurately grasp the situation.
3. SURVEY SETUP: ECG, RESP, SpO2, NIBP ,TEMP ,CO2(optional) ,IBP <1,2>(optional)setup, refer
to each chapter for details
4. SCREEN CHANGE: STANDARD, LIST FACE, TREND SCREEN, oxyCRG SCREEN, BIG FONT.
For details,please refer to chapters for each parameter.
5. NIBP START: press this button to start/stop NIBP measurement.
6. FROZEN: the screen freezes when press this button, turn the knob to review all the waveform stored
for the last 4 minutes.
7. TREND GRAPH, TREND TABLE (TREND Figure), NIBP RECALL: refer to chapter 3 for details.
8. PRINT: press this button to record waveforms and patient information.
9. SCR LOCK: In order to avoid non-operators misuse Monitor, the instrument has a touch screen lock

9
function. Click on the "lock screen" button to lock the touch screen in the main interface. For To
unlock the the continuous point lived unlock the screen "option for three seconds, you can unlock the
screen is locked.
1.4 External Socket
Left Panel
Recorder is optional
Open the recorder door.
Take away the no-paper rod
Fix the new paper correctly, tip of paper out from the
head of printer.
3mm paper must out of recorder door, close the door.
Press PRINT to check if the paper fixed well or not.
If no printing, prease re-fix the paper.
Figure1-4 recorder
Right Panel
On the right side of the monitor are sockets for each transducer
①TEMP 1
②TEMP2
③ECG
④SPO2
⑤NIBP
⑥IBP1（optional）
⑦IBP2(optional)
⑧CO2(optional)
Figure 1-5 Right Side
This symbol means ―be careful‖; refer to this manual for details.
This symbol means this application part is of CF type, designed with special protection from electric
shock (especially provided with F-type floating insulation apparatus for permissible leakage current) and
suitable for the defibrillation process.
Other symbols will be introduced in the Patient Safety chapter.
this symbol means: BF type
①
②
③
④
⑤
○
6
○
7
○
8

10
means the equipotential grounding terminal.
A.C. indicator
work indicator
Power-up
Shutdown
Rear Panel
There are the following soclets in the rear panel:
Figure 1-6 rear panel
1. Handle 2. Speaker 3.Label 4.Earth line socket 5. AC power socket 6. Fuse holder 1
7. Fuse holder 2 8.SD card socket 9. Network socket 10.Fan 11.Place for clamp or hook
Warning
This network port can only be connected with CARL NOVEL‟s central monitoring system.
Warning
All the simulated or digital equipments connected with this monitor must be certified under the
designated IEC standards (such as IEC 60950 Date Processing Equipment Standard and IEC
60601-1 Medical Equipment Standard). And all configurations must comply with effective
versions of IEC 60601-1-1 system standards. Persons in charge of connecting additional
②
①
③
④
⑤
○
6
○
7
○
8
○
9
○
10
○
11

11
equipments with the input/ output signal terminals should configure the medical system and be
responsible for compliance of the system to IEC 60601-1-1 standard. For any enquiries, please
contact the supplier.
Attention
Patient cable interface, network interface and other interfaces connected to different
equipments, the leakage current should not exceed the limit.
1.5 Built-in charge battery
The multi-parameter monitor has a built-in charge battery. When connected with AC power, the
battery will charge automatically until it is full. On the right side of the screen, there is a ― ‖, it means
charging state. Its yellow part means the quantity of the battery. If this monitor has no built-in battery, the
battery state will display ― ‖, it means no battery or defective battery.
