SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 1 12.19.13
Maestro®Sensor
The MaestroRDual Technology (Dual Tech) Occupancy
sensor switch applies our exclusive XCTTTechnology to
the ultrasonic as well as the passive infrared technology in
this sensor to create a product that can detect very fine
motion, such as typing. This product also includes all of the
great features found in the rest of the MaestroRsensor
family, including: adaptive relay switching, smart ambient
light detection, and simple button presses for changing
settings. The MaestroRDual Tech Occupancy sensor
switch is available in single circuit and dual circuit versions.
The dual circuit version (MS-B202) can be used to meet
many of the Title 20/24, ASHRAE 90.1, and IECC code
requirements such as “automatic shutoff” and “bi-level
control”. To find some examples of code-specific
applications, visit www.lutron.com/energycodes
Features
• Exclusive LutronRXCTTTechnology for minor motion and
fine motion detection
• 180° sensor field-of-view
• Tamper-resistant PIR lens
• Up to 900 ft2(81 m2) major motion coverage and 400ft2
(36m2) minor motion coverage
• Two Ambient Light Detect (ALD) options:
- Learning ALD Mode:
Uses adaptive algorithm. Sensor learns user’s preferred
light level over time.
- Fixed ALD mode:
Four selectable light level thresholds:
Hi, Med, Low, Min
• Occupancy models (MS-B102-XX, MS-B202-XX) can be
set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF
• Dual circuit models (MS-B202) meet Title 24 requirements
for multi-level lighting.
• Single circuit “Vacancy” model (MS-B102-V-XX) available to
meet Title 24 / Title 20 requirements for vacancy sensors.
• Adjustable timeout for each circuit (1, 5, 15, or 30minutes)
• Sensitivity adjustment
- PIR (Hi, Med, Low, Min)
- Ultrasonic (Hi, Med, Low, Off)
• Switches all lighting loads: incandescent, halogen,
ELV, MLV, CFL, LED, magnetic fluorescent, electronic
fluorescent.
• Switches fan loads at 120 V~.
• Single-pole, 3-way with toggle switch.
• Single circuit models (MS-B102) work with MaestroR
accessory switches in multi-location applications.
Notes:
• “XX” in the model number represents color/finish code. See Colors and
Finishes at end of document.
• Wallplate not included
MS-B102-XX (Occupancy model)
MS-B102-V-XX (Vacancy model)
Maestro®Dual Technology Sensor Switch
MS-B202-XX (Occupancy model)

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 2 12.19.13
Maestro®Sensor
Specifications
Regulatory Approvals
• ULRListed to U.S. and Canadian safety requirements
• Title 20 / 24 certified lighting control device
–Complies with Title 20 and Title 24 section 110.9
Power / Load Control
• 120 – 277 V~50 / 60 Hz
Key Design Features
• Dual Sensing Technology
• Switches all lighting loads
• 6 A of lighting load per circuit at 120– 277 V~
• 4.4 A (1/6 HP) of fan load per circuit at 120 V~
• Crush/tamper resistant lens
• Smart Ambient Light Detection (ALD)
• Fixed Ambient Light Detection
• Adaptive zero-cross switching algorithm for
extended relay life (patent pending)
• XCTTTechnology for minor motion and fine motion
detection
• Programmable Circuit Swapping eliminates need for
rewiring to reassign circuits after installation of a dual
circuit product. (patent pending)
Environment
• Ambient operating temperature: 32 °F to 104 °F
(0 °C to 40 °C), 0% – 90% humidity, non-condensing.
Indoor use only.
Warranty
• 5-Year Limited Warranty. For additional Warranty
information, please visit www.lutron.com/
TechnicalDocumentLibrary/Sensor_Warranty.pdf
Sensor Detection
LutronRDual Tech sensors operate by triggering initial
occupancy using PIR technology, and maintain
occupancy using both ultrasonic and PIR technology.
Advanced Features
Switching
• Adaptive zero-cross switching—maximizes
relay life by switching at the point of minimum
energy on the AC power curve (patent pending).
Actively adapts to variations in relay timing.
XCTTTechnology
Advanced sensing technology for minor motion
and fine motion detection ensures that the lights
stay on while the room is occupied, and that the
sensor does not turn on falsely when there is no
occupancy in the room. For more information,
see www.lutron.com/XCTWhitePaper
Wiring Compatibility
Model
Number
3-way with
Mechanical Switch *
Multilocation with
Accessory Switch
MS-B102-XX  
MS-B102-V-XX  
MS-B202-XX 

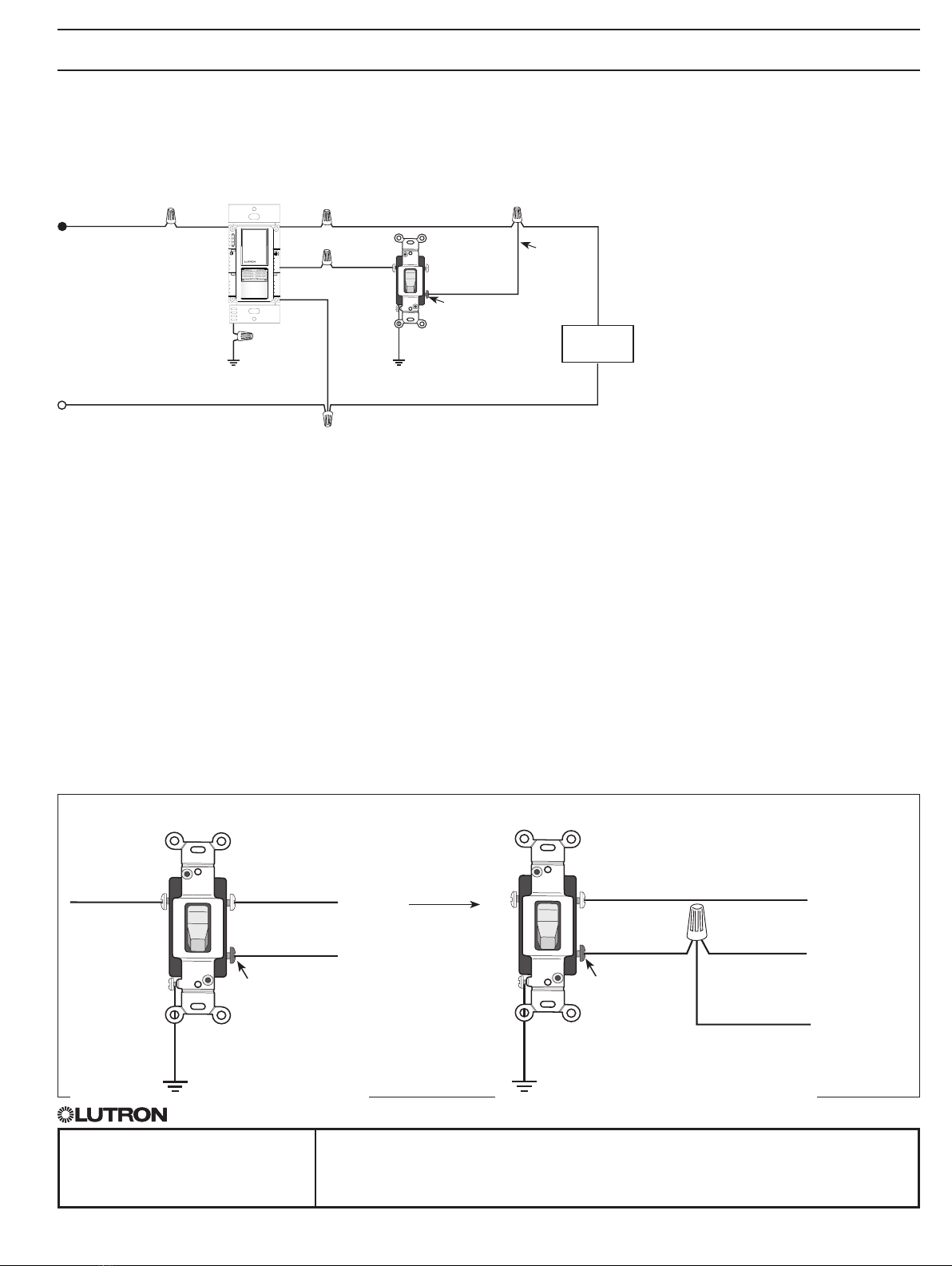

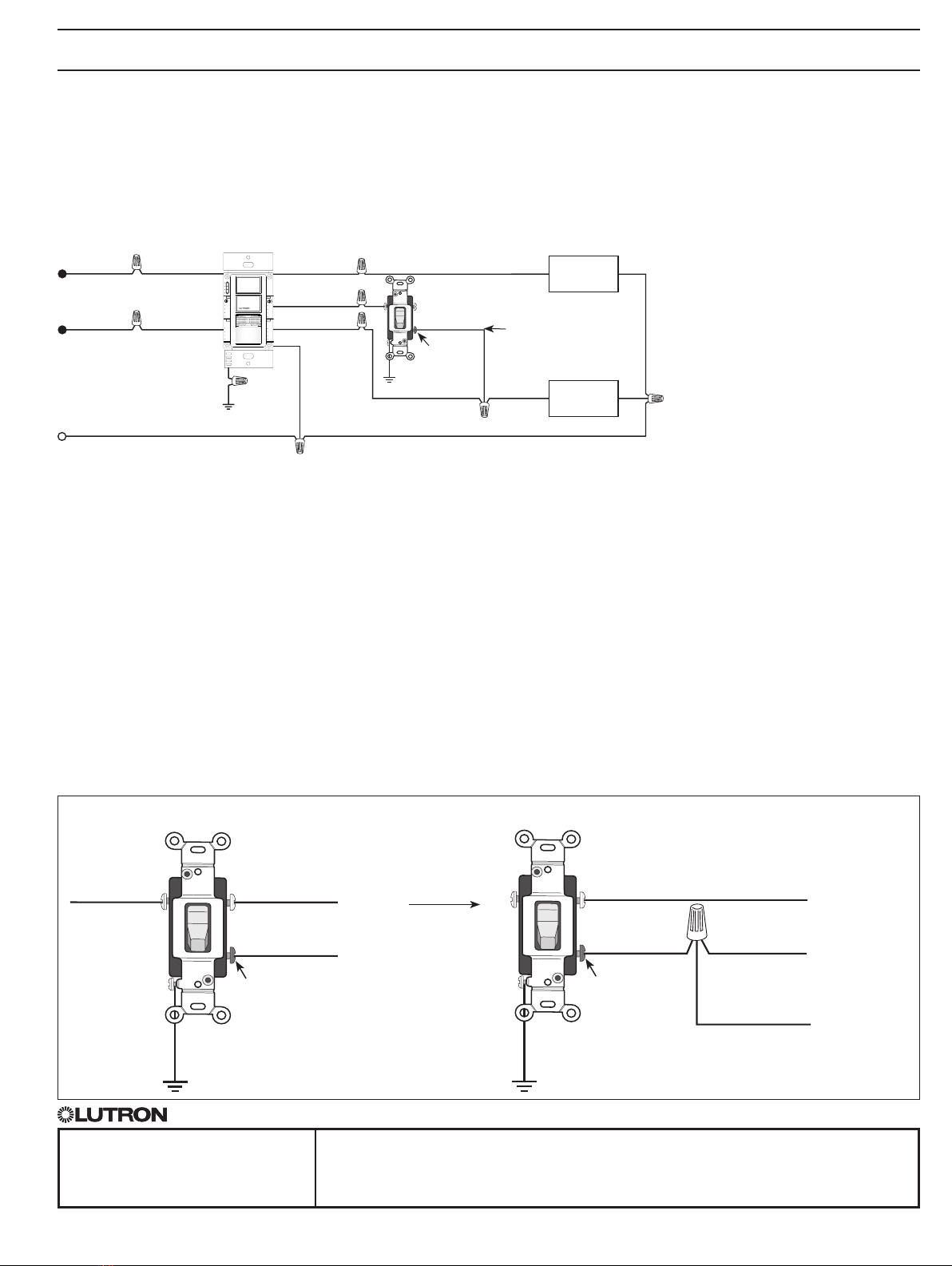

* Wiring for 3-way with mechanical switch is Different than
traditional 3-way wiring. See wiring diagrams on pages 9 and 11
for instructions
Note: Dual circuit Dual Tech Occupancy sensor
switch (MS-B202-XX) is not compatible with
MaestroR accessory switches
Additional Information on Sensors
• For single-circuit PIR MaestroROccupancy
sensor switch models, please see LutronRP/N
369666
• For MaestroROccupancy Sensor C•LRDimmer
models, please see LutronRP/N 369748
• For dual circuit PIR Maestro Occupancy sensor
switch, please see LutronRP/N 369758
• For more information, please see
www.lutron.com/occvacsensors
• Lutron Technical Hotline: [phone].

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 3 12.19.13
Maestro®Sensor
Custom Settings
Default settings shown in bold
- Timeout
• 30 min
• 15 min
• 5 min
• 1 min
Mode - Sensor Modes
Lights automatically turn off in all sensor modes
• Occ -Occupancy mode (No ALD)
1,2,3
• Lrn - Occupancy with learning ALD mode
• Fixd - Occupancy with fixed ALD mode
• Vac - Vacancy mode (No ALD)
2,3
1 MS-B102-XX default is Occ
2 MS-B102-V-XX is locked as Vac
3 MS-B202-XX defaults are: Circuit 1 - Occ, Circuit 2 - Vac
- Ultrasonic Sensitivity
• High
• Med
• Low
• Off
- Passive Infrared Sensitivity
• High
• Med
• Low
• Min
Additional Settings
Fixed ALD Light Level
• Hi
• Med
• Low *
• Min
* “Low” is the default setting for any sensor that is
set by the user to: Occupancy with fixed ALD mode
Off-While-Occupied
• Enabled
• Disabled
Walk-Thru Mode
• Enabled
• Disabled
Custom Settings - Details
Ambient Light Detection (ALD) mode
Lights turn on only when natural light in the room is
below the set threshold.
– Learning: The Ambient light threshold adjusts to
the user’s preference via manual interaction with
the sensor switch.
– Fixed: Choose a fixed ALD light level from four
pre-set options:
High, Medium, Low, and Minimum
Manual Off-While-Occupied Options
ENABLED (default setting)
– When the sensor switch is manually turned off,
the sensor switch will not turn the lights back on
automatically while the room is occupied.
– Once the room is vacated, the Auto-on feature
returns to normal operation after the timeout
period has expired.
– This may be the preference in conference rooms
or classrooms while viewing presentations. This
feature requires motions to keep the lights off.
DISABLED
– When the sensor switch is manually turned off,
the Auto-on feature will return to normal operation
after 25 seconds.
– This may be the preference in a restroom if the
user always wants the lights to turn on upon
entering and the lights to turn off when the room
is vacant.
Walk-Thru Mode
ENABLED
1
– If motion is not detected within 3 minutes after initial
occupancy, the lights will turn off after 3 minutes,
instead of the current timeout.
– This setting may be the preference in commercial
applications where personnel may briefly trigger
sensors during non-working hours.
DISABLED (default setting)
– When motion is detected, the lights will ALWAYS remain
on for the entire timeout duration, regardless of the
duration of occupancy detection.
11 minute timeout would be overridden if walk-thru mode is
also ENABLED

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 4 12.19.13
Maestro®Sensor
Load Type and Capacity
Control Voltage Load Type Minimum
Load
Maximum Load
(Anywhere in Gang)
Neutral
Connection
Required
MS-B102
MS-B102-V
120V~Lighting
1, 2
0 A
6 A
1, 2
Yes
Fan
24.4 A (1/6 HP) 2
120 - 277V~Lighting
16 A 1
MS-B202 120V~Lighting
1, 2
0 A
6 A per circuit 1, 2
YesFan
24.4 A (1/6 HP) per circuit 2
120 - 277V~Lighting
16 A per circuit 1
1Sensor switch Load Type: designed for use with permanently installed incandescent, halogen, MLV, ELV, CFL, LED, magnetic fluorescent,
and electronic fluorescent lighting loads.
2When controlling light and fan loads simultaneously on a single circuit, maximum load capacity per circuit is 4.4 A at 120 V~.

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 5 12.19.13
Maestro®Sensor
Sensor Switch Placement and Operation
• The sensor switch performs better with an unobstructed view of room occupants.
• Hot objects and moving air currents can affect the performance of the sensor switch. The sensor switch performs
best when located 6 ft (1.8 m) or more away from hot objects or moving air currents.
• The PIR performance depends on a temperature differential between the ambient room temperature and that of
room occupants. Warmer rooms may reduce the ability of the sensor switch to detect occupants.
• The ultrasonic performance can be affected by air currents and moving objects. Consider the effects of fans,
HVAC vents, open windows, or moving objects when installing the sensor switch.
Definitions
Major motion: movement of a person entering or passing through an area.
Minor motion: movement of a person occupying an area and engaging in small activities (e.g., reaching for a
telephone, turning the pages of a book, opening a file folder, picking up a coffee cup).
Fine Motion: movement of a person occupying an area and engaging in very small activities (e.g., typing on a
keyboard, moving a computer mouse)
0 10 ft
(3 m)
15 ft
(4.5 m)
20 ft
(6 m)
25 ft
( 7. 5 m )
30 ft
(9 m)
5 ft
(1.5 m)
5 ft
(1.5 m)
0
10 ft
(3 m)
10 ft
(3 m)
15 ft
(4.5 m)
15 ft
(4.5 m)
5 ft
(1.5 m)
NEMA WD7 Coverage
Major motion coverage: 900 ft2(81 m2)
Minor motion coverage: 400 ft2(36 m2)
0
10 ft
(3 m)
10 ft
(3 m)
20 ft
(6 m)
20 ft
(6 m)
30 ft
(9 m)
30 ft
(9 m)
10 ft
(3 m)
20 ft
(6 m)
30 ft
(9 m)
4 ft
(1.2 m)
0
Passive Infrared
Beam Diagram
(For Reference Only)
0
10 ft
(3 m)
10 ft
(3 m)
20 ft
(6 m)
20 ft
(6 m)
Test Room Dimensions: 37 ft x 38 ft (11.28 m x 11.6 m)
Test Floor Surface Material: Carpet
Sensor Coverage Angle: 180 °
Major motion coverage: Initial trigger motion detection
Minor motion coverage: Maintained motion detection
Ultrasonic Coverage
(For Reference Only)
10 ft
(3 m)
20 ft
(6 m)
4 ft
(1.2 m)
0
Ultrasonic Frequency: 40 kHz

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 6 12.19.13
Maestro®Sensor

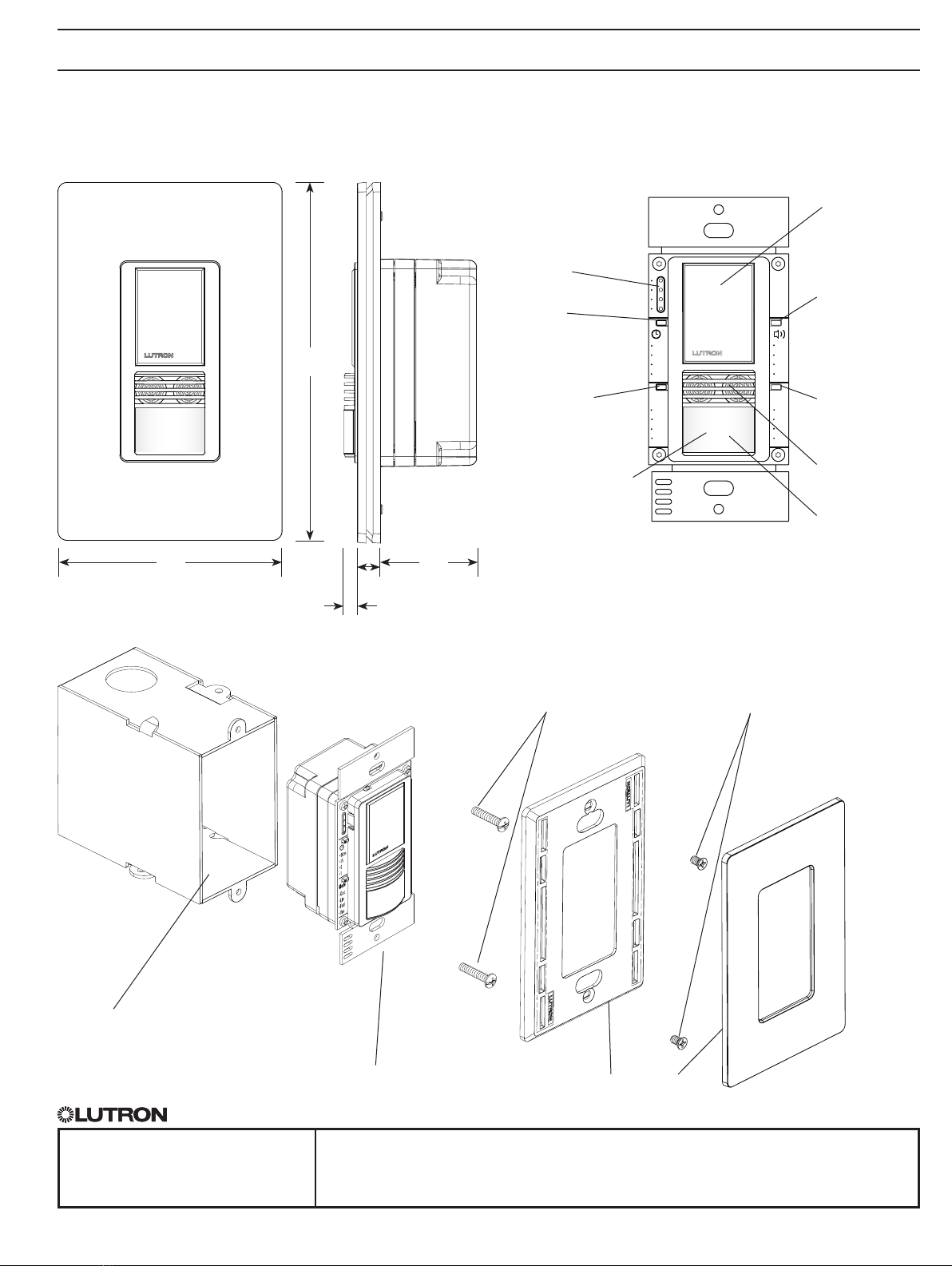

Dimensions - Single Circuit - MS-B102
Measurements shown as: in (mm).
Front View Side View
411⁄16
(119)
215⁄16
(75)
11⁄8
(30)
5/16 (8)
1/8 (3)
Mounting
Wallbox*
Sensor switch Wallplate Adapter / Wallplate
(sold separately)
Mounting screws Adapter mounting screws
Operation
m30
15
5
1
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
PIR Sensor lens
Tap button
(tap on / off)
Ultrasonic
Sensitivity
Button
PIR
Sensitivity
Button
Sensor LED
(behind lens)
Pulses during
Test mode.
Timeout
Button
Sensor Mode
Button
Programming
LEDs
Ultrasonic
Transducers
* Recommended Wallbox dimensions:
3.5 in (89 mm) D X 3 in (76 mm) H X 2 in (51 mm) W

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 7 12.19.13
Maestro®Sensor
Dimensions - Dual Circuit - MS-B202
Measurements shown as: in (mm).
Front View Side View
411⁄16
(119)
215⁄16
(75)
11⁄8
(30)
5/16 (8)
Operation
m30
15
5
1
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
PIR Sensor lens
Top Tap button
Controls Circuit 1
(tap on / off)
Ultrasonic
Sensitivity
Button
PIR
Sensitivity
Button
Sensor LED
(behind lens)
Pulses during
Test mode.
Bottom Tap
button
Controls Circuit 2
(tap on / off)
Mounting
Sensor switch Wallplate Adapter / Wallplate
(sold separately)
Mounting screws Adapter mounting screws
1/8 (3)
Timeout
Button
Sensor Mode
Button
Programming
LEDs
Ultrasonic
Transducers
Wallbox*
* Recommended Wallbox dimensions:
3.5 in (89 mm) D X 3 in (76 mm) H X 2 in (51 mm) W

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 8 12.19.13
Maestro®Sensor

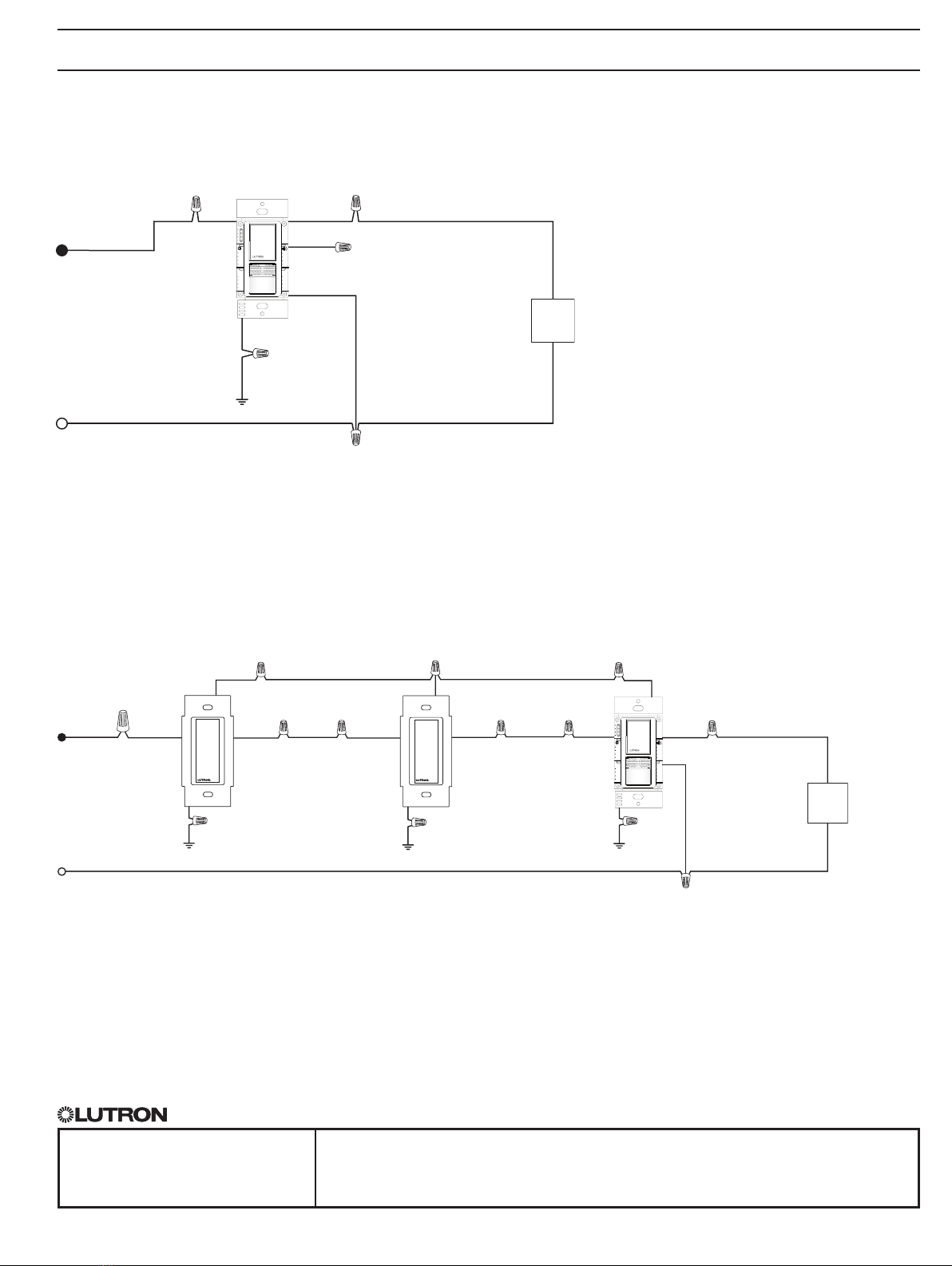

Wiring Diagrams - Single Circuit (MS-B102)
Wiring Diagram 1
Single Pole Wiring - Single Circuit (MS-B102)
m30
15
5
1
Hi
Med
Low
Off
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Min
PIR
Neutral
Black Black
Load
Green
White
Blue
Line/Hot
120–277 V~
50/60 Hz
m30
15
5
1
Hi
Med
Low
Off
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Min
PIR
MS-B102
Black
Blue
White
Ground
Black
Blue
Green
Ground
120–277 V~
50/60 Hz
Black
Blue
Green
Ground
Line/Hot
Neutral
Load
Red
Red
Green
Black
MA-AS-277 or
MSC-AS-277
MA-AS-277 or
MSC-AS-277
Note: Dual Tech sensor switch can be
installed in any location.
Ground
continued on next page...
Wiring Diagram 2
Multi-location Wiring - Single Circuit (MS-B102) - with MaestroRAccessory Switches

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 9 12.19.13
Maestro®Sensor
m30
15
5
1
Occ
LRN
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
m30
15
5
1
Hi
Med
Low
Off
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Min
PIR
Black
Blue
Ground
MS-B102
Green
Ground
120–277 V~
50 / 60 Hz
Line/Hot
Load
Standard
Mechanical Switch
Black
Yellow
Jumper
wire
(included)
Different
color
screw
Neutral
3-Way Installation
For retrofit 3-way installations the mechanical switch needs to be rewired as shown in the diagram below after wiring the
Dual Tech sensor switch. Otherwise the 3-way installation will not work as expected. Single Pole mechanical switches may
also be used in a 3-way installation with MS-B102 and MS-B202 models.
Wiring Diagrams - Single Circuit (MS-B102) (continued)
White
1. Connect Ground: Ensure the bare copper or green ground wire from the wallbox is connected to the green ground screw of the mechanical
switch.
2. Tag circuit Common: Your 3-way mechanical switch should have three screw terminals, two of the same color, and one of a different color.
Tag the wire that is connected to the screw terminal of a different color.
3. Identify the wire that matches the color of the wire you connected to the blue wire of the MaestroRDual Technology Occupancy Sensor
Switch. Connect this wire to one of the two terminals of the same color.
4. Combine the tagged wire, the remaining wire and yellow jumper wire (included) using a wire connector. Connect the other end of jumper
wire to the different color screw.
Note: Dual Tech sensor switch can be
installed in any location.
Wiring Diagram 3
3-Way Installation - Single Circuit (MS-B102)
m30
15
5
1
Occ
LRN
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
m30
15
5
1
Hi
Med
Low
Off
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Min
PIR
Traditional 3-way Mechanical Switch Wiring
Ground
Traveler Traveler
Common
m30
15
5
1
Occ
LRN
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
m30
15
5
1
Hi
Med
Low
Off
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Min
PIR
Yellow Jumper
wire (included)
Traveler (to Blue wire)
Tagged Wire
(Common)
Traveler
(to Black wire)
Ground
Different
color
screw
3-Way Mechanical Switch Wiring With Dual Tech Sensor Switch
Different
color
screw
Rewire to

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 10 12.19.13
Maestro®Sensor

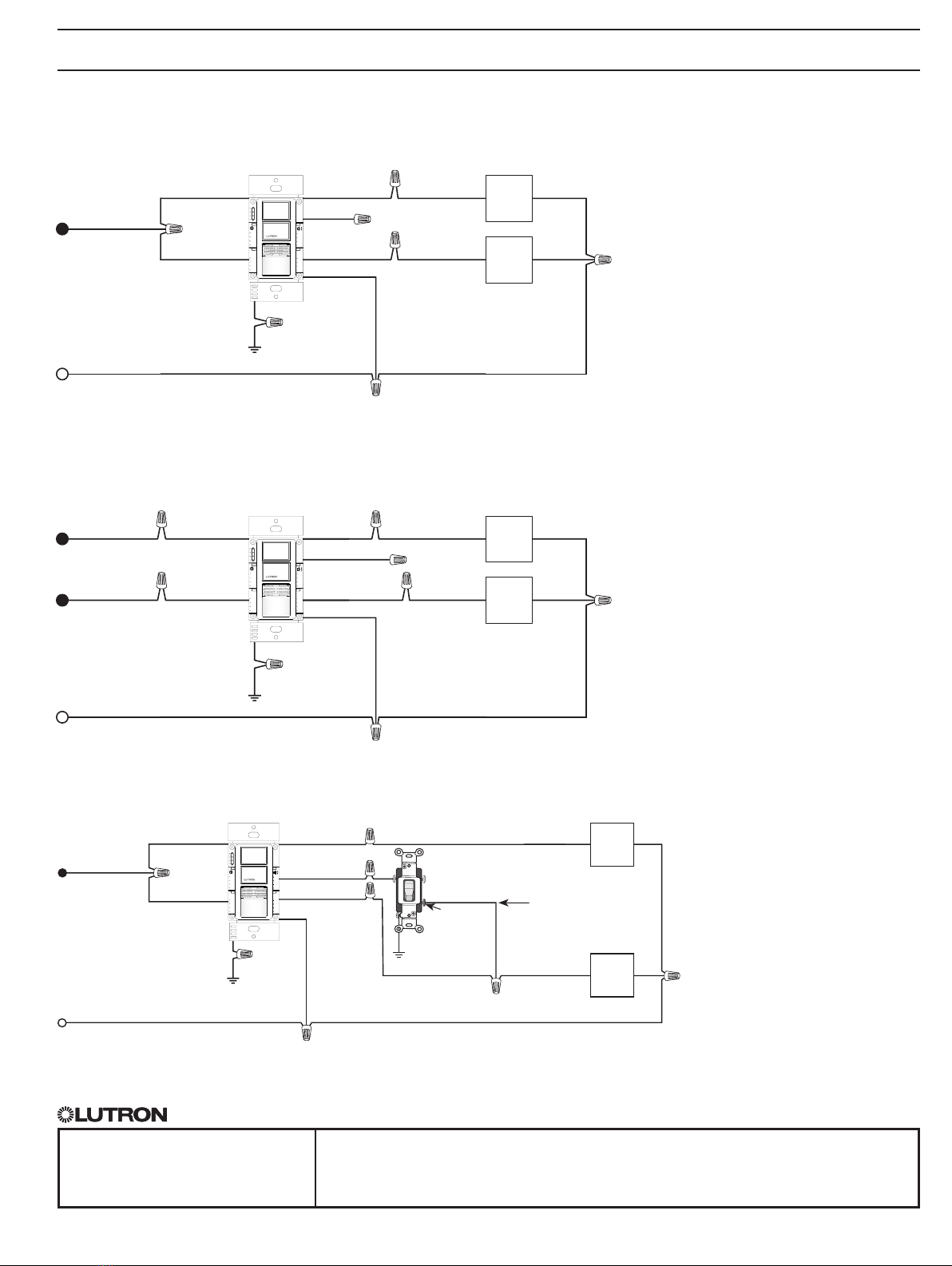

Wiring Diagrams - Dual Circuit (MS-B202)
m30
15
5
1
Occ
LRN
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
m30
15
5
1
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
Neutral
Black Black Load 1
Load 2
Green
Black-Orange
White
Blue
Line/Hot
120–277 V~
50/60 Hz
Ground
Wiring must comply with NECRcode for wiring multiple branch circuits. Where two or more branch circuits supply
devices or equipment on the same yoke, a means to simultaneously disconnect the ungrounded conductors
supplying those devices shall be provided at the point at which the branch circuits originate.
m30
15
5
1
Occ
LRN
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
m30
15
5
1
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
Neutral
Black Black Load 1
Load 2
Green
Black-Orange
White
Blue
Line/Hot
Line/Hot
120–277 V~
50/60 Hz
Ground
Black-Orange
m30
15
5
1
Occ
LRN
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
m30
15
5
1
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
Black
Blue
Ground
MS-B202
1
Green
Ground
120–277 V~
50 / 60 Hz
Line/Hot
Load 2
Standard
Mechanical Switch
2,3
Black
Yellow
Jumper
wire
(included)
Different
color
screw
Neutral
Black-Orange
Load 1
Black-Orange
White
Black-Orange
1Dual Tech sensor switch can be installed in any location.
2Mechanical switch may be wired to either circuit, and will control both. Do NOT wire mechanical switch to both circuits.
3You may use no more than one mechanical switch with a Dual circuit Dual Tech sensor switch.
continued on next page...
Wiring Diagram 1
Single Pole, Single Breaker Feed Wiring - Dual Circuit (MS-B202)
Wiring Diagram 2
Single Pole, Two Breaker Feed Wiring: Dual Circuit (MS-B202)
Wiring Diagram 3
3-way Installation, Single Breaker Feed Wiring: Dual Circuit (MS-B202)
NOTE: Do not use Maestro Accessory switches with MS-B202.

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 11 12.19.13
Maestro®Sensor
Wiring must comply with NECRcode for wiring multiple branch circuits. Where two or more branch circuits supply
devices or equipment on the same yoke, a means to simultaneously disconnect the ungrounded conductors
supplying those devices shall be provided at the point at which the branch circuits originate.
m30
15
5
1
Occ
LRN
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
m30
15
5
1
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
Black
Blue
Ground
MS-B202
1
Green
Ground
120–277 V~
50 / 60 Hz
Line/Hot
Load 2
Standard
Mechanical Switch
2,3
Black
Yellow Jumper
wire (included)
Different
color
screw
Neutral
Black-Orange
Load 1
Black-Orange
White
Line/Hot
Wiring Diagrams - Dual Circuit (MS-B202) (continued)
1Dual Tech sensor switch can be installed in any location.
2Mechanical switch may be wired to either circuit, and will control both. Do NOT wire mechanical switch to both circuits.
3You may use no more than one mechanical switch with a Dual circuit Dual Tech sensor switch.
Wiring Diagram 4
3-way Installation, Two Breaker Feed Wiring: Dual Circuit (MS-B202)
NOTE: Do not use
Maestro Accessory
switches with MS-B202.
3-Way Installation
For retrofit 3-way installations the mechanical switch needs to be rewired as shown in the diagram below after wiring the
Dual Tech sensor switch. Otherwise the 3-way installation will not work as expected. Single-Pole mechanical switches may
also be used in a 3-way with MS-B102 and MS-B202 models.
m30
15
5
1
Occ
LRN
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
m30
15
5
1
Hi
Med
Low
Off
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Min
PIR
Traditional 3-way Mechanical Switch Wiring
Ground
Traveler Traveler
Common
1. Connect Ground: Ensure the bare copper or green ground wire from the wallbox is connected to the green ground screw of the mechanical
switch.
2. Tag circuit Common: Your 3-way mechanical switch should have three screw terminals, two of the same color, and one of a different color.
Tag the wire that is connected to the screw terminal of a different color.
3. Identify the wire that matches the color of the wire you connected to the blue wire of the MaestroRDual Technology Occupancy Sensor
Switch. Connect this wire to one of the two terminals of the same color.
4. Combine the tagged wire, the remaining wire and yellow jumper wire (included) using a wire connector. Connect the other end of jumper
wire to the different color screw.
m30
15
5
1
Occ
LRN
Fixd
Vac
Mode
Hi
Med
Low
Off
Hi
Med
Low
Min
PIR
m30
15
5
1
Hi
Med
Low
Off
Occ
Lrn
Fixd
Vac
Mode
Hi
Med
Low
Min
PIR
Yellow Jumper
wire (included)
Traveler (to Blue wire)
Tagged Wire
(Common)
Traveler
(to Black OR Black-Orange wire)
Ground
Different
color
screw
3-Way Mechanical Switch Wiring With Dual Tech Sensor Switch
Different
color
screw
Rewire to

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 12 12.19.13
Maestro®Sensor
How Loads Operate in 3-way with Dual Circuit Sensor Switch (MS-B202)
Initial Load State After flipping 3-way mechanical switch
Circuit 1 Circuit 2 Circuit 1 Circuit 2
When All Lights are OFF Off Off On On
When All Lights are ON On On Off Off
When One Circuit is ON On Off Off Off
Off On Off Off

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Dual Technology Switch with Occupancy Sensor
369773b 13 12.19.13
Maestro®Sensor
Colors and Finishes
• Due to printing limitations, colors and finishes shown cannot be guaranteed to match actual product colors
perfectly.
• Color chip keychains are available for more precise color matching:
Gloss Finishes: DG-CK-1
Satin Finishes: SC-CK-1
Satin Finishes
Taupe
TP
Turquoise
TQ
Plum
PL
Merlot
MR
Terracotta
TC
Sienna
SI
Midnight
MN
Hot
HT
Desert Stone
DS
Eggshell
ES
Biscuit
BI
Snow
SW
Palladium
PD
Greenbriar
GB
Bluestone
BG
Mocha Stone
MS
Goldstone
GS
Sea Glass
SG
Stone
ST
Limestone
LS
Gloss Finishes
White
WH
Ivory
IV
Almond
AL
Light Almond
LA
Gray
GR
Brown
BR
Black
BL
