Luxi Electronics TPR-110CR User manual

Website: www.luxielectronics.com
Email: [email protected]
Phone: [phone]
Address: Irvine, CA, USA
Document name: TPR-110CR quick start guide Revision: 1.44 Date: 10/20/2014
Specifications are subject to change without notice
Thank you for purchasing the Luxi Electronics® TPR-
110CR Presenter® transmitter. Please read through this
manual before using the product.
How the product functions: Think of the daisy chain as
the flow of a river; each transmitter (Tx) connects to a
source device and loads the signal to the river flow; each
receiver (Rx) unloads the signal from the river flow and sends it to the display it is connected to. The
front panel and the RS-232 controls determine which source signal goes to which display.
System diagram:
Power options: This product can draw power from other Presenter products in the chain or from an
optional external power supply.
Captive screw plug termination: The captive
screw plugs for power, RS-232 and contact
controls are supplied with the unit. Separate
the wires about 1” (2.5 cm) long; strip off the
wire insulation precisely 3/16” (5 mm) from
the end. Identify the positive and negative
leads for power; Luxi power supply has a
white stripe on the positive wire. If not sure,
use a multi meter to verify.
RJ45 plug termination: Follow the standard EIA 568B pin out.
Control options: Pressing the “Show Me” button on the front panel will select the source connected to
this Tx unit; all displays will show the same content from this Tx box. An external button can be
connected to the “Show Me” port on the rear panel. A RS-232 host connected to the rear panel can
control all functions of every unit in the chain. Make sure both DIP switches recessed on the bottom
side are in the down (off) position.
Ethernet port: For providing a system wide internet access. Be very careful NOT to plug the Ethernet
cable into the yellow 100s connector or vice versa! Permanent damage may occur.
Front panel LED: Green = this Tx selected; Amber = this Tx not selected; Red = communication error
Support: Please contact your reseller directly for local support; or Luxi using the contact info above. See
Luxi website for RS-232 commands and user manuals.

Website: www.luxielectronics.com
Email: [email protected]
Phone: [phone]
Address: Irvine, CA, USA
Document name: TPR-110CR quick start guide Revision: 1.44 Date: 10/20/2014
Specifications are subject to change without notice

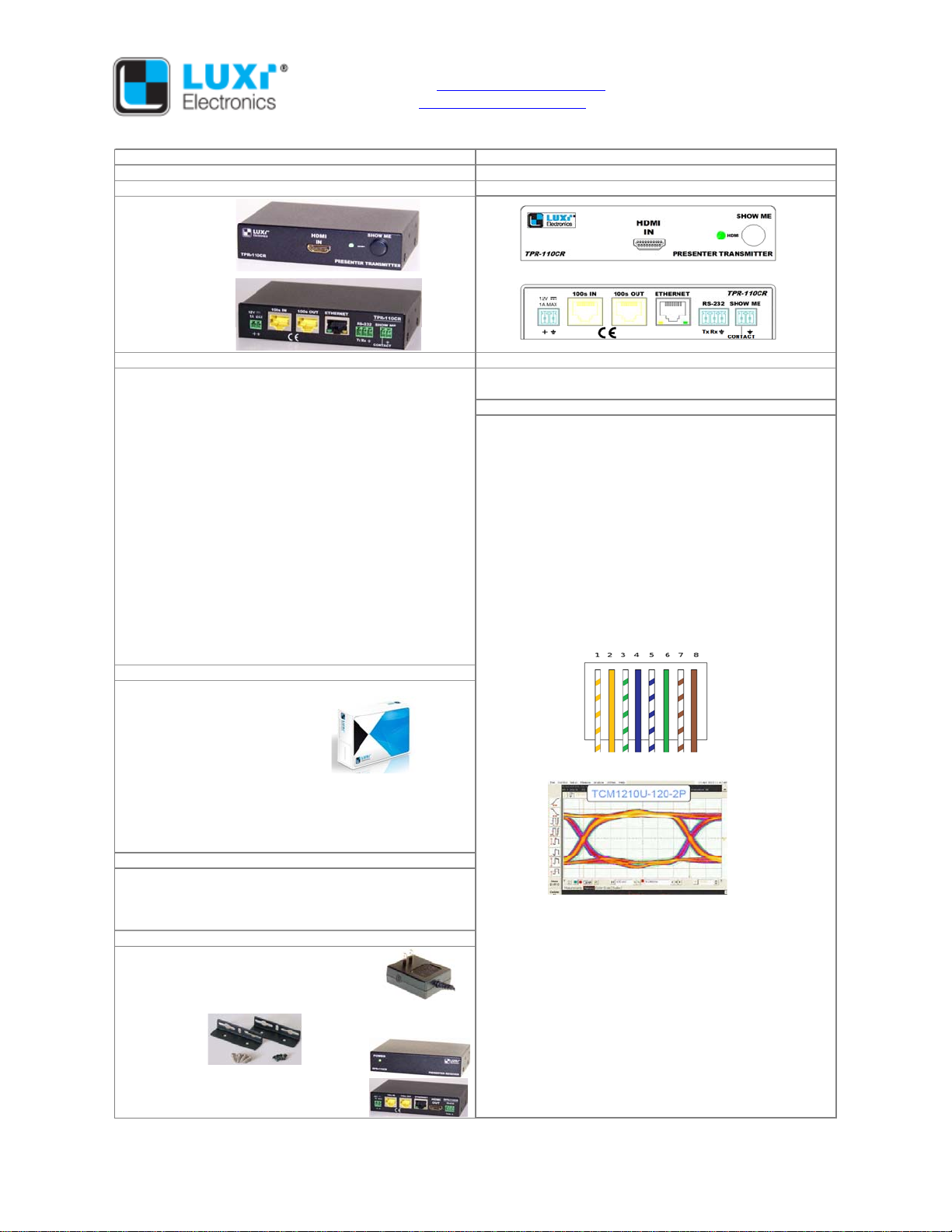

Product Specifications Part Number: 74-017-01
Presenter 110 series transmitter Model: TPR-110CR
Product Image Product Drawing
Front
Back
Features and Benefits Mechanical
> Patent pending, revolutionary products to replace the Enclosure material: steel
centralized switching and distribution Enclosure size: 4.29” x 1.00” x 3.00” (10.9 x 2.5 x 7.6 cm)
> Completely scalable; you can add more Tx or Rx boxes Electrical
on the fly for expansion HDMI signal input
> Only 1 Cat6 or Cat5 cable needed to connect the adjacent Maximum data rate: 9 Gbps (3 Gbps per color)
Presenter Tx or Rx; no more heavy clusters of cables; very Maximum pixel clock: 300 MHz
easy cable pull and termination Resolution range: Up to 1080p 48-bit @ 60 Hz, or 3D,
> No compression; full 18 Gbps bandwidth; virtually no or 4k @ 30 Hz
propagation delays Daisy chain system
> “Show Me” control button on every Tx box gives every user Luxi proprietary format, digital video, audio, control, Ethernet
a simplified way to control the signal routing and power, up to 32 devices (1 Tx = 1; 1 Rx = 2)
> Additional control devices can be inserted anywhere in the System cables: unshielded Cat6 550 MHz rated 23 AWG
daisy chain via RS-232 solid conductor cables recommanded; Cat5, 5e, 6, 7
> Signals can be transmitted to very long distances with unshielded and shielded cables also usable
multiple daisy-chained devices up to 110’ (33 m) each Max distance between 2 adjacent devices: Typical 33 m
span (e.g., 10 spans for up to 330 m) (110’) for WXGA/720p; 18 m (60') for 1080p (depends on
> Remote power capability source, display device performance, and signal format)
> Rack mountable, under-table mountable, above-projector RJ45 connector pin configuration: standard EIA 568B pinout
mountable metal enclosures
Package
One piece in one color cardboard box; with captive screw
plugs and quick start guide
no power supply
Electrical test results (1080p 24-bit 60 Hz results below)
Box size: 6.0” x 4.8” x 1.1” (15.3 x 12.2 x 2.8 cm)
Weight: package, 0.62 lb (0.28kg); product, 0.48 lb (0.22kg)
36-pc box size: 15" x 13" x 8" (38 x 33 x 20 cm)
36-pc box weight: 24.5 lb (11 kg)
Connections
Input connectors: 1 HDMI, 1 daisy chain in, 1 Ethernet
Output connector: 1 daisy chain out
Power connector: 2-pin 3.5 mm captive screw receptacle Power: 12 V DC, 0.2 A from external power or other Presenter
Control connectors: 1 RS-232, 1 Show Me Optional power supply:
Other Related Products Auto switching 100-240 V AC input on US plug, 12 V DC
Power supply, 100-240 V in on US plug, 1 A max on bare wires, wall ward type, UL, PSE, CE, FCC
12 V out, P/N 69-002-01 Mounting: Not included. Luxi under desk mount 78-002-01.
compatible with Extron thru desk mount 70-077-02, rack
Under desk mount, P/N 78-002-01 shelf 60-604-21, 60-604-11, 60-604-02, above projector
mount 70-217-01, 70-739-02, 70-734-01, 70-563-03
or equivalent Middle Atlantic models
Regulatory compliance
Safety: CE, cUL, UL (power supply only)
Presenter receiver, P/N 74-020-01, EMI/EMC: CE, FCC Class A
model RPR-110CR MTBF: 30,000 hours
Warranty: 3 years parts and labor
