LUXX LIGHTING 645w LED PRO User manual

Luxx 645w LED Pro
USER MANUAL

Thank you for being a part of the Luxx Lighting family. This manual will guide you through the installation and
mounting process of the Luxx 645w LED Pro. Please read and understand this manual in its entirety before
using the product. Only use this product as specied within the manual.

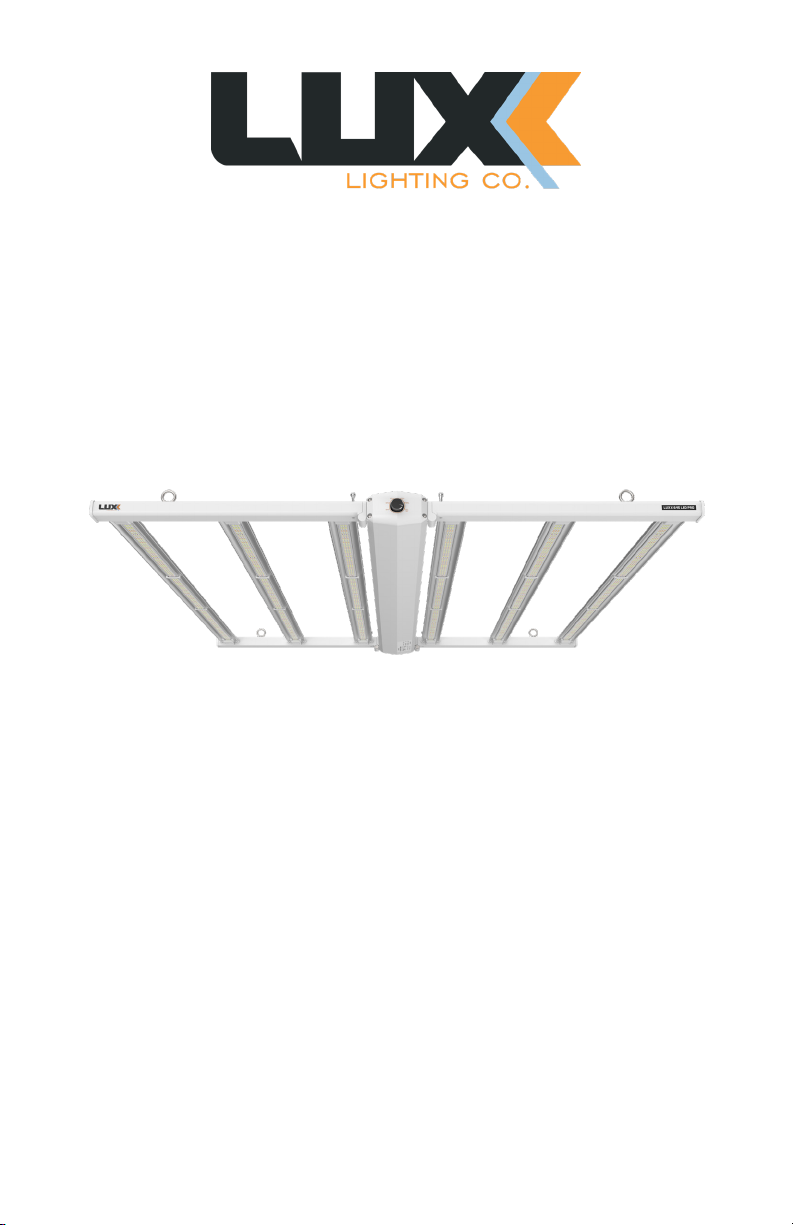

PRODUCT DESCRIPTION
The Luxx Lighting 645w LED Pro has been developed by assessing SMD (Surface Mount Device) chips and
drivers from leading manufacturers in controlled test applications and cultivation facilities for 3+ years.
The Luxx 645w LED Pro is made up of Samsung horticulture whites / blues and Osram reds. The respective
companies lead the eld in LED R&D, delivering high eciency, reliability and performance. The Luxx 645w LED
Pro deploys a lens angle of 120 degrees, from a 6 bar design, with a total of 2,226 diodes. For use in greenhouses
or climate-controlled rooms.

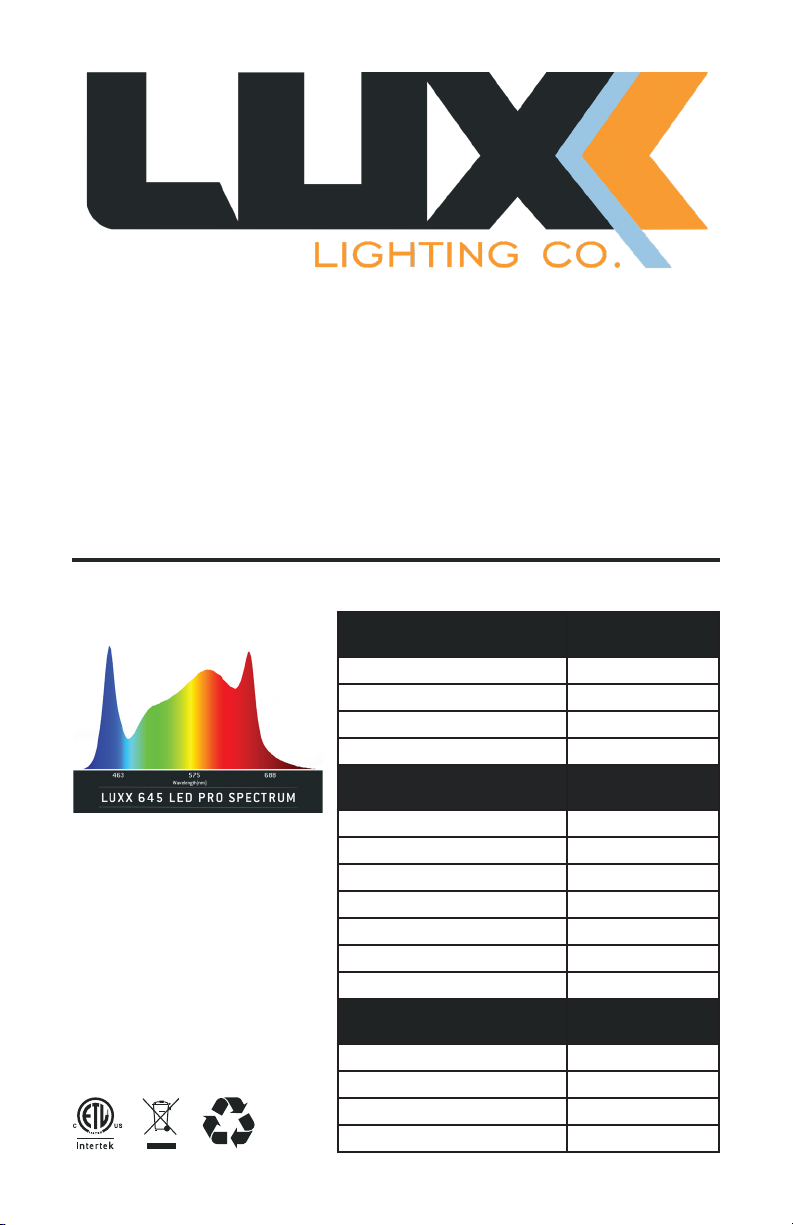

PRODUCT INFORMATION AND SPECIFICATIONS
Physical
Total Length 1240mm 48.47”
Total Width 1090mm 43.18”
Total Height 70mm 2.75”
Total Weight 13kg 28.6lbs
Performance
Input Voltage 120-277V
Input Current 5.38A -2.33A
Input Power 645W
Min Power Factor >0.95%
Thermal Managment Passive
Lifetime L90: >54,000 hrs
Power Cord 10 ft
Performance Requirements
Rated Mains Voltage 120-277V
Voltage Range 90-305V
Mains Frequency 50/60Hz
Operation Frequency 50/60Hz
CONTENTS
• Solid Decking Mount
• Lance Hanger (2PCS)
• 10ft Input Power Cord (1PC)
• Controller Splitter (1PC)
• Controller Cable (2PCS)
• Instruction Manual

Physical
Total Length 1240mm 48.47”
Total Width 1090mm 43.18”
Total Height 70mm 2.75”
Total Weight 13kg 28.6lbs
Performance
Input Voltage 120-277V
Input Current 5.38A -2.33A
Input Power 645W
Min Power Factor >0.95%
Thermal Managment Passive
Lifetime L90: >54,000 hrs
Power Cord 10 ft
Performance Requirements
Rated Mains Voltage 120-277V
Voltage Range 90-305V
Mains Frequency 50/60Hz
Operation Frequency 50/60Hz
INSTALLATION
Please read the following instructions carefully before using or working with the product
Warning!
• Please have an experienced, certied service personnel mount and install this device, in
 accordance with the applicable local laws and regulations.
• The user is responsible for correct and safe installation.
• Ensure the existing electrical can support the voltage and current requirements of the LED xture.
• Avoid coiled cords and keep mains leads separated. This prevents electromagnetic interference.
In order to mount your LED xture properly, start by identifying a suitable support structure you can mount your
xture on. Common support structures include pallet racks, trusses, structural channels, Unistrut, and rolling
tables. For optimal results, we recommend that two people mount this xture together. Be sure to mount the
system to something that can hold the weight of the LED xture.

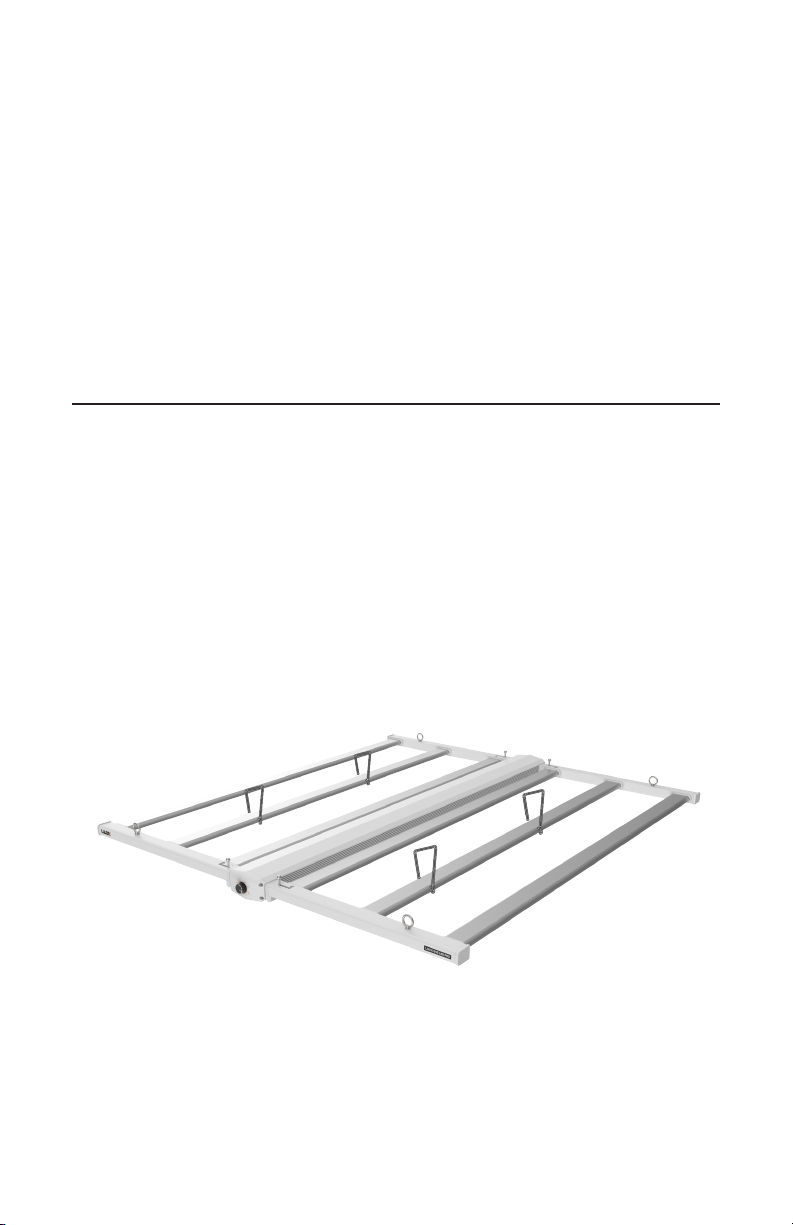

SOLID DECKING MOUNTING
We suggest hanging the LED xture from crossbars in a rack system that has solid support guaranteed not to
collapse under the weight. To create proper balance, be sure to position the LED xture parallel to the length of
the rack while you’re setting up.
Warning! Be sure to mount the system to something that can hold the weight of the LED xture.
• Using the solid decking mounts, loop each mount across the crossbar above the LED light bar second from
the end of either side of the xture. Use two decking mounts on either end.

Note: Do not attach mounting hardware to the end light bars. You risk damaging the xture if you do.
• Once all four decking mounts are in place, lift the LED xture up and mount it on the decking mounts. You
can do this by carefully prying apart the hooks until there is enough room to slide the xture between. Release
the decking mounts and they will hook around the xture.
• Adjust the LED xture so that each decking mount makes as much surface contact with the xture as
possible.
• Now that the xture is secured to the decking mounts, you can adjust the position of the lights by sliding the
decking mounts across the crossbars and settle it in the appropriate location for your growing operation.

MOUNTING WITH LANCE HANGERS
• Allow an additional 25” from the top of xture for the length of hanger.
• Locate the 4 eye bolts on the LED xture and slide the lance hanger clips onto two opposing eye bolts.
• Be sure to hang from the center of the lance hanger.
CONNECTING UP TO 80 LED FIXTURES
A group of up to 40 Luxx Lighting LED xtures can be connected to both the main RJ9 port and the auxiliary
RJ9 port of the controller.
• Switch the rotary knob on all Luxx Lighting LED Fixtures to “EXT” (external control).
• Plug the RJ9 end of one of the provided controller cables into the RJ9 main port of the controller.
• If a two room setup is used or if more than 40 LED xtures have to be connected, plug a second
controller cable in the RJ9 aux port.
• Plug the RJ14 end of the controller cable(s) into the input of a RJ14 splitter. Use an interconnect cable
to connect one output of the RJ14 splitter to the RJ14 port of the LED xture.
• Use an interconnect cable to connect one output of the RJ14 splitter to the input of the following RJ14
splitter.
• Repeat this process to connect up to 40 LED xtures per group.
.

GROWING WITH LED’S
BY POETRY OF PLANTS (IG @poetryofplants)
When cultivating under LED lighting, a cultivator might be tempted to execute a similar methodology to HPS
cultivation. This strategy can lead to frustrating results due to the environmental dierences, higher usable
lighting levels and subsequent higher photosynthetic rates that stimulate growth with less room for error. The
focal point of heat created by a bulb also helps burn o latent load (RH) which doesn’t occur with a properly built
LED xture, which diuses heat into the ambient environment created a more evenness to environment but also
can cause higher relative humidity. Also, with LEDs more input energy goes into created light than heat (which
is the case with HPS).
This increase in light will stimulate higher photosynthetic rates, leading to higher transpiration rates anda higher
demand of feed solution, all of which add more water into the room. When specifying dehumidiers it’s important
to match the dehumidication potential with the volume of water added. With LEDs, it is safe to assume that the
peak water demand per day will be 1 gallon per sq ft of canopy. Remember this is PEAK water demand, daily
water demands will in reality be less and dependent on pot size, cultivar type, and plant age. For example, a
2-week-old plant will require less water than a 6 week-old plant.
PPFD ENVIORNMENT
Because of the higher photosynthetic and growth rates, plants that recieve a higher ppfd will require more food.
It is recommended when rst cultivating under LEDs, for the cultivator to match PPFD levels used under HPS
and make gradual increases of both light and fertilizer PPM during subsequent runs. It is also recommended
that the cultivator uses a quality PAR meter that measures PPFD (umol) to understand how much light they are
giving the plant.
APPROPRIATE BASELINE LIGHTING LEVELS
HOW TO ASSESS APPROPRIATE PHOTOSYNTHETIC RATES
Use a laser thermometer to measure leaf surface temperature. Under LEDs the leaf surface temperature should
be at or around ambient canopy temps (2-3 degrees dierential). Transpiration generally cools the leaf surface,
so if your leaf surface temp is climbing 2-3 degrees higher than ambient canopy then the light energy is not
being turned into phytochemicals (which is desired) and instead is being reected back as heat (undesired and
used to cool down the plant). If the plant is heating up above the ambient temps then you need to dial down the
light intensity until the stress is resolved. If this occurs for multiple days, then you should also dial down the
fertilizer concentration, feeding the plant more water to help cool without leaving a buildup of salts in the media
(which will choke the roots, aka osmotic root pressure). You should also perform daily pour through run o tests
to make sure the media isn’t becoming acidic and the EC levels are close to solution EC level).
WEEK 1
FLOWER
2
FLOWER
3
FLOWER
4
FLOWER
5
FLOWER
6
FLOWER
7
FLOWER
8
FLOWER
9
FLOWER
PPFD 450 550 650 750 750-850 850-950 850-950 850-950 850-950
RH 60-70% 65-70% 60-65% 60-65% 60-65% 60-65% 60-65% 50-55% 50-55%
SLT 72f-75f 72f-75f 72f-75f 75f-78f 75f-78f 78f-82f 78f-82f 68f-72f 65f-88f
WEEK 1
FLOWER
2
FLOWER
3
FLOWER
4
FLOWER
5
FLOWER
6
FLOWER
7
FLOWER
8
FLOWER
9
FLOWER
UMOL 200-300 300-500 500-600 600-700 700-750 750-850 850+ 850+ 850+
PHASE MOTHERS CLONE PHASE 1 VEG PHASE 2 VEG
UMOL 300-600 75-125 125-200 200-300

ENVIRONMENT
This LED xture has an IP66 rating and is designed to be used in a high-humidity environment. Optimal
ambient air temperature for this LED xture is between 15°C-60° F / 26°C-80° F. This LED xture is NOT intended
to be used outdoors and should not be directly exposed to water.
SAFETY RECOMMENDATIONS AND WARNINGS
Please read the following instructions carefully before use, or working with the Luxx 645w LED Pro
• Always adhere to local rules and regulations when installing or using this LED xture.
• Do not open or disassemble the LED xture, it contains no serviceable parts inside. Opening or modifying
the LED xture can be dangerous and will void the warranty.
• Do not use the LED xture when either the LED xture or its power cord are damaged. Replace the power
cord only with original certied cords.
• Modications to the cords can lead to unwanted electromagnetic interference and will void the warranty
and nullify any compliance with legal regulations.
• Always disconnect the LED xture from mains before performing any maintenance.
• Always allow for a cool down period of at least 30 minutes before touching the LED bars.
• The LED xture reaches temperatures of 108° F / 40° C. Do not use this xture near anything
ammable or reactive.
• The installation and the use of this LED xture are the responsibility of the end user. Incorrect use or
installation can lead to malfunction and failure of the LED device. Improper use of the LED xture will
void the warranty.
WARRANTY
Luxx Lighting warranties the mechanical and electronic components of this LED product and guarantees
the materials and workmanship free of defects, if used under normal operating conditions within a period of
ve (5)years from the purchase date. All returns and claims must be furnished with the original receipt and
packaging from the shop purchased. If you nd that there are any defects with this product that relate to
either the workmanship or the materials but are not due to improper use or user error, Luxx Lighting shall, at its
discretion, either replace or repair the product using the appropriate new or reconditioned parts. In the case that
Luxx Lighting decides to replace the entire product, the date of the limited warranty shall apply to the replace-
ment from the date of the purchase of the initial product for ve (5) years. For any returns or repairs, please refer
to the RMA section of the website at www.luxxlighting.com/rma
MAINTAINCE
• Do not clean the LED xture with detergents, abrasives or other aggressive substances.
• Please regularly check the LED xture for dust or dirt buildup. Clean if necessary. Contamination may
cause overheating and decreased performance. Clean the outside of the LED xture using a dry or damp
cloth.
• Regularly check the cable connections of the LED xture to ensure it is undamaged.
STORAGE AND DISPOSAL
• This LED xture is to be stored at an ambient temperature of to 15°C-60° F / 26°C-80° F in a dry and clean
environment.
• This LED product must not be disposed of as standard waste. It is to be collected or brought to a recycling
center for proper disposal and environmental treatment.
