LVI MagniLink S Student Addition User manual

7938619e_User’s manual MLS Student Addition 1
User’s manual
MagniLink S Student Addition
- portable CCTV system with combined reading/distance camera
for connection to a computer, or directly to a VGA or TV-
monitor.
Copyright 2006 LVI Low Vision Int. AB - MagniLink®S Student Addition
Producer: LVI Low Vision International
Verkstadsgatan 5 Tel: [phone] E-mail: [email protected]
SE- 352 46 Växjö Fax: [phone] Internet: www.lvi.se

7938619e_User’s manual MLS Student Addition 2
Contents
General information................................................................... 3
Safety information………………………………………………….. 5
FCC statement (USA and Canada only)…………………………. 6
Unpacking, packing………………………………………………... 7
Installation of the MagniLink S software……….……..…….....… 8
Trouble during installation ………………………………………. 12
Maintenance of the MagniLink S software………………………..13
Connection guide for the MLS Student Addition……………….. 14
Controlling the system…………………………………………..… 15
Information and setting window.………………………………..… 17
Functions from the control box..………………………………..… 19
Indication lamp……………………………………….…………….. 19
MS Windows commands……………………….……………….... 20
Accessories…………………………………….….……………….. 21
Technical specifications…………………………….…………….. 22

7938619e_User’s manual MLS Student Addition 3
General information
MagniLink S Student Addition (MLSSTA) is a portable auto focus camera
system for connection to a laptop or stationary computer. The system can
also be connected directly to a standalone VGA or TV monitor. MLS Student
Addition is controlled by the keyboard or through an external control box.
Copyright 2006 LVI Low Vision International AB.
The equipment complies with all requirements for CE-approval of medical
devices according to 93/42/EEG directives.
The MagniLink S Series software is written in such way that it does not
interfere with other software. It has been tested in combination with different
software without any conflicts. LVI can however not guarantee the
compatibility with all other software since their behaviour is outside of LVI’s
control.
Minimum System Requirements*
- Microsoft®Windows®XP Home/Professional with Service Pack 2
(SP2) or Microsoft®Windows®Vista Home/Business/Ultimate
- 1 integrated USB 2.0-port
- To use the system in minimum resolution and picture frequency you
will need a computer with Intel®Celeron®M processor 1.6GHz or
AMD®Sempron®1.6GHz, 256MB working memory (RAM).
Recommended System Requirements*
- Microsoft®Windows®XP Home/Professional with Service Pack 2
(SP2) or Microsoft®Windows®Vista Home/Business/Ultimate
- 1 integrated USB 2.0-port
- To use the system in maximum resolution and picture frequency you
will need a computer with Intel®Pentium®M processor 2,.0GHz or
AMD®Sempron®2.0GHz, 512MB working memory (RAM), external
graphics card with at least 128MB built in memory.
* The MagniLink S Student has been tested on several computers at LVI without any
problems, but there is no guarantee that it will work on all computers following the
specification. LVI recommends that you test your MLS Student Addition together with the
computer you intend to buy, in order to confirm the compatibility. Higher computer
specifications render possible higher camera performance.

7938619e_User’s manual MLS Student Addition 4
Warning! Do not connect the camera system before installing the MagniLink
S software.
NB! The installation requires administrator’s rights on the computer
and that the installation is run in the context of the current user.

7938619e_User’s manual MLS Student Addition 5
Safety information
MagniLink S Student Addition is only intended for use as a reading aid in
an indoor environment.
It is important that the only external power adapter used is the one
belonging to the MLS Student Addition. The external power adapter has
a red mark and is to be connected to the socket on the MLS Student
Addition, also equipped with a red mark. Using wrong external power
adapter can cause severe damage on both the system and the
computer.
Devices that will be connected to the system such as VGA monitor, TV-
set and/or computer must apply to general electrical safety regulations
for current country.
The system is delivered with two different bases. The round base is used
for free placing of the system. The rectangular base is used together with
the laptop. In this case the weight of the laptop is needed to stabilize the
unit and the product can not stand on its own. If wanted, the rectangular
base can be attached to the laptop with the enclosed Velcro.
Never lift the laptop without first removing the MLS Student
Addition if the rectangular base is used.
Never operate the product if the unit has been exposed to water, rain or
other liquids, or if the casing is damaged. Unplug the unit and have it
inspected by a service technician before further use.
If cleaning is required, unplug the product and use a slightly damp (not
wet) cloth. Only use water or some detergent especially made for
cleaning monitors and computers.
If you are unable to restore normal operation by following the operation
instructions, do not attempt any further adjustments. Unplug the unit and
call your dealer or service technician. Only use replacement parts
specified by LVI.
In uncertainty, please contact your supplier.

7938619e_User’s manual MLS Student Addition 6
FCC statement (USA and Canada only)
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept interference received, including interference
that may cause undesired operation.
Class B Digital Device
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
•Consult LVI or an experienced radio/TV technician for help.
Caution to the user: The Federal Communications Commission warns
the user that changes or modifications of the unit not expressly approved
by the party responsible for compliance could void the user´s authority to
operate the equipment.
To comply with the FCC rules the system shall only be used with the
enclosed LVI power adapter.

7938619e_User’s manual MLS Student Addition 7
Unpacking
MLS Student Addition is delivered in a box with the camera unit, a round
and a rectangular base, external power adapter, control box, cable for
connection to a TV-set and the CD-ROM with the software.
Inspect the package for exterior damages. Note that severe damages
should be directed to the transport business company. If everything looks
fine, put the camera unit in the rectangular base and place it on the right
side under the laptop. Or place the camera in the round base if the user
would like to place it separately. If the user is left-handed the best way is
to place the camera in the round base, approximately 40 cm left of the
laptop with the camera pointing in the direction of the laptop.
LVI recommends the user to keep all packing material, to be reused in
case of future shipping.
Packing
If the system for some reason will
be moved or returned, it is
important to place the parts in
the same way as above, before
placing them in the white box.
The white box shall finally be
placed in an external box.

7938619e_User’s manual MLS Student Addition 8
Installation of MagniLink S Software
Insert the CD with MagniLink S Software into your CD-ROM
drive and the installation should start in a few seconds. If the
Autorun function does not start, type ”D:\autorun” under the
command ”Run” in the Start menu, if ”D:\” is the letter for
your CD-ROM drive.
When the installation program starts, follow the instructions
on the screen to complete the installation of the software or
see below for a more detailed description.
In the dialog box "Welcome to the InstallShield
Wizard for LVI MagniLink S Series", click "Next".

7938619e_User’s manual MLS Student Addition 9
In the dialog box "License Agreement", read the text
and agree by clicking "Yes".
In the dialog box "Choose Destination Location", click
"Next" to install the program in the default catalogue. It
is possible to choose a new installation catalogue for the
program.

7938619e_User’s manual MLS Student Addition 10

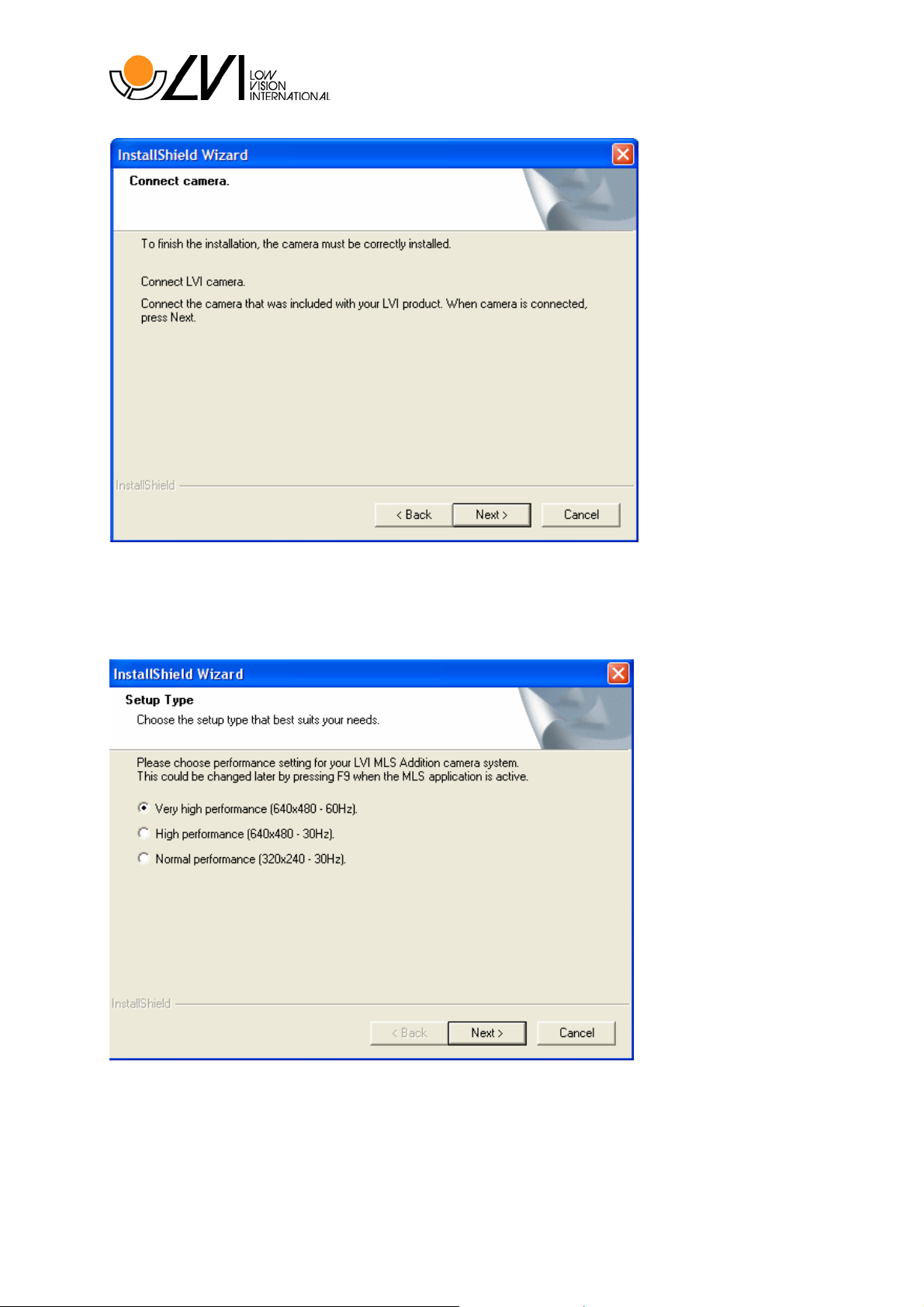

Choose “Next” in the dialog box "Connect camera"
after you have connected the camera system to your
computer.
As default “Very high performance” is selected. If you
have a computer with low specifications, please choose
another selection. This option can be changed later by
pressing F9, when the MLS application is active.

7938619e_User’s manual MLS Student Addition 11
In the dialog box "InstallShield Wizard Complete",
click "Finish".
Start the software from the “LVI MLS” icon at the computer desktop
or use the pre-set command CTRL + Alt + S.

7938619e_User’s manual MLS Student Addition 12

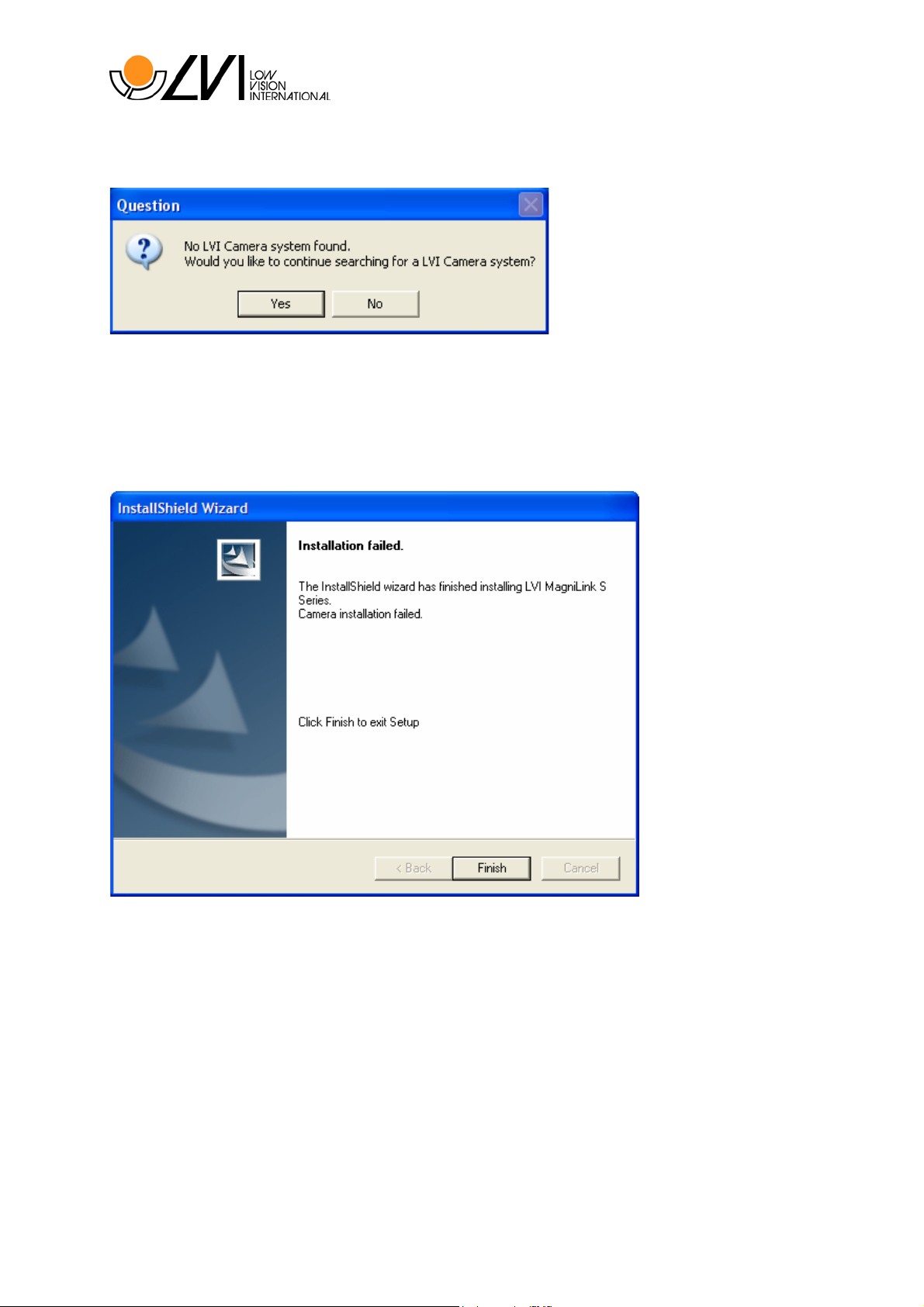

Trouble during installation
If the camera is not connected within 90 seconds, the
above message will appear. You could then choose to
search for the camera for another 90 seconds or quit the
installation for now.
In the dialog box "Installation failed", click "Finish" to
finalise the installation.
The application is installed on the computer, but the
installation of the camera system failed because the
system was not connected to the computer in time.
Next time you connect the camera system to this computer
the camera system will be installed automatically.

7938619e_User’s manual MLS Student Addition 13
Maintenance of the MagniLink S software
Insert the MLS CD in your CD-ROM drive and the installation should
start in a few seconds. If the Autorun function does not start, type
”D:\autorun” under the command ”Run” in the Start menu, if ”D:\” is
the letter for your CD-ROM drive.
Read the instructions on the screen for the desired action.
If you want to modify the application choose “Modify”.
If there are any problems with the application choose “Repair”.
If you want to uninstall the application choose “Remove”.
Choose the desired action and click "Next".
In the dialog box "Maintenance components", click "Finish" to finalise
the maintenance.
You can also remove the software from the Control Panel – add/
remove software

7938619e_User’s manual MLS Student Addition 14

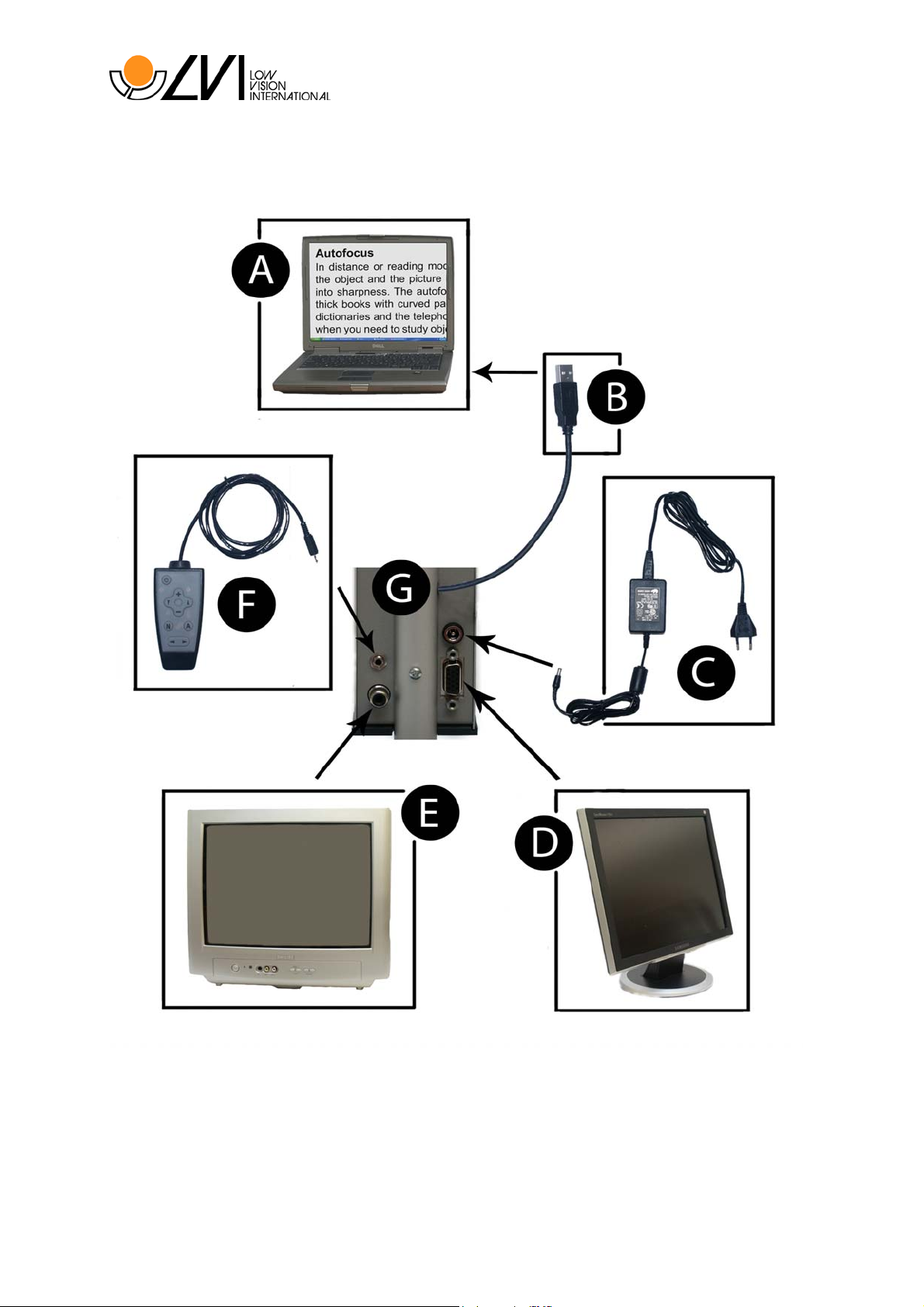

Connection guide for the MLS Student Addition
A. Computer E. TV-monitor
B. USB cable F. Control box
C. Power adapter G. The connections on the MLSSTA
D. VGA monitor (backside)

7938619e_User’s manual MLS Student Addition 15
Controlling the system
MLS Student Addition is presented in a MS Windows application and all
features in the system are controlled from the keyboard.
Default hotkey settings from the computer keyboard:
F1 Natural colours
F2 Positive picture with increased contrast
Artificial colours; White/Black, Yellow/Black,
Green/Black Red/Black, Yellow/Blue, White/Blue
Press the button several times to toggle between
the different colours. (Shift + F2 toggles backwards.)
F3 Negative picture with increased contrast
Artificial colours; Black/White, Black/Yellow,
Black/Green Black/Red, Blue/Yellow, Blue/White
Press the button F3 several times to toggle between
the different colours. (Shift + F3 toggles backwards.)
F5 Take picture snapshot
Press the button F5 to open the Picture saving
dialog box. A file name (today’s date and time) and
folder (My Pictures) is automatically suggested. Just
press Enter to save the picture. If you want to save
the picture some-where else or with another name
you can manually change this.
F6 View stored snapshots
Press the button F6 to view the stored pictures.
Mark the picture and press Enter or choose open.
The picture is normally opened in the standard
picture viewing program in Windows, where you
can, for example, magnify the picture.
F8 Preset split modes
Press the button F8 several times to toggle between
the preset split modes. The window can also be
controlled by the mouse or the standard Windows
commands (see page 15).

7938619e_User’s manual MLS Student Addition 16
F9 Information and settings window
Pressing F9 opens up a window in which you can
optimize your MLS. The window contains five different
headings (see Information and settings window
below).
F11 Return to default settings
Press F11 to return to default settings (normal window,
natural colours, normal brightness)
Arrow up Zoom in
Arrow down Zoom out
Arrow right Increase brightness
Arrow left Decrease brightness
Ctrl + Arrow left Guiding line left/up
Ctrl + Arrow right Guiding line right/down
Ctrl + R Rotates the camera picture
Each time you press this key combination the picture
rotates 90° (90°, 180°, 270°, 360°)
Ctrl + C Disable CCTV interface
The CCTV interface mode is activated as default,
which makes the MLS compatible with ZoomText
version 9.04 and Supernova/Lunar/Lunarplus 7.01.
When working with older versions of these software,
we recommend disabling the CCTV interface.
Ctrl + Alt + S Global hotkey (fast activating of MLS software)
(You could change this by right clicking the MLS icon
on the desktop and changing the letter)

7938619e_User’s manual MLS Student Addition 17
Information and settings window
The information and settings window consist of five different headings
that all contain either application information or application settings
options.
Video Settings:
The Video Settings heading offers the possibility to change the camera
parameters such as resolution and video frequency. There are three
preset performance settings to choose between, very high, high and
normal. Best picture quality is achieved by choosing very high, but when
running the application on low end computers, lower performance
settings might be used.

7938619e_User’s manual MLS Student Addition 18
Application Settings:
Enable CCTV interface:
Enabling this feature allows you to work with the MLS together with
screen magnification software from Dolphin and AiSquared. MLS is
compatible with ZoomText version 9.04 and Supernova/Lunar/Lunarplus
7.01 and newer. When working with older versions of these software’s,
we recommend disabling the CCTV interface.
Enable Automatic Updates:
MLS will automatically search for new versions of the MLS software. You
can choose to disable the automatic search for updates and instead
choose to do it manually. (NOTE: Both these actions require that you are
connected to the Internet). To update the software you will need to insert
the MLS software CD into your CD drive.
About:
Under this heading you will find the version number of your software and
information regarding copyright law.
Detailed Information:
Information about the hardware. Used for reparation and service
purposes solely by the manufacturer.
Modification Settings
Under this heading you find the rotation alternatives for the camera
image, MLS supports rotation of the camera image in the following
angles; 0°, 90°, 180° and 270°.

7938619e_User’s manual MLS Student Addition 19
Functions from the control box:
A. Option 1. On/Off
Option 2. Monitor switch*
(this button is only used when there is an
external monitor connected to the system)
B. Control of zoom (+,-) and contrast
range (arrows)
C. Natural colors
D. Artificial colours
Press the A button to change between
the colours
E. Guiding line
*There are two different external monitor modes to change between. The system
starts in VGA mode (factory default). To change mode, press and hold the button for
4 seconds until you get a picture on the TV set. This new mode will be saved as
default until it is changed again.
Due to the interlacing and lower resolution used in TV-technique, the picture quality
on a TV-monitor is normally slightly lower compared to the picture quality on a VGA
monitor.
Indication lamp on the system
Yellow light indicates: System is in standby position, power is connected.
Green light flashing indicates: System starts up.
Green constant light indicates: System is up and running.
Red light or flashing yellow light indicates system error. Restart the
system by disconnecting all cables and start the system up again. If
there is still a red light, please contact service technician.

7938619e_User’s manual MLS Student Addition 20
MS Windows Commands
The window can be controlled by the mouse or the standard MS
Windows commands. The most common Windows commands in
connection with MLS Student Addition are presented below. For more
information about MS Windows, please consult your Windows user’s
manual. (Please note that if a compatible magnification software is used
together with the MLS software, the application frame is not present).
Switch between open applications
Press "Alt" + "Tab"
Switch between full screen (maximized window) and normal window
With the mouse:
Click on the "Restore" icon in the upper right corner of the window
(between maximize and minimize).
With the keyboard:
Press "Alt" + "Spacebar" and the application control menu opens.
Choose "Restore" in the menu to go to normal window. Choose
"Maximize" to go to full screen.
Change size of the window
Make sure you are in the normal window mode (se above).
With the mouse:
Use the mouse to pull each side of the window to the preferred position.
With the keyboard:
Press "Alt" + "Space" and choose "Change size" in the application
control menu. Set the preferred size of the window by using the arrow
keys.
Ex. 1:
To change the height of the window: Start by pressing the “down arrow”
key in order to move the bottom of the window and set the preferred
position with the “up arrow” key.
Ex. 2:
To change the width of the window: Start by pressing the “left arrow” key
in order to move the left side of the window and then set the preferred
position with the “right arrow” key.
