LVI MagniLink S Student Classic User manual

437018h_User’s manual MLS Student Classic 1
User’s manual
MagniLink S Student Classic

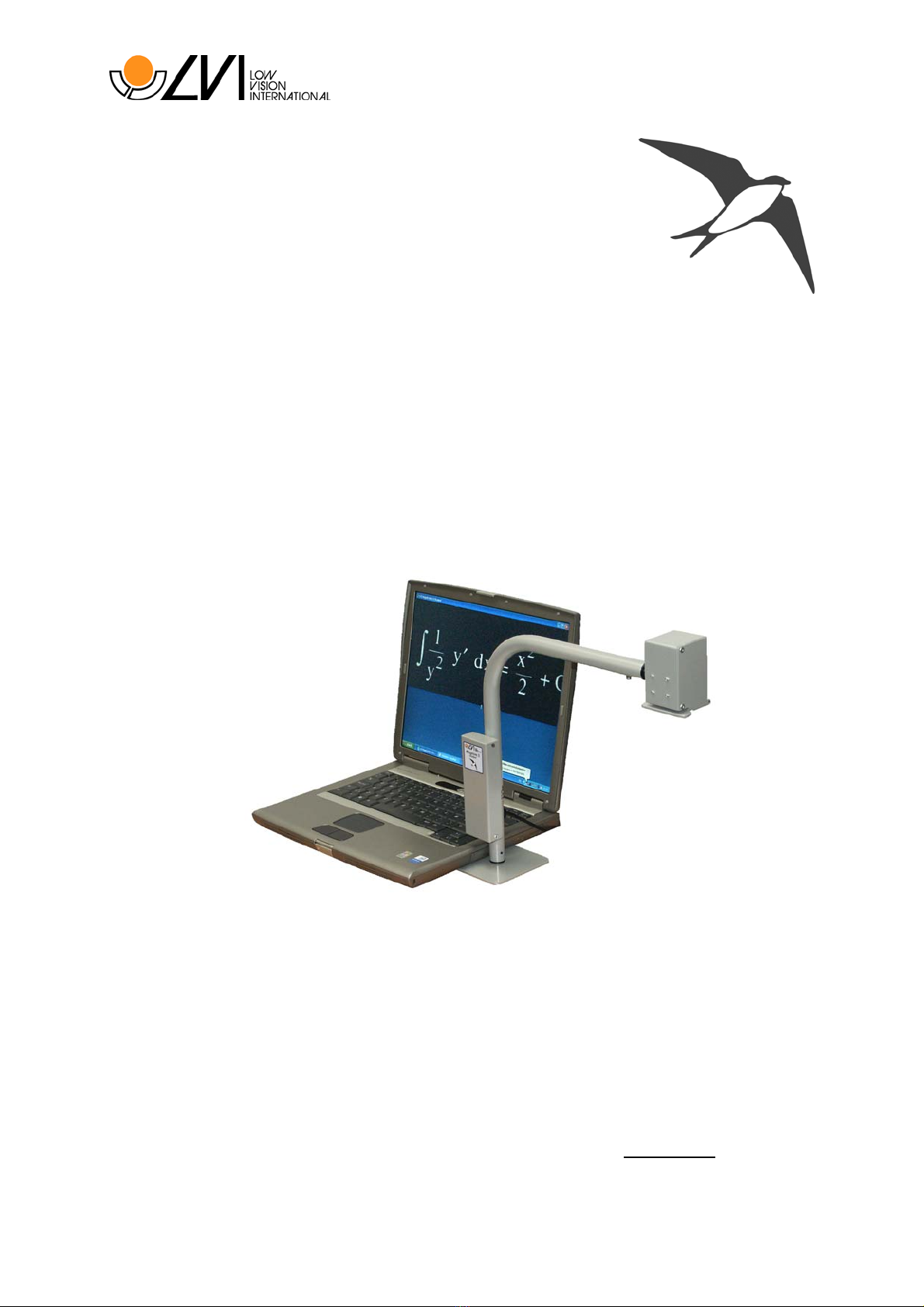

MagniLink S Student Classic - a portable system with
reading/distance camera for connection to a laptop or desktop
computer
Copyright 2004 LVI Low Vision Int. AB - MagniLink®S Student Classic
Producer: LVI Low Vision International
Verkstadsgatan 5 Tel: [phone] E-mail: [email protected]
SE- 352 46 Växjö Fax: [phone] Internet: www.lvi.se

437018h_User’s manual MLS Student Classic 2
Contents
General information................................................................... 3
Safety information………………………………………………….. 4
FCC statement (USA and Canada only)…………………………. 5
Unpacking, packing………………………………………………... 6
Installation of MLS Student software...……………………......… 7
Trouble during installation ………………………………………… 12
Maintenance of MLS Student software…..…………………….. 13
Controlling the system……………………………….………….… 14
Information and setting window…………………….………….… 16
MS Windows commands….…………………………………….... 17
Accessories……………………………………………..………….. 18
Technical specifications…………………………….….………….. 18

437018h_User’s manual MLS Student Classic 3
General information
MagniLink S Student Classic (MLS Student Classic) is a portable
autofocus camera system for connection to a laptop or stationary
computer.
Copyright 2004 LVI Low Vision Int. AB - MagniLink®S Student Classic
The equipment complies with all requirements for CE-approval of
medical devices according to 93/42/EEG directives.
The MagniLink S Series software is written in such way that it does not
interfere with other software. It has been tested in combination with
different software without any conflicts. LVI can however not guarantee
the compatibility with all other software since their behaviour is outside of
LVI’s control.
System Requirements*
- Microsoft®Windows®XP Home/Professional or Microsoft®Windows®
Vista Home/Business/Ultimate
- 1 integrated USB 2.0-port
- A computer with Intel®Celeron®M processor 1.6GHz or AMD®
Sempron®1.6GHz, 256MB working memory (RAM).
* The MagniLink S Student Classic has been tested on several computers at LVI
without any problems, but there is no guarantee that it will work on all computers
following the specification. LVI recommends that you test your MagniLink S Student
Classic together with the computer you intend to buy, in order to confirm the
compatibility.
Warning! Do not connect the hardware before installing the MagniLink S
software.
NB! The installation requires administrator’s rights on the
computer and that the installation is run in the context of the
current user.

437018h_User’s manual MLS Student Classic 4
Safety information
MagniLink S Student Classic is only intended for use as a reading aid in
an indoor environment.
The system is delivered with two different plates. The round plate is used
for free placing of the system. The smaller rectangular plate is used
together with the laptop. In this case the weight of the laptop is needed to
stabilize the unit and the product can not stand on its own. If wanted, the
rectangular plate can be attached to the laptop with the enclosed Velcro.
Never lift the laptop without first removing the MLS Student Classic
if the rectangular plate is used.
Never operate the product if the unit has been exposed to water, rain or
other liquids or if the casing is damaged. Unplug the unit and have it
inspected by a service technician before further use.
If cleaning is required, unplug the MLS Student Classic, use a slightly
damp (not wet) cloth. Only use water or some detergent especially made
for cleaning monitors and computers.
If you are unable to restore normal operation by following the operation
instructions, do not attempt any further adjustments. Unplug the unit and
call your dealer or service technician. Only use replacement parts
specified by LVI.
In uncertainty, please contact your supplier.

437018h_User’s manual MLS Student Classic 5
FCC statement (USA and Canada only)
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept interference received, including interference
that may cause undesired operation.
Class B Digital Device
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
•Consult LVI or an experienced radio/TV technician for help.
Caution to the user: The Federal Communications Commission warns
the user that changes or modifications of the unit not expressly approved
by the party responsible for compliance could void the user´s authority to
operate the equipment.

437018h_User’s manual MLS Student Classic 6
Unpacking
MLS Student Classic is delivered in a box with the camera unit, a round
and a rectangular smaller foot, the software on CD-ROM and a second
USB cable for power supply.
Inspect the package for exterior damages. Note that severe damages
should be directed to the transport business company. If everything looks
fine, put the camera unit in the rectangular foot and place it on the right
side under the laptop. Or place the camera in the round foot if the user
would like to place it separately. If the user is left-handed the best way is
to place the camera in the round foot at the left side under the laptop.
LVI recommend the user to keep all packing material, to be reused in
case of future shipping.

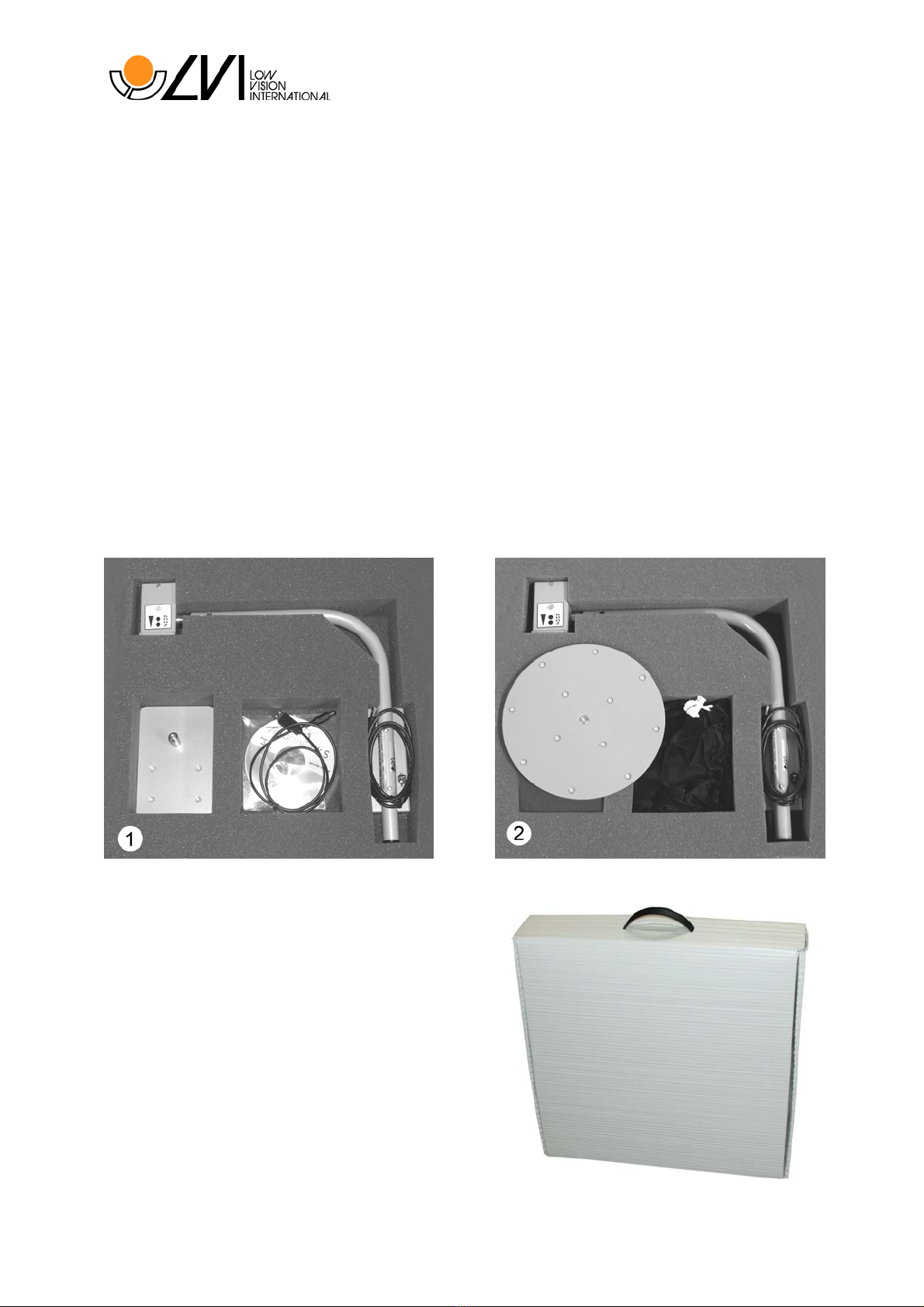

Packing
If the system for some reason will
be moved or returned. It is
important to place the parts in
the same way as above before
placing them in the white box.
The white box shall finally be
placed in an external box.

437018h_User’s manual MLS Student Classic 7
Installation of MLS Student software
Insert the MLS CD in your CD-ROM drive and the installation should
start in a few seconds. If the Autorun function does not start, type
”D:\autorun” under the command ”Run” in the Start menu, if ”D:\” is
the letter for your CD-ROM drive.
When the installation program starts, follow the instructions on the
screen to complete the installation of the software or see below for a
more detailed description.

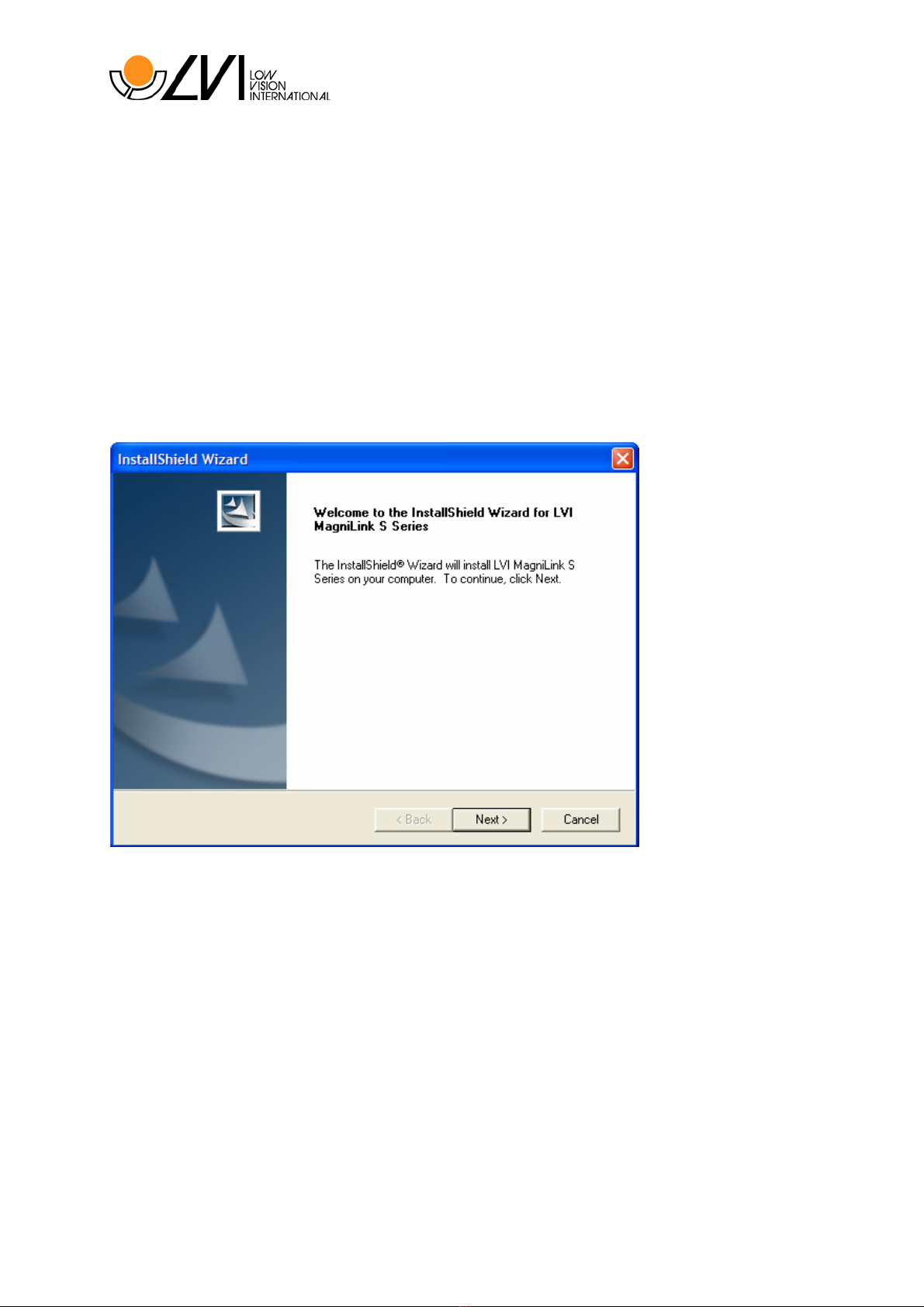

In the dialog box "Welcome to the InstallShield wizard
for MagniLink S Series", click "Next".

437018h_User’s manual MLS Student Classic 8
In the dialog box "License Agreement", read the text and
agree by clicking "Yes".
In the dialog box "Choose Destination Location", click "Next"
to install the program in the default catalogue. It is possible
to choose a new installation catalogue for the program.

437018h_User’s manual MLS Student Classic 9
Choose “Next” in the dialog box "Connect camera" after you have
connected the camera system to your computer.
Connect the USB 2.0 cord to the computer. Wait for the “Found New
Hardware Wizard” to start (see next page). Attention! This action can
take up to 5 minutes depending on which computer the system will be
connected to.
When the camera is connected, the dialog box ”Found new
hardware” appears after a few seconds. Click ”Next”.

437018h_User’s manual MLS Student Classic 10
Click ”Continue anyway”in the Warning window.
In the dialog box "Completing the found new hardware wizard",
click ”Finish” to complete the installation.

437018h_User’s manual MLS Student Classic 11
In the dialog box "InstallShield Wizard Complete",
click "Finish".
Start the software from the “LVI MLS”- icon at the computer desktop or
use the preset command CTRL + Alt + S.
ATTENTION! If you get a warning message about overload on the USB
2.0 port on your computer, another power cord needs to be connected to
the second USB port.
The unit is normally connected with only one cable to the USB 2.0 port.
On some computers a single port does not give out enough power to run
the product and in such a case the enclosed second cable has to be
connected to another USB port. The second cable is only used for extra
power and can therefore be connected to a USB 1.0 port.
Please note that if the MLS Student Classic later on is connected to
another USB 2.0 port on the computer, the procedure “Connecting the
hardware” has to be done also for this port.

437018h_User’s manual MLS Student Classic 12
Trouble during installation

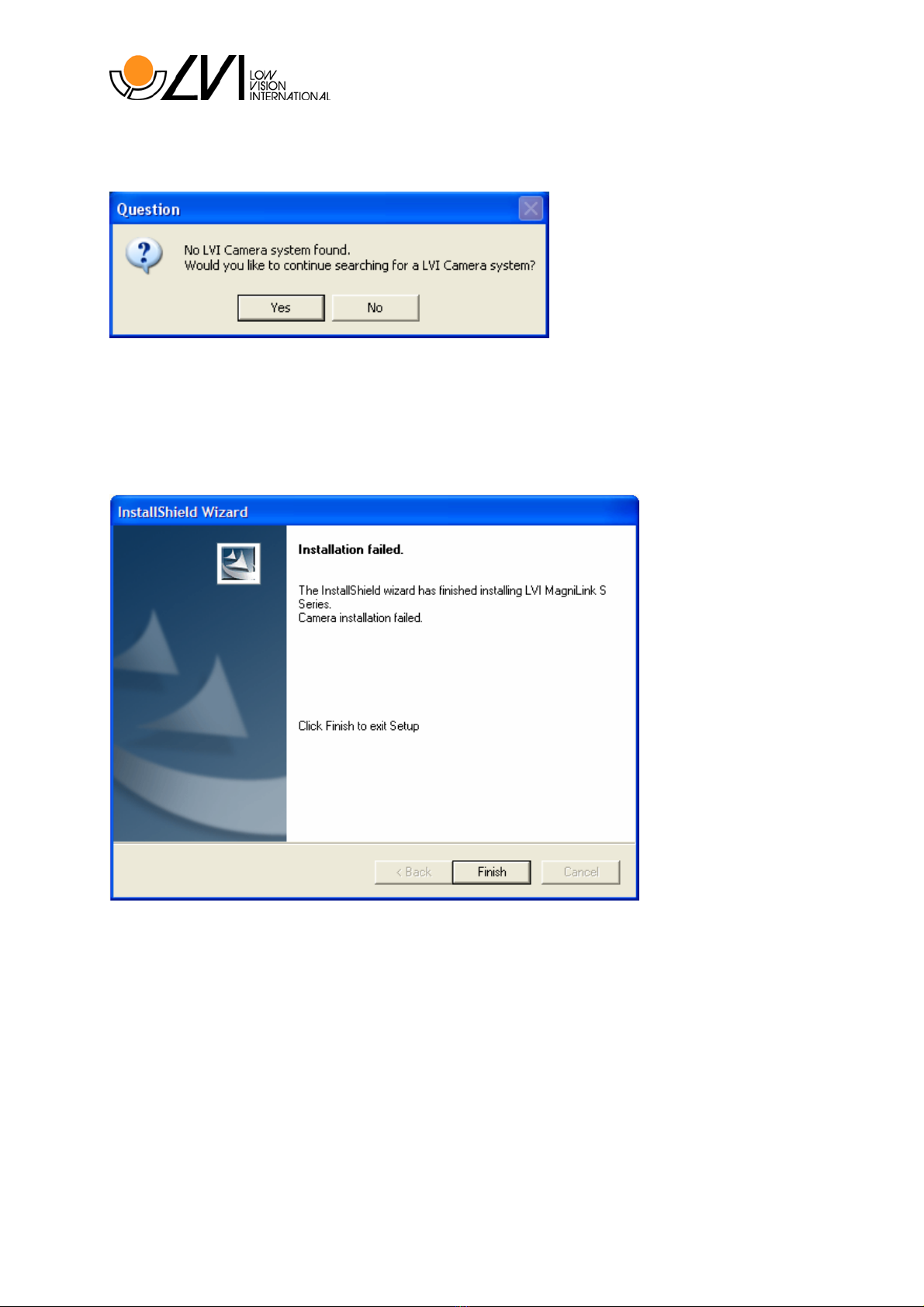

If the camera is not connected, within 90 seconds, the
above message will appear. You could then choose to
search for the camera for another 90 seconds or quit the
installation for now.
In the dialog box "Installation failed", click "Finish" to
finalise the installation.
The application is installed on the computer, but the
installation of the camera system failed because the
system was been connected to the computer in time.
Next time you connect the camera system to this computer
the camera system will be installed automatically.

437018h_User’s manual MLS Student Classic 13
Maintenance of MLS Student software
Insert the MLS CD in your CD-ROM drive and the installation should
start in a few seconds. If the Autorun function does not start, type
”D:\autorun” under the command ”Run” in the Start menu, if ”D:\” is
the letter for your CD-ROM drive.
Read the instructions on the screen for the desired action.
If you want to modify the application choose “Modify”.
If there are any problems with the application choose “Repair”.
If you want to uninstall the application choose “Remove”.
Choose the desired action and click "Next".
In the dialog box "Maintenance components", click "Finish" to finalise
the maintenance.
The software can also be removed from Control Panel –
Add/Remove Software

437018h_User’s manual MLS Student Classic 14
Controlling the system
MLS Student Classic is presented in a MS Windows application and all
features in the system are controlled from the keyboard except for
magnification changes.
Default hotkey settings for MLS Student Classic:
F1 Natural colours
F2 Positive picture with increased contrast
Artificial colours; White/Black, Yellow/Black,
Green/Black Red/Black, Yellow/Blue, White/Blue
Press the button several times to toggle between the
different colours.
F3 Negative picture with increased contrast
Artificial colours; Black/White, Black/Yellow,
Black/Green Black/Red, Blue/Yellow, Blue/White
Press the button F3 several times to toggle between
the different colours.
F5 Take picture snapshot
Press the button F5 to open the Picture saving dialog
box. A file name (today’s date and time) and folder
(My Pictures) is automatically suggested. Just press
Enter to save the picture. If you want to save the
picture somewhere else or with another name you
can manually change this.
F6 View stored snapshots
Press the button F6 to view the stored pictures. Mark
the picture and press Enter or choose open. The
picture is normally opened in the standard picture
viewing program in Windows, where you can, for
example, magnify the picture.
F8 Preset split modes
Press the button F8 several times to toggle between
the preset split modes. The window can also be
controlled by the mouse or the standard Windows
commands (see next page).

437018h_User’s manual MLS Student Classic 15
F9 Information and settings window
Pressing F9 opens up a window in which you can
optimize your MLS. The window contains four different
headings (see Information and settings window below).
F11 Return to default settings
Press F11 to return to default settings (normal
window, natural colours, normal brightness)
Arrow left Decrease brightness
Arrow right Increase brightness
Buttons on Increase/Decrease magnification
camera housing
Ctrl + R Rotates the camera picture
Each time you press this key combination the picture
rotates 90° (90°, 180°, 270°, 360°)
Ctrl + C Disable CCTV interface
The CCTV interface mode is activated as default,
which makes the MLS compatible with ZoomText
version 9.04 and Supernova/ Lunar/Lunarplus 7.01.
When working with older versions of these software,
we recommend disabling the CCTV interface.
Ctrl + Alt + S Global hotkey (fast activating of MLS software)
(You could change this by right clicking the MLS icon on
the desktop and changing the letter)

437018h_User’s manual MLS Student Classic 16
Information and settings window
The information and settings window consist of five different headings
that all contain either application information or application settings
options.
Application Settings:
Enable CCTV interface:
Enabling this feature allows you to work with the MLS together with
screen magnification software from Dolphin and AiSquared. MLS is
compatible with ZoomText version 9.04 and Supernova/Lunar/Lunarplus
7.01 and newer. When working with older versions of these software’s,
we recommend disabling the CCTV interface.
Enable Automatic Updates:
MLS will automatically search for new versions of the MLS software. You
can choose to disable the automatic search for updates and instead
choose to do it manually. (NOTE: Both these actions require that you are
connected to the Internet). To update the software you will need to insert
the MLS software CD into your CD drive.
About:
Under this heading you will find the version number of your software and
information regarding copyright law.
Modification Settings
Under this heading reside the rotation alternatives for the camera image,
MLS supports rotation of the camera image in the following angles: 0°,
90°, 180° and 270°.
Basic Settings:
Allow you to adjust brightness, contrast and sharpness of the camera
image. (NOTE: These features are advanced and randomly changing
them may result in low image quality. LVI therefore recommends not to
change these settings).

437018h_User’s manual MLS Student Classic 17
MS Windows Commands
The window can be controlled by the mouse or the standard MS
Windows commands. The most common Windows commands in
connection with MLS Student Classic are presented below. For more
information about MS Windows, please consult your User’s manual.
Switch between open applications
Press "Alt" + "Tab"
Switch between full screen (maximized window) and normal window
With the mouse:
Click on the "Restore" icon in the upper right corner of the window
(between maximize and minimize).
With the keyboard:
Press "Alt" + "Spacebar" and the application control menu opens.
Choose "Restore" in the menu to go to normal window. Choose
"Maximize" to go to full screen.
Change size of the window
Make sure you are in the normal window mode (se above).
With the mouse:
Use the mouse to pull each side of the window to the preferred position.
With the keyboard:
Press "Alt" + "Space" and choose "Change size" in the application
control menu. Set the preferred size of the window by using the arrow
keys.
Ex. 1:
To change the height of the window: Start by pressing the “down arrow”
key in order to move the bottom of the window and set the preferred
position with the “up arrow” key.
Ex. 2:
To change the width of the window: Start by pressing the “left arrow” key
in order to move the left side of the window and then set the preferred
position with the “right arrow” key.

437018h_User’s manual MLS Student Classic 18
Accessories
•Laptop bag with space enough for a 15” laptop and the MLS Student
Classic
•Laptop rucksack with space enough for a 15” laptop and the MLS
Student Classic
•MLS Reading Table (MLSRT), portable reading table
•USB lamp which is powered from a USB port and gives extra light in
dark rooms
Technical specifications
Magnification range 1,3 - 48 x (12,1” monitor)
1,4 - 51 x (14,1” monitor)
1,5 - 55 x (15,1” monitor)
Power consumption 5 W
Weight 1,4 kg
Dimensions in use 300 x 100 x 330 mm (W x D x H)
Operation temperature 0 to 30°C (32 to 86°F)
Storage and
transport temperature -20 to 60°C (-4 to 140°F)
Disposal of old Electrical & Electronic Equipment
(Applicable throughout the European Union and other
European countries with separate collection programs)
This symbol, found on your product or on its packaging,
indicates that this product should not be treated as household
waste when you wish to dispose of it. Instead, it should be
handed over to an applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences to the environment and human health, which
could otherwise be caused by inappropriate disposal of this
product. The recycling of materials will help to conserve natural
resources. For more detailed information about the recycling of
this product, please contact your local city office, household
waste disposal service or the retail store where you purchased
this product.
