LYNC CH0020-US User manual

1
LYNC
Battery Pack 18V
CH0020-US

2
Contents Page
Over View ad Features---------------------------------------- 3
Safety Instruction------------------------------------------------ 4
Technical Data--------------------------------------------------- 5
Operations-------------------------------------------------------- 6
Trouble shooting------------------------------------------------- 9
Disposal------------------------------------------------------------10

3
Overview and Features
1. Battery pack
2. Battery release button
3. Battery level button
4. Battery power indicate lights
5. Charger
6. Green LED
7. Red LED
2
3
4
1
5
6
7

4
Safety Instructions
Please note the included General Safety Notes and following
safety notes to avoid malfunctions, damage or physical injury:
Batteries:
WARNING: Improper battery use may result in a fire, explosion, or
other hazard.
WARNING: The battery fluid may cause personal injury or damage
to property. In case of skin contact, immediately rinse with water. If
redness, pain or irritation occurs seek medical attention. In case if
eye contact, rinse immediately with clean water and seek medical
attention.
Never attempt to open for any reason.
Do not expose the battery to water.
Do not expose the battery to heat.
Do not store in location where the temperature may exceed
40°C.
Keep batteries away from children.
Charge only at ambient temperatures between 10°C and
40 °C.
Use power tools only with specifically designated battery
packs, Use of any other battery packs may create a risk of
injury and fire.
When disposing of batteries. Follow the instructions given in
the section “Disposal”.
Do not damage/deform the battery pack either by puncture or
impact, as this may create a risk of injury and fire.
Do not charge damaged batteries.
Take special care of the battery. Avoid dropping in onto any
hard surface and do not subject it to pressure or any other
form of mechanical stress. Keep the battery away from
extreme heat and cold.
Important Danger! Never short-circuit the battery or expose it
to moisture. Do not store it together with any metal parts which
could short-circuit the contacts. The battery could overheat,
start burning or explode.
Under extreme conditions, battery leakage may occur. When you
notice liquid on the batteries, proceed as follows: Carefully wipe

5
the liquid off using a dry cloth, Avoid skin contact. In case of skin or
eye contact, follow the instructions above.
Chargers
Your charger has been designed for a specific voltage. Always
heck that the mains voltage corresponds to the voltage on the
rating plate.
WARNING:
When not in use and before cleaning and servicing, disconnect
the battery charger from the power supply.
Never attempt to replace the charger unit with a regular mains
plug.
Use your charger only to charge the battery in the
appliance/tool with which it was supplied. Other batteries could
burst, causing personal injury and damage.
Never attempt to charge non-rechargeable batteries
If the supply cord is damaged it must be replaced by the
manufacturer or an authorized Service Center in order to avoid
a hazard.
Do not expose the charger to water.
Do not open the charger.
Do not probe the charger.
The appliance/tool/battery must be placed in a well ventilated
area when charging.
The charger is intended for indoor use only.
Technical Data
Battery type……………………………………...Li-Ion
Battery capacity (# )…………………………..2.0Ah
Battery capacity (# )…………………………..4.0Ah
Rated voltage……………………………………18V
Discharging Temperature……………….. -10°C to 40°C
Storage Temperature…………………..…- 20°C to 60°C
Work Humidity………………………………10 to 80 RH

6
Operations
Operation of the Lithium-Ion Batteries
Lithium-ion batteries share many characteristics with conventional
batteries. The major difference is that Lithium-ion batteries do not
have a “memory” and do not require to be completely discharged
periodically. It is recommended to charge Lithium-ion batteries
after each use so that will be fully charged when needed.
Lithium-ion batteries perform best and deliver peak output power at
room temperature. When operated in lower temperature, the
battery output will be reduced.
Note: A fully charged battery will loose about 2% of its charger per
month during storage.
Before Use
The battery must be charged before using it for the first time.
Removing the Battery from the Machine
1. Press the battery release button and
2. Pull the battery out of the machine
WARNING: do not try to remove the battery without pressing the
battery release button. The drill or battery could be damaged.

7
Inserting the Battery into the Machine
Ensure that the exterior of the battery is clean and dry before
connecting to the charger or machine.
1. Insert the battery into the machine accepting guiding
slot
2. Push the battery all further forward until it clicks into
place.
Note: Make sure the battery and machine are lined up correctly. If
the battery does not slide onto the machine easily, do not force it.
Instead, remove the battery; check the top of the battery and the
machine slot are clean and undamaged and that the contacts are
not bent.
Charging the Battery
WARNING: Failure to follow the correct procedure when charging
batteries will result in permanent damage.
1. Plug the charger into an electrical outlet. The green LED
flash indicating ready to charge
2. Slide the battery onto the battery charger
3. Once the charging commences, the green LED will stop
flash and turn to solid on and then red LED will flash.
4. Red LED will stop flash and green LED keep solid on
indicates full charged.

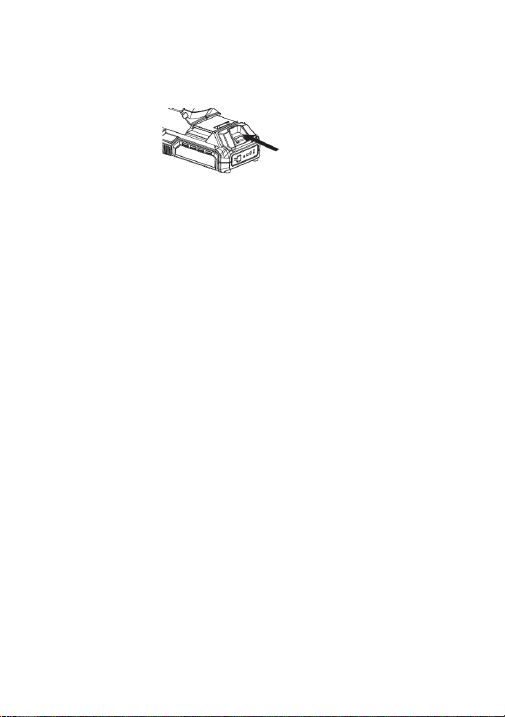

Battery Charge Level
The battery has a built-in charge indicator. Pressing on battery
level button (3) to the left will indicate the charge level. The right
LED indicates a high charge level and the left a low charge level
that will mean the battery pack will require charging soon.

8
IMPORTANT: When a low charge level is indicated be aware the
tool may stop operating while using the tool. In some instances this
may dangerous. It is recommended to always ensure the battery
pack has a good charge level.
Notes about Battery Charging
Let a hot battery cool down before charging it. Rest the battery
for 30 minutes after use will cool down.
The battery should be charged at ambient temperatures
between 10°C and 40°C (Ideally around 20°C)
After charging, allow 15 minutes for the battery to cool before
use.
Ensure that the charger is disconnected from the mains supply
after use, and is stored correctly.
Do not leave batteries on charge for extended periods and
never store batteries on charge.
The battery charger monitors battery temperature and voltage
while charging. Remove the battery once charging has been
completed to maximize charge cycles of the battery and not
waste power.
Do not store Lithium-Ion battery packs in a discharged state
long term. This can damage the Lithium-Ion cells. For long-
term storage, store batteries in a high charge state
disconnected from the power tool.
The capacity of batteries will reduce over time. After 100 charge
cycles, the battery’s operation time and maximum torque
performance of the tool will slightly reduce. This decline will
continue until the battery has minimal capacity after 500 charge
cycles. This is normal and not a fault with the battery pack.

9
Trouble Shootings

10
Disposing of Packing
Dispose of packaging according to type. Sort the
paperboard and cardboard as waste paper and the film as
recycle material.
Disposing of Batteries
Batteries and rechargeable batteries must not go in
domestic waste!
As a consumer you are legally obliged to dispose of all batteries,
irrespective of whether they contain harmful substance* or not, at a
collection point I your community/district of in an environmentally
friendly manner.
