1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a is a prerequisite for safe, trouble-free
handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the product.
• Always keep the operating instructions with the product and make sure that the operating instructions
are with the product when it is given to other persons.
1.2 Explanation of signs used
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the product. The following signal words
are used in combination with a symbol:
DANGER! Draws attention to imminent danger that will lead to serious personal injury or fatality.
WARNING! Draws attention to a potential hazard that could lead to serious personal injury or
fatality.
CAUTION! Draws attention to a potentially dangerous situation that could lead to slight personal
injury or damage to the equipment or other property.
1.2.2 Symbols
The following symbols are used:
Read the operating instructions before use.
Instructions for use and other useful information
Protection class II (double-insulated)
For indoor use only
1.2.3 Illustrations
The following symbols are used in illustrations:
These numbers refer to the corresponding illustrations found at the beginning of these operating
instructions.
Item reference numbers are used in the overview illustration and refer to the numbers used in
the product overview section.
1.3 Product information
Hilti products are designed for professional use and may be operated, serviced and maintained only by
trained, authorized personnel. This personnel must be informed of any particular hazards that may be
encountered. The product and its ancillary equipment may present hazards when used incorrectly by
untrained personnel or when used not as directed.
▶Make a note in one of the following tables of the designation and serial number printed on the type
identification plate.
▶Always quote this information when you contact a Hilti representative or Hilti Service to enquire about
the product.
PSA 80, PSA 81, PSA 82 and PSA 83 product information
Battery PSA 80
PSA 81
PSA 82
PSA 83
Generation 01
Serial no.
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
2 English
PSA 81 Product information
Battery PSA 81
Generation 02
Serial no.
PSA 81 Product information
Battery PSA 81
Generation 05
Serial no.
PSA 85, PUA 80 and PUA 85 19V product information
Charger PSA 85
PUA 80
PUA 85 19V
Generation 01
PUA 81 Product information
AC adapter PUA 81
Generation 01
PUA 82 Product information
Motor vehicle power
adapter
PUA 82
Generation 01
1.4 Declaration of conformity
We declare, on our sole responsibility, that the product described here complies with the applicable directives
and standards. A copy of the declaration of conformity can be found at the end of this documentation.
The technical documentation is filed and stored here:
Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistraße 6 | 86916 Kaufering, DE
2 Safety
2.1 Additional safety instructions
Personal safety
▶Modification of the tool is not permitted.
▶Do not use force when inserting the batteries in the tool.
▶The tool is not intended for use by debilitated persons who have received no special training. Keep the
tool out of reach of children.
▶Store tools in a secure place when not in use. When not in use, tools must be stored in a dry, high place
or locked away out of reach of children.
▶Ensure that the tool and the AC adapter do not present an obstacle that could lead to a risk of tripping
or personal injury.
▶Do not expose the supply cords to heat, oil or sharp edges.
▶Never operate the appliance when it is dirty or wet. Dust (especially dust from conductive materials)
or dampness adhering to the surface of the appliance may, under unfavorable conditions, lead to
electric shock.
▶Remove the battery if the tool is to remain unused for a long period of time.
Electrical
▶Although the device complies with the strict requirements of the applicable directives, Hilti cannot
entirely rule out the possibility of interference to the device caused by powerful electromagnetic radiation,
possibly leading to incorrect operation.
Cleaning and drying the tool
▶Clean the tool with a clean, soft cloth. If necessary, moisten the cloth slightly with pure alcohol or a little
water.
▶Do not use any liquids other than pure alcohol or water as these may damage the plastic components.
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
English 3
2.2 Use and care of battery-powered tools
▶Use only the Hilti batteries specified for use with this product.
▶Observe the special guidelines applicable to the transport, storage and use of Li-ion batteries.
▶Check that the product is switched off before fitting the battery.
▶Do not expose batteries to high temperatures, direct sunlight or fire.
▶Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 75°C
(167°F).
▶Do not attempt to charge or continue to use damaged batteries.
▶If the battery is too hot to touch it may be defective. In this case, place the tool in a non-flammable
location, well away from flammable materials, where it can be kept under observation and allowed to
cool down. Contact Hilti Service after the battery has cooled down.
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
4 English
3 Description
3.1 Accessories
@Battery PSA 81 ;AC adapter PUA 81
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
English 5
=Battery PSA 82
%Charger PSA 85
&Battery PSA 83
(PUA 82 motor vehicle power adapter
)Charger PUA 85 19V
+Battery PSA 80
3.2 Intended use
Use the PSA 80 only to power the Hilti PS 200 S Ferroscan and the PS 200 M monitor. Charge the PSA 80
battery with the PUA 80 charger.
Use the PSA 81 battery only to power the Hilti PS 1000 X-Scans. Charge the PSA 81 (01 and 02) battery
only with the PUA 81 AC adapter or the PUA 82 motor vehicle power adapter. Charge the PSA 81 (05) with
the PUA 85 19V charger or the PUA 81 AC adapter.
Use the PSA 82 battery to power the Hilti PSA 100 monitor. Charge the battery in the tool using the PUA 81
AC adapter or the PUA 82 motor vehicle power adapter. Alternatively, you can use the PSA 85 charger to
charge the PSA 82 battery when it is not in the tool.
Use the PSA 83 battery to power the Hilti PSA 200 tablet. Use the PUA 85 19V charger to charge the battery
while fitted.
Use the PSA 85 charger to charge the PSA 82 battery.
Use the PUA 80 charger to charge the PSA 80 battery.
Use the PUA 81 AC adapter to charge the PSA 81 (01, 02 and 05) battery, the PSA 82 battery when it is in
the PSA 100 monitor (when switched off or in operating mode) and the PRA 84 battery.
Use the PUA 82 motor vehicle power adapter to charge the PSA 81 (01, 02 and 05) battery, the PSA 82
battery when it is in the PSA 100 monitor (when switched off or in operating mode) and the PRA 84 battery.
Use the PUA 85 19V charger to charge the PSA 81 battery (01, 02 and 05) and to charge the PSA 83 battery
in the PSA 200 tablet.
3.3 Foreseeable faults
Do not use the battery as a power source for other unspecified appliances.
Do not use the device where there is a risk of fire or explosion.
3.4 Charging status display on the PUA 80 charger
PUA 80
Status Meaning
1 LED lights red. • The battery is charging.
LED 1 blinks red • The battery is fully charged.
1 LED lights green. • The charger or the battery is not in working
order.
LED 1 blinks green • The battery is not charging.
3.5 Battery charge status indicator PSA 81
PSA 81
The PSA 81 battery is equipped with 5 LEDs that indicate the state of charge. To display the current state
of charge, press the button on the top of the battery. Up to 4 green LEDs then light for a few seconds; the
more LEDs that light, the better is the battery’s state of charge.
Status Meaning
4 LEDs light green. • State of charge: 75 % to 100 %
3 LEDs light green. • State of charge: 50 % to 75 %
2 LEDs light green. • State of charge: 25 % to 50 %
1 LED lights green. • Charge status: < 25 %
1 LED lights red. • Error
Note
The fault may be remedied by charging the battery. If charging does not remedy the fault, the battery
must be replaced.
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
6 English
The error message can have the following causes:
• Voltage too high
• Short circuit
• Voltage too low
• Temperature is outside the charging temperature range
• Wrong charger is connected
• Electronic fault
While charging, the LEDs show the following statuses:
Status Meaning
3 LEDs light, 1 LED blinks. • State of charge: 75 % to 100 %
2 LEDs light, 1 LED blinks. • State of charge: 50 % to 75 %
1 LED lights, 1 LED blinks. • State of charge: 25 % to 50 %
1 LED blinks. • Charge status: < 25 %
Note
The PSA 81 (01 and 02) battery may be charged only with the PUA 81 AC adapter.
The PSA 81 (05) battery can be charged either with the PUA 81 AC adapter or the PUA 85 19V charger.
3.6 PSA 82 battery charging status display on the PSA 100 monitor
PSA 82
PUA 81
The charging LED can have the following statuses:
Status Meaning
1 LED lights green. • The battery is fully charged.
LED 1 blinks green • The battery is charging
No LED lights while in operating mode • The battery is discharging.
3.7 Charging status display on the PSA 82 battery when charging with the PSA 85 charger
PSA 82
PSA 85
The charging LED can have the following statuses:
Status Meaning
1 LED lights green. • The battery is fully charged.
1 LED lights orange. • The battery is charging.
1 LED lights red. • State of charge: < 25 %
4 Technical data
4.1 Battery technical data
PSA 80 PSA 81 (01 and 02) PSA 81 (05)
Type NiMH Liion Liion
Rated voltage 9.6 V 7.4 V 7.4 V
Operating voltage •/• 6 V …8.4 V 6.5 V …8.4 V
Input voltage •/• 12 V 12 V …19 V
Capacity 200 mAh 5,200 mAh 5,000 mAh
Charging time 3 h 3 h 3 h
IP protection class 54 56 56
Operating temperature 0 ℃ …40 ℃ −15 ℃ …50 ℃ −20 ℃ …50 ℃
Storage temperature (dry) •/• −25 ℃ …60 ℃ −20 ℃ …50 ℃
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
English 7
PSA 80 PSA 81 (01 and 02) PSA 81 (05)
Charging temperature 0 ℃ …40 ℃ 0 ℃ …40 ℃ 0 ℃ …40 ℃
Weight 0.3 kg 0.3 kg 0.3 kg
Min. number of charging cy-
cles
500 (typically) •/• •/•
PSA 82 PSA 83
Type Liion Liion
Rated voltage 7.4 V •/•
Operating voltage 4.3 V 10.8 V
Input voltage •/• 11 V …36 V
Capacity 4,800 mAh 9,000 mAh
Charging time 3 h 5 h
IP protection class 56 •/•
Operating temperature −15 ℃ …60 ℃ 0 ℃ …55 ℃
Storage temperature (dry) −25 ℃ …60 ℃ −40 ℃ …70 ℃
Charging temperature 0 ℃ …45 ℃ 0 ℃ …40 ℃
Weight 0.24 kg 0.56 kg
Min. number of charging cy-
cles
•/• •/•
4.2 Charger / AC adapter technical data
PUA 80 PUA 81 PUA 82
Rated supply current 100 V …240 V 115 V …230 V •/•
AC frequency 50 Hz …60 Hz 47 Hz …63 Hz •/•
Rated power •/• 36 W 36 W
Rated voltage •/• 12 V 12 V
IP protection class •/• 56 54
Operating temperature 0 ℃ …40 ℃ 0 ℃ …40 ℃ 0 ℃ …40 ℃
Storage temperature (dry) −30 ℃ …85 ℃ −25 ℃ …60 ℃ −20 ℃ …85 ℃
Charging temperature •/• 0 ℃ …40 ℃ 0 ℃ …40 ℃
Weight 0.36 kg 0.23 kg 0.24 kg
PUA 85 19V PSA 85
Rated supply current 115 V …230 V 100 V …240 V
AC frequency 50 Hz …60 Hz 47 Hz …63 Hz
Rated power 65 W 40 W
Rated voltage 19 V 8.4 V
IP protection class •/• 56
Operating temperature 0 ℃ …40 ℃ −20 ℃ …40 ℃
Storage temperature (dry) −20 ℃ …75 ℃ −25 ℃ …85 ℃
Charging temperature 0 ℃ …40 ℃ 0 ℃ …45 ℃
Weight 0.23 kg 0.54 kg
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
8 English
5 Operation

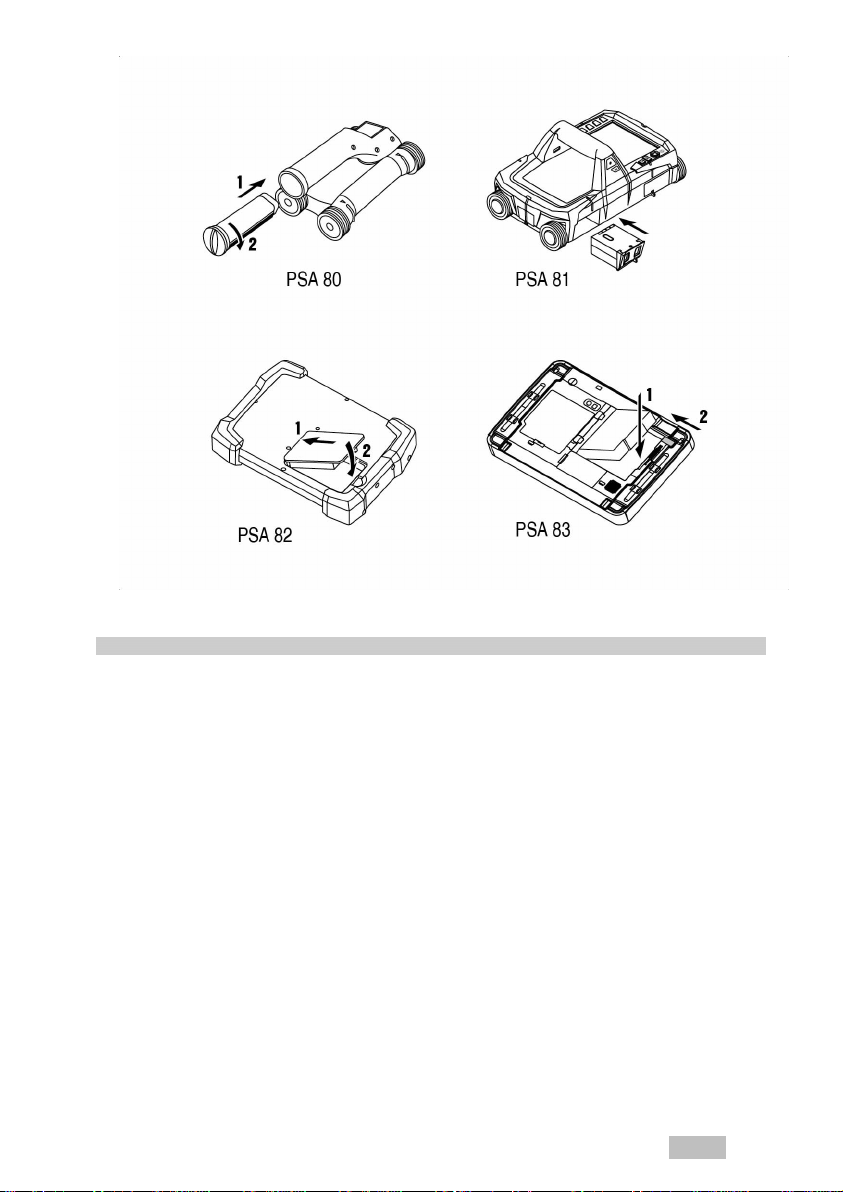

5.1 Inserting the battery
PSA 80
▶Hold the battery end cap so that it is facing you and the large groove on the battery is on the left.
▶Slide the battery into the battery compartment.
▶Turn the end cap clockwise until it engages.
PSA 81
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
English 9
▶Push the battery in until it engages securely.
▶Check that the battery is securely seated in the tool.
PSA 82
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
10 English
▶Insert the battery at an angle into the battery compartment.
▶Push the battery into the battery compartment until it is heard to engage.
▶Check that the battery is securely seated in the tool.
PSA 83
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
English 11
▶Insert the end of the battery in the battery compartment.
▶Push the battery into the battery compartment until it is heard to engage.
▶Push the small slider on the back toward the battery compartment.
▶Check that the battery is securely seated in the tool.

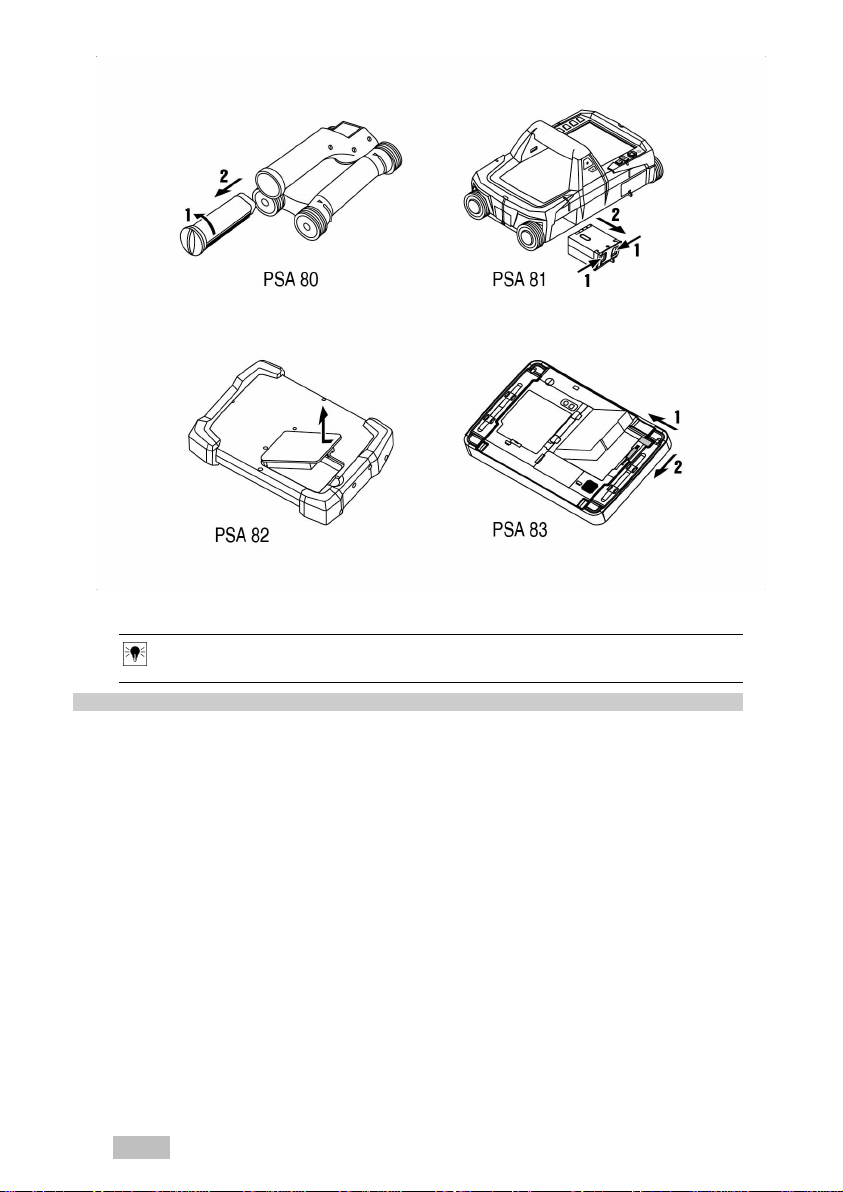

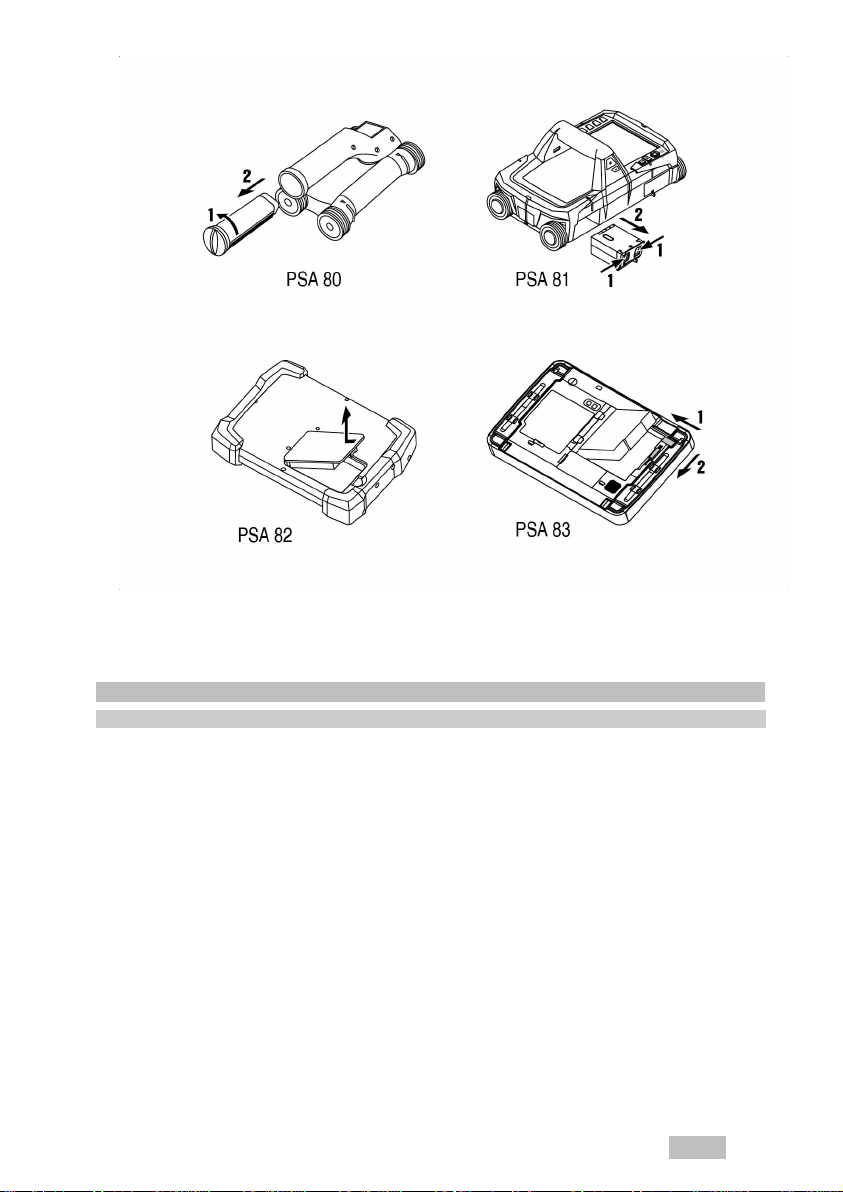

5.2 Removing the battery
PSA 80
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
12 English
▶Turn the end cap counterclockwise.
▶Remove the battery from the tool.
Note
Remove the battery only when the tool is switched off. Data may otherwise be lost.
PSA 81
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
English 13
▶Push the catch together.
▶Remove the battery.
Note
Remove the battery only when the tool is switched off. Data may otherwise be lost.
PSA 82
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
14 English
▶Press the spring catch in.
▶Remove the battery.
Note
The battery can be exchanged while the tool is in operation. The built-in backup battery is
capable of powering the tool for approx. 5 minutes.
PSA 83
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
English 15
▶Push the small slider on the back away from the battery compartment.
▶Push the large slider toward the small slider.
◁The battery is lifted.
▶Remove the battery.

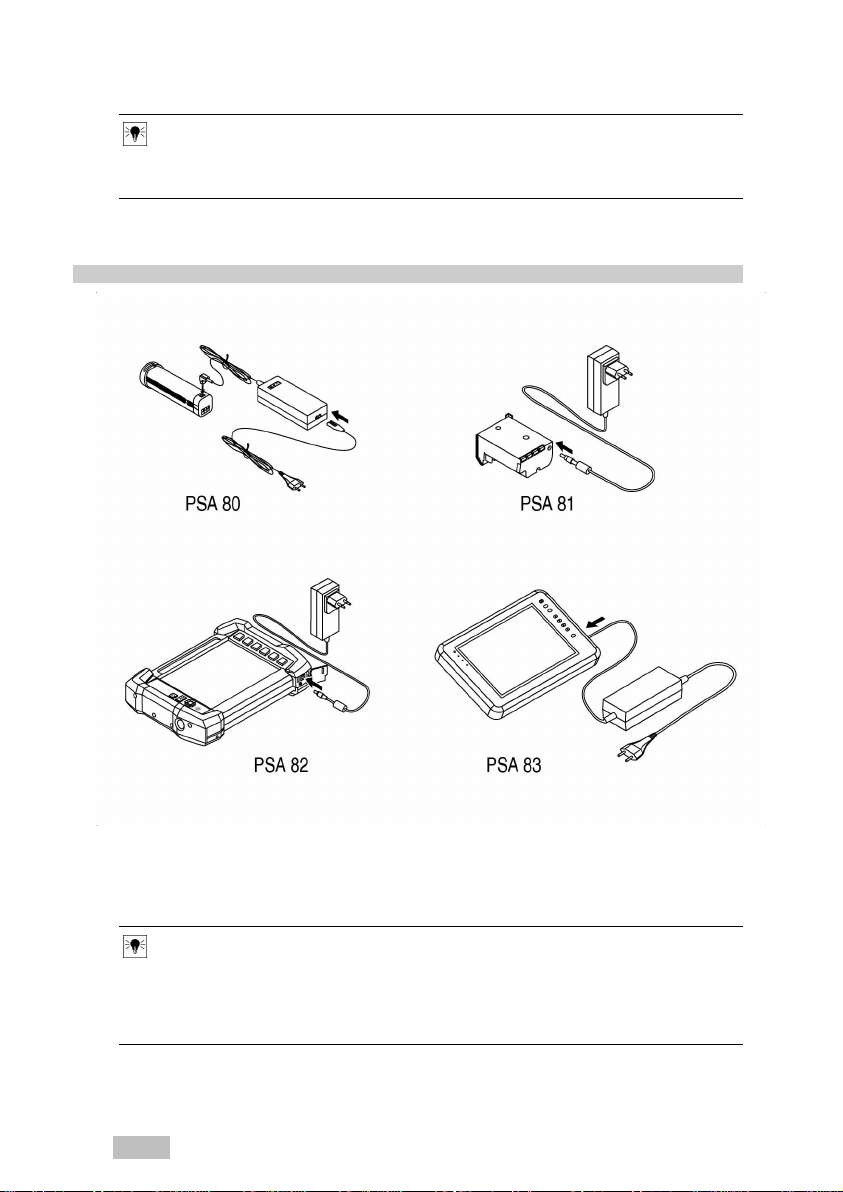

5.3 Charging the battery
PSA 80
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
16 English
▶Make sure the system to be charged is standing securely.
▶Remove the battery. → page 11
▶Connect the supply cord and the battery to the PUA 80 charger.
◁The battery is charging
Note
Charge the battery for at least 14 hours before using it for the first time.
▶When the battery is fully charged, disconnect the battery from the charger.
▶Insert the battery in the tool. → page 8
PSA 81
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
English 17
▶Make sure the system to be charged is standing securely.
▶Remove the battery. → page 11
▶Connect the PUA 81 AC adapter to the battery.
◁The battery is charging
Note
Charge the battery for at least 2 hours before using it for the first time.
Alternatively, you can use the motor vehicle power adapter to charge the PUA 82 battery.
▶Press the button on the top of the battery.
◁Charge status is displayed
▶Insert the battery in the tool. → page 8
PSA 81 (05)
▶Make sure the system to be charged is standing securely.
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01

***** For internal use only ***** 18.08.2016 / 09:08:15 - H2\DOK-Projekt\System\PSA 80_81_82_85\ENU\PSA_PUA
18 English
▶Remove the battery. → page 11
▶Connect the PUA 85 19V charger to the battery.
◁The battery is charging.
Note
Charge the battery for at least 2 hours before using it for the first time.
Alternatively, you can use the PUA 82 motor vehicle power adapter or the PUA 81 AC adapter
to charge the battery.
▶Press the button on the top of the battery.
◁Charge status is displayed
▶Insert the battery in the tool. → page 8
PSA 82
▶Make sure the system to be charged is standing securely.
▶Insert the battery in the tool. → page 8
▶Open the charging cord socket on the upper side of the monitor.
▶Connect the PUA 81 AC adapter to the charging cord socket.
◁The battery is charging
Note
You can charge the PSA 82 battery in the tool no matter whether the tool is switched on or off.
Alternatively, you can charge the PSA 82 battery with the PSA 85 charger (available separately)
or with the PUA 82 motor vehicle power adapter. The PSA 85 charger is used to charge the
battery when it is not in the tool. The PUA 82 motor vehicle power adapter is used to charge
the battery when it is in the tool.
▶When the battery is fully charged, disconnect the AC adapter.
◁The LED lights green.
▶Close the charging cord socket.
Printed: 19.08.2016 | Doc-Nr: PUB / 5070470 / 000 / 01
