Lynx yellobrik OTX 1410 User manual

OTX 1410
12G, 6G, 3G, HD SDI to Fiber Optic Transmitter
12V 0V
⎓
Power
WARNING
CLASS 1
Laser Product
TX
SDI to Fiber Optic
Transmitter
LYNXTechnik AG
IN
LOOP
OUT
12G
6G/3G/1.5G
WARNING
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
SDI Video
Input
Loop
Output
DC Power
Input
LC/ST Fiber
Output
Technical Specications
SDI Video 1 x SDI video input with on 75 Ohm BNC connector
1 x Reclocked loop output on 75 Ohm BNC connector
SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
Multi-standard operation from 1.5Gbit/s to 12Gbit/s
Automatic cable EQ
260m @ 1.5Gbit/s, 150m @ 3Gbit/s (Belden 1694A cable)
80m @ 12Gbit/s, 6Gbit/s (Belden 4794R cable)
Optical
Output
1 x fiber optic output singlemode (SM) using LC or ST connection
(Module variants are named LC and ST for 10km, LC-40 for 40km )
SMPTE 297M - 2006
Wavelength: 1310nm
Optical power: -3dBm
TX active LED on side of module
Max. distance OTX 1410 LC/ST : ~10km (6.2 miles) @ 12Gbit/s
OTX 1410 LC-40 : ~40km (24.8 miles) @ 12Gbit/s
Power +12V DC @ 1.9W nominal (power supply included)
(supports 7 - 24V DC input range)
Power LED on side of module
WARNING: Module laser is active
as soon as power is connected,
regardless of LED indication
We are constantly adding more yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
TX Data
Present
Power
yellobrik
®
Quick
Reference
yellobrik
®
LYNX
Technik
AG
| Broadcast Television Equipment

Connections
The SDI input and reclocked SDI output are connected to the 75 Ohm
BNC connections. The ber connection is made to the ber SFP sub
module as indicated on the module. The 40km variant is only available
with an LC connector.
Note: The module is designed for use with SMF
(Singlemode) ber cable.
Use the included dust plug to protect the optical connection from dust.
Operation
The OTX 1410 supports all SDI video formats from 270Mbit/s to
12Gbit/s. The maximum distance supported is 10km (6.2 miles) for the
LC and ST versions, 40km (24.8 miles) for the LC-40 version. The TX LED
indicates data transmission activity on the side of the module.
Operation if fully automatic. The SDI input video format is automatically
detected and the video signal is reclocked and then transmitted
over the optical connection and the loop output. There are no user
adjustments for the module. The module supports hot swapping and
hot plugging of all connections.
Note: If the TX LED is OFF this indicates that no SDI input is present, or the input
signal is not valid.
Power
The module requires a clean 12V DC (7-24V DC) power source. An LED
is provided to conrm power is connected. A 12V DC power supply is
included with the module. If you are applying your own power source,
please provide a clean, 7-24V DC power source. Power consumption
information can be found in the technical specications table.

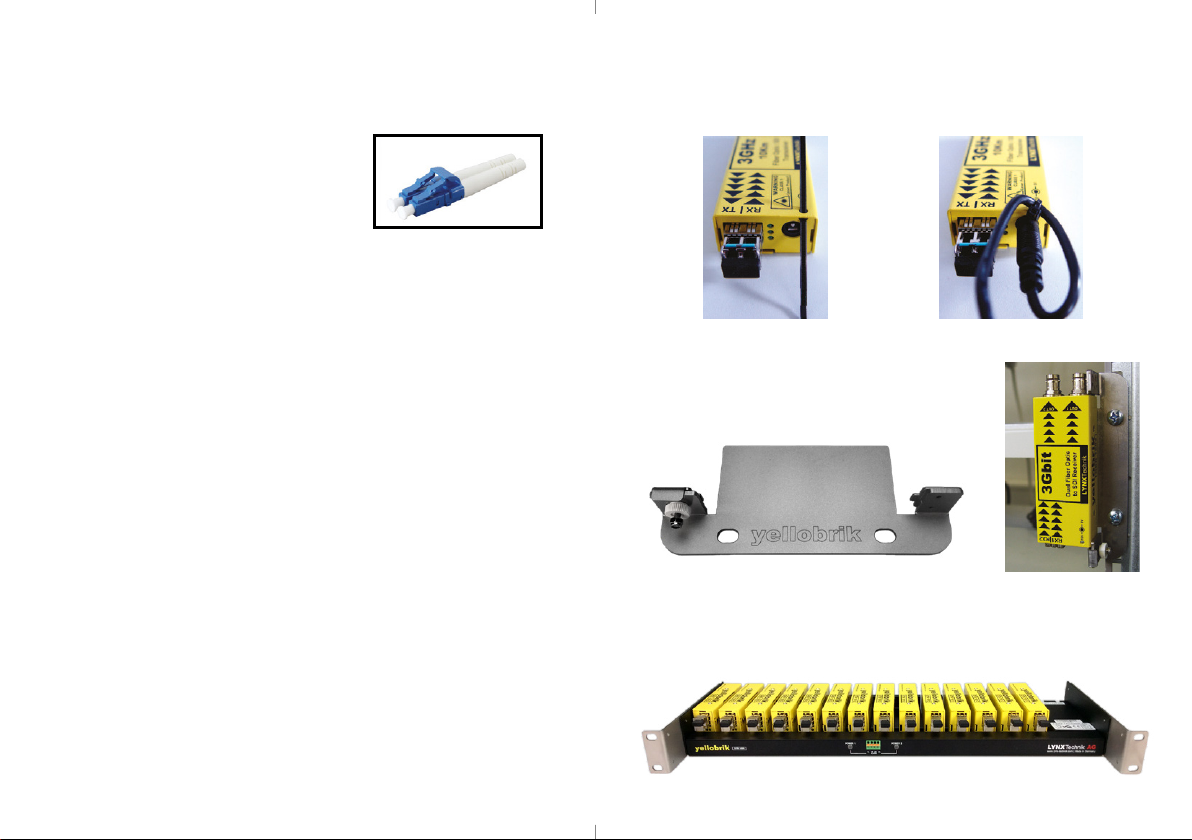

Power Lead Strain Relief
The module has a small hole in the case which is located above the
power connection. This prevents the power lead being accidentally
pulled out. Use the supplied tie-wrap and secure the lead as shown
below.
Optional Mounting Solutions
The optional RFR 1001 mounting bracket can be
used to permanently mount the module on any
surface or on 19”rack rails.
The optional RFR 1000-1 rack mount can be used to permanently
mount up to 14 yellobrik modules. In addition, the RFR 1000-1 can
provide full power redundancy for all mounted yellobriks.
Note: The OTX 1410 is identical in terms of mounting and securing.
